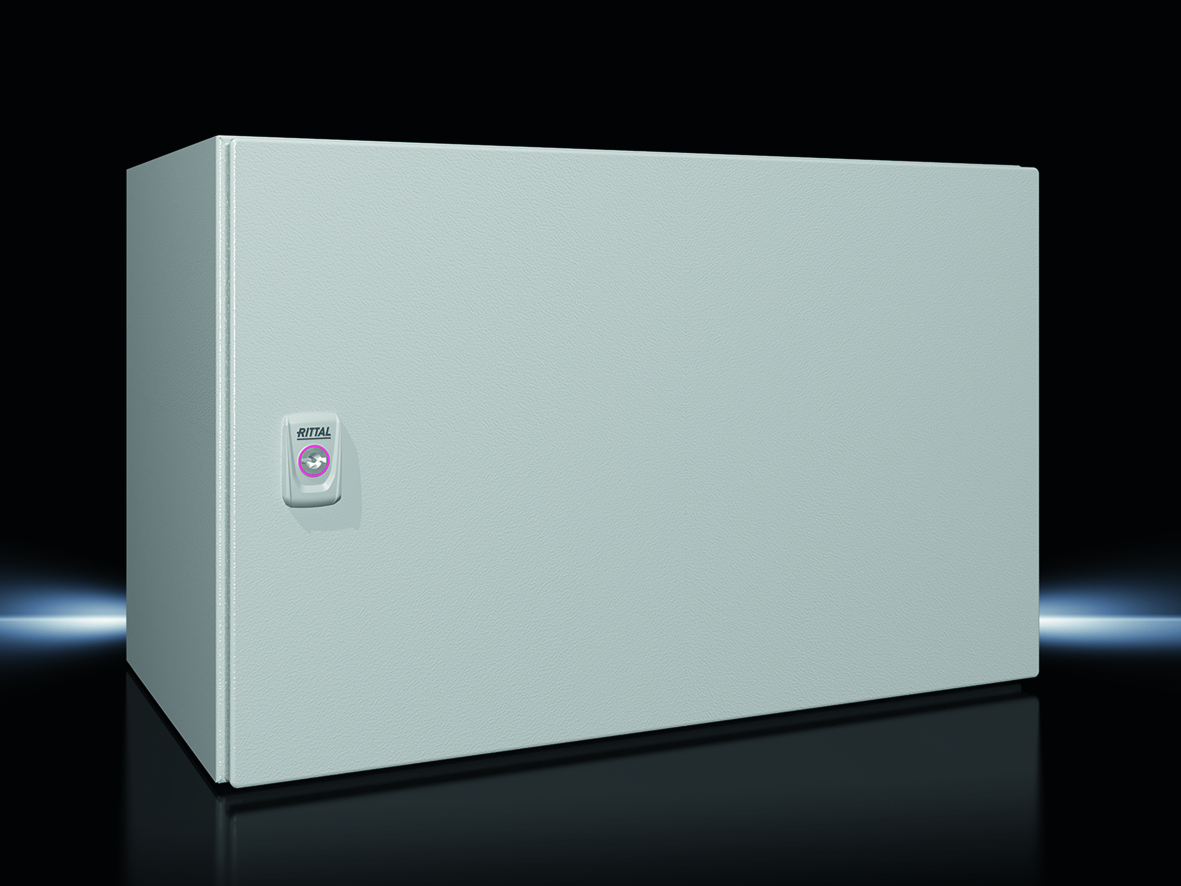

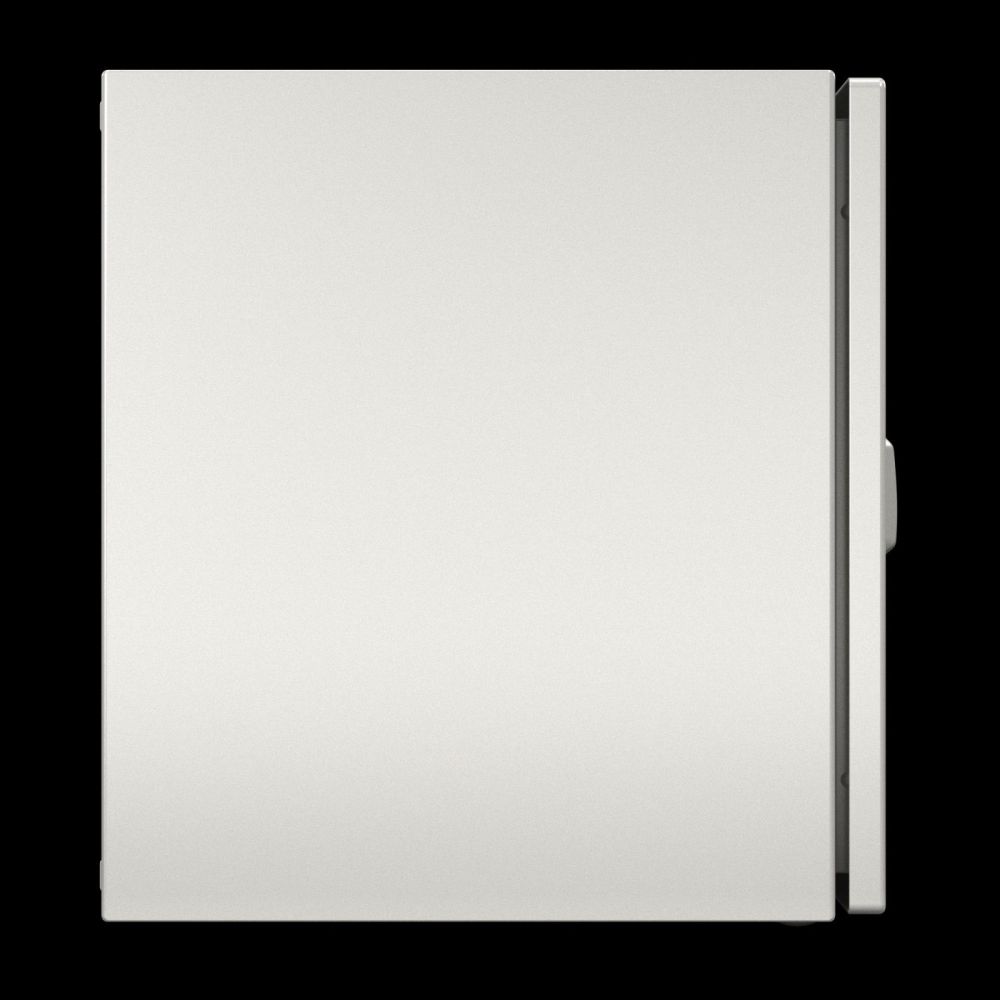

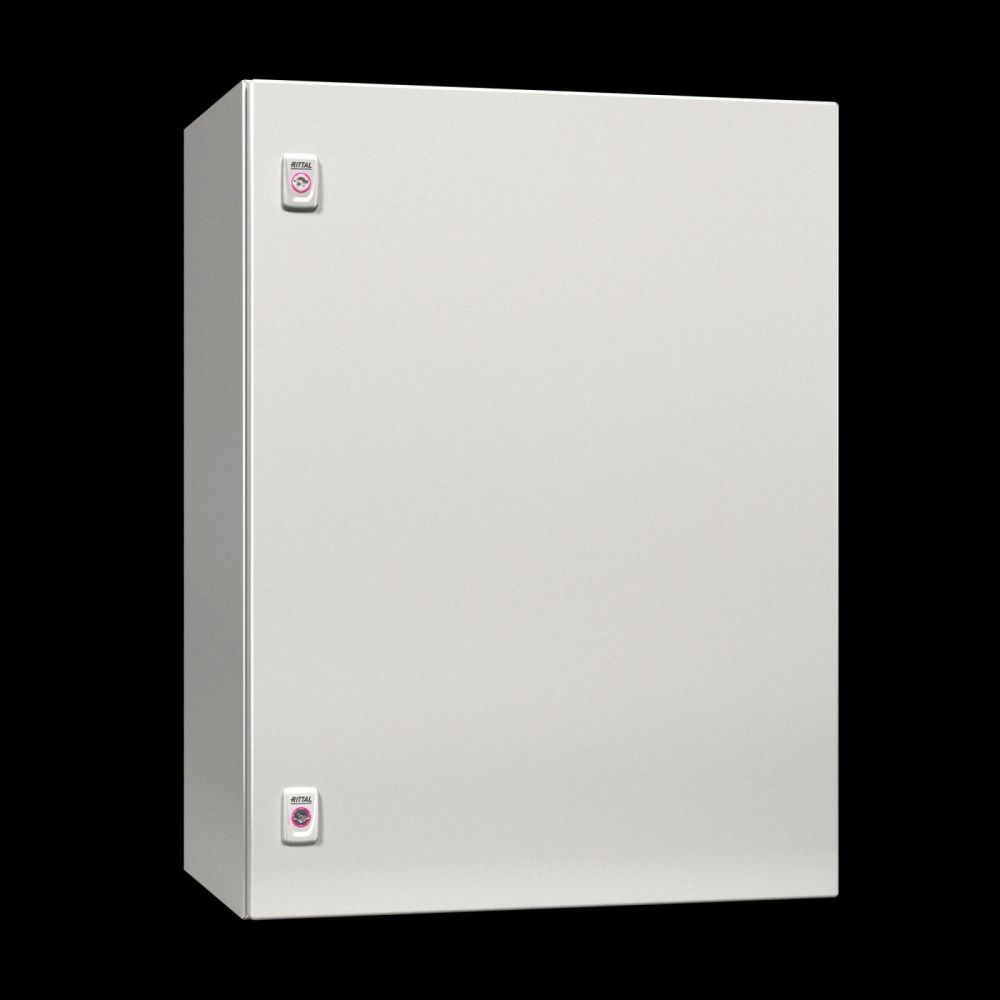

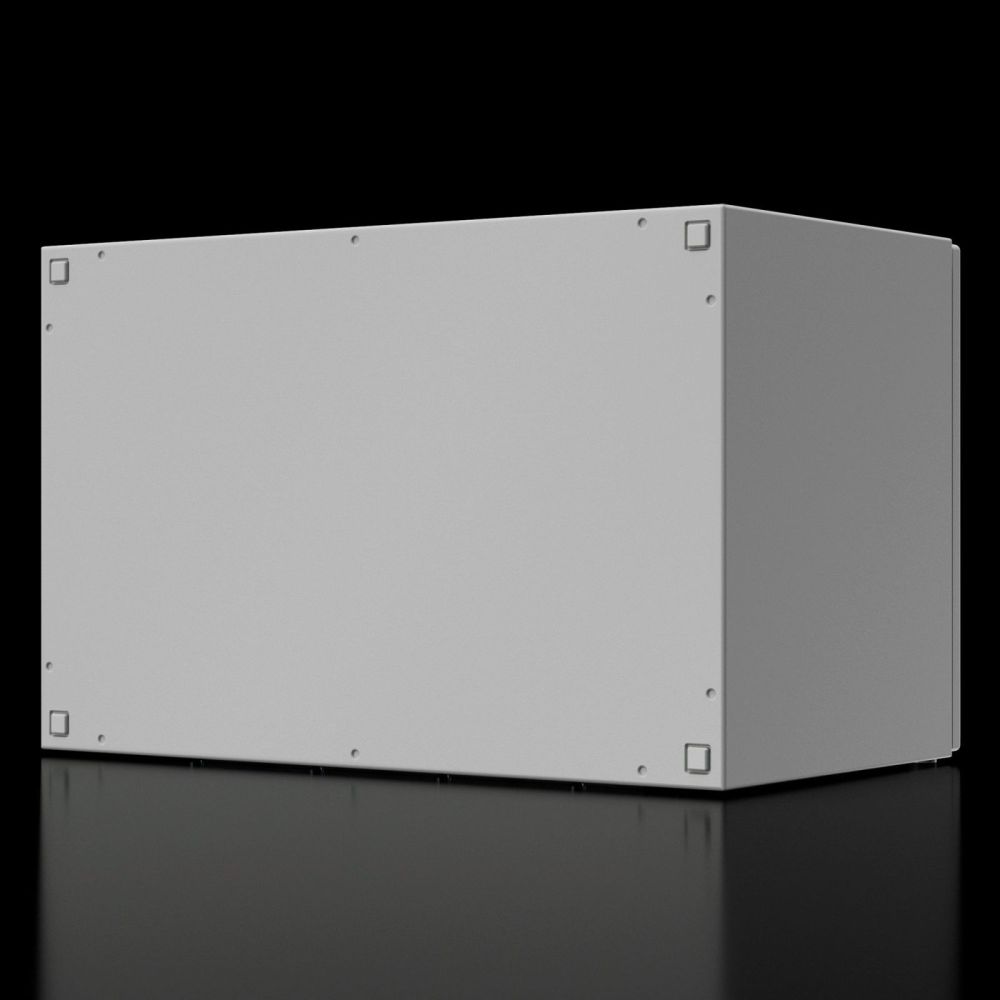

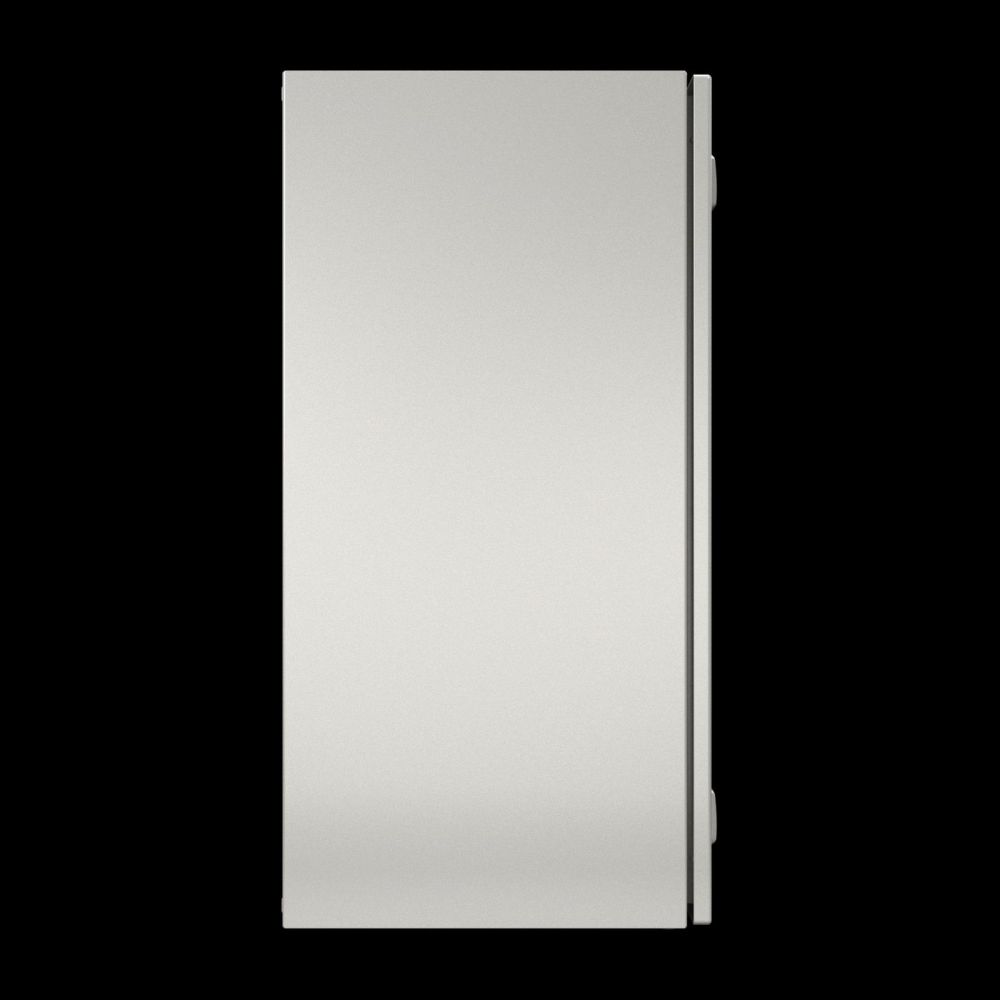

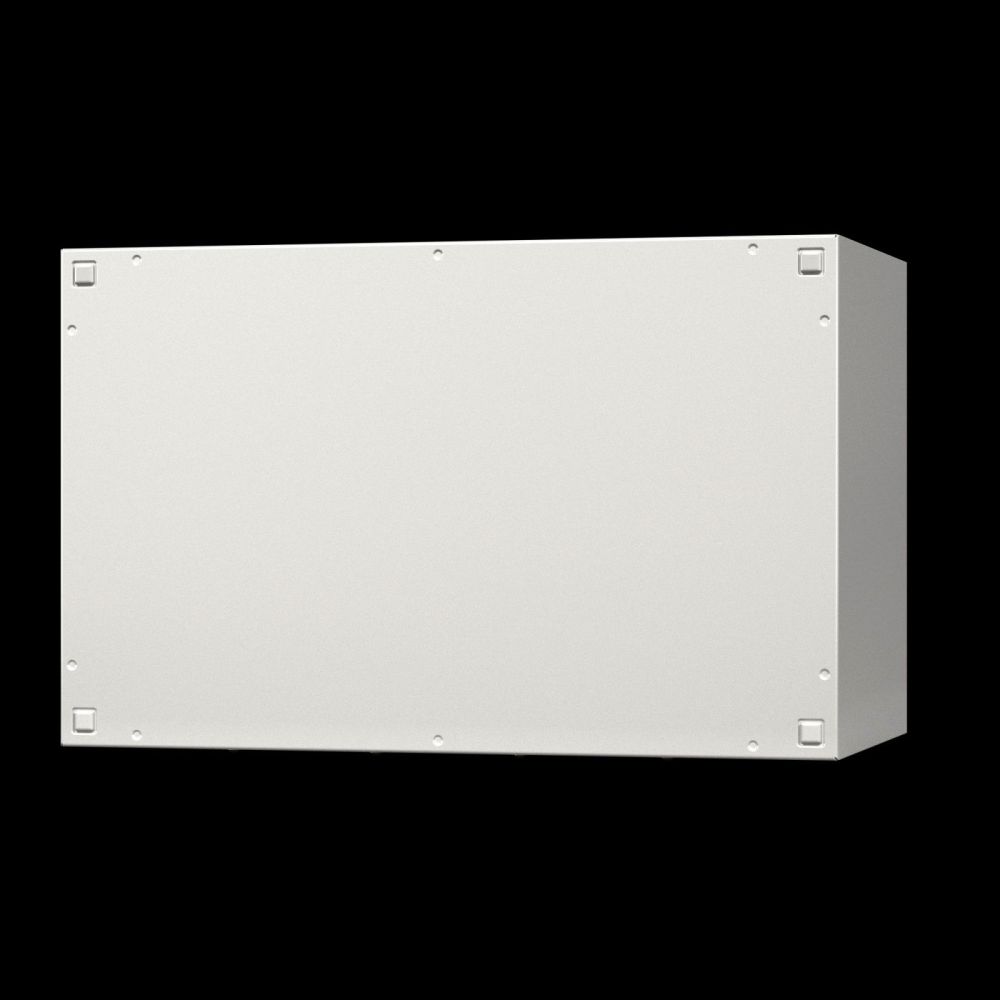

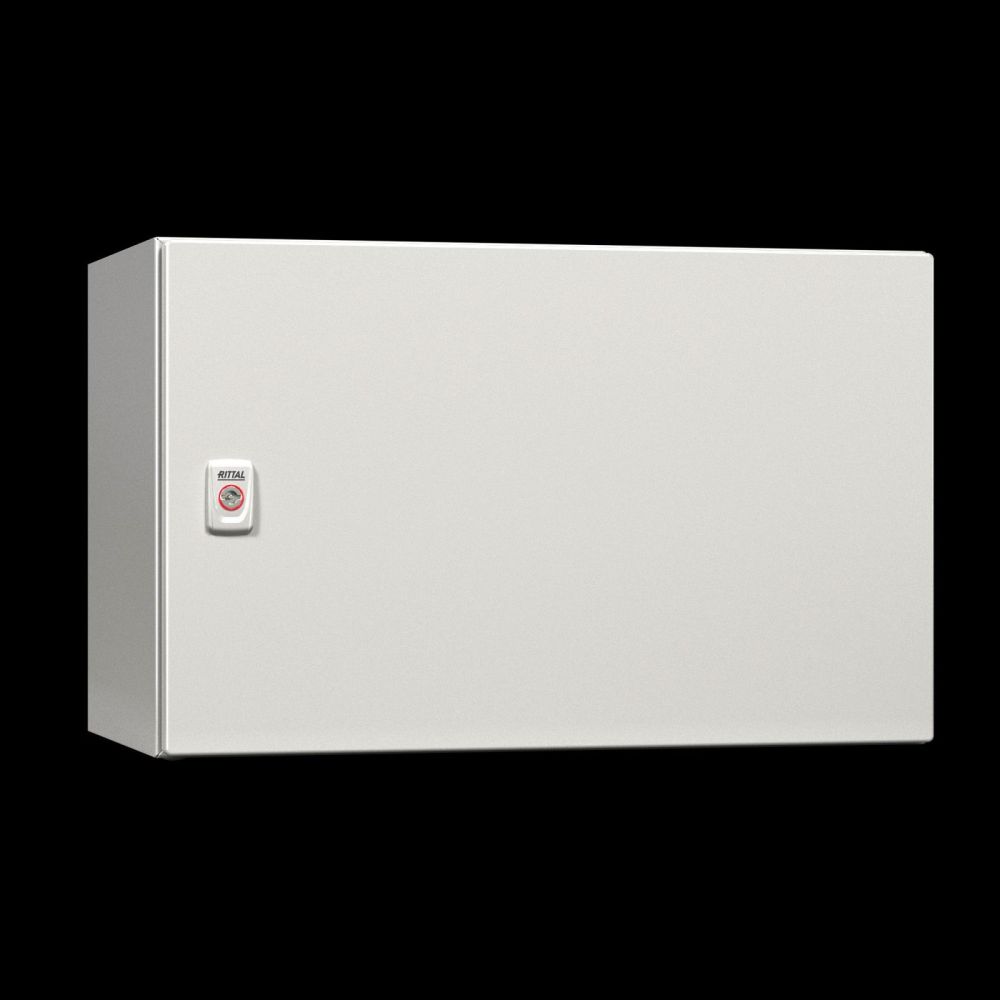

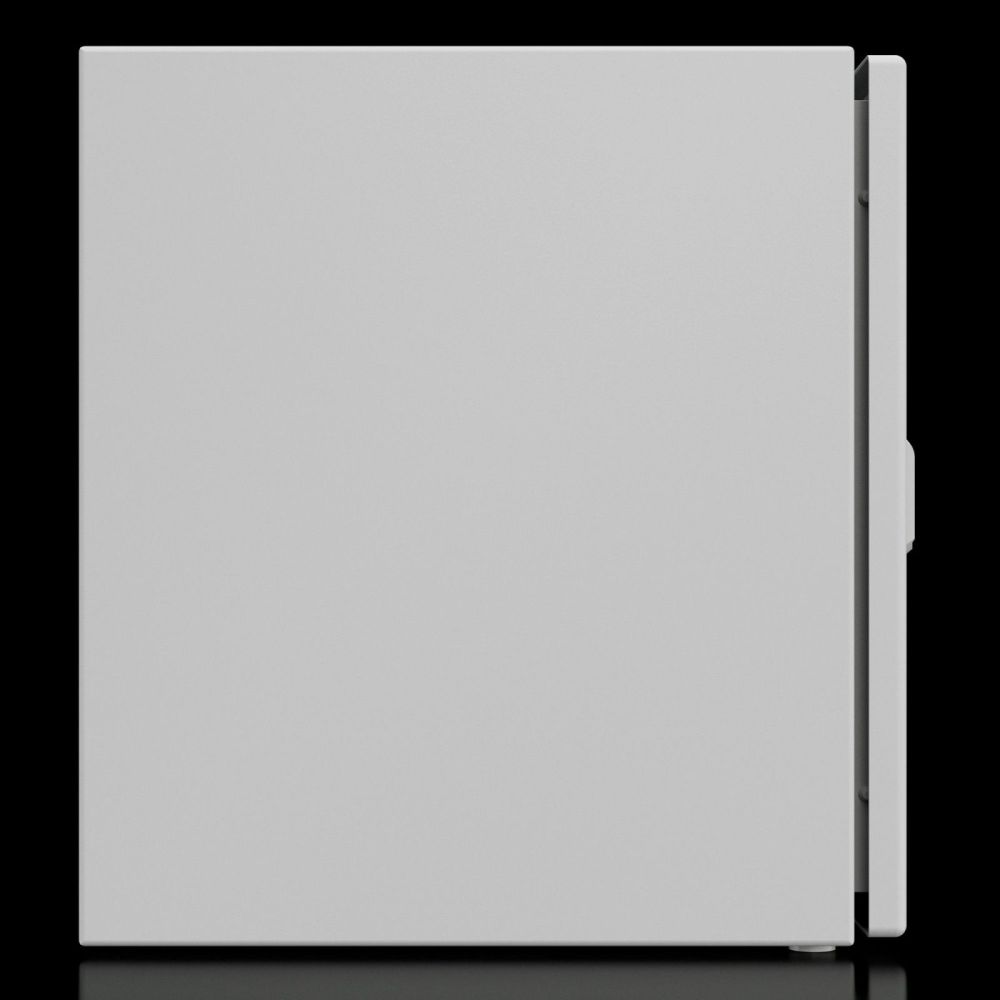

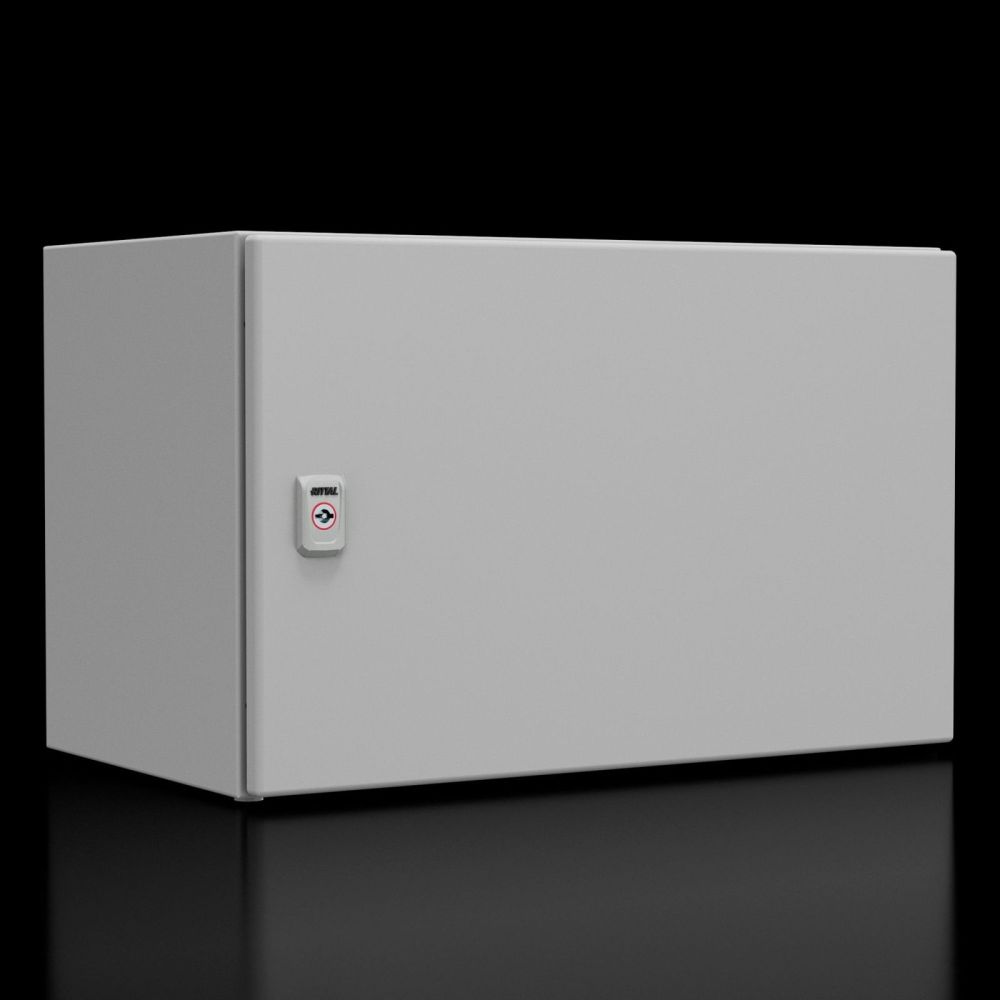

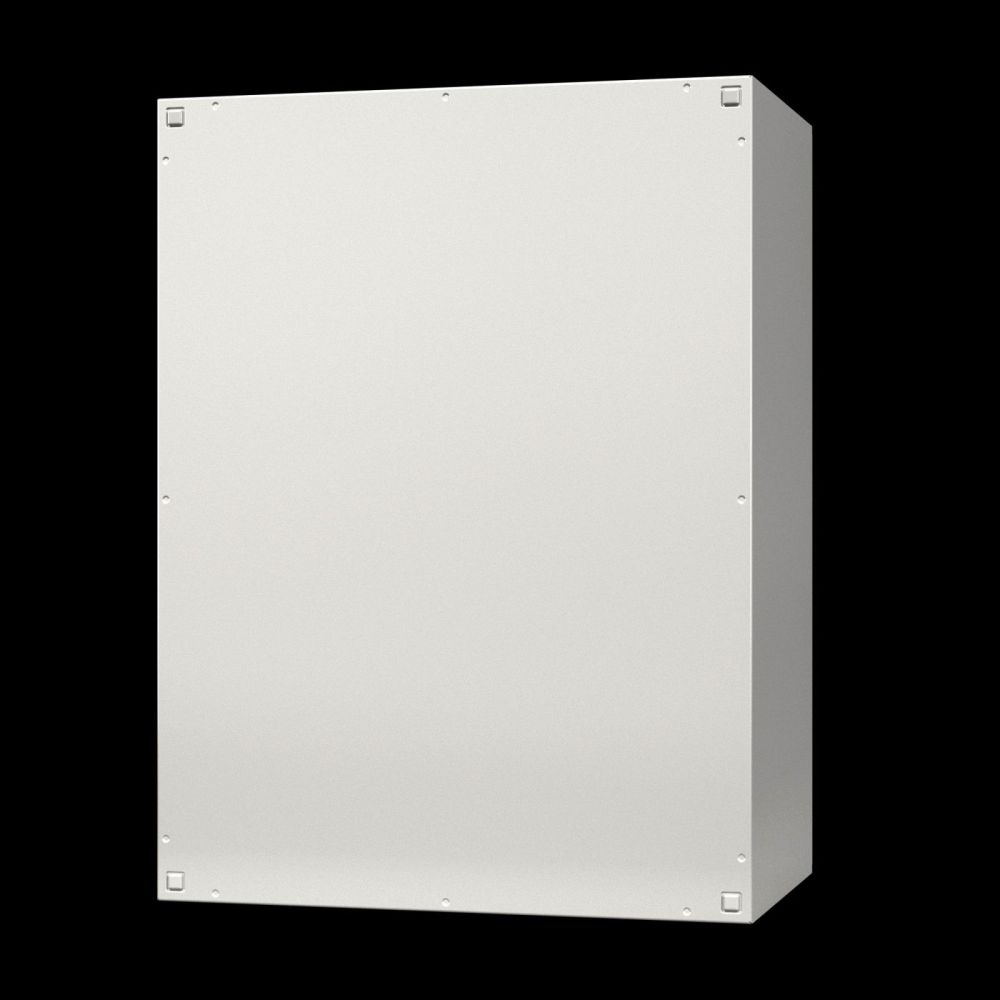

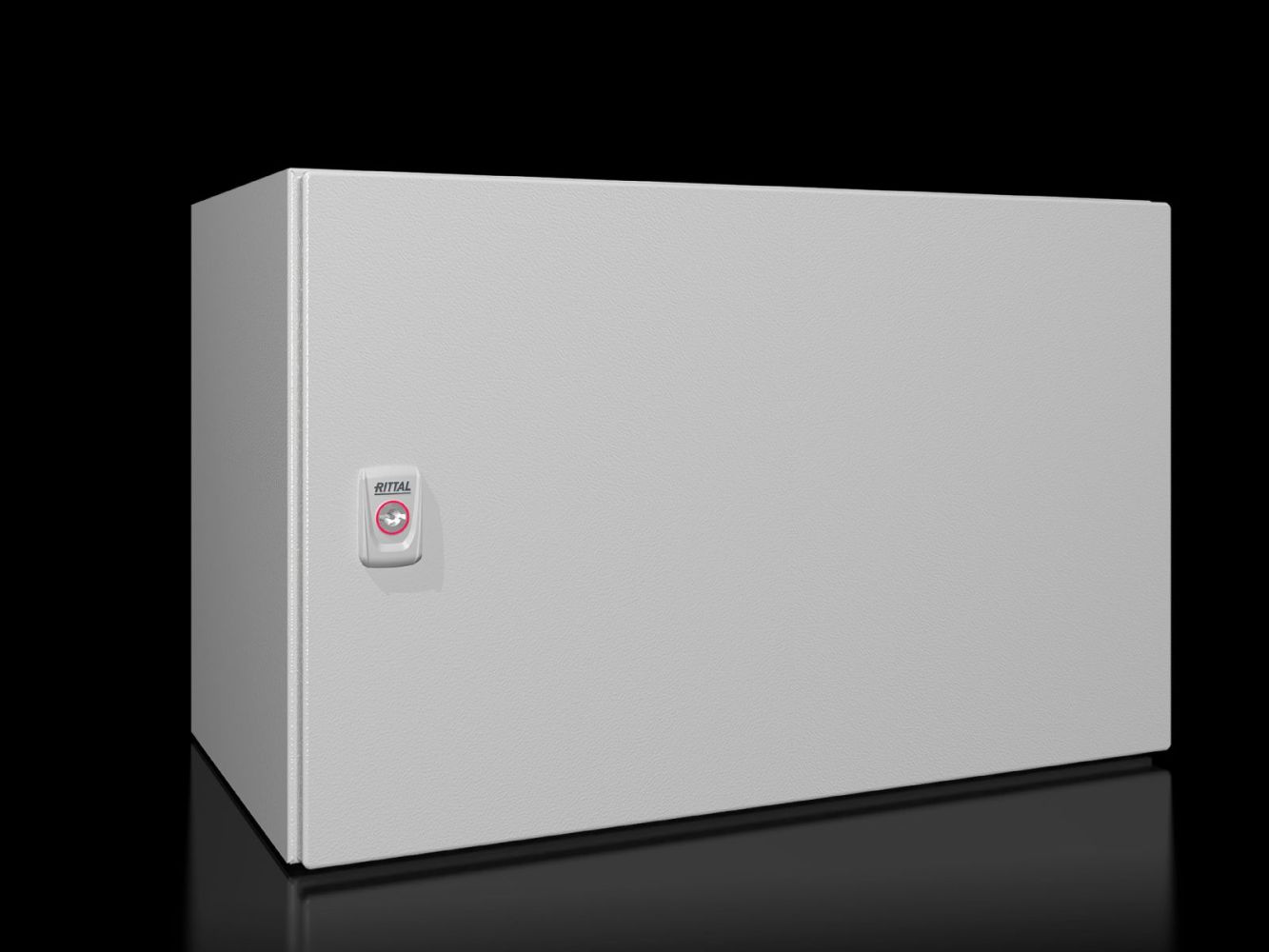

Rittal 7641350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 7 U, 600x380x350 mm
|
215,11 EUR 215,15 EUR |
|
|
( 255,98 EUR incl. VAT ) ≈ £180.05 | ≈ $236.41 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910651 |
| Mfg Part No: | 7641350 |
| UPC/EAN: | 4028177942394 |
| Weight: | 17.64 kg |
| Type: | AXIT 7641350 |
Product information for Rittal 7641350:
Applications
This wall-mounted enclosure is intended for use in industrial environments where a robust and protective cover for IT components is required. It is particularly suitable for direct integration into production systems, where quick and secure mounting of network or control components is necessary. The depth-variable profile rail allows flexible adaptation to different devices, making the enclosure suitable for a wide range of IT and automation components.
Functions and Equipment in Detail
The housing is fully pre-assembled and offers an immediately ready-to-use solution for mounting 48,3 cm ( 19 inch ) IT components. It features a hinged door, standard-mounted on the right, but can be changed to the left. The locking mechanism uses a cam lock with a 3 mm double-barrel lock insert, ensuring secure latching. The gland plate at the housing base is equipped with a brush strip, enabling convenient cable entry from below. The maximum protection rating is IP 66, which may vary depending on the selected gland plate. The welded construction with a fully enclosed body provides high protection for installed components.
Technology Explained Simply

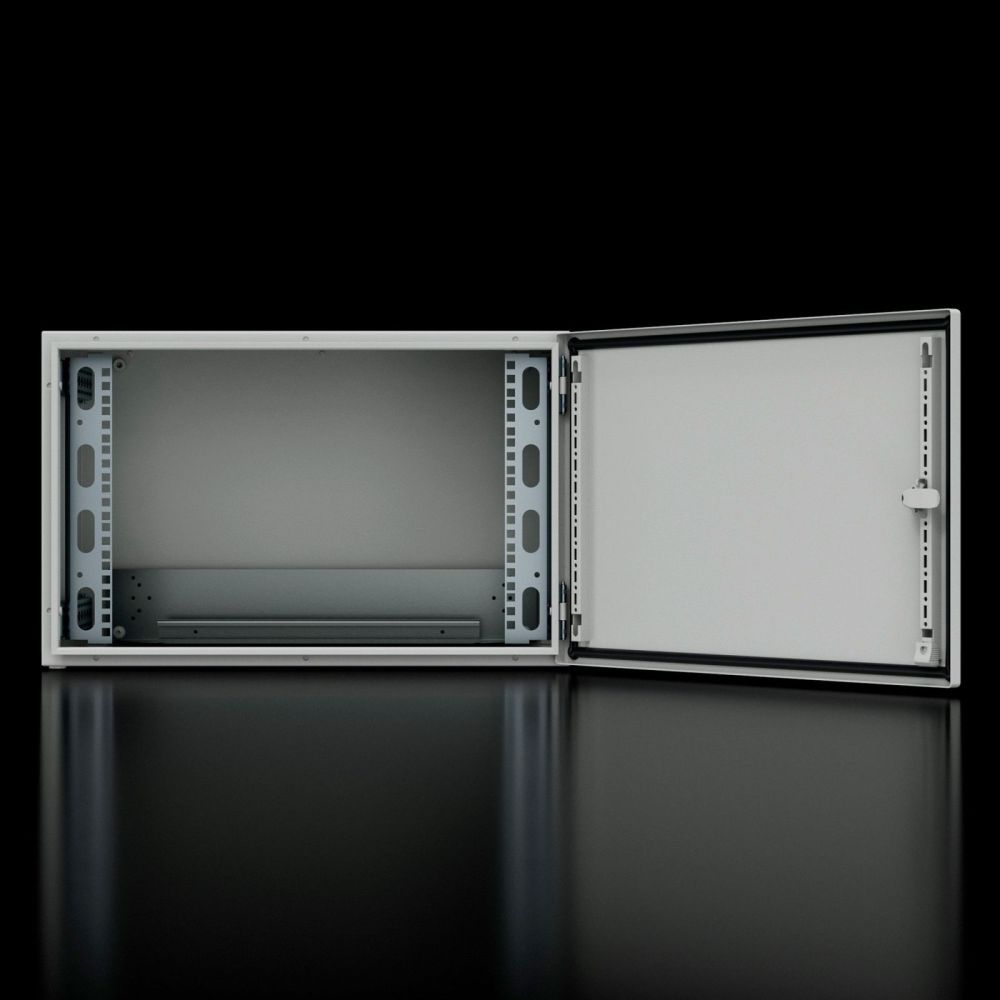

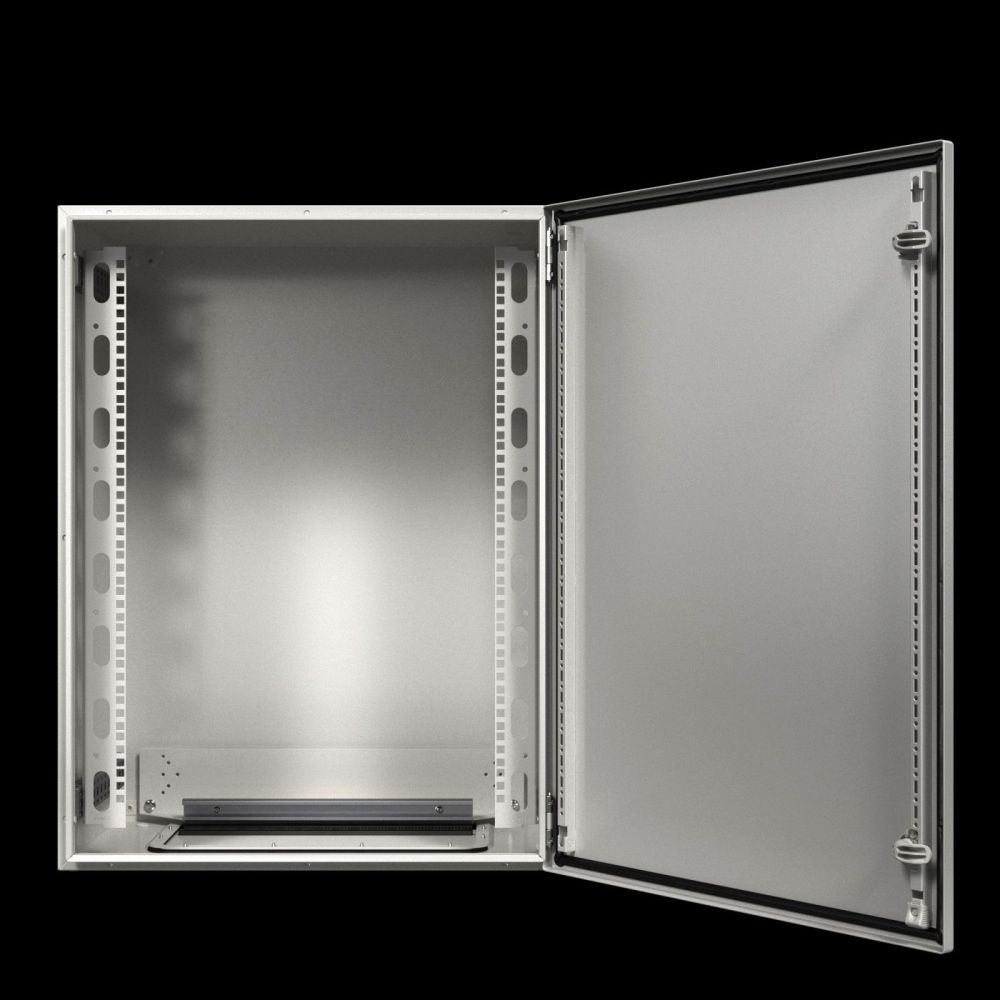

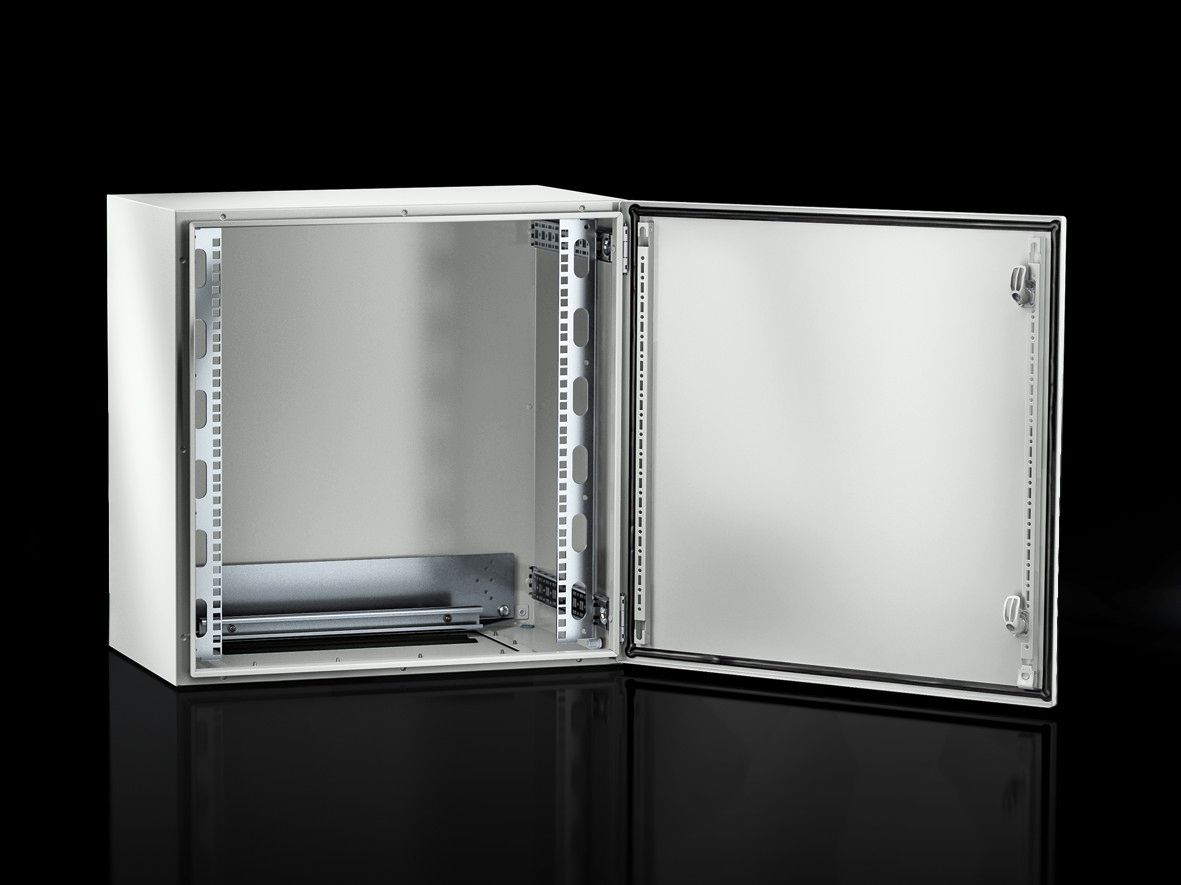

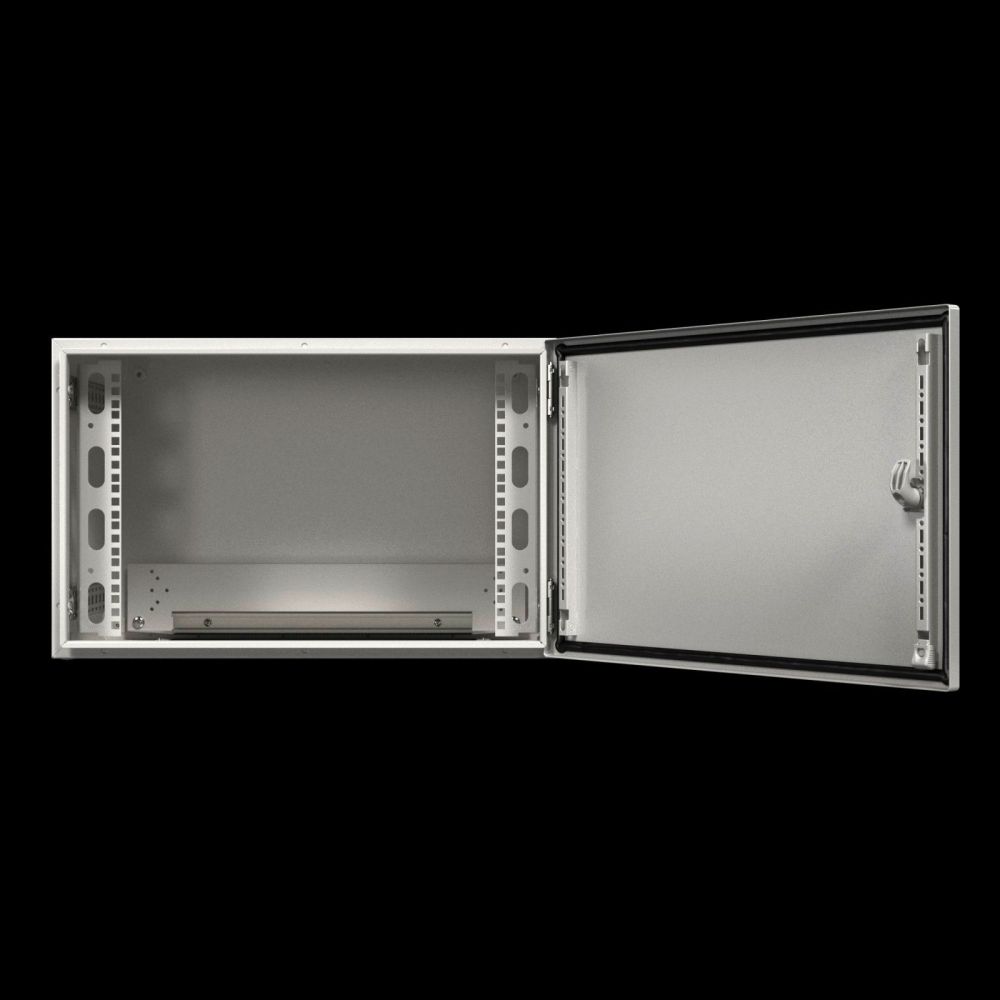

The depth-variable 48,3 cm ( 19 inch ) profile rail is mounted on four internal mounting rails in a 25 mm grid, allowing flexible adjustment of mounting depth. The profile rails are side-bent, enabling cables to be routed between the front and rear mounting areas. The gland plate with brush strip ensures efficient cable routing and prevents dust or moisture ingress. The mounting brackets and C-profile rail on the rear wall allow structured cable strain relief and secure attachment of additional components.
Compatibility and Accessories
The housing is equipped with pre-mounted mounting brackets, enabling cable strain relief, installation of a central earthing bar, and mounting of a 48,3 cm ( 19 inch ) socket strip. Compatible accessories include socket strips in various configurations (e.g., 5-way, 7-way, 8-way, 12-way), surge protection devices, earthing bars, and lock inserts. These components can be added to customize the housing configuration.
Mounting and Installation
Installation is carried out on the wall using the pre-mounted mounting brackets. The door is standard-mounted on the right but can be repositioned to the left. The brush strip on the gland plate facilitates cable entry from below. The depth-variable profile rail can be adjusted in 25 mm increments to accommodate various devices. The pre-mounted C-profile rail on the rear wall supports structured cable routing.
Operational Advantages
The housing provides maximum protection for installed components through its welded construction and high protection rating up to IP 66. The pre-assembled equipment reduces installation time and enables immediate commissioning. The depth-variable profile rail and flexible cable routing ensure high adaptability to different requirements. The brush strip on the gland plate prevents dust and moisture ingress, extending the service life of installed devices. The mounting brackets allow structured and secure installation of additional components such as earthing bars or socket strips.
| General | |
| Model | Wall enclosure IT, with 19" profile rails, variable depth |
| Material | steel sheet |
| Surface protection | Enclosure and door: dip primed, externally powder coated, textured paint, interior: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Pre-assembled IT enclosure with hinged door, fully enclosed, anti-theft lock with 3 mm double-barrel insert, flange plate with brush strip, 19" profile rail front, depth-adjustable in 25 mm increments on 4 internal mounting rails, mounting brackets, C-profile rail, mounted on rear wall |
| Height units | 7 HE |
| Width | 600 mm |
| Height | 380 mm |
| Depth | 350 mm |
| Built-in depth | 278 mm |
| Component mounting height | 7 HE |
| Door hinge position | right, reversible to left |
| Number of locks | 1 |
| Mounting options | Pre-assembled mounting bracket including C-profile rail for cable management, mounting bracket for central earthing rail, mounting bracket for 19" socket strip |
| Note | Variant with UL approval available on request |
| Base material | steel sheet |
| Lock | closure type: latch with 3 mm double-barrel locking insert, number of closures: 1 |
| Degree of protection IP according to EN 60 529 | IP 10 (on request up to IP 66), up to IP 66 (depending on selected flange plate) |
| Flange plate | Size: 7, Quantity: 1 |
| PCF/VE (Cradle-to-Gate) | 67.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 7641350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 7 U, 600x380x350 mm?
The article Rittal 7641350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 7 U, 600x380x350 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7641350 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7641350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 7 U, 600x380x350 mm always at the best possible price. We can give you a discount of 2% on Rittal 7641350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 7 U, 600x380x350 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
