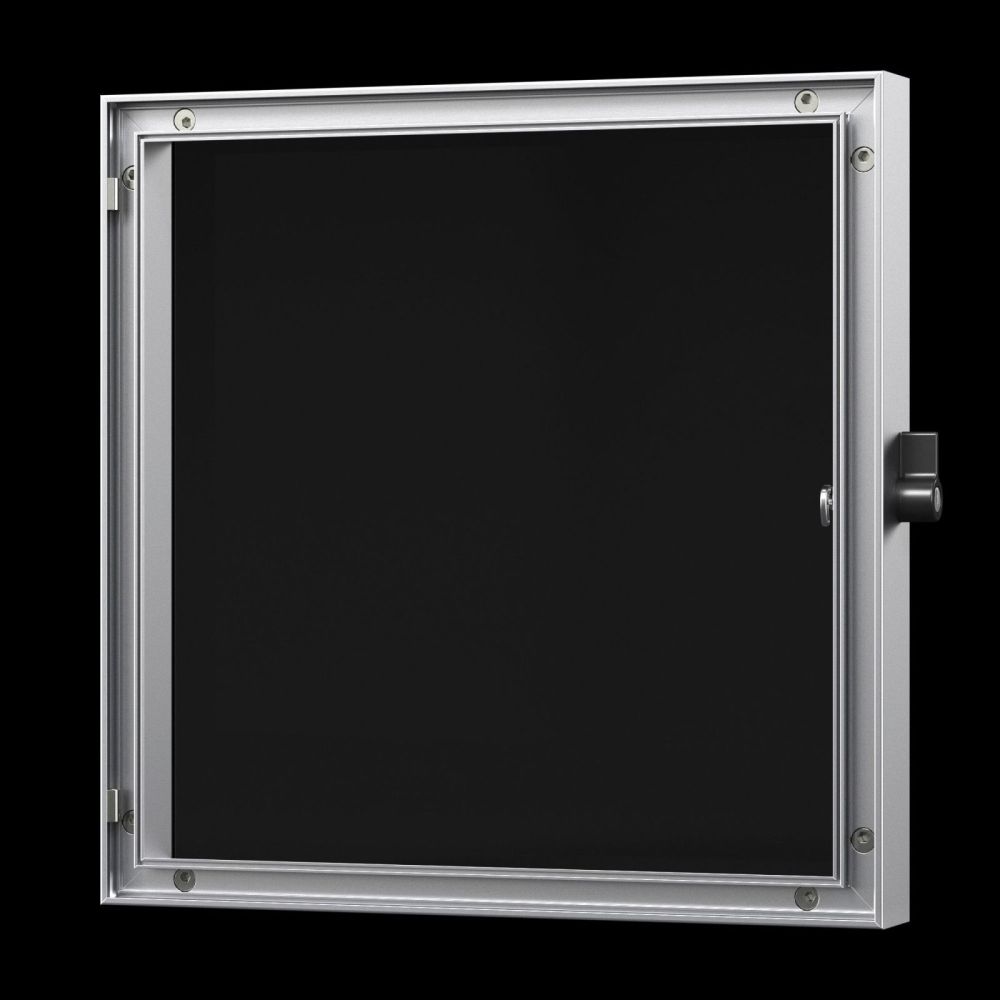

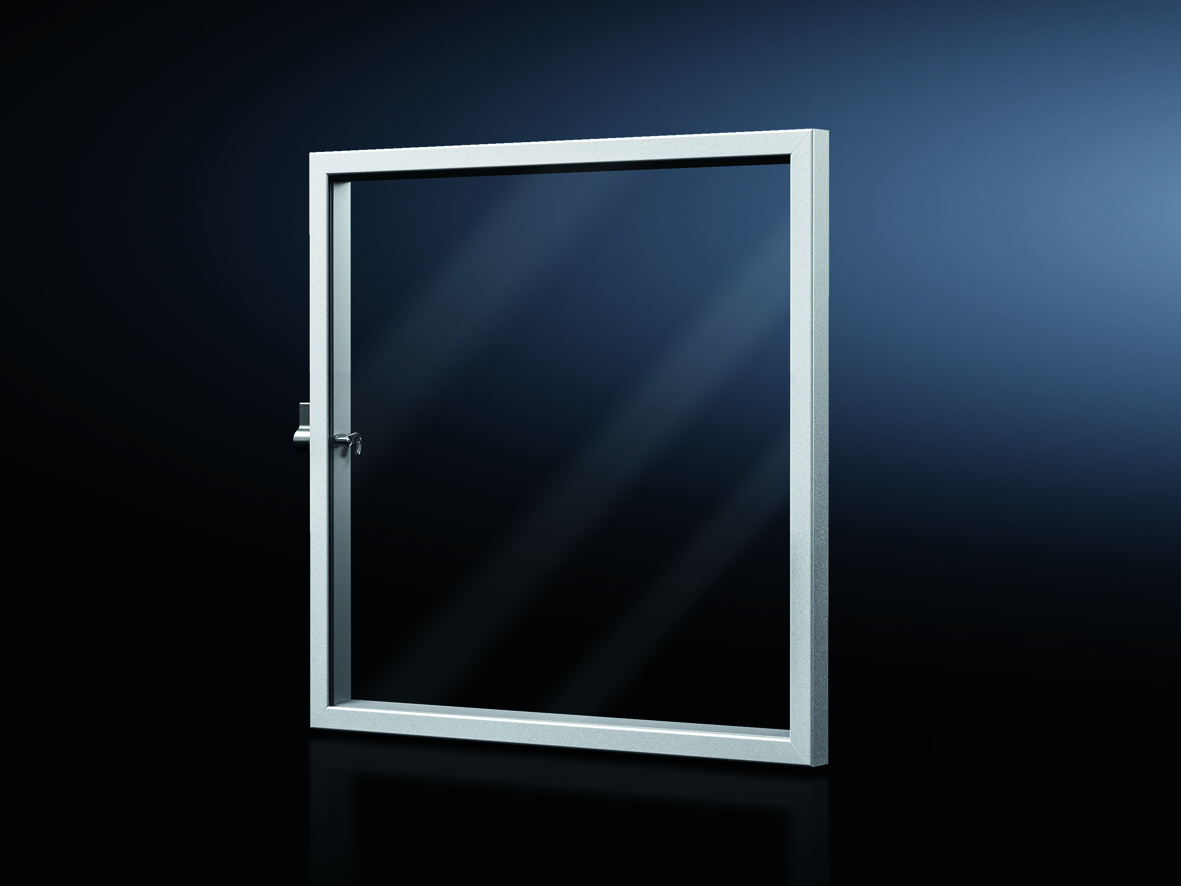

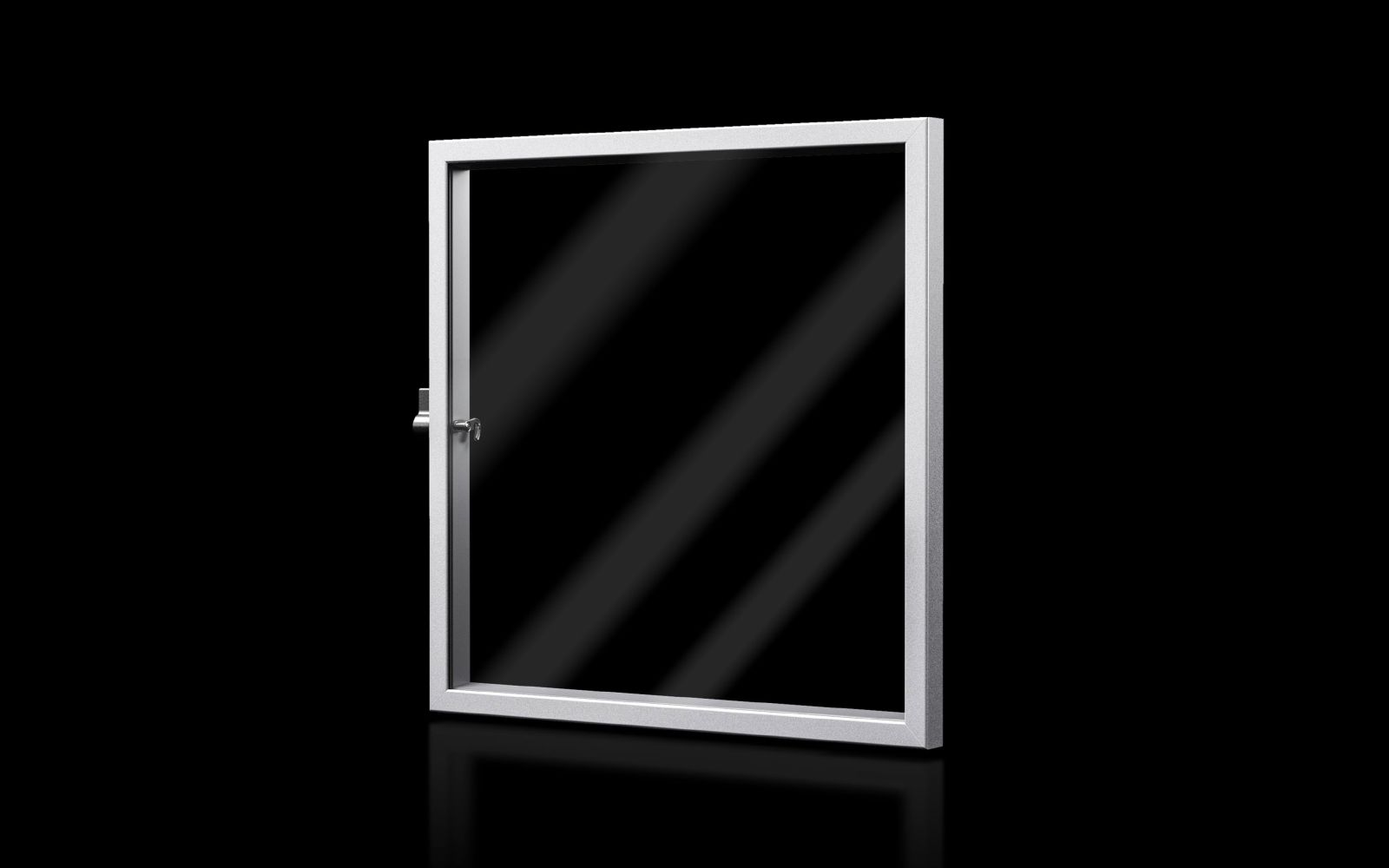

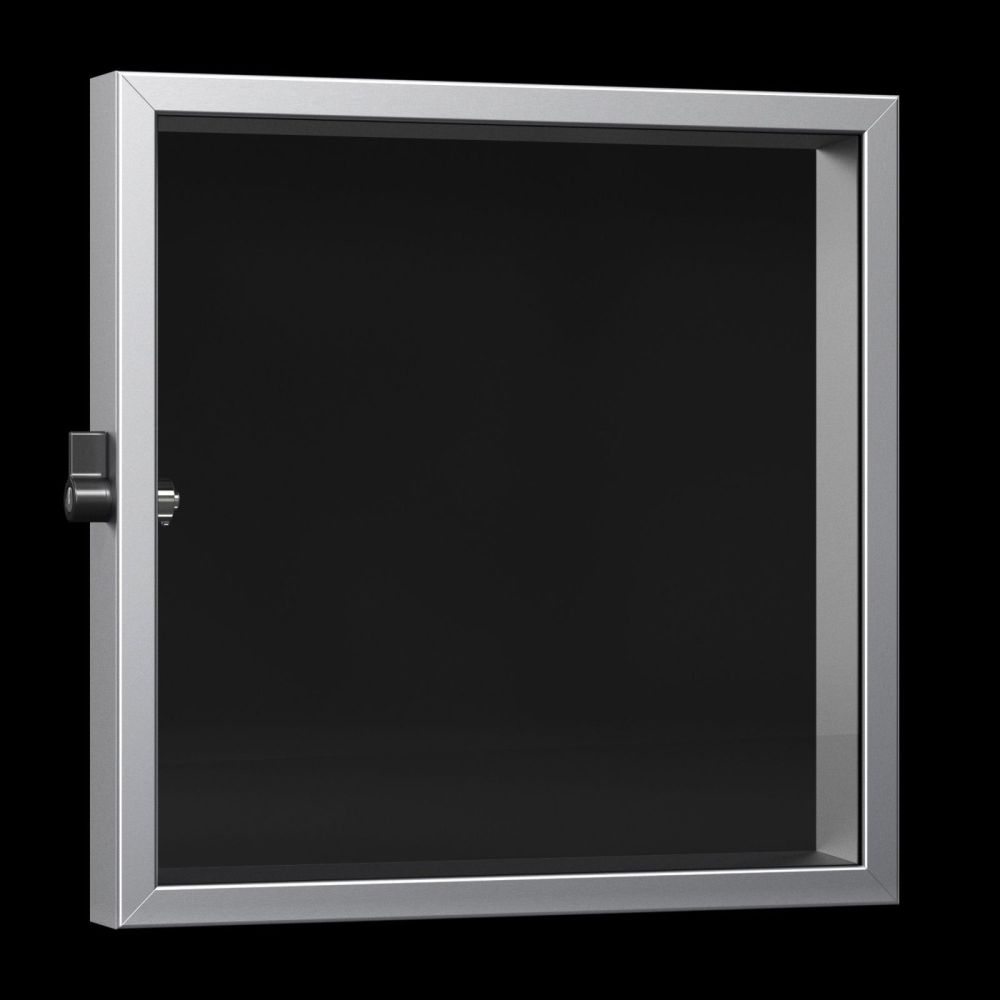

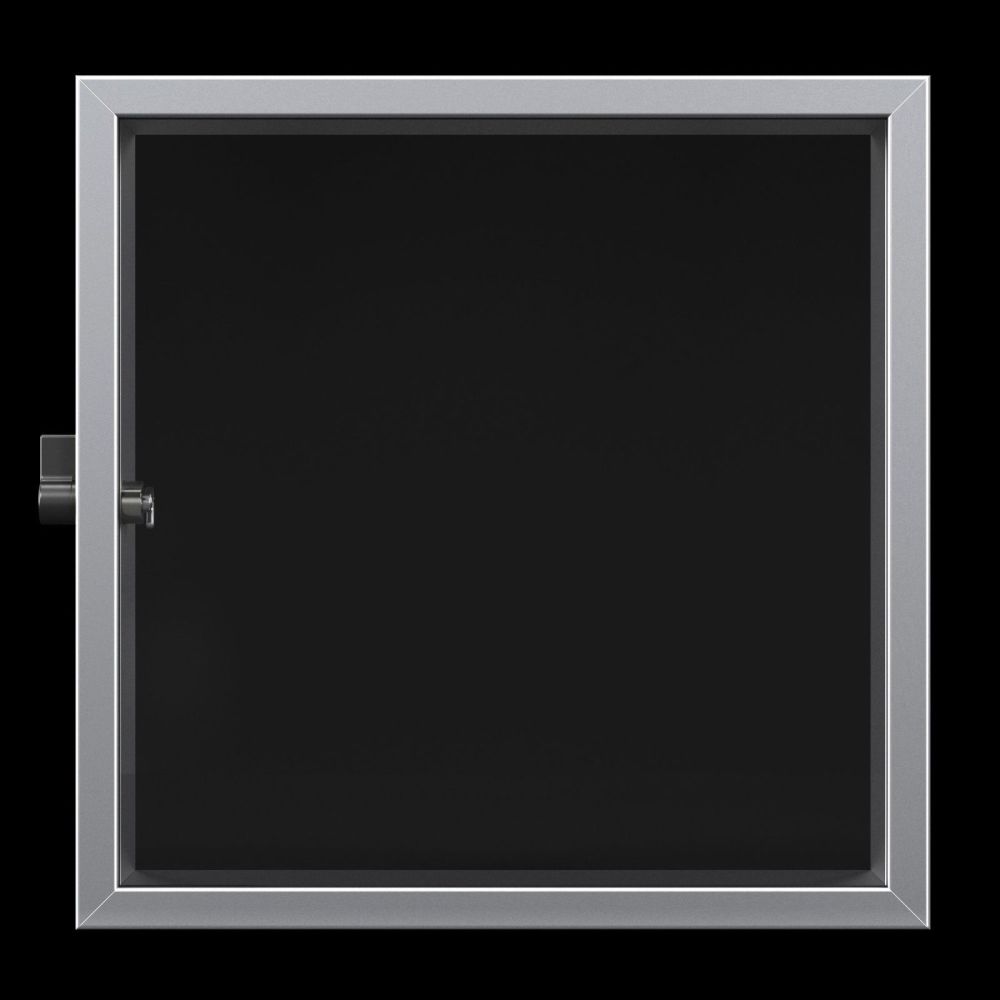

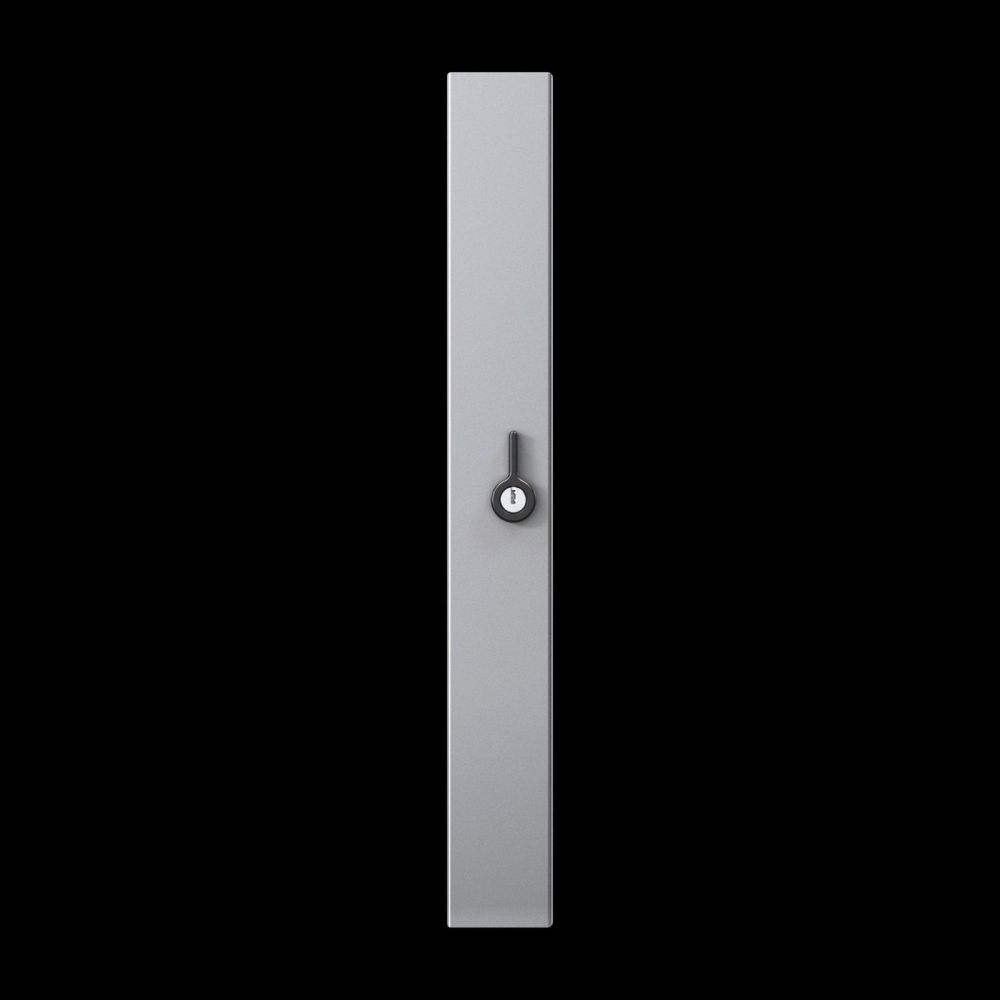

Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle

Your rating:
Average rating
product review for Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle
( 4.4 / 5 ) 5 ratings
Rittal 2760010
This image may differ from the desired article.
Rittal 2760010Rittal 2760010Rittal 2760010Rittal 2760010Rittal 2760010Rittal 2760010Rittal 2760010
179,52 EUR
( 213,63 EUR incl. VAT )
≈ £150.26  |  ≈ $197.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle
Datasheet:file_download Download
Lieske Part No.:1593450
Mfg Part No: 2760010
UPC/EAN: 4028177938571
Weight:3.3 kg
Type:AX 2760010

Product information for Rittal 2760010:

The Rittal viewing window AX 2760010 is an FT viewing window for use with AX enclosures. It serves as a replacement for a door or panel and enables visual monitoring of components inside the enclosure without having to open the cover. The product is specifically designed for enclosures with a width of 600 mm and a height of 380 mm and is compatible with article numbers 1039.000, 1339.000, and 1009.000. Dimensions are 597 mm (width) × 377 mm (height) × 62 mm (depth), with a visible area of 537 mm (width) × 317 mm (height). The maximum mounting depth for components is 58 mm.

Applications

The viewing window is primarily used in industrial installations where continuous visual monitoring of devices, indicators, or LEDs is required without opening the enclosure. It is suitable for indoor installations requiring protection against dust and splashing water. Installation is carried out on AX enclosures in place of a door or panel, maintaining accessibility to the internal installation while ensuring visibility.

Features and Equipment in Detail

The viewing window consists of an aluminium frame, naturally anodized, and an acrylic glass panel. The use of acrylic glass provides good light transmission and resistance to mechanical stress. The frame is designed in the 60-series profile, enabling standardized mounting on Rittal AX enclosures. The delivery includes a plastic handle with safety insert No. 3524 E, enabling secure and comfortable operation.

Technology Explained Simply

The protection rating IP 54 according to EN 60 529 means that the viewing window is dust-tight and protected against splashing water from any direction. This makes it suitable for use in environments where dust or occasional splashing water occurs, for example in production halls or on machines with cooling or cleaning systems. The maximum mounting depth of 58 mm allows installation of components that slightly protrude into the enclosure without impairing the functionality of the viewing window.

Compatibility and Accessories

The viewing window is specifically designed for AX enclosures with a width of 600 mm and a height of 380 mm. It is compatible with Rittal enclosure article numbers 1039.000, 1339.000, and 1009.000. The included safety insert No. 3524 E ensures secure fastening and prevents accidental opening.

Mounting and Installation

Installation is carried out at the designated mounting points of the AX enclosures. The aluminium frame in the 60-series profile enables standardized and secure connection. The included plastic handle is used during installation to open and close the viewing window. Installation requires no additional tools or components, as the viewing window is directly mounted to the designated mounting points.

Operational Advantages

The viewing window enables continuous visual monitoring of components installed in the enclosure without having to open the cover. This reduces the need to open the enclosure, increasing operational safety and shortening maintenance times. The IP 54 protection rating ensures reliable protection against dust and splashing water, increasing the service life of the viewing window and the safety of installed devices. The use of acrylic glass ensures clear visibility without impairing light transmission.

General
Model60-series profile
MaterialFrame: aluminium, natural anodized, glass panel: acrylic glass
Scope of deliveryIncluding plastic handle with safety insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1039.000, 1339.000, 1009.000
Suitable forenclosure type: AX, width: = 600 mm, height: = 380 mm
Width597 mm
Height377 mm
Depth62 mm
Visible surface areaViewing window width: 537 mm, viewing window height: 317 mm
Depth for components (max.)58 mm


Product data sheet
Datasheet for Rittal 2760010, EAN: 4028177938571

Questions & answers

What is the delivery time of Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle?

The article Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2760010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle always at the best possible price. We can give you a discount of 2% on Rittal 2760010 viewing window, 597x377x60 mm, incl. plastic handle if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
