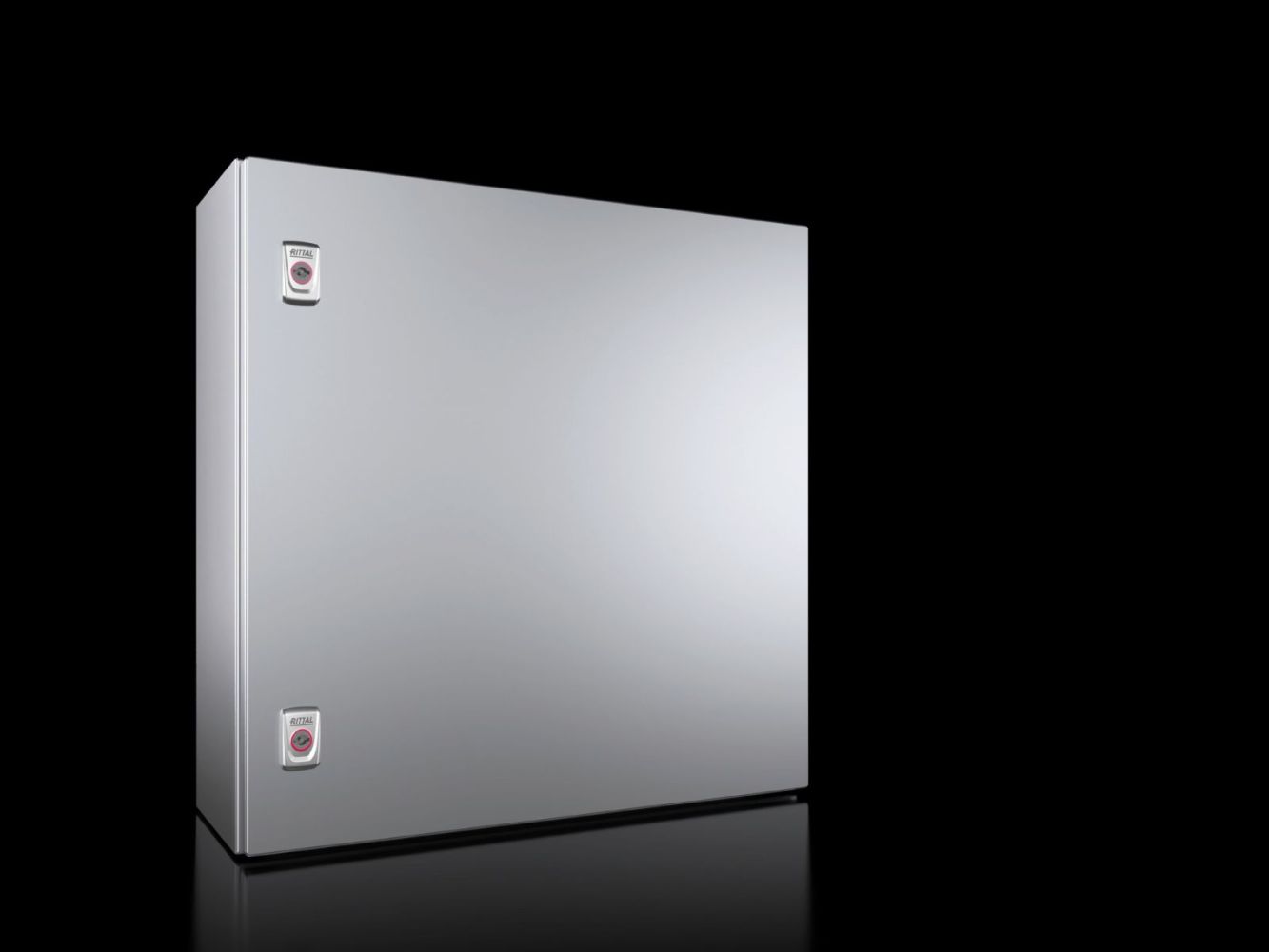

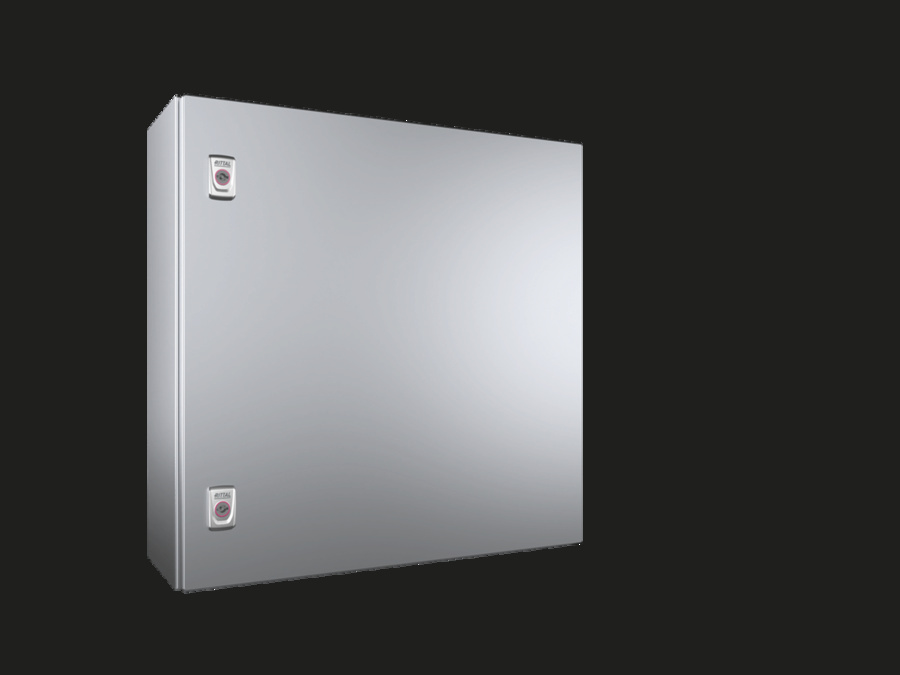

Rittal 1010000 Compact enclosure AX, 1-door, 600x600x210 mm
|
-10% 396,75 EUR 438,55 EUR |
|
|
( 472,13 EUR incl. VAT ) ≈ £332.08 | ≈ $436.03 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1778586 |
| Mfg Part No: | 1010000 |
| UPC/EAN: | 4028177814998 |
| Weight: | 20.14 kg |
| Type: | AX 1010000 |
Product information for Rittal 1010000:
Applications
This enclosure is designed for use in environments subject to high mechanical loads, moisture, dust, or chemical influences. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water from any direction, making it suitable for outdoor use or in damp indoor areas. The protection ratings NEMA 4X and Type 4X according to UL 50E confirm suitability for damp, dusty, and corrosive environments, including use in the food industry or marine applications. The IK code IK10 indicates high mechanical resistance against impact loads, making it suitable for installations with high mechanical stress risks.

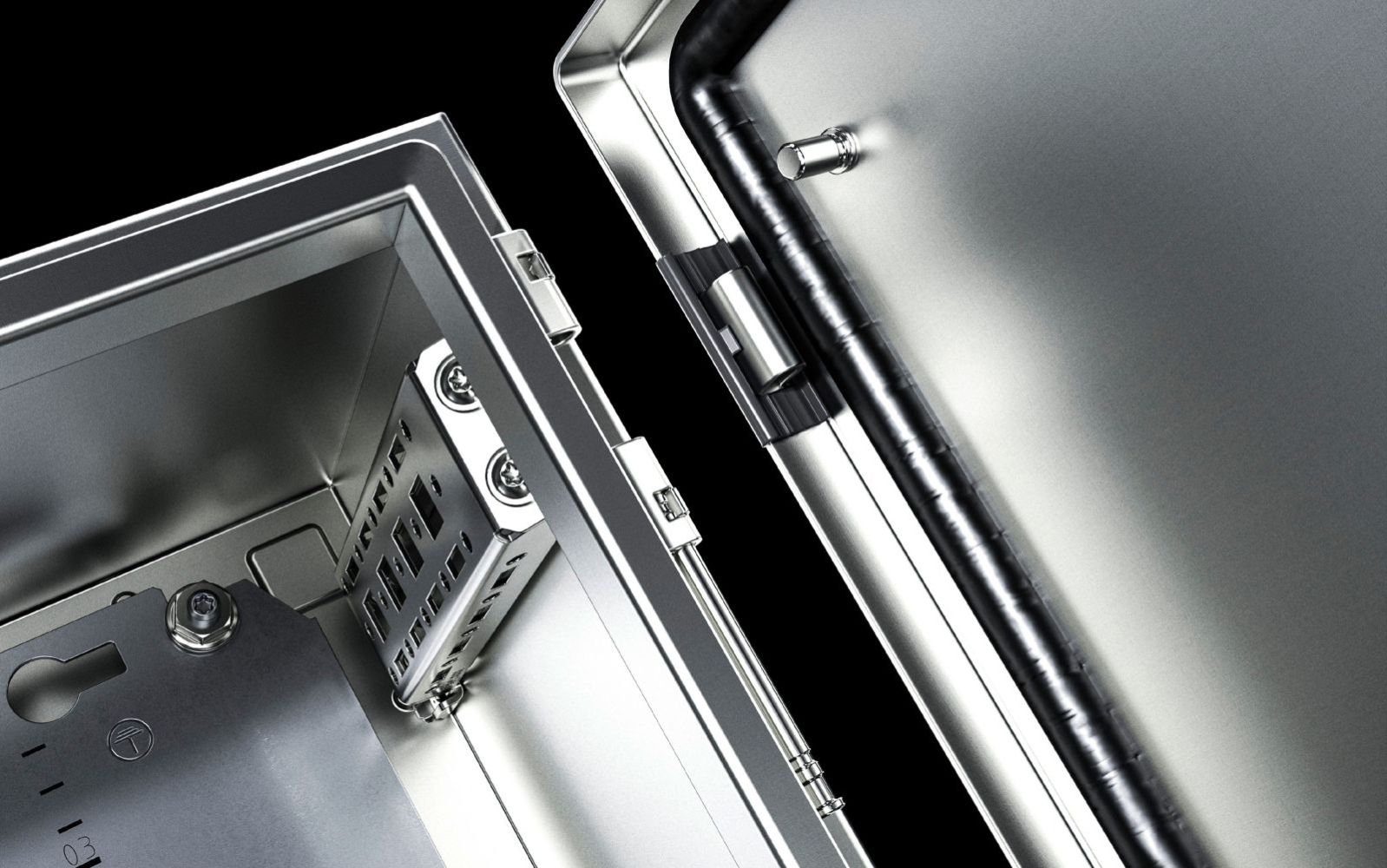

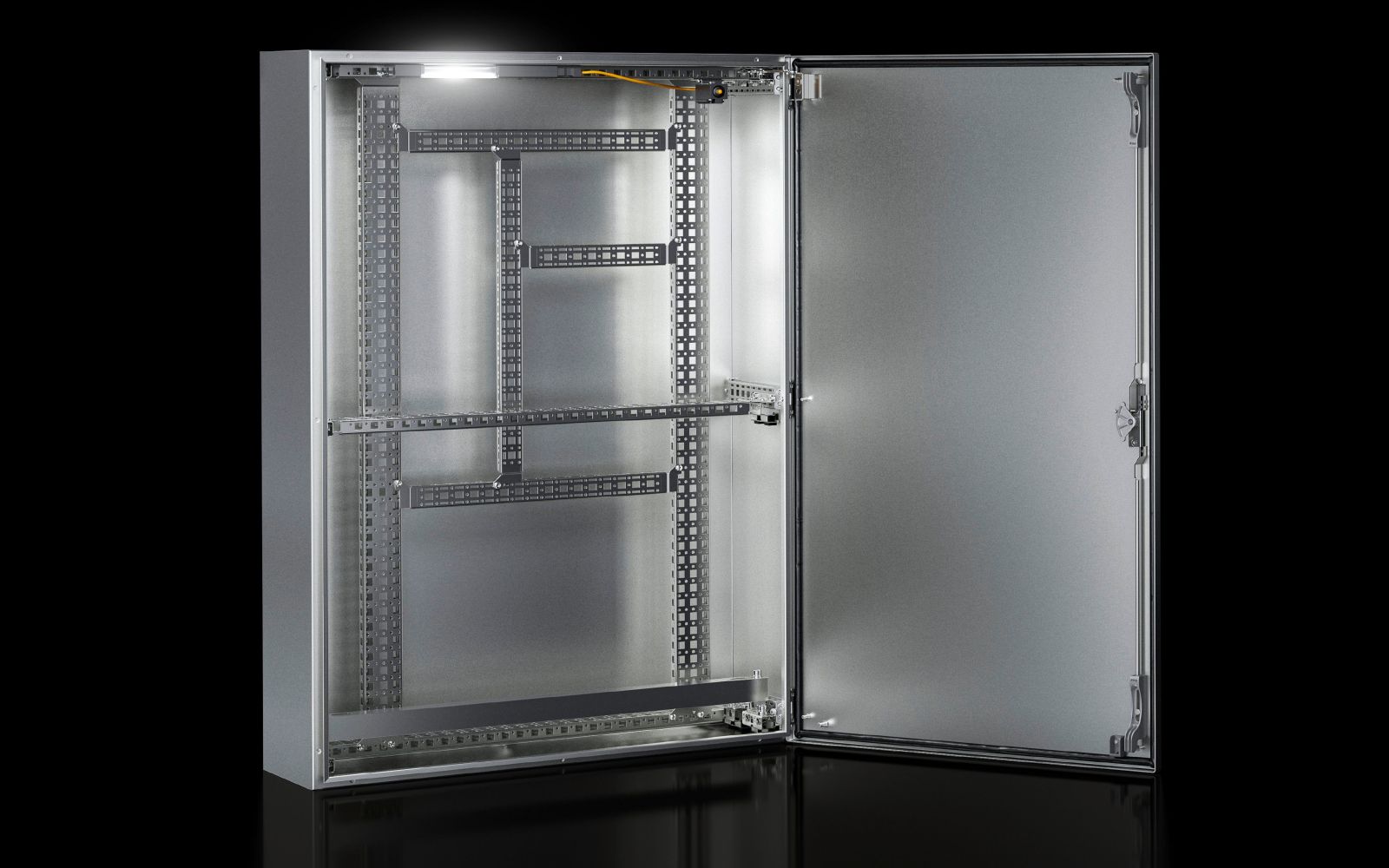

Functions and Equipment in Detail

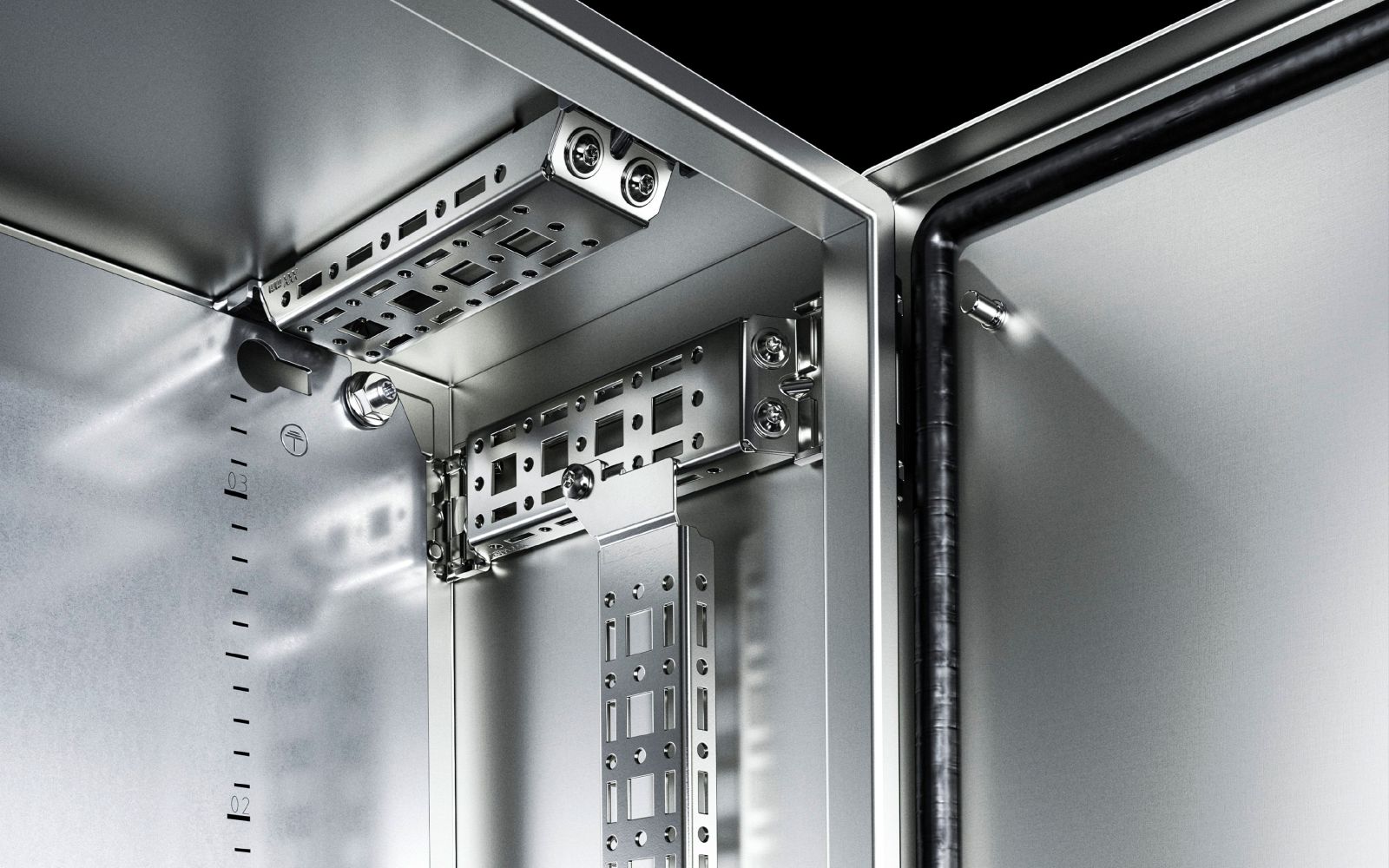

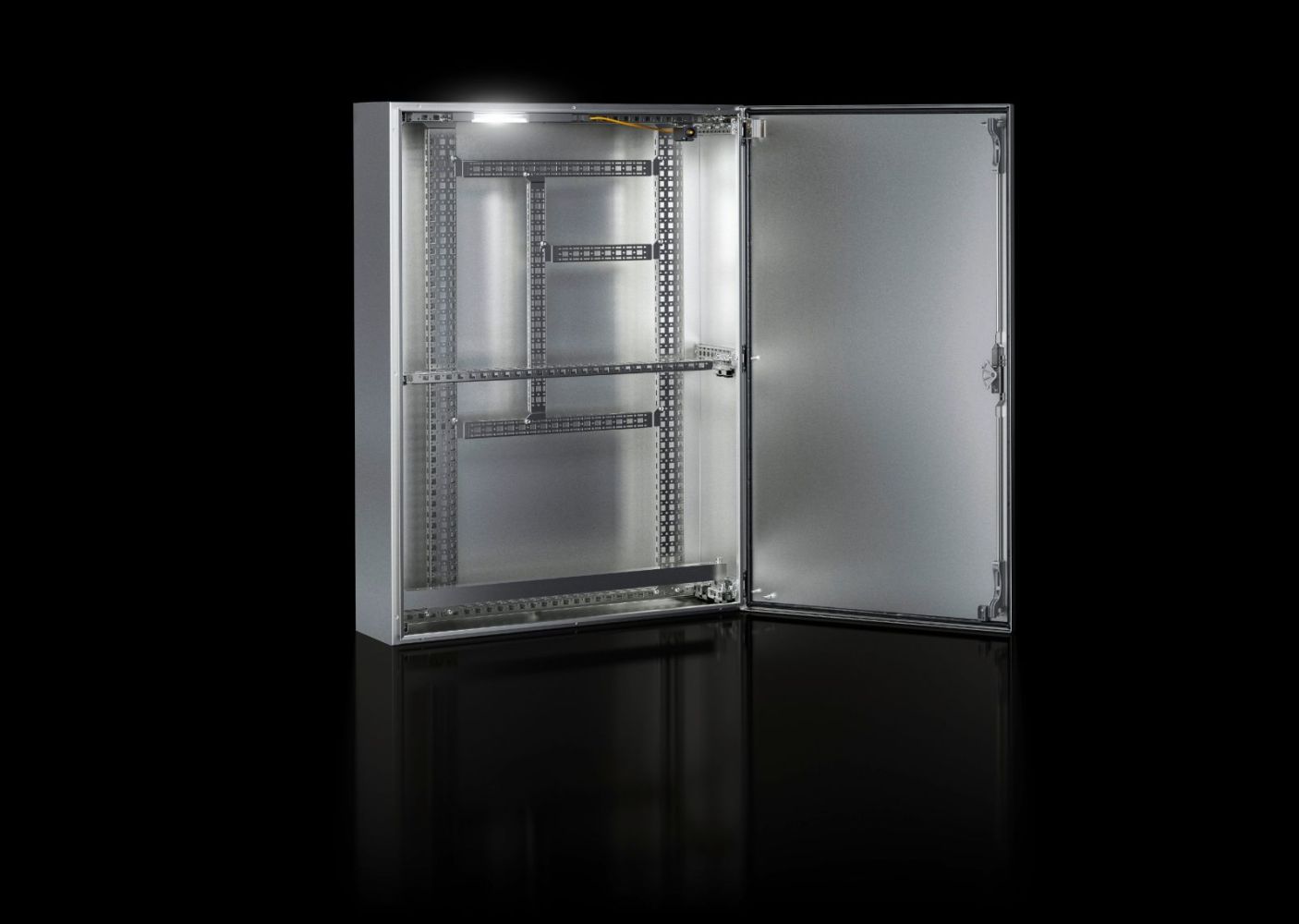

The enclosure features an integrated cam system that allows for expandable internal installation without drilling. This simplifies the mounting of internal components such as control panels, power elements, or control devices. The door is equipped with two latching locks fitted with a 3 mm double-barrel lock insert made of zinc die-cast. These locks ensure secure and reliable locking. The mounting plate is equipped with an earthing bolt and dimension markings, simplifying installation and maintenance. A QR code is printed on the body, door, and type plate to enable unique identification, easy access to product information, and traceability.
Technology Explained Simply
The door material thickness is 1.5 mm, the enclosure body is 1.25 mm, and the mounting plate is 2.5 mm, ensuring high strength and long-term stability. The use of stainless steel 1.4301 (AISI 304) provides high corrosion resistance, especially in damp or aggressive environments. The PU seal ensures a tight seal that maintains its function even under temperature fluctuations. The brushed surface is not only aesthetically pleasing but also easy to clean and resistant to contamination.

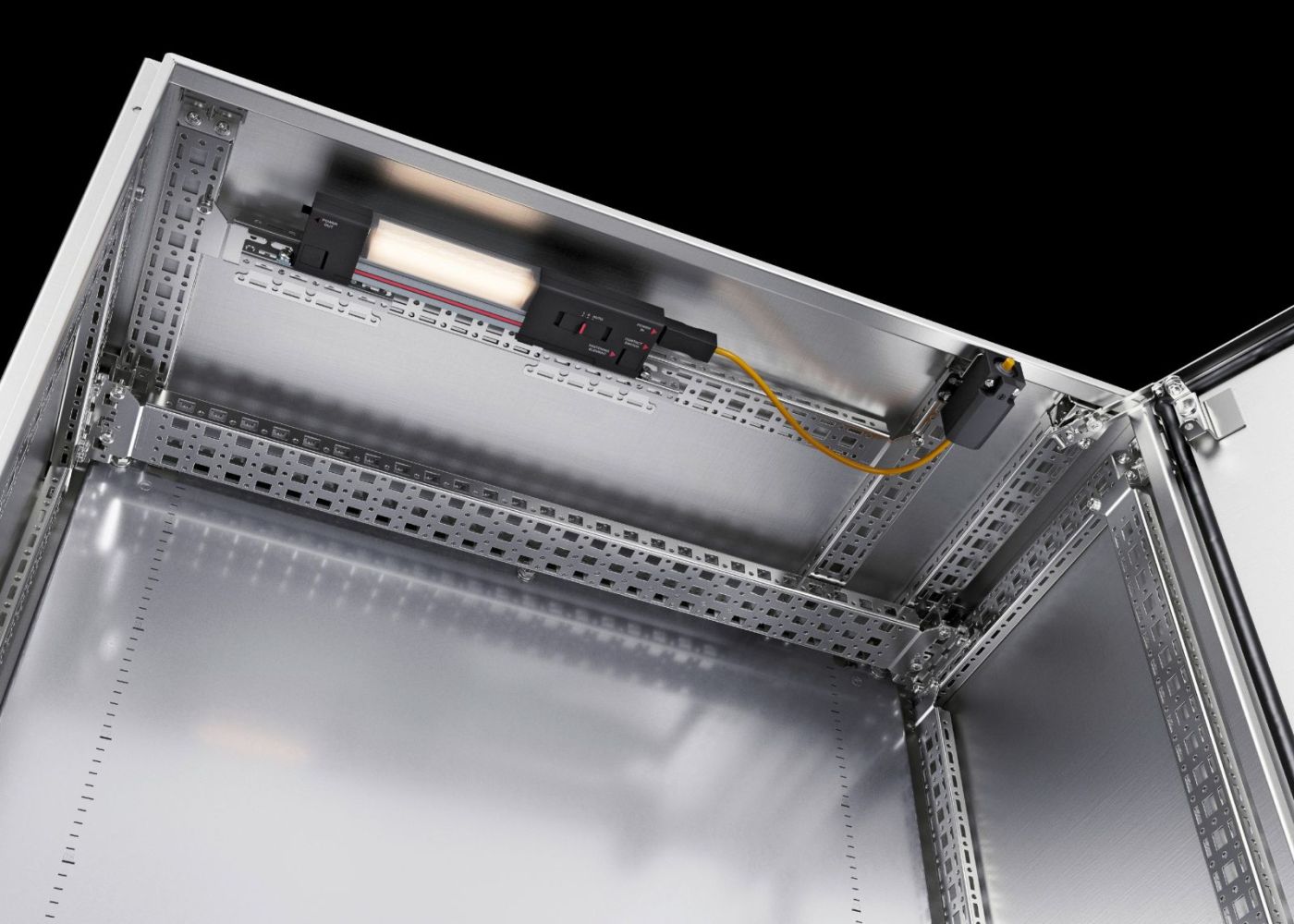

Compatibility and Accessories
The enclosure is compatible with various accessories that extend its use in different application scenarios. These include cable glands in various sizes (e.g. M40x1.5, M50x1.5), stainless steel 1.4301 wall mounting brackets, a protective roof (W x D: 500x210 mm), a floor mounting rail, a system light LED 400 (100–240 V), a mast mounting, a mini comfort handle, lock inserts made of zinc die-cast, an internal mounting rail, and a condensate drain. These components allow individual adaptation to specific mounting and operating conditions.

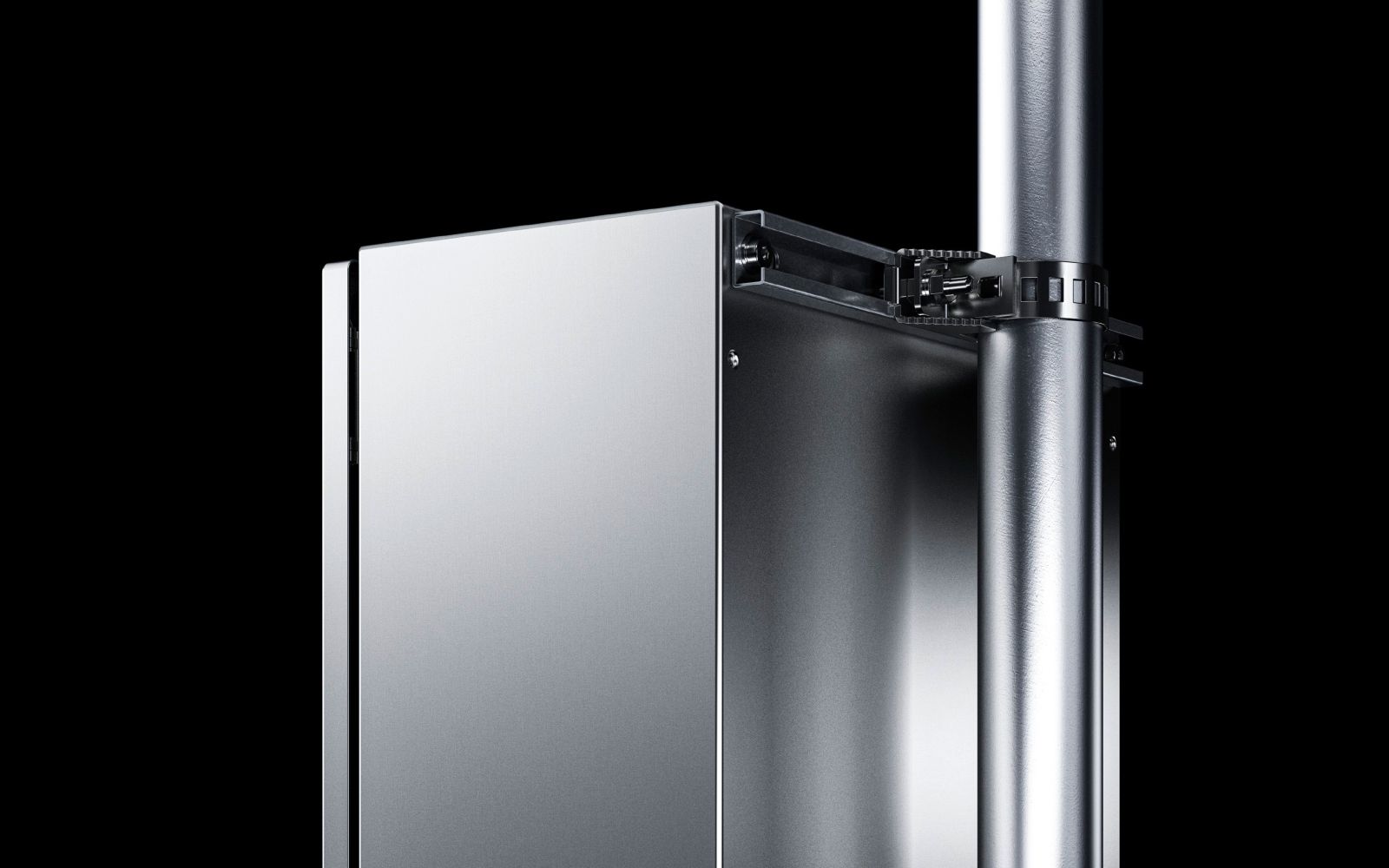

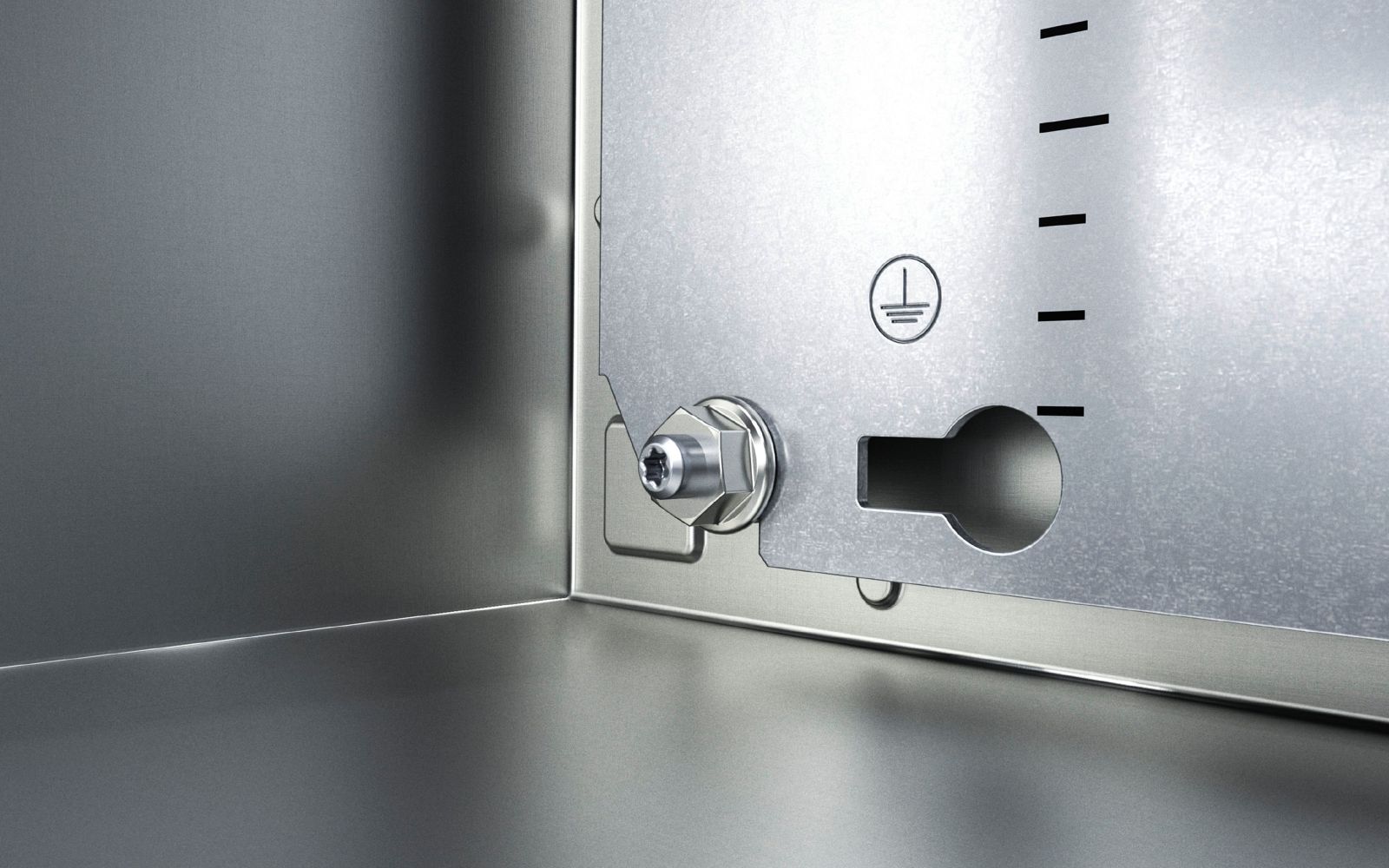

Mounting and Installation
Mounting is done via the integrated fastening elements on the enclosure, with the mounting plate secured using Limbach nuts. The door can be mounted on the left or right side as required. Internal components can be installed using the cam system without drilling, reducing installation time and preserving the enclosure structure. Earthing is achieved via the integrated earthing bolt on the mounting plate.
Operational Advantages
The enclosure offers high mechanical and chemical resistance, increasing its service life and reliability in demanding environments. The IP 66 protection rating and NEMA certifications enable use in a wide range of industries, including the food industry, automation technology, and outdoor applications. The integrated cams and mounting plate simplify installation and maintenance, while QR codes enable quick identification and document retrieval. The use of stainless steel 1.4301 ensures long-term corrosion resistance, even under high humidity and temperature loads.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 575 mm |
| Number of doors | 1 |
| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 67,96 |
