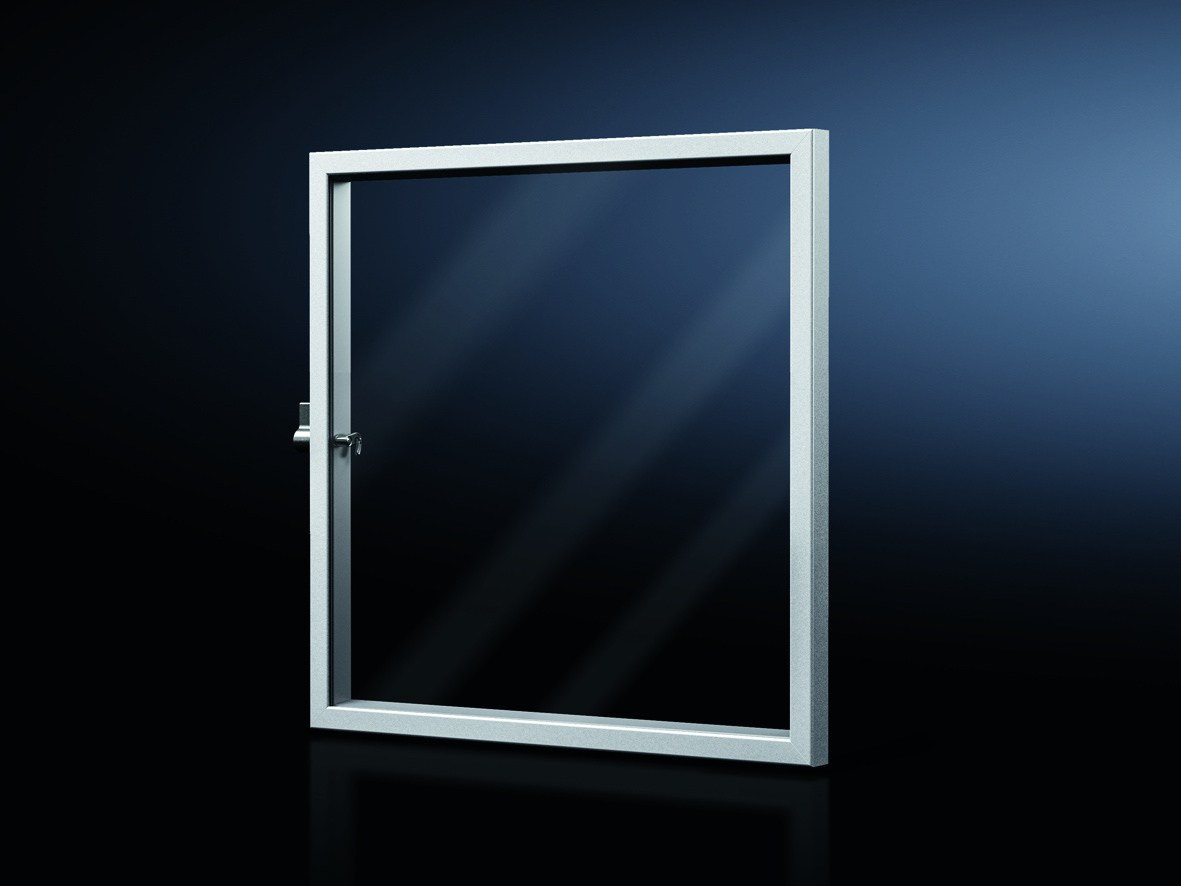

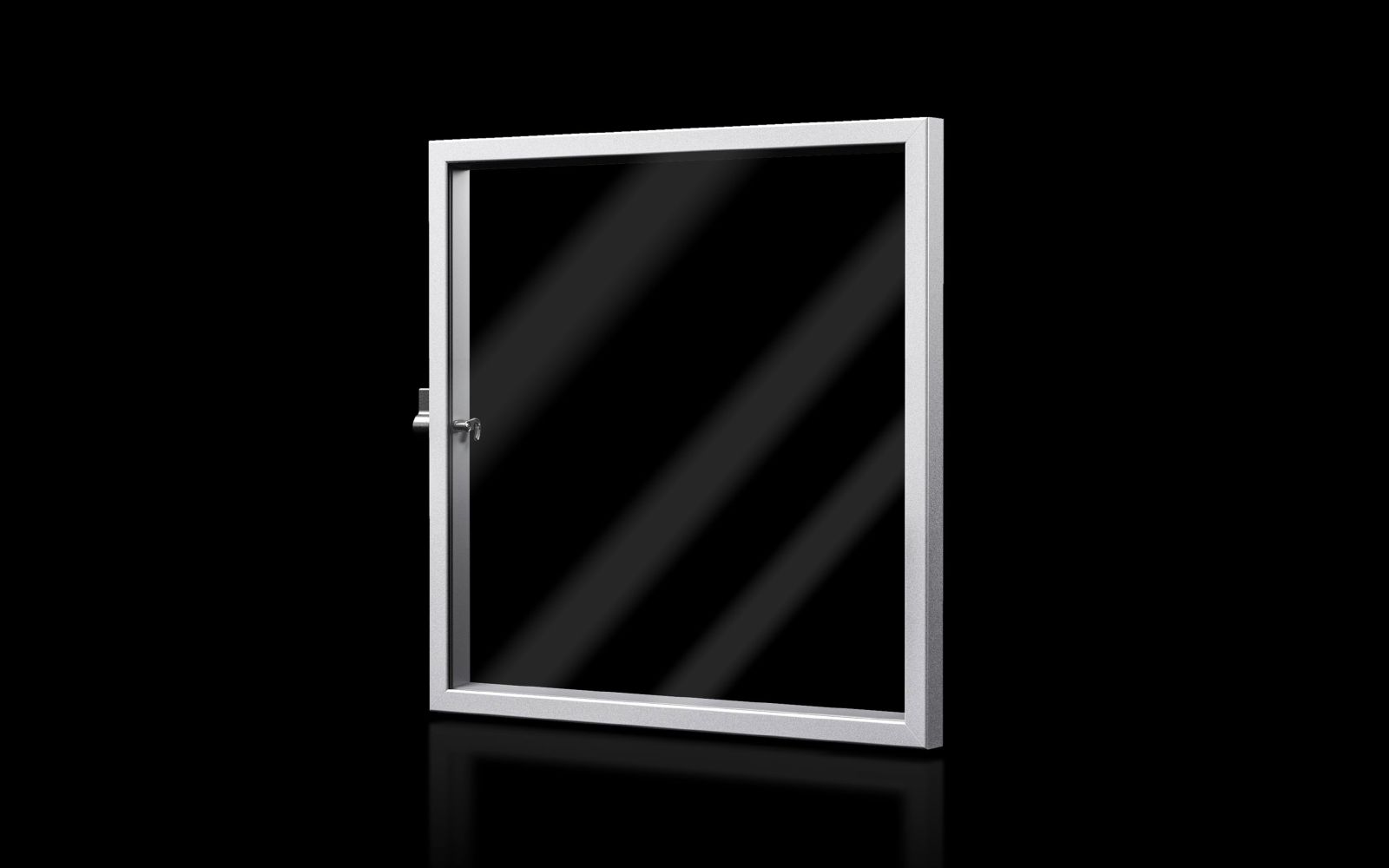

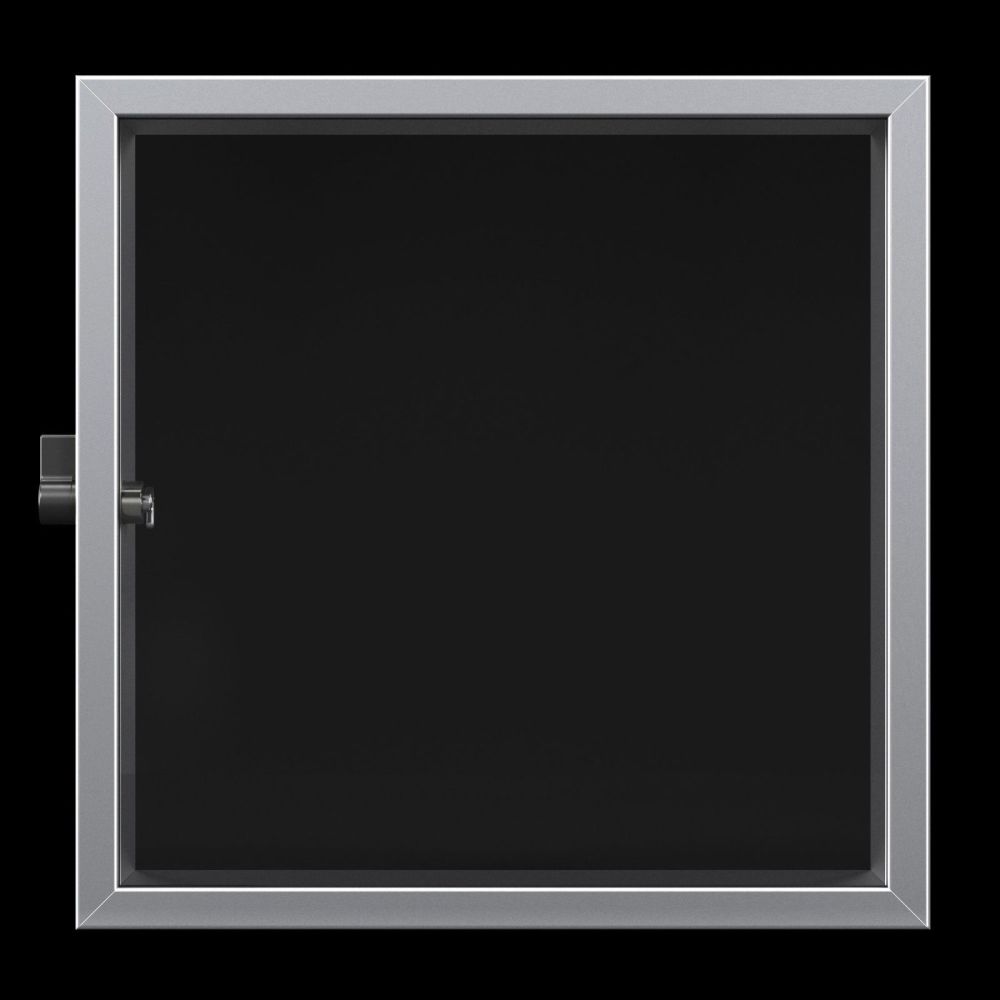

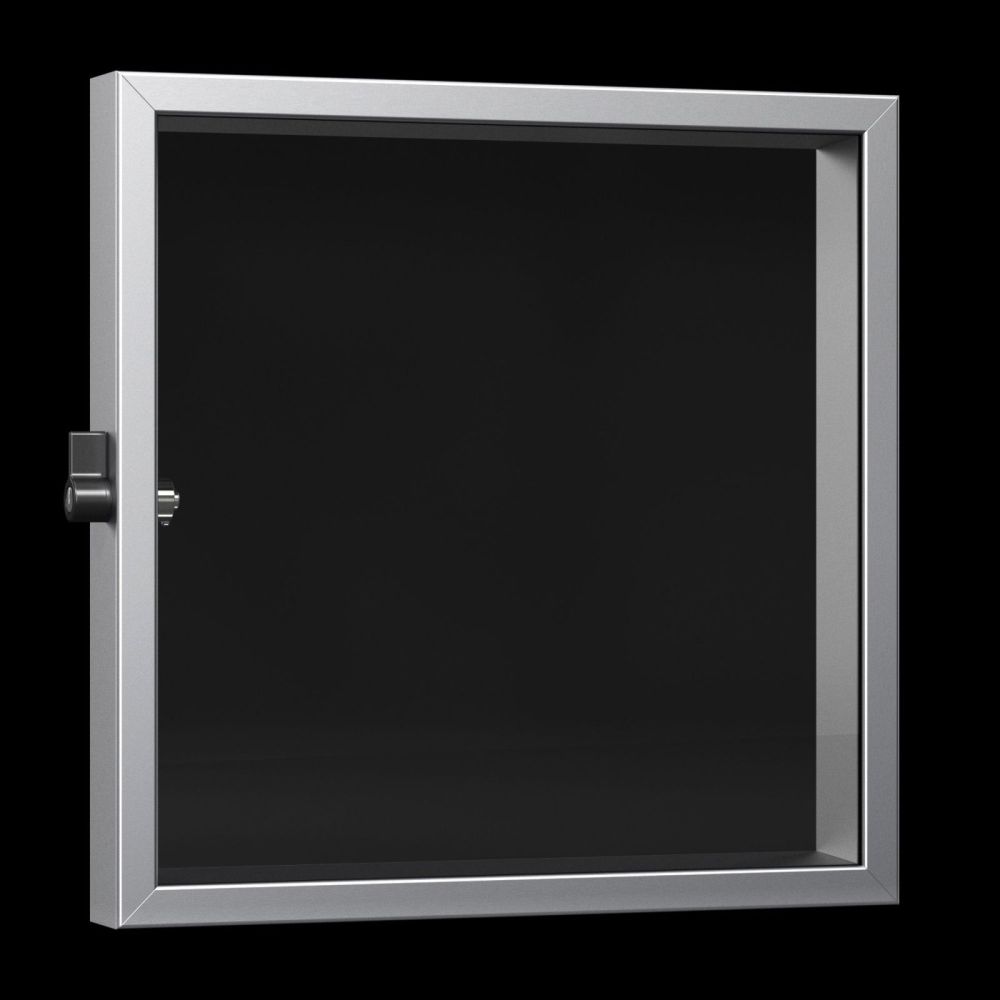

Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle

Your rating:
Average rating
product review for Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle
( 4.8 / 5 ) 5 ratings
Rittal 2731010
This image may differ from the desired article.
Rittal 2731010Rittal 2731010Rittal 2731010Rittal 2731010Rittal 2731010Rittal 2731010Rittal 2731010
179,06 EUR 181,36 EUR
( 213,08 EUR incl. VAT )
≈ £149.87  |  ≈ $196.79
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle
Datasheet:file_download Download
Lieske Part No.:1593405
Mfg Part No: 2731010
UPC/EAN: 4028177938472
Weight:3.48 kg
Type:AX 2731010

Product information for Rittal 2731010:

The Rittal viewing window AX 2731010 is a system accessory for AX enclosures and serves as a replacement for a door or a panel in the enclosure. It enables visual monitoring of assemblies and components inside the enclosure without having to open the cover. The product is specifically designed for enclosures with a width and height of 600 mm each and is mounted in place of a standard door or panel. The dimensions are 597 mm width, 597 mm height, and 36 mm depth, with the visible area of the acrylic glass window measuring 537 mm in width and height. The maximum build depth for components is 32 mm, allowing the installation of control elements or displays behind the window.

Applications

The viewing window is intended for use in industrial environments, particularly in enclosures of the AX system. It is mounted in place of a door or panel to make the enclosure's content visible without compromising the protective function. Its use is suitable for installations where permanent visual monitoring of displays, LEDs, or other status indicators is required without opening the enclosure door. The fit is designed for enclosure types with article numbers 1010.000, 1054.000, 1060.000, and 1360.000.

Functions and Equipment in Detail

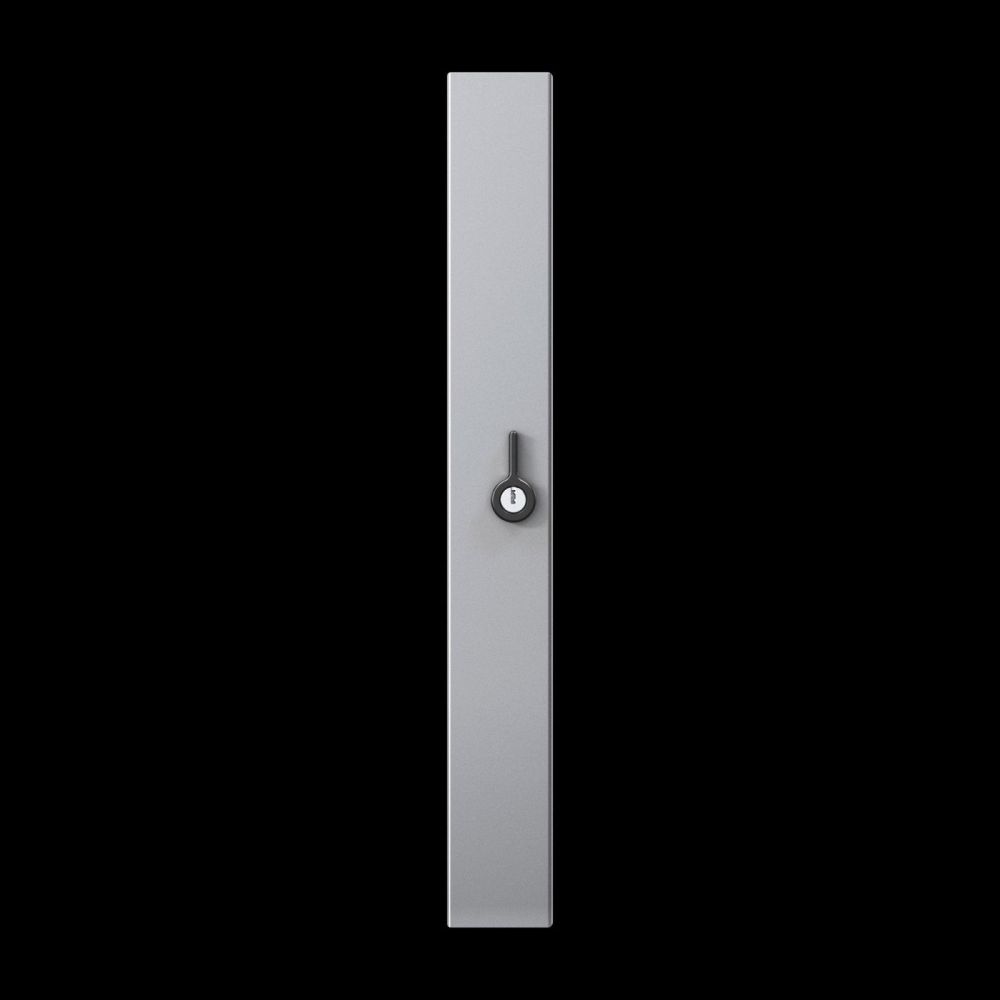

The viewing window consists of an aluminum frame, naturally anodized, and an acrylic glass panel. The anodized surface provides corrosion protection and a robust, long-lasting coating. The acrylic glass panel is transparent and allows clear visibility of the enclosure's interior. The delivery includes a plastic handle with safety insert No. 3524 E, enabling safe and convenient operation. The handle is intended for mounting on the front of the viewing window and is used for opening and closing.

Technology Explained Simply

The viewing window is manufactured in a 30-profile, which represents a standard construction for Rittal systems. The protection rating IP 54 according to EN 60 529 ensures that the device is protected against dust and splashing water. This makes it suitable for use in industrial environments where some contamination or moisture may occur. The IP protection rating IP 54 means the device is dust-tight and protected against splashing water from any direction, but not against immersion or heavy splashing. The dimensions of 597 mm width and height, and 36 mm depth, are matched to the standard sizes of AX enclosures to enable secure installation without additional modifications.

Compatibility and Accessories

The viewing window is specifically designed for AX enclosures with a width and height of 600 mm each. It is compatible with enclosure types sold under article numbers 1010.000, 1054.000, 1060.000, and 1360.000. Installation is done in place of a door or panel, preserving the integrated safety of the enclosure. The accessories included in the delivery comprise the plastic handle with safety insert No. 3524 E, which ensures safe operation of the window.

Installation and Mounting

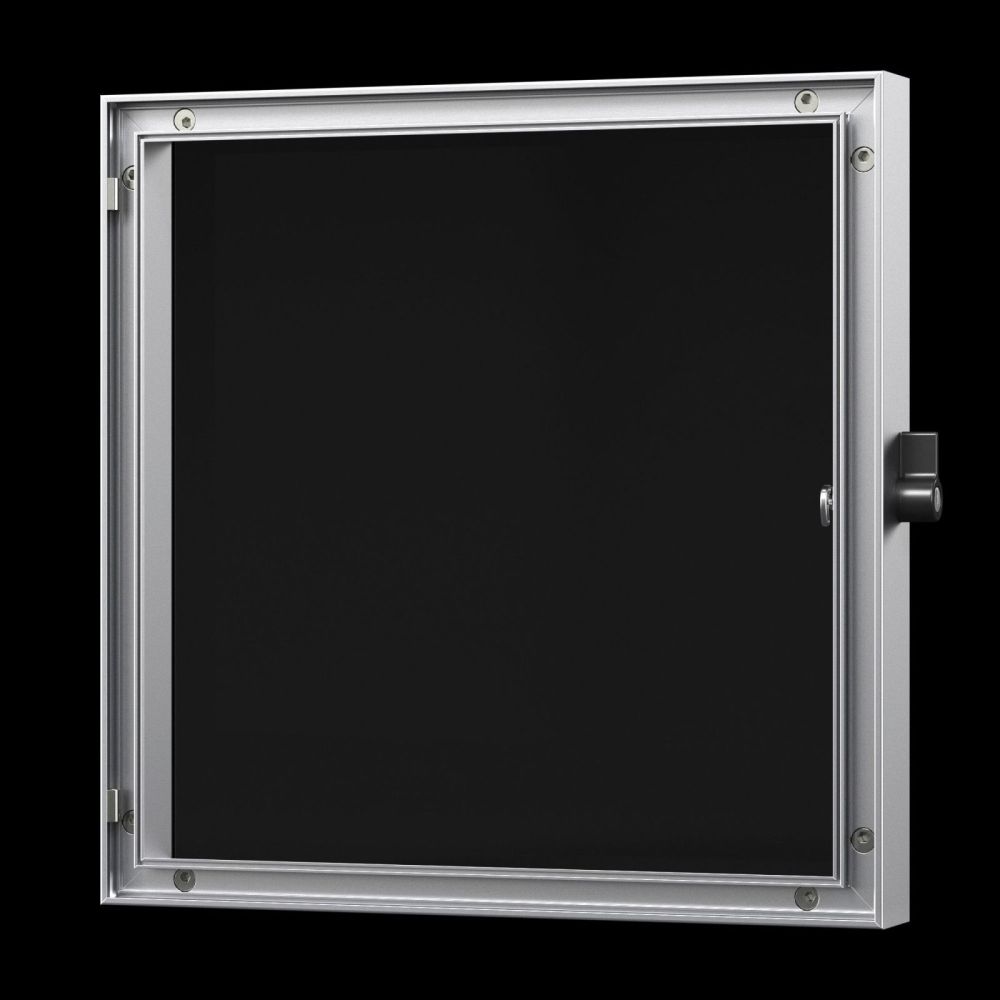

Mounting is performed on the front of the AX enclosure, where the viewing window replaces a door or panel. Fixing is done via the designated mounting points in the enclosure, with the dimensions of the viewing window (597x597x36 mm) precisely matching the standard sizes of AX enclosures. The maximum build depth of 32 mm allows the installation of control elements or displays behind the window. Installation requires no additional tools or components, as the viewing window is directly fitted into the designated openings.

Operational Advantages

The viewing window enables visual monitoring of the enclosure's content without opening the door, reducing the risk of accidents and increasing safety, as the protective function of the enclosure remains intact. The IP 54 protection rating provides sufficient protection against dust and splashing water, expanding its application in industrial environments. The clear view through the acrylic glass allows for quick and reliable monitoring of status indicators, LEDs, or other visual signals. The integrated mounting of the plastic handle with safety insert facilitates operation and ensures safe and convenient handling.

General
Model30-series profile
MaterialFrame: aluminium, natural anodized, glass panel: acrylic glass
Scope of deliveryIncluding plastic handle with safety insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1010.000, 1054.000, 1060.000, 1360.000
Suitable forHousing type: AX, width: = 600 mm, height: = 600 mm
Width597 mm
Height597 mm
Depth36 mm
Visible surface areaVision window width: 537 mm, vision window height: 537 mm
Depth for components (max.)32 mm


Product data sheet
Datasheet for Rittal 2731010, EAN: 4028177938472

Questions & answers

What is the delivery time of Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle?

The article Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2731010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle always at the best possible price. We can give you a discount of 2% on Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
