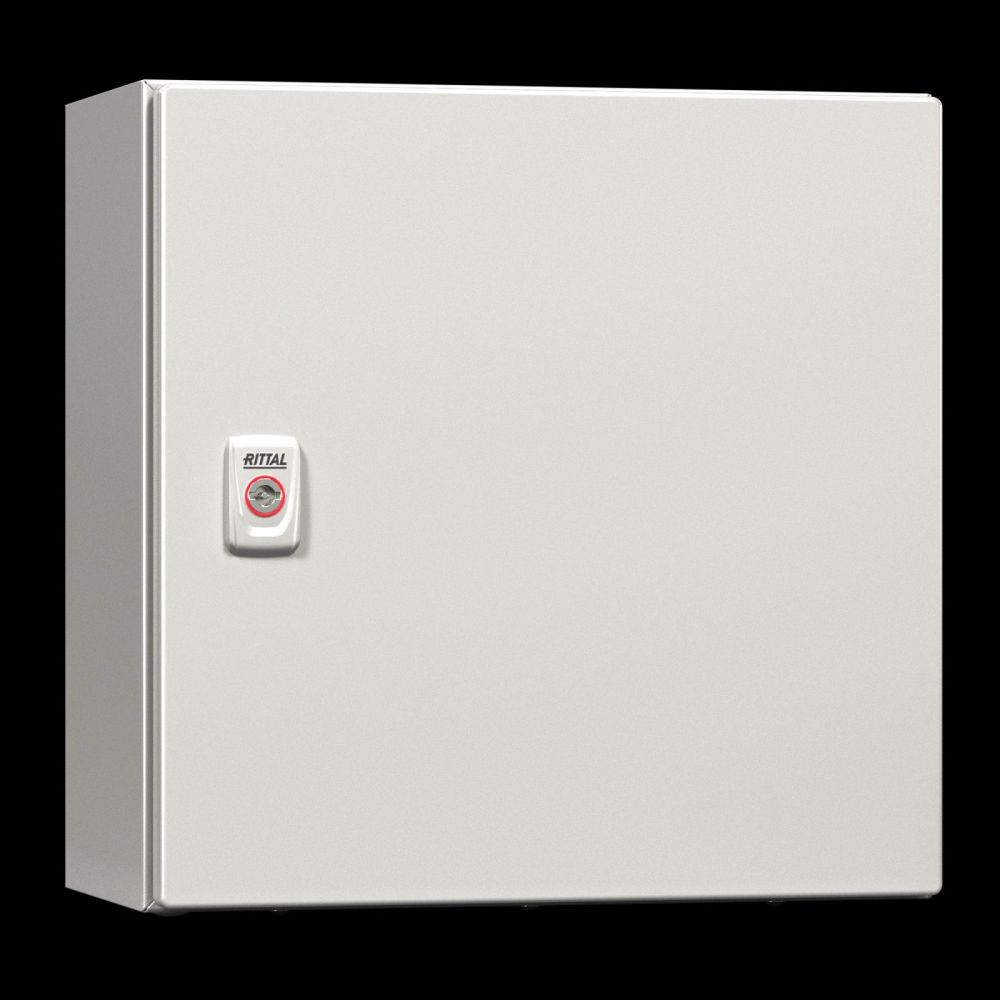

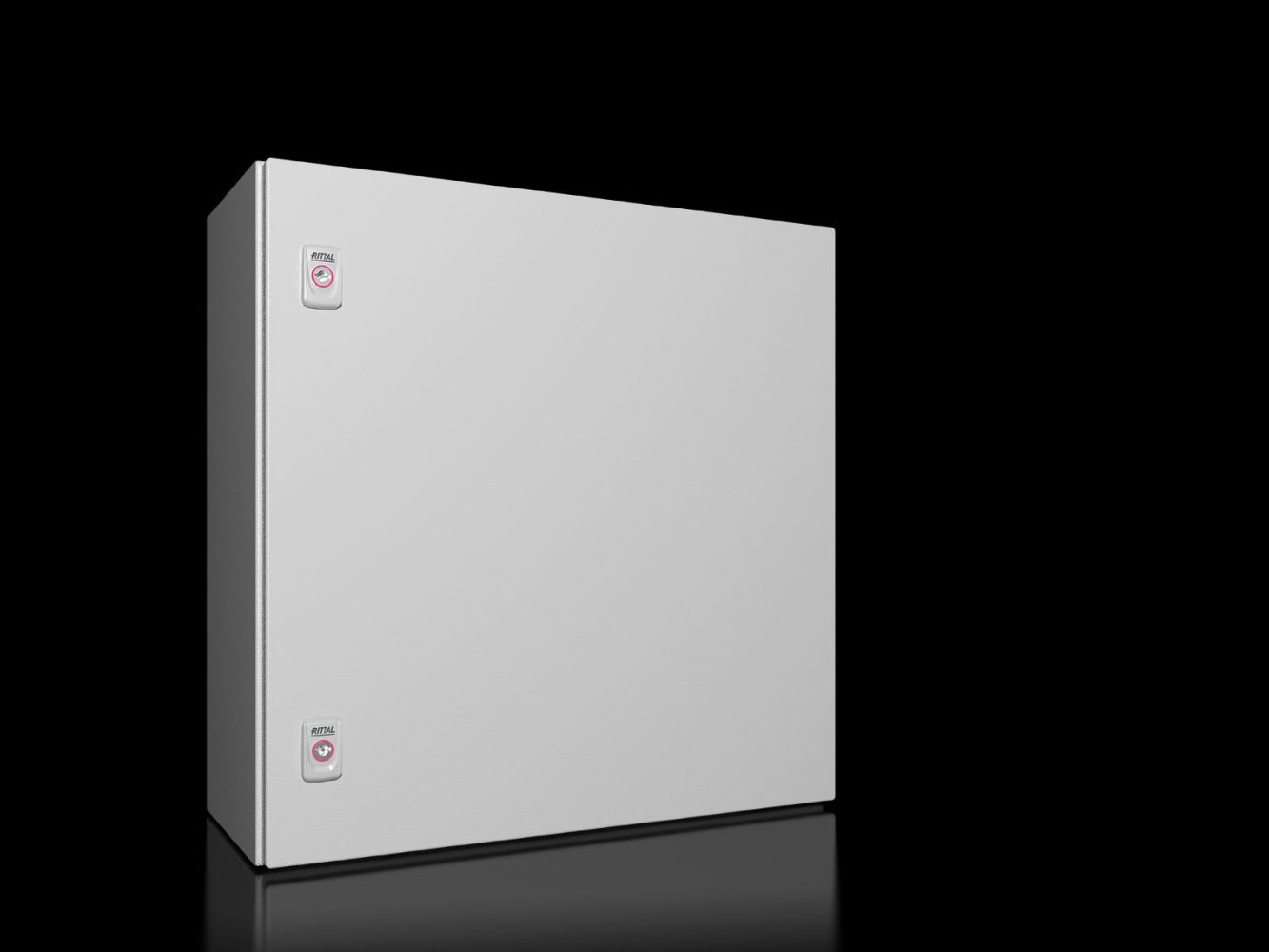

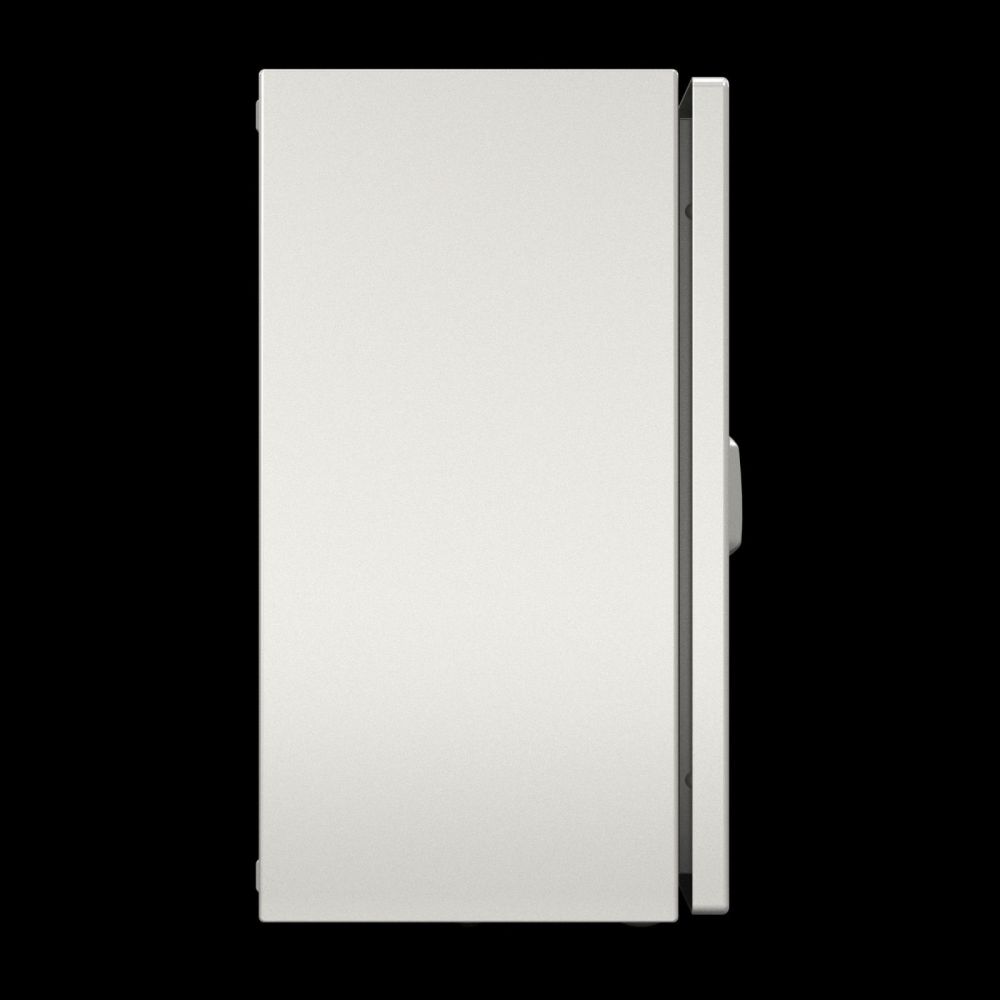

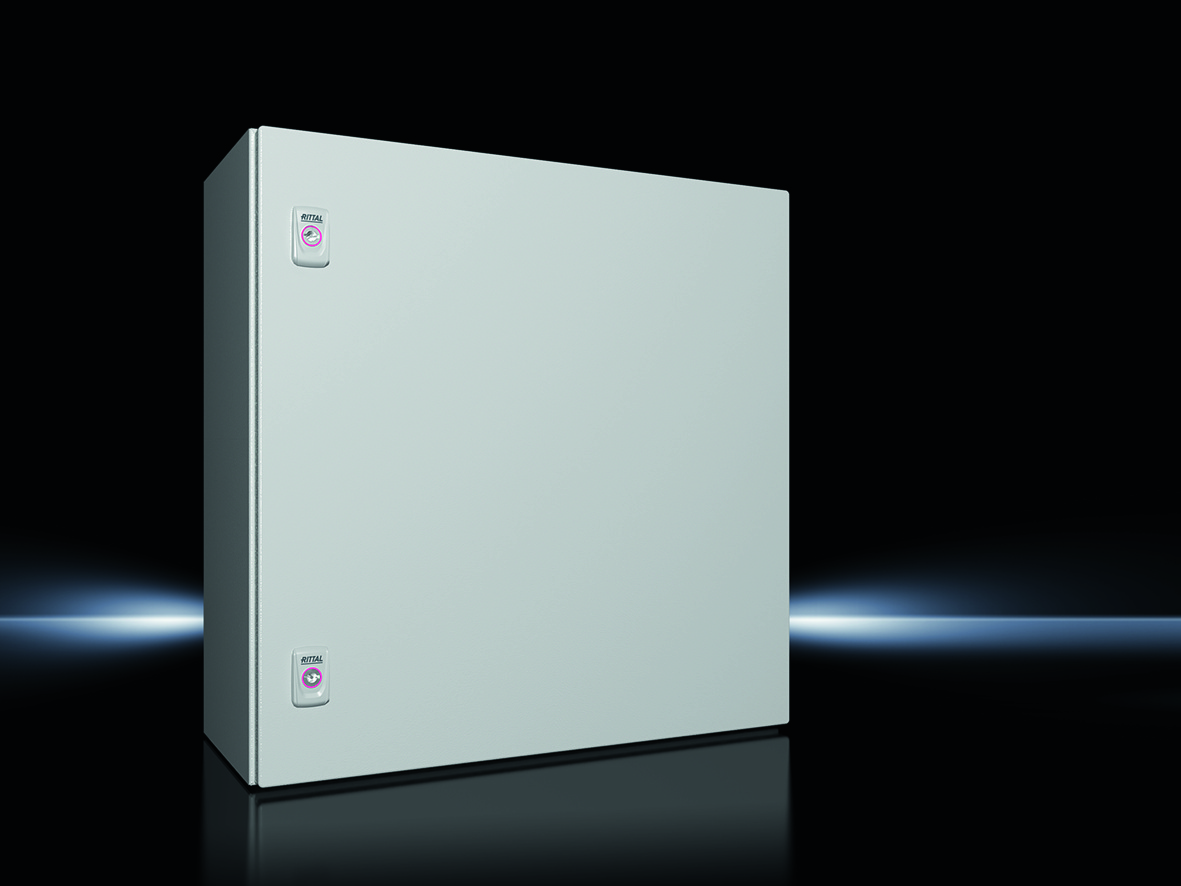

Rittal 1054000 Compact enclosure AX, 1-door, W x H x D: 600x600x250 mm
|
145,28 EUR 145,44 EUR |
|
|
( 172,88 EUR incl. VAT ) ≈ £121.60 | ≈ $159.66 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598216 |
| Mfg Part No: | 1054000 |
| UPC/EAN: | 4028177813328 |
| Weight: | 23.4 kg |
| Type: | AX 1054000 |
Product information for Rittal 1054000:
Applications
This enclosure is designed for use in industrial environments where high mechanical and environmental resistance is required. It is suitable for installations in manufacturing, automation technology, power supply, and other areas where electrical components must be protected from dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures dust-tight and watertight sealing, even under heavy spray water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), make the enclosure suitable for use in various regions and standard specifications. The IK code IK10 indicates high mechanical strength against vibrations and mechanical impacts.
Functions and Equipment in Detail

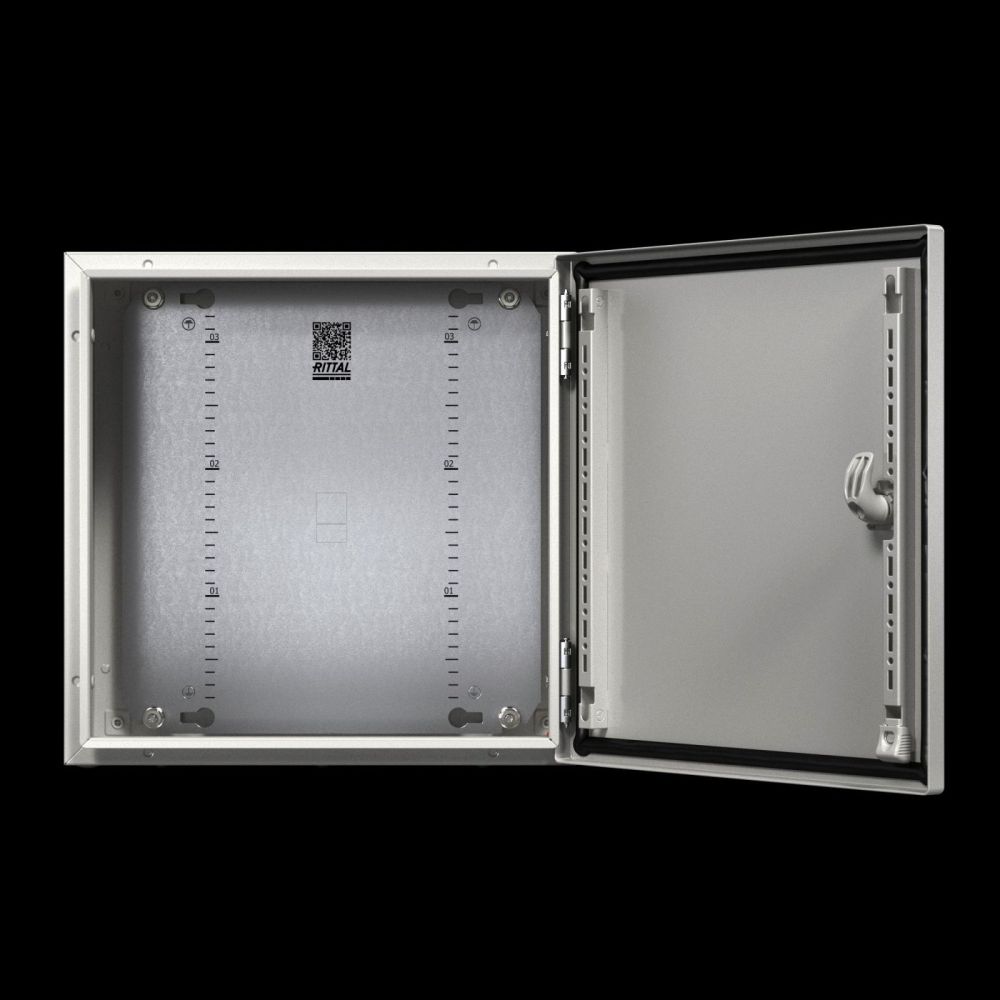

The enclosure features integrated housing lugs on the roof, base, and sides in a 25 mm system grid, mirroring the VX25 system of the large enclosure. These lugs enable easy and drill-free mounting of internal mounting rails and other accessories. The base mounting rail provides an additional mounting level and increases load capacity. The internal mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with ring weld nuts. The door features a foamed PU seal and double-sided vertical door hole strips. The locks are designed as latching mechanisms and comply with DIN 43668. The door can be opened up to 130°, with an option for retrofitting to 180°.
Technology Explained Simply
The integrated housing lugs in the 25 mm grid allow modular expansion of the enclosure without drilling. This simplifies the installation of rails and other components and ensures that the protection rating (UL approval) is maintained during installation. The PU seal provides a tight seal that prevents dust and water ingress. The powder-coated surface offers corrosion protection and is resistant to industrial environments. The mounting plate with earthing keyhole slots enables a secure electrical connection to ground.
Compatibility and Accessories
The enclosure is compatible with the Rittal configurator RiPanel, which enables easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, wall mounting brackets, lock box covers, dust protection strips, baying sets for AX, KX, AE, KL, mounting brackets, handles, gland plates, and multitools. These components can be used to extend functionality and adapt to specific requirements.
Mounting and Installation

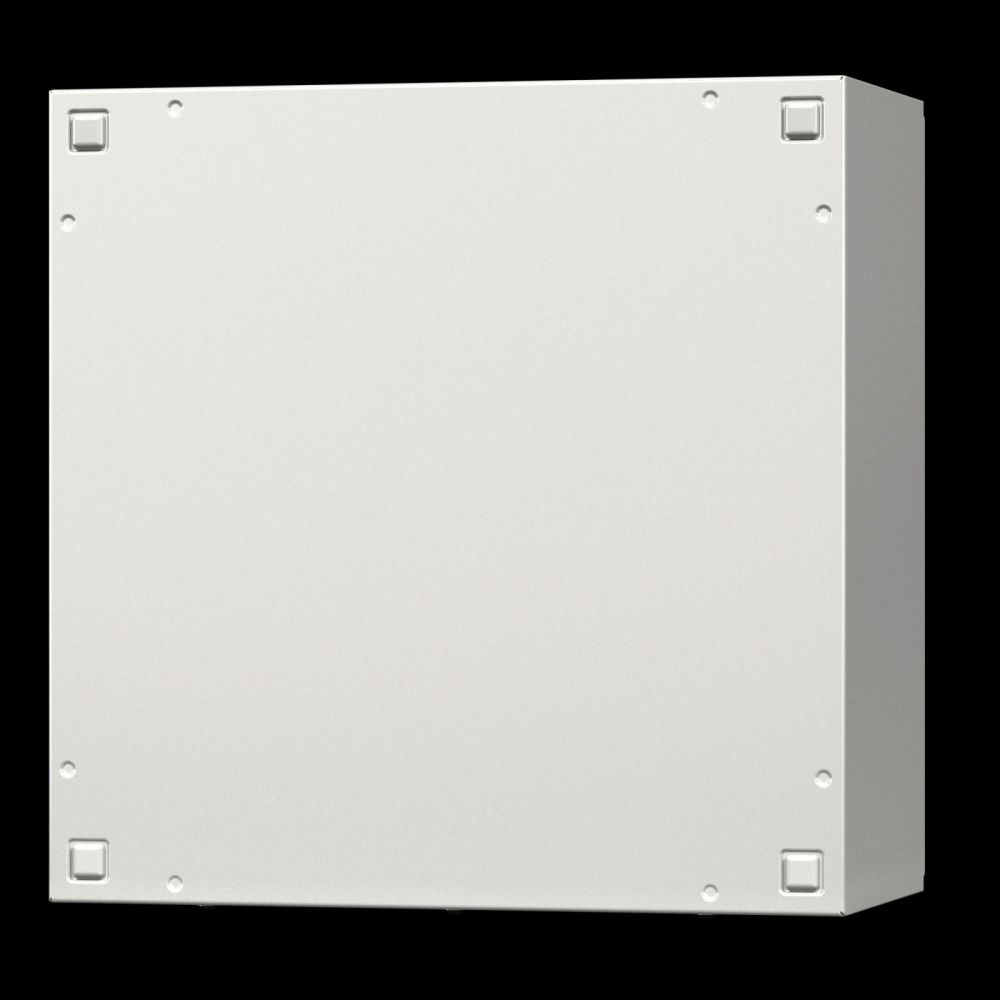

Mounting is performed using the integrated housing lugs and the base mounting rail. Rails can be mounted without drilling, which speeds up installation and maintains the protection rating. The internal mounting plate is pre-installed and allows for device mounting. The door can be mounted on either the left or right side as required. The locks are easy to operate and ensure secure closure.
Advantages in Operation
The enclosure offers high mechanical strength (IK10) and comprehensive protection IP 66, NEMA 3R/4/12), making it suitable for demanding industrial environments. The modular expandability via the 25 mm system grid allows flexible adaptation to future requirements. Drill-free mounting of internal mounting rails reduces installation time and increases reliability. The integrated mounting plate and earthing keyhole slots ensure a secure and standardized installation of electrical components. The QR code on the enclosure body, door, and nameplate enables unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 250 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 575 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 4, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 93.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
