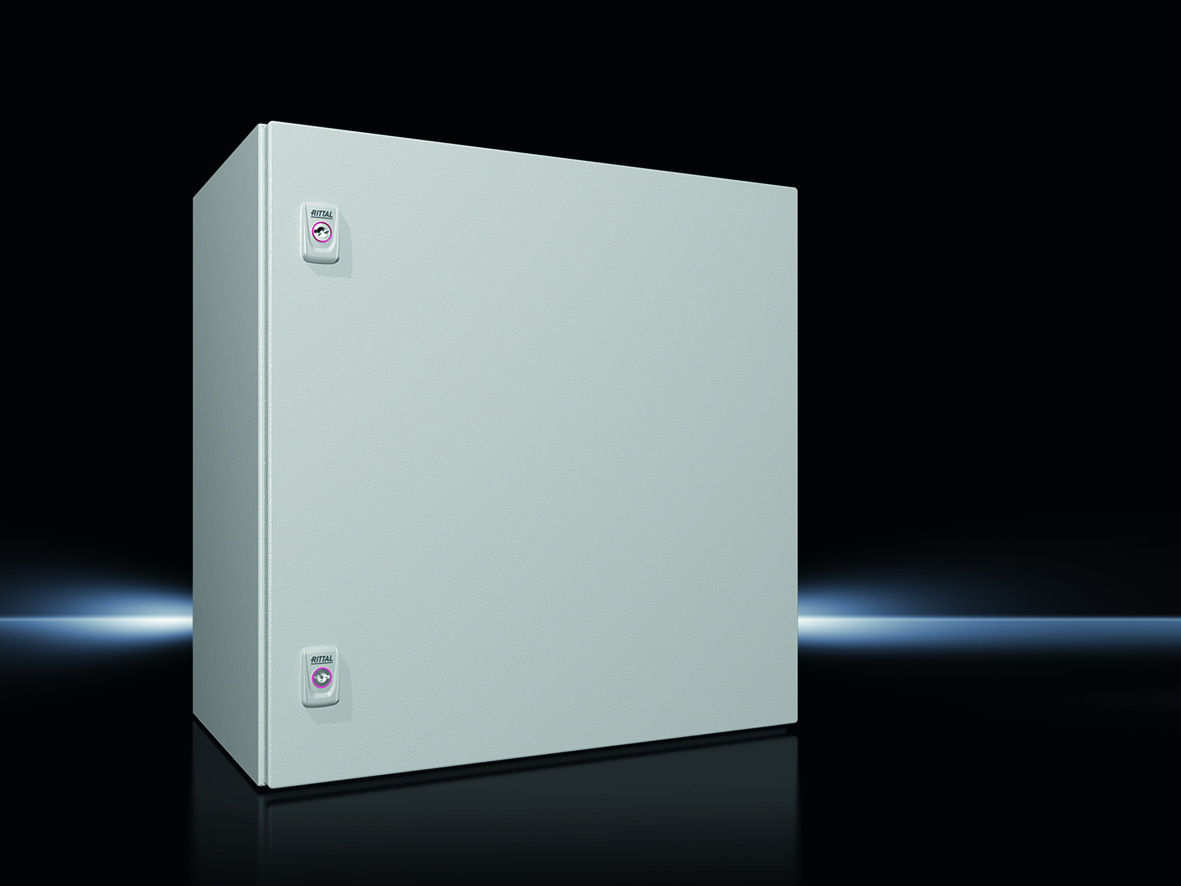

Rittal 1360000 Compact enclosure AX W x H x D 600x600x350 mm IP66 (freight shipping)
|
174,43 EUR 174,51 EUR |
|
|
( 207,57 EUR incl. VAT ) ≈ £146.00 | ≈ $191.70 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598131 |
| Mfg Part No: | 1360000 |
| UPC/EAN: | 4028177813168 |
| Weight: | 26.34 kg |
| Type: | AX 1360000 |
Product information for Rittal 1360000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in settings with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under heavy spray water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial applications, including humid or dusty environments. The IK code IK10 provides high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure features integrated enclosure lugs in the roof, base, and side panels, replicating the 25 mm system grid of the VX25 large enclosure. This enables flexible and quick installation of internal components such as rails and accessories without drilling, thus maintaining the protection rating. The door is fitted with a continuously foamed PU seal to ensure a tight seal. The door hinge is reversible, allowing the door to be mounted to open on the right or left. The door opens up to 130° according to VDI, with an option to retrofit to 180°. Two latching locks with a 3 mm double-barrel lock insert according to DIN 43668 ensure secure closure.
Technology Explained Simply
The integrated enclosure lugs enable a modular interior setup that can be adapted to individual requirements. The internal mounting plate provides a stable mounting surface for electrical components. The gland plate in the enclosure base (size 7) serves as a cable entry and is included in the delivery scope. The door hole strip on both sides of the door facilitates the installation of control elements. The surface treatment with dip-priming and powder-coated texture protects the enclosure against corrosion and ensures a long service life.
Compatibility and Accessories
The enclosure can be easily planned and configured using the Rittal RiPanel configurator. Compatible accessories include lock inserts made of zinc die-cast, wall mounting brackets, stainless steel protection hoods, mounting rails, knob handles, handles with security cylinder, dust protection strips, and baying sets for AX, KX, AE, and KL. These components extend the functionality and customization options of the enclosure.
Mounting and Installation
Mounting is performed via the integrated gland plate in the enclosure base and the designated mounting points on the rear wall. The internal mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with ring weld nuts. The door can be converted from right-hinged to left-hinged by replacing the hinges. Internal fitting is done using the 25 mm system grid, allowing rails and modules to be installed without drilling.
Operational Advantages
The enclosure offers a high protection class, modular expandability, and easy installation. The integrated lugs and 25 mm grid enable flexible adaptation to different requirements. The robust construction from sheet steel and high-quality surface treatment ensure durability. The delivery includes all necessary components, including enclosure, door, gland plate, mounting plate, door hole strip, and locks, so the enclosure can be directly mounted and put into operation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 350 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 575 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 7, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 109.78 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
