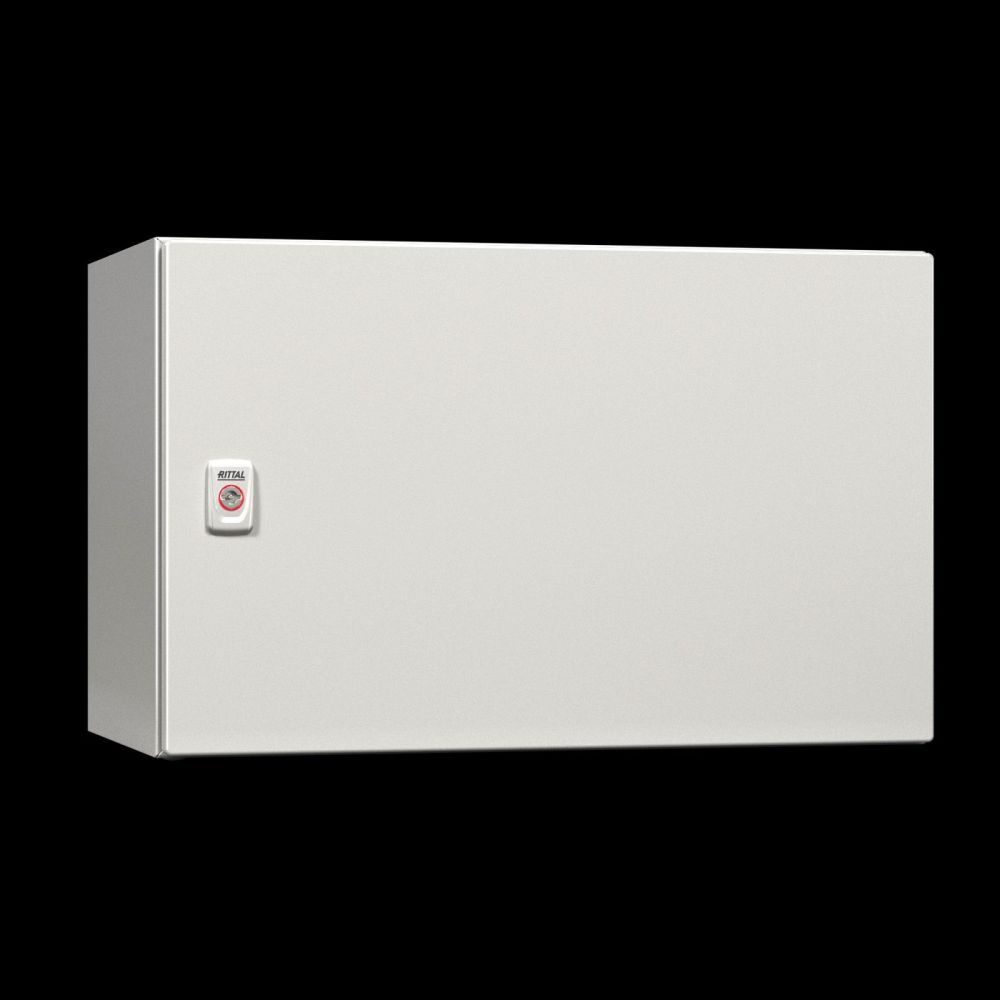

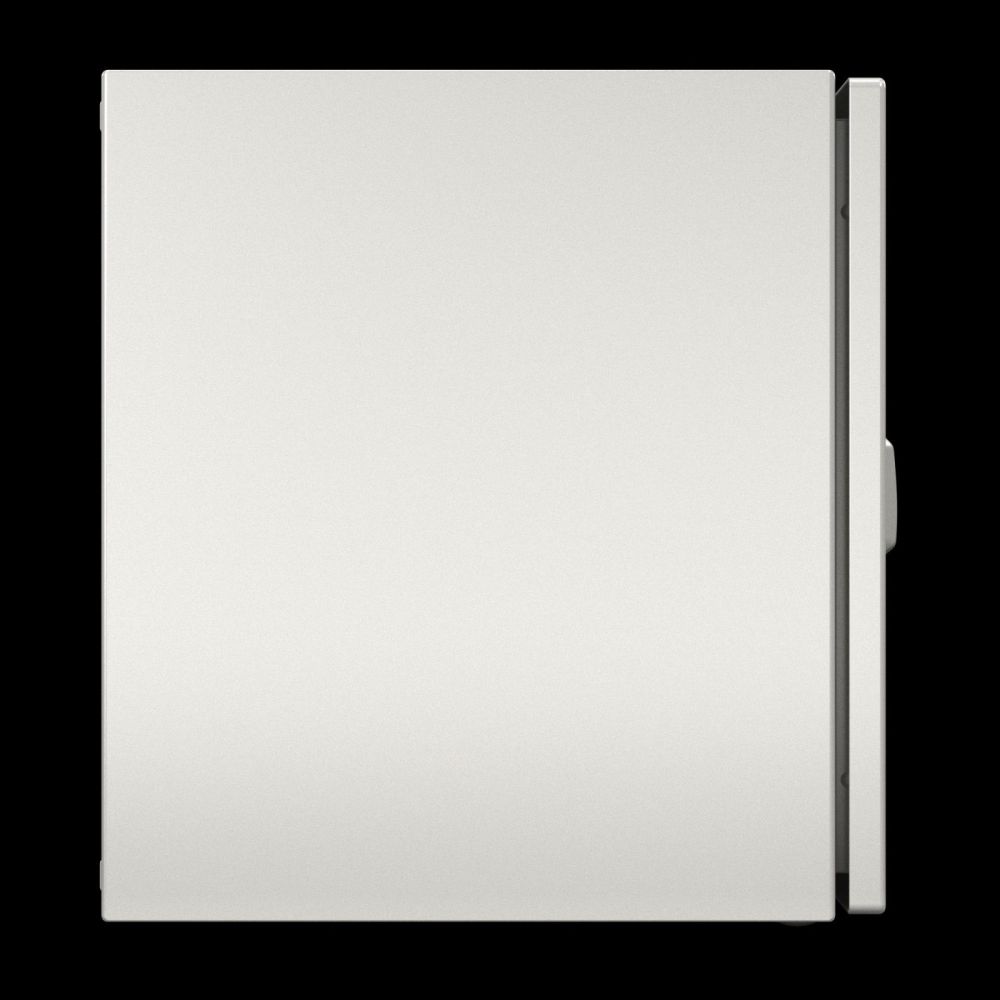

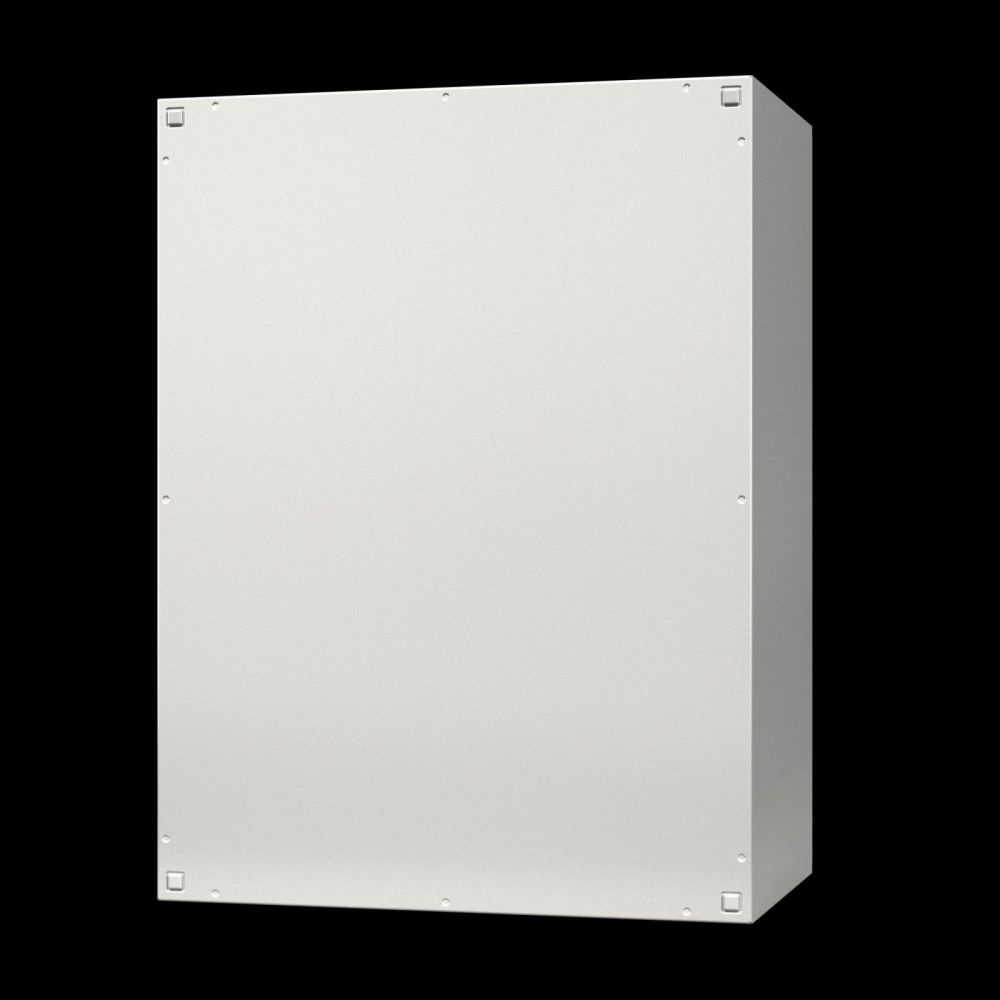

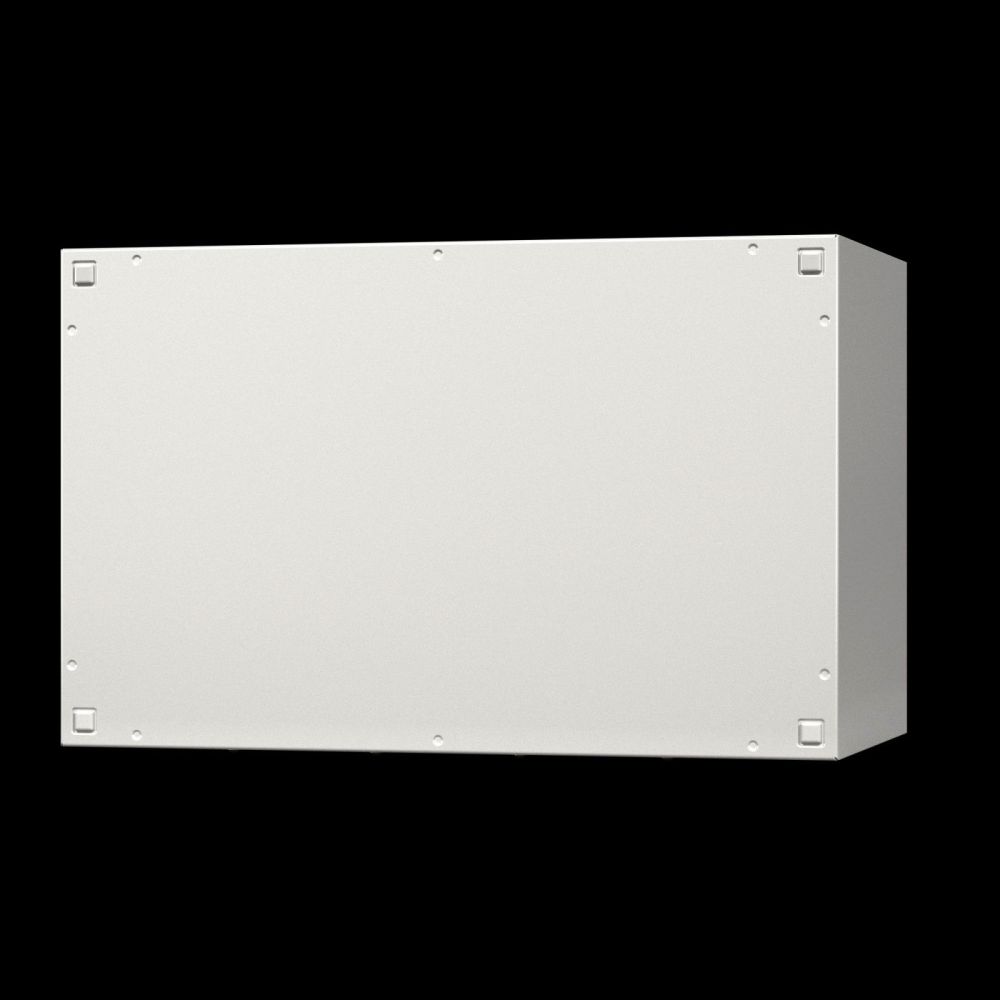

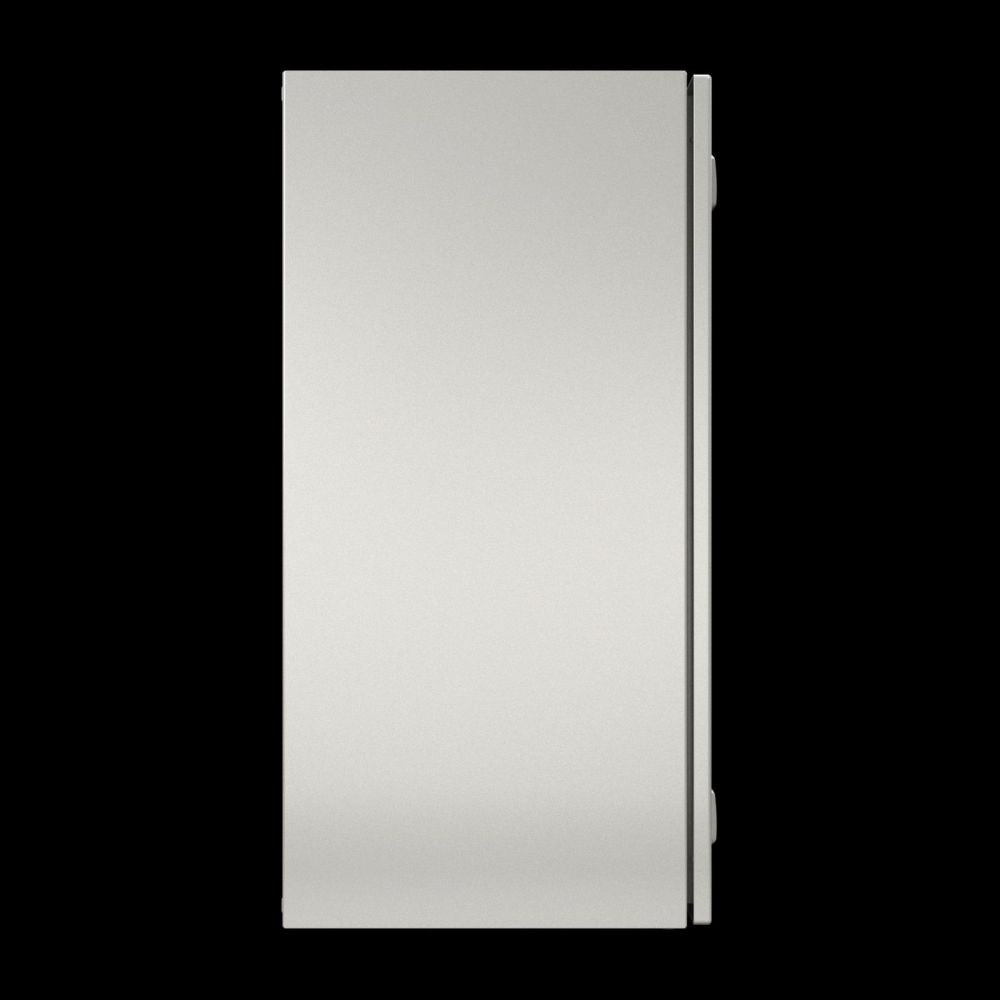

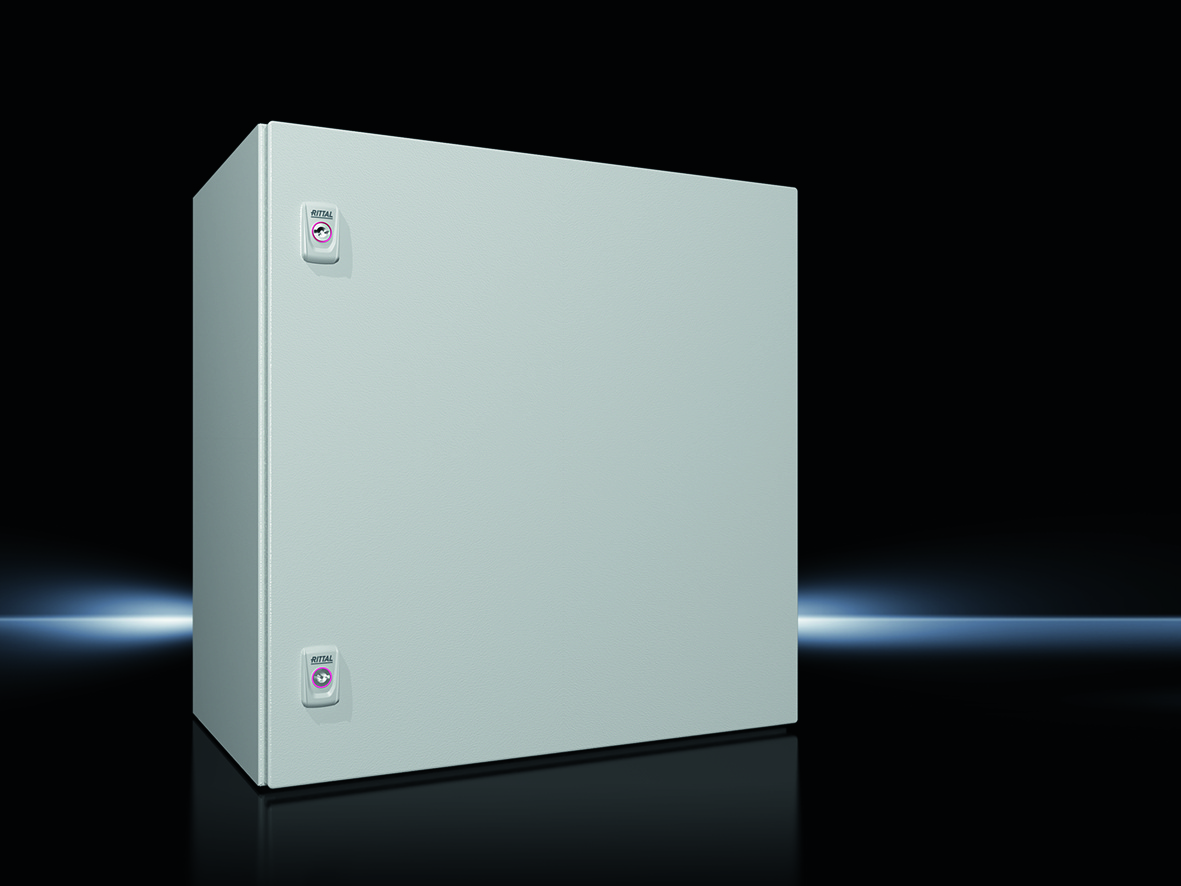

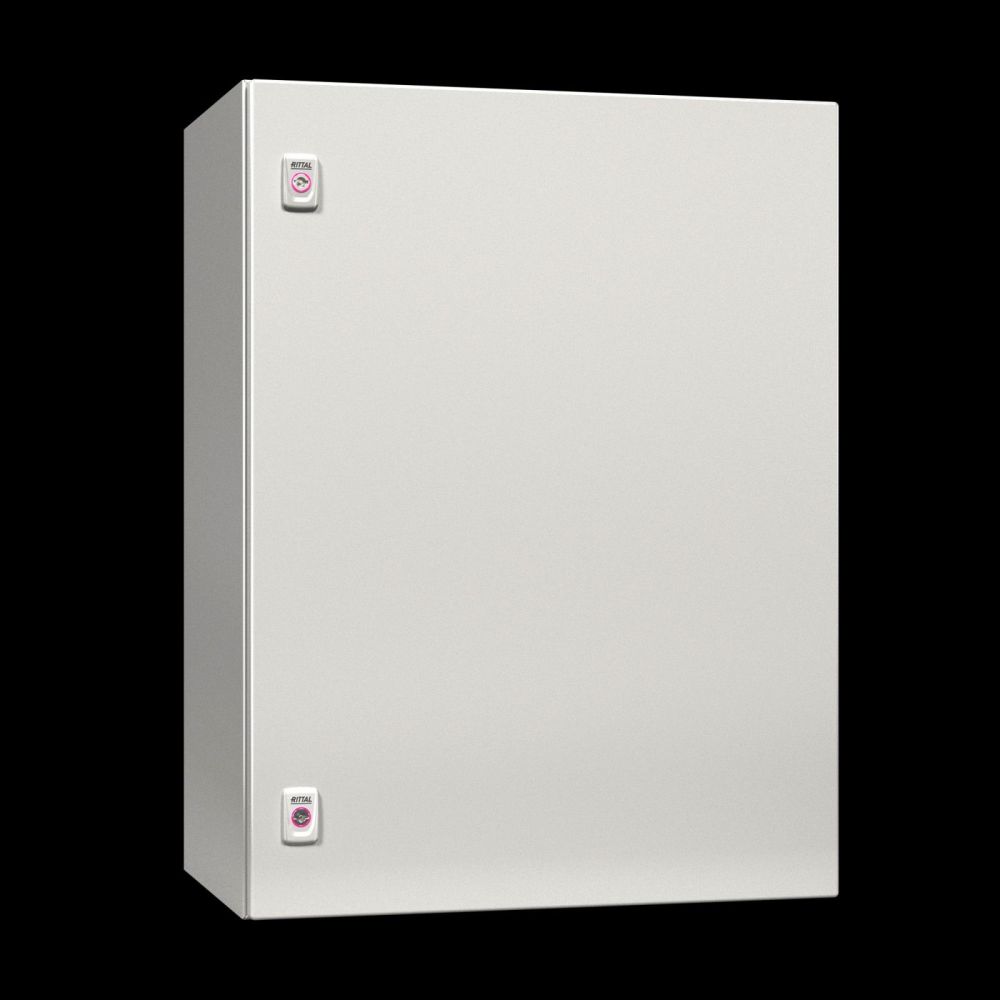

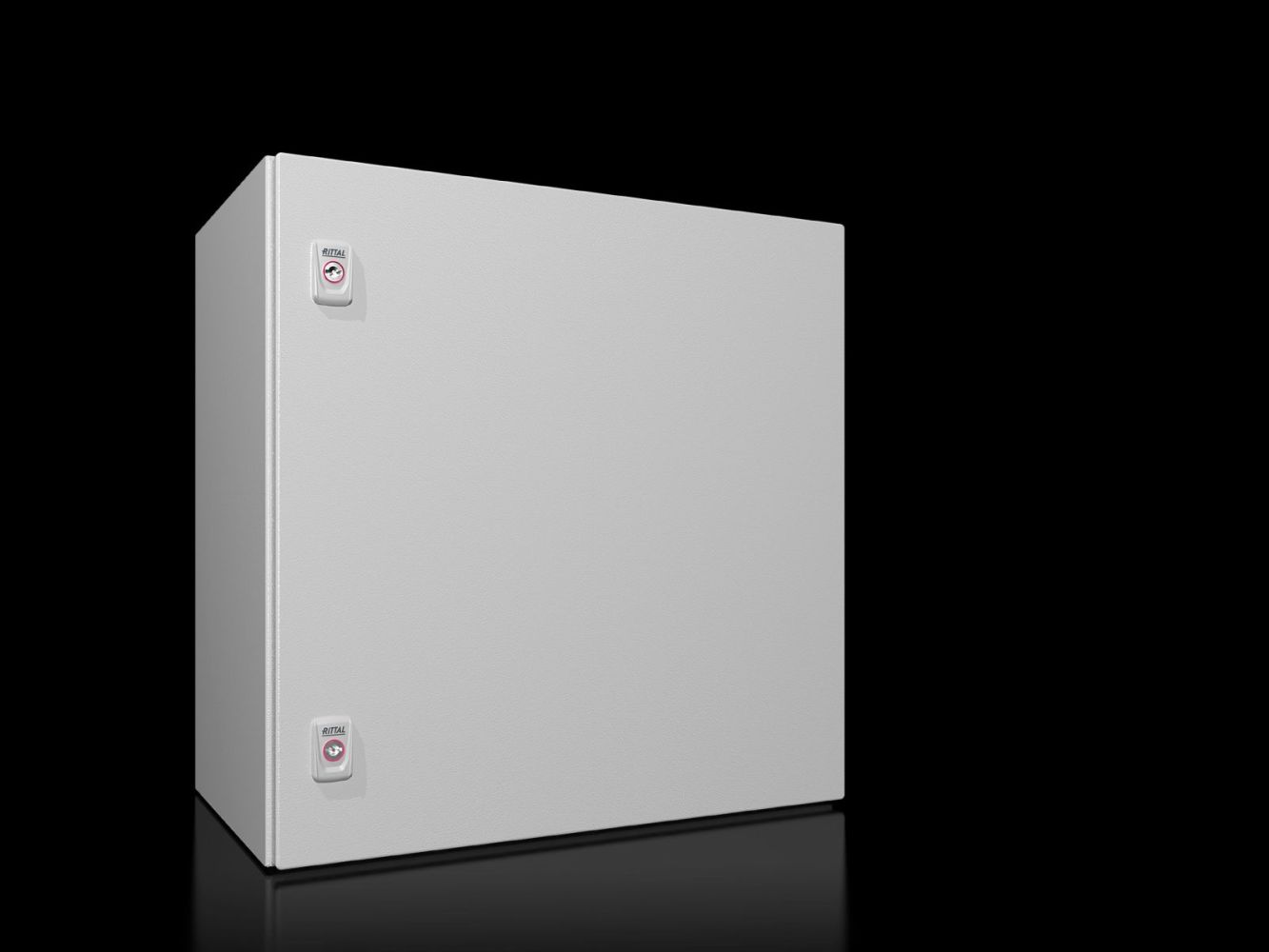

Rittal 7643350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 12 U, 600x600x350 mm
|
221,72 EUR |
|
|
( 263,85 EUR incl. VAT ) ≈ £185.58 | ≈ $243.67 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910652 |
| Mfg Part No: | 7643350 |
| UPC/EAN: | 4028177942400 |
| Weight: | 23.42 kg |
| Type: | AXIT 7643350 |
Product information for Rittal 7643350:
Applications
This wall-mounted enclosure is intended for use in industrial environments where a robust and impact-resistant packaging for IT components is required. It is particularly suitable for applications where direct integration of IT into production processes is necessary, for example in automation technology, manufacturing control, or building automation. The design enables secure wall mounting and provides a protected space for network devices, switches, routers, or other 48,3 cm ( 19 inch ) components.
Functions and Equipment in Detail

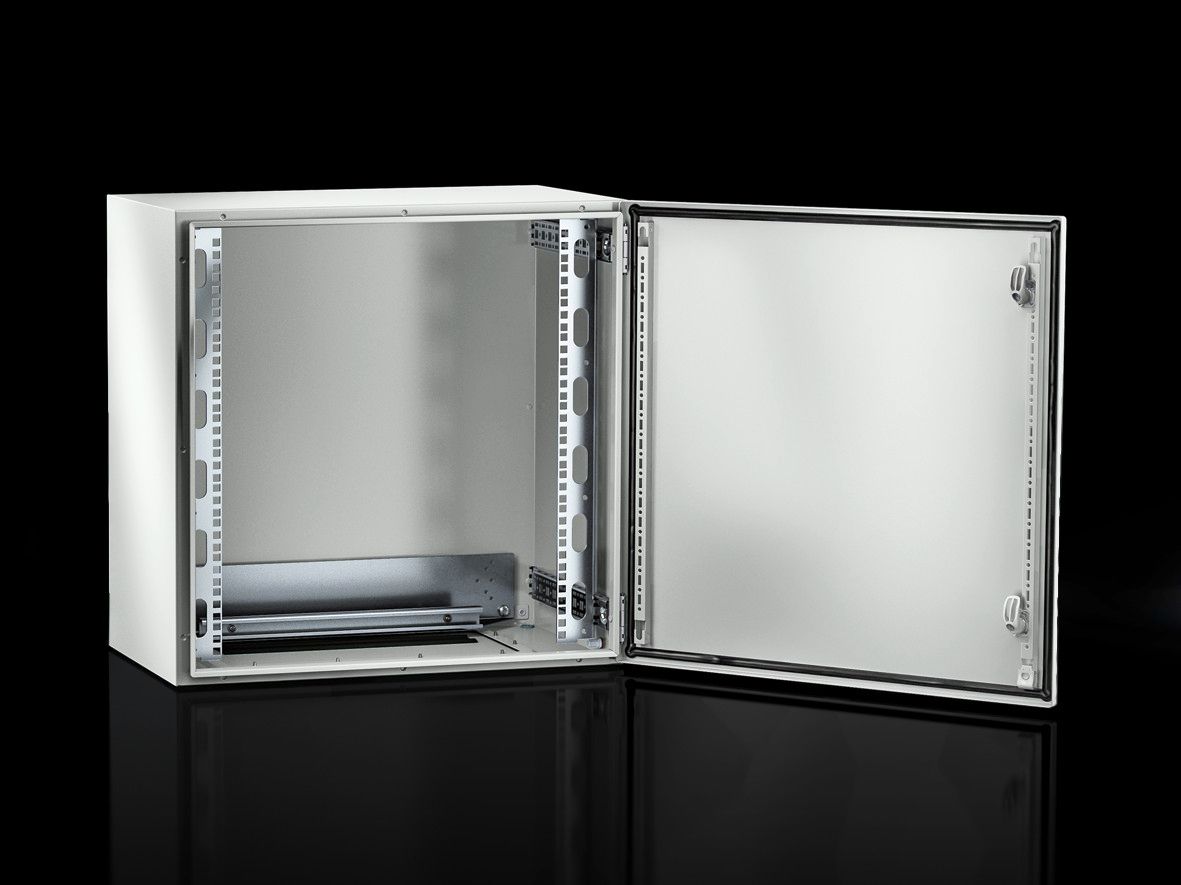

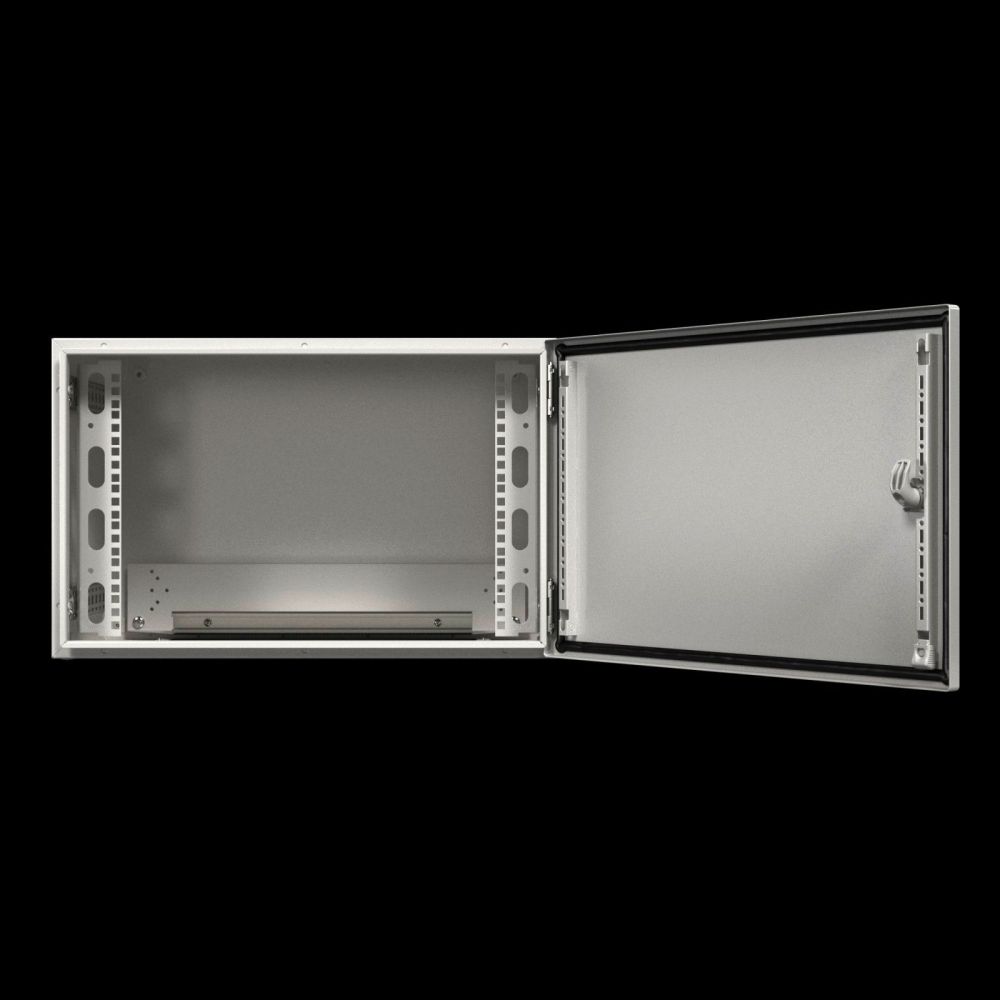

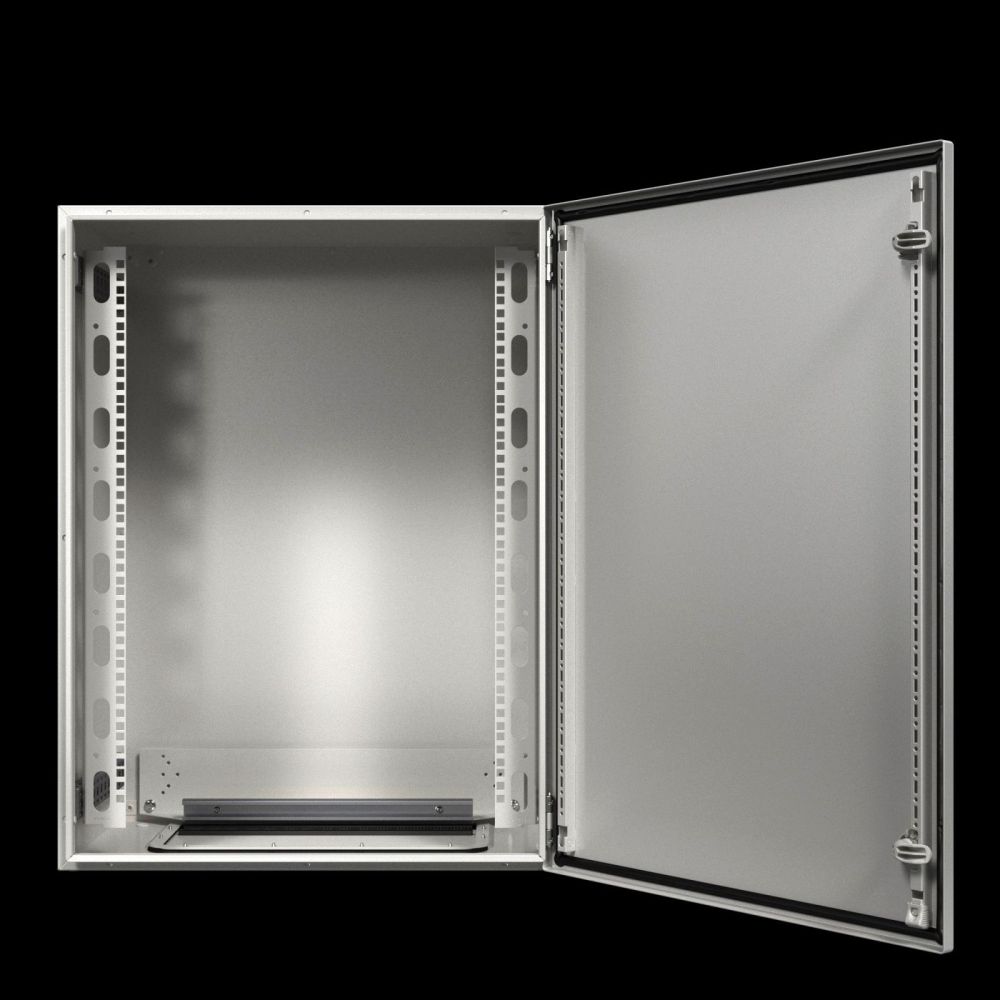

The housing is fully pre-assembled and offers an immediately operational solution. It features a hinged door, standard right-hinged, but changeable to left-hinged. The door is equipped with two latching locks, each fitted with a 3 mm double-barrel lock insert, ensuring a secure closure. The gland plate at the housing base is fitted with a brush strip, enabling convenient cable entry from below. The 48,3 cm ( 19 inch ) profile rails are depth-variable, mounted on four internal mounting rails in 25 mm increments, allowing the depth of mounted components to be individually adjusted. The installation depth is 278 mm.
Technology Explained Simply
The welded housing construction with a fully enclosed body ensures high protection for installed components. The protection rating is standard IP 10, but can be increased up to IP 10 upon request, depending on the selected gland plate. IP 10 means dust-tight and water-tight, making the housing suitable for outdoor use or in damp environments. The maximum usable internal height is 12 HE, enabling the installation of standard 48,3 cm ( 19 inch ) devices. The gland plate with integrated brush strip allows flexible cable routing and increases the cable routing space by up to 33% through the maximum cutout at the housing base.
Compatibility and Accessories
The housing is equipped with pre-mounted mounting brackets, enabling easy wall mounting. Additionally, mounting brackets for a central earthing bar and for mounting a 48,3 cm ( 19 inch ) socket strip are included. Compatible accessories include socket strips in various configurations (e.g. 5-way, 7-way, 8-way, 12-way), surge protection devices, earthing bars, wall mounting brackets, and lock inserts. These components can be used additionally for individual customization of the housing.
Mounting and Installation
Installation is carried out on a wall using the pre-mounted mounting brackets. The 48,3 cm ( 19 inch ) profile rails are already installed in the housing and can be adjusted depth-variable in 25 mm increments as required. Cables are introduced from below via the gland plate with brush strip, enabling clean and structured cable routing. The door can be hinged on the right or left side as required, allowing flexible installation at different wall positions.
Advantages in Operation
The housing offers maximum protection for installed IT components through its welded construction and high protection rating up to IP 10. The pre-assembled equipment reduces installation time and enables immediate commissioning. The depth-variable profile rail and flexible cable routing via the brush strip increase adaptability to different requirements. The robust sheet steel construction and powder-coated surface ensure long service life even in demanding industrial environments. The integrated mounting brackets for earthing bars and socket strips simplify integration into existing systems and reduce additional installation effort.
| General | |
| Model | Wall enclosure IT, with 19" profile rails, variable depth |
| Material | steel sheet |
| Surface protection | Enclosure and door: dip primed, externally powder coated, textured paint, interior: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Pre-assembled IT enclosure with hinged door, fully enclosed, anti-theft lock with 3 mm double-barrel insert, flange plate with brush strip, 19" profile rail front, depth-adjustable in 25 mm increments on 4 internal mounting rails, mounting brackets, C-profile rail, mounted on rear wall |
| Height units | 12 HE |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 350 mm |
| Built-in depth | 278 mm |
| Component mounting height | 12 HE |
| Door hinge position | right, reversible to left |
| Number of locks | 2 |
| Mounting options | Pre-assembled mounting bracket including C-profile rail for cable management, mounting bracket for central earthing rail, mounting bracket for 19" socket strip |
| Note | Variant with UL approval available on request |
| Base material | steel sheet |
| Lock | Locking type: deadbolt with 3 mm double-barrel locking insert, number of locks: 2 |
| Degree of protection IP according to EN 60 529 | IP 10 (on request up to IP 66), up to IP 66 (depending on selected flange plate) |
| Flange plate | Size: 7, Quantity: 1 |
| PCF/VE (Cradle-to-Gate) | 89.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 7643350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 12 U, 600x600x350 mm?
The article Rittal 7643350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 12 U, 600x600x350 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7643350 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7643350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 12 U, 600x600x350 mm always at the best possible price. We can give you a discount of 2% on Rittal 7643350 wall-mounted enclosure AX IT 48,3 cm ( 19 inch )-profile, 12 U, 600x600x350 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
