Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle

Your rating:
Average rating
product review for Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle
( 4.3 / 5 ) 8 ratings
Rittal 2761010
This image may differ from the desired article.
Rittal 2761010Rittal 2761010Rittal 2761010Rittal 2761010Rittal 2761010Rittal 2761010Rittal 2761010
211,72 EUR 212,75 EUR
( 251,95 EUR incl. VAT )
≈ £177.21  |  ≈ $232.68
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle
Datasheet:file_download Download
Lieske Part No.:1593449
Mfg Part No: 2761010
UPC/EAN: 4028177938588
Weight:4.18 kg
Type:AX 2761010

Product information for Rittal 2761010:

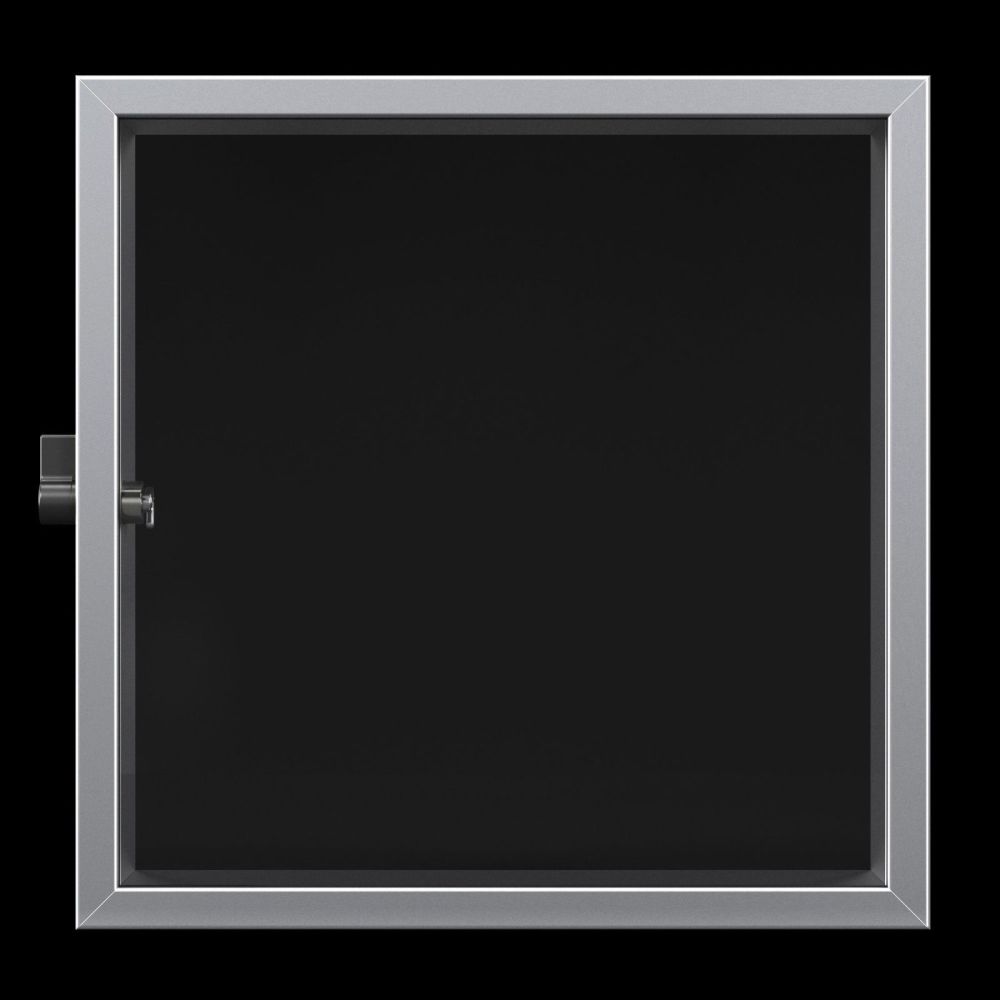

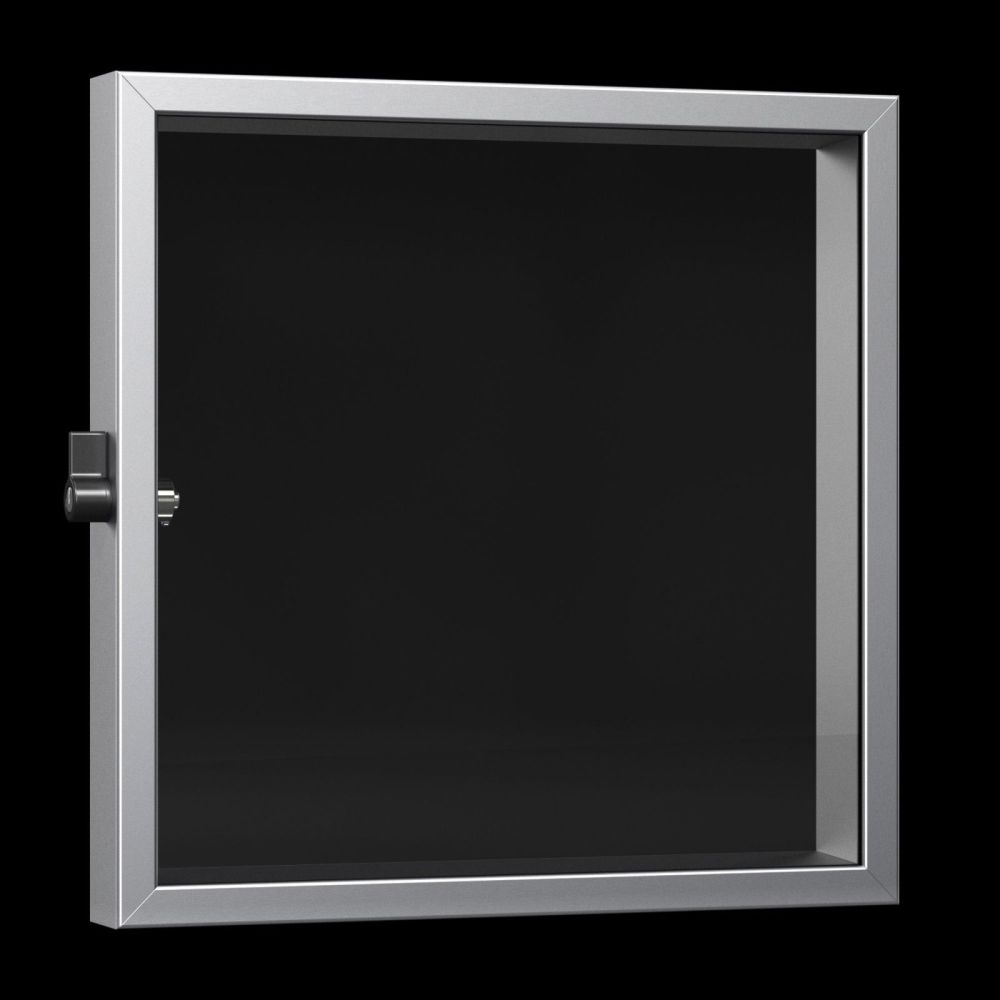

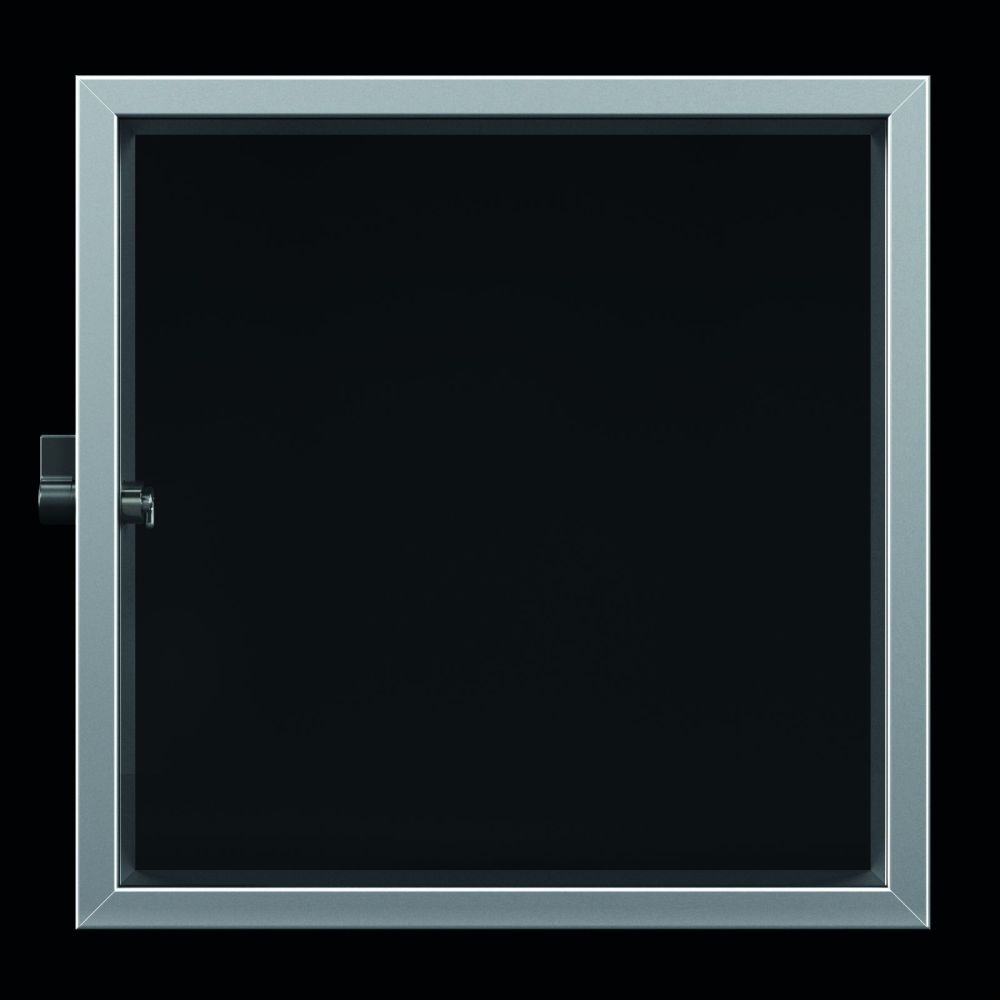

The Rittal viewing window AX 2761010 is a system accessory for AX enclosures and serves as a replacement for a door or panel in the enclosure. It enables visual monitoring of components inside the enclosure without having to open the cover. The product is specifically designed for enclosures with a width and height of 600 mm each and fits models 1010.000, 1054.000, 1060.000, and 1360.000. The dimensions of the viewing window are 597 mm (width) × 597 mm (height) × 62 mm (depth), with the visible area of the acrylic glass window measuring 537 mm (width) × 537 mm (height). The maximum mounting depth for components is 58 mm, allowing the installation of control elements or indicators behind the window.

Applications

The viewing window is primarily used in industrial plants where continuous visual monitoring of switching devices, indicators, or status lights is required. It is suitable for enclosures in industrial environments, particularly in settings where frequent door opening should be avoided to enhance safety or prevent operational interruptions. Using it instead of a door or panel reduces the number of moving parts and minimizes the risk of contamination or mechanical wear.

Functions and Equipment in Detail

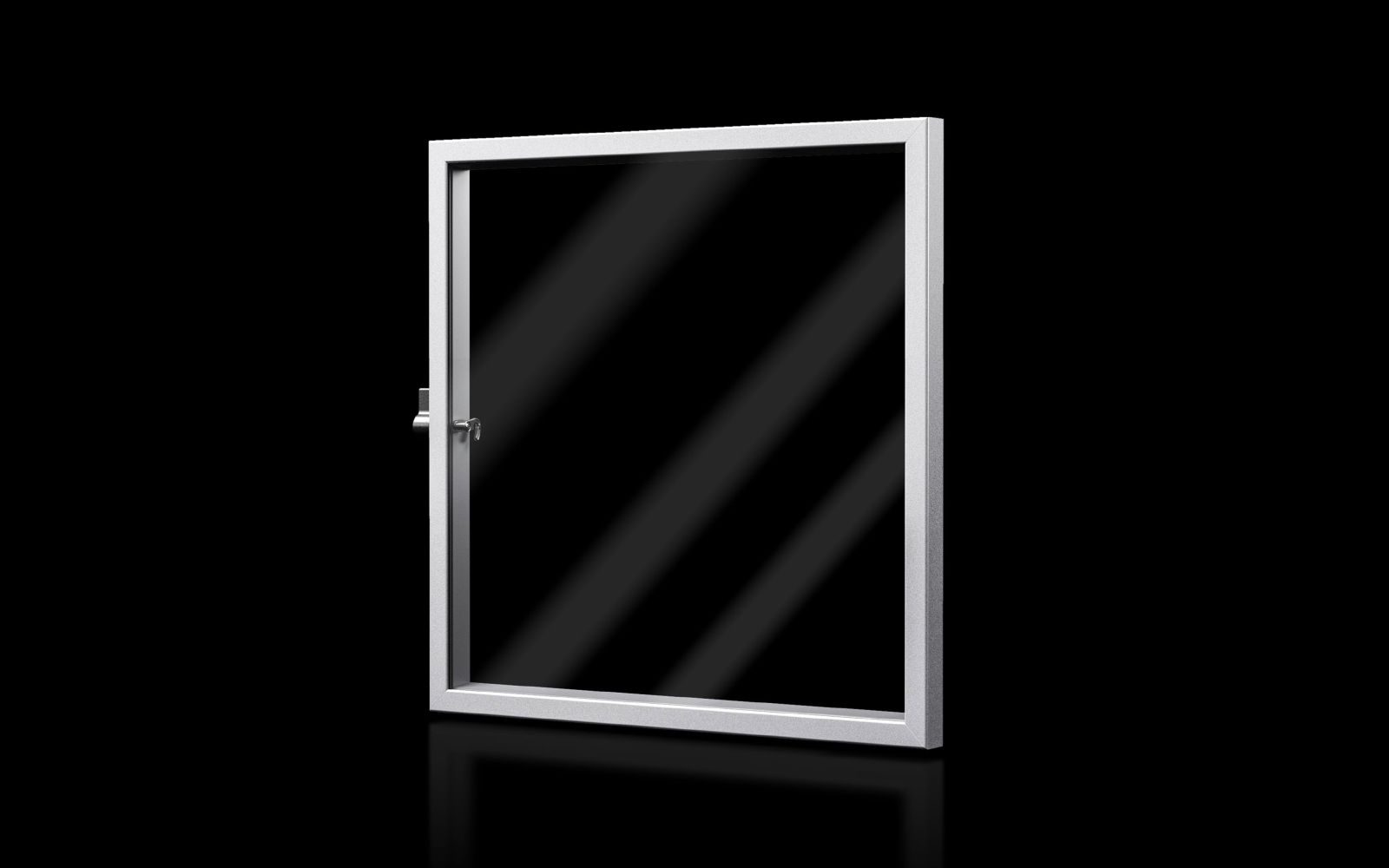

The viewing window consists of an aluminum frame, which is naturally anodized, and an acrylic glass panel. The anodized surface offers high corrosion resistance and is suitable for use in industrial environments. The acrylic glass panel is transparent and allows clear visibility of the components inside. The delivery includes a plastic handle with safety insert No. 3524 E, ensuring safe and convenient operation. The handle is designed for use in enclosures and allows opening and closing the window without tools.

Technology Explained Simply

The protection rating IP 54 according to EN 60 529 protects the viewing window against dust and splashing water. This makes it suitable for use in environments where some contamination or moisture may occur, such as in production halls or outdoor installations. IP rating 54 means the device is protected against dust (dust-protected, but not dust-tight) and against splashing water from any direction. The construction with 60-profile ensures stable mounting and a secure connection to the enclosure. The maximum mounting depth of 58 mm allows installation of control elements that can be easily mounted behind the window without impairing functionality.

Compatibility and Accessories

The viewing window is specifically designed for AX enclosures with a width and height of 600 mm each. It is compatible with enclosure models 1010.000, 1054.000, 1060.000, and 1360.000. Installation replaces a door or panel, thereby integrating the visual monitoring function without additional components. The accessories included in the delivery comprise the plastic handle with safety insert, ensuring safe operation of the window.

Installation and Mounting

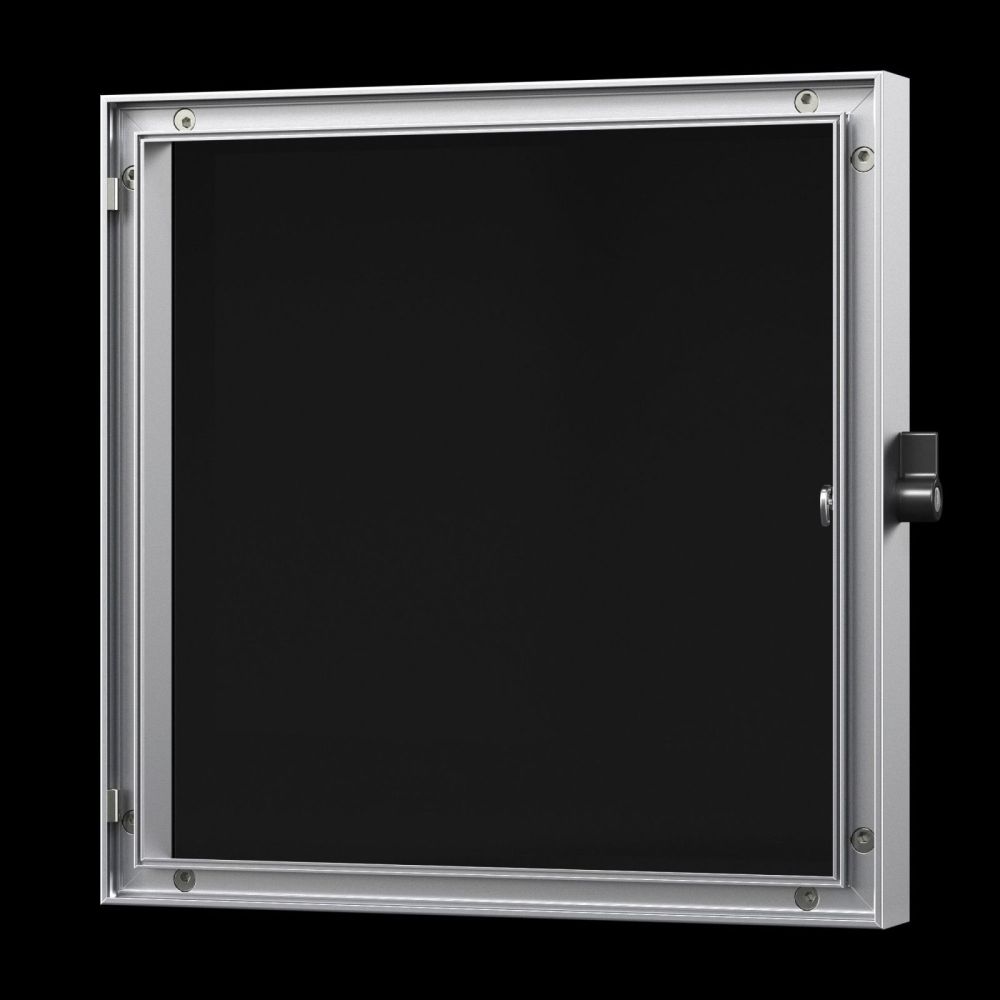

Mounting is done directly onto the AX enclosure, with the viewing window installed in place of a door or panel. Fastening is achieved via the 60-profile, ensuring a secure and stable connection. The designated mounting depth of 58 mm allows installation of control elements behind the window, enabling device operation even when the window is closed.

Operational Advantages

The viewing window allows monitoring of the enclosure’s contents without opening the cover. This reduces the need to open the enclosure door, enhancing safety and minimizing the risk of disturbances or contamination. The IP 54 protection rating ensures reliable operation in industrial environments with increased contamination or moisture exposure. The combination of aluminum frame and acrylic glass provides good visibility while maintaining mechanical stability. The integrated installation in place of a door or panel reduces the number of moving parts and simplifies enclosure maintenance.

General
Model60-series profile
MaterialFrame: aluminium, natural anodized, glass panel: acrylic glass
Scope of deliveryIncluding plastic handle with safety insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1010.000, 1054.000, 1060.000, 1360.000
Suitable forHousing type: AX, width: = 600 mm, height: = 600 mm
Width597 mm
Height597 mm
Depth62 mm
Visible surface areaVision window width: 537 mm, vision window height: 537 mm
Depth for components (max.)58 mm


Product data sheet
Datasheet for Rittal 2761010, EAN: 4028177938588

Questions & answers

What is the delivery time of Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle?

The article Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2761010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle always at the best possible price. We can give you a discount of 2% on Rittal 2761010 viewing window, 597x597x60 mm, incl. plastic handle if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
