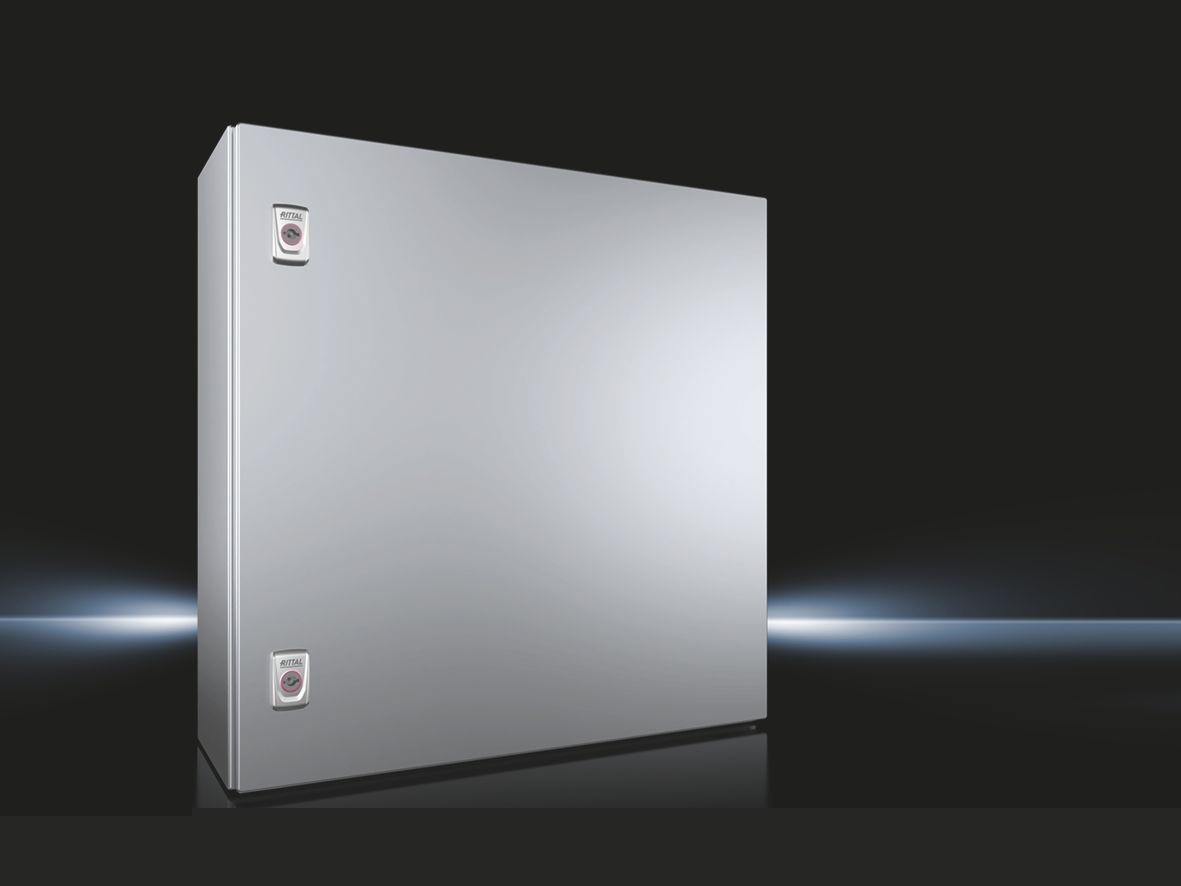

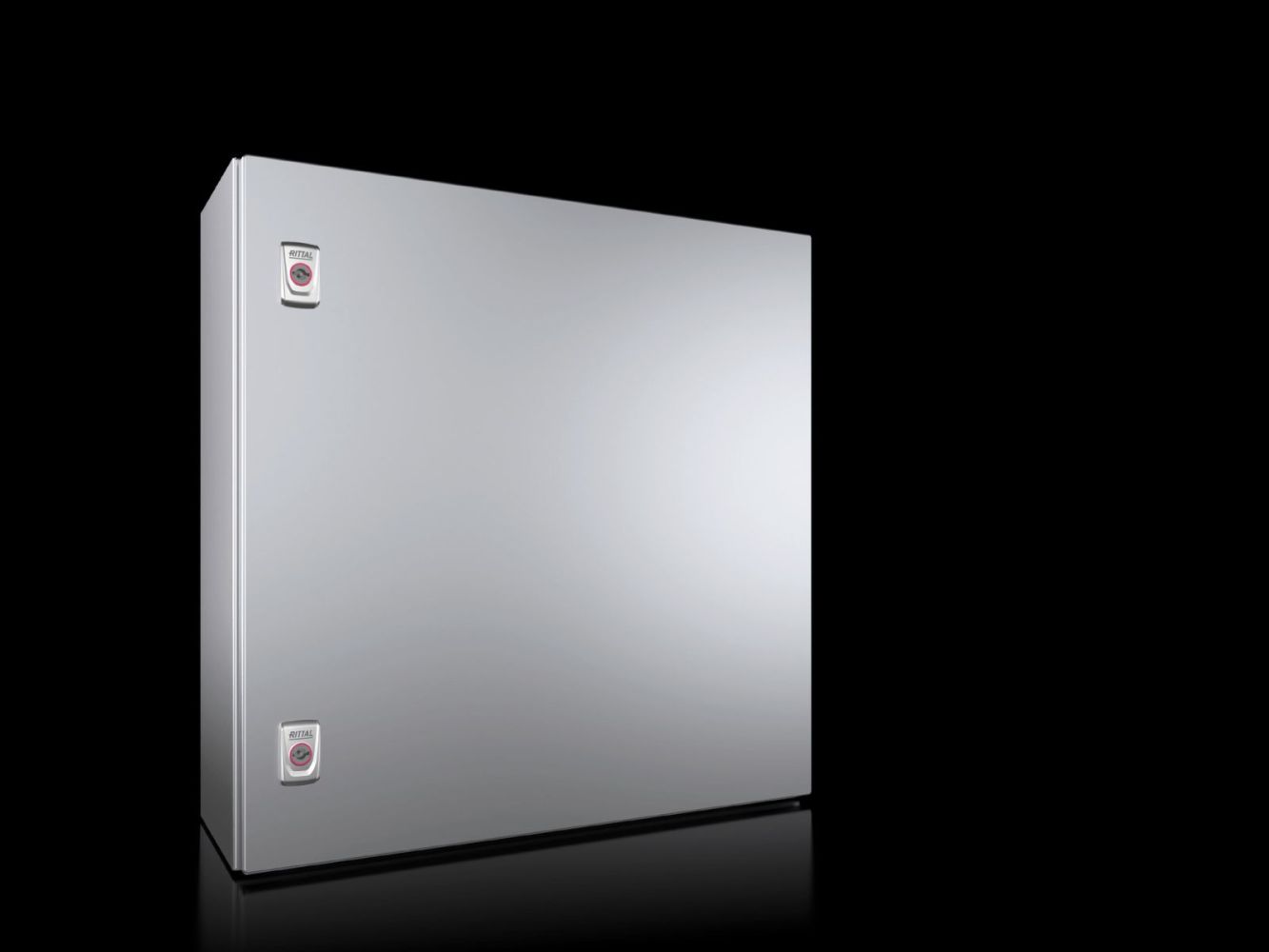

Rittal 1304000 Compact enclosure AX, 1-door, 600x600x210 mm
|
-10% 678,50 EUR 749,98 EUR |
|
|
( 807,42 EUR incl. VAT ) ≈ £567.90 | ≈ $745.67 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980358 |
| Mfg Part No: | 1304000 |
| UPC/EAN: | 4028177815094 |
| Weight: | 21.98 kg |
| Type: | AX 1304000 |
Product information for Rittal 1304000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased humidity, splashing water, or chemical influences. The protection rating IP 66 according to EN 60 529 ensures dust-tight and watertight sealing, even under heavy splashing water. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, and NEMA 12, as well as UL Type Ratings Type 1, Type 3R, Type 4, Type 4X, and Type 12, confirm suitability for various industrial applications, including outdoor use. The IK code IK10 indicates high mechanical stability against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail

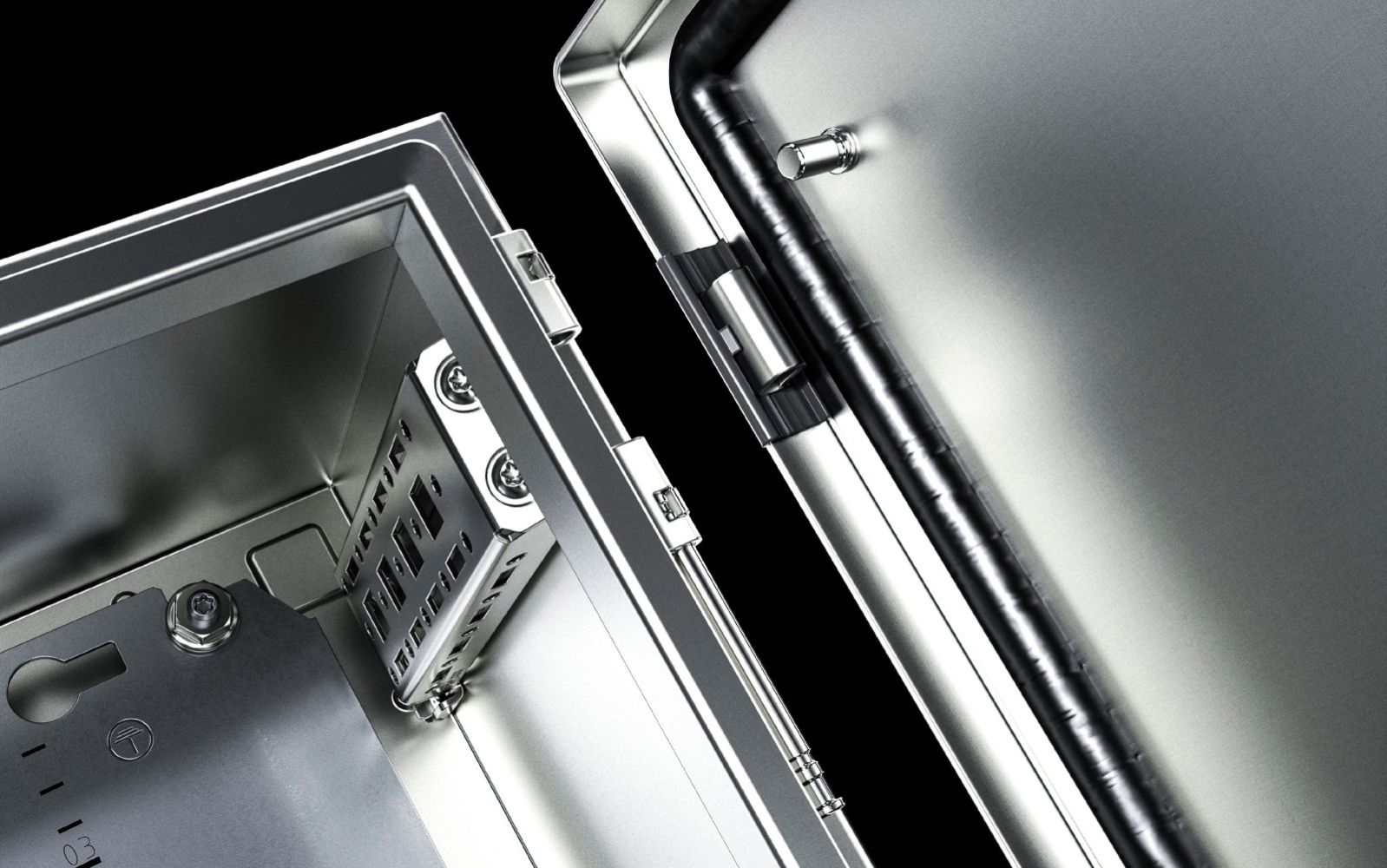

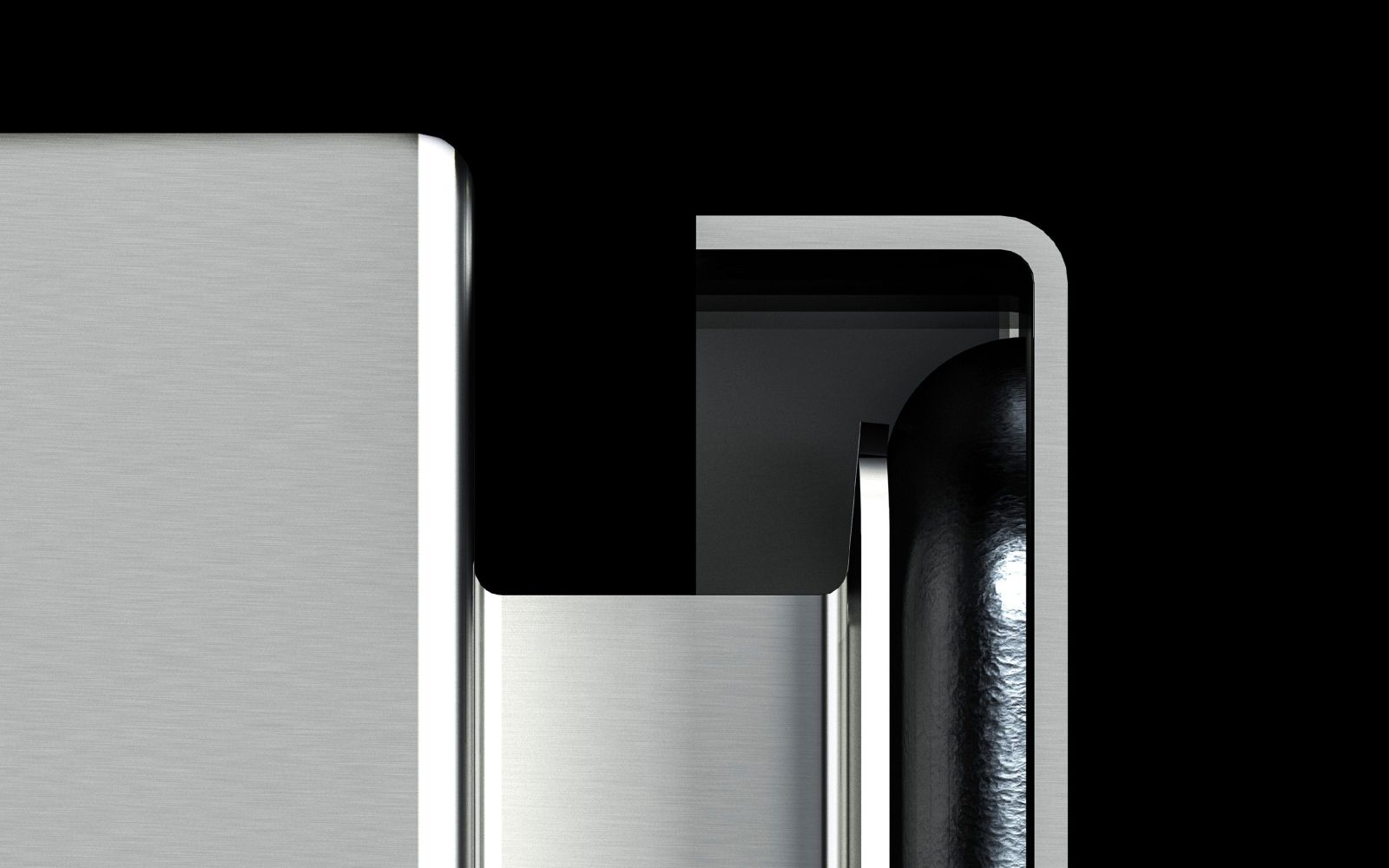

The enclosure features a continuously foamed PU seal, ensuring a tight door closure. The door opens at an angle of 130°, providing good access to the interior. The door is equipped with welded hinges, offering high mechanical load capacity. The mounting plate is provided with keyhole slots for earthing and dimension markings and is secured with Limbach nuts. The door is fitted with two deadbolt locks using a 3 mm double-bolt insert made of stainless steel 1.4404 (AISI 316L). These locks ensure secure and reliable locking.
Technology Explained Simply
The material thickness of 1.5 mm for the enclosure and door, and 2.5 mm for the mounting plate, ensures high mechanical stability. The integrated cam system technology allows for easy and quick internal installation without drilling. The enclosure construction is formed from a single piece, bent and welded, creating a stable and tight structure. The rear wall is closed and features embossing for wall mounting brackets. The use of stainless steel 1.4404 (AISI 316L) ensures high corrosion resistance, especially in humid or aggressive environments.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling adaptation to specific requirements. Compatible accessories include, among others, baying sets for AX, KX, AE, KL, floor extension rail for AX, system light LED 400, AX mast mounting, mini comfort handle, deadbolt lock with double-bolt insert, AX rail for internal installation, lock box cover, VX system chassis, condensate drain, TS mounting brackets, knob handle, handle with security cylinder, wall mounting angle, AX protective roof, AS multitool, plastic handles, and other mounting and safety components. These components allow for flexible and application-specific equipment of the enclosure.
Mounting and Installation

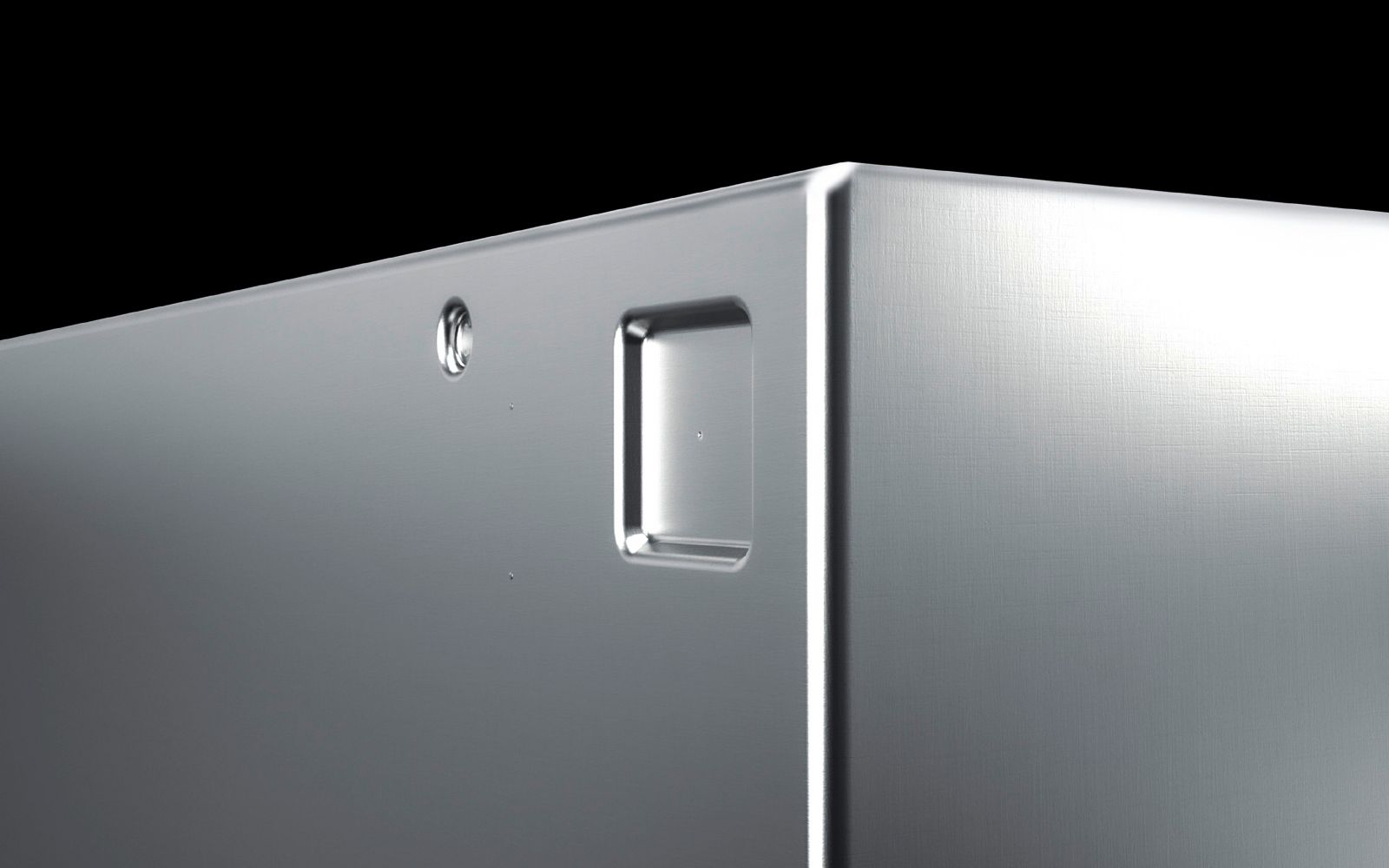

Mounting is done via the pre-embossed slots for wall mounting brackets on the rear wall. The mounting plate is included in the delivery and enables securing of components inside. The use of Limbach nuts ensures secure fastening of the mounting plate. The integrated cams allow for easy internal installation without drilling.
Operational Advantages
The enclosure offers high mechanical and chemical resistance, making it suitable for demanding industrial applications. The IP 66 protection rating and NEMA certifications ensure reliable protection against dust, water, and mechanical impacts. The integrated cam system technology enables quick and flexible adaptation to different mounting requirements. The use of stainless steel 1.4404 (AISI 316L) ensures long service life and low maintenance requirements. Clear identification via QR codes on the enclosure body, door, and nameplate enables easy identification and traceability of individual parts.
The delivery includes the enclosure with door, the mounting plate, and the locks with double-bolt insert. The door opens at an angle of 130°. The mounting plate is provided with keyhole slots for earthing and dimension markings. The locks are made of stainless steel 1.4404 (AISI 316L) and use a 3 mm double-bolt insert. The enclosure construction is formed from a single piece, bent and welded, with a continuous protective flange around the door opening. The door features a foamed PU seal and welded hinges. The mounting plate is secured with Limbach nuts. A QR code is printed on the enclosure body, door, and nameplate to enable unique identification and traceability.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4404 (AISI 316L) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 550 mm x 575 mm |
| Number of doors | 1 |
| Lock | Locking type: push-to-lock, number of locks: 2, lock insert: 3 mm double barb, lock material: stainless steel 1.4404 (AISI 316L) |
| Base material | Stainless steel 1.4404 (AISI 316L) |
| PCF/VE (Cradle-to-Gate) | 74,8 |
Questions & answers
What is the delivery time of Rittal 1304000 Compact enclosure AX, 1-door, 600x600x210 mm?
The article Rittal 1304000 Compact enclosure AX, 1-door, 600x600x210 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1304000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1304000 Compact enclosure AX, 1-door, 600x600x210 mm always at the best possible price. We can give you a discount of 2% on Rittal 1304000 Compact enclosure AX, 1-door, 600x600x210 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 1304000 Compact enclosure AX, 1-door, 600x600x210 mm
|
Rittal 2493000 SZ lock box cover zinc die-cast chromated
The SZ 2493000 from Rittal is a lock box cover designed specifically for retrofitted installation on compact enclosures made of sheet steel with a latch lock. It serves as a protective and mounting ...Lieske Part No.: 302215 Mfg Part No: 2493000 Type: SZ 2493000 |
27,83 EUR
![]() ≈ £23.29 | ≈ $30.59
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm
The Rittal System-Chassis VX 8619760 is a metallic mounting component made of sheet steel, specifically developed for use in enclosures of the AX system. It is designed for the secure mounting of ...Lieske Part No.: 469331 Mfg Part No: 8619760 Type: VX 8619760 |
47,84 EUR
![]() ≈ £40.04 | ≈ $52.58
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2459000 SZ Condensate discharge
For reliable discharge from the inside and protection against splashes from the outside (labyrinth effect). A hole diameter of 16 mm is required. (With AE sheet steel, the holes are already provided ...Lieske Part No.: 469525 Mfg Part No: 2459000 Type: SZ 2459000 |
10,88 EUR
![]() ≈ £9.11 | ≈ $11.96
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 1199100 Baying set for AX, KX, AE, KL
Supports baying and sealing between KL/KL and AE/AE.Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ... Lieske Part No.: 583514 Mfg Part No: 1199100 Type: SZ 1199100 |
32,32 EUR 33,69 EUR
![]() ≈ £27.05 | ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 4596000 TS mounting brackets for internal mounting level W x D: 500 mm
Applications: For attachment ofCable ducts Cable conduit holder Contact hazard protection covers Equipment installed on the door Cable clamping and attachment Material: Sheet steel Surface finish: ... Lieske Part No.: 590253 Mfg Part No: 4596000 Type: TS 4596000 |
75,44 EUR 78,45 EUR
![]() ≈ £63.14 | ≈ $82.91
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2572010 SZ knob handle without safety cylinder insert for AX
The Rittal SZ 2572010 is a knob handle designed as a replacement or supplement for enclosures and housings, particularly for models with cam or latch locking systems. The handle is manufactured in ...Lieske Part No.: 612034 Mfg Part No: 2572010 Type: SZ 2572010 |
-6% 17,02 EUR 18,20 EUR
![]() ≈ £14.25 | ≈ $18.70
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|
Rittal 2577000 SZ handle plastic AX/KX No.3524E with safety cylinder
The Rittal SZ 2577000 is a plastic handle for latching locks, specifically designed as an alternative to the standard lock insert with integrated security cylinder insert. It is used for secure ...Lieske Part No.: 677302 Mfg Part No: 2577000 Type: SZ 2577000 |
-6% 19,67 EUR 21,03 EUR
![]() ≈ £16.46 | ≈ $21.62
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
|
|
Rittal 2583010 Wall mounting bracket, stainless steel 1.4301
The Rittal SZ 2583010 is a wall mounting bracket made of stainless steel 1.4301 (AISI 304), specifically developed for mounting sheet metal and stainless steel enclosures to walls. It serves as a ...Lieske Part No.: 796959 Mfg Part No: 2583010 Type: SZ 2583010 |
19,44 EUR 20,21 EUR
![]() ≈ £16.27 | ≈ $21.36
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2473010 AX protection roof, W x D: 600x210 mm, stainless steel
The Rittal AX 2473010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 600 mm and a depth of 210 mm. It serves as a protective cover for ...Lieske Part No.: 1054795 Mfg Part No: 2473010 Type: AX 2473010 |
96,03 EUR
![]() ≈ £80.38 | ≈ $105.54
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 4052000 AS Multitool AX/VX
The Rittal AS 4052000 is a multifunctional tool, specifically developed for handling and mounting AX enclosures as well as VX doors in the field of enclosure technology. It combines several useful ...Lieske Part No.: 1055448 Mfg Part No: 4052000 Type: AS 4052000 |
29,65 EUR
![]() ≈ £24.82 | ≈ $32.59
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2533100 AX plastic handle
The article AX 2533100 from Rittal is a plastic handle for cam locks of type AX and KX. It serves as an alternative to the standard lock insert and is supplied without an integrated safety cylinder ...Lieske Part No.: 1101233 Mfg Part No: 2533100 Type: AX 2533100 |
-10% 14,36 EUR 16,04 EUR
![]() ≈ £12.02 | ≈ $15.78
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|
Rittal 2577010 AX plastic handle AX/KX VW E1
The Rittal AX 2577010 is a plastic handle for latch locks of type AX and KX, equipped with a safety insert and locking E1. It serves as an alternative to the standard lock insert and can optionally be ...Lieske Part No.: 1101234 Mfg Part No: 2577010 Type: AX 2577010 |
-10% 20,80 EUR 23,23 EUR
![]() ≈ £17.41 | ≈ $22.86
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|

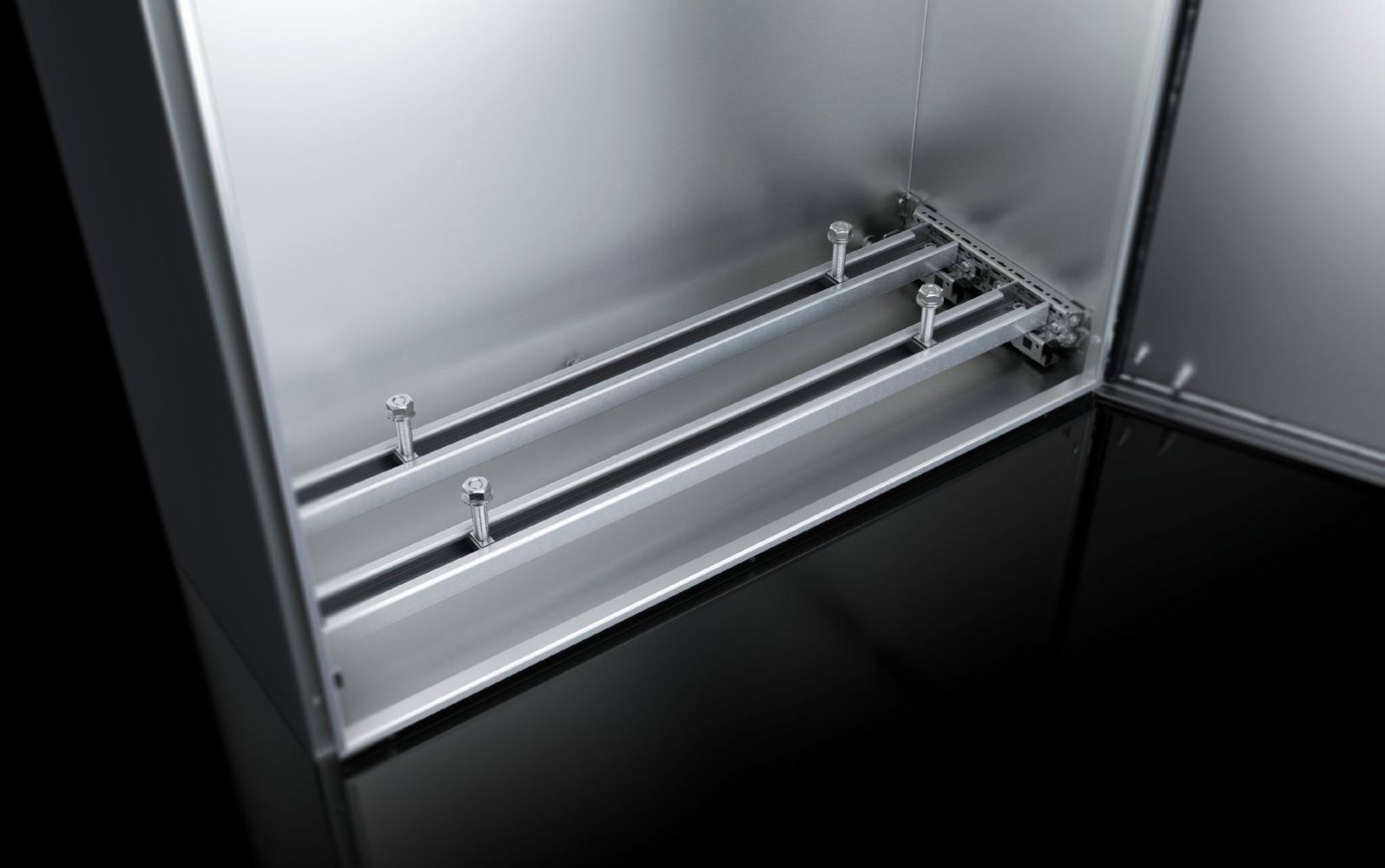

Rittal 2394100 floor extension rail, for AX
The Rittal AX 2394100 is a floor expansion rail made of sheet steel with a zinc-coated surface, specifically developed for use in the AX compact enclosure system. It serves as an additional mounting ...Lieske Part No.: 1101816 Mfg Part No: 2394100 Type: AX 2394100 |
17,92 EUR
![]() ≈ £15.00 | ≈ $19.69
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305
The Rittal SZ 4000300 is a pressure equalization plug made of stainless steel 1.4305 (AISI 303), specifically designed for use in enclosures and housings exposed to changing climatic conditions. It ...Lieske Part No.: 1101878 Mfg Part No: 4000300 Type: SZ 4000300 |
-6% 163,42 EUR 174,72 EUR
![]() ≈ £136.78 | ≈ $179.60
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|

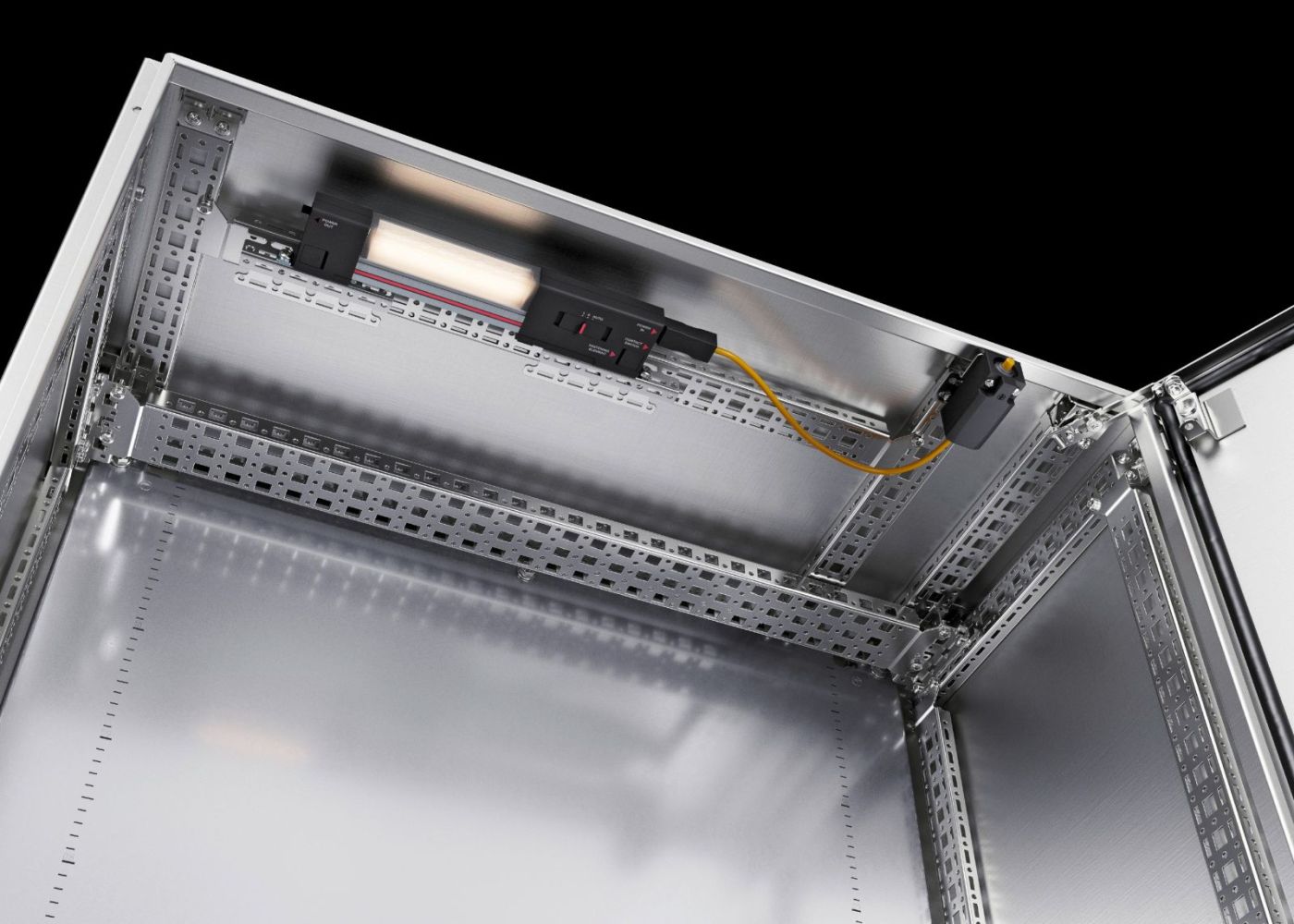

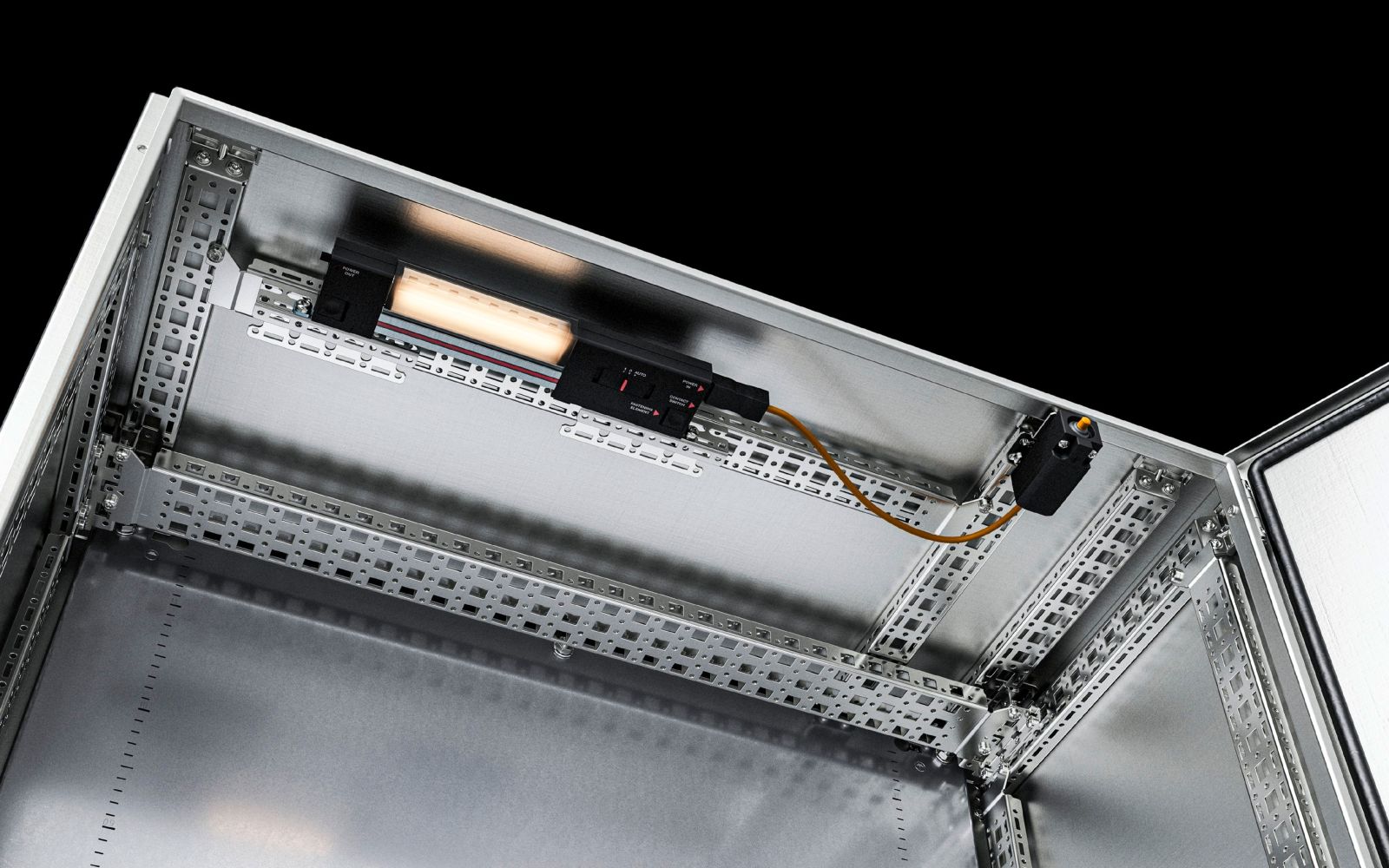

Rittal 2500100 System light LED 400, 100-240 V, L: 262 mm
The Rittal SZ 2500100 is an LED system light, specifically developed for use in enclosures. It provides uniform and sufficient illumination of the entire interior space and is available in the version ...Lieske Part No.: 1130322 Mfg Part No: 2500100 Type: SZ 2500100 |
57,80 EUR
![]() ≈ £48.38 | ≈ $63.52
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm
The Rittal VX System Chassis 8617130 is a modular mounting component made of sheet steel with a galvanized surface, specifically designed for internal installation in enclosures. It serves as a ...Lieske Part No.: 1349694 Mfg Part No: 8617130 Type: VX 8617.130 |
48,08 EUR
![]() ≈ £40.24 | ≈ $52.84
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm
The Rittal VX support rail 8617.800 is a robust mounting rail made of sheet steel with a zinc-coated surface, specifically designed for use in enclosures and housings with a width of 600 mm. It serves ...Lieske Part No.: 1440920 Mfg Part No: 8617800 Type: VX 8617.800 |
47,50 EUR
![]() ≈ £39.76 | ≈ $52.20
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 8619720 VX system chassis 14 x 39 mm, door width: 600 mm
The Rittal VX 8619.720 is a system chassis made of sheet steel with a galvanised surface, specifically designed for mounting cable ducts, cable conduit holders, door inserts and similar components in ...Lieske Part No.: 1441073 Mfg Part No: 8619720 Type: VX 8619.720 |
42,99 EUR
![]() ≈ £35.98 | ≈ $47.25
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 8619410 VX cable strain relief rail angle profile, W: 600 mm
The Rittal VX 8619.410 is a cable strain relief rail in angle profile, specifically designed for tension relief during cable entry into enclosures and plinth systems. The product is made of steel and ...Lieske Part No.: 1441180 Mfg Part No: 8619410 Type: VX 8619.410 |
33,81 EUR
![]() ≈ £28.30 | ≈ $37.16
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2575010 SZ knob handle with safety cylinder insert for AX
The SZ 2575010 from Rittal is a knob handle with integrated security cylinder insert, specifically designed for enclosures and housings with pull-out systems. The product serves as a locking component ...Lieske Part No.: 1571616 Mfg Part No: 2575010 Type: SZ 2575010 |
29,01 EUR 30,28 EUR
![]() ≈ £24.28 | ≈ $31.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|
Rittal 2731010 viewing window, 597x597x34 mm, incl. plastic handle
The Rittal viewing window AX 2731010 is a system accessory for AX enclosures and serves as a replacement for a door or a panel in the enclosure. It enables visual monitoring of assemblies and ...Lieske Part No.: 1593405 Mfg Part No: 2731010 Type: AX 2731010 |
179,06 EUR 181,36 EUR
![]() ≈ £149.87 | ≈ $196.79
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|

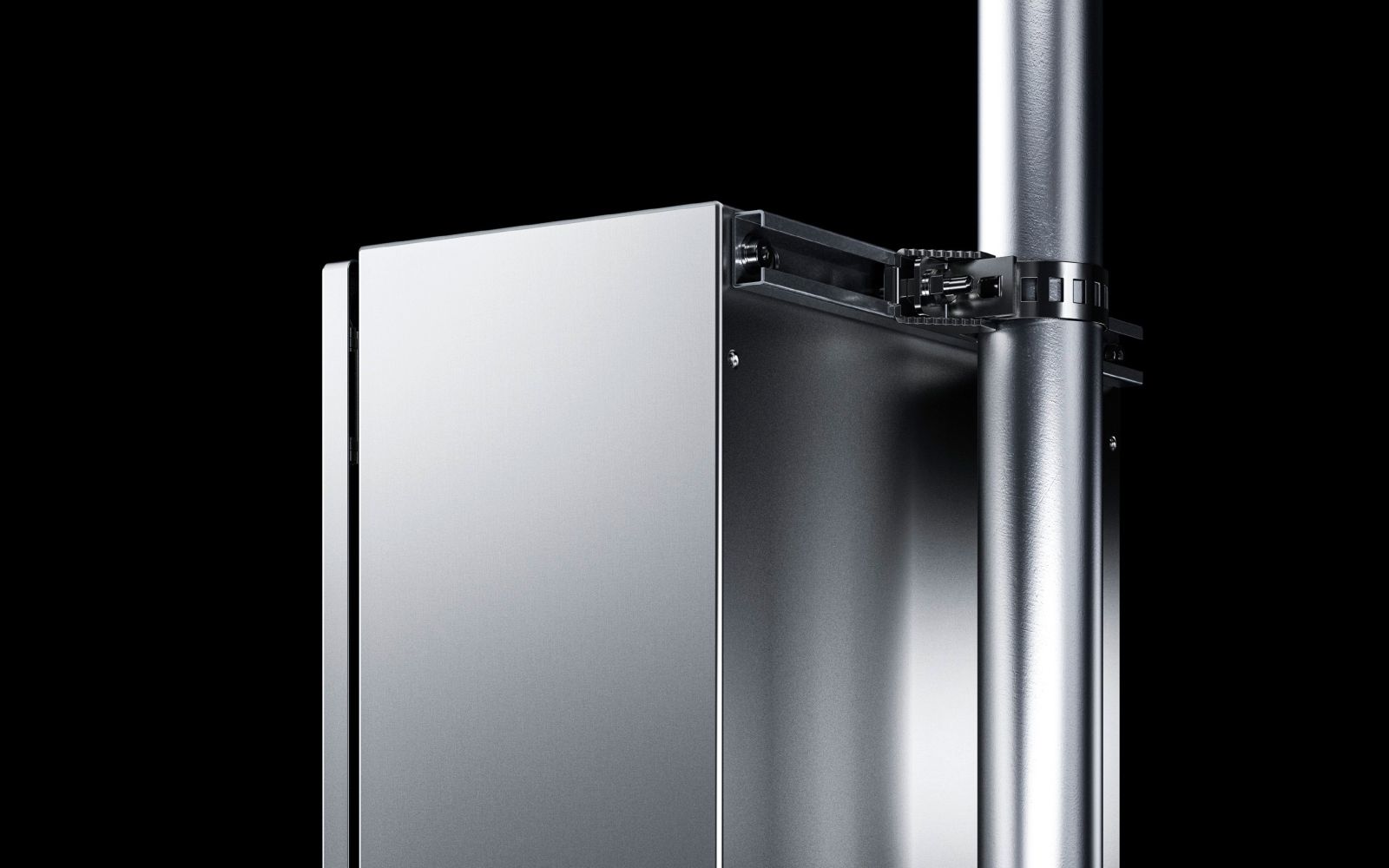

Rittal 2584100 AX mast mounting
