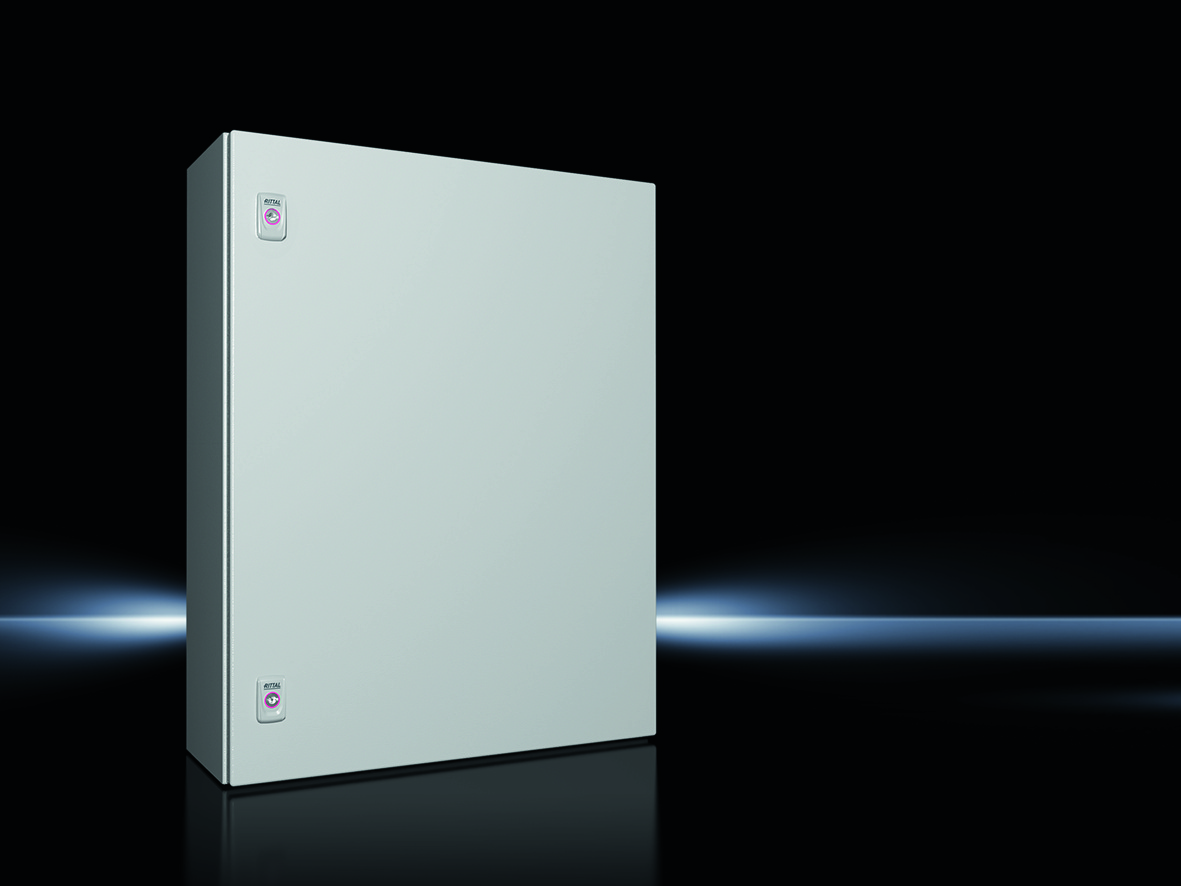

Rittal 1076000 Compact enclosure AX W x H x D 600x760x210 mm IP66

Your rating:
Average rating
product review for Rittal 1076000 Compact enclosure AX W x H x D 600x760x210 mm IP66
( 4.8 / 5 ) 5 ratings
Rittal 1076000
This image may differ from the desired article.
Rittal 1076000Rittal 1076000Rittal 1076000Rittal 1076000Rittal 1076000Rittal 1076000Rittal 1076000
138,37 EUR
( 164,66 EUR incl. VAT )
≈ £115.82  |  ≈ $152.07
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1076000 Compact enclosure AX W x H x D 600x760x210 mm IP66
Datasheet:file_download Download
Lieske Part No.:1598138
Mfg Part No: 1076000
UPC/EAN: 4028177813366
Weight:29.5 kg
Type:AX 1076000

Product information for Rittal 1076000:

The Rittal AX 1076000 is a compact enclosure made of sheet steel, designed for use in industrial and technical installations. The enclosure has dimensions of 600 mm width, 760 mm height, and 210 mm depth and is equipped with a single door. The construction is based on a patented system with integrated enclosure lugs in a 25 mm system grid, enabling the installation of internal components without drilling. This ensures simple and quick installation of system components and accessories, while maintaining the protection rating (UL approval). The door is fitted with a continuously foamed PU seal, ensuring a tight seal. The surface of the enclosure and door is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035. The mounting plate is galvanized and provides a stable mounting surface with dimensions of 550 mm × 735 mm. The door hinge is reversible, allowing the door to be mounted on either the left or right side. The door opens up to 130° according to VDI, with an option to retrofit to 180°. The locking mechanism consists of two deadbolt locks with a 3 mm double-barrel lock insert according to DIN 43668. The delivery includes the enclosure with door, a gland plate in the enclosure base, the mounting plate, a door hole strip, and the locks.

Applications

The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water, making it suitable for outdoor use or in damp industrial environments. The NEMA protection ratings 1, 3R, 4, and 12, as well as the Type rating according to UL 50E (Type 1, 3R, 4, 12), confirm suitability for various environmental conditions, including damp, dusty, or slightly soiled areas. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks or vibrations.

Functions and Equipment in Detail

The integrated enclosure lugs in a 25 mm grid enable flexible and modular internal fitting. The rail for internal fitting can be mounted without drilling, simplifying planning and installation. The base fitting rail provides an additional mounting level and increases load capacity. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with ring weld nuts. A QR code is printed on the body, door, and type plate to enable unique identification and easy access to product information and documentation.

Technology Explained Simply

The use of sheet steel with a material thickness of 1.5 mm for the enclosure and 2 mm for the door ensures a stable and durable construction. The PU seal provides a tight seal, supporting the IP 66 protection rating. The powder-coated surface in RAL 7035 offers corrosion protection and resistance to environmental influences. The deadbolt locks with double-barrel lock insert ensure secure door closure.

Compatibility and Accessories

The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. These include lock inserts made of zinc die-cast, wall mounting brackets, lock box covers, stainless steel protection hoods, mounting brackets, knob handles, handles with security cylinder, metal gland plates, and the VX system chassis. Combining it with the Rittal configurator RiPanel enables easy planning and configuration.

Mounting and Installation

Mounting is carried out via the designated mounting points in the enclosure base and on the rear wall. The mounting plate is secured with ring weld nuts. The door can be mounted on the left or right side as required. Internal fitting is done using the integrated enclosure lugs and the rail for internal fitting, with no drilling required.

Operational Advantages

The enclosure offers high flexibility for internal fitting, secure locking, robust construction, and high protection rating. The modular design allows for easy expansion and adaptation to changing requirements. The integrated identification via QR code simplifies maintenance and documentation.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK10
Width600 mm
Height760 mm
Depth210 mm
Door material thickness2 mm
Plate thickness cabinet1,5 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)550 mm x 735 mm
Number of doors1
Number of locks2
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plateSize: 4, Quantity: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)106.29 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Product data sheet
Datasheet for Rittal 1076000, EAN: 4028177813366
