Rittal 2472010 AX protection roof, W x D: 380x210 mm, stainless steel

Your rating:
Average rating
product review for Rittal 2472010 AX protection roof, W x D: 380x210 mm, stainless steel
( 4.3 / 5 ) 3 ratings
Rittal 2472010
This image may differ from the desired article.
Rittal 2472010Rittal 2472010Rittal 2472010Rittal 2472010Rittal 2472010Rittal 2472010Rittal 2472010Rittal 2472010
80,73 EUR
( 96,07 EUR incl. VAT )
≈ £67.57  |  ≈ $88.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2472010 AX protection roof, W x D: 380x210 mm, stainless steel
Datasheet:file_download Download
Lieske Part No.:1054794
Mfg Part No: 2472010
UPC/EAN: 4028177938229
Weight:1.66 kg
Type:AX 2472010

Product information for Rittal 2472010:

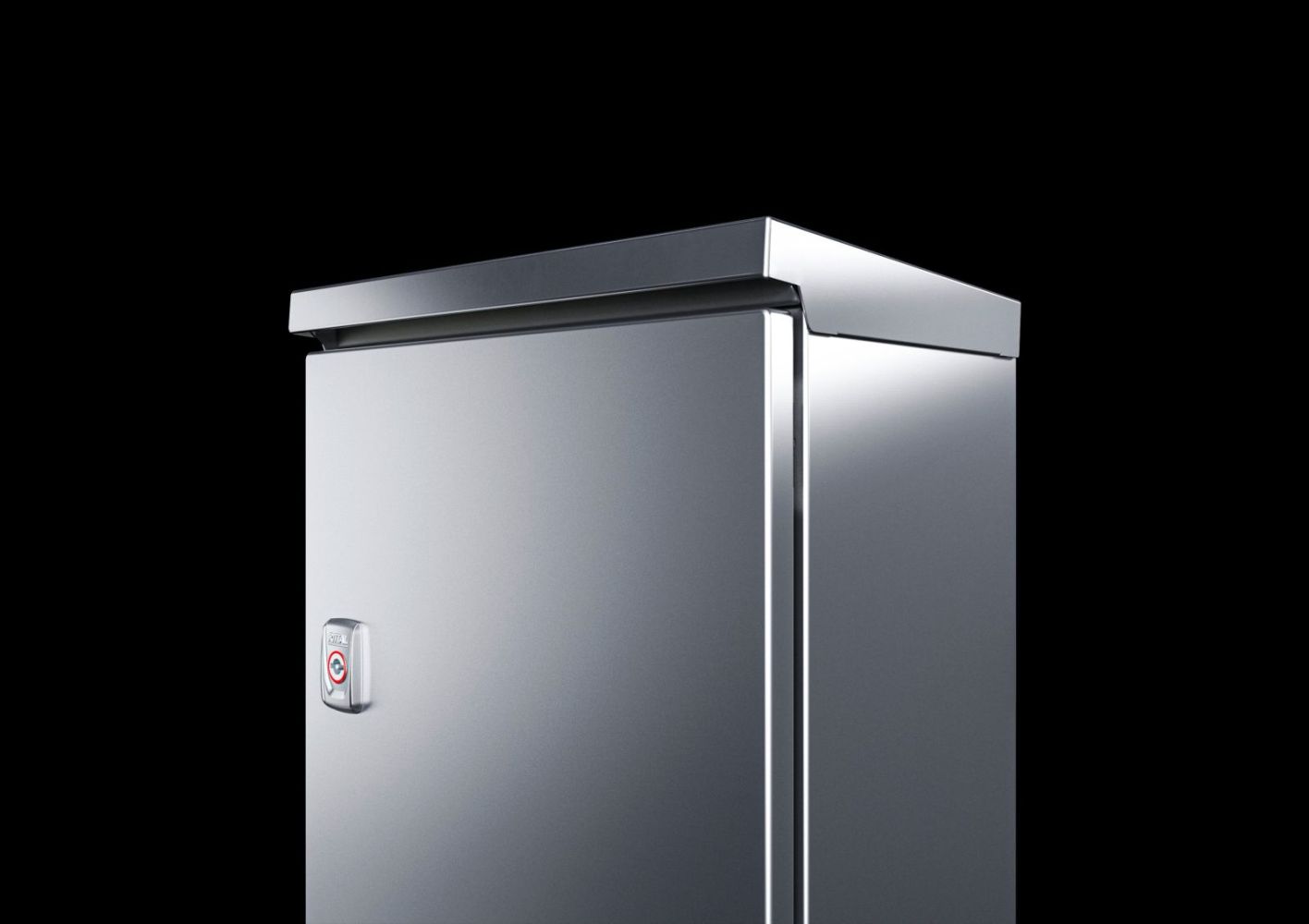

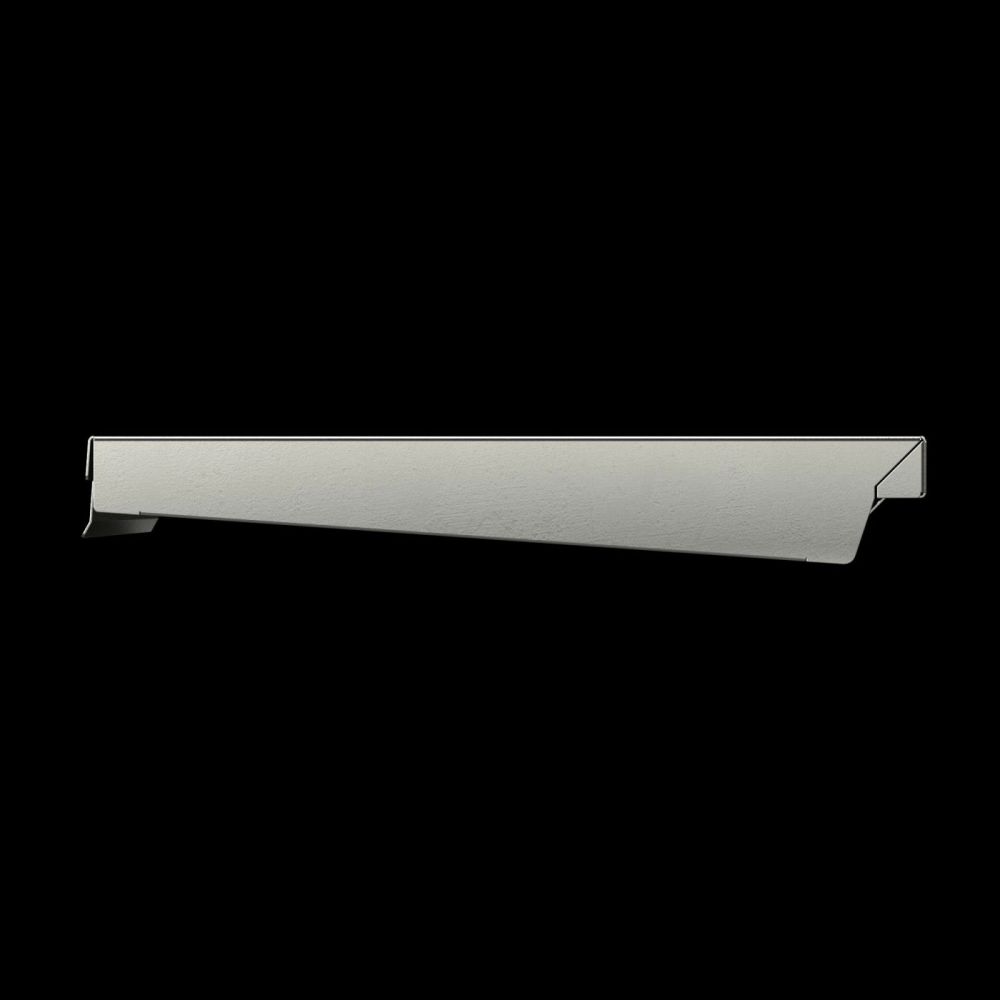

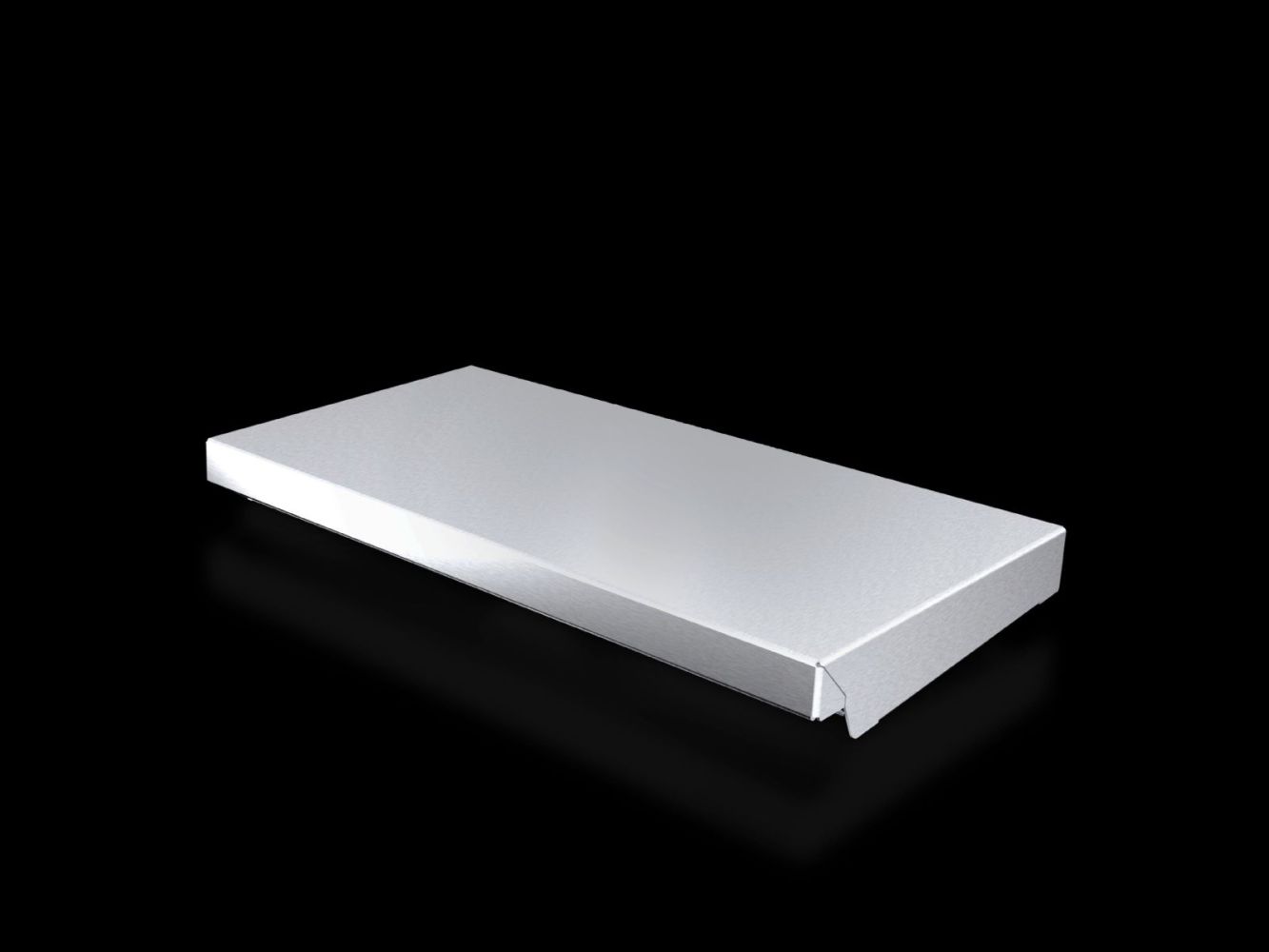

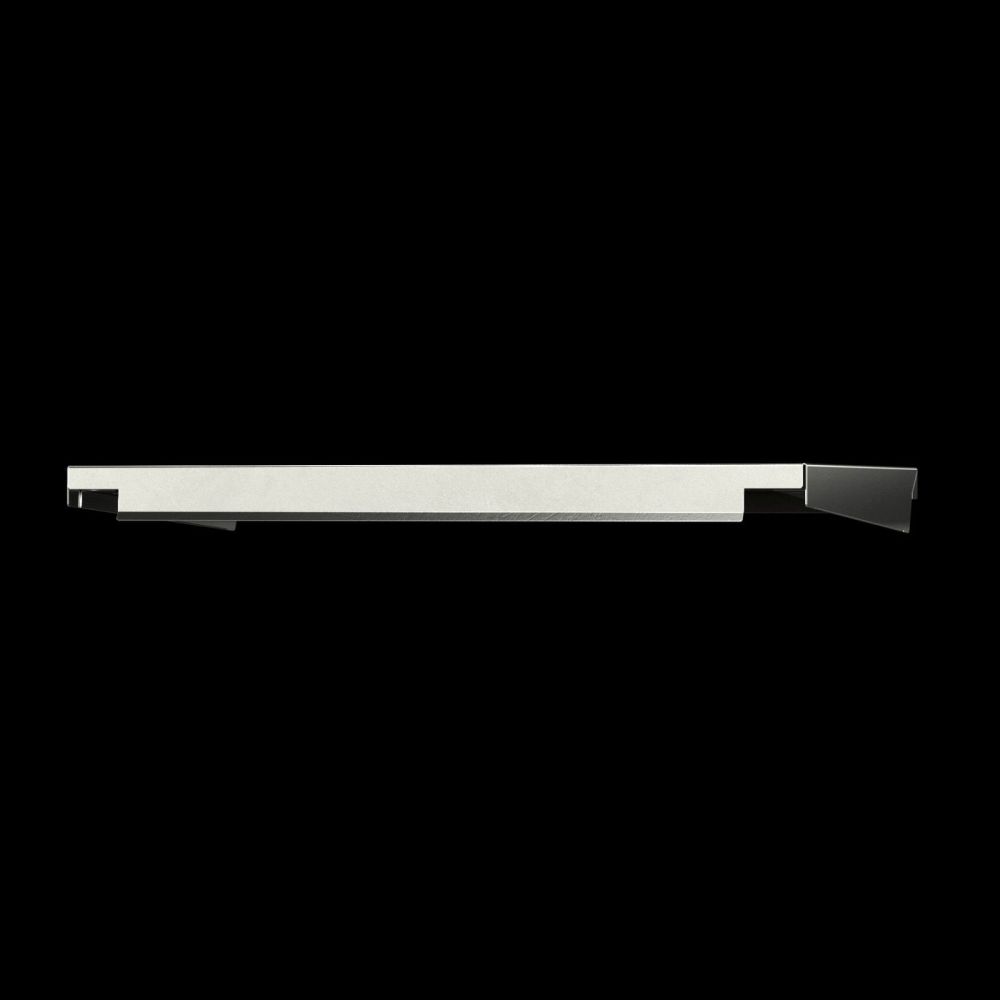

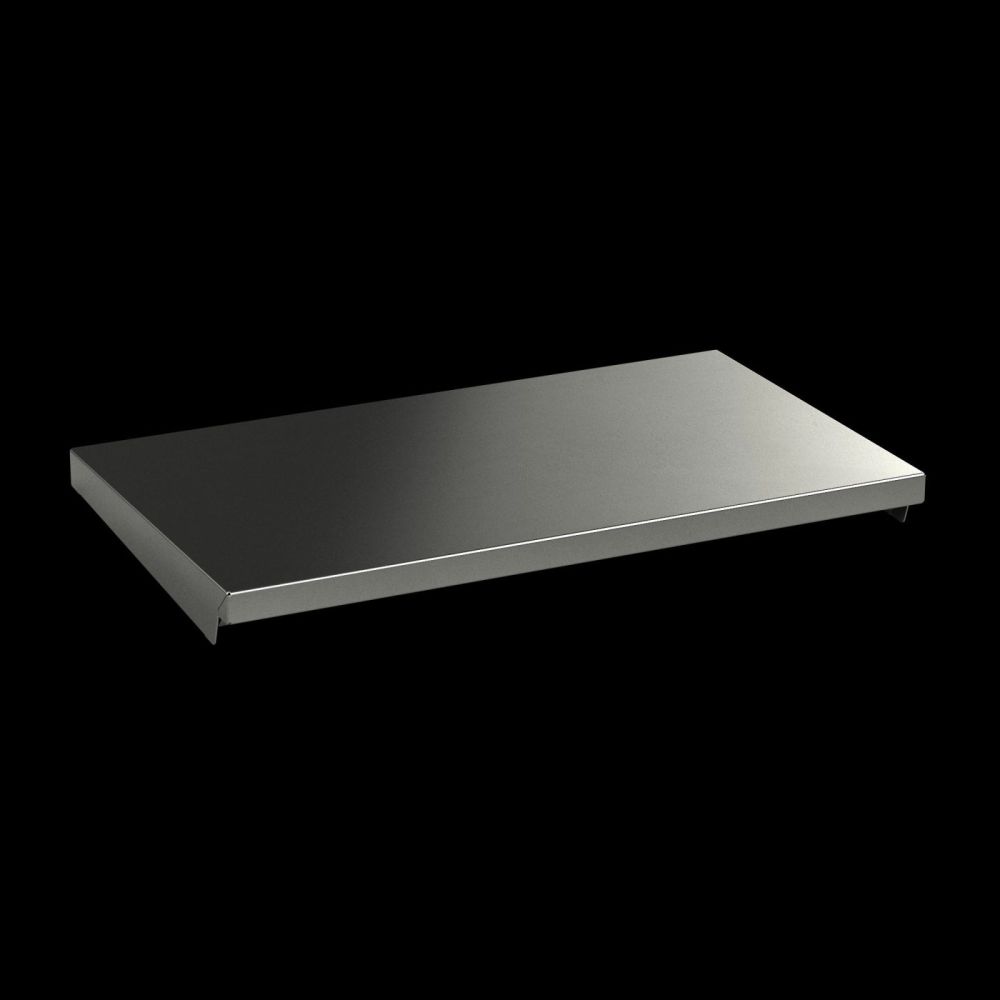

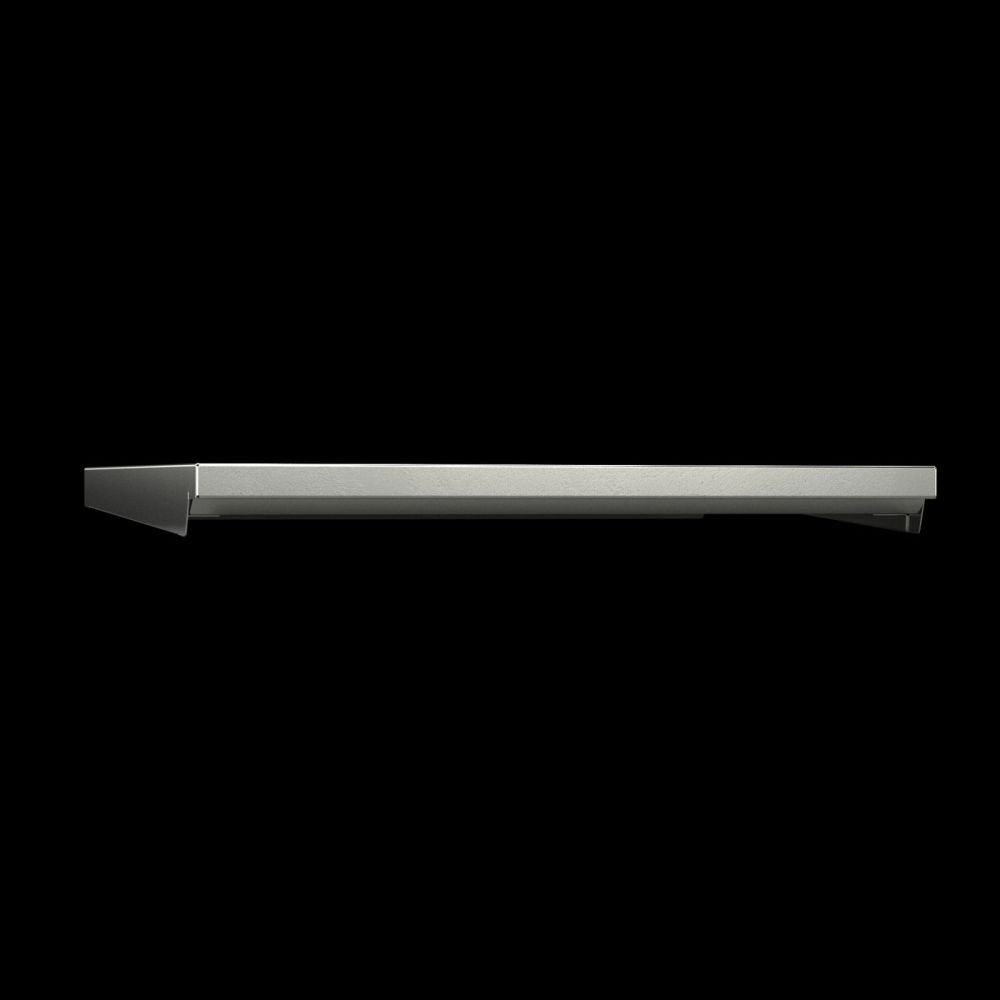

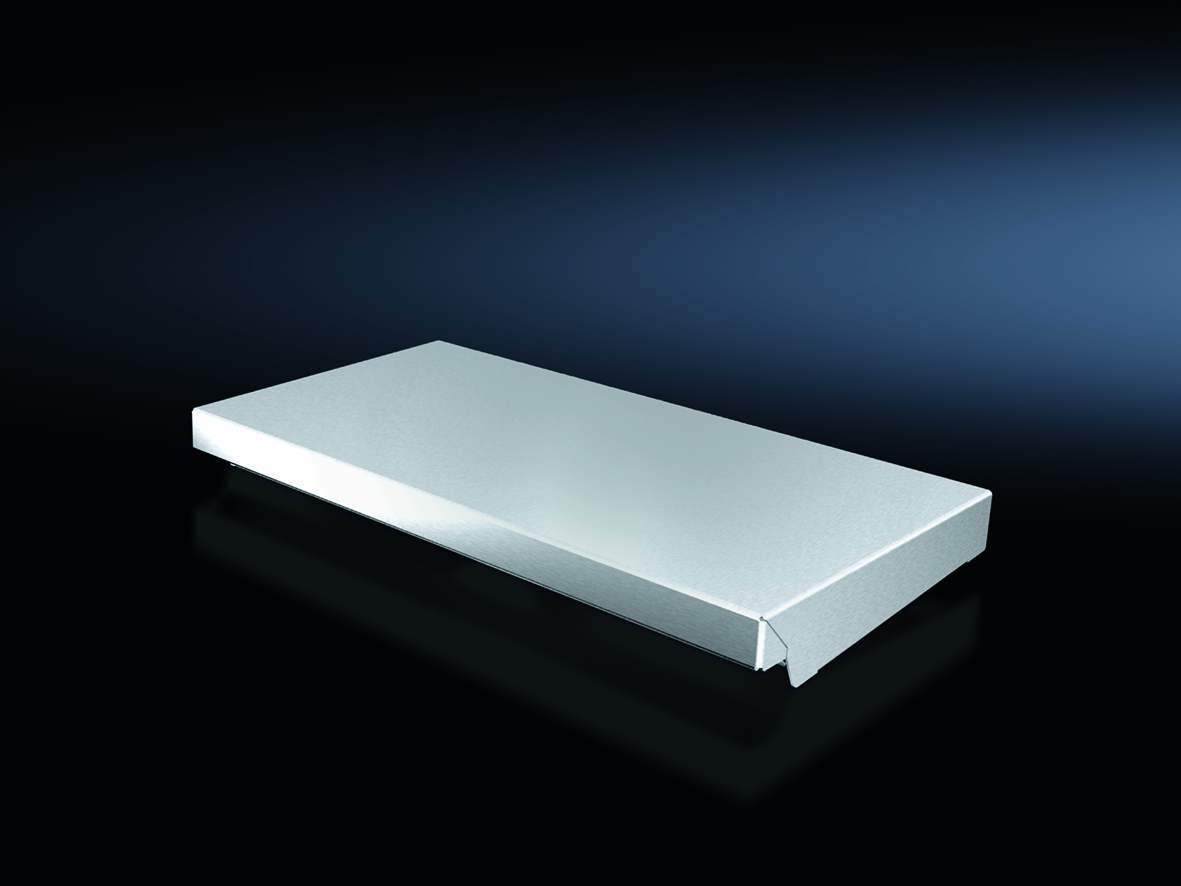

The Rittal AX 2472010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 380 mm and a depth of 210 mm. It covers the upper edge of the enclosure and reliably protects it against standing moisture and contamination from above due to its sloped shape. The construction from stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, making it suitable for applications requiring long service life and resistance to environmental influences.

Protective roof
The protective roof has a height of 37 mm and features a surface with a brushed finish, grain 240. This surface treatment provides a uniform, slightly textured appearance while simultaneously increasing mechanical durability. The sloped shape of the roof ensures that rain and other liquids drain quickly, preventing the formation of standing water on the surface. This is particularly important in outdoor installations or areas with high humidity to maintain the integrity of the enclosure.

Applications
The protective roof is intended for use in industrial environments, especially in areas where the enclosure is exposed to precipitation, splashing water, or dust. The UL 50E certification in types 1, 3R, 4, 4X, and 12 indicates that the product is suitable for indoor and outdoor applications, with types 3R, 4, 4X, and 12 specifically designed for protection against splashing water, dust, and other external influences. Types 4 and 4X are particularly suitable for outdoor use or humid indoor environments, as they offer high resistance to water and dust.

Functions and equipment in detail
The protective roof is screw-mounted and can also be installed under dynamic loads, making it suitable for applications where mechanical vibrations or movements occur. Installation is carried out using the included mounting hardware, ensuring a secure and durable connection. The use of stainless steel 1.4301 (AISI 304) ensures high strength and corrosion resistance, extending the service life of the protective roof under industrial conditions.

Technology explained simply
The sloped shape of the protective roof is crucial to its function. It allows rainwater, meltwater, or other liquids to drain quickly without accumulating on the surface. This prevents moisture from entering the enclosure and protects the installed components from damage. The choice of stainless steel 1.4301 (AISI 304) provides high protection against oxidation and corrosion, which is particularly beneficial in humid or aggressive environments. The brushed finish, grain 240, further enhances mechanical strength and appearance.

Compatibility and accessories
The protective roof is specifically designed for enclosures of type AX with a width of 380 mm and a depth of 210 mm. It is not suitable for other enclosure types or dimensions.

Installation and mounting
Mounting is done by screwing, using the included mounting hardware. The screw connection is designed for dynamic loads, meaning the protective roof can be securely installed even in environments with vibrations or movements.

Operational advantages
The protective roof provides reliable protection against external influences, particularly moisture and contamination. The use of stainless steel 1.4301 (AISI 304) ensures long service life and low maintenance requirements. The sloped shape and robust mounting enable a secure and durable installation that withstands even difficult operating conditions. The UL 50E certification in types 1, 3R, 4, 4X, and 12 confirms suitability for a wide range of applications, especially in industrial facilities with high requirements for protection of electrical equipment.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear finish, grit 240
Scope of deliveryIncluding mounting hardware
Mounting optionsScrewable under dynamic loads
Height37 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Suitable forHousing type: AX, width: = 380 mm, depth: = 210 mm


Product data sheet
Datasheet for Rittal 2472010, EAN: 4028177938229
