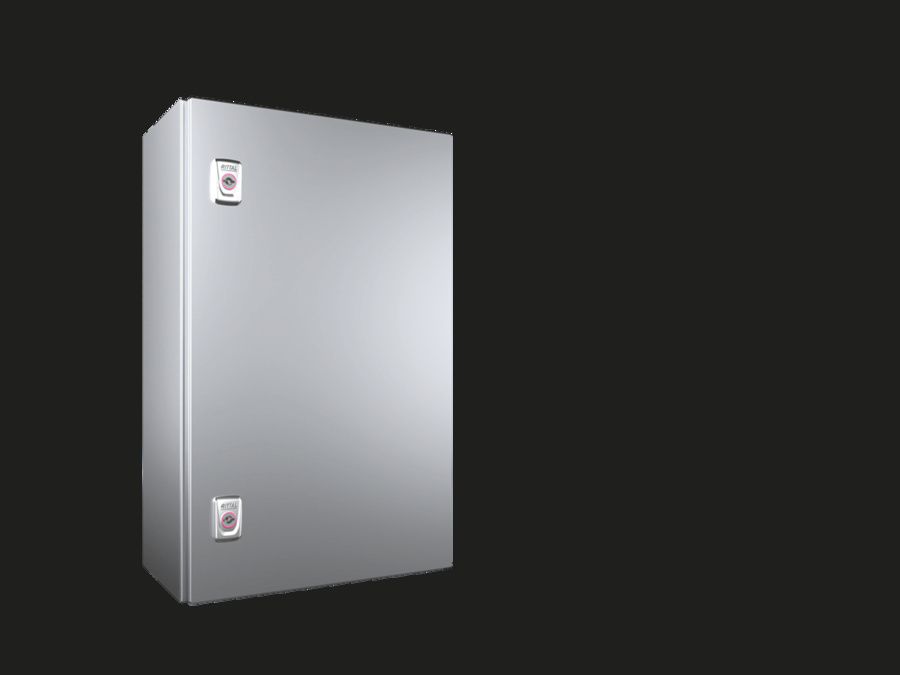

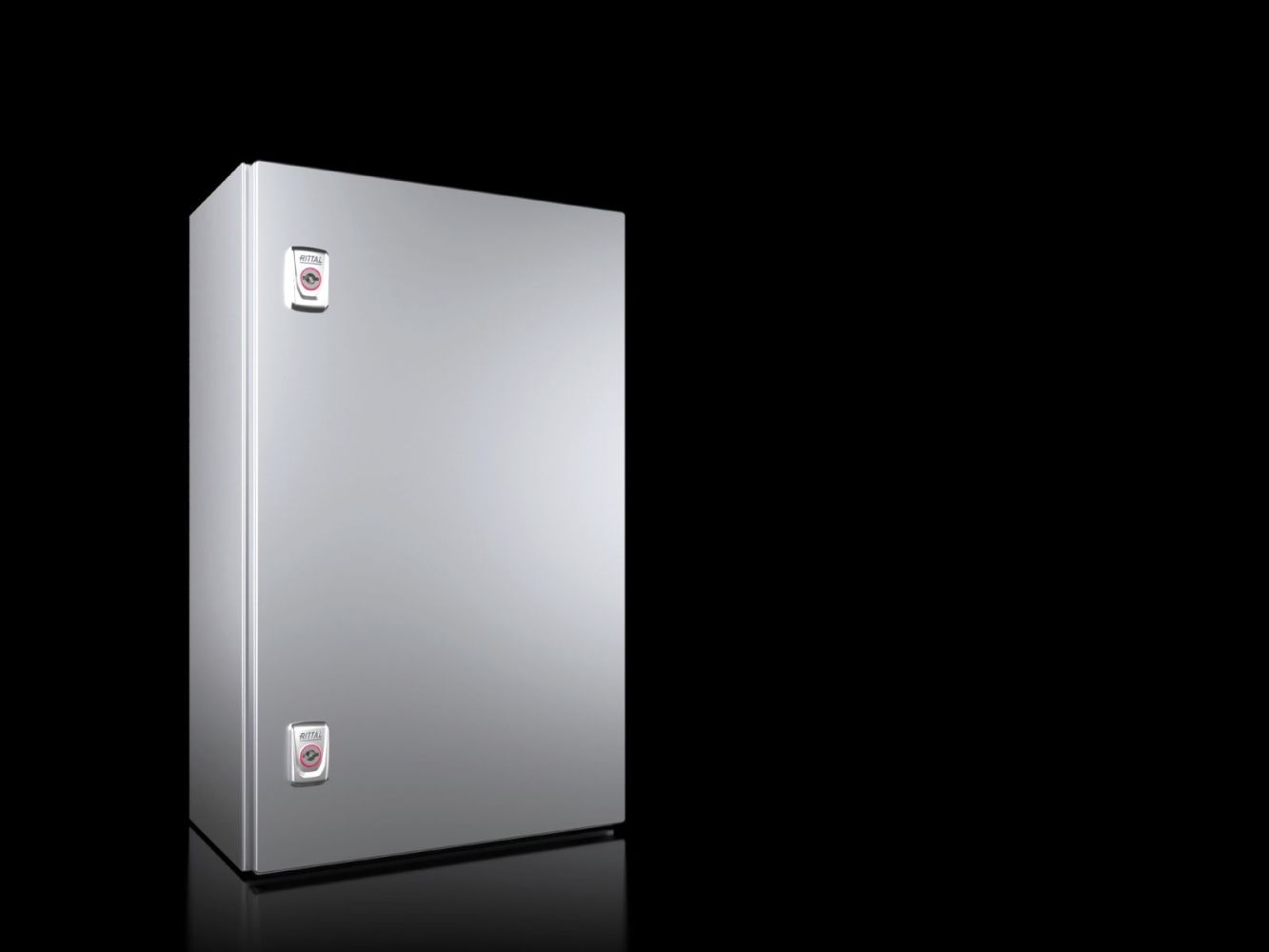

Rittal 1008000 Compact enclosure AX, 1-door, 380x600x210 mm
|
308,61 EUR 308,79 EUR |
|
|
( 367,25 EUR incl. VAT ) ≈ £258.31 | ≈ $339.16 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980348 |
| Mfg Part No: | 1008000 |
| UPC/EAN: | 4028177814974 |
| Weight: | 13.78 kg |
| Type: | AX 1008000 |
Product information for Rittal 1008000:
Applications
This enclosure is designed for use in indoor and outdoor environments, particularly in settings with high requirements for protection against dust, water, and mechanical impacts. It is suitable for applications in manufacturing, energy supply, transportation infrastructure, and process automation. The protection rating IP 66 according to EN 60 529 ensures protection against dust and heavy splashing water, making it suitable for outdoor use. The NEMA 4X and Type 4X ratings according to UL 50E confirm suitability for damp and corrosive environments, including use in marine or chemical installations. The IK10 rating provides high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail

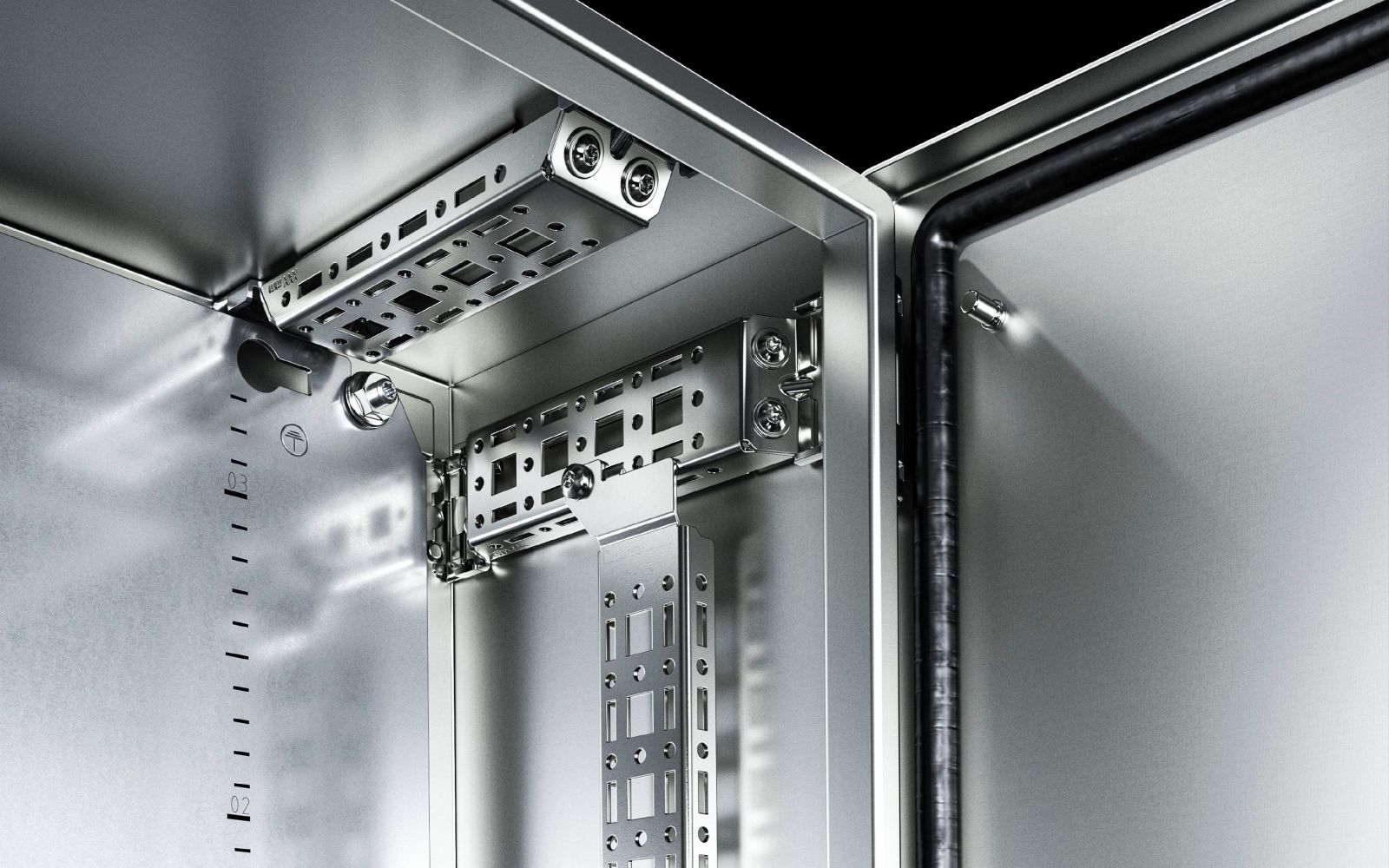

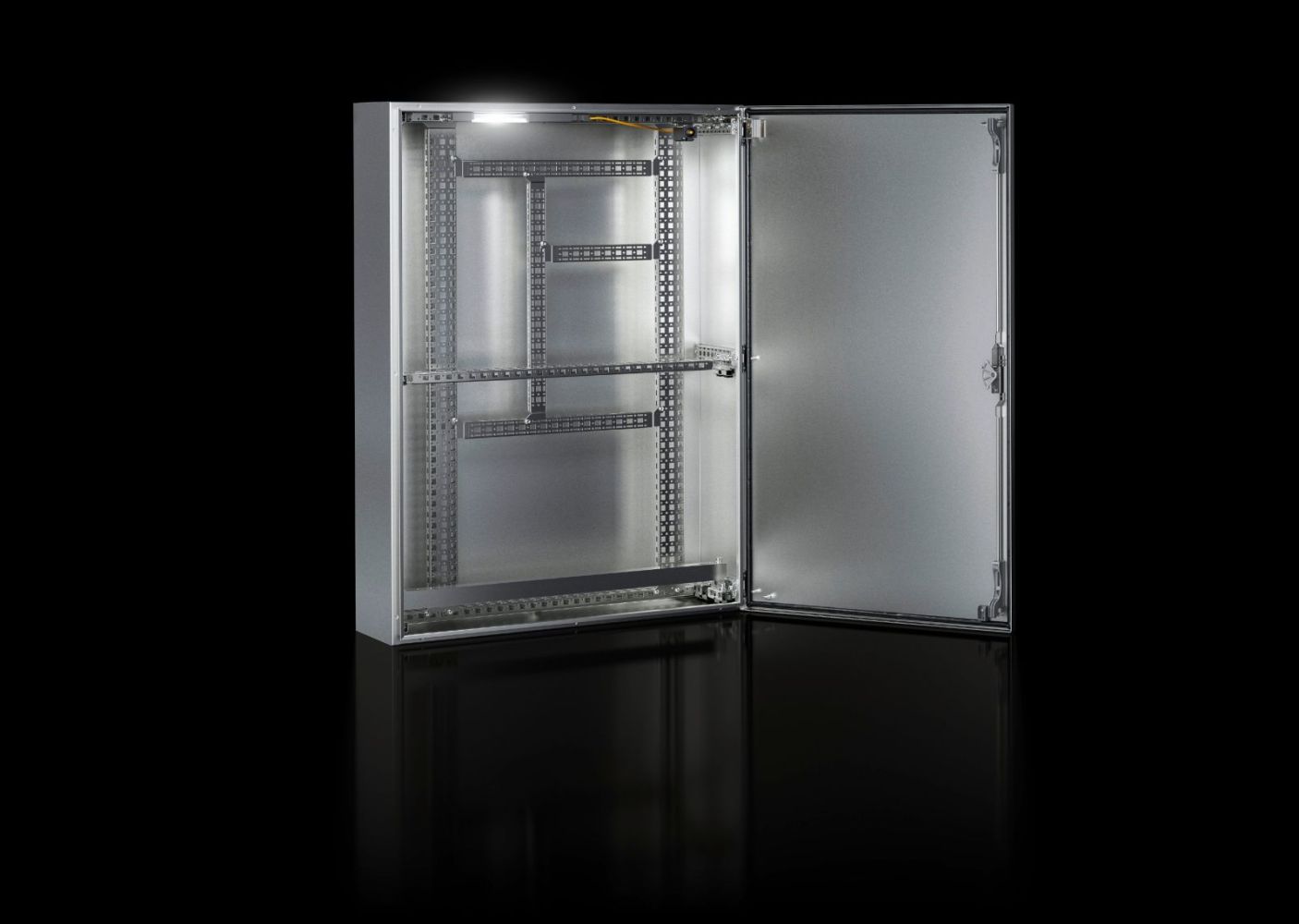

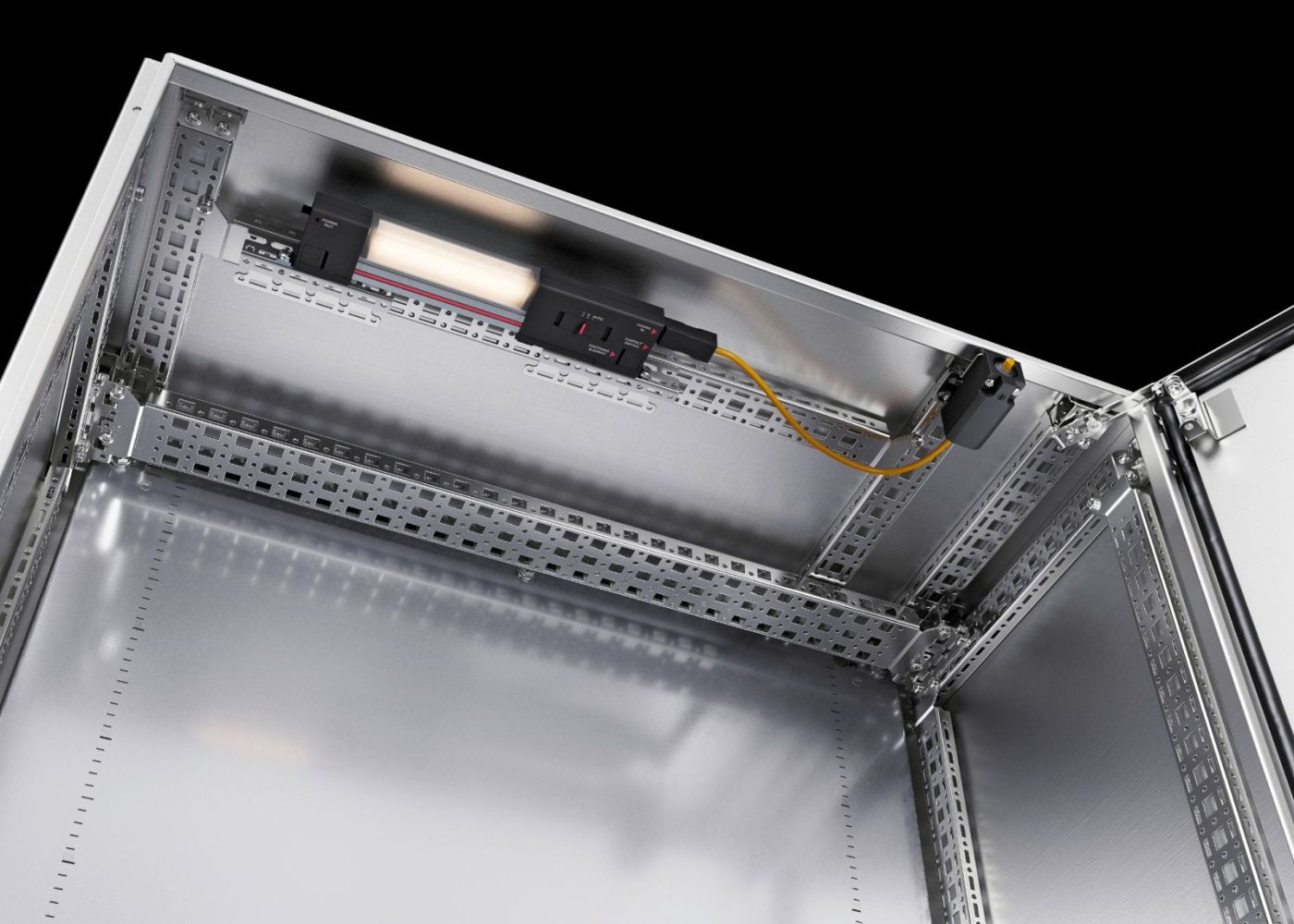

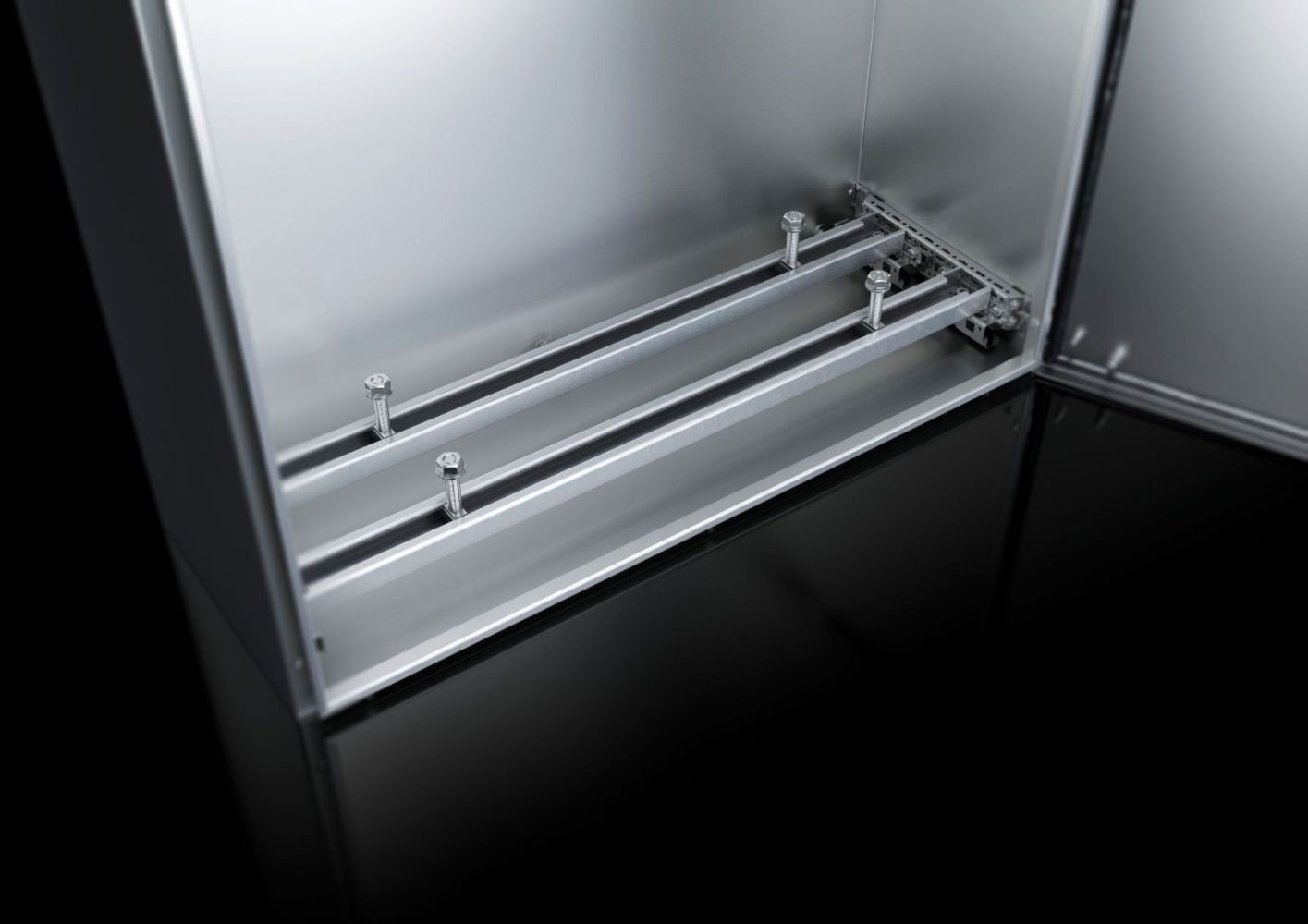

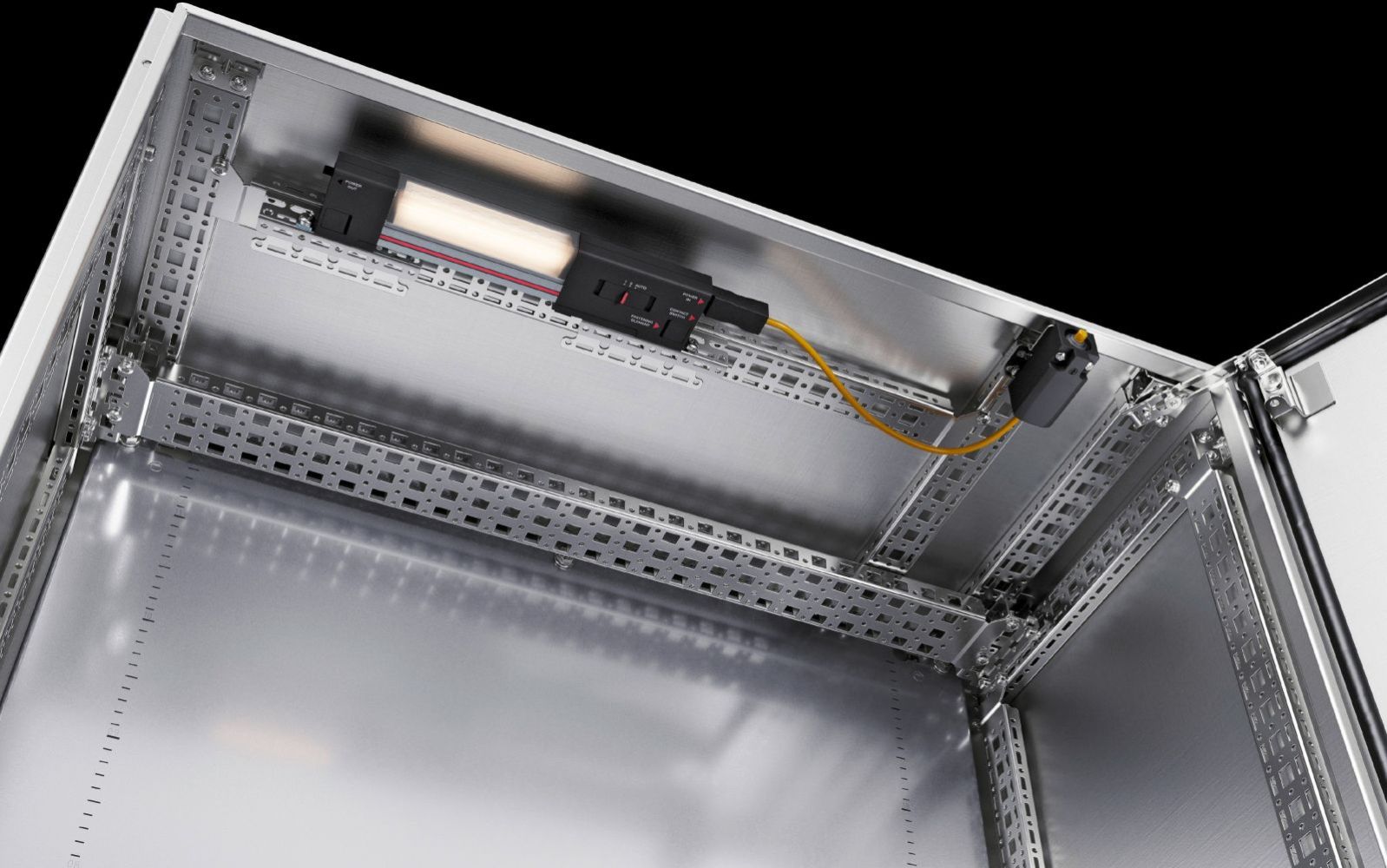

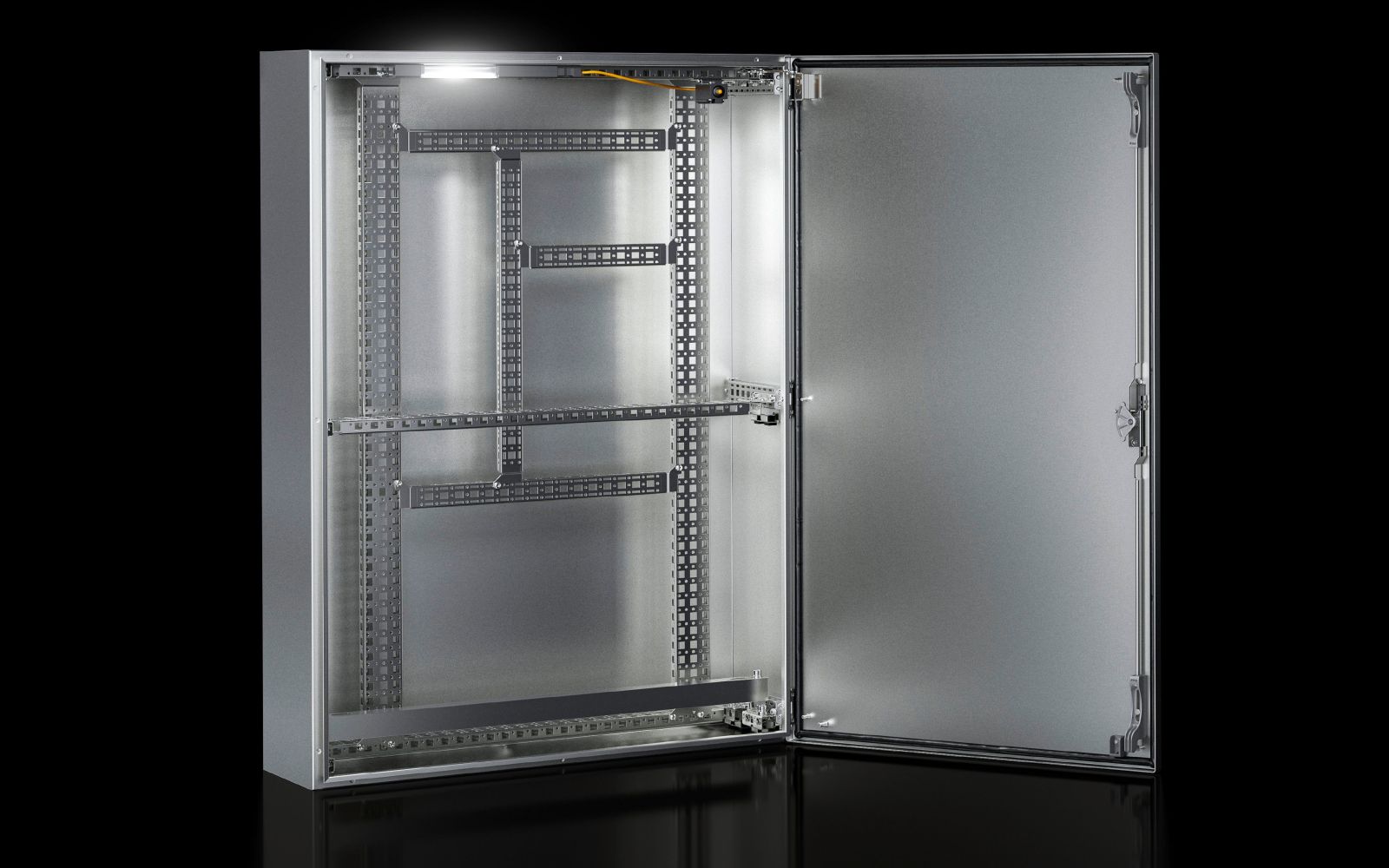

The enclosure features an integrated cam system that allows for easy and quick internal installation without drilling. The mounting plate is secured with Limbach nuts and provides a stable base for installing components. The two padlockable latches with 3 mm double-barrel lock inserts according to DIN 43668 ensure secure locking and are made of zinc die-cast. The door can be mounted on the left side if required, enabling flexible installation. An earthing bolt is integrated into the enclosure to ensure a secure electrical connection. A QR code is printed on the enclosure, door, and type plate, enabling unique identification and easy access to product information and documentation.
Technical Explanation
The door thickness is 1.5 mm, the enclosure thickness is 1.25 mm, and the mounting plate thickness is 2.5 mm, providing sufficient strength for use in industrial installations. The IP 66 rating means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use. The NEMA 4X and Type 4X ratings according to UL 50E confirm suitability for damp, corrosive, and dusty environments. The IK10 rating protects against mechanical impacts, such as a 10 kg weight dropped from a height of 0.5 m. The brush-finished surface with grit 400 provides a uniform, easy-to-clean surface suitable for hygienic requirements.
Compatibility and Accessories
The enclosure is compatible with various accessories that enable use in different application scenarios. These include stainless steel 1.4301 wall mounting brackets, a baying set for AX, KX, AE, KL, a protective roof plate for covering the upper area, a base extension rail, a mast mounting, a mini comfort handle, a padlockable latch with double-barrel lock insert, an internal rail for depth 210 mm, zinc die-cast lock inserts, a condensate drain, mounting brackets for internal mounting level, a knob handle without safety cylinder insert, and stainless steel 1.4301 wall mounting angles. These accessories extend the functionality and adaptability of the enclosure to specific requirements.
Installation and Mounting

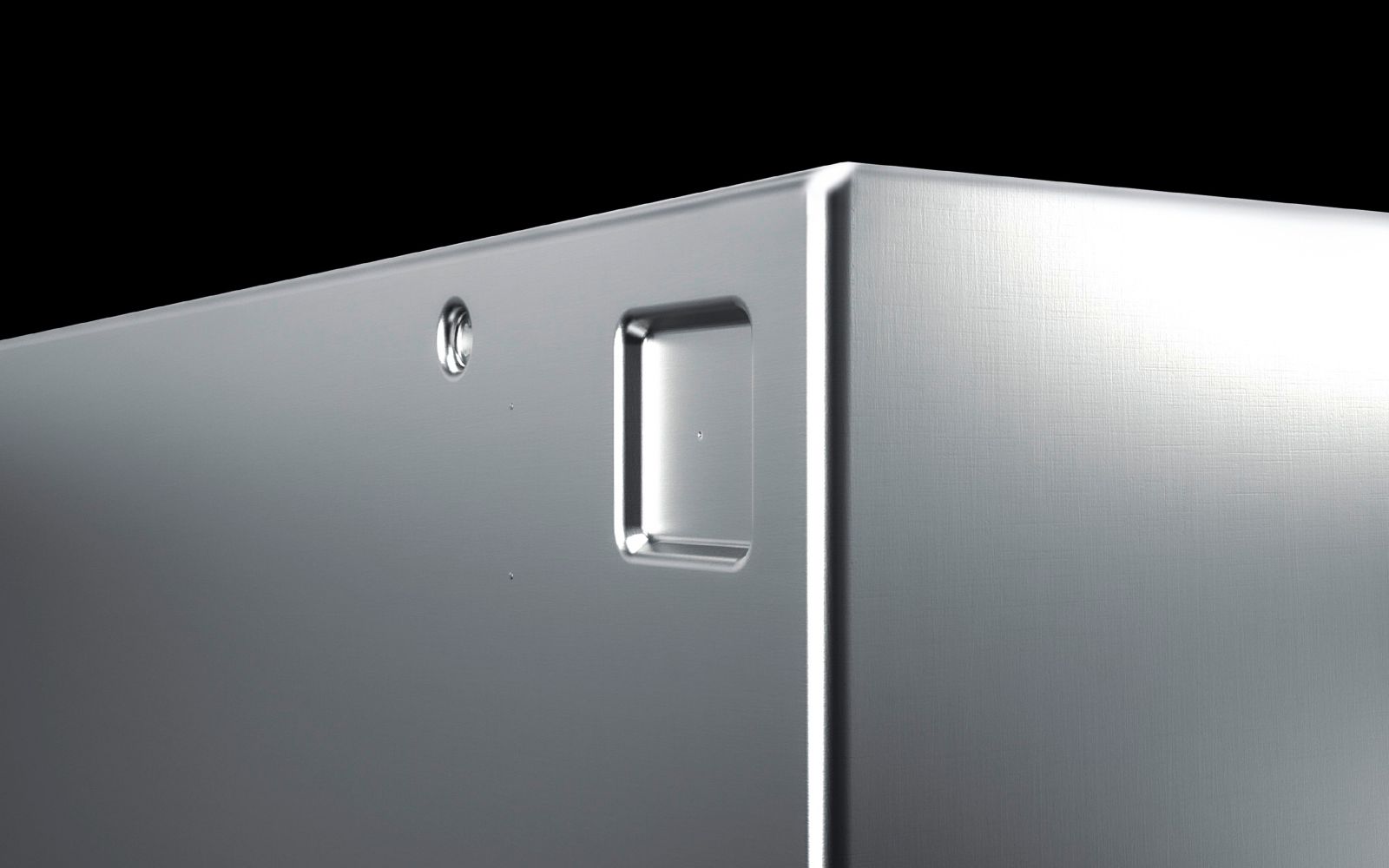

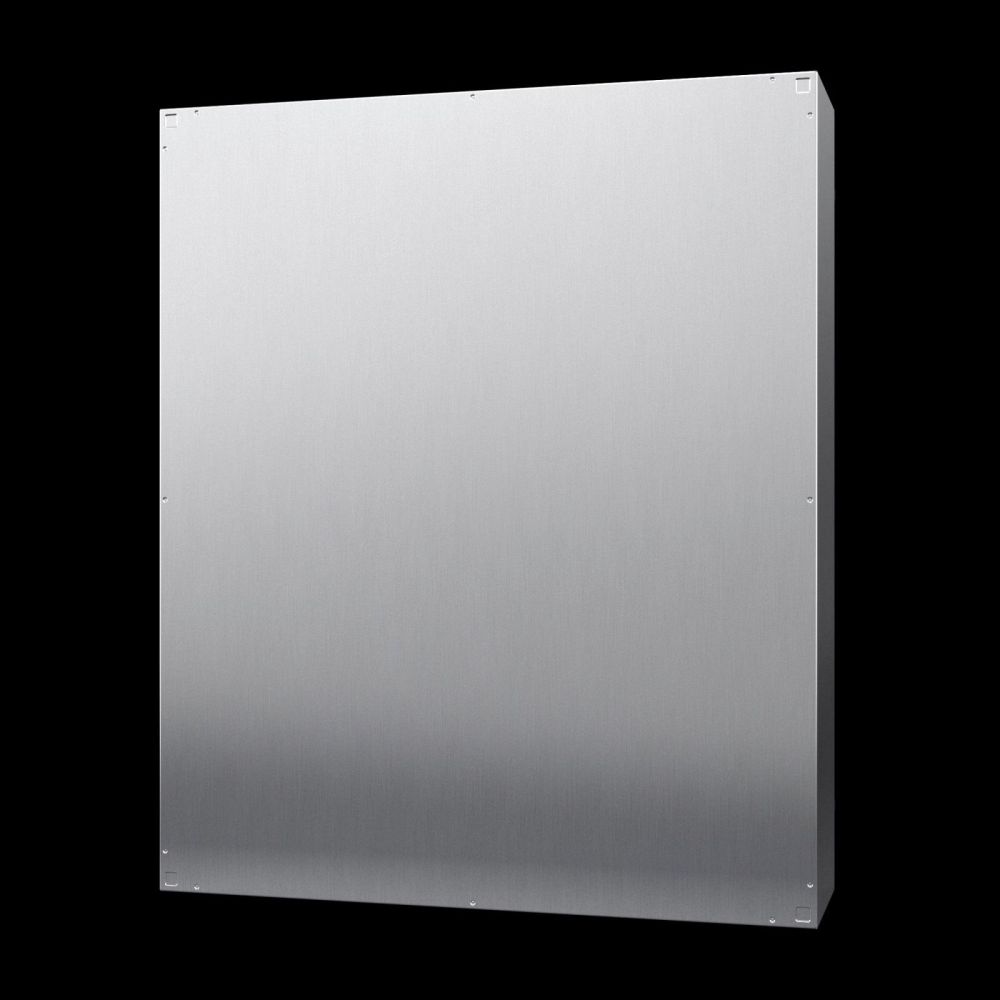

Installation is carried out using the integrated recesses for wall mounting brackets on the rear panel. The mounting plate is included in the delivery and enables secure fastening of components. The door can be mounted on the right or left side, allowing flexible installation at different locations. The integrated enclosure cams facilitate internal installation without drilling. Earthing is achieved via the integrated earthing bolt, ensuring a secure electrical connection.
Operational Advantages

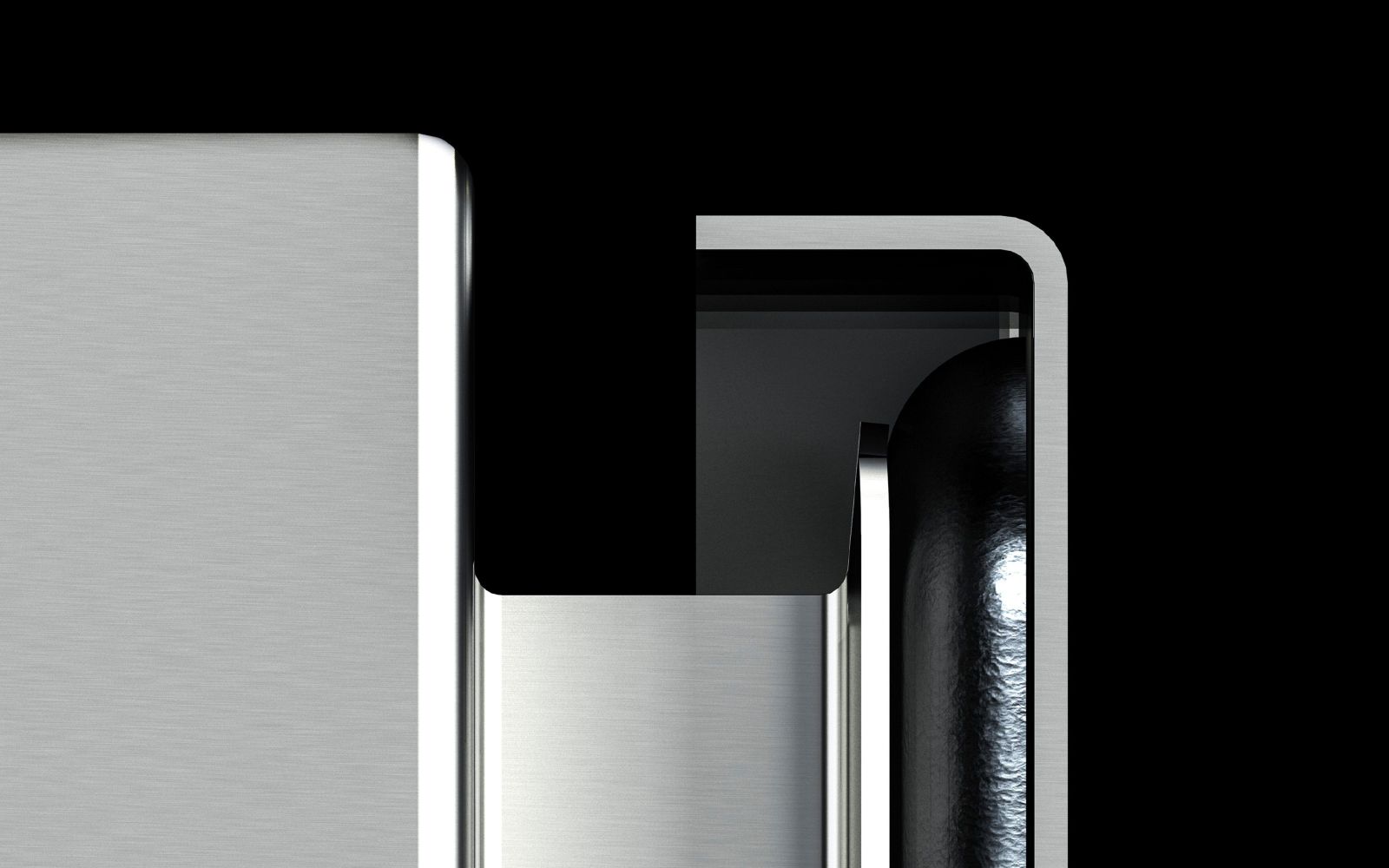

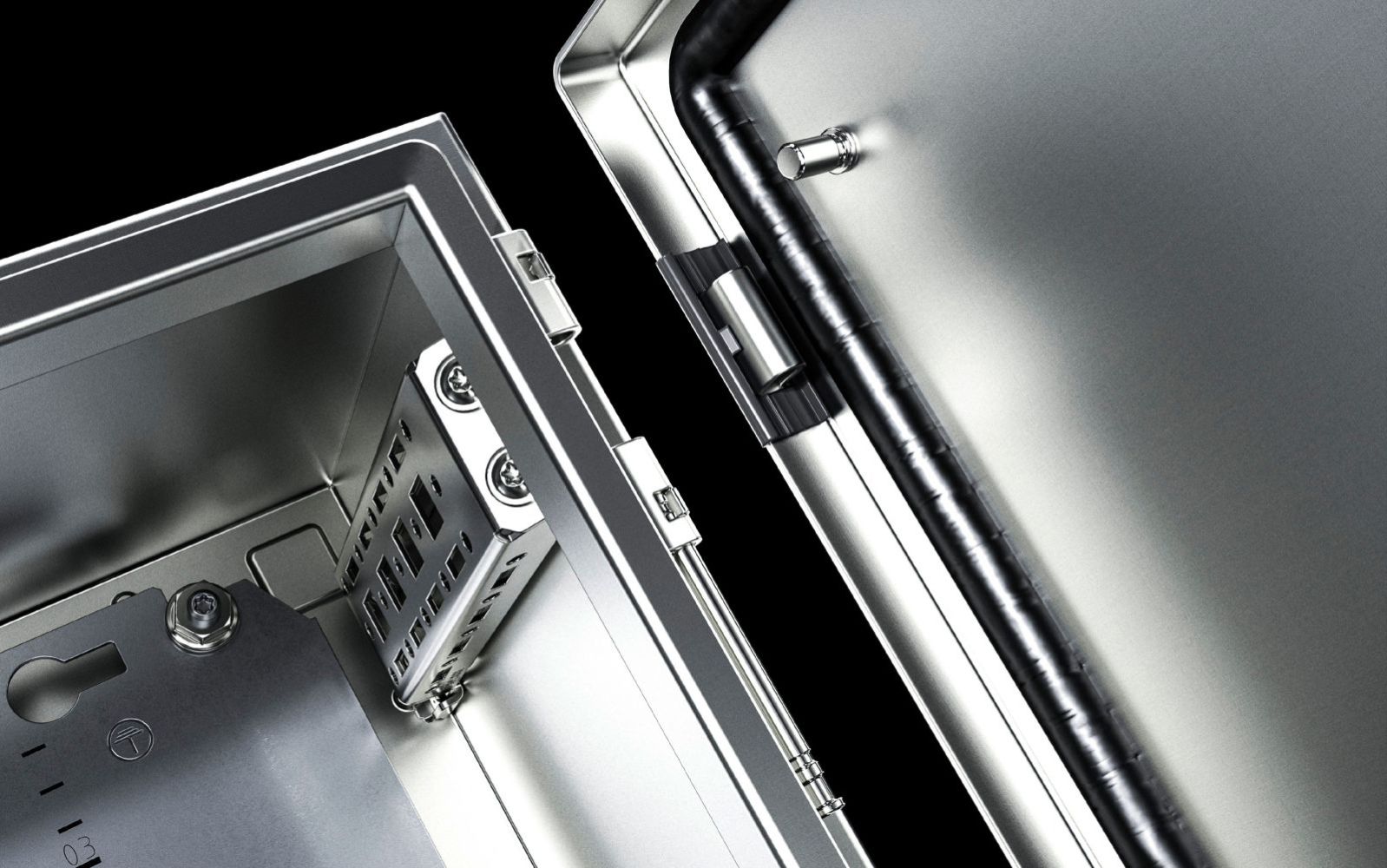

The enclosure offers high mechanical stability, tight sealing, and high protection against environmental influences. The integrated cams enable quick and easy internal installation. The brush-finished surface with grit 400 provides a uniform, easy-to-clean surface. QR codes on the enclosure, door, and type plate enable unique identification and easy access to product information. Compatibility with various accessories extends application possibilities and allows individual adaptation to specific requirements.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 380 mm |
| Height | 600 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 330 mm x 575 mm |
| Number of doors | 1 |
| Lock | Locking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 48,35 |
Questions & answers
What is the delivery time of Rittal 1008000 Compact enclosure AX, 1-door, 380x600x210 mm?
The article Rittal 1008000 Compact enclosure AX, 1-door, 380x600x210 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1008000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1008000 Compact enclosure AX, 1-door, 380x600x210 mm always at the best possible price. We can give you a discount of 2% on Rittal 1008000 Compact enclosure AX, 1-door, 380x600x210 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 1008000 Compact enclosure AX, 1-door, 380x600x210 mm
|
Rittal 2463000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023826 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 191196 Mfg Part No: 2463000 Type: SZ 2463000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2307000 Lock inserts, zinc die-cast, length 27 mm, outer dimension 27 mm
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177020849 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 236156 Mfg Part No: 2307000 Type: SZ 2307000 |
2,98 EUR
![]() ≈ £2.49 | ≈ $3.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2465000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023864 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 251997 Mfg Part No: 2465000 Type: SZ 2465000 |
-11% 2,62 EUR 2,93 EUR
![]() ≈ £2.19 | ≈ $2.88
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2460000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023765 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 400490 Mfg Part No: 2460000 Type: SZ 2460000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2433000 Wall mounting holder, stainless steel 1.4301, wall clearance
The Rittal SZ 2433000 is a wall mounting holder made of stainless steel 1.4301 (AISI 304), specifically developed for secure and stable mounting of small and wall-mounted enclosures in industrial ...Lieske Part No.: 461343 Mfg Part No: 2433000 Type: SZ 2433000 |
24,61 EUR 25,35 EUR
![]() ≈ £20.60 | ≈ $27.05
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2459000 SZ Condensate discharge
For reliable discharge from the inside and protection against splashes from the outside (labyrinth effect). A hole diameter of 16 mm is required. (With AE sheet steel, the holes are already provided ...Lieske Part No.: 469525 Mfg Part No: 2459000 Type: SZ 2459000 |
10,88 EUR
![]() ≈ £9.11 | ≈ $11.96
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2460650 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177220331 Customs tariff number: 83024900 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 499708 Mfg Part No: 2460650 Type: SZ 2460650 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 1199100 Baying set for AX, KX, AE, KL
Supports baying and sealing between KL/KL and AE/AE.Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ... Lieske Part No.: 583514 Mfg Part No: 1199100 Type: SZ 1199100 |
32,32 EUR 33,69 EUR
![]() ≈ £27.05 | ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 4596000 TS mounting brackets for internal mounting level W x D: 500 mm
Applications: For attachment ofCable ducts Cable conduit holder Contact hazard protection covers Equipment installed on the door Cable clamping and attachment Material: Sheet steel Surface finish: ... Lieske Part No.: 590253 Mfg Part No: 4596000 Type: TS 4596000 |
75,44 EUR 78,45 EUR
![]() ≈ £63.14 | ≈ $82.91
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2572010 SZ knob handle without safety cylinder insert for AX
The Rittal SZ 2572010 is a knob handle designed as a replacement or supplement for enclosures and housings, particularly for models with cam or latch locking systems. The handle is manufactured in ...Lieske Part No.: 612034 Mfg Part No: 2572010 Type: SZ 2572010 |
-6% 17,02 EUR 18,20 EUR
![]() ≈ £14.25 | ≈ $18.70
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|
Rittal 2461000 Lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023789 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 661058 Mfg Part No: 2461000 Type: SZ 2461000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2464000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023840 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 724120 Mfg Part No: 2464000 Type: SZ 2464000 |
2,46 EUR
![]() ≈ £2.06 | ≈ $2.70
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 2583010 Wall mounting bracket, stainless steel 1.4301
The Rittal SZ 2583010 is a wall mounting bracket made of stainless steel 1.4301 (AISI 304), specifically developed for mounting sheet metal and stainless steel enclosures to walls. It serves as a ...Lieske Part No.: 796959 Mfg Part No: 2583010 Type: SZ 2583010 |
19,44 EUR 20,21 EUR
![]() ≈ £16.27 | ≈ $21.36
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2462000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023802 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 889854 Mfg Part No: 2462000 Type: SZ 2462000 |
2,63 EUR
![]() ≈ £2.20 | ≈ $2.89
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 2466000 lock inserts, zinc die-cast, length 27 mm, version
Material: Die-cast zincPacks of: 1 pc(s). EAN: 4028177023888 Customs tariff number: 83015000 eCl@ss 5.1: 27189256 eCl@ss 7.0: 27409218 ETIM 6.0: EC000743 Design: A To fit: Enclosure type: EB ... Lieske Part No.: 975920 Mfg Part No: 2466000 Type: SZ 2466000 |
2,67 EUR
![]() ≈ £2.23 | ≈ $2.93
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
|
|
Rittal 2472010 AX protection roof, W x D: 380x210 mm, stainless steel
The Rittal AX 2472010 is a protective roof made of stainless steel, specifically designed for enclosures of type AX with a width of 380 mm and a depth of 210 mm. It covers the upper edge of the ...Lieske Part No.: 1054794 Mfg Part No: 2472010 Type: AX 2472010 |
80,73 EUR
![]() ≈ £67.57 | ≈ $88.72
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
|
|
Rittal 4052000 AS Multitool AX/VX
The Rittal AS 4052000 is a multifunctional tool, specifically developed for handling and mounting AX enclosures as well as VX doors in the field of enclosure technology. It combines several useful ...Lieske Part No.: 1055448 Mfg Part No: 4052000 Type: AS 4052000 |
29,65 EUR
![]() ≈ £24.82 | ≈ $32.59
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2394100 floor extension rail, for AX
The Rittal AX 2394100 is a floor expansion rail made of sheet steel with a zinc-coated surface, specifically developed for use in the AX compact enclosure system. It serves as an additional mounting ...Lieske Part No.: 1101816 Mfg Part No: 2394100 Type: AX 2394100 |
17,92 EUR
![]() ≈ £15.00 | ≈ $19.69
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 4000300 SZ pressure equalization plug, stainless steel, 1.4305
The Rittal SZ 4000300 is a pressure equalization plug made of stainless steel 1.4305 (AISI 303), specifically designed for use in enclosures and housings exposed to changing climatic conditions. It ...Lieske Part No.: 1101878 Mfg Part No: 4000300 Type: SZ 4000300 |
-6% 163,42 EUR 174,72 EUR
![]() ≈ £136.78 | ≈ $179.60
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
|
|
Rittal 8617130 VX System-Chassis 23 x 64 mm W x H x D: 600 mm
The Rittal VX System Chassis 8617130 is a modular mounting component made of sheet steel with a galvanized surface, specifically designed for internal installation in enclosures. It serves as a ...Lieske Part No.: 1349694 Mfg Part No: 8617130 Type: VX 8617.130 |
48,08 EUR
![]() ≈ £40.24 | ≈ $52.84
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 8619720 VX system chassis 14 x 39 mm, door width: 600 mm
The Rittal VX 8619.720 is a system chassis made of sheet steel with a galvanised surface, specifically designed for mounting cable ducts, cable conduit holders, door inserts and similar components in ...Lieske Part No.: 1441073 Mfg Part No: 8619720 Type: VX 8619.720 |
42,99 EUR
![]() ≈ £35.98 | ≈ $47.25
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
|
Rittal 2575010 SZ knob handle with safety cylinder insert for AX
The SZ 2575010 from Rittal is a knob handle with integrated security cylinder insert, specifically designed for enclosures and housings with pull-out systems. The product serves as a locking component ...Lieske Part No.: 1571616 Mfg Part No: 2575010 Type: SZ 2575010 |
29,01 EUR 30,28 EUR
![]() ≈ £24.28 | ≈ $31.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
|

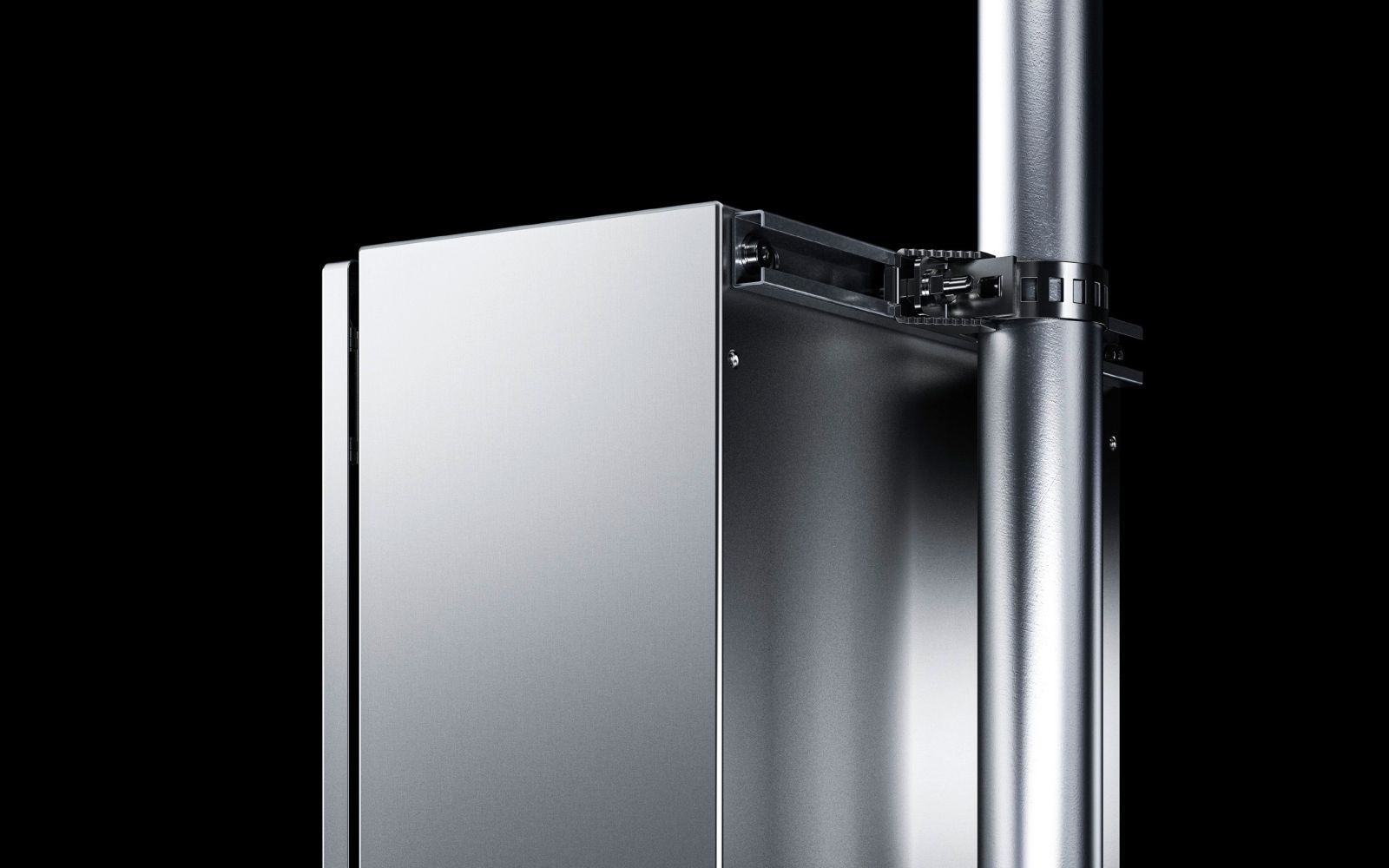

Rittal 2584100 AX mast mounting
