Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead

Your rating:
Average rating
product review for Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead
( 4.7 / 5 ) 6 ratings

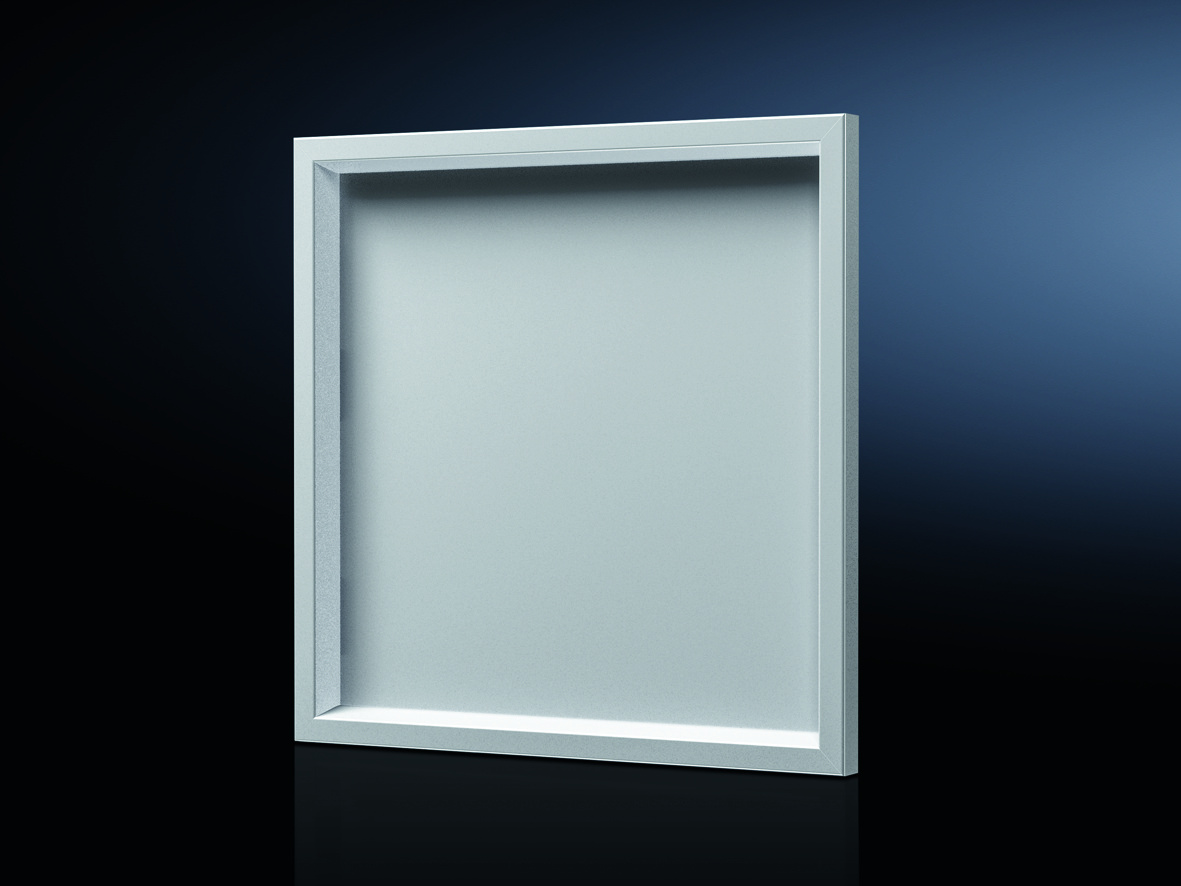

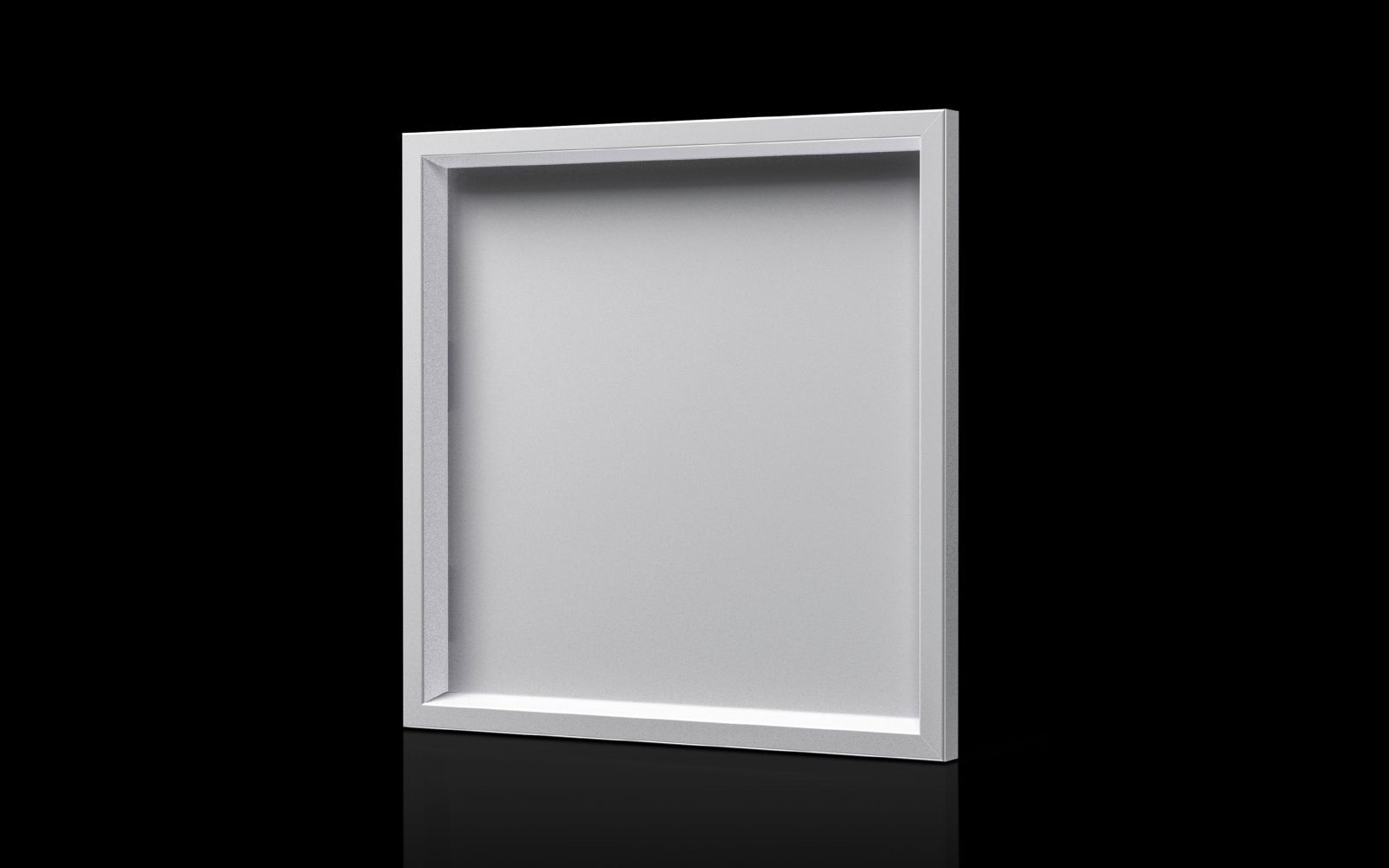

Rittal 2743010
This image may differ from the desired article.
Rittal 2743010Rittal 2743010Rittal 2743010
126,62 EUR
( 150,68 EUR incl. VAT )
≈ £105.98  |  ≈ $139.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead
Datasheet:file_download Download
Lieske Part No.:1593455
Mfg Part No: 2743010
UPC/EAN: 4028177938533
Weight:3.44 kg
Type:AX 2743010

Product information for Rittal 2743010:

The Rittal AX 2743010 is an FT control panel for use with AX enclosures. It serves as a replacement for a standard door or as a mounting surface on free areas, enabling the installation of control elements, indicators, or control devices in industrial environments. The panel consists of an aluminium frame securing a 3 mm thick, natural anodized aluminium plate from the inside. The construction is designed for secure and durable mounting, providing a stable base for integrating electrical or electronic components.

Applications
This control panel is specifically designed for AX enclosures with a width of at least 380 mm and a height of at least 600 mm. It fits enclosure types with article numbers 1008.000, 1038.000, and 1338.000. The panel dimensions are 377 mm (width) × 597 mm (height) × 36 mm (depth). It can be mounted either as a door replacement or on free walls or surfaces, allowing flexible use in various industrial installations.

Functions and Equipment in Detail
The panel is supplied with an aluminium frame, a panel plate, hinges, and retaining brackets. The aluminium plate measures 323 mm (width) × 543 mm (height), with a mounting area of 307 mm (width) × 527 mm (height). This area is intended for mounting switches, indicators, keyboards, or other control elements. The natural anodized surface provides corrosion-resistant and robust protection suitable for industrial environments.

Technology Explained Simply
The protection rating IP 54 according to EN 60 529 ensures the panel is protected against dust and splashing water. This makes it suitable for use in production environments or rooms with increased humidity. Installation is carried out using the supplied hinges and retaining brackets, which enable secure fastening to the enclosure or a wall. The 3 mm thick aluminium plate ensures sufficient stability and prevents deformation when mounting heavier components.

Compatibility and Accessories
The panel is compatible with the specified AX enclosure types (article numbers 1008.000, 1038.000, 1338.000). This closure ensures secure and lockable mounting, maintaining the protection standard of the enclosure. The panel can also be mounted independently on surfaces without an enclosure, using the mounting aids included in the delivery scope.

Mounting and Installation
Installation is performed by securing the frame at the designated location, with hinges and retaining brackets providing the necessary stability. The aluminium plate is fastened from the inside to the frame, enabling a secure and clean installation. The panel dimensions are designed to fit optimally into the designated enclosures. Installation requires no additional tools or materials, except for an optional pre-drilled lock when replacing a door.

Operational Advantages
The Rittal AX 2743010 provides a stable mounting surface for control elements, which can be directly mounted on the enclosure or on a wall. The IP 54 protection rating ensures reliable operation in industrial environments. The natural anodized aluminium surface is resistant to corrosion and mechanical stress. The combination of robust design and flexible mounting makes the panel a practical solution for integrating control and operating units in enclosures and industrial installations.

General
MaterialAluminium, natural anodized
Scope of deliveryAluminium frame, panel board, hinges, mounting brackets
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1008.000, 1038.000, 1338.000
NoteWhen installed instead of door, pre-drilled lock is required
Suitable forHousing type: AX, width: = 380 mm, height: = 600 mm
Width377 mm
Height597 mm
Depth36 mm
Aluminium plate dimensionsWidth: 323 mm, Height: 543 mm
Populatable areaWidth: 307 mm, height: 527 mm


Product data sheet
Datasheet for Rittal 2743010, EAN: 4028177938533

Questions & answers

What is the delivery time of Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead?

The article Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2743010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead always at the best possible price. We can give you a discount of 2% on Rittal 2743010 command panel, 377x597x36 mm, for mounting on AX instead if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
