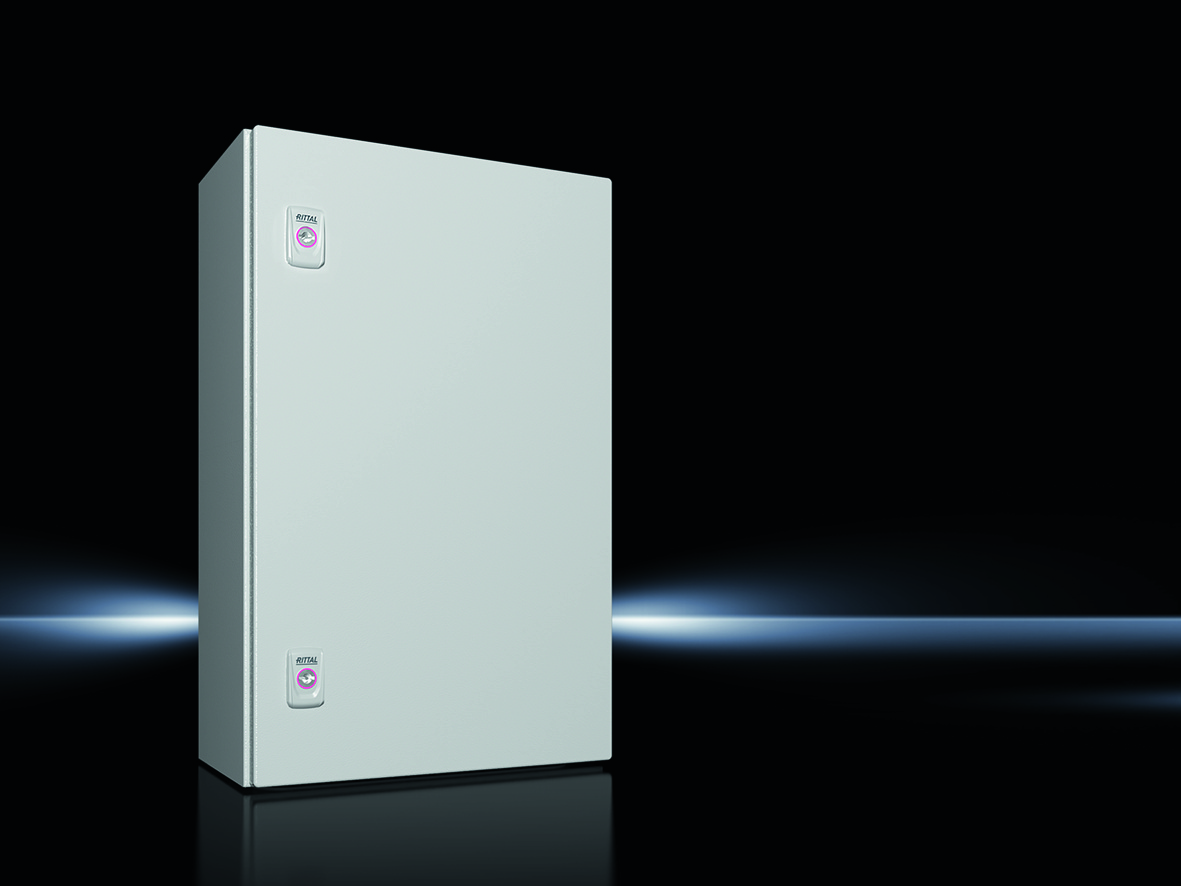

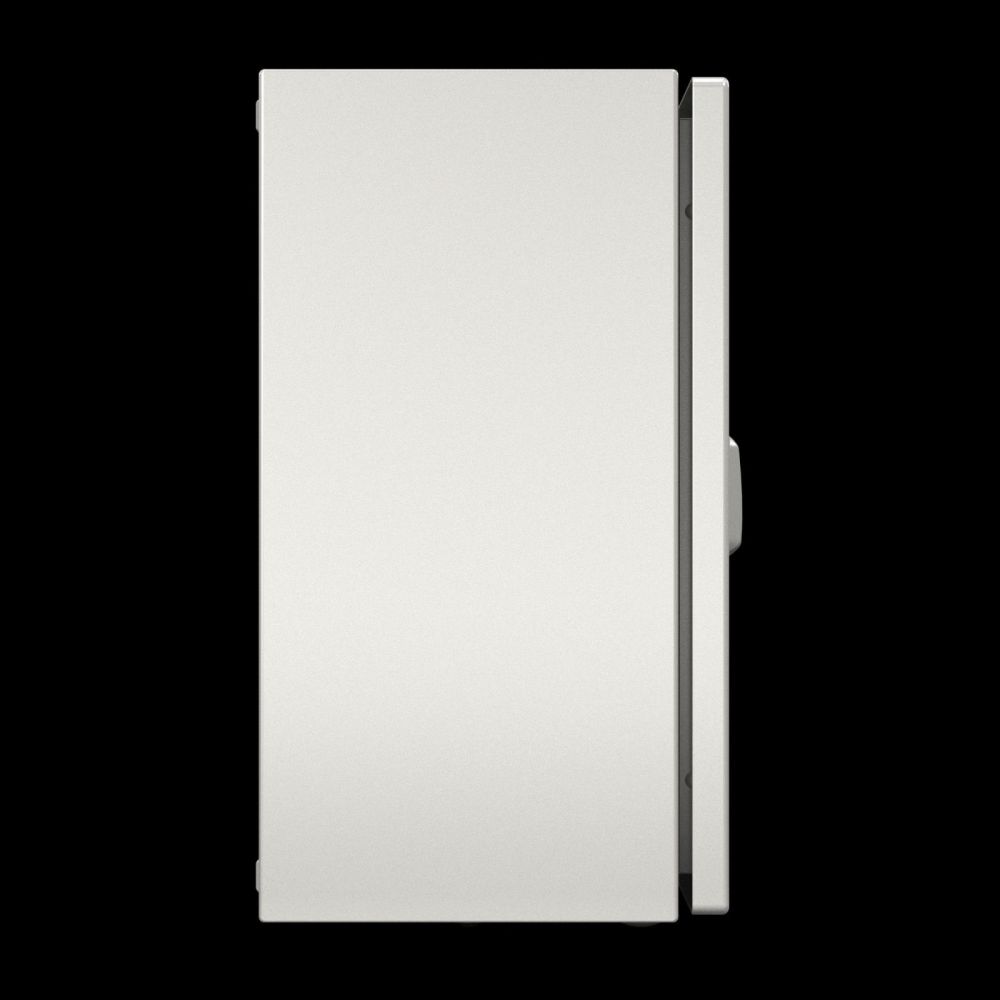

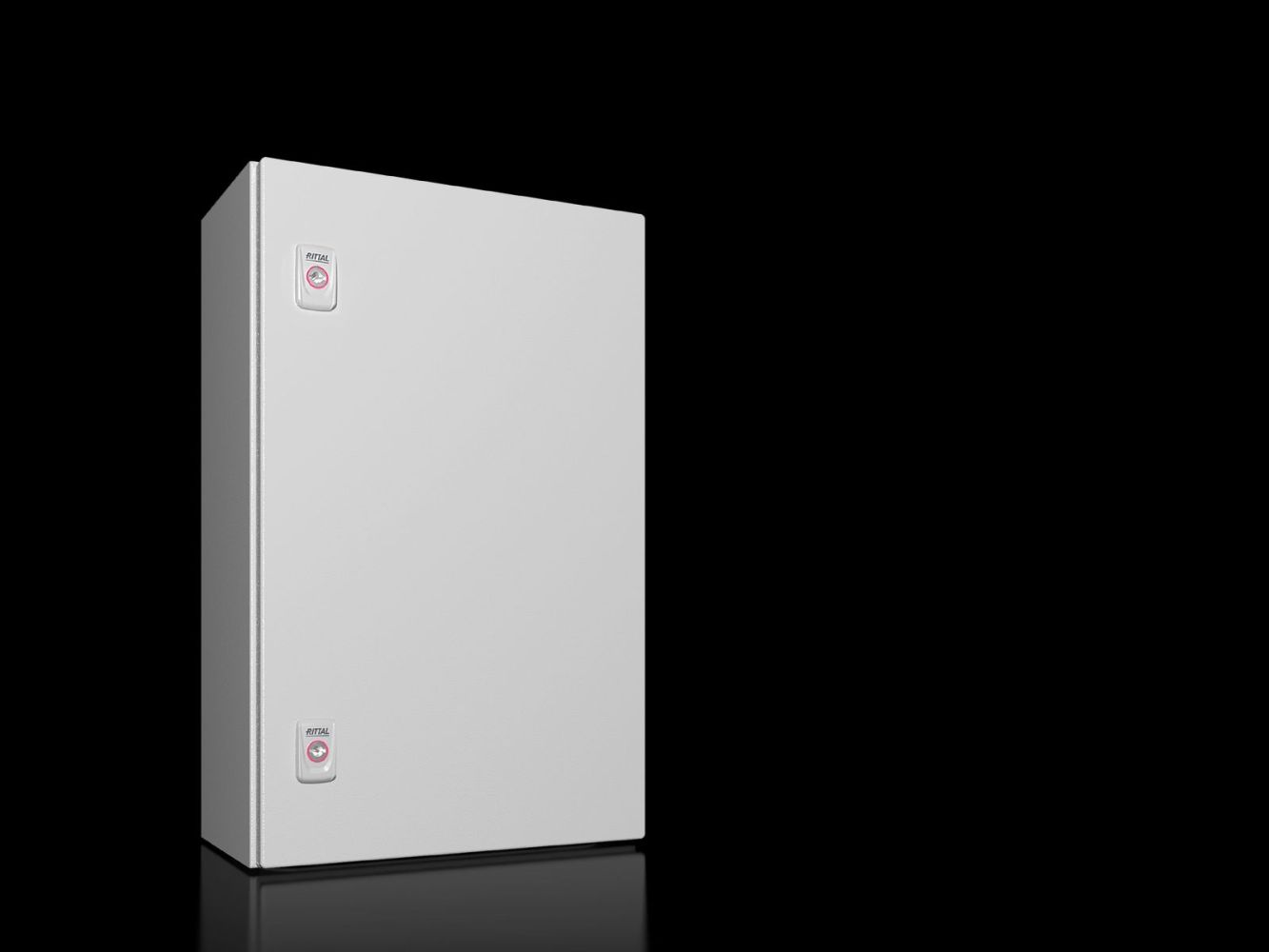

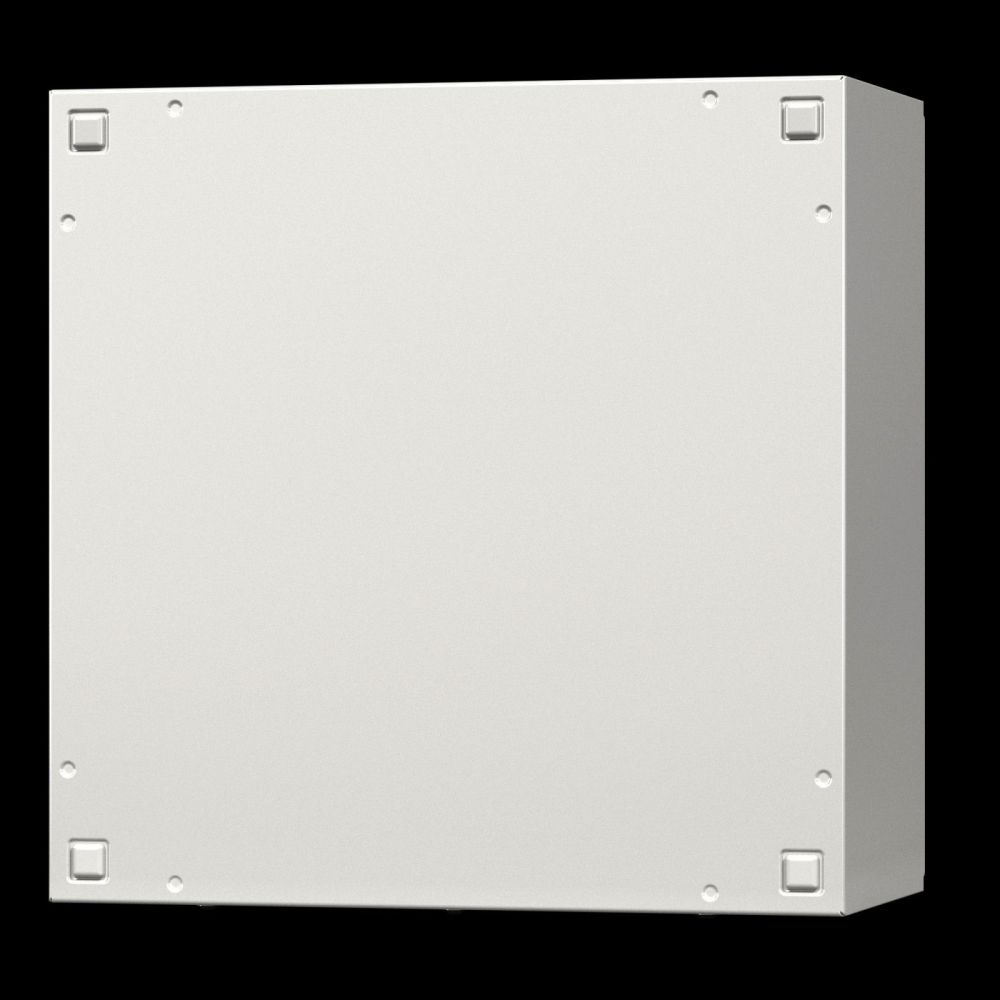

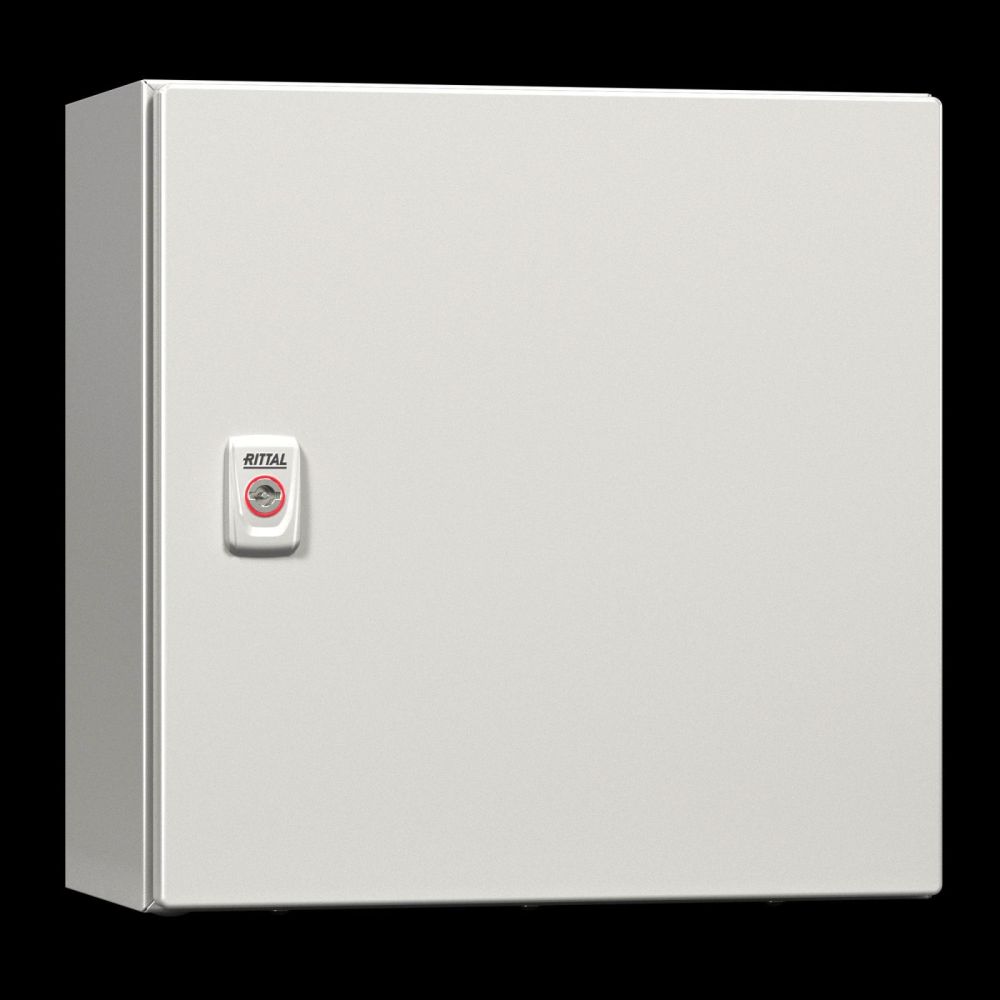

Rittal 1038000 Compact enclosure AX, 1-door, W x H x D: 380x600x210 mm

Your rating:
Average rating
product review for Rittal 1038000 Compact enclosure AX, 1-door, W x H x D: 380x600x210 mm
( 4.7 / 5 ) 6 ratings
Rittal 1038000
This image may differ from the desired article.
Rittal 1038000Rittal 1038000Rittal 1038000Rittal 1038000Rittal 1038000Rittal 1038000Rittal 1038000
84,00 EUR
( 99,96 EUR incl. VAT )
≈ £70.31  |  ≈ $92.32
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1038000 Compact enclosure AX, 1-door, W x H x D: 380x600x210 mm
Datasheet:file_download Download
Lieske Part No.:1598226
Mfg Part No: 1038000
UPC/EAN: 4028177813410
Weight:14.42 kg
Type:AX 1038000

Product information for Rittal 1038000:

The Rittal AX 1038000 is a compact enclosure made of steel sheet, designed for use in industrial and technical applications. It features dimensions of 380 mm width, 600 mm height, and 210 mm depth, and is equipped with a single door. The construction allows for flexible and secure mounting of electrical and electronic components. The enclosure is made of steel sheet with a material thickness of 1.25 mm, the door from 1.5 mm thick steel sheet, complemented by a continuous foamed PU seal, ensuring a tight seal. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high corrosion resistance and visual durability. The mounting plate made of galvanized steel sheet (2.5 mm thick) is equipped with keyhole slots for earthing and dimension markings, and is secured using ring weld nuts.

Applications

The enclosure is suitable for use in indoor and outdoor environments, particularly in settings with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water exposure. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial environments, including damp or dusty rooms. The IK code IK10 indicates high mechanical strength against impact and shock loads.

Functions and Equipment in Detail

The enclosure features integrated housing lugs in the roof, base, and side panels, mirroring the 25 mm system grid of the VX25 large enclosure. This enables easy and tool-free mounting of internal mounting rails and system accessories without drilling. The door is equipped with two latching locks operating with a 3 mm double-barrel lock insert according to DIN 43668. The door hinge is reversible, allowing the door to be mounted with right-hand or left-hand swing. The opening angle is 130° according to VDI, with an option to upgrade to 180°. The door is fitted with vertical door hole strips, enabling secure mounting of control panels or viewing windows.

Technology Explained Simply

The integrated housing lugs in the 25 mm grid allow for modular and flexible interior outfitting. Mounting of rails and accessories is done without drilling, preserving the protection rating IP 66, NEMA 4, etc.). The base mounting rail provides an additional mounting level and increases load capacity. The PU seal ensures a tight seal that remains effective even under temperature fluctuations and vibrations. The powder-coated surface in RAL 7035 offers high resistance to weathering and mechanical stress.

Compatibility and Accessories

The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. These include lock inserts made of zinc die-cast, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, mounting brackets for internal mounting levels, knob handles, handles with safety cylinder, metal gland plates, stainless steel protection hoods, multitools, and plastic handles. These components can be added as needed to enhance the functionality and safety of the enclosure.

Mounting and Installation

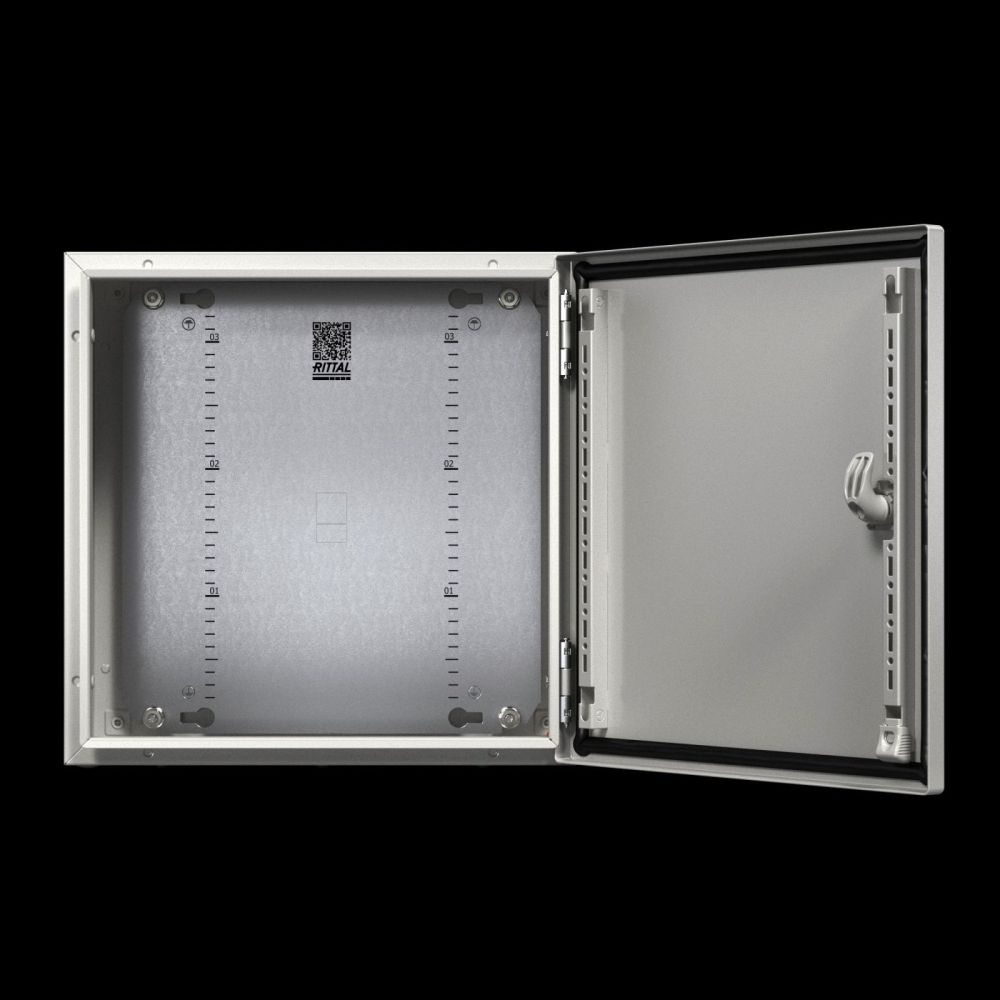

Mounting is performed via the integrated gland plate in the enclosure base (size 2) and the designated cable entries in the rear panel for wall mounting brackets. The internal mounting plate is equipped with keyhole slots for earthing and dimension markings, facilitating the installation of components. The door can be converted from right-hand to left-hand swing by replacing the hinges. Interior outfitting is done using the integrated housing lugs and the internal mounting rail, with no drilling required.

Advantages in Operation

The enclosure offers high mechanical and climatic robustness due to protection ratings IP 66, IK10, and NEMA classifications. The modular interior outfitting allows flexible adaptation to different applications. Tool-free mounting of accessories increases efficiency during installation and maintenance. Integrated QR codes on the enclosure body, door, and nameplate enable unique identification and easy access to product information and documentation. The use of steel sheet with high material thickness and a triple surface treatment ensures long service life and high reliability in demanding environments.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK10
Width380 mm
Height600 mm
Depth210 mm
Door material thickness1,5 mm
Plate thickness cabinet1,25 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)330 mm x 575 mm
Number of doors1
Number of locks2
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plateSize: 2, quantity: 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)64.91 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Product data sheet
Datasheet for Rittal 1038000, EAN: 4028177813410
