Rittal 2562300 SZ plastic gland plates, for AX, with membranes,

Your rating:
Average rating
product review for Rittal 2562300 SZ plastic gland plates, for AX, with membranes,
( 4 / 5 ) 5 ratings
Rittal 2562300
This image may differ from the desired article.
Rittal 2562300Rittal 2562300Rittal 2562300
25,65 EUR 26,67 EUR
( 30,52 EUR incl. VAT )
≈ £21.47  |  ≈ $28.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2562300 SZ plastic gland plates, for AX, with membranes,
Datasheet:file_download Download
Lieske Part No.:1598247
Mfg Part No: 2562300
UPC/EAN: 4028177935716
Weight:0.5 kg
Type:AX 2562300

Product information for Rittal 2562300:

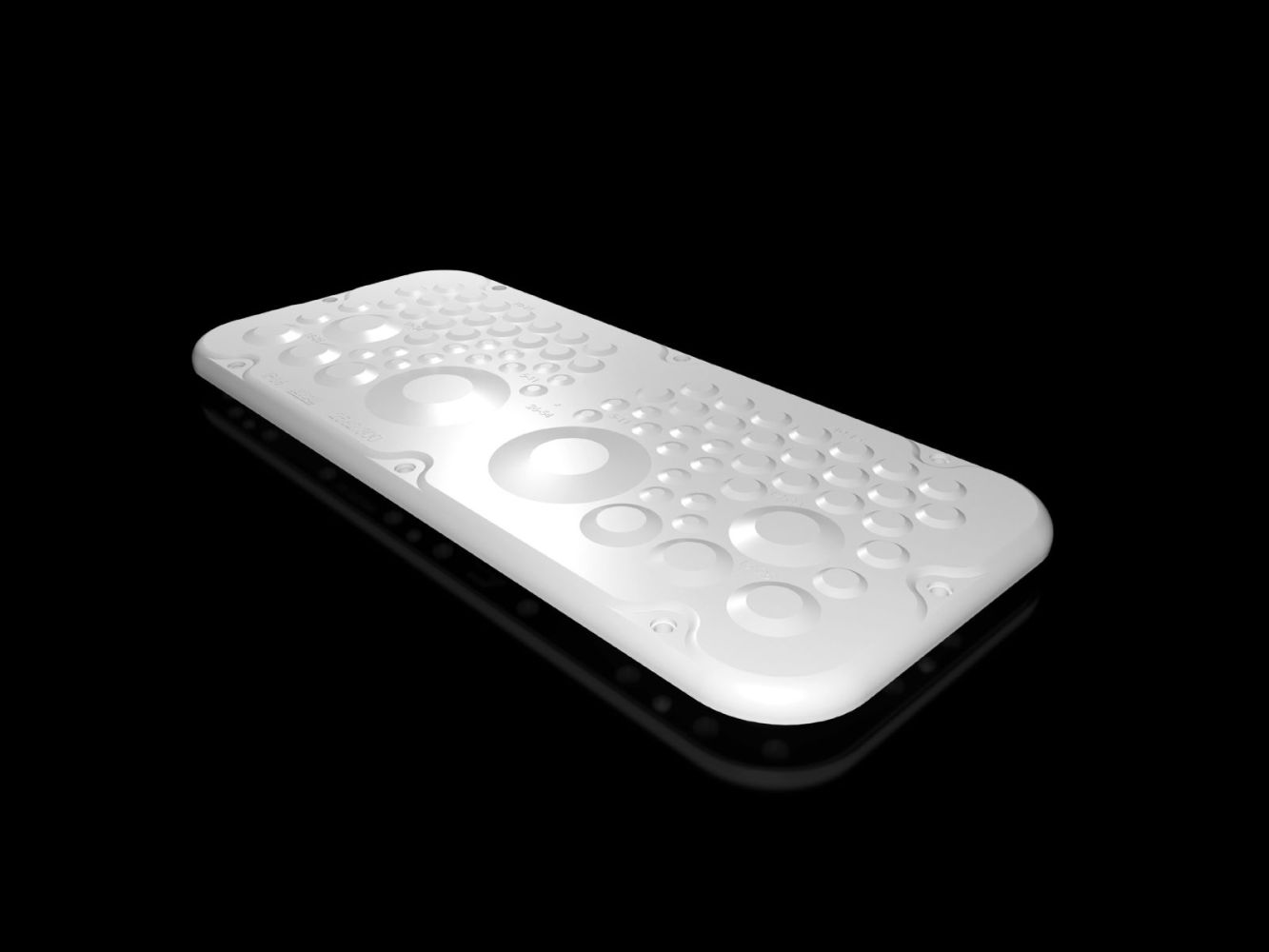

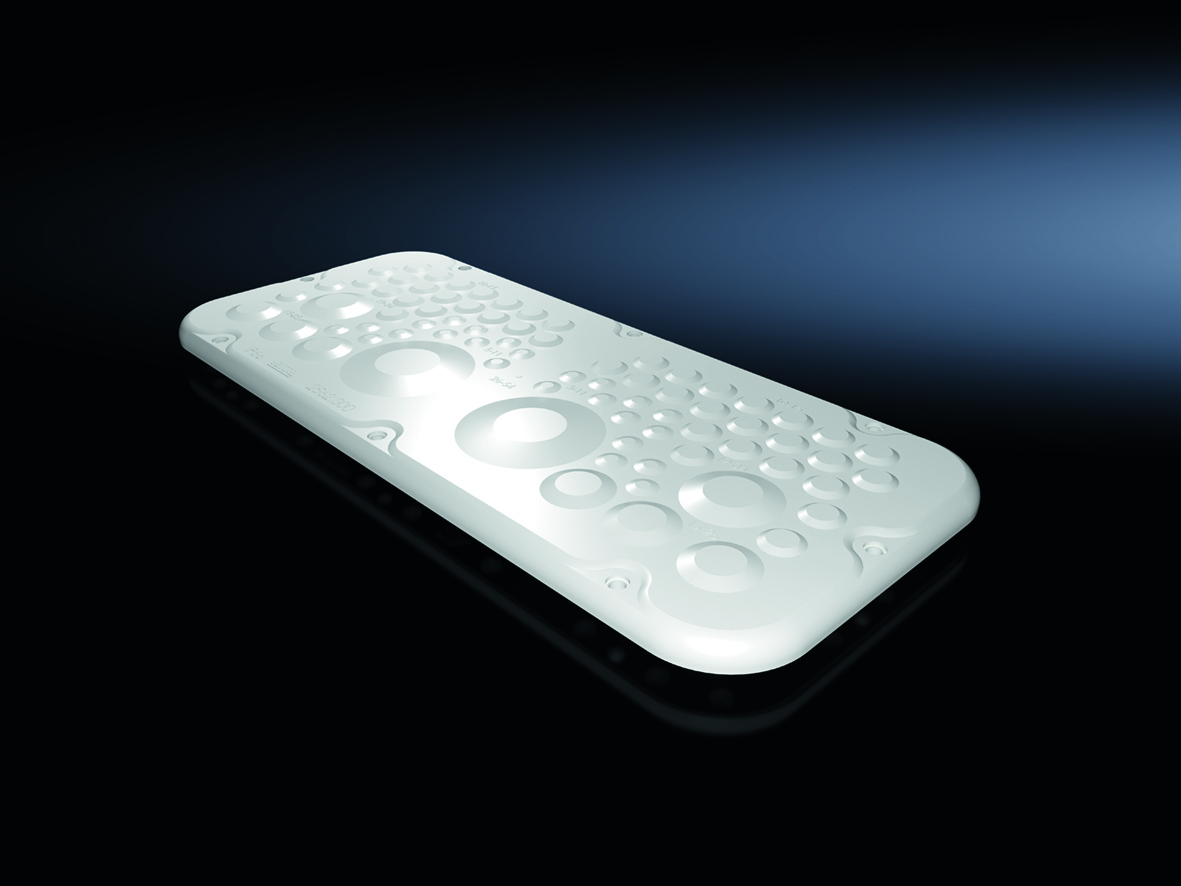

The Rittal SZ plastic gland plate, type AX 2562300, is a system accessory for enclosures of the AX housing type. It serves as a cable entry element on the front side of the enclosure and enables secure and watertight cable routing into the enclosure. The gland plate is designed in size 2 and has dimensions of 339 mm (width) × 149 mm (depth). It is made of plastic that complies with the flammability standard UL 94-V0 and has a color similar to RAL 7035.

Applications

The gland plate is specifically designed for use with AX enclosures, which are employed in industrial environments such as production plants, automation systems, or machine controls. It is used where a tight and at the same time flexible cable entry is required to maintain the enclosure’s protection rating. Installation takes place on the front enclosure wall, where the gland plate guides cables through a predefined number of openings.

Functions and Equipment in Detail

The gland plate features multiple pre-molded cable entries of various diameters, which can be selected according to the cable diameter. The exact distribution is as follows: 24 openings for cables with a diameter of 5 to 11 mm, 44 openings for 10 to 15 mm, 6 openings for 15 to 25 mm, 2 openings for 19 to 34 mm, and 2 openings for 26 to 54 mm. The openings are fitted with membranes that are pierced during installation using a sharp point (e.g., a knife or pin) to pull the cable through. This ensures simple and quick installation without additional tools.

Technology Explained Simply

The gland plate is designed to achieve protection rating IP 66 according to EN 60 529 when installed correctly. This means it is dust-tight and protected against heavy splashing water, making it suitable for outdoor use or in damp industrial environments. Additionally, it meets Type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for dry indoor environments as well as environments with light splashing water or dirt. The selection of UL 94-V0 plastic ensures high flame resistance, which is important in electrical installations.

Compatibility and Accessories

The gland plate is exclusively intended for enclosures of the AX system and fits into gland plate size 2. The assignment of gland plate size is determined based on the respective enclosure configuration, which is specified in the manufacturer’s catalog or on the enclosure itself.

Installation and Mounting

Installation is carried out on the front wall of the AX enclosure. The gland plate is inserted into the designated cutout and secured using existing fastening elements (e.g., screws or clips). Cables are pulled through the membranes, which are pierced using a sharp point. Cable diameters must match the specified size ranges to ensure sealing. Installation requires no special tools, only a sharp point to pierce the membranes.

Operational Advantages

The gland plate provides a reliable and tight cable entry that maintains the enclosure’s protection rating. The pre-molded openings in various sizes allow flexible adaptation to different cable diameters. The simple installation by piercing the membranes reduces installation time and minimizes errors. The material quality and compliance with protection standards ensure high operational safety in demanding environments.

General
MaterialPlastic according to UL 94-V0
ColourSimilar to RAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Width339 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 2
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12
Number of cable entries and Ø (mm) min.-max.24 x 5-11, 44 x 10-15, 6 x 15-25, 2 x 19-34, 2 x 26-54


Product data sheet
Datasheet for Rittal 2562300, EAN: 4028177935716

Questions & answers

What is the delivery time of Rittal 2562300 SZ plastic gland plates, for AX, with membranes, ?

The article Rittal 2562300 SZ plastic gland plates, for AX, with membranes, is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2562300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2562300 SZ plastic gland plates, for AX, with membranes, always at the best possible price. We can give you a discount of 2% on Rittal 2562300 SZ plastic gland plates, for AX, with membranes, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
