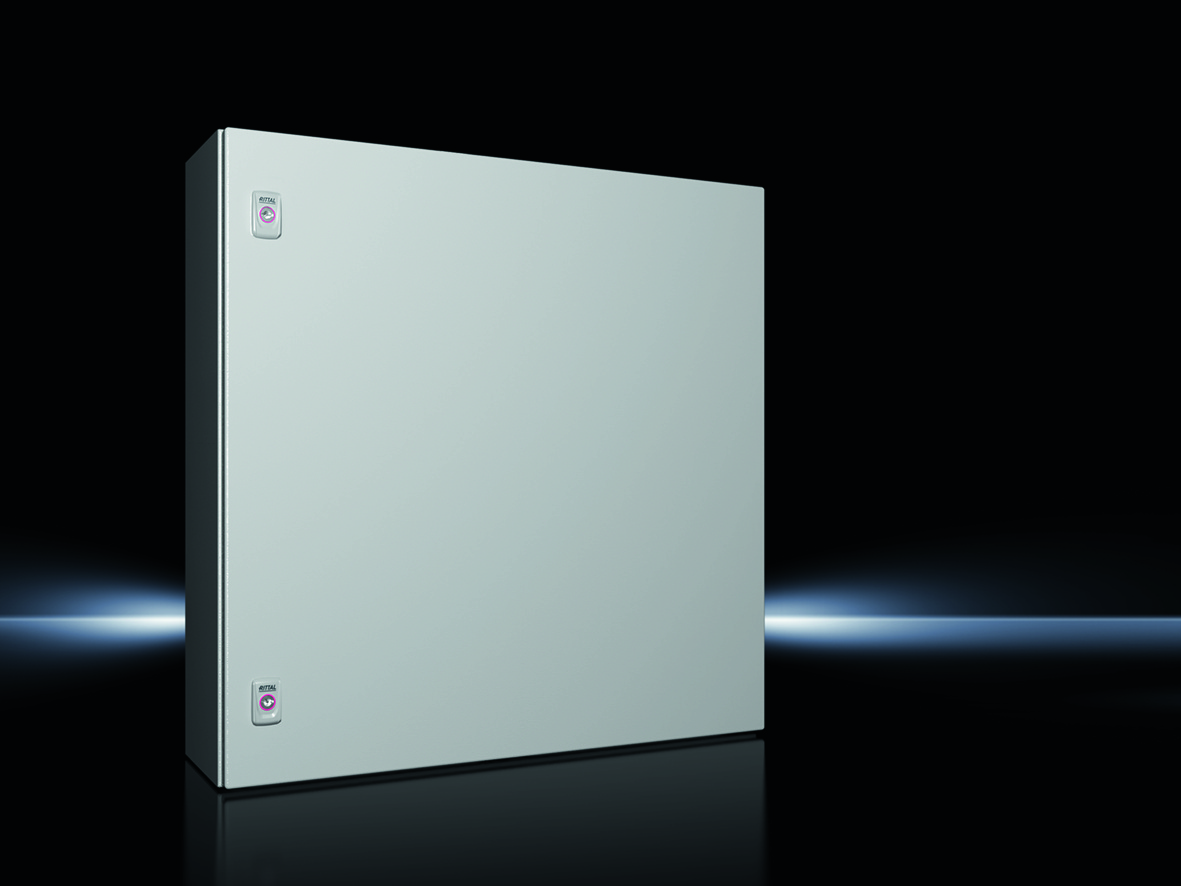

Rittal 1077000 Compact enclosure AX W x H x D 760x760x210 mm IP66 (freight shipping)
|
182,51 EUR 182,58 EUR |
|
|
( 217,19 EUR incl. VAT ) ≈ £152.76 | ≈ $200.58 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598151 |
| Mfg Part No: | 1077000 |
| UPC/EAN: | 4028177813359 |
| Weight: | 36.66 kg |
| Type: | AX 1077000 |
Product information for Rittal 1077000:
Applications
This enclosure is suitable for use in environments with increased requirements for protection against dust, water, and mechanical impacts. It meets the protection rating IP 66 according to EN 60 529, ensuring dust-tight and watertight conditions even under heavy splashing water and short-term submersion. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), make it suitable for indoor and outdoor use, particularly in industrial and manufacturing facilities. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, and the door is made of 2 mm thick sheet steel. The mounting plate has a material thickness of 2.5 mm and dimensions of 705 mm (W) × 735 mm (H). The door is equipped with two latching locks, each fitted with a 3 mm double-barrel lock insert. The door hinge is reversible, allowing the door to be mounted with right-hand or left-hand swing. The opening angle is 130° according to VDI, with an option to retrofit to 180°. The delivery includes the enclosure with door, two gland plates in the enclosure base, the mounting plate, the door punch strip, and the two locks.
Technology Explained Simply
A key feature of the AX 1077000 is the integrated 25 mm system grid, realised through embossed enclosure lugs in the roof, base, and sides. This system enables easy and secure mounting of internal components, such as rails and accessories, without drilling. The base mounting rail provides an additional mounting level and increases load capacity. The protection rating is maintained even when installing the base mounting rail, as no drilling is required. Using the Rittal configurator RiPanel simplifies planning and configuration of the enclosure.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories that meet individual requirements for installation and operation. These include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, knob handles, plastic handles, metal gland plates, multitools, system lights, and other expansion components. These parts allow flexible adaptation to various application scenarios.
Mounting and Installation
Mounting is performed using the integrated enclosure lugs and the base mounting rail, ensuring quick and secure attachment of internal components. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with ring weld nuts. The gland plates in the enclosure base allow secure mounting to walls or floors. The door can be converted from right-hand to left-hand swing by replacing the hinges.
Advantages in Operation
The AX 1077000 offers high mechanical stability and protection due to its robust sheet steel construction and integrated protective features. The simple mounting and retrofitting of internal components without drilling reduces installation time and increases flexibility. The integrated enclosure lugs and base mounting rail enable optimal use of internal space. The high protection rating IP 66 and UL approvals ensure reliability in demanding environments. QR codes on the enclosure body, door, and nameplate allow unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 760 mm |
| Height | 760 mm |
| Depth | 210 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 705 mm x 735 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 2, Quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 125.24 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
Questions & answers
What is the delivery time of Rittal 1077000 Compact enclosure AX W x H x D 760x760x210 mm IP66 (freight shipping)?
The article Rittal 1077000 Compact enclosure AX W x H x D 760x760x210 mm IP66 (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1077000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1077000 Compact enclosure AX W x H x D 760x760x210 mm IP66 (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 1077000 Compact enclosure AX W x H x D 760x760x210 mm IP66 (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
