Rittal 4599200 TS mounting bracket for door width 760 mm

Your rating:
Average rating
product review for Rittal 4599200 TS mounting bracket for door width 760 mm
( 4.3 / 5 ) 4 ratings
Rittal 4599200
This image may differ from the desired article.
Rittal 4599200Rittal 4599200Rittal 4599200Rittal 4599200Rittal 4599200Rittal 4599200
77,63 EUR 80,74 EUR
( 92,38 EUR incl. VAT )
≈ £64.98  |  ≈ $85.32
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 4599200 TS mounting bracket for door width 760 mm
Datasheet:file_download Download
Lieske Part No.:1593433
Mfg Part No: 4599200
UPC/EAN: 4028177939028
Weight:7.28 kg
Type:TS 4599200

Product information for Rittal 4599200:

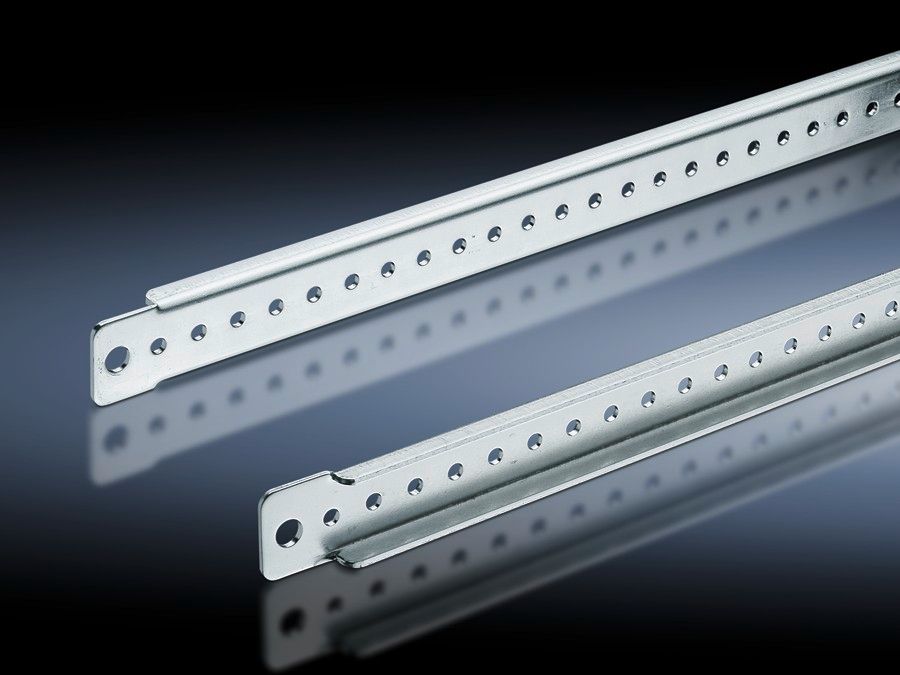

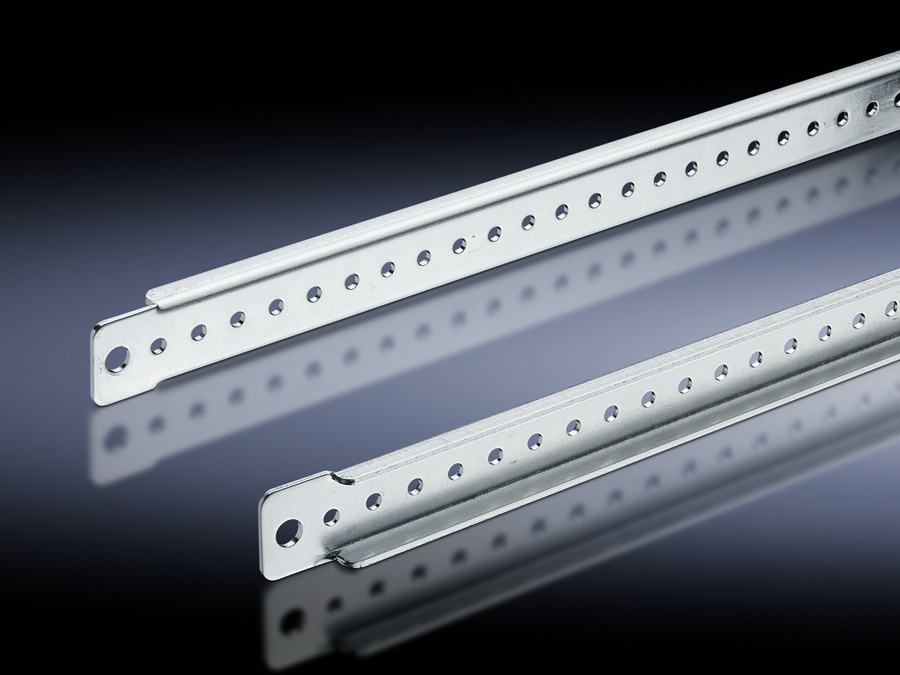

The Rittal TS 4599200 is a mounting strip made of sheet steel, specifically designed for securing components to enclosure doors. It is intended for doors with a width of 760 mm and serves as a universal mounting base for various components such as cable ducts, cable conduit holders, shock protection covers, door inserts, as well as for securing and strain relief of cables. The surface is zinc-coated, ensuring high corrosion resistance and long service life in industrial environments. The mounting strip has a length of 700 mm and features a hole pattern on a 25 mm grid, with holes having a diameter of 4.5 mm. This hole pattern allows for flexible and precise mounting of accessories at any position along the strip.

Applications

The mounting strip is used in enclosures of type AX, particularly for doors with a width of 760 mm. It is suitable for applications requiring secure and orderly mounting of cable and switching equipment on the door. Installation is carried out in conjunction with a door stud, which enables mechanical anchoring in the door panel. For stainless steel doors, the mounting strip can be used in combination with a door hole strip to ensure secure fastening.

Functions and Equipment in Detail

The mounting strip provides a stable and uniform mounting surface suitable for mounting various electrical and mechanical components. The 25 mm grid hole pattern allows precise positioning of fastening elements, resulting in a clean and structured arrangement of components within the enclosure. The zinc coating protects the sheet steel from corrosion and ensures long service life, even in damp or aggressive environments. The delivery includes the fastening material required for mounting the strip to the door.

Technology Explained Simply

The hole pattern with a diameter of 4.5 mm on a 25 mm grid is standardized and allows the use of common fastening elements such as screws, cable ties, or mounting clips. The length of 700 mm provides sufficient space for multiple mounting points, enabling several components to be mounted in parallel or in series. The use of sheet steel as material ensures high mechanical strength, while the zinc coating provides an additional protective layer against environmental influences. Mounting is done via a door stud, which is inserted into the door to securely fix the strip.

Compatibility and Accessories

The mounting strip is specifically designed for enclosures of type AX with a door width of 760 mm. It is compatible with cable ties of length 150 mm, which can be used to secure cables or conduits to the strip. Use in combination with a door hole strip is required for stainless steel doors to ensure secure mounting. Installation guidelines are defined for enclosure types AX and AX stainless steel, with mounting carried out using a door stud.

Mounting and Installation

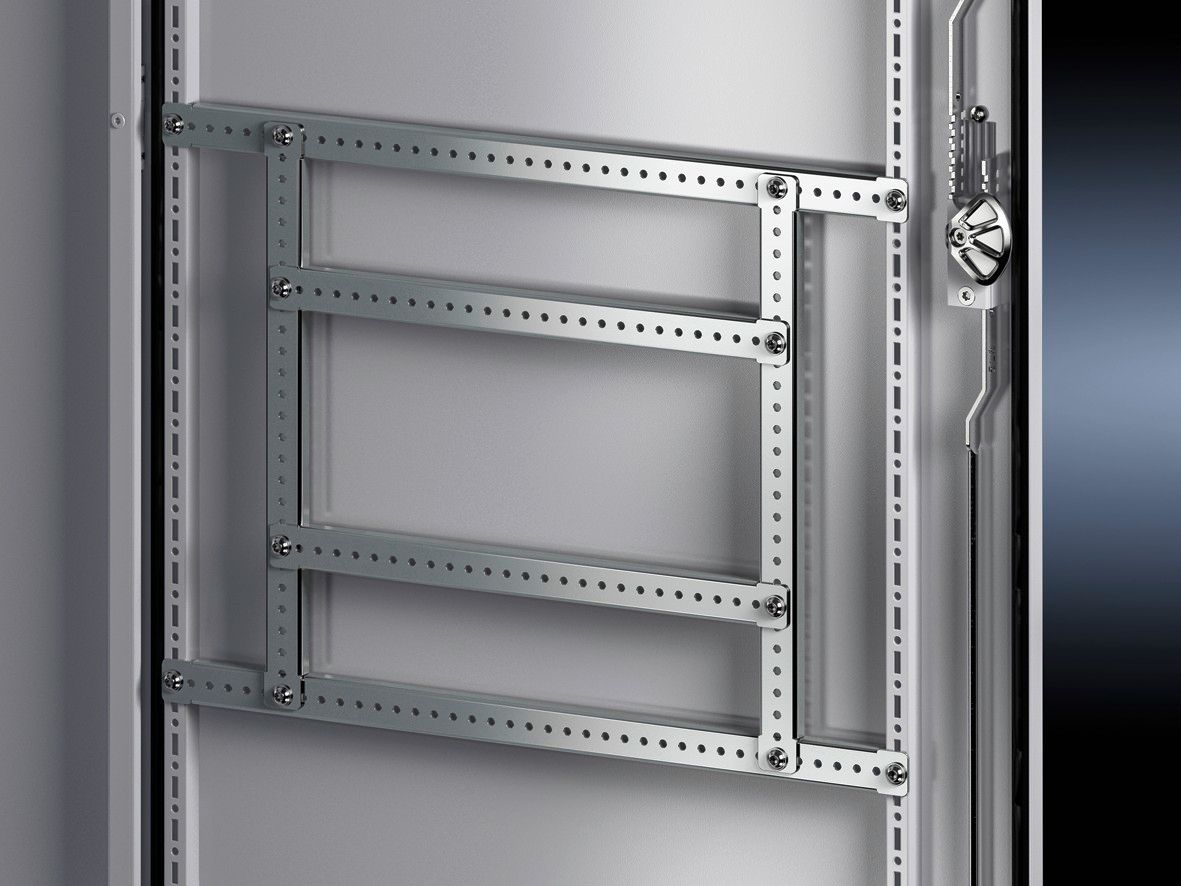

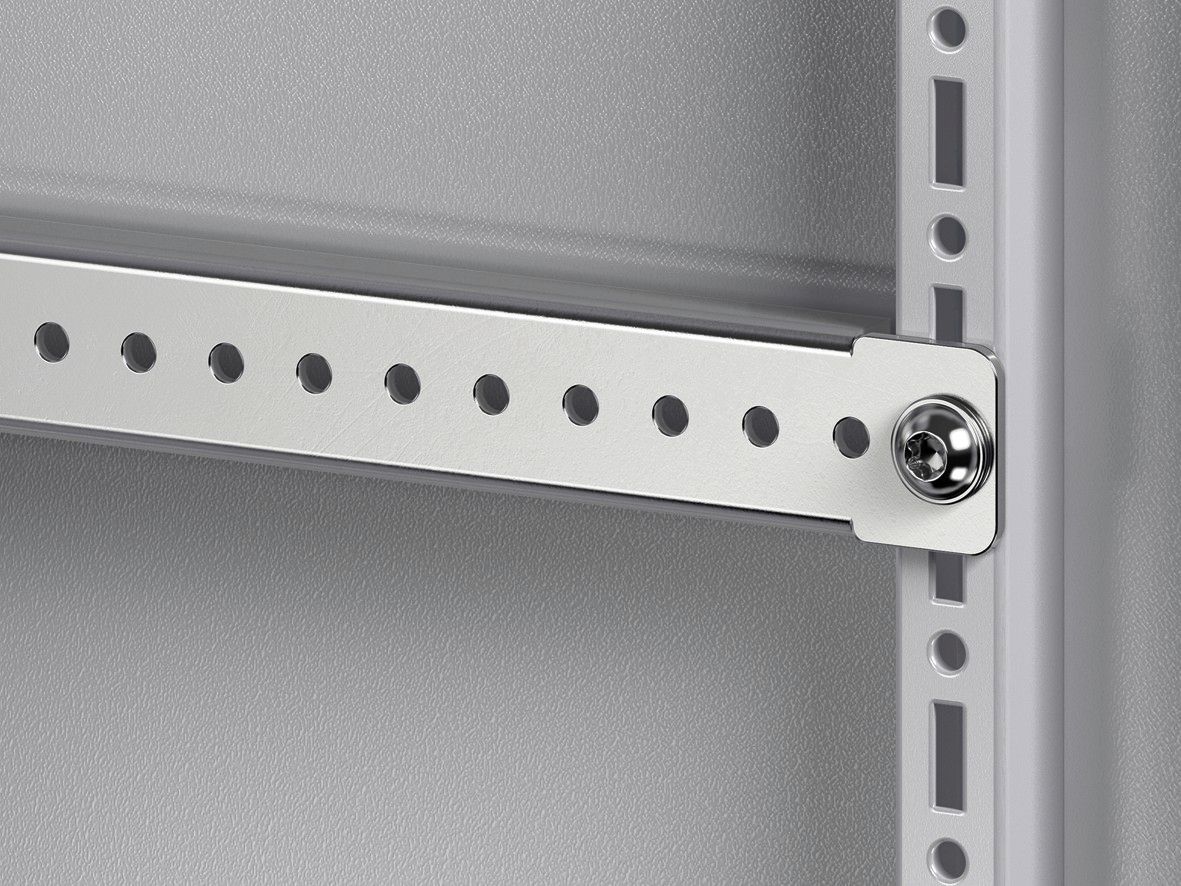

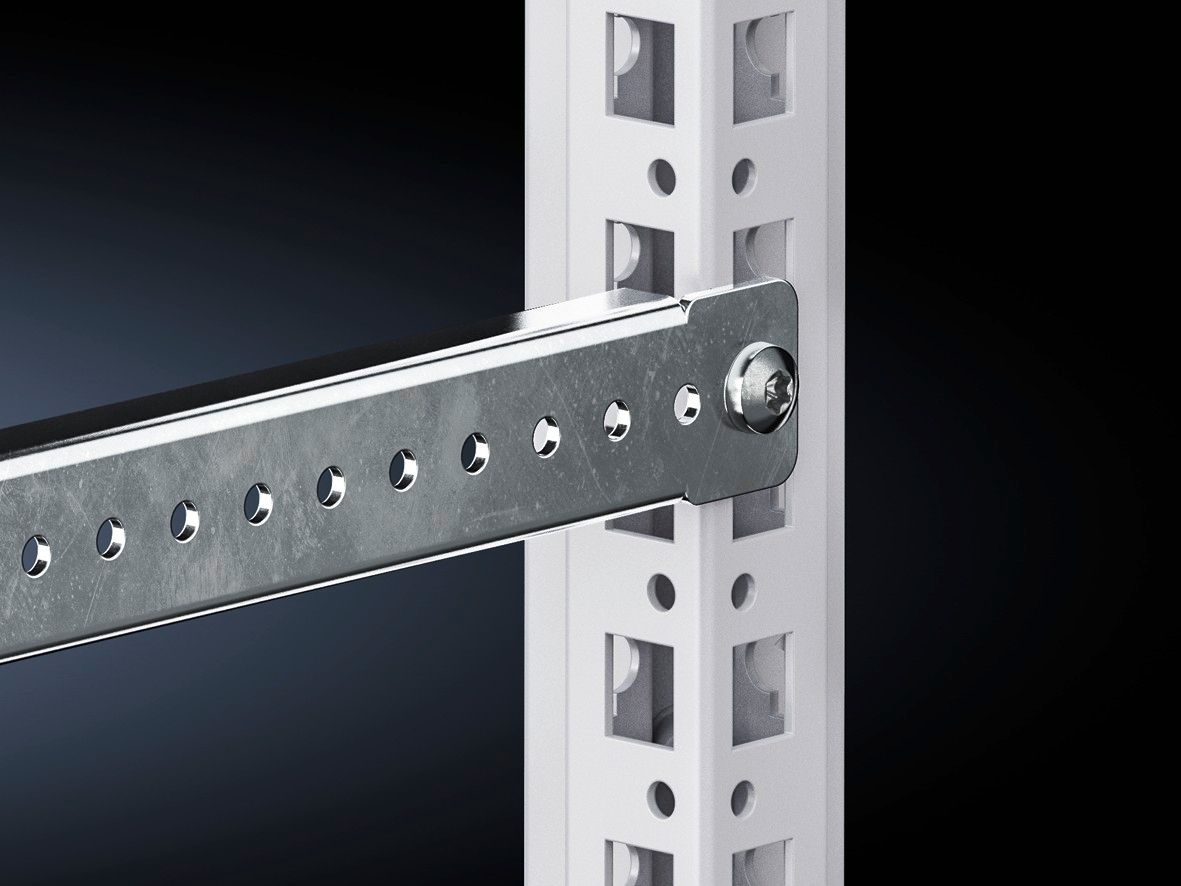

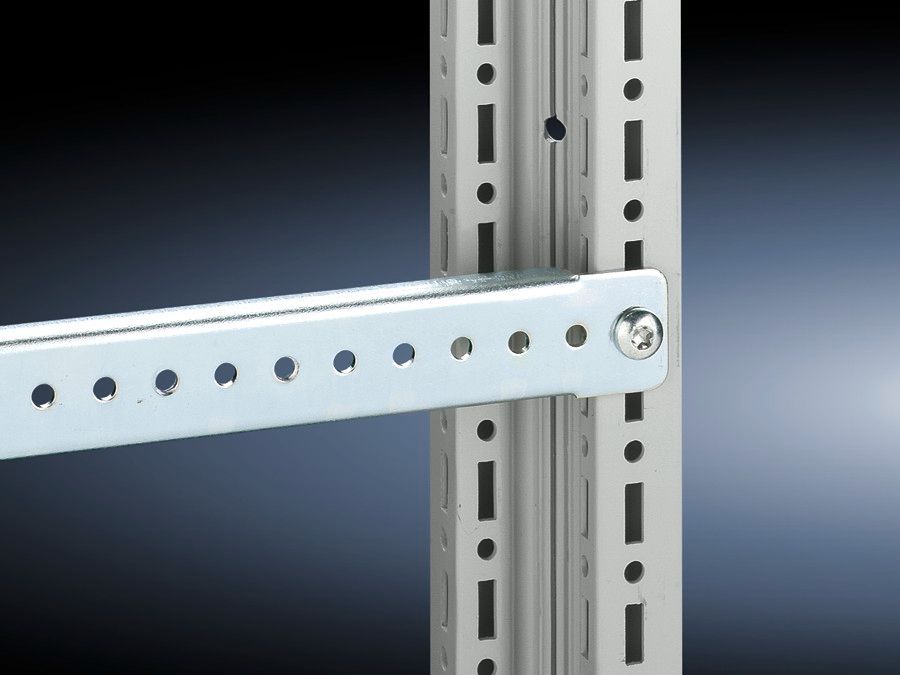

Installation of the mounting strip is performed by securing it to the enclosure door using a door stud, which is inserted into the door. The fastening material included in the delivery is used to securely attach the strip to the door. Positioning is carried out along the door width of 760 mm, with the 25 mm grid hole pattern enabling flexible placement of components. For stainless steel doors, an additional door hole strip is required to ensure secure mounting.

Operational Advantages

The mounting strip provides a reliable and flexible mounting surface, simplifying the installation of cable and switching equipment within the enclosure. The standardized hole pattern enables quick and precise fastening, reducing mounting time. The zinc coating ensures high corrosion resistance, extending the service life of the strip and minimizing maintenance. The inclusion of fastening material in the delivery reduces additional purchasing effort and accelerates mounting procedures.

General
Technical dataDrilling Ø 4.5 mm on 25 mm grid
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Length700 mm
Suitable for door width760 mm
Mounting options AXIn door width 760 mm, with pilot
Mounting options AX stainless steelIn door width 760 mm, with pre-drilled holes, in combination with the door hole strip
Suitable forHousing type: AX, width/depth: 760 mm
PCF/VE (Cradle-to-Gate)33.06 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 4599200, EAN: 4028177939028

Questions & answers

What is the delivery time of Rittal 4599200 TS mounting bracket for door width 760 mm?

The article Rittal 4599200 TS mounting bracket for door width 760 mm is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4599200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 4599200 TS mounting bracket for door width 760 mm always at the best possible price. We can give you a discount of 2% on Rittal 4599200 TS mounting bracket for door width 760 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
