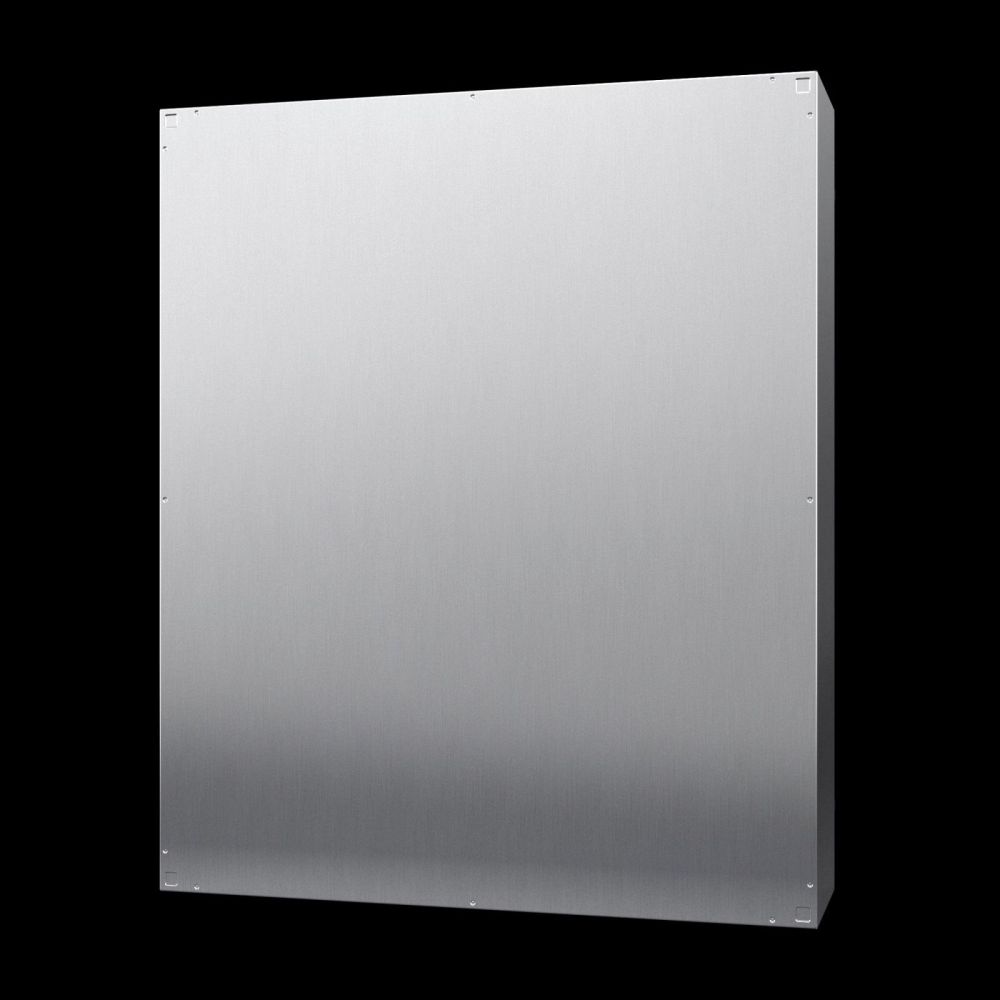

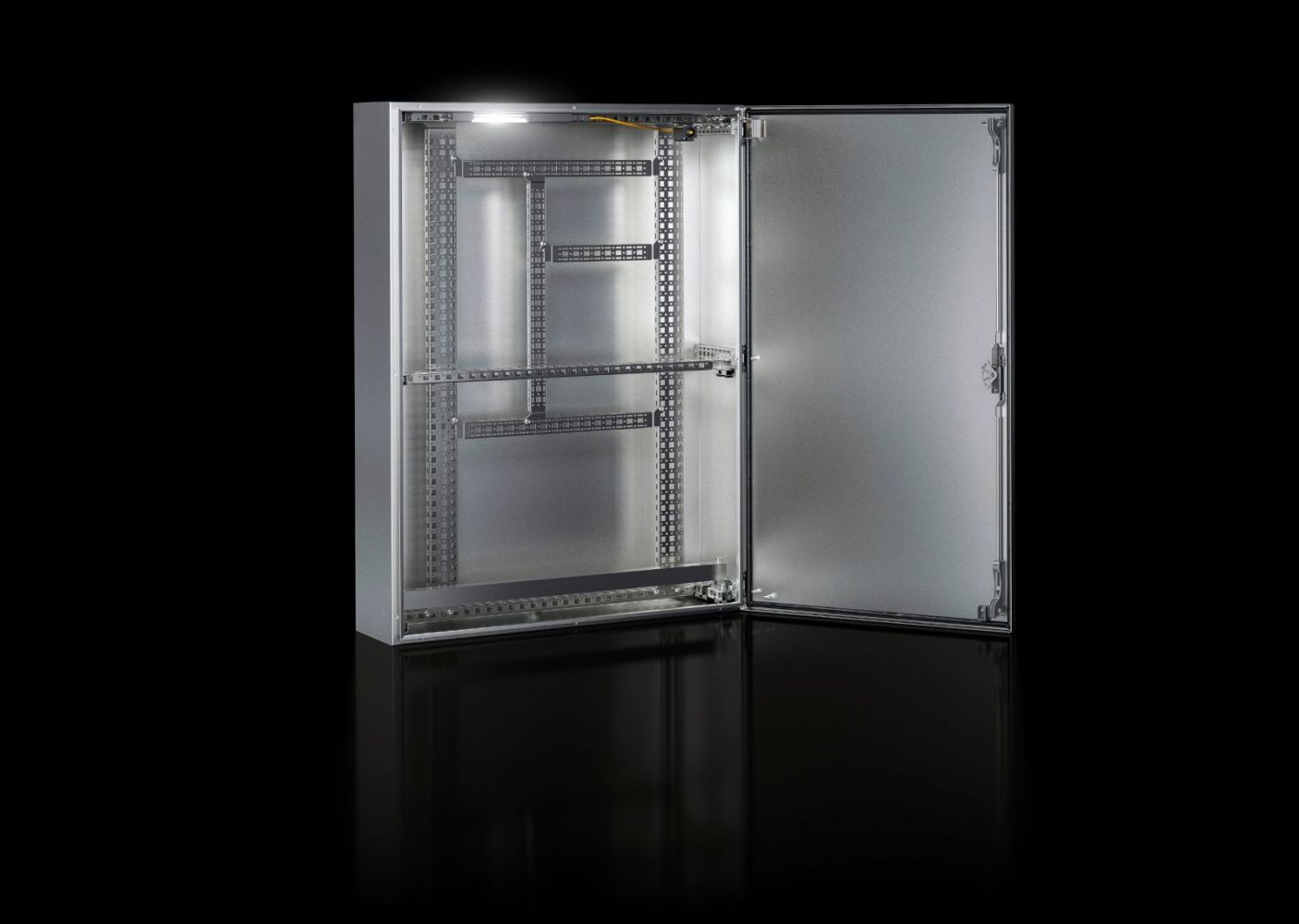

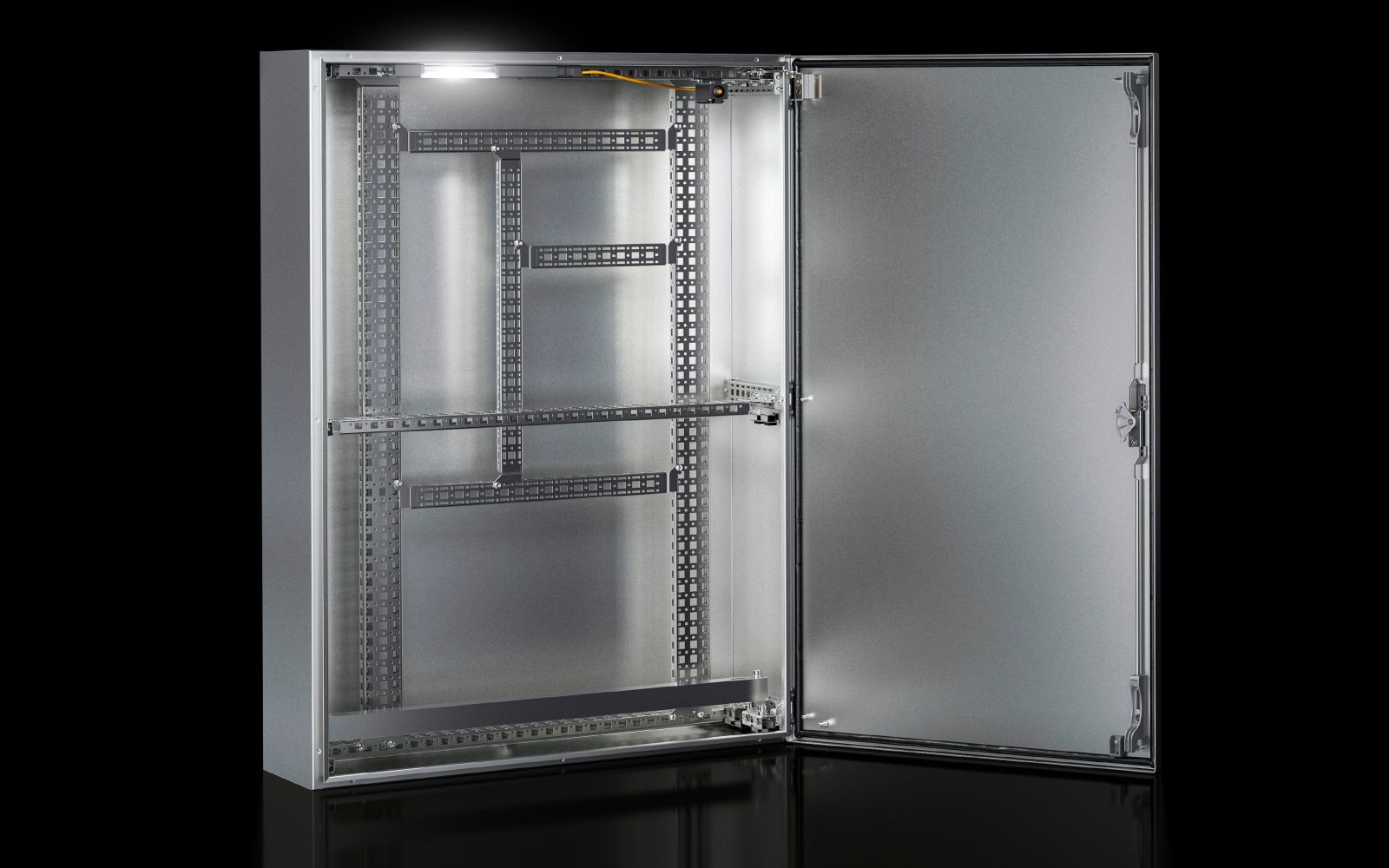

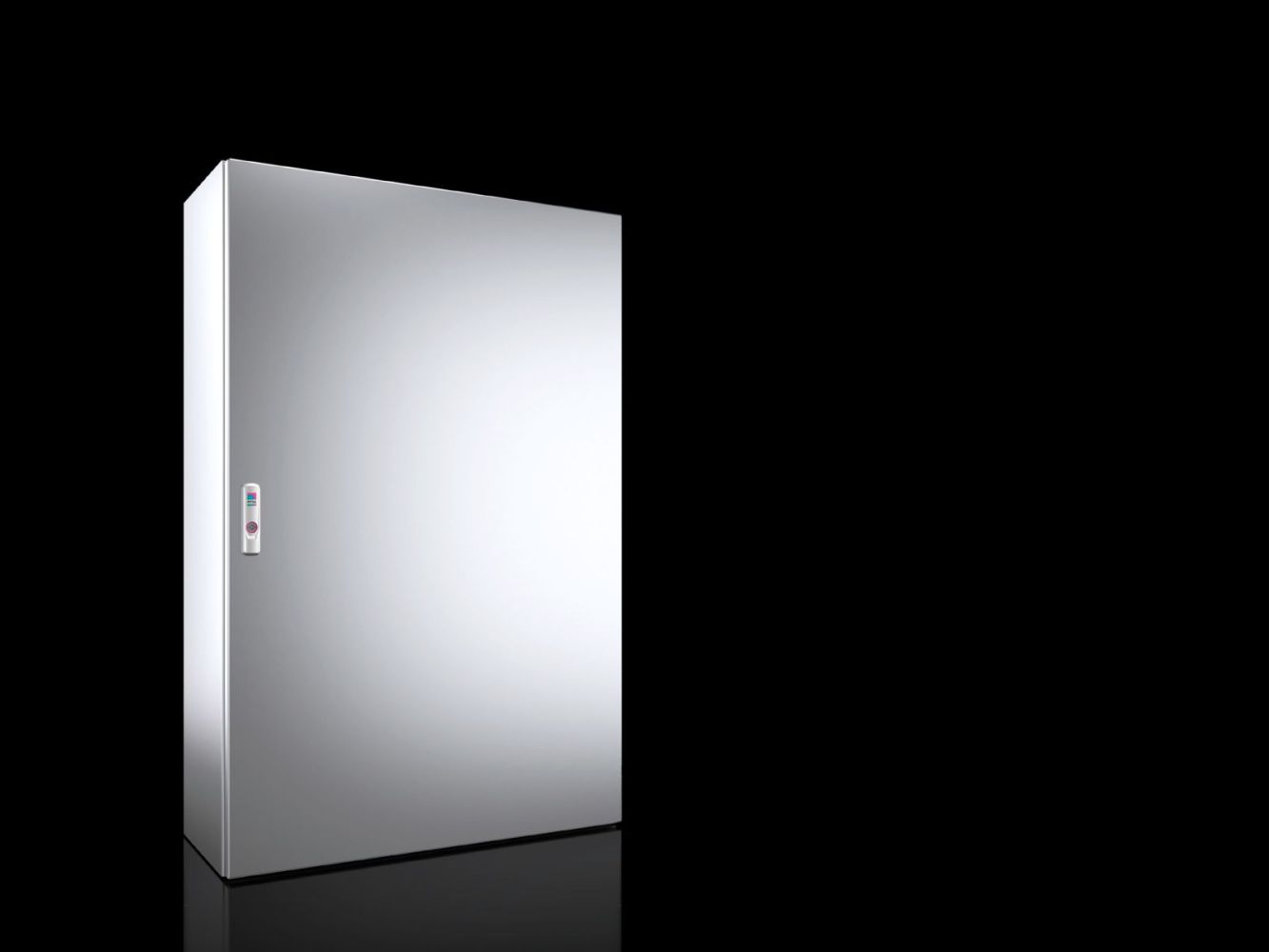

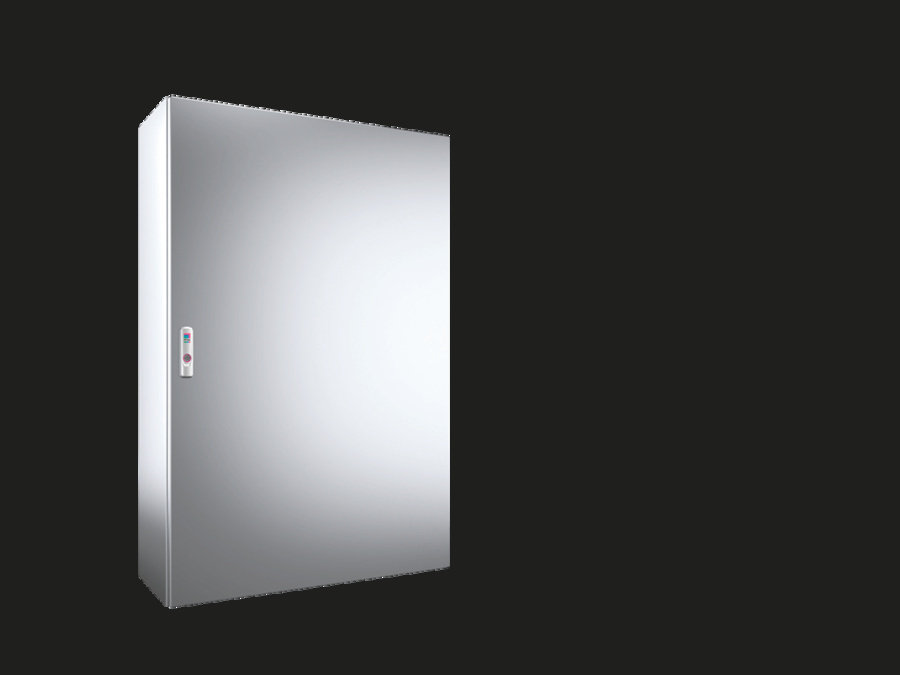

Rittal 1017000 Compact enclosure AX, 1-door, 800x1200x300 mm
|
872,85 EUR 883,78 EUR |
|
|
( 1.038,69 EUR incl. VAT ) ≈ £730.58 | ≈ $959.26 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980353 |
| Mfg Part No: | 1017000 |
| UPC/EAN: | 4028177815032 |
| Weight: | 61 kg |
| Type: | AX 1017000 |
Product information for Rittal 1017000:
Applications
The enclosure is designed for use in environments where protection against dust, water, and mechanical impacts is required. The protection class IP 66 according to EN 60 529 ensures high protection against dust and splashing water, even under strong jets. The protection class NEMA 4X and Type 4X according to UL 50E makes it suitable for outdoor use as well as in damp or corrosive environments. The IK10 rating provides high protection against mechanical impacts, such as shock or impact.
Functions and Equipment in Detail

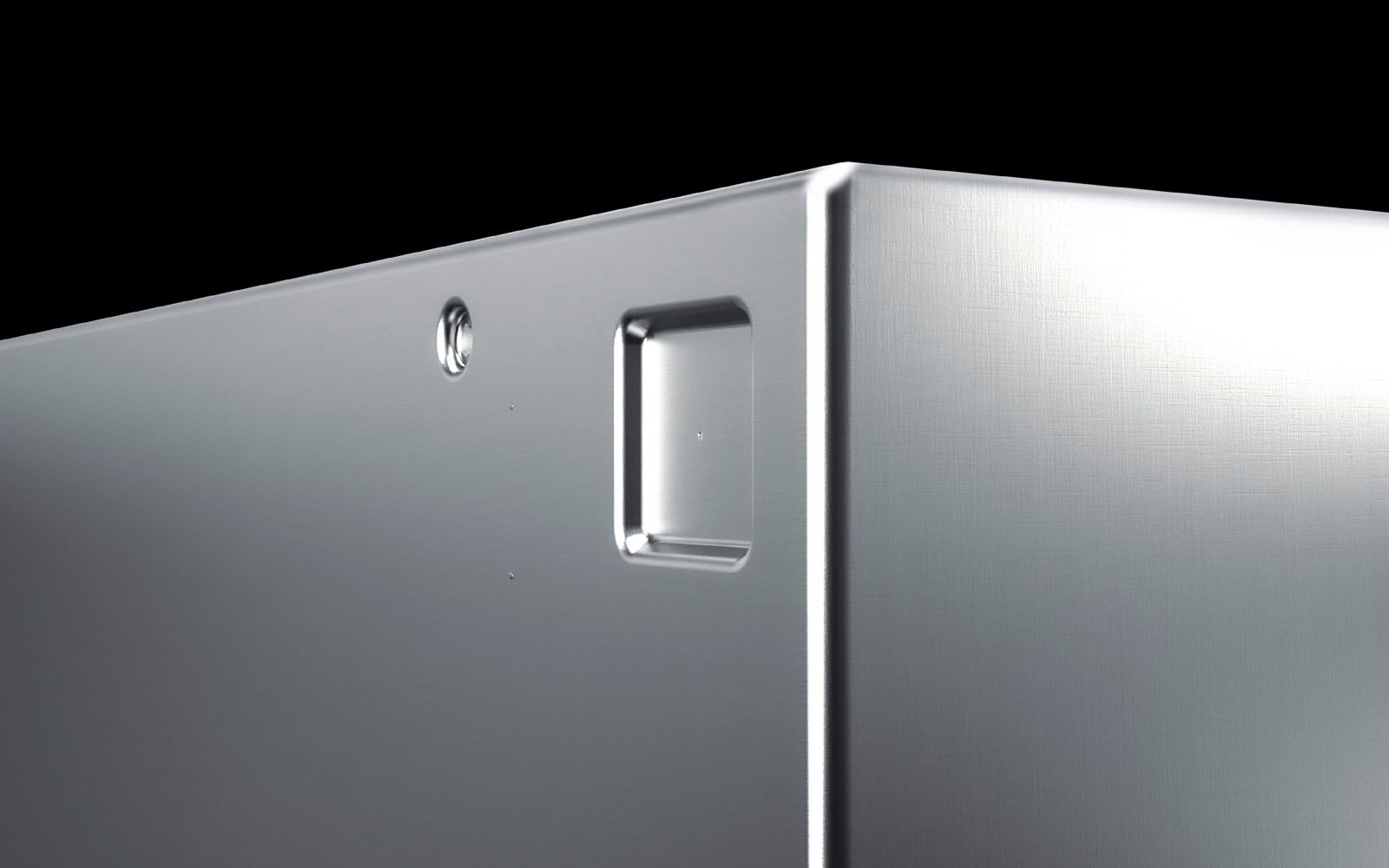

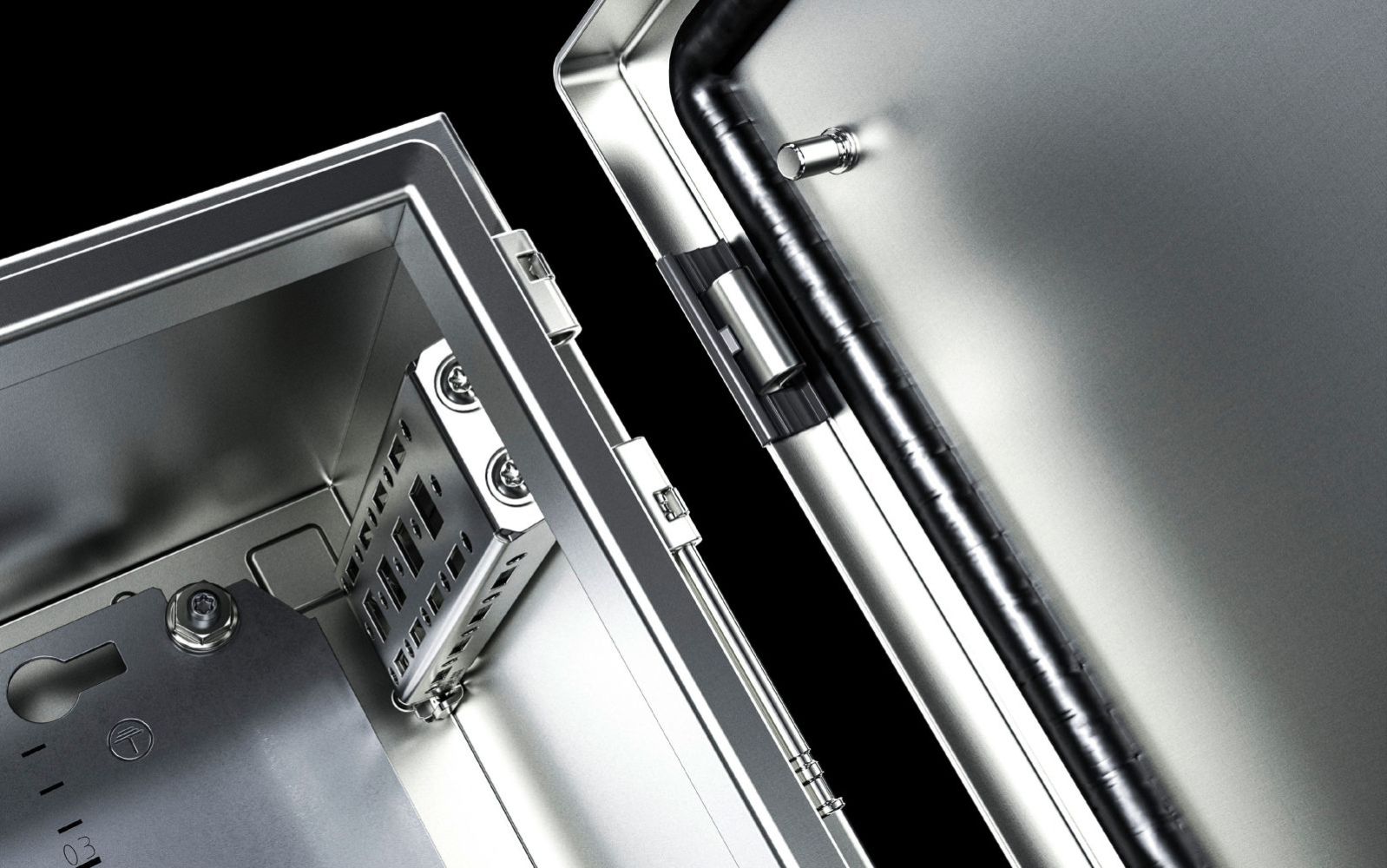

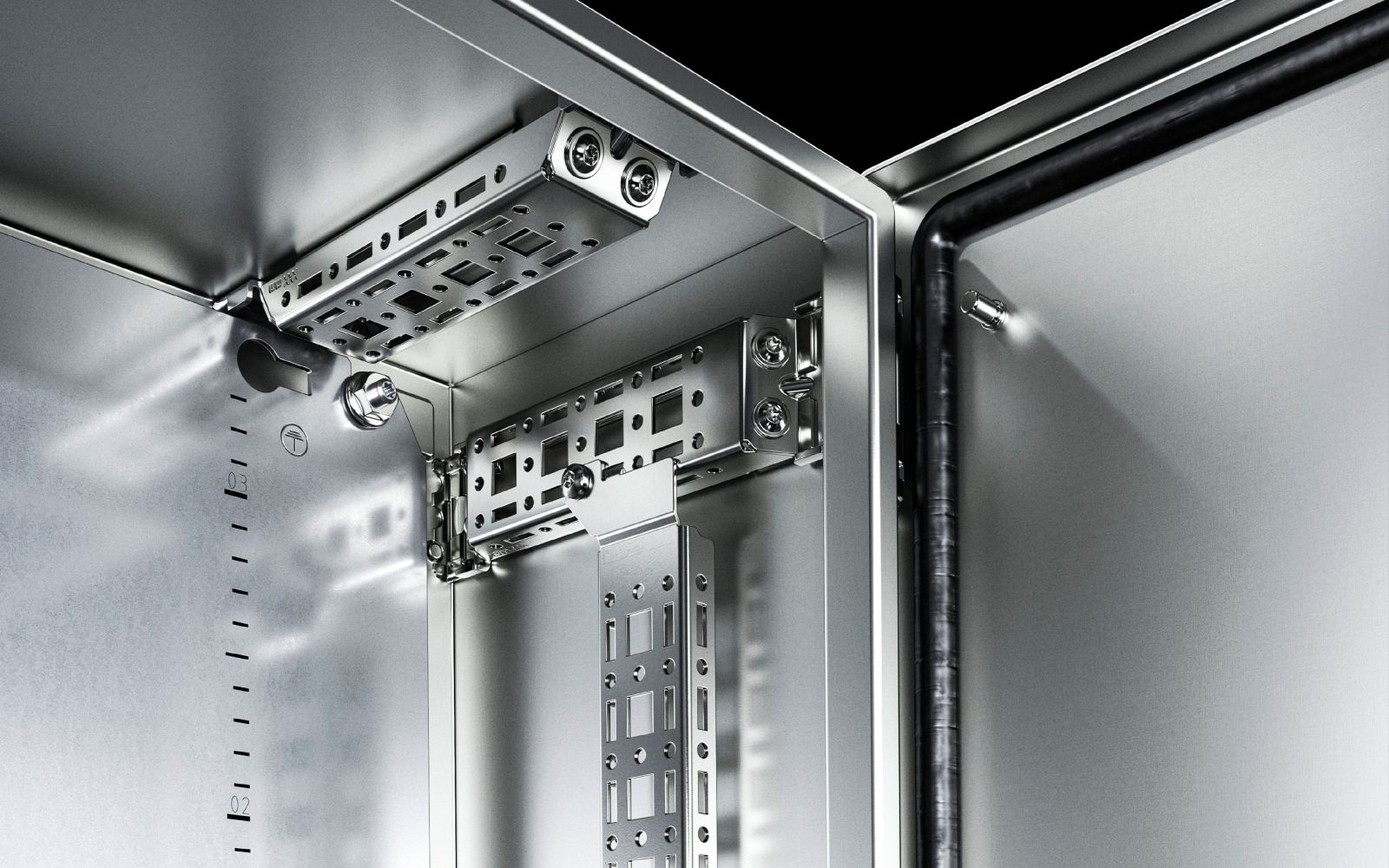

The enclosure features an integrated cam system, enabling simple and quick internal installation without drilling. The door opens at an angle of 130°, providing good access to the interior. The locking system is a 3-point locking system with a 3 mm double-barrel lock insert made of stainless steel 1.4404 (AISI 316L), ensuring high corrosion resistance and durability. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with Limbach nuts.
Technology Explained Simply
The door thickness is 2 mm, the enclosure thickness is 1.5 mm, and the mounting plate thickness is 2.5 mm, ensuring high stability and resistance to deformation. The dimensions of the enclosure are 800 mm width, 1,200 mm height, and 300 mm depth. The mounting plate has dimensions of 745 mm width and 1,175 mm height. The use of stainless steel 1.4301 for the enclosure and door, as well as stainless steel 1.4404 for the lock insert, ensures high corrosion resistance, especially in damp or aggressive environments. The PU seal ensures a tight closure, preventing the ingress of dust and water.
Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include cable glands made of brass and polyamide in various sizes (e.g. M12x1.5, M20x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, floor mounting rail for AX, as well as VX system chassis in various versions. These components allow for flexible and application-specific adaptation of the enclosure.
Mounting and Installation

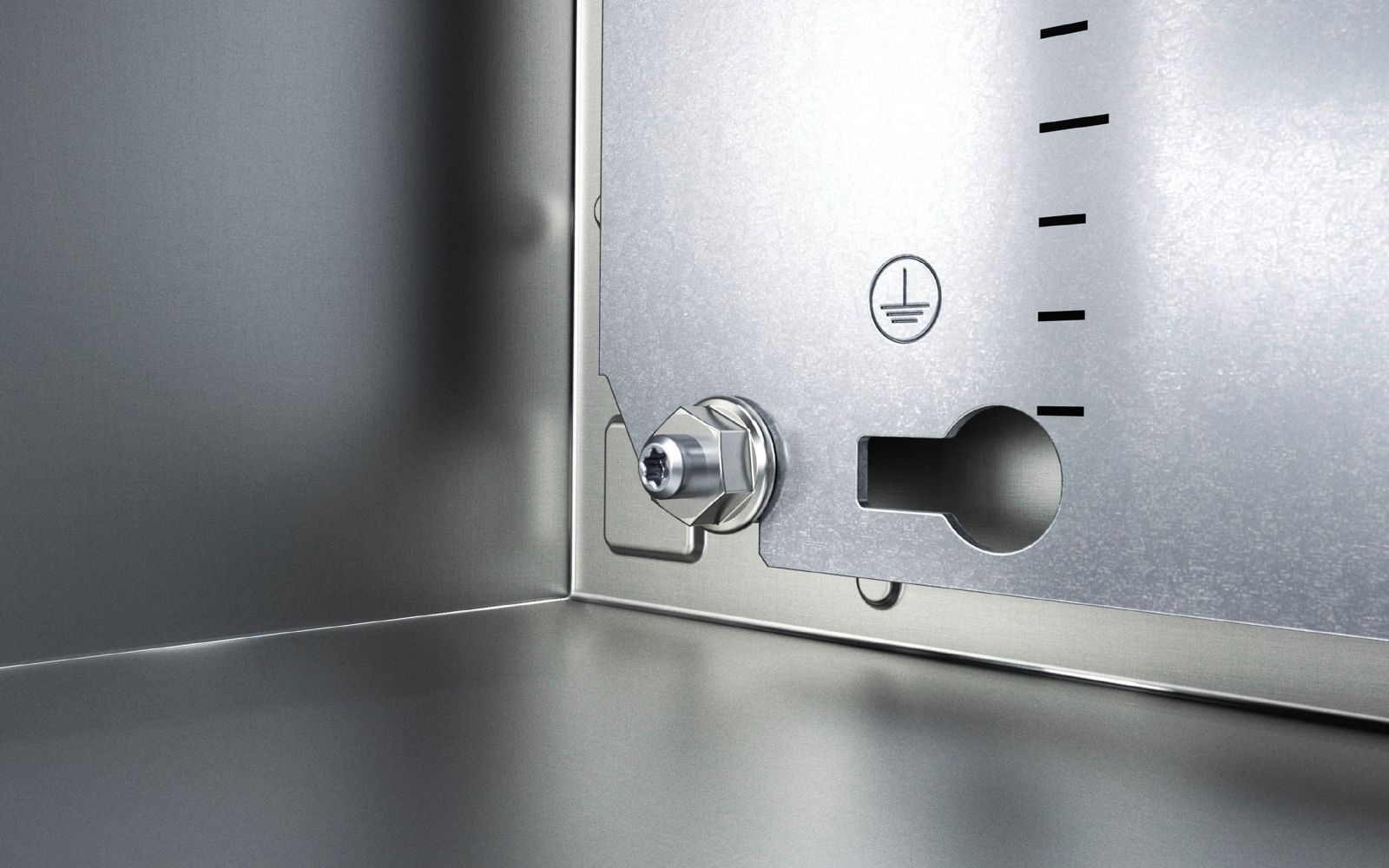

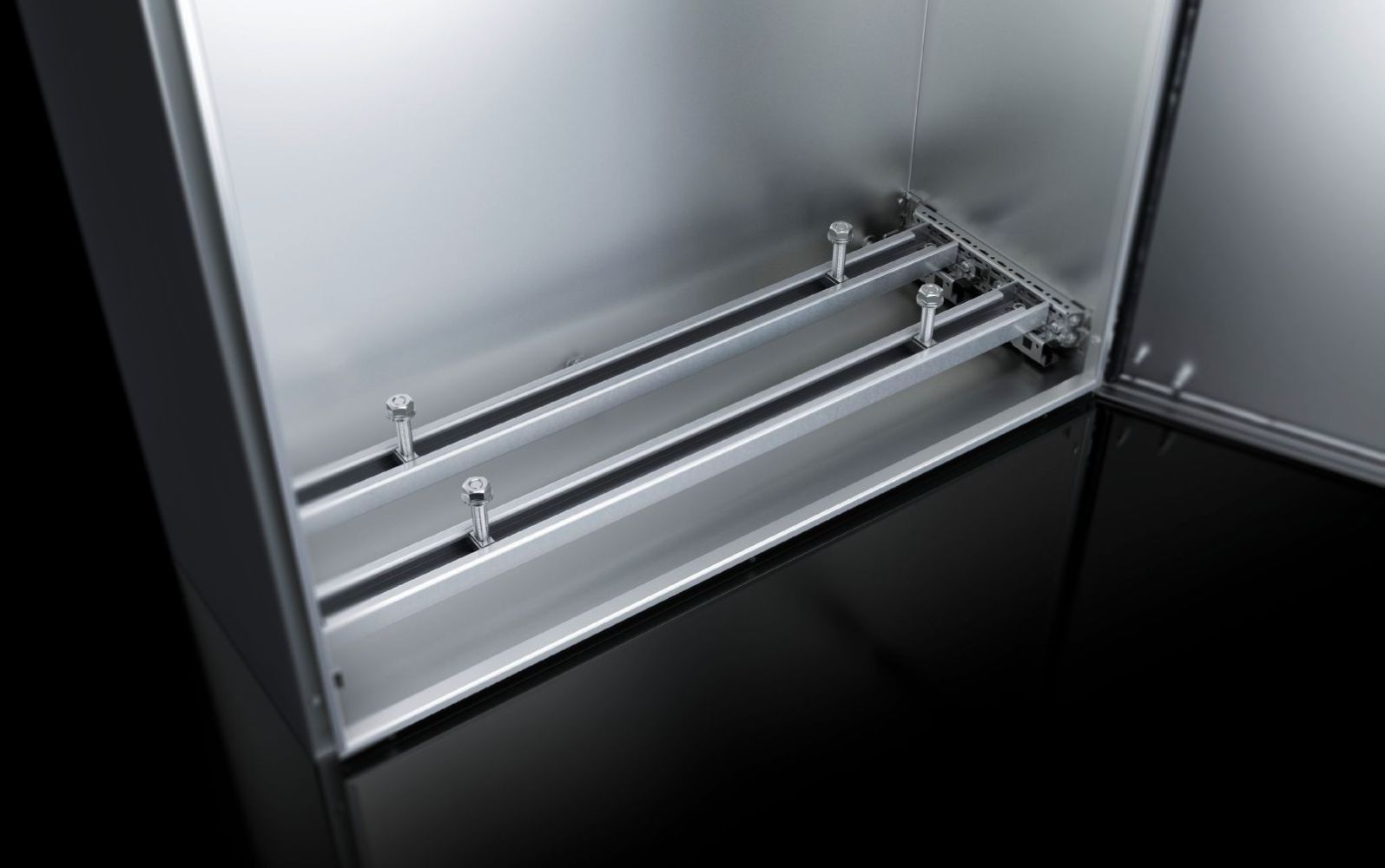

Mounting is done via the integrated cams and pre-drilled mounting points. The mounting plate is included in the delivery scope and is fastened with Limbach nuts. The door can be opened at an angle of 130°, providing good access to the interior. Earthing is done via the keyhole slots on the mounting plate.
Advantages in Operation
The enclosure offers high mechanical stability and corrosion resistance, making it suitable for use in demanding environments. The integrated cams allow for quick and easy internal installation without drilling. The protection class IP 66 and NEMA 4X ensure high protection against environmental influences. The use of stainless steel and high-quality locking components ensures long service life and low maintenance requirements. The mounting plate with dimension markings facilitates the positioning of components.
| General | |
| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 745 mm x 1.175 mm |
| Number of doors | 1 |
| Lock | Closure type: 3-point locking system, Number of locks: 1, Lock insert: 3 mm double barb, Lock material: Stainless steel 1.4404 (AISI 316L) |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 200,03 |
