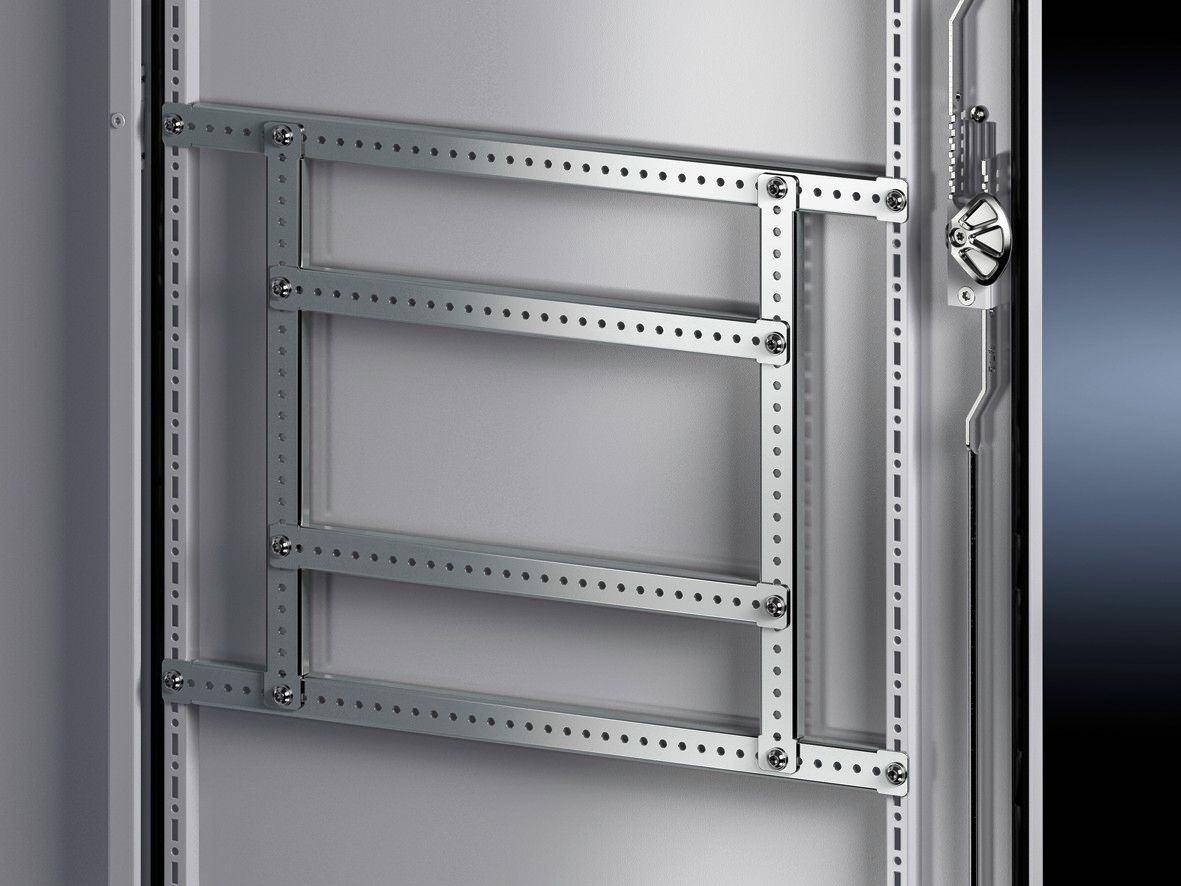

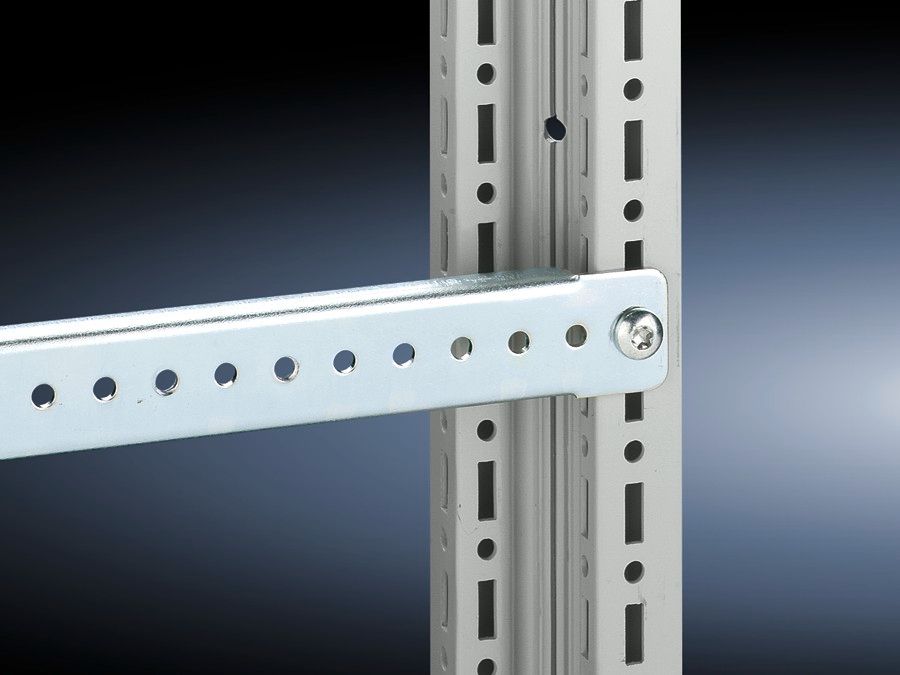

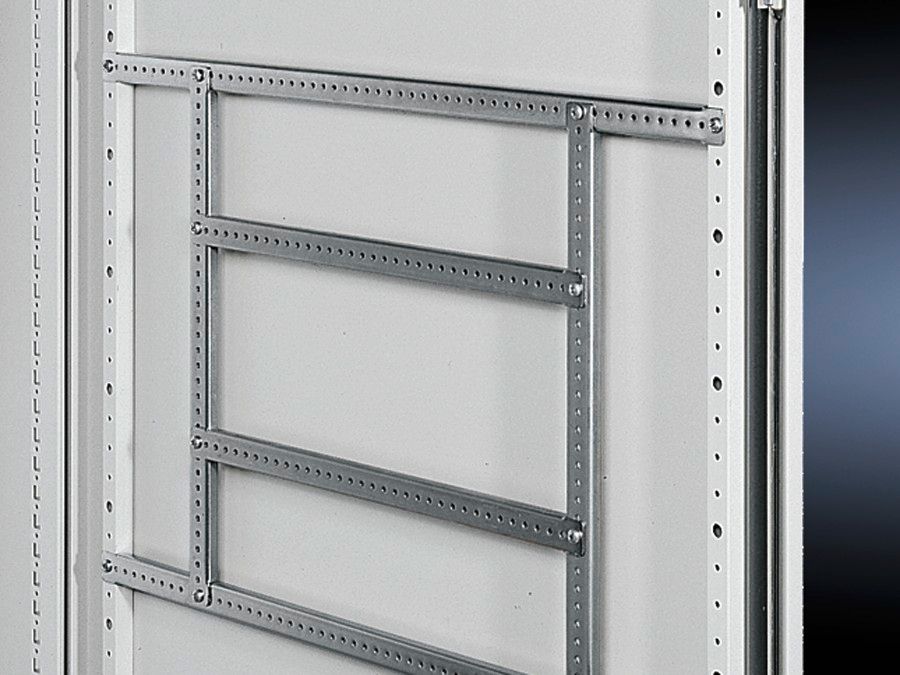

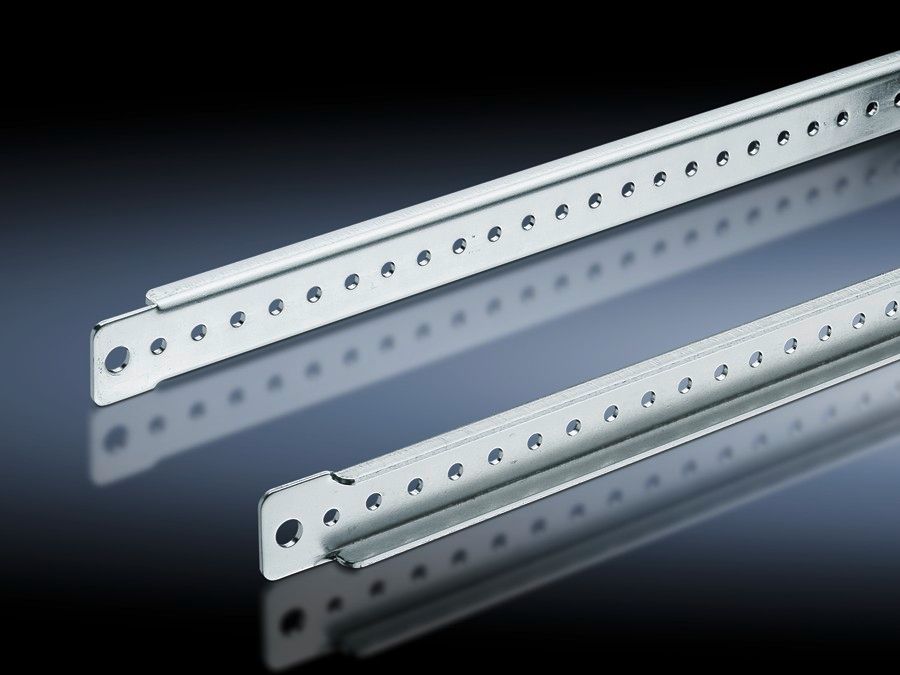

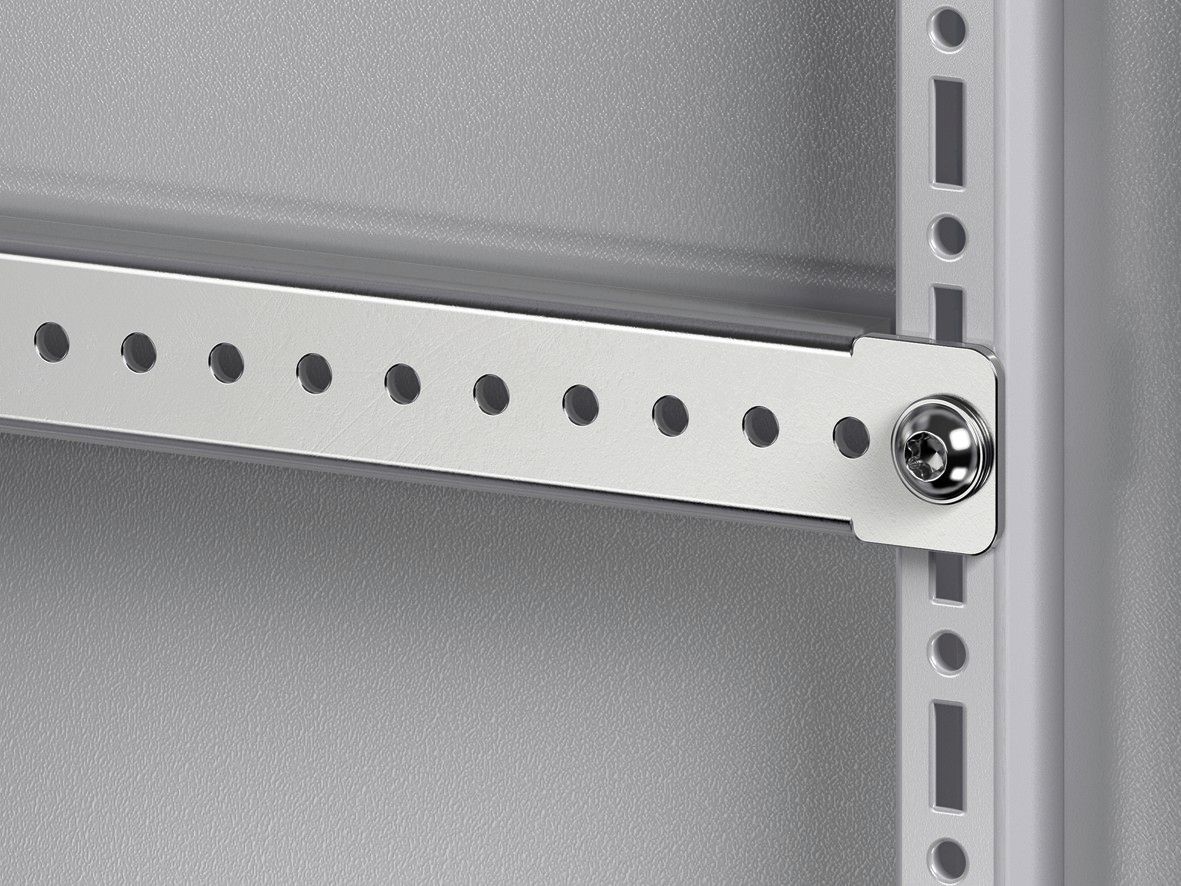

Rittal 4579000 TS mounting shelves for internal mounting level W x D: 800 mm
|
-10% 91,20 EUR 101,73 EUR |
|
|
( 108,53 EUR incl. VAT ) ≈ £76.33 | ≈ $100.23 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 759747 |
| Mfg Part No: | 4579000 |
| UPC/EAN: | 4028177103351 |
| Weight: | 8.1 kg |
| Type: | TS 4579000 |
Product information for Rittal 4579000:
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 20 pc(s).
EAN: 4028177103351
Customs tariff number: 73269098
eCl@ss 5.1: 27189233
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
Design: For the inner mounting level and for mounting on doors
To fit: Width/depth: 800 mm
Dimensions: Length: 790 mm
Installation options: On the vertical and horizontal TS enclosure section on the inner mounting level, height-offset all-round
On the tubular door frame TS, SE, depending on the door width
On the perforated door strip CM, TP, depending on the enclosure width
To fit door width: 900 mm
Weight/pack: 8.22 kg
| General | |
| Technical data | Drilling Ø 4.5 mm on 25 mm grid |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Length | 790 mm |
| Suitable for door width | 900 mm |
| Mounting options VX SE | In door width 900 mm, In cabinet width 800 mm, on the inner mounting plane |
| Mounting options AX | In housing width 800 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| Mounting options AX stainless steel | In cabinet width 800 mm, in door width 800 mm, in combination with the door frame strip |
| Mounting options TS | In cabinet width/depth 800 mm, on the inner mounting plane |
| Mounting options TP | In TP console base and floor-standing console base, in housing width 800 mm, in combination with rail for internal installation for TP, compact control cabinet HD |
| Suitable for | Cabinet type: TS, VX SE, TP, AX, Width/Depth: 800 mm |
| PCF/VE (Cradle-to-Gate) | 37.23 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 4579000 TS mounting shelves for internal mounting level W x D: 800 mm?
The article Rittal 4579000 TS mounting shelves for internal mounting level W x D: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4579000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 4579000 TS mounting shelves for internal mounting level W x D: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 4579000 TS mounting shelves for internal mounting level W x D: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
