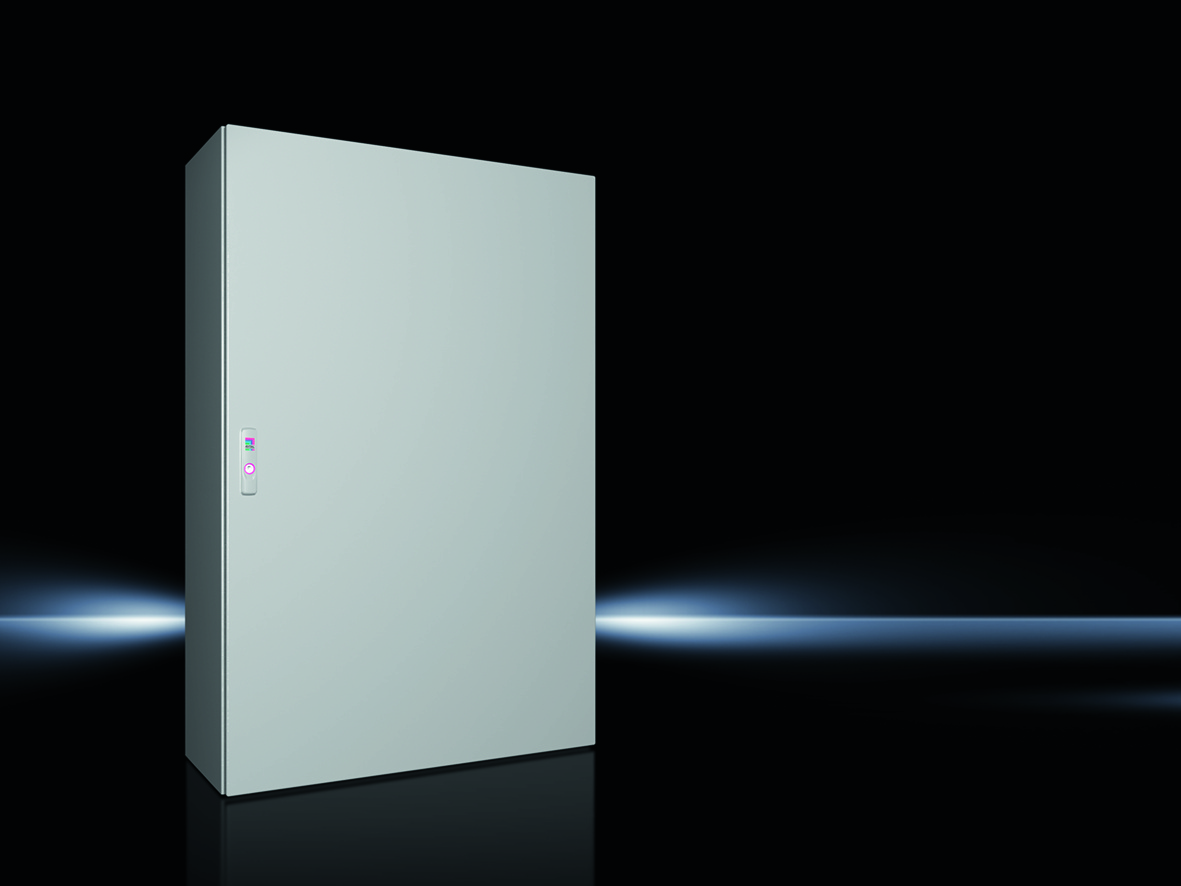

Rittal 1280000 Compact enclosure AX 800x1200x300 mm
|
289,75 EUR |
|
|
( 344,80 EUR incl. VAT ) ≈ £242.52 | ≈ $318.44 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598136 |
| Mfg Part No: | 1280000 |
| UPC/EAN: | 4028177813236 |
| Weight: | 63.5 kg |
| Type: | AX 1280000 |
Product information for Rittal 1280000:
Applications
The enclosure is designed for use in industrial environments where high mechanical and climatic resistance is required. It is suitable for use in production plants, automation systems, power supply installations, and other technical installations where protection against dust, water, and mechanical impacts is necessary. The IP 66 protection rating also makes it suitable for outdoor use, for example in agriculture, environmental protection, or process industry.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm; the door has a thickness of 2 mm. The surface is dip-primed and externally powder-coated with a textured lacquer, ensuring high corrosion resistance and durability. The mounting plate is galvanized and has dimensions of 745 mm x 1,175 mm. It is equipped with grounding keyhole slots and dimension markings and is fastened with ring weld nuts. The door is fitted with a door hole strip and can be mounted on either side (right or left). The locking mechanism uses a 3-point locking system with a 3 mm double-barrel lock insert, ensuring secure and stable latching. The enclosure base includes two gland plates of size 5, which can be used for mounting cable entry plates or other components.
Technology Explained Simply
A central feature of the AX enclosure is the integrated 25 mm system grid, realized through embossed mounting lugs in the roof, base, and sides. This system allows for easy and secure mounting of internal components such as rails, mounting plates, or accessories without drilling. Mounting is done by simply hanging components into the lugs, preserving the protection rating (e.g., IP 66). This patented system is derived from the VX25 large enclosure system and enables flexible and modular equipment of the enclosure. The base mounting rail provides an additional mounting level and increases load capacity inside the enclosure.
Compatibility and Accessories
The enclosure is compatible with a comprehensive range of system accessories, enabling individual adaptation to specific requirements. Compatible accessories include lock inserts made of zinc die-cast, wall mounting brackets made of sheet steel, dust protection strips made of UV-resistant plastic, baying sets for AX, KX, AE, and KL, VX system chassis, plinth corner pieces with plinth trim panels, plinth trim panels and elements, TS mounting rails for internal mounting levels and door widths, and the AS Multitool AX/VX. These components can be mounted without drilling into the 25 mm system grid, enabling flexible and secure installation of devices and assemblies inside the enclosure.
Mounting and Installation
Mounting is done via the integrated gland plates in the enclosure base, suitable for attachment to a wall or substructure. The door can be mounted on either side, allowing flexible installation. The internal mounting plate is pre-installed and provides a stable mounting surface for electrical components. The door can be opened up to 130°, with an option for retrofitting to 180°. Mounting of internal components is done via the 25 mm system grid without drilling, which speeds up installation and maintains the protection rating.
Advantages in Operation
The enclosure offers high mechanical and climatic resistance, making it suitable for demanding operating conditions. The modular equipment option via the 25 mm system grid allows flexible adaptation to different requirements. Maintaining the protection rating during mounting of internal components without drilling reduces installation time and increases safety. The integrated mounting plate and gland plates in the base simplify installation and fastening. The surface coating ensures high corrosion resistance and durability. QR codes on the enclosure body, door, and nameplate enable unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 745 mm x 1.175 mm |
| Number of doors | 1 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 201.46 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
