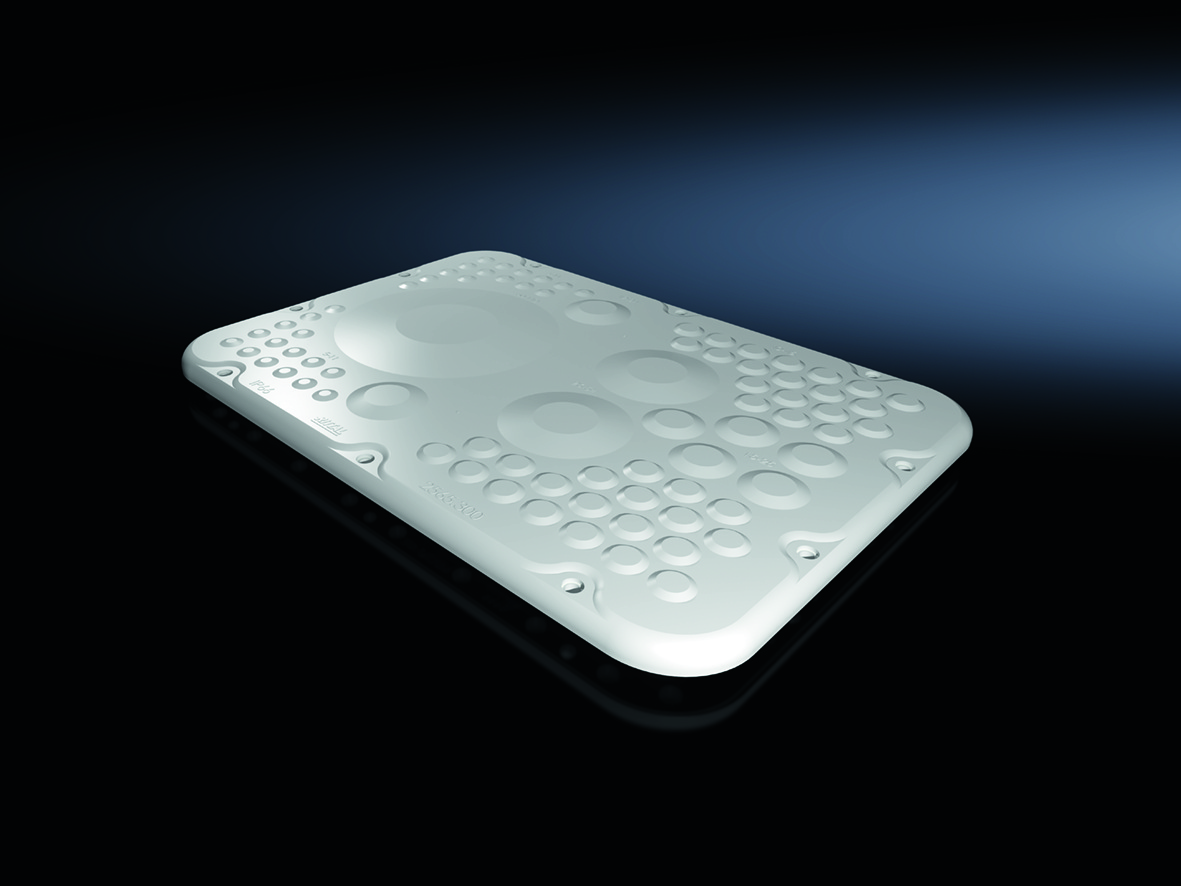

Rittal 2565300 SZ plastic gland plates, for AX, with membranes,

Your rating:
Average rating
product review for Rittal 2565300 SZ plastic gland plates, for AX, with membranes,
( 5 / 5 ) 5 ratings
Rittal 2565300
This image may differ from the desired article.
Rittal 2565300Rittal 2565300Rittal 2565300
29,85 EUR
( 35,52 EUR incl. VAT )
≈ £24.98  |  ≈ $32.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2565300 SZ plastic gland plates, for AX, with membranes,
Datasheet:file_download Download
Lieske Part No.:1598240
Mfg Part No: 2565300
UPC/EAN: 4028177935730
Weight:0.59 kg
Type:AX 2565300

Product information for Rittal 2565300:

The Rittal AX 2565300 is a plastic gland plate for enclosures of type AX, specifically designed for use in industrial environments. It serves as a cable entry element on the front side of enclosures and enables secure and structured cable routing. The gland plate is equipped with membranes that, when installed correctly, provide a protection rating IP 66, ensuring dust-tight and water-tight conditions even in outdoor applications. The dimensions are 301 mm width and 221 mm depth, corresponding to size 5. The material is a plastic according to UL 94-V0, meeting high flame protection requirements and thus suitable for use in safety-critical installations. The color corresponds approximately to RAL 7035, a gray-beige tone that integrates well visually into industrial environments.

Applications

The gland plate is intended for enclosures of the AX system, particularly for housings requiring a gland plate of size 5. It is used where a large number of cables need to be introduced into a compact area, for example in automation systems, machine controls, or distribution boxes. The IP 66 protection rating also makes it suitable for outdoor installations or humid environments, such as those found in the food industry, agriculture, or environmental technology. The UL approval according to Type 1 and Type 12 ensures suitability for environments with limited dust and splashing water exposure.

Functions and Equipment in Detail

The gland plate features a variety of pre-fabricated cable entries, dimensioned according to different diameters. There are 30 entries for cables with a diameter of 5 to 11 mm, 40 entries for 10 to 15 mm, 5 entries for 15 to 25 mm, 2 entries for 19 to 34 mm, 2 entries for 26 to 54 mm, and 1 entry for 50 to 110 mm. The membranes are designed to be pierced with a sharp point during installation, allowing the cable to be easily pulled through. This process ensures a tight seal and prevents dust or moisture from entering. The combination of pre-fabricated openings and flexible membrane installation enables quick and precise installation.

Technology Explained Simply

The protection rating IP 66 means that the gland plate is completely dust-tight and protected against water jets from any direction, as long as it is correctly installed. This is particularly important in environments where devices are exposed to direct weather conditions or splashing water from production processes. The UL approval Type 1 and Type 12 refers to protection categories according to UL 50E, where Type 1 is suitable for indoor use without special environmental conditions and Type 12 is suitable for indoor use with splashing water and dust. The material UL 94-V0 is a flame-retardant plastic that self-extinguishes within 30 seconds when exposed to flame, reducing fire load in electrical installations.

Compatibility and Accessories

The gland plate is specifically developed for enclosures of the AX system by Rittal. The assignment of gland plate size is based on the respective housing description, with size 5 designated for specific AX housings. The gland plate is mounted directly on the front side of the enclosure and is not connected to additional components such as cable glands, connectors, or tools. Installation is carried out using the pre-defined holes and mounting elements of the housing.

Installation and Mounting

Installation is performed by inserting the gland plate into the designated cutouts on the housing and securing it with the existing mounting elements. Cables are pushed through the membranes, which elastically adapt to the cable diameter and ensure a tight seal. The installation requires no additional tools, except a sharp tool to pierce the membranes. The gland plate is designed to function without additional seals or connectors.

Operational Advantages

The gland plate offers high flexibility in cable routing, as it supports a wide range of different cable diameters. The integrated membranes ensure long-term sealing, increasing the lifespan of the installation and reducing maintenance work. The choice of UL 94-V0 plastic enhances safety in fire hazards. The IP 66 protection rating allows use in demanding environments without requiring additional protective measures. The clear structure of the cable entries simplifies planning and installation of cable trees in complex systems.

General
MaterialPlastic according to UL 94-V0
ColourSimilar to RAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Width301 mm
Depth221 mm
Suitable forHousing type: AX
Flange plateSize: 5
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12
Number of cable entries and Ø (mm) min.-max.30 x 5-11, 40 x 10-15, 5 x 15-25, 2 x 19-34, 2 x 26-54, 1 x 50-110


Product data sheet
Datasheet for Rittal 2565300, EAN: 4028177935730
