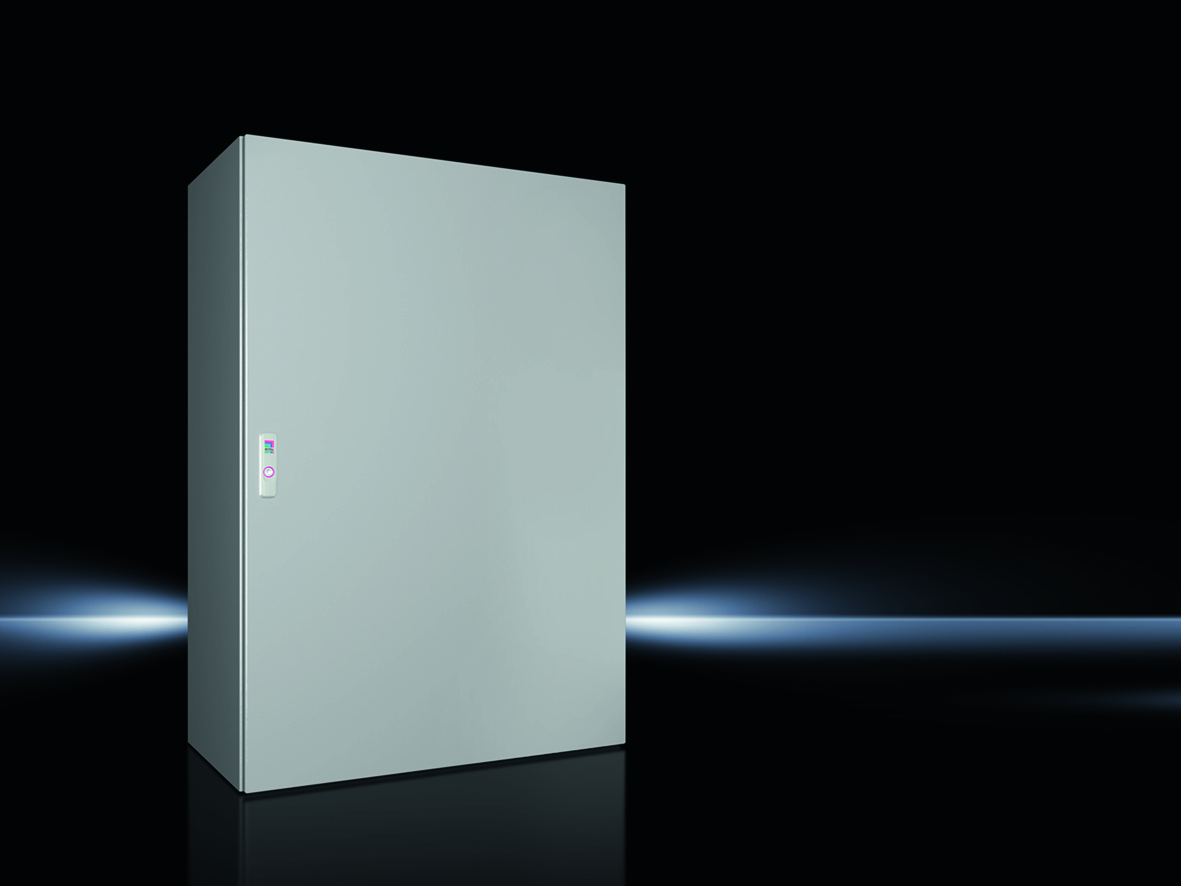

Rittal 1281000 Compact enclosure AX, 1-door, 800x1200x400 mm,
|
-6% 376,05 EUR 398,61 EUR |
|
|
( 447,50 EUR incl. VAT ) ≈ £314.75 | ≈ $413.28 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598135 |
| Mfg Part No: | 1281000 |
| UPC/EAN: | 4028177813106 |
| Weight: | 66.75 kg |
| Type: | AX 1281000 |
Product information for Rittal 1281000:
Applications
This enclosure is suitable for use in indoor and outdoor environments, particularly in areas requiring high protection against dust, water, and mechanical impacts. It complies with protection class IP 66 according to EN 60 529, enabling dust-tight and watertight conditions even under heavy splashing water and short-term submersion. Protection classes NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), make it suitable for various industrial applications, including manufacturing, power supply, and automation technology. The IK code IK10 ensures high protection against mechanical impacts, such as shock or impact.
Functions and Equipment in Detail
The enclosure is equipped with integrated enclosure lugs in the roof, base, and side panel, mirroring the 25 mm system grid of the VX25 large enclosure. This enables flexible and tool-free installation of internal components such as rails and accessories without drilling. The door is fitted with a double-sided door hole strip and can be changed in hinge position from right to left. The 3-point locking system with 3 mm double bar ensures secure and stable locking. The mounting plate features keyhole slots for earthing and dimension markings and is secured with ring weld nuts.
Technology Explained Simply
The integrated enclosure lugs in the 25 mm grid allow for modular and flexible internal equipment. System components such as rails or mounting brackets can be inserted directly into the lugs without drilling, preserving the protection class (UL approval). The base expansion rail provides an additional mounting level and increases load capacity. The PU seal ensures a tight seal, guaranteeing protection class IP 66. The powder-coated surface in RAL 7035 offers corrosion protection and resistance to environmental influences.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories that can be adapted to individual requirements. These include lock inserts made of zinc die-cast, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, VX system chassis, plinth corner pieces, plinth trim panels, plinth elements, mounting brackets for internal mounting level and door width 800 mm, and the AS Multitool AX/VX 4052000. These components extend the functionality and adaptability of the enclosure.
Mounting and Installation
Mounting is performed using the integrated enclosure lugs and the mounting plate. Rails and accessories can be inserted tool-free into the 25 mm grid. The door hinge position can be changed, enabling flexible installation. The gland plates in the enclosure base facilitate wall or floor mounting. The mounting plate features keyhole slots for earthing and dimension markings, simplifying installation and maintenance.
Advantages in Operation
The enclosure offers a high protection class, suitable for use in harsh environments. The modular internal equipment allows flexible adaptation to different requirements. Tool-free installation of accessories reduces installation time and increases efficiency. The integrated enclosure lugs and base expansion rail provide additional mounting levels and increase load capacity. The robust construction from sheet steel and the powder-coated surface ensure long service life and high reliability in operation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 745 mm x 1.175 mm |
| Number of doors | 1 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 5, quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 223.29 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
