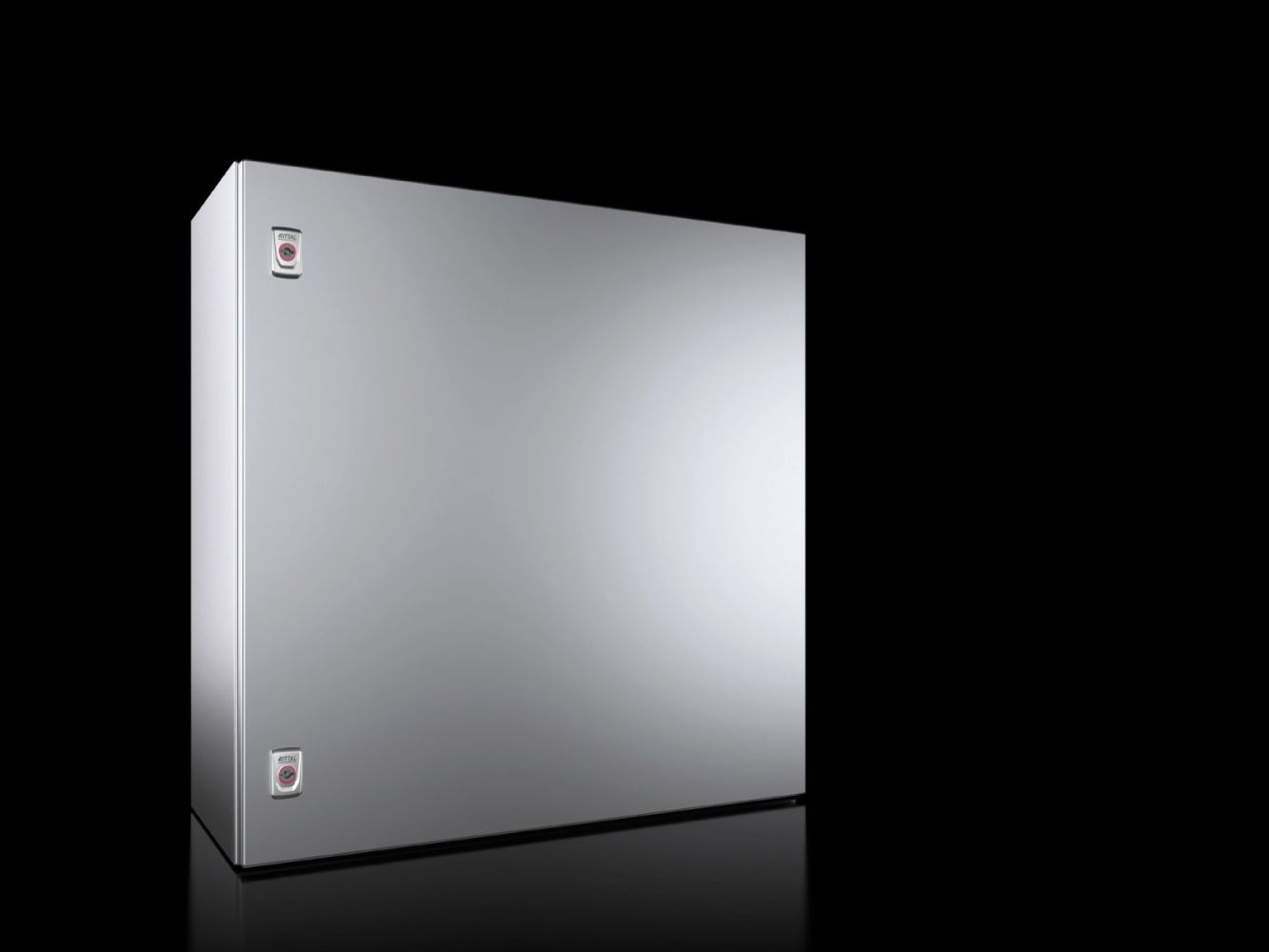

Rittal 1014000 Compact enclosure AX, 1-door, 760x760x300 mm

Your rating:
Average rating
product review for Rittal 1014000 Compact enclosure AX, 1-door, 760x760x300 mm
( 4.5 / 5 ) 2 ratings
Rittal 1014000
This image may differ from the desired article.
Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000Rittal 1014000
-10% 658,95 EUR 728,37 EUR
( 784,15 EUR incl. VAT )
≈ £551.54  |  ≈ $724.19
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1014000 Compact enclosure AX, 1-door, 760x760x300 mm
Datasheet:file_download Download
Lieske Part No.:1778584
Mfg Part No: 1014000
UPC/EAN: 4028177815018
Weight:39.5 kg
Type:AX 1014000

Product information for Rittal 1014000:

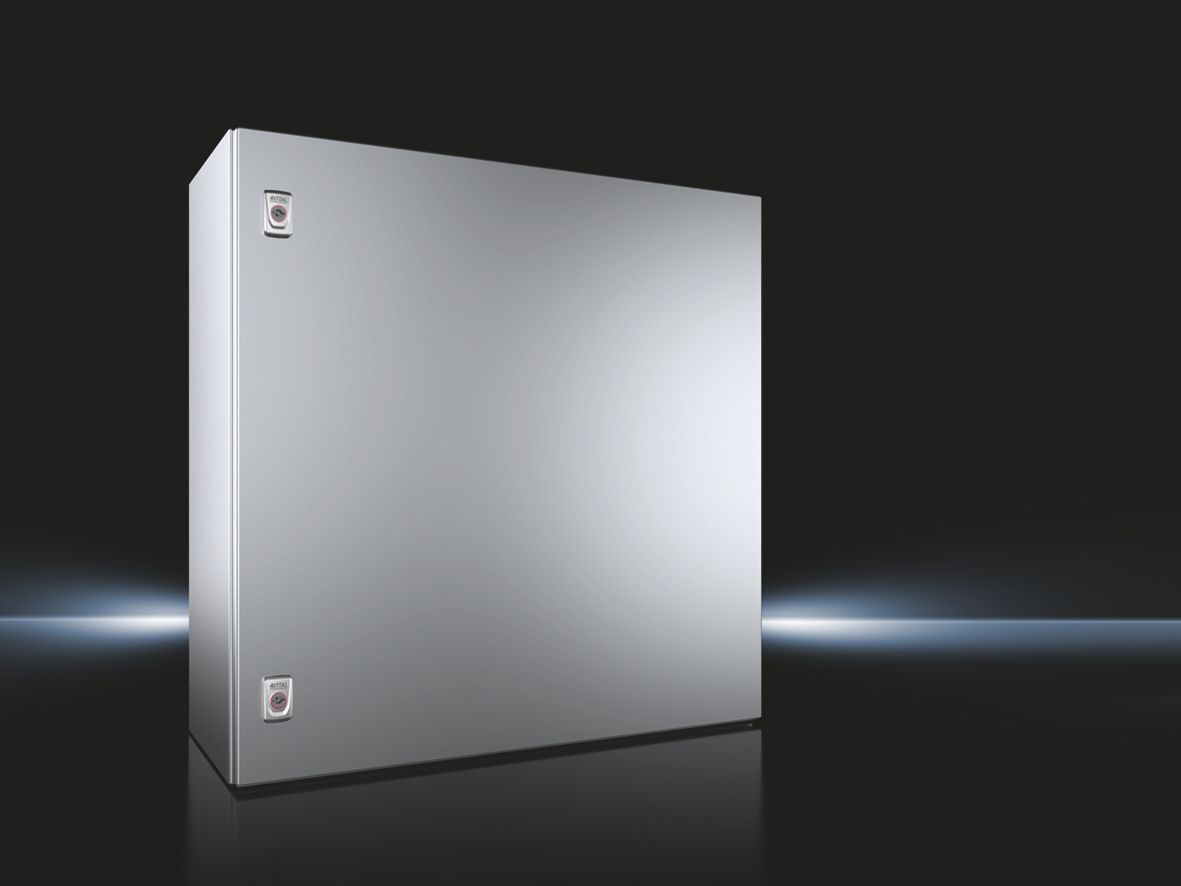

The Rittal AX 1014000 is a compact enclosure made of stainless steel 1.4301 (AISI 304), designed for use in industrial applications where high mechanical strength and protection against environmental influences are required. The enclosure has dimensions of 760 mm width, 760 mm height, and 300 mm depth, and is configured with a single door. It features an integrated mounting plate as well as two latching locks with 3 mm double-bolt inserts, ensuring secure closure. The door opens at an angle of 130°, facilitating access to internal components.

Applications
This enclosure is designed for use in environments requiring protection against dust, water, and mechanical impacts. It is suitable for use in manufacturing, process engineering, or outdoor applications, where it meets the protection rating IP 66. IP 66 means the enclosure is dust-tight and protected against powerful water jets, making it suitable for humid or wet environments. The protection ratings NEMA 4X and Type 4X according to UL 50E confirm suitability for outdoor use and protection against water spray, dust, and chemical gases.

Functions and Equipment in Detail

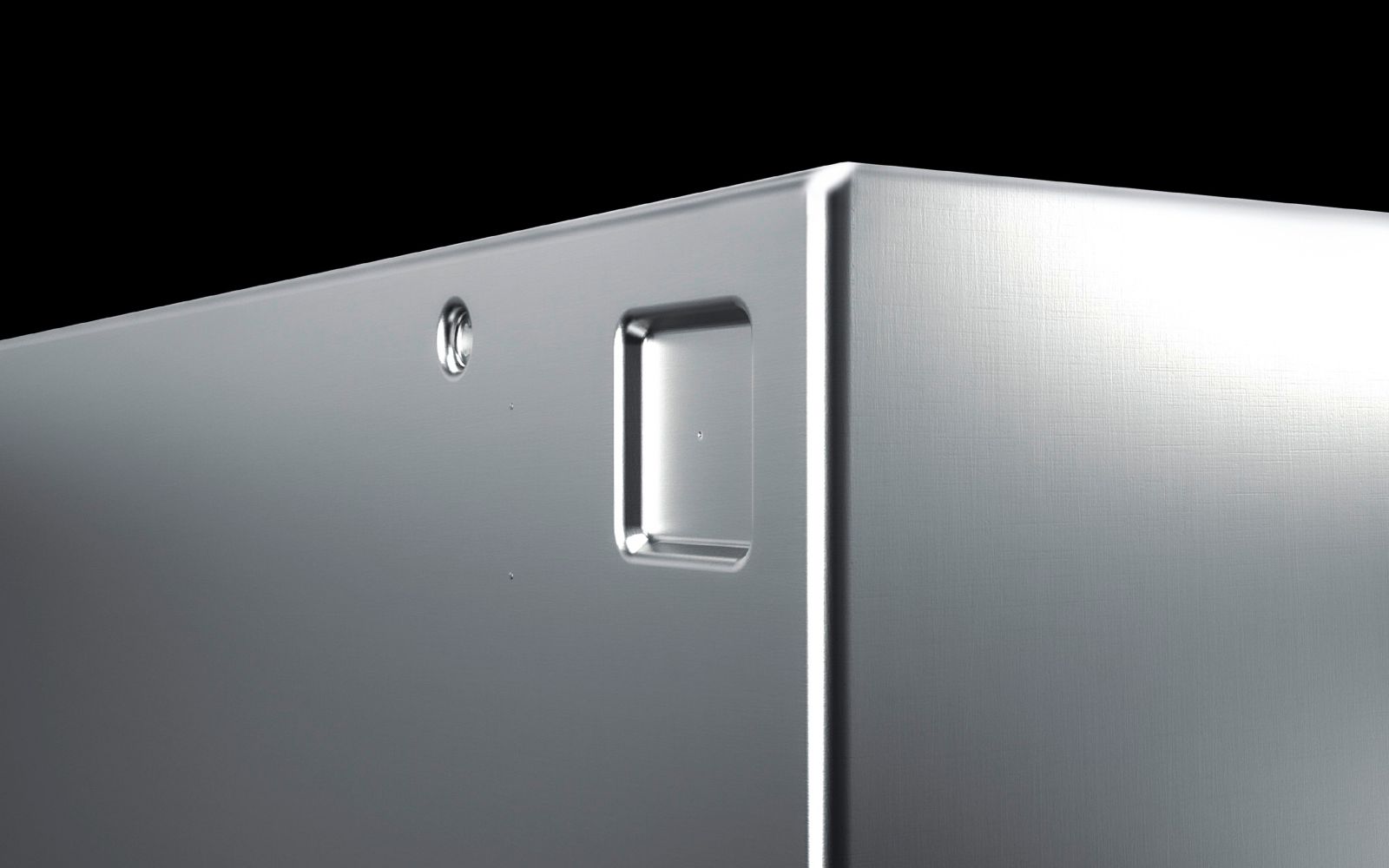

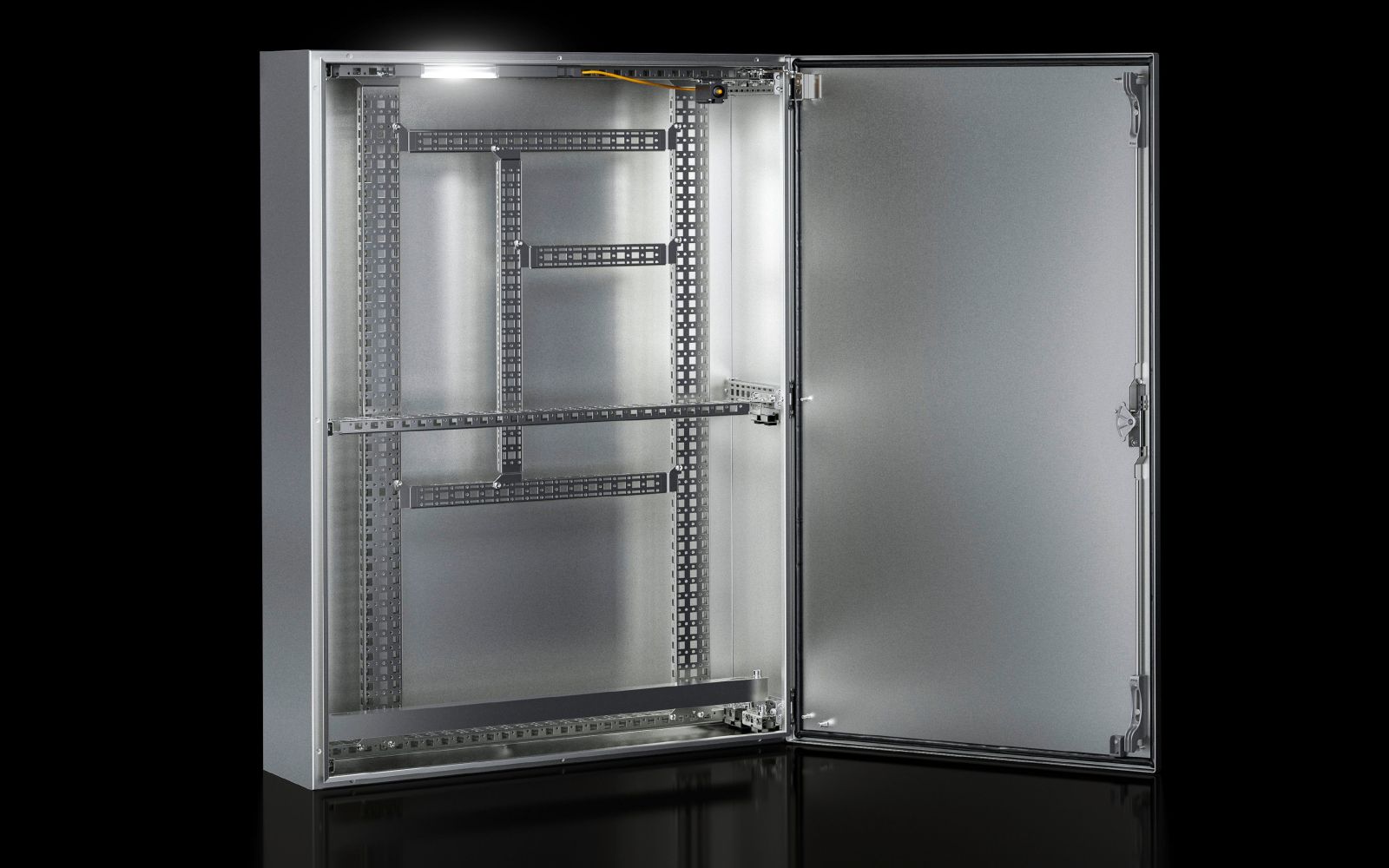

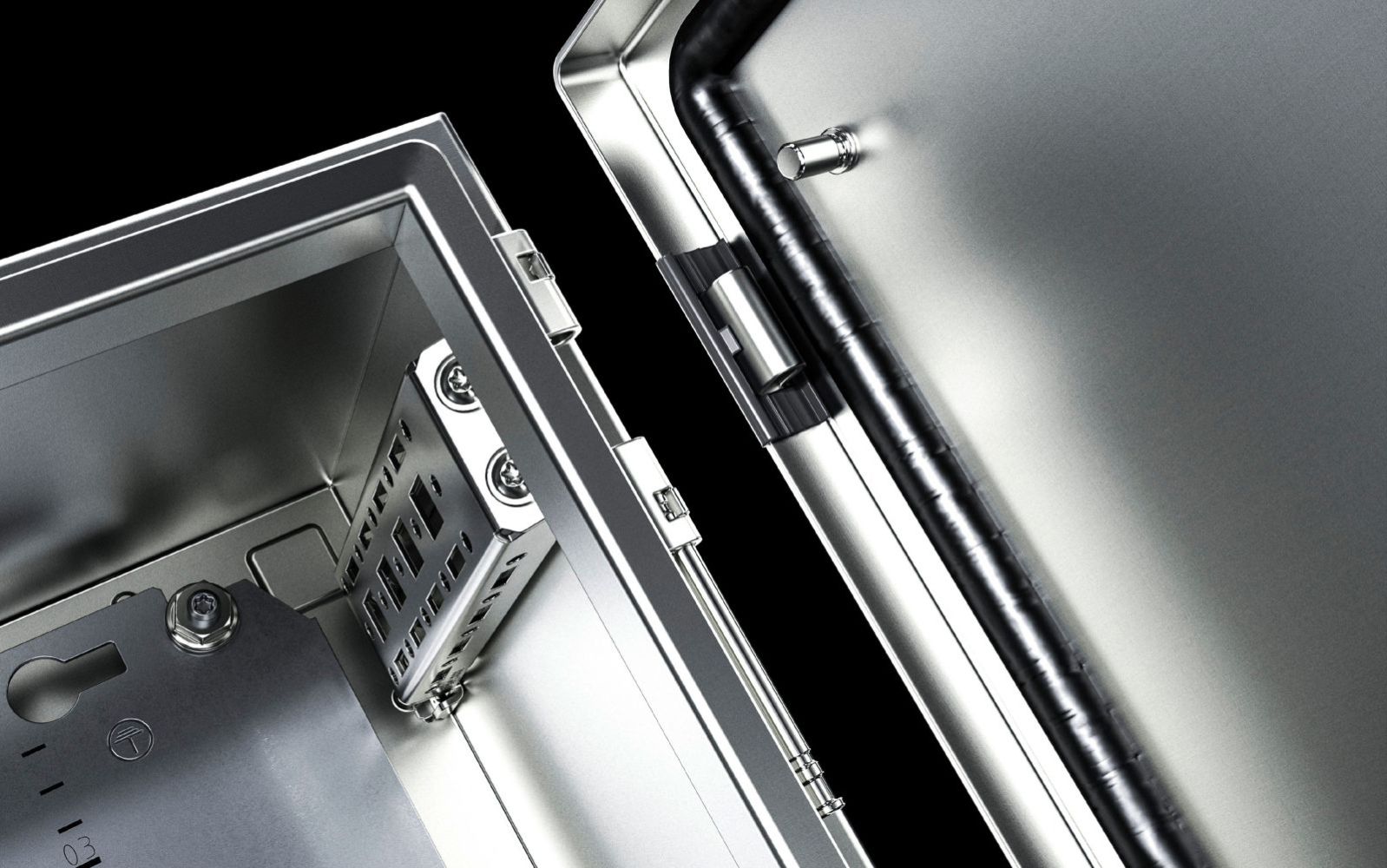

The enclosure is made from a single piece of bent and welded stainless steel, providing high stability and corrosion resistance. The door is fitted with a continuous foamed PU seal, ensuring a tight seal. The surface of the enclosure and door is brush-finished with grit 400, providing a uniform, easy-to-clean surface finish. The mounting plate, made of galvanized steel sheet, measures 705 mm × 735 mm and features keyhole slots for earthing and dimension markings. Mounting is done using Limbach nuts.

Technology Explained Simply

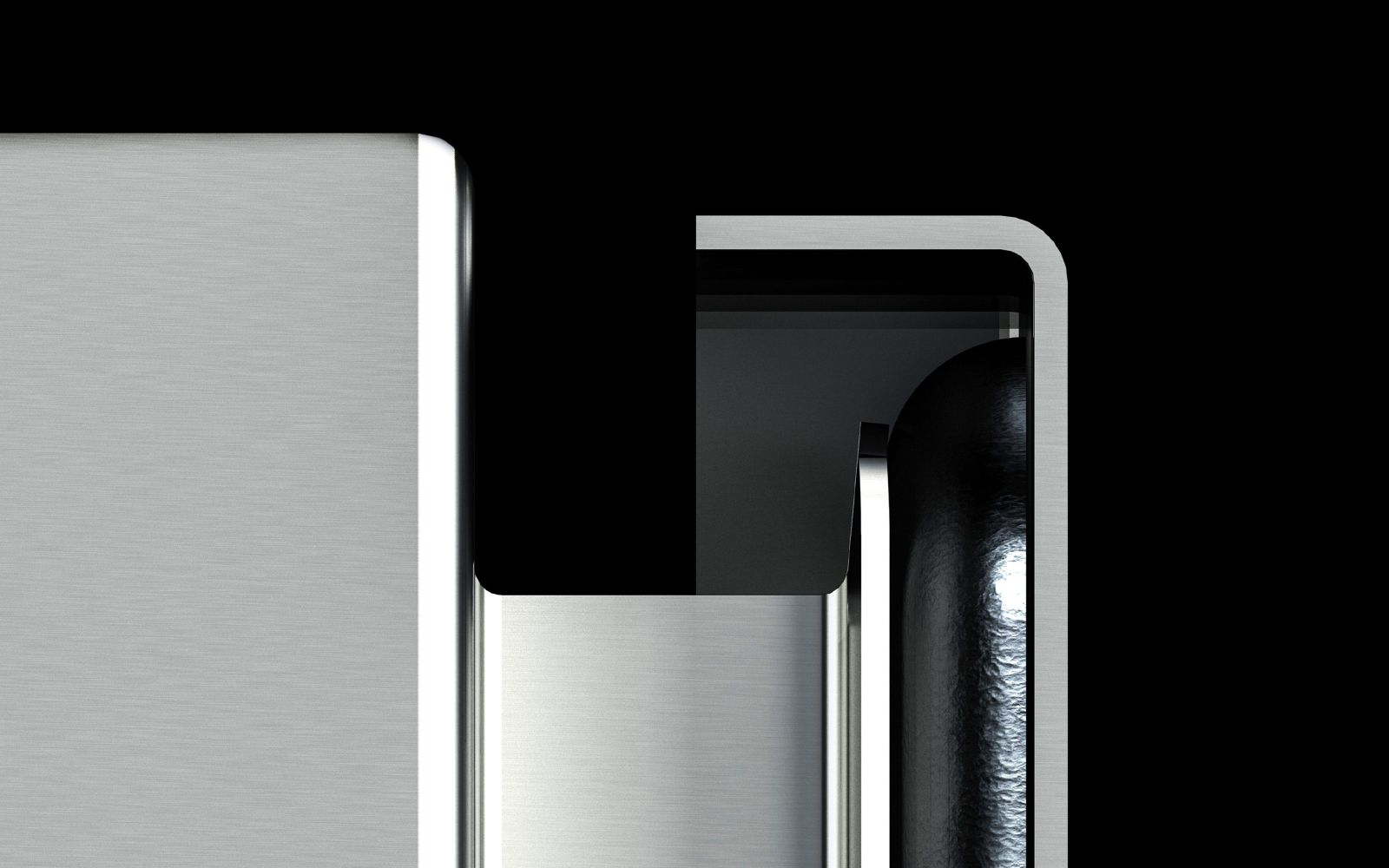

The door thickness is 2 mm, the enclosure wall thickness is 1.5 mm, and the mounting plate thickness is 2.5 mm, ensuring high mechanical strength. The IK classification IK10 indicates that the enclosure is protected against mechanical impacts such as shocks or vibrations up to a certain energy level. The integrated enclosure lugs allow systematic internal installation without drilling, simplifying the mounting and expansion of components. A QR code on the body, door, and nameplate enables unique identification and easy access to product information and documentation.

Compatibility and Accessories

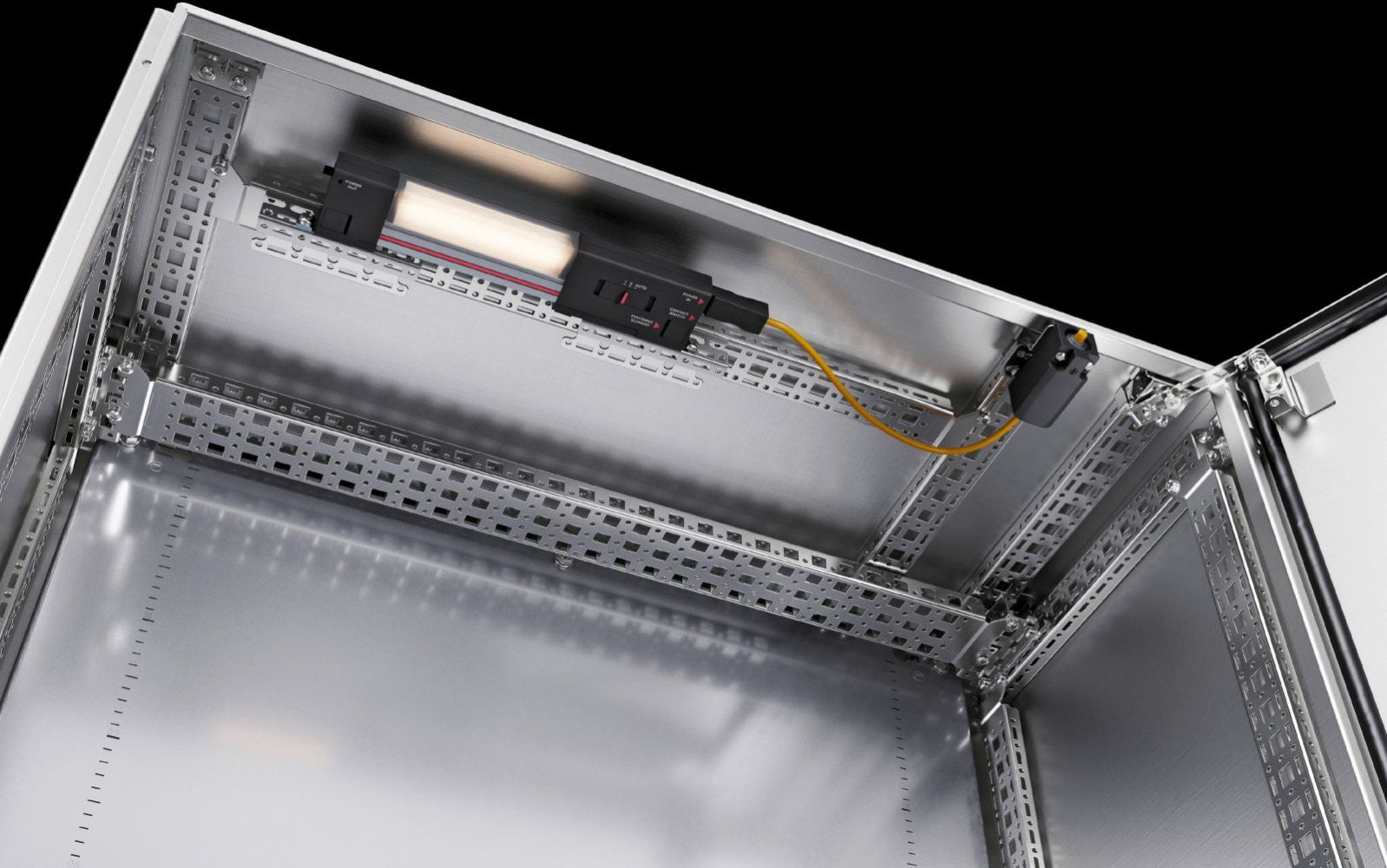

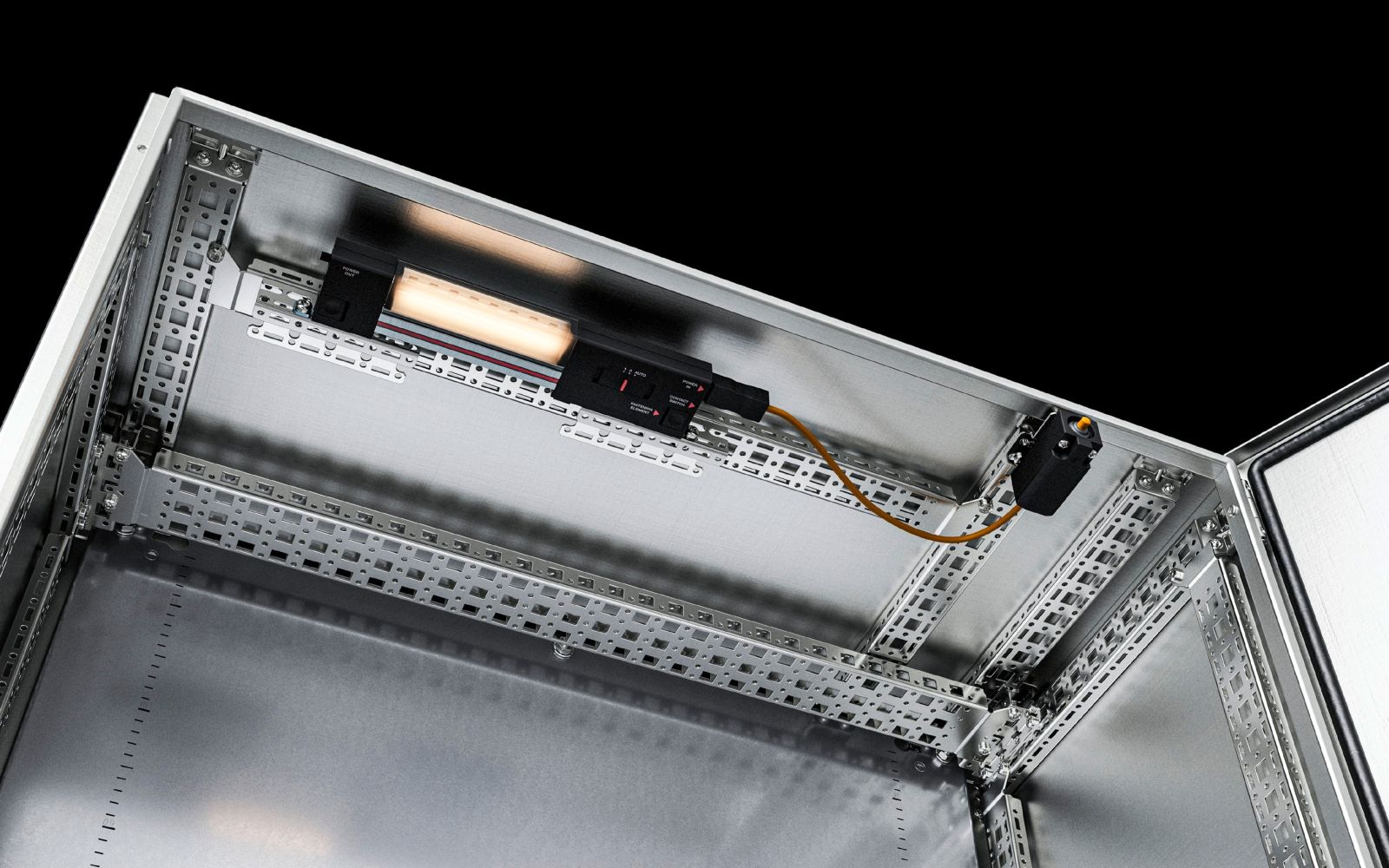

Various accessories are available for this enclosure, extending its functionality. These include cable glands made of brass and polyamide in various diameters (e.g. M12x1.5, M25x1.5, M40x1.5), wall mounting brackets made of stainless steel 1.4301, baying sets for AX, KX, AE, KL, and circuit diagram pockets made of steel sheet. These components allow flexible adaptation to specific requirements such as cable routing, mounting, or additional mounting surfaces.

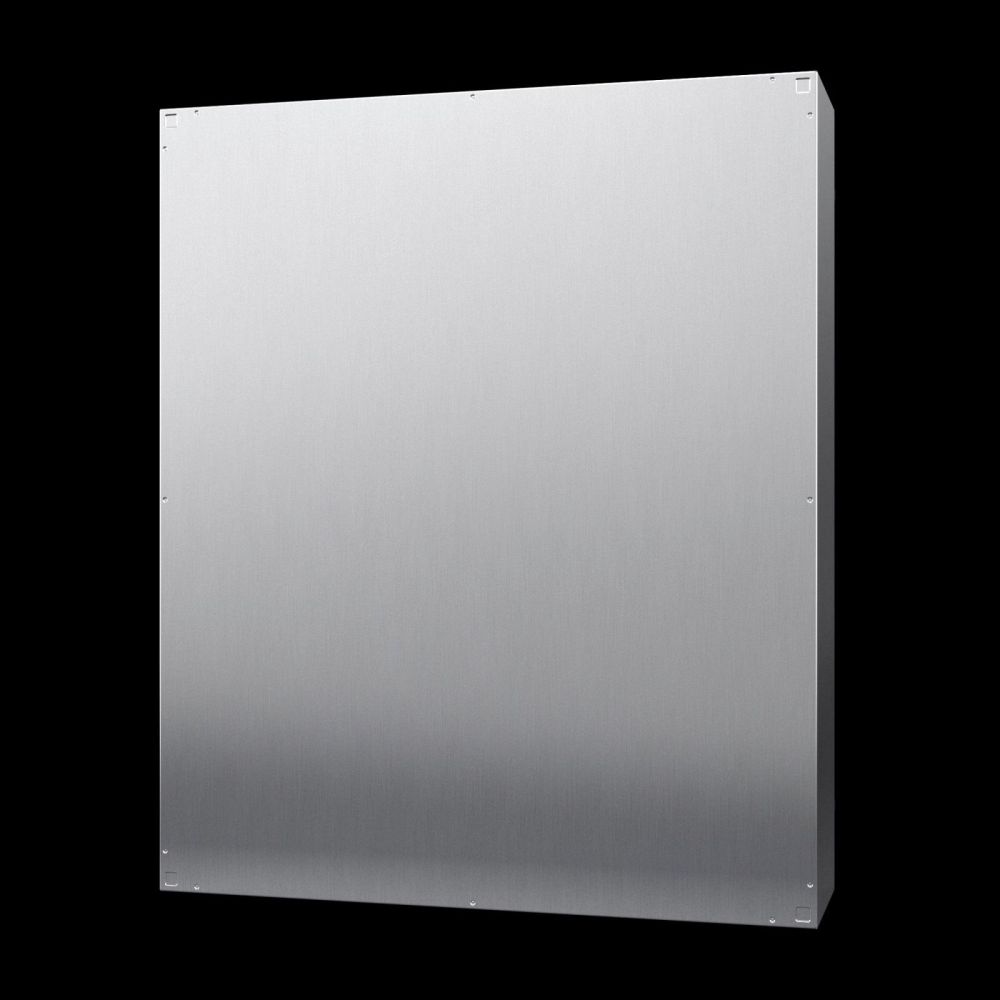

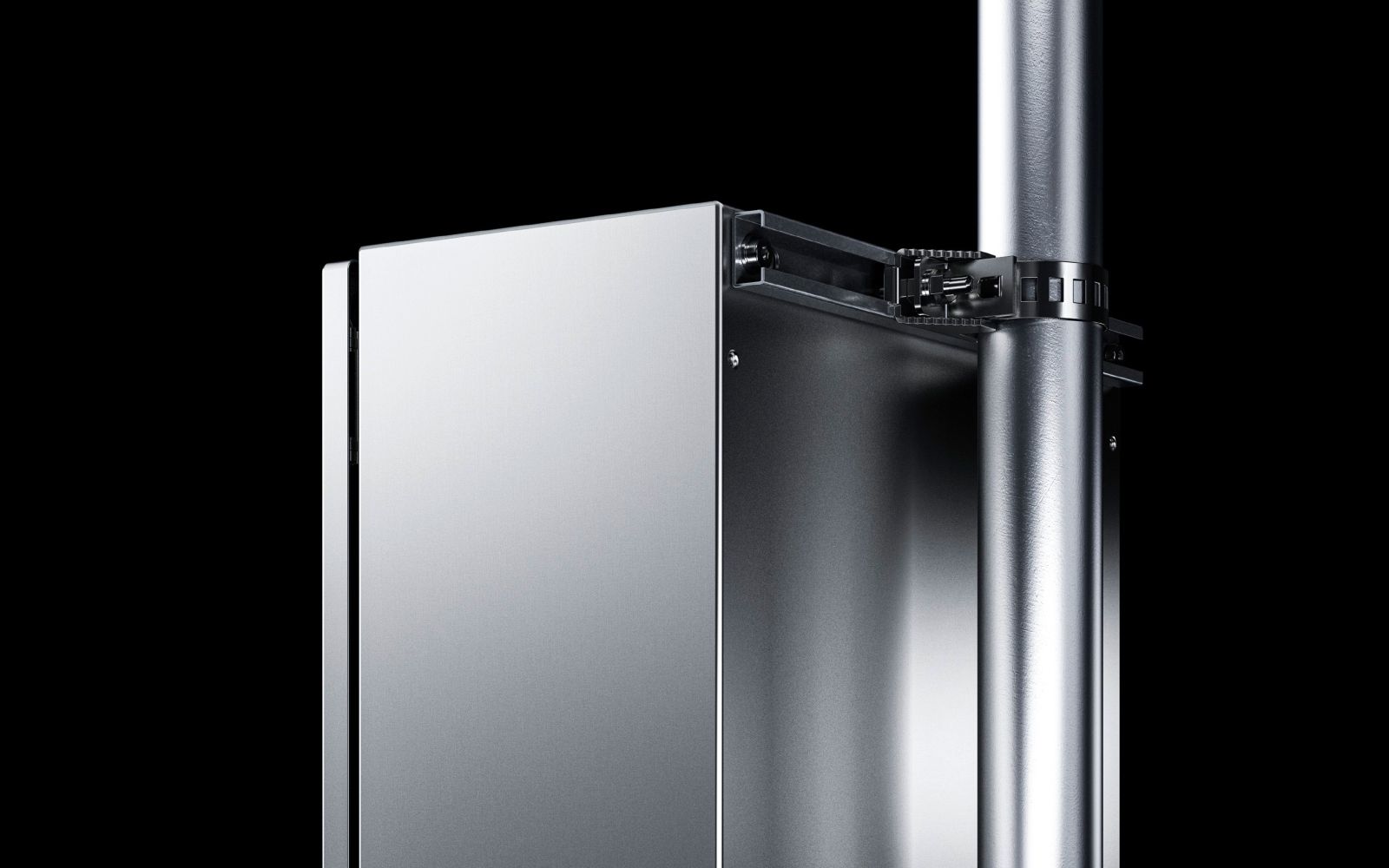

Mounting and Installation

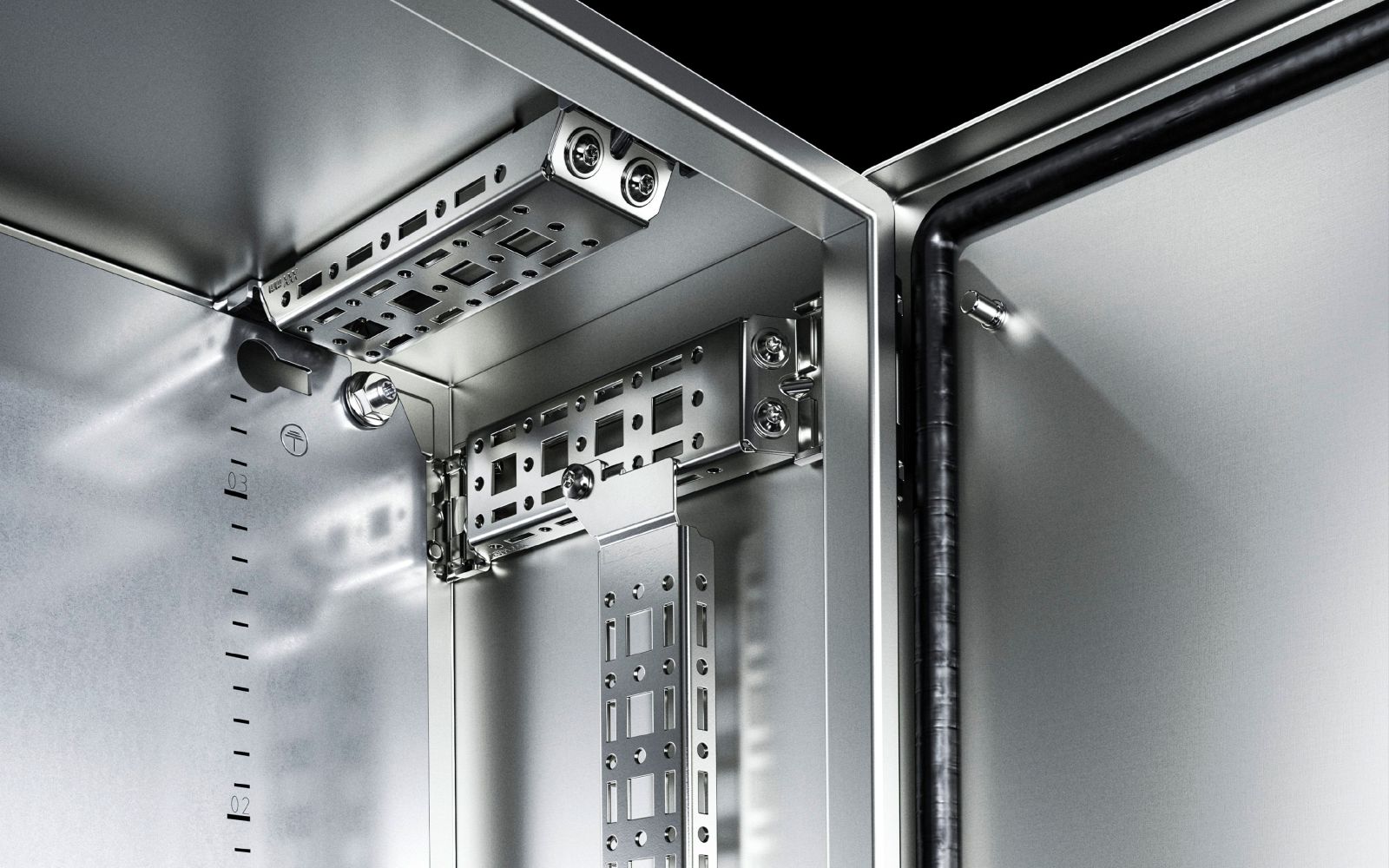

Mounting is done using the designated fastening elements on the rear wall of the enclosure. The mounting plate is included in the delivery scope and is secured with Limbach nuts. The door can be mounted on the right side, with the option to reconfigure it to the left side. The integrated lugs enable quick and tool-free installation of internal units.

Advantages in Operation
The enclosure offers high mechanical stability and corrosion resistance due to the use of stainless steel 1.4301. The IP 66 protection rating and IK10 classification ensure reliable operation in demanding environments. The integrated mounting plate and lug system simplify the installation and expansion of components. The latching locks with double-bolt inserts ensure secure closure, protecting against unauthorized access. The brush-finished surface is easy to clean and provides a professional appearance.

General
MaterialHousing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304)

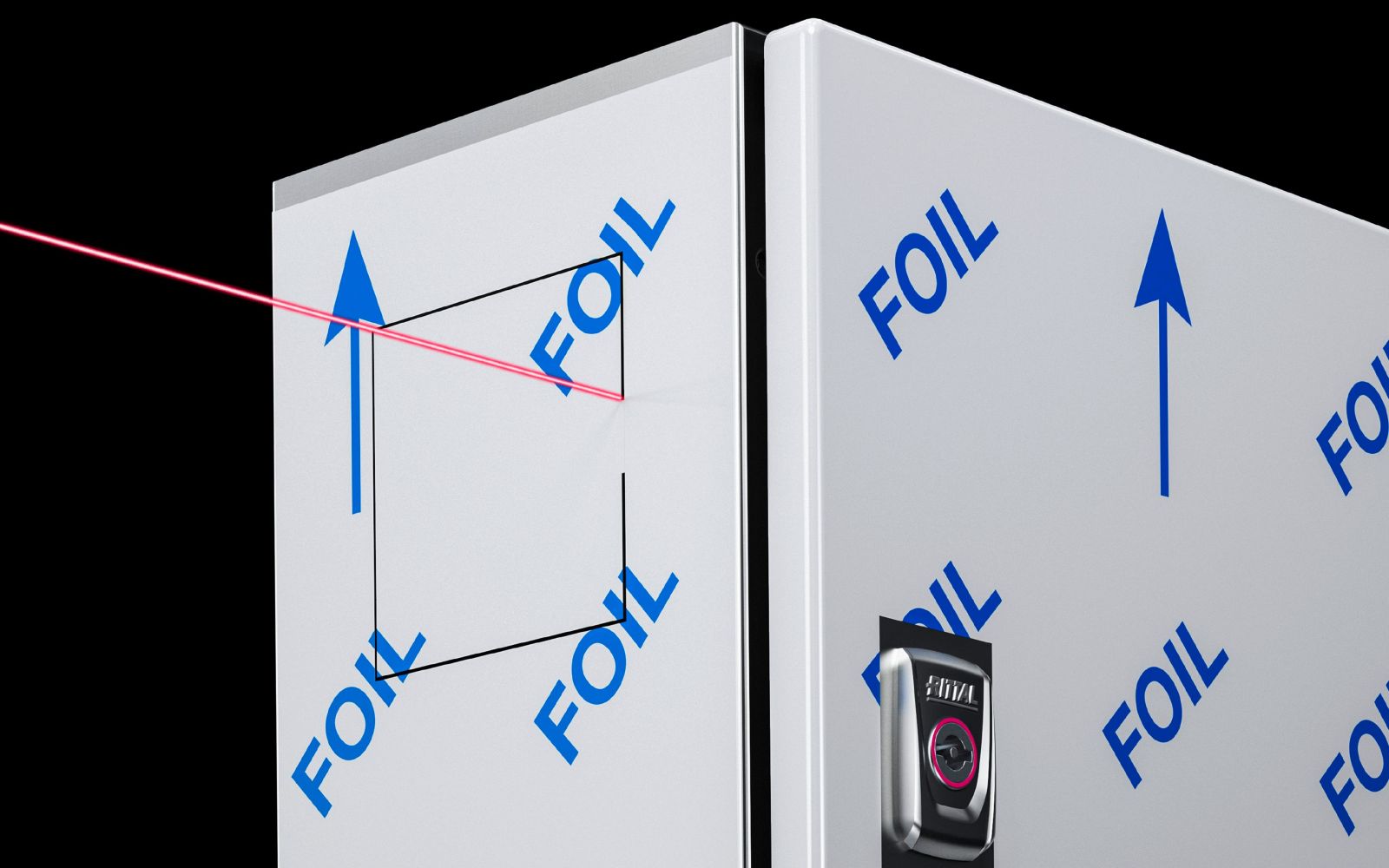

Surface protectionCasing and door: brushed finish, grit 400, mounting plate: galvanized
Scope of deliveryCabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
IK codeIK10
Width760 mm
Height760 mm
Depth300 mm
Door material thickness2 mm
Plate thickness cabinet1,5 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)705 mm x 735 mm
Number of doors1

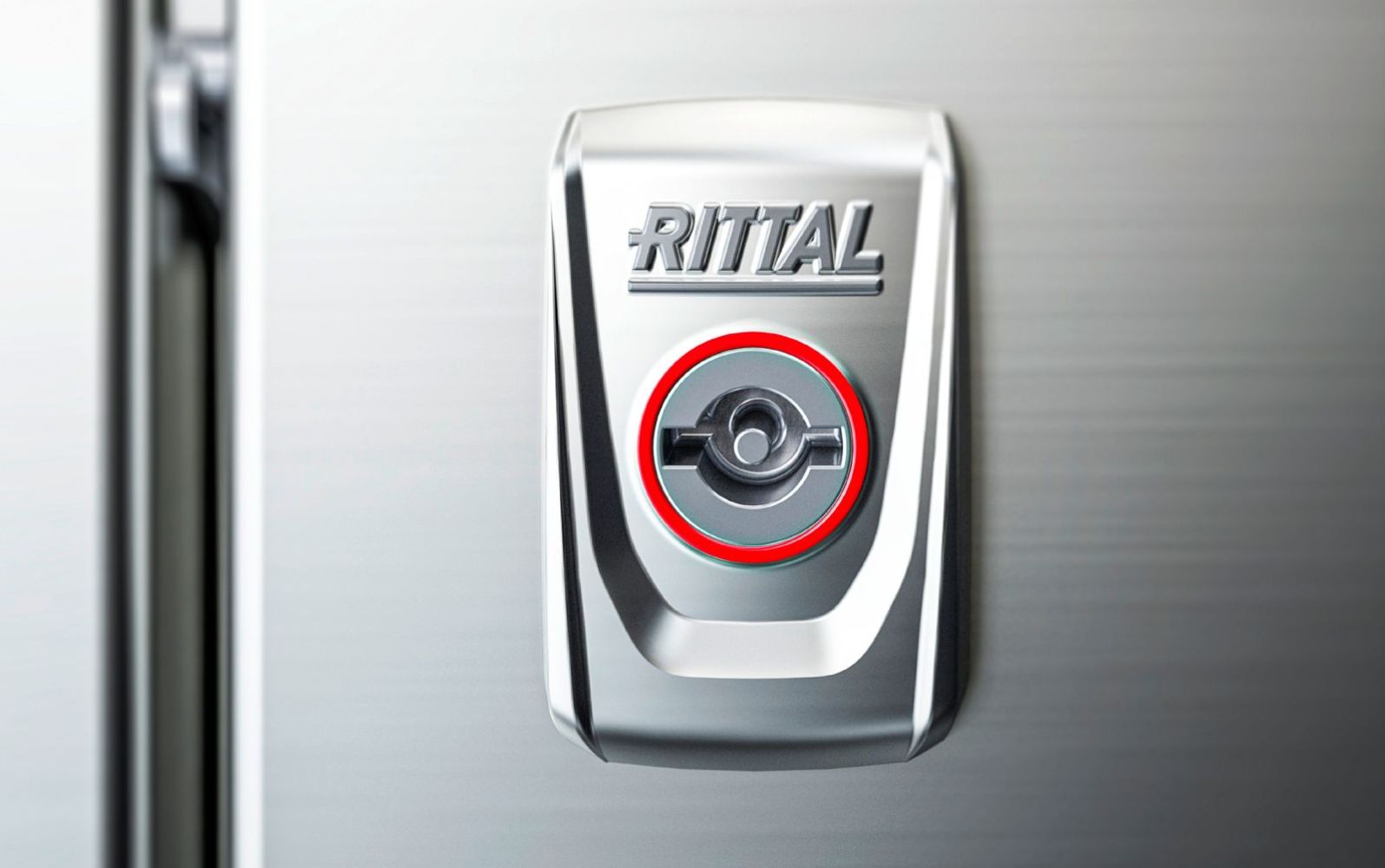

LockLocking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)134,55


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1014000, EAN: 4028177815018
