Rittal 2515400 AX circuit diagram pocket, steel sheet, width: 625 - 725 mm,

Your rating:
Average rating
product review for Rittal 2515400 AX circuit diagram pocket, steel sheet, width: 625 - 725 mm,
( 4.3 / 5 ) 12 ratings
Rittal 2515400
This image may differ from the desired article.
Rittal 2515400Rittal 2515400Rittal 2515400Rittal 2515400
-6% 29,21 EUR 30,97 EUR
( 34,76 EUR incl. VAT )
≈ £24.45  |  ≈ $32.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces

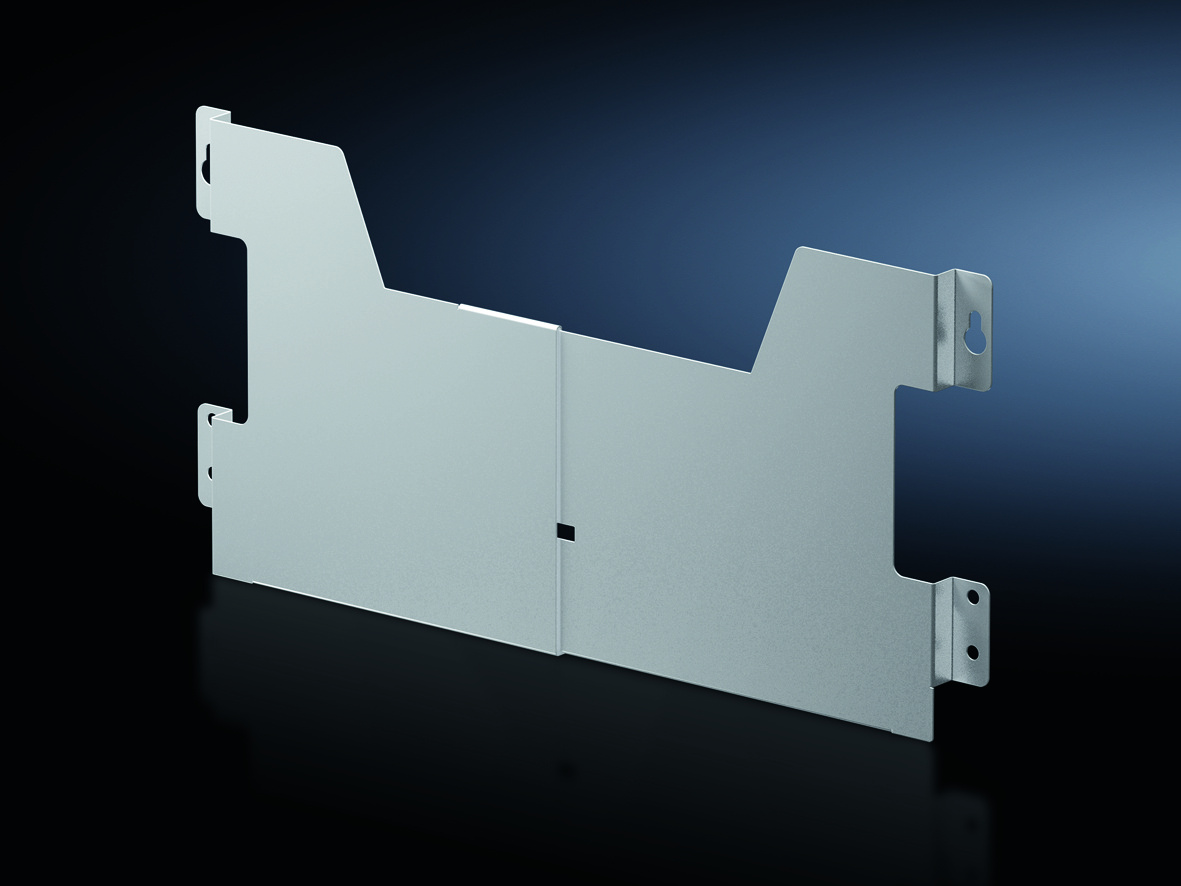

1x Rittal 2515400 AX circuit diagram pocket, steel sheet, width: 625 - 725 mm,
Datasheet:file_download Download
Lieske Part No.:1598255
Mfg Part No: 2515400
UPC/EAN: 4028177938328
Weight:1.12 kg
Type:AX 2515400

Product information for Rittal 2515400:

The Rittal AX 2515400 is a circuit diagram pocket made of sheet metal, specifically designed for mounting on the door punch strip of enclosures. It is intended for holding and organizing circuit diagrams, documentation, or other technical documents during operation. The product is width-adjustable and can be set between 625 mm and 725 mm in width, allowing flexible adaptation to different door widths. The circuit diagram pocket is designed for door widths of 760 mm and 800 mm, making it compatible with enclosure types such as AX, AE sheet metal, stand console CX, and console base CX. The clear height is 210 mm, and the depth is 35 mm. The color is RAL 7035, a gray-beige sheet metal that integrates well visually in industrial environments.

Circuit diagram pocket made of sheet metal is robust and suitable for use in industrial installations. The construction allows for mounting on the door punch strip at any height, enabling flexible positioning according to specific requirements. The width adjustment is simple and tool-free, allowing quick and uncomplicated adaptation to different door sizes. The clear height of 210 mm provides sufficient space for standard circuit diagrams or documents in A4 format or similar. The depth of 35 mm ensures the pocket does not protrude too far into the enclosure, supporting accessibility and workflow within the enclosure.

Width-adjustable is a central feature of the circuit diagram pocket, as it can be adapted to various door sizes. The width can be adjusted between 625 mm and 725 mm, ensuring compatibility with door widths of 760 mm and 800 mm. Adjustment is achieved through simple modification of the mounting structure, without requiring additional tools or mounting aids. This significantly simplifies installation and adaptation during operation.

Suitable for various enclosure types such as AX, AE sheet metal, stand console CX, and console base CX, the circuit diagram pocket is universally applicable in different enclosure configurations. Mounting is done on the door punch strip, which is standard in these enclosure types. The pocket is thus mounted directly on the door, ensuring documents are always within the operator’s line of sight and easily accessible.

Technology explained clearly – the circuit diagram pocket is made of sheet metal, known for its stability and durability in industrial environments. The color RAL 7035 is a neutral gray tone that blends well in typical industrial settings. Mounting is done via pre-drilled holes in the door punch strip, using the included mounting screws. The depth of 35 mm is designed so the pocket does not protrude too far into the enclosure, ensuring it does not interfere with access to other components inside.

Compatibility and accessories – the circuit diagram pocket is specifically developed for enclosure types AX, AE sheet metal, stand console CX, and console base CX. It is designed for door widths of 760 mm and 800 mm, making it suitable for a wide range of standard enclosure configurations. It is used directly on the door punch strip, which is standardly integrated in these enclosures.

Mounting and installation – mounting is done on the door punch strip at any height, allowing flexible positioning according to specific requirements. The width is adjusted between 625 mm and 725 mm to match the respective door width. Mounting is done using the screws included in the delivery, which are inserted into the holes of the door punch strip. The installation requires no special tools and can be performed quickly.

Advantages in operation – the circuit diagram pocket provides clear and structured storage of circuit diagrams and documents directly on the enclosure door. The clear height of 210 mm allows for documents in A4 format or similar. The width adjustment ensures optimal fit for various door sizes, making the pocket universally applicable. Mounting on the door punch strip ensures stable installation, even with frequent access. The color RAL 7035 visually integrates into industrial environments without being obtrusive.

The circuit diagram pocket is thus a practical and robust accessory for enclosures, structuring and making documentation easily accessible during operation. The combination of sheet metal, flexible width adjustment, and universal compatibility makes it a reliable solution for industrial applications.

General
ColourRAL 7035
Scope of deliveryIncluding mounting screws
Clear height210 mm
Clear width, range625 - 725
Suitable for door width760 mm, 800 mm
Suitable forHousing type: AX, AE sheet steel, console CX, console base CX
Depth35 mm


Product data sheet
Datasheet for Rittal 2515400, EAN: 4028177938328
