Rittal 2562200 Plastic gland plate, modular, metric pre-punching,

Your rating:
Average rating
product review for Rittal 2562200 Plastic gland plate, modular, metric pre-punching,
( 4.5 / 5 ) 6 ratings
Rittal 2562200
This image may differ from the desired article.
Rittal 2562200Rittal 2562200Rittal 2562200Rittal 2562200Rittal 2562200Rittal 2562200Rittal 2562200Rittal 2562200
18,17 EUR
( 21,62 EUR incl. VAT )
≈ £15.21  |  ≈ $19.97
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2562200 Plastic gland plate, modular, metric pre-punching,
Datasheet:file_download Download
Lieske Part No.:1598248
Mfg Part No: 2562200
UPC/EAN: 4028177938403
Weight:0.332 kg
Type:AX 2562200

Product information for Rittal 2562200:

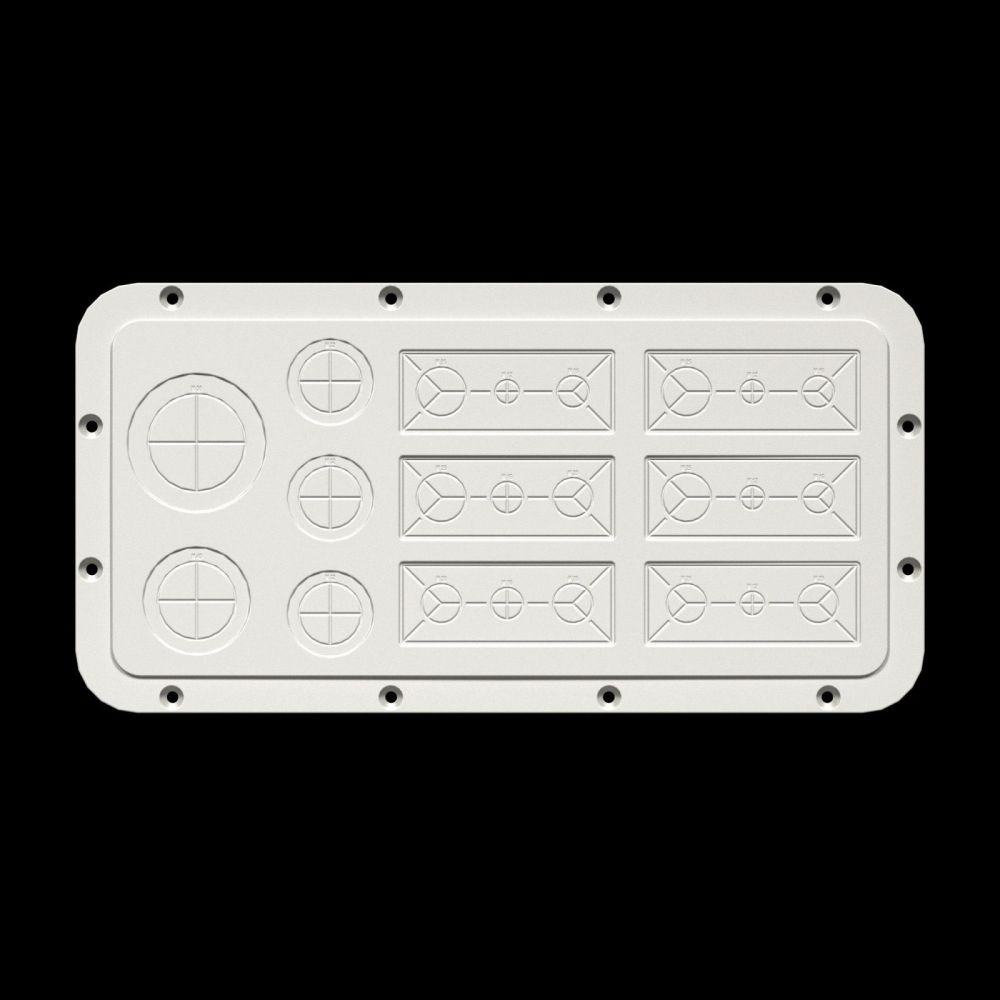

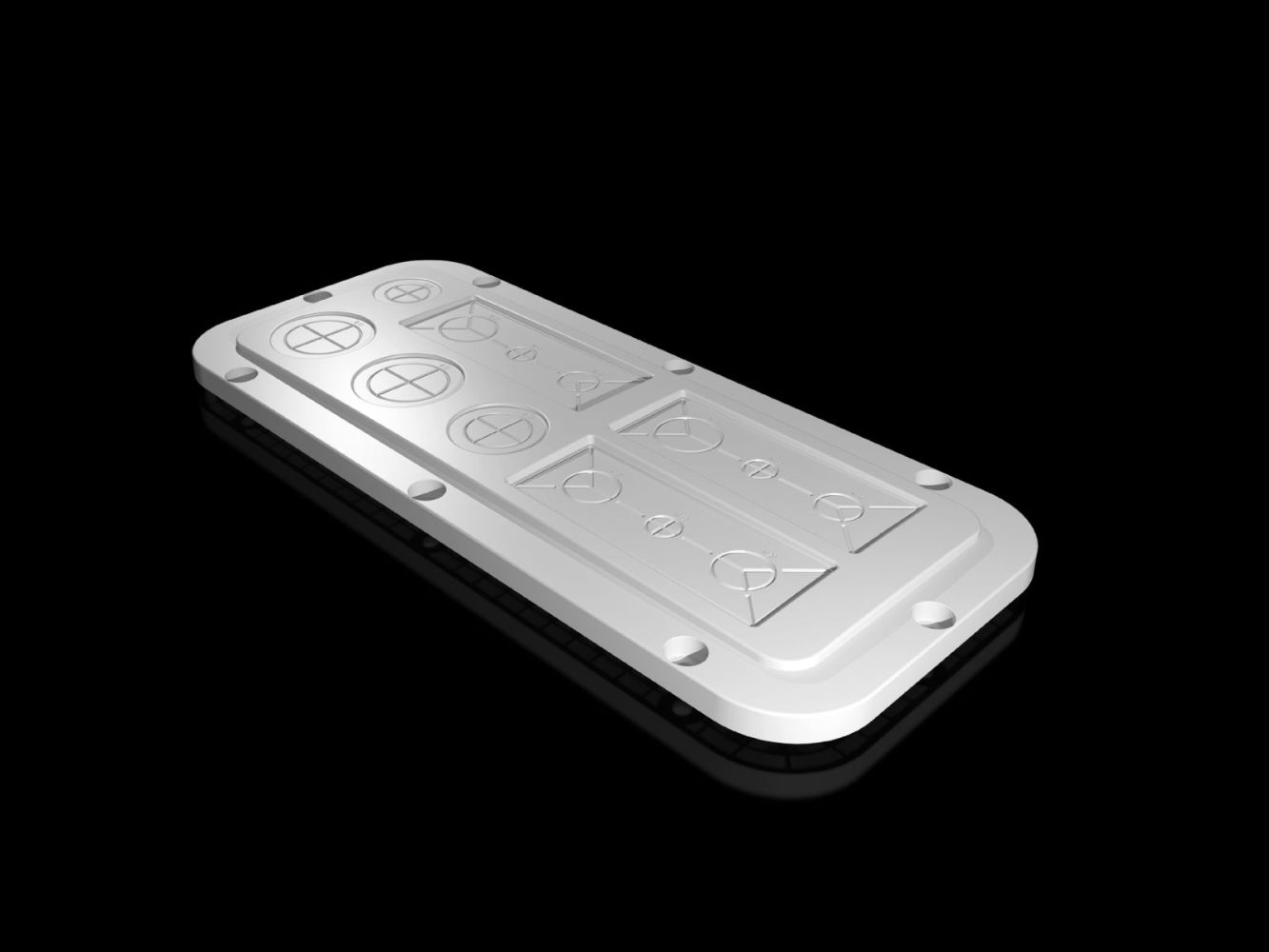

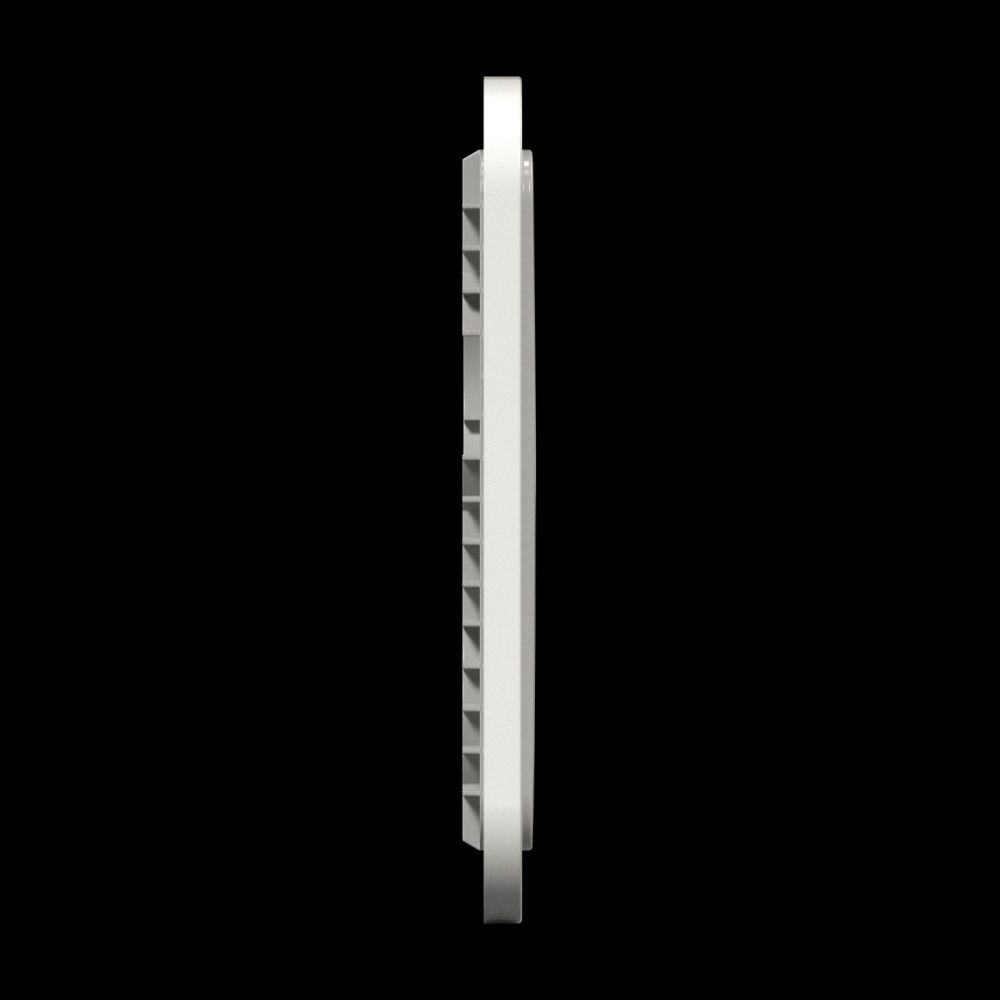

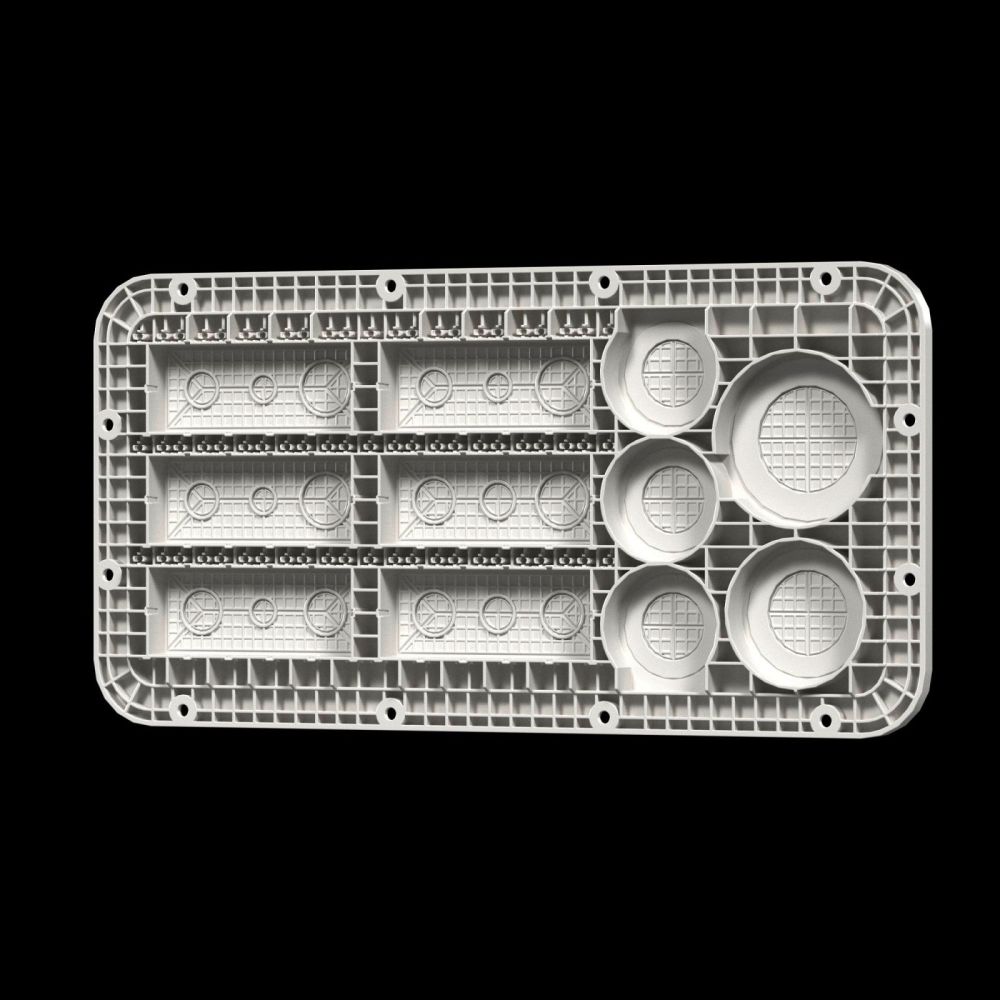

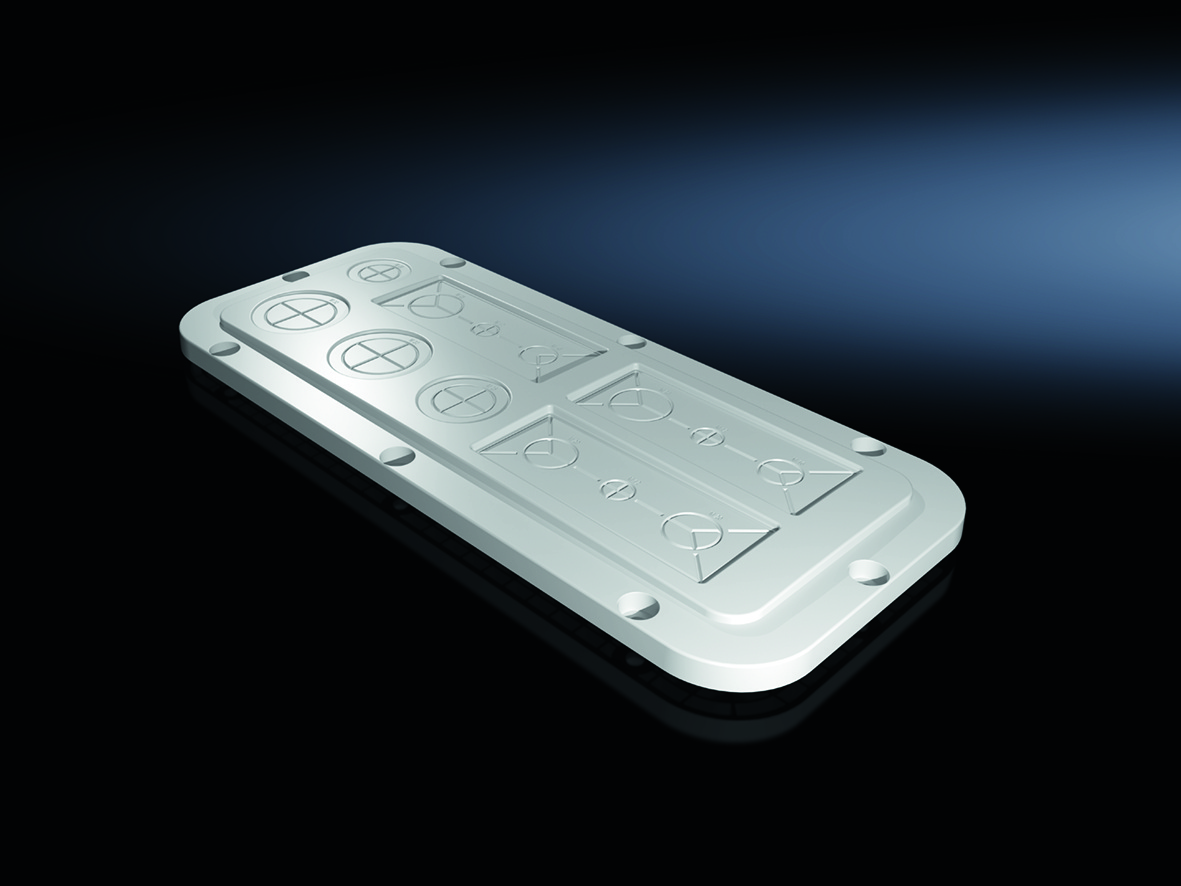

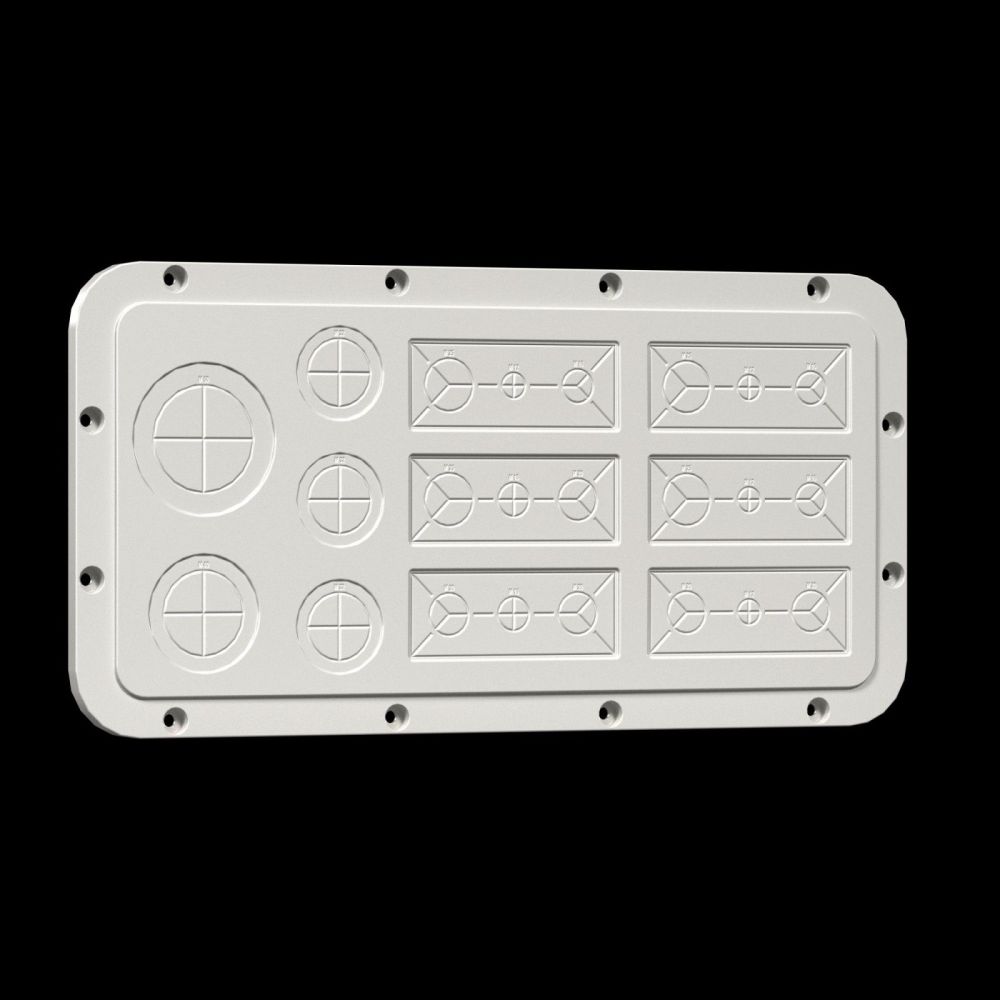

The Rittal SZ plastic gland plate, type AX 2562200, is a modular system accessory for enclosures of the AX housing type. It serves as an installation element for cable entries and enables flexible, tool-free mounting of cable glands. The gland plate is made of plastic that complies with flame retardancy class UL 94-V0 and has the colour RAL 7035. Its dimensions are 339 mm in width and 149 mm in depth, corresponding to size 2 for the AX housing family.

Applications
The gland plate is designed for use in industrial enclosures, particularly in environments where modular and rapid installation of cable entries is required. It is suitable for applications demanding high mechanical stability and resistance to environmental influences, such as in manufacturing automation, power supply, or process control. The protection rating IP 66 when installed correctly ensures dust-tight and water-tight performance, enabling use even in outdoor environments. The operating temperature range extends from -40 °C to +80 °C, allowing use in extreme climatic conditions.

Functions and Equipment in Detail
The gland plate features multiple metric pre-punchings that can be directly used for cable glands. The exact number is 3 x M12, 2 x M16, 3 x M20, 3 x M25, and 2 x M32. These pre-punchings can be easily broken out, allowing installation without additional tools. Additionally, 3 rectangular cutouts are integrated, with each cutout providing space for 10 small sealing inserts. These cutouts allow direct installation of cable entries and increase flexibility in cable routing.

Technology Explained Simply
The design of the gland plate takes into account requirements for mechanical strength and ease of maintenance. The integrated reinforcement frame ensures the plate remains stable even under load from cable entries. The material choice of UL 94-V0 plastic guarantees high flame resistance, which is crucial in electrical switchgear. The protection rating IP 66 according to EN 60 529 means the gland plate is dust-tight and protected against water jets from any direction, provided it is correctly installed. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for indoor and outdoor applications with limited dirt exposure.

Compatibility and Accessories
The gland plate is specifically developed for enclosures of type AX and fits into size 2. The assignment of gland plate size corresponds to the specifications of the respective housing. It is modular in design, allowing combination with various cable entries and glands. The specified pre-punchings and rectangular cutouts enable flexible adaptation to different cable diameters and arrangements.

Installation and Mounting

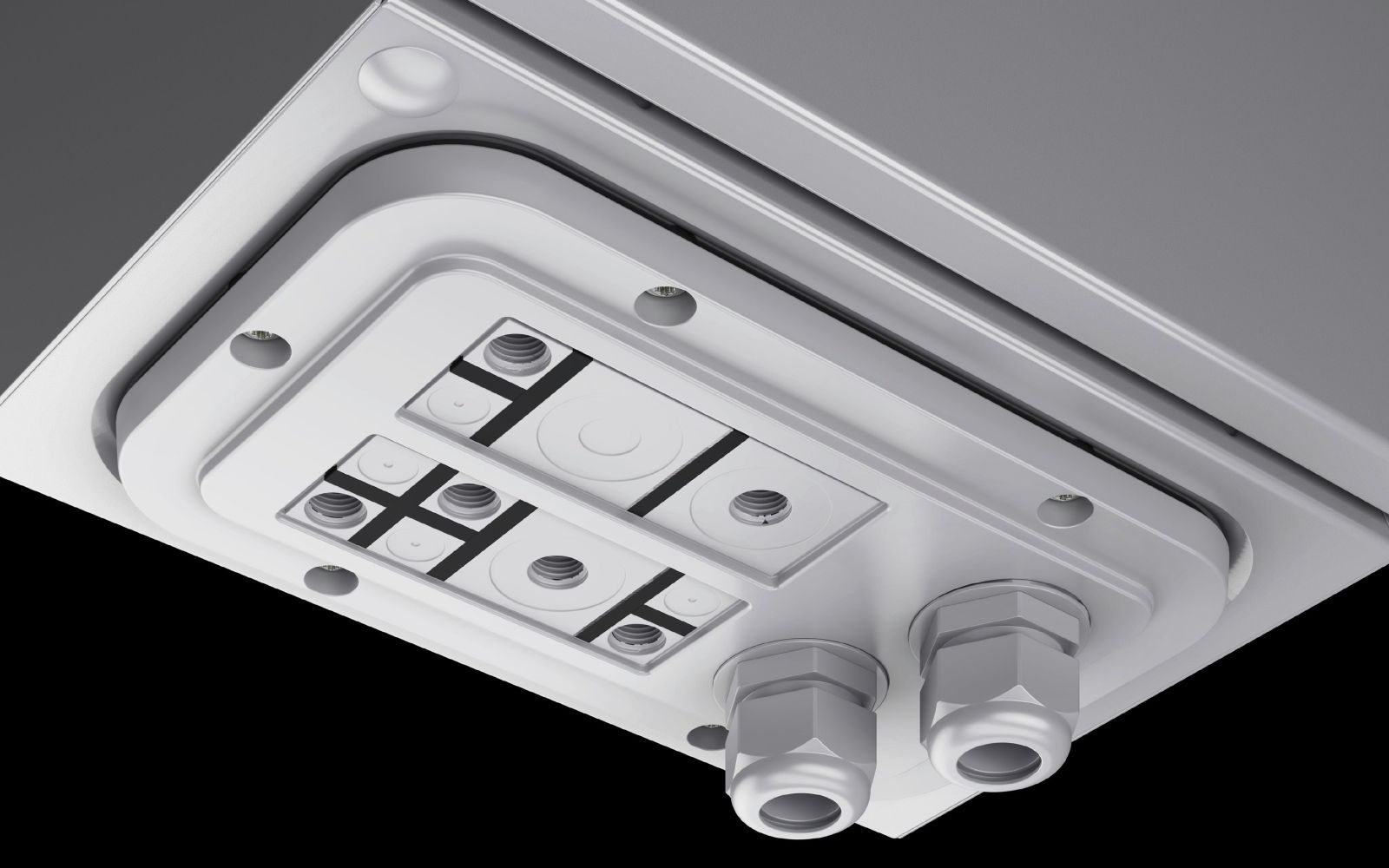

Mounting is done by breaking out the plastic pre-punchings at the desired locations. The rectangular cutouts can also be easily removed to install the cable entry. The gland plate is inserted into the designated compartment of the AX housing and secured. Proper installation is essential to achieve the IP 66 protection rating.

Operational Advantages
The modular design and tool-free installation significantly reduce installation time. High mechanical stability and resistance to environmental influences ensure long service life and low maintenance requirements. The combination of IP 66 protection and a wide operating temperature range makes the gland plate a reliable component in demanding industrial environments.

General
MaterialPlastic according to UL 94-V0
ColourRAL 7035
Number of rectangular cutouts information1 rectangular cutout accepts 10 density inserts, small size
Number of rectangular cutouts3
NoteThe assignment of flange plate size can be found with the respective enclosures
Number of metric pre-forms3 x M12, 2 x M16, 3 x M20, 3 x M25, 2 x M32
Width339 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 2
Operating temperature range-40 °C...80 °C
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12


Product data sheet
Datasheet for Rittal 2562200, EAN: 4028177938403

Questions & answers

What is the delivery time of Rittal 2562200 Plastic gland plate, modular, metric pre-punching, ?

The article Rittal 2562200 Plastic gland plate, modular, metric pre-punching, is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2562200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2562200 Plastic gland plate, modular, metric pre-punching, always at the best possible price. We can give you a discount of 2% on Rittal 2562200 Plastic gland plate, modular, metric pre-punching, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
