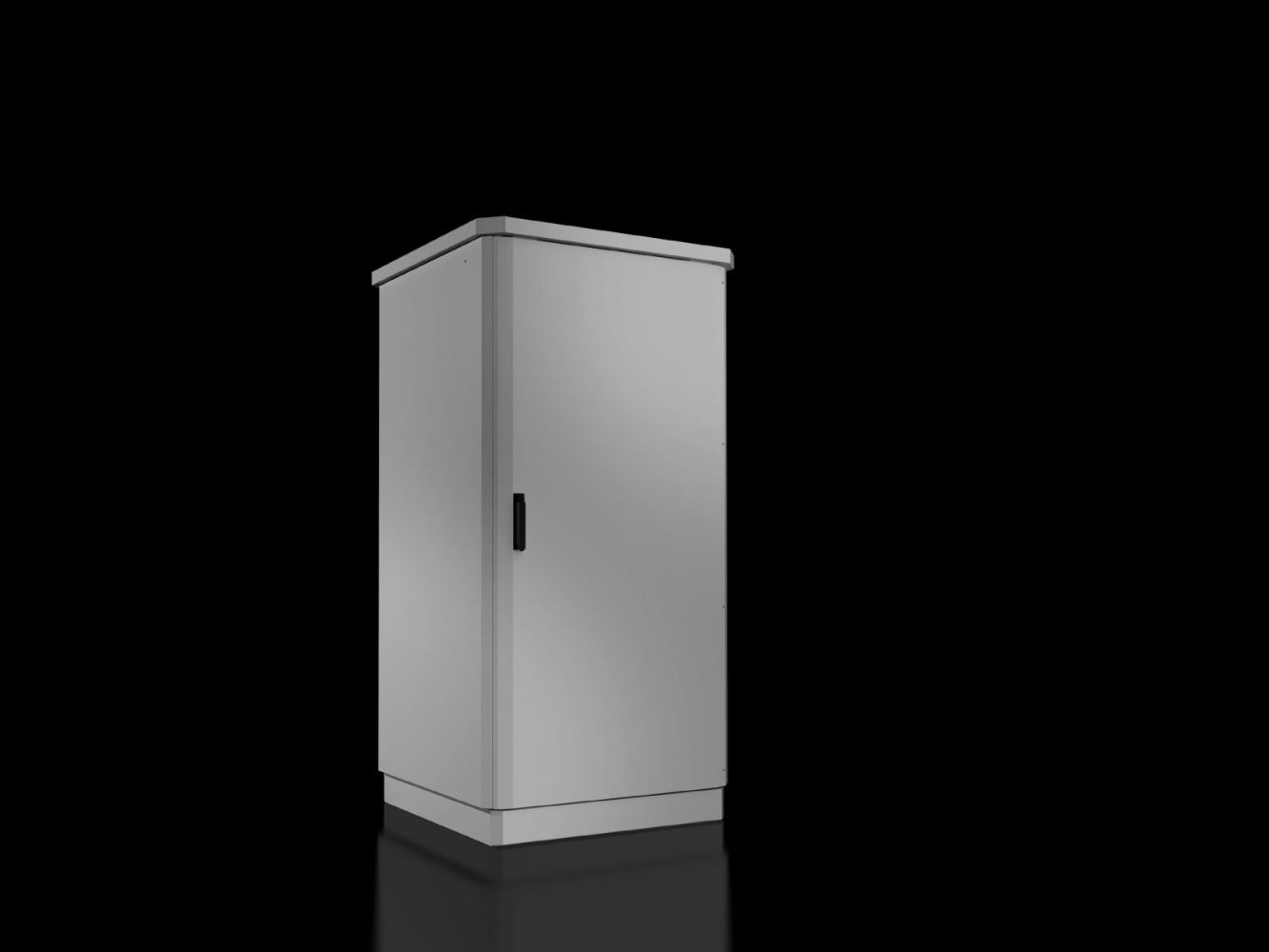

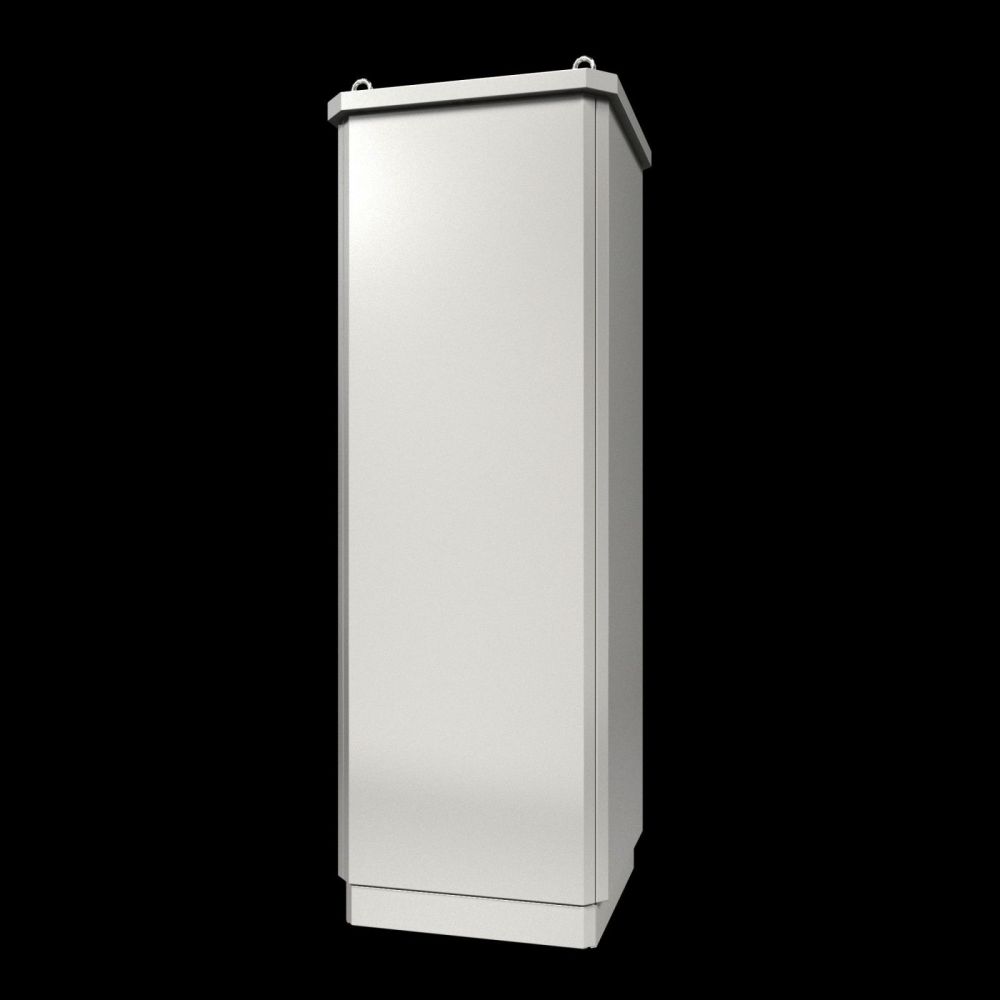

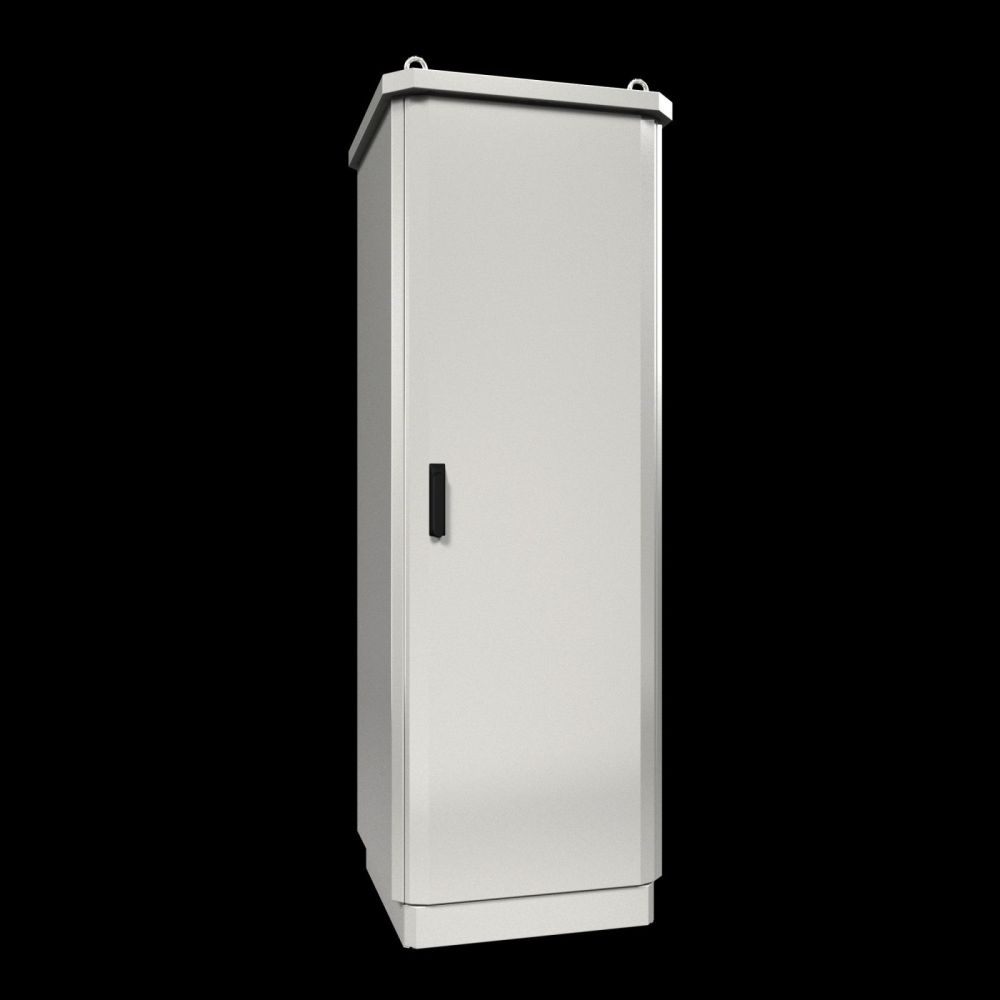

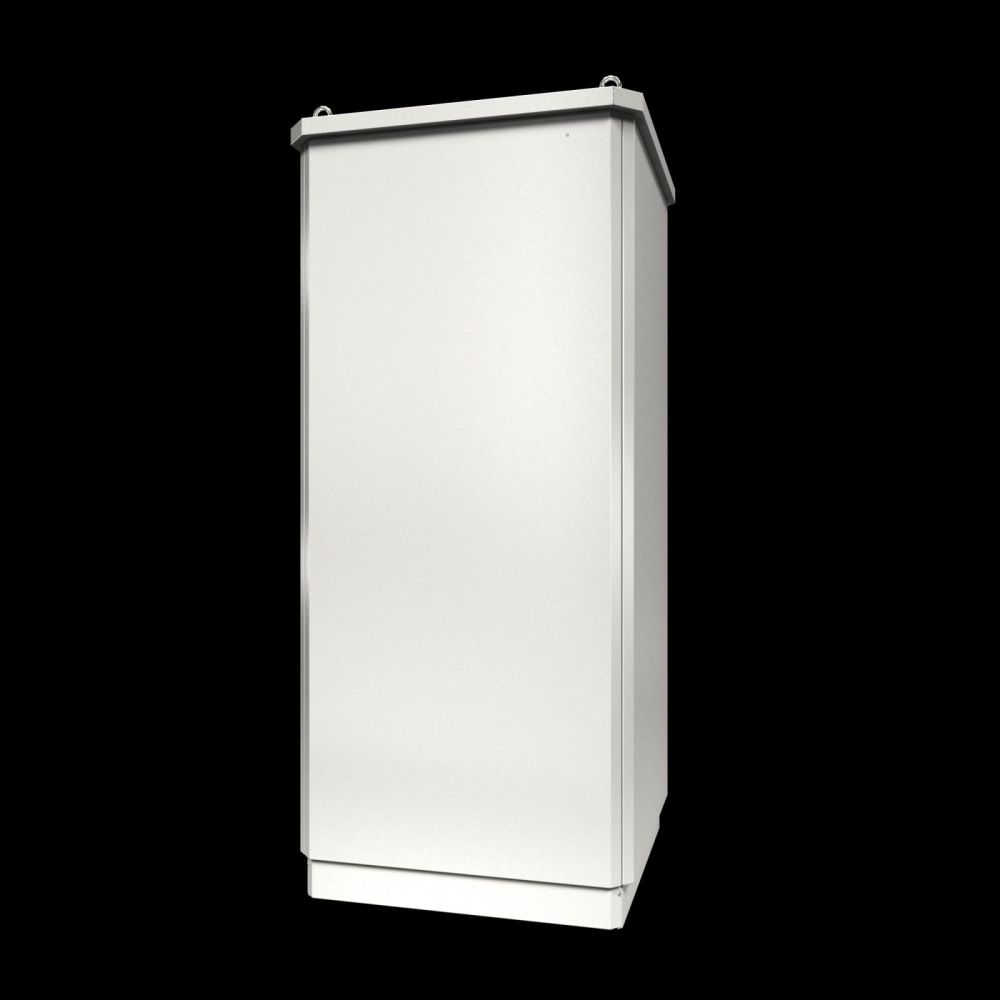

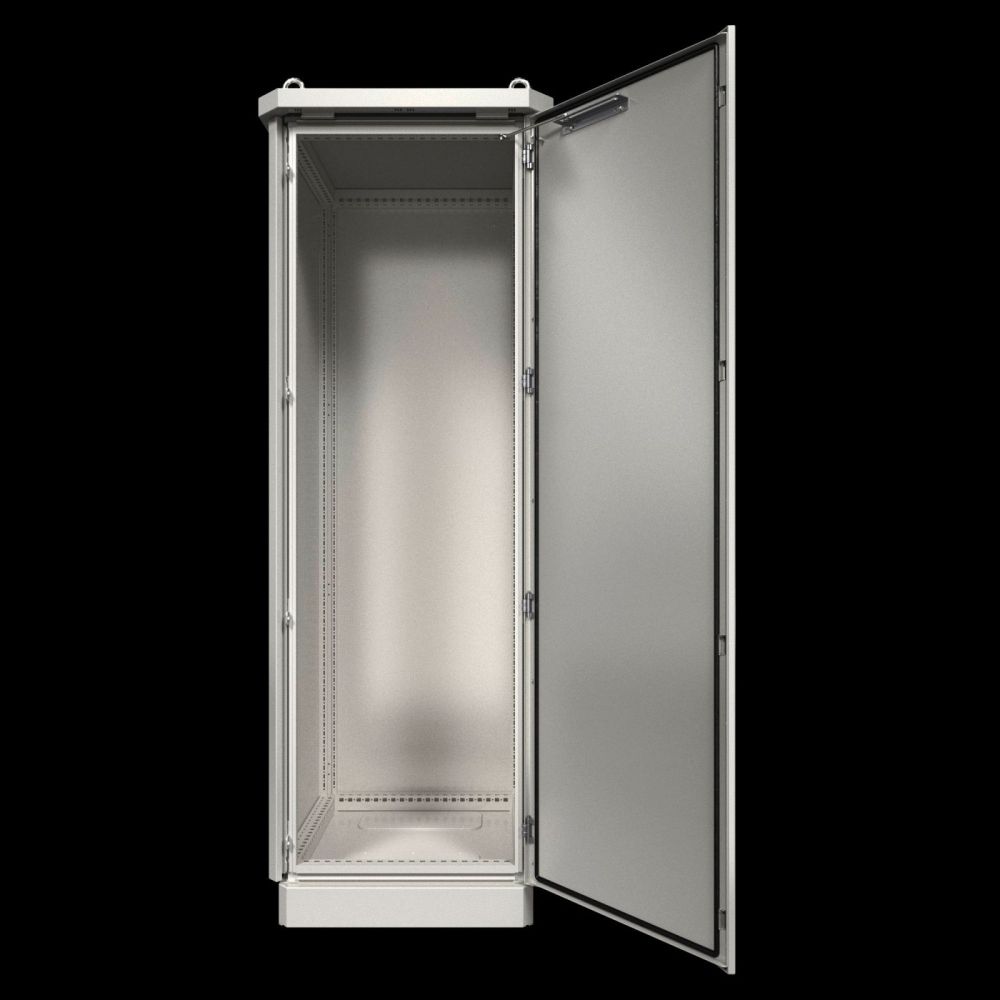

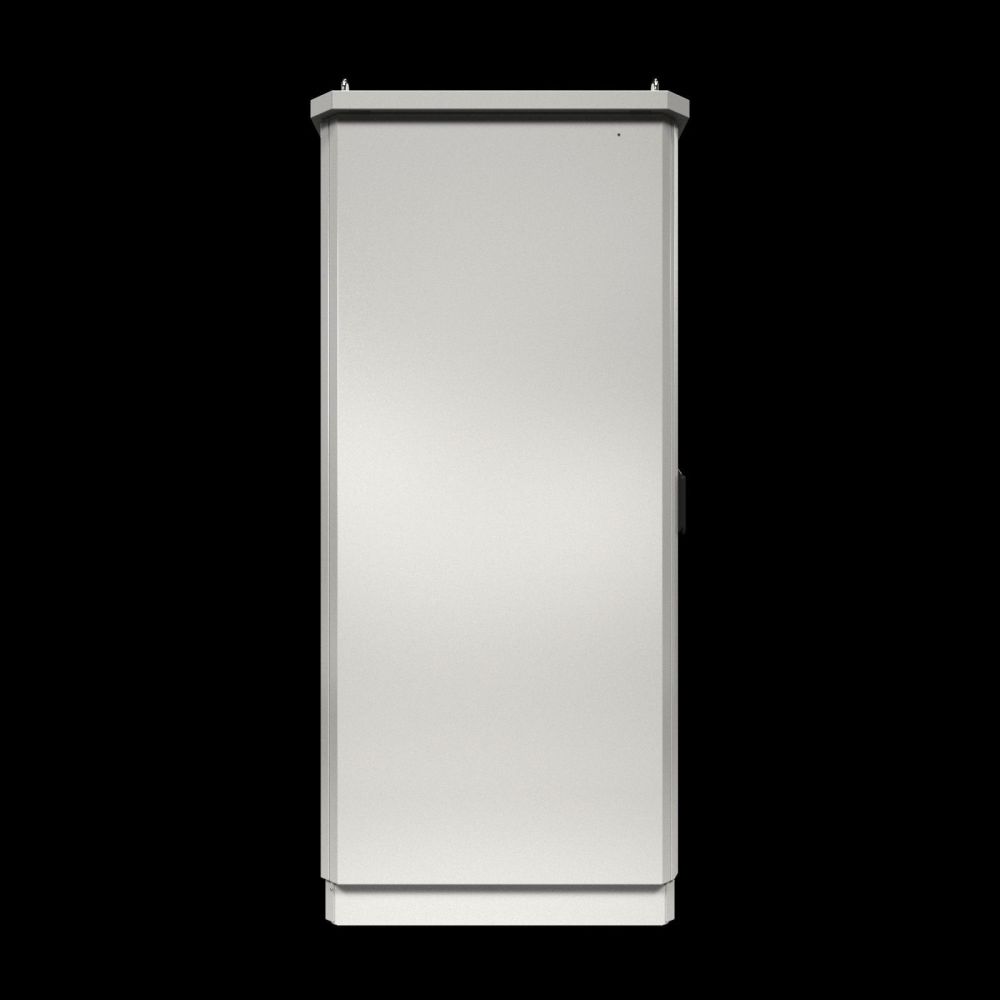

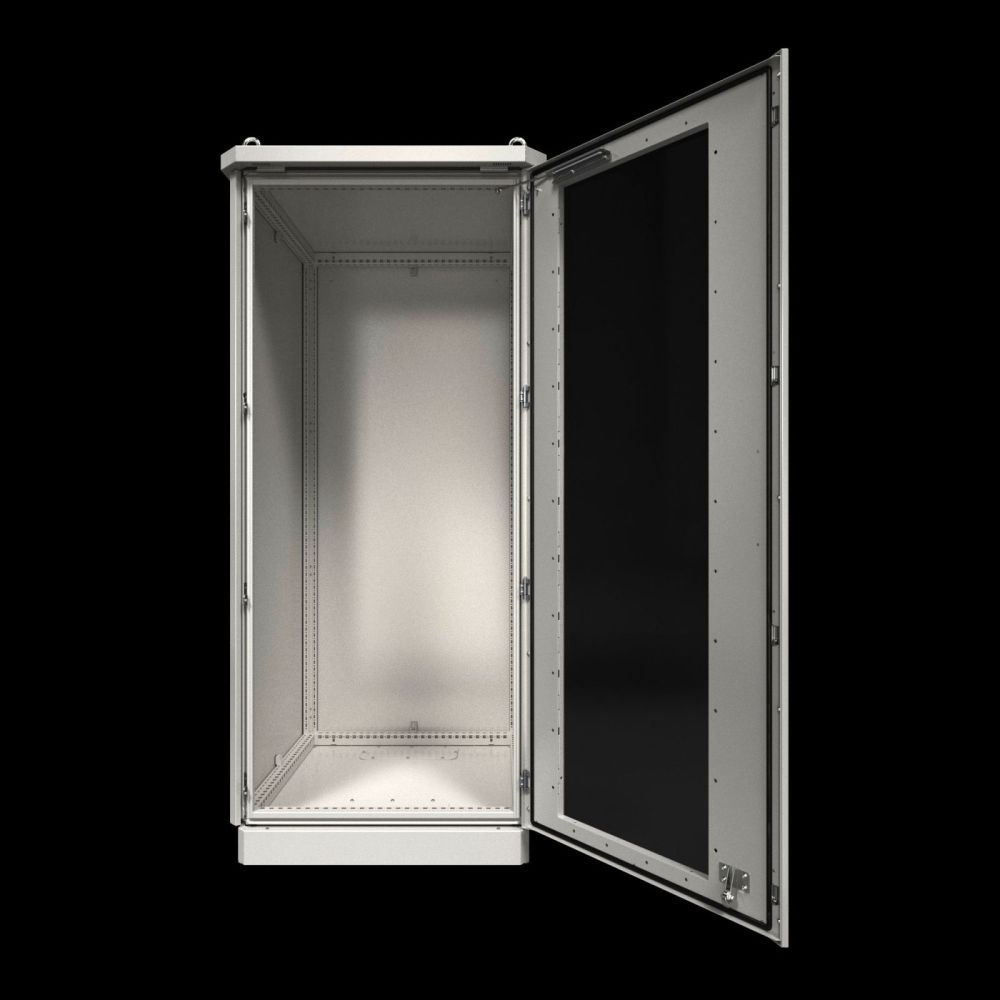

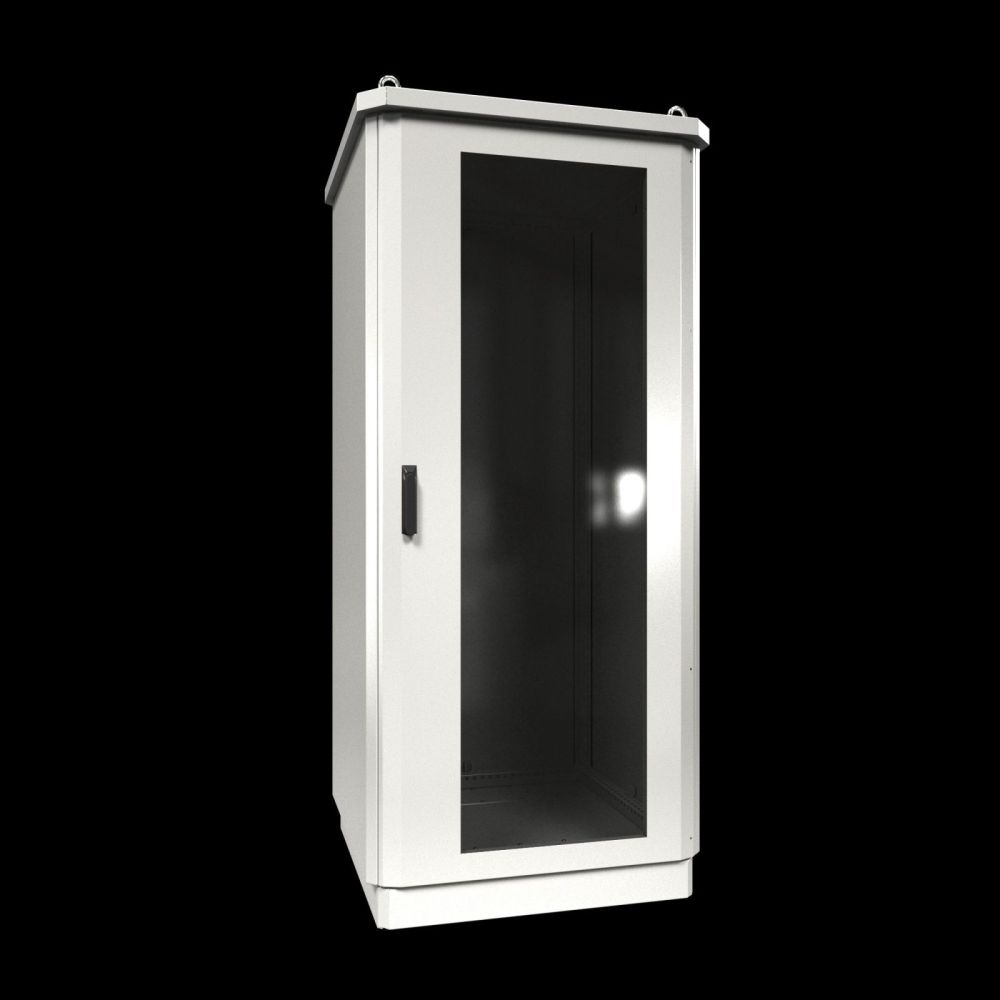

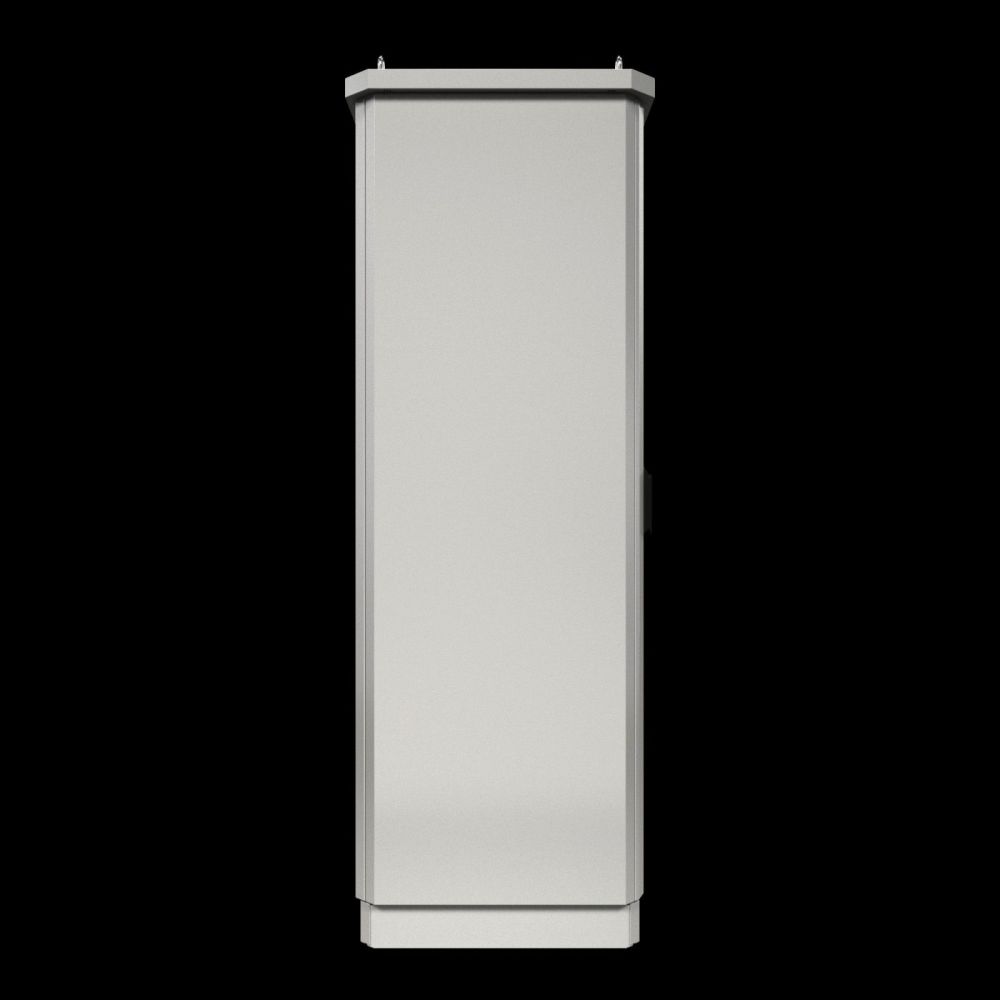

Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8

Your rating:
Average rating
product review for Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8
( 4.5 / 5 ) 2 ratings
Rittal 9868500
This image may differ from the desired article.
Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500Rittal 9868500
2.987,82 EUR
( 3.555,51 EUR incl. VAT )
≈ £2,500.81  |  ≈ $3,283.61
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8
Datasheet:file_download Download
Lieske Part No.:1101327
Mfg Part No: 9868500
UPC/EAN: 4028177962729
Weight:116 kg
Type:CS 9868500

Product information for Rittal 9868500:

The Rittal CS 9868500 is a double-walled outdoor enclosure from the CS Toptec series, designed for outdoor use. It has dimensions of width 800 mm, height 1,600 mm, and depth 800 mm, and is designed as a closed enclosure. The enclosure is delivered fully pre-assembled and is based on the TS 8 frame system, which is fully available for internal installation. The construction is designed for use in industrial environments with high requirements for protection and durability.

Applications
This enclosure is suitable for outdoor use, for example in process automation, power supply, or transportation infrastructure. The double-walled construction with doubled sheet metal parts (outer wall on inner wall) provides effective thermal insulation and protection against environmental influences. The integrated construction with a 100 mm transport plinth and an all-around overhanging rain roof protects against precipitation and enables secure mounting on uneven ground.

Functions and Equipment in Detail
The enclosure is delivered with a pre-assembled enclosure frame featuring a 25 mm system pitch in the roof and base frames as well as in the vertical profiles with two mounting levels. The front door is equipped with a door latch, a swing handle, and a half cylinder compatible with the BJ20027 lock. The side panels, rear panel, and door are fully doubled outward, providing high mechanical stability and improved thermal insulation. The gland plates and trim panels at the plinth are screwed and allow for secure mounting and cable connection.

Technology Explained Simply
The protection rating IP 55 according to IEC 60 529 guarantees protection against dust and splashing water, making the enclosure suitable for outdoor use. The protection ratings NEMA 3R and NEMA 12 complement these protection features and cover additional requirements, such as protection against falling water and dust. The IK code IK10 means the enclosure is resistant to mechanical impacts such as shocks and vibrations up to a certain energy level. The surface is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring high resistance to weathering and UV radiation.

Compatibility and Accessories
The enclosure is part of the CS Toptec system and can be combined with other components to create individual project solutions. Suitable accessories include, among others, thermostats, hygrostats, enclosure heaters with fans, as well as various gland plates and system chassis. For single installations, order number 9774.099 is available, and for baying, number 9774.005. The use of accessory parts enables application-specific adaptation of climate control, mounting, and cable connection.

Mounting and Installation
The enclosure is fully pre-assembled and can be installed directly at the site of use. The pre-fabricated mounting levels in the TS 8 frame facilitate the installation of internal units. The screwed gland plates at the plinth allow for secure fastening to the ground. The integrated door latch and swing handle ensure safe and convenient operation.

Advantages in Operation
The double-walled construction with earthed sheet metal parts ensures high mechanical stability and improved thermal insulation. The protection ratings IP 55, NEMA 3R, and NEMA 12, as well as the IK code IK10, ensure reliable operation under adverse environmental conditions. The powder-coated surface in RAL 7035 offers high resistance to weathering. The pre-assembled design reduces installation time and increases installation safety.

Material and Construction
The enclosure frame is made of stainless steel 1.4301 (AISI 304), the sheet metal parts and plinth trim panels are made of aluminium AlMg3, and the rain roof is also made of aluminium. The material combination ensures high corrosion resistance and mechanical strength. The double-walled construction with doubled sheet metal parts provides effective thermal insulation and protection against environmental influences.

General
ModelWithout breakout
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliveryDouble-walled outdoor housing, fully pre-assembled, cabinet frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, left and right side walls, rear wall, rain roof, base with screwed flange plates and screwed front and rear panels
Width800 mm
Height1.600 mm
Depth800 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts doubled and grounded (outer wall to inner wall), CS Toptec is the basis for project solutions in the outdoor sector. These can be requested under these order numbers: For single installations: 9774.099, for row mounting: 9774.005
Base materialAluminium


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9868500, EAN: 4028177962729

Questions & answers

What is the delivery time of Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8?

The article Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9868500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8 always at the best possible price. We can give you a discount of 2% on Rittal 9868500 Toptec BHT 800x1600x800 mm outdoor enclosure, base TS8 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
