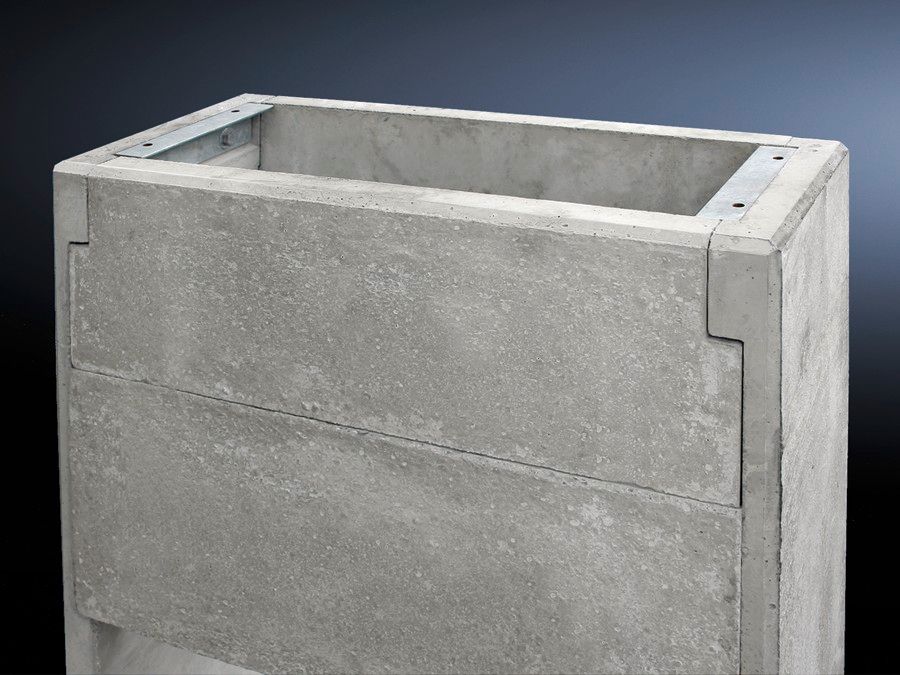

Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm

Your rating:
Average rating
product review for Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm
( 0 / 5 ) 0 ratings
Rittal 9765183
This image may differ from the desired article.
1.068,35 EUR 1.111,08 EUR
( 1.271,34 EUR incl. VAT )
≈ £894.21  |  ≈ $1,174.12
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm
Datasheet:file_download Download
Lieske Part No.:895322
Mfg Part No: 9765183
UPC/EAN: 4028177253551
Weight:316 kg
Type:CS 9765183

Product information for Rittal 9765183:

The Rittal CS 9765183 is a concrete plinth for outdoor enclosures, specifically designed for enclosures of the CS Toptec type with dimensions width 800 mm and depth 800 mm. It serves as a stable foundation for the installation of enclosures in outdoor environments and enables simple, time-saving assembly at the installation site. The plinth is made of lightweight concrete and has an uncoated surface, ensuring a robust and durable structure for industrial operating conditions. The total height is 965 mm, with a burial depth of 700 mm provided to ensure secure anchoring in the ground.

Applications
The concrete plinth is intended for use in outdoor environments, where enclosures must be protected from external influences such as weather, moisture, or mechanical stress. It is particularly suitable for applications in industry, power supply installations, transportation infrastructure, or telecommunications installations, where a stable and durable mounting base is required. The design allows for easy installation without additional foundation work, as the prefabricated components are assembled on-site.

Functions and Equipment in Detail
The plinth consists of a lightweight construction set, assembled from a base plate, two side parts, and two split plinth plates. The front and rear plinth plates are internally screwed and removable, facilitating access to the interior of the enclosure for maintenance and service work. The delivery includes all mounting materials and fastening screws required for assembling the enclosure onto the plinth. The split design of the plinth plates allows for flexible adaptation to the specific mounting situation.

Technology Explained Simply
The plinth is made from prefabricated lightweight concrete elements, which are assembled on-site. This construction reduces assembly time and minimizes the need for extensive construction work at the installation site. The burial depth of 700 mm ensures sufficient anchoring in the ground to stabilize the enclosure against wind loads and mechanical stress. The choice of lightweight concrete offers a good combination of stability and low weight, with the net weight of the plinth being 301 kg.

Compatibility and Accessories
The plinth is specifically designed for enclosures of the CS Toptec type, which have a width of 800 mm and a depth of 800 mm. It is not intended for other enclosure types or dimensions. Compatibility is limited to the specified dimensions, with the enclosure depth also required to be 800 mm.

Assembly and Installation
Assembly takes place at the installation site by putting together the prefabricated components. The base plate is buried in the ground, ensuring the specified depth of 700 mm. The side parts and split plinth plates are then mounted and secured using the included mounting materials. The removable front and rear plates allow easy access to the interior of the enclosure without requiring the entire plinth to be disassembled. The fastening screws are intended for connecting the enclosure to the plinth.

Advantages in Operation
The concrete plinth provides a stable and durable mounting base for outdoor enclosures, extending the service life of the enclosure and facilitating maintenance. The simple on-site assembly reduces installation time and required construction work. The removable plinth plates allow quick access to the interior of the enclosure, making maintenance work more efficient. The use of lightweight concrete ensures sufficient stability while maintaining low weight, which simplifies handling and installation.

General
MaterialLightweight concrete
Surface protectionUncoated
Scope of delivery1 base plate, 2 side parts, 2 split base plates, including mounting material and fastening screws for housing assembly
Buried depth700 mm
Notelead time on request
Height965 mm
Suitable forhousing type: CS Toptec, width: 800 mm, depth: 800 mm
Suitable for depth800 mm


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9765183, EAN: 4028177253551

Questions & answers

What is the delivery time of Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm?

The article Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9765183 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9765183 CS CS concrete plinth W x D: 800x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
