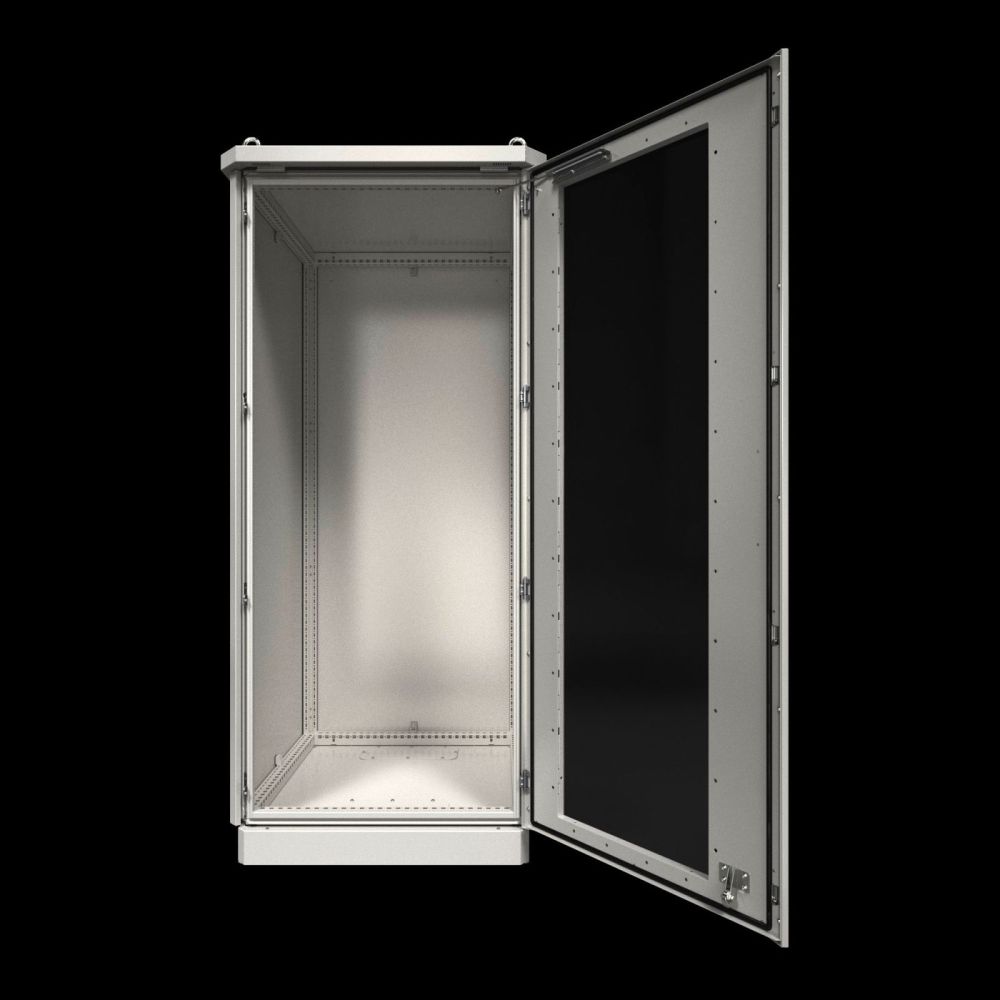

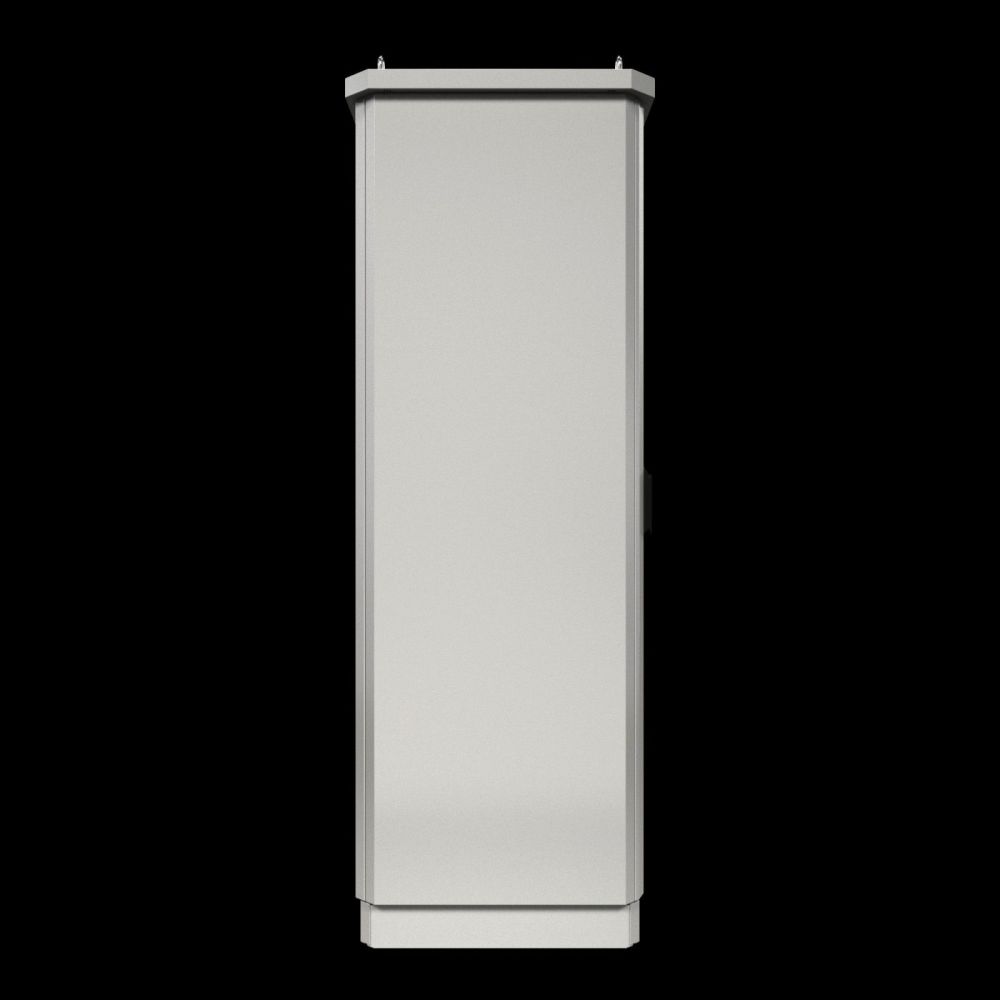

Rittal 9828550 Toptec 800x1200x800 mm outdoor enclosure, base TS8, with

Your rating:
Average rating
product review for Rittal 9828550 Toptec 800x1200x800 mm outdoor enclosure, base TS8, with
( 4.2 / 5 ) 5 ratings
Rittal 9828550
This image may differ from the desired article.
Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550Rittal 9828550
2.802,55 EUR 2.829,35 EUR
( 3.335,03 EUR incl. VAT )
≈ £2,345.73  |  ≈ $3,080.00
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9828550 Toptec 800x1200x800 mm outdoor enclosure, base TS8, with
Datasheet:file_download Download
Lieske Part No.:1101326
Mfg Part No: 9828550
UPC/EAN: 4028177962736
Weight:84 kg
Type:CS 9828550

Product information for Rittal 9828550:

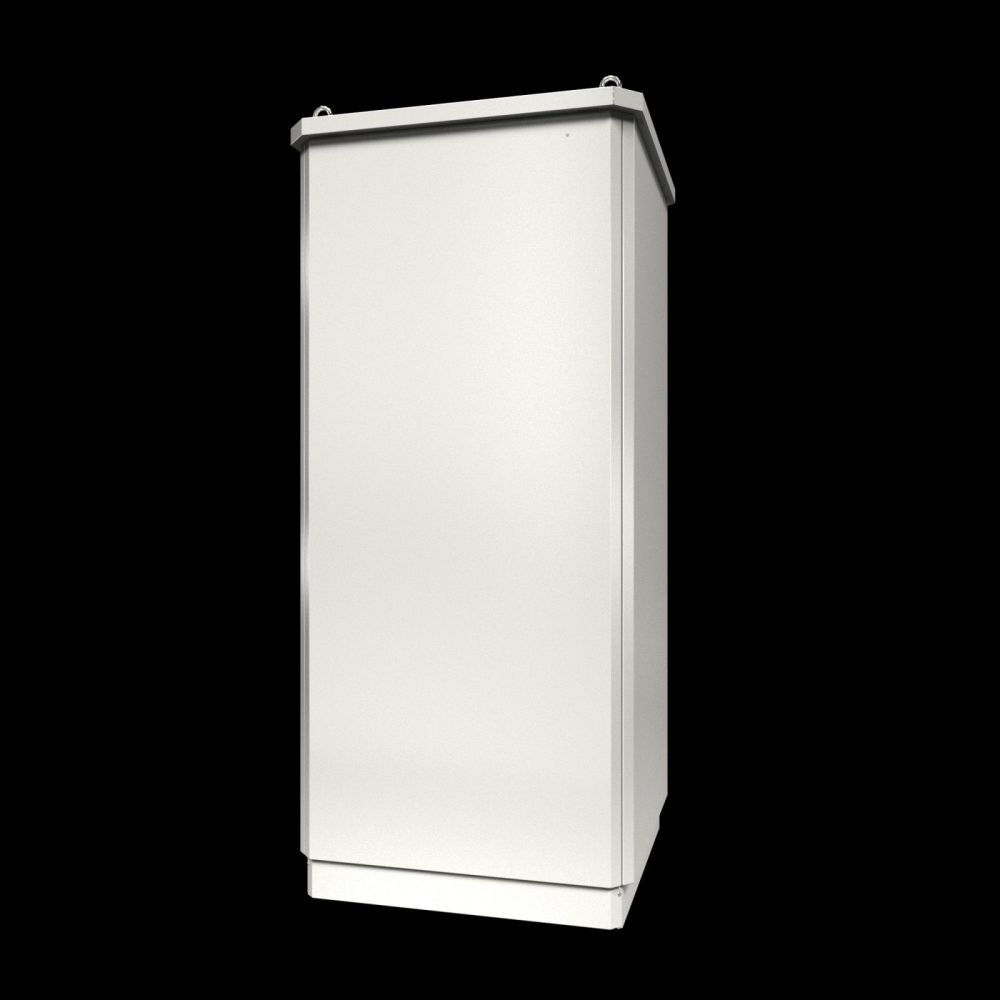

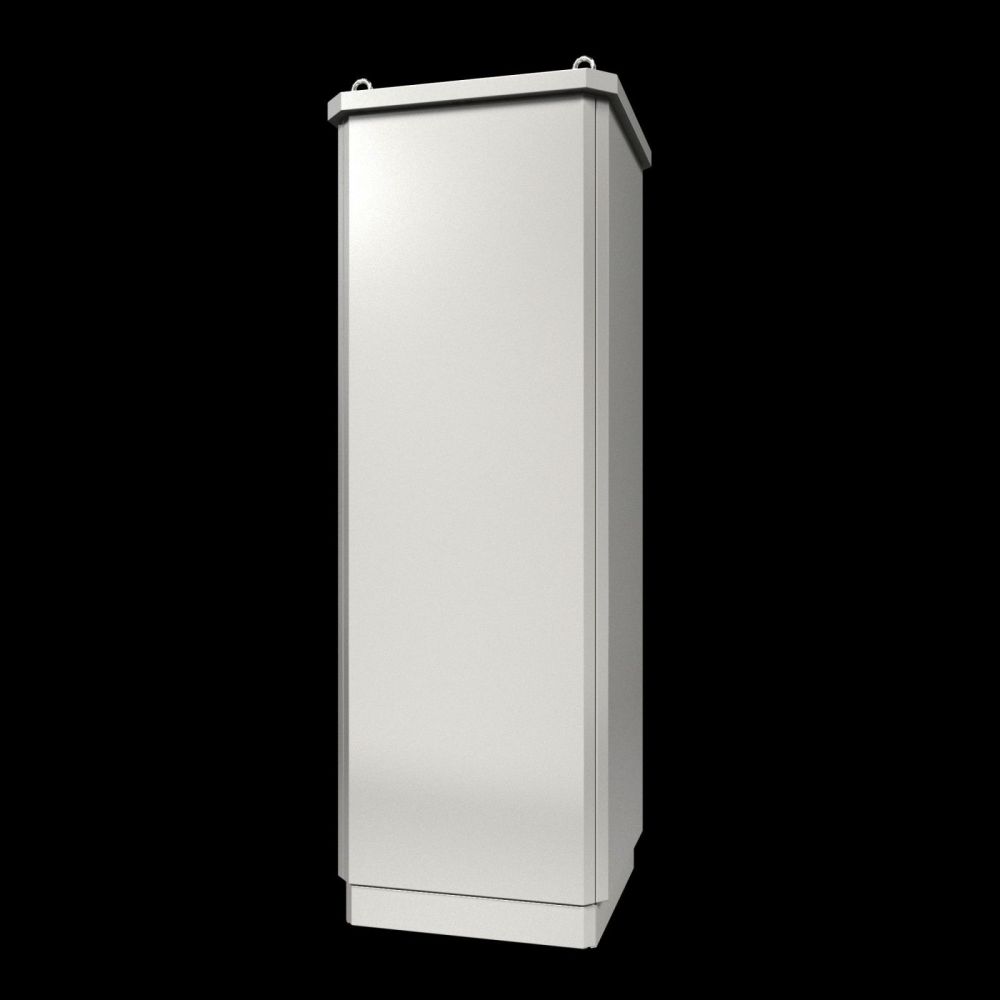

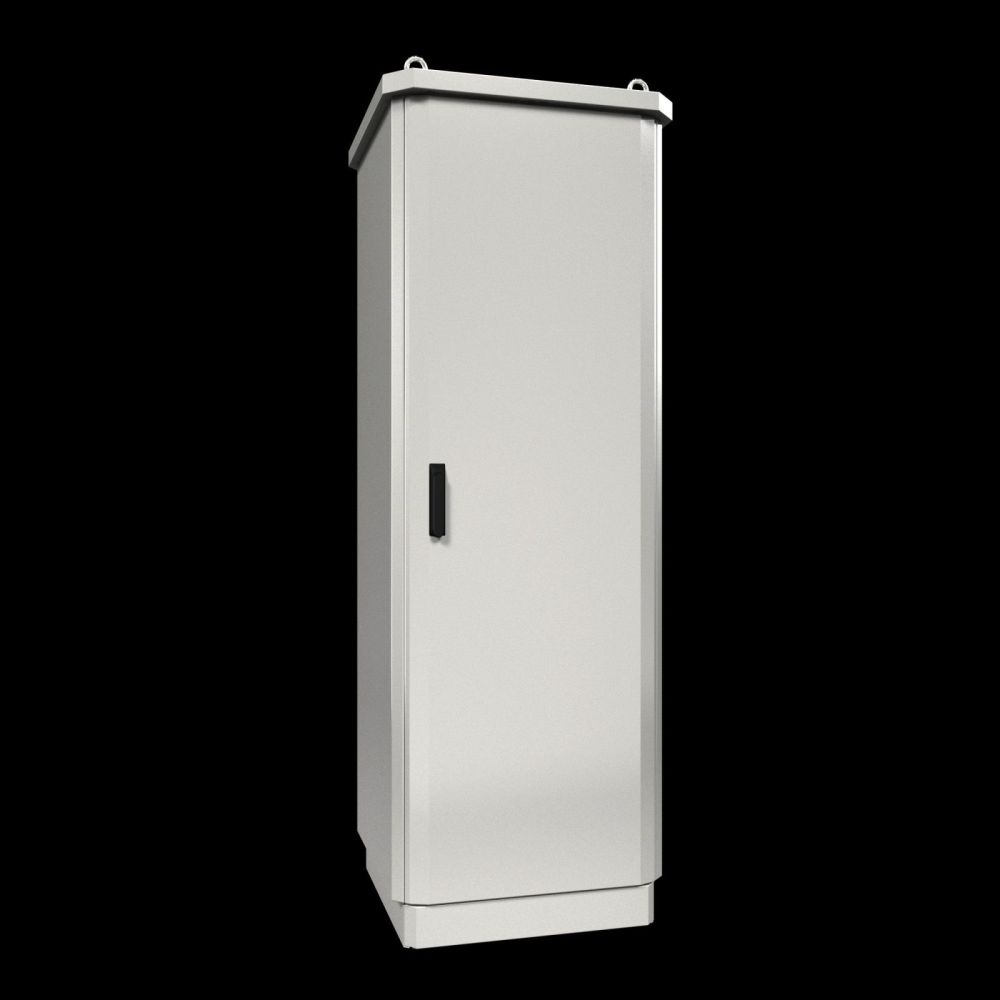

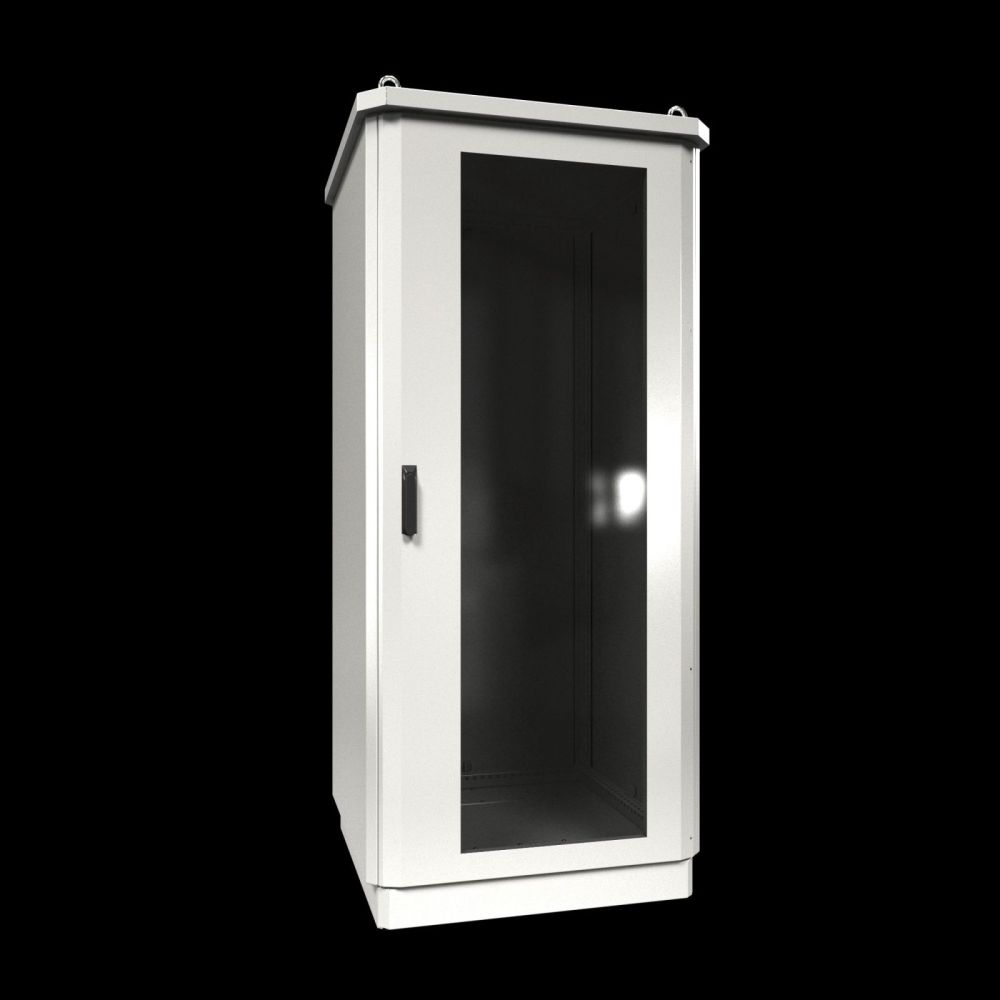

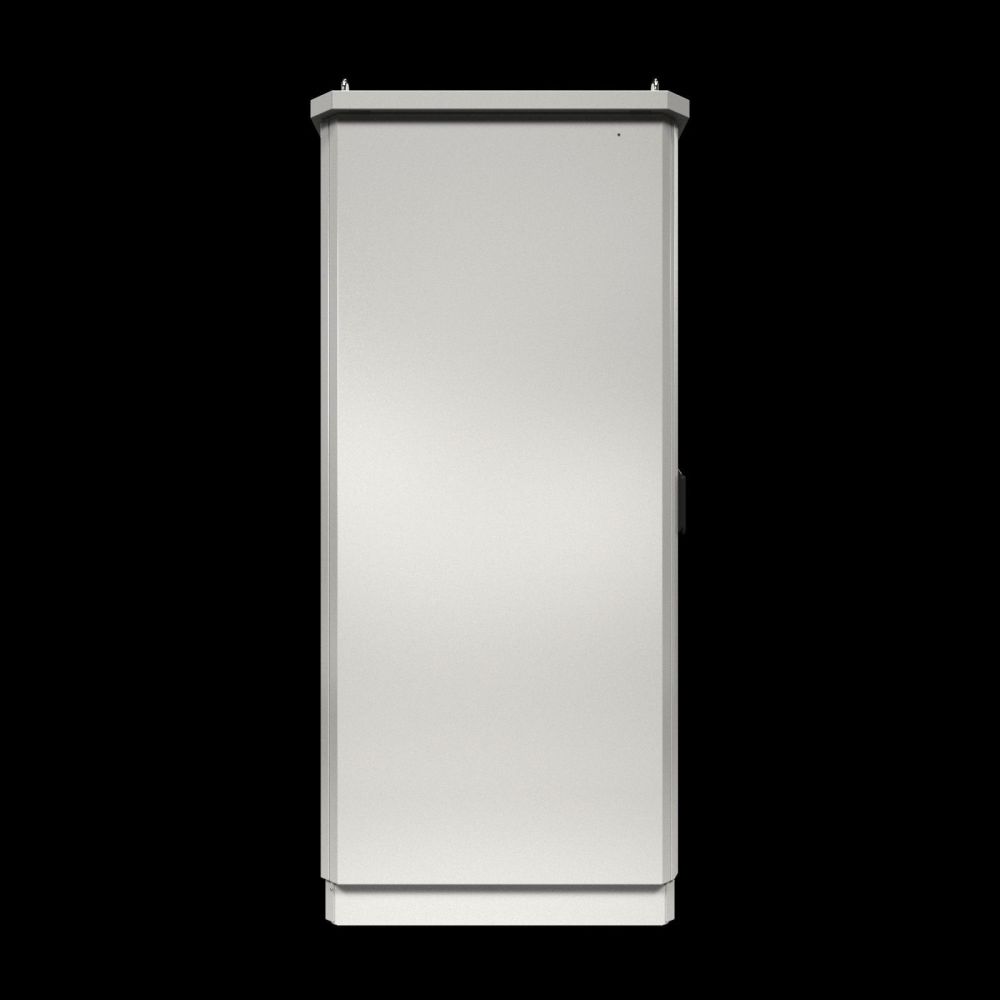

The Rittal CS 9828550 is a double-walled outdoor enclosure from the Toptec series, designed for outdoor use. It features dimensions of width 800 mm, height 1,200 mm, and depth 800 mm, and is equipped with an opening for an outdoor climate unit with a power rating of 1.5 kW. The enclosure is fully pre-assembled and includes a TS 8 frame with 25 mm system perforation in the roof and base frames as well as in the vertical profiles, providing two mounting planes for internal installation. The front door is fitted with a door latch, a swing handle, and a half cylinder that supports the locking mechanism BJ20027. The side walls, rear wall, and door are fully double-walled on the outside, ensuring effective thermal insulation and protection against environmental influences. All flat parts are earthed, with the outer wall earthed to the inner wall, ensuring a secure electrical connection.

Applications
This enclosure is designed for outdoor use, particularly in environments with high humidity, temperature fluctuations, or direct sunlight. It is suitable for industrial applications such as automation technology, power supply, or process control, where reliable protection against dust, splashing water, and mechanical impacts is required. The version with an opening allows integration of climate units for temperature control inside the enclosure.

Functions and Equipment in Detail
The enclosure features a rain roof that overhangs on all sides to divert precipitation and prevent water ingress into the cabinet. The plinth is equipped with screwed gland plates and front and rear trim panels, ensuring secure mounting and a closed finish. The front door is fitted with a 4-point locking system, enabling secure closure. The surface is powder-coated with UV-resistant pure polyester in the color RAL 7035, providing high resistance to weathering and UV radiation.

Technology Explained Simply
The double-walled construction provides thermal separation between the interior and the external environment, maintaining stable internal temperatures. The materials consist of stainless steel 1.4301 (AISI 304) for the enclosure frame and aluminum AlMg3 for the flat parts and rain roof. This material combination offers high corrosion resistance and mechanical strength. The protection rating IP 55 according to IEC 60 529 protects against dust and splashing water, while the protection ratings NEMA 3R and NEMA 12 meet additional protection criteria for outdoor use. The IK code IK10 ensures high protection against mechanical impacts, such as blows or shock loads.

Compatibility and Accessories

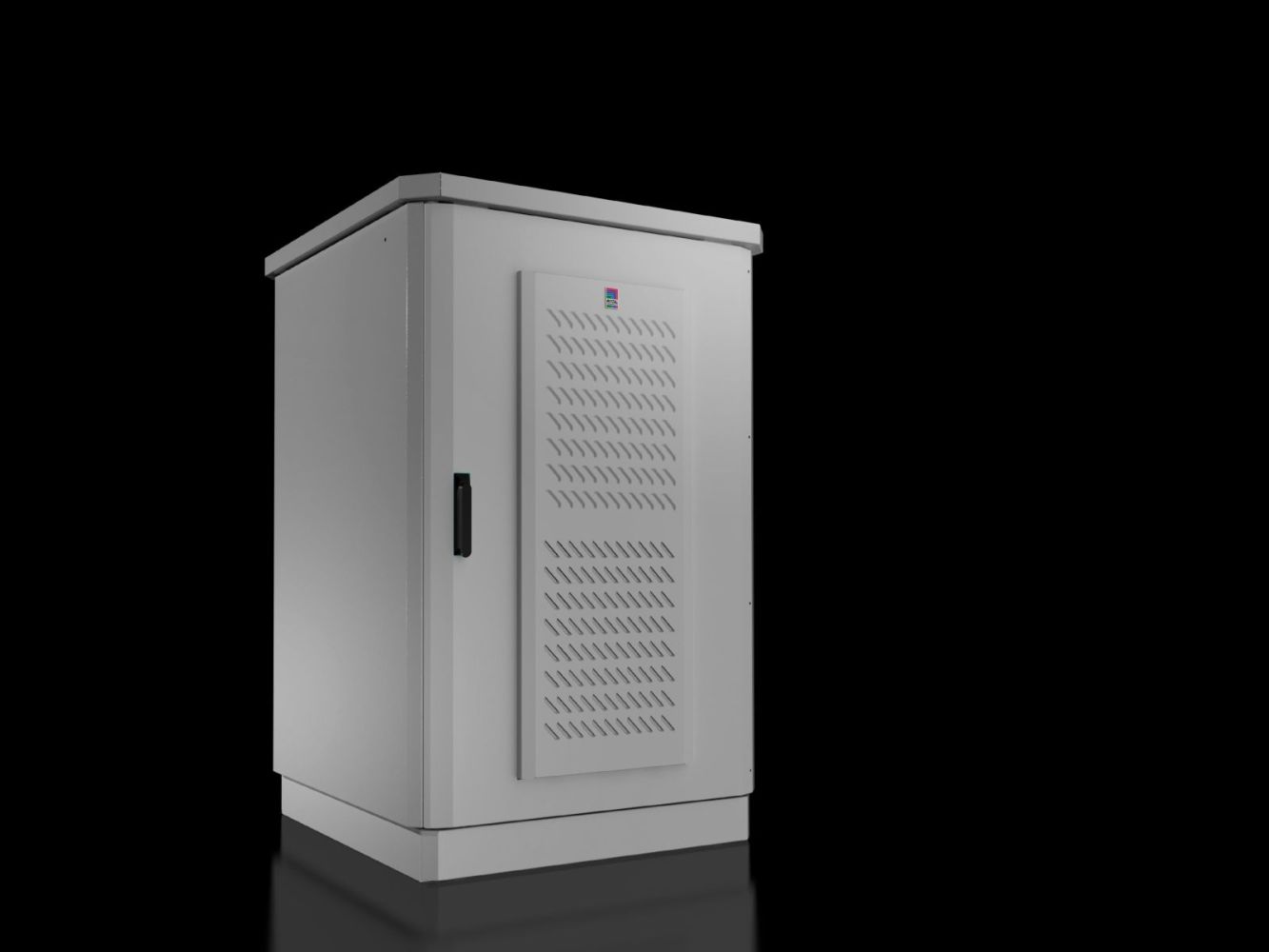

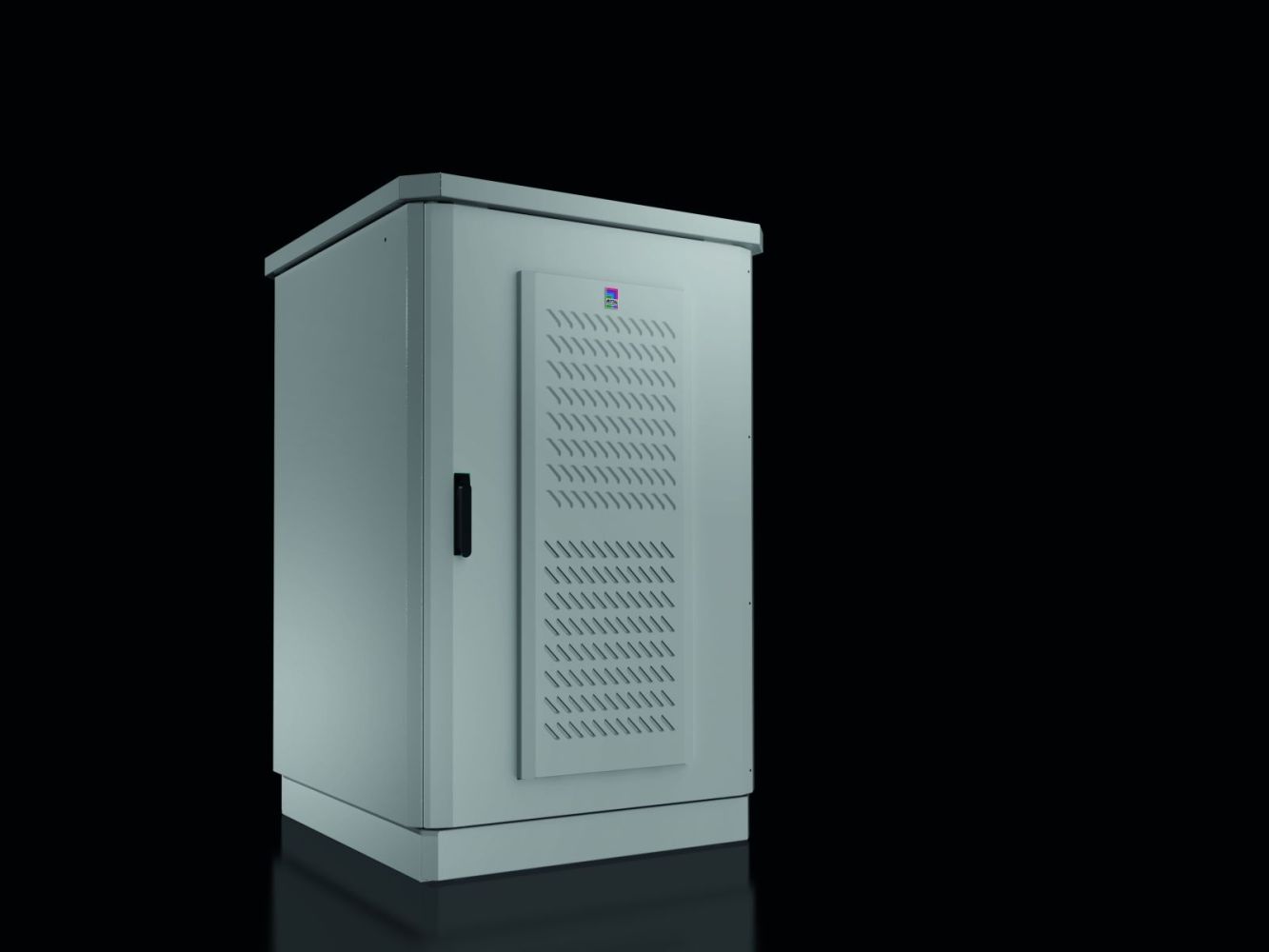

The enclosure is equipped with an opening for an outdoor climate unit with 1.5 kW. To close the opening, either a climate unit or a blanking plate is required. Compatible accessories include thermostats, hygrostats, enclosure heaters with fans, CS blanking plates for Toptec, as well as concrete plinths and gland plates. These components can be used to optimize climate control, mounting, or safety within the enclosure. The CS Toptec series serves as the basis for project solutions in outdoor environments, with order number 9774.099 for single installations and 9774.005 for baying applications.

Mounting and Installation
The enclosure is fully pre-assembled and can be installed directly. Mounting is done via the plinth with screwed gland plates, ensuring stable fixation to the base. The system perforation in the TS 8 frame allows flexible mounting of internal units such as enclosures, controls, or other electrical components. The pre-assembled construction reduces installation effort and accelerates commissioning.

Operational Advantages
The double-walled construction and earthed flat parts ensure high safety and reliability in operation. Protection ratings IP 55, NEMA 3R, and NEMA 12, along with IK code IK10, provide high protection against environmental influences and mechanical stress. The UV-resistant surface in RAL 7035 ensures long service life and an attractive appearance. The integrated system perforation enables flexible and quick installation of internal units, facilitating maintenance and expansion of the enclosure.

General
ModelWith cutout for outdoor climate unit 1.5 kW
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035

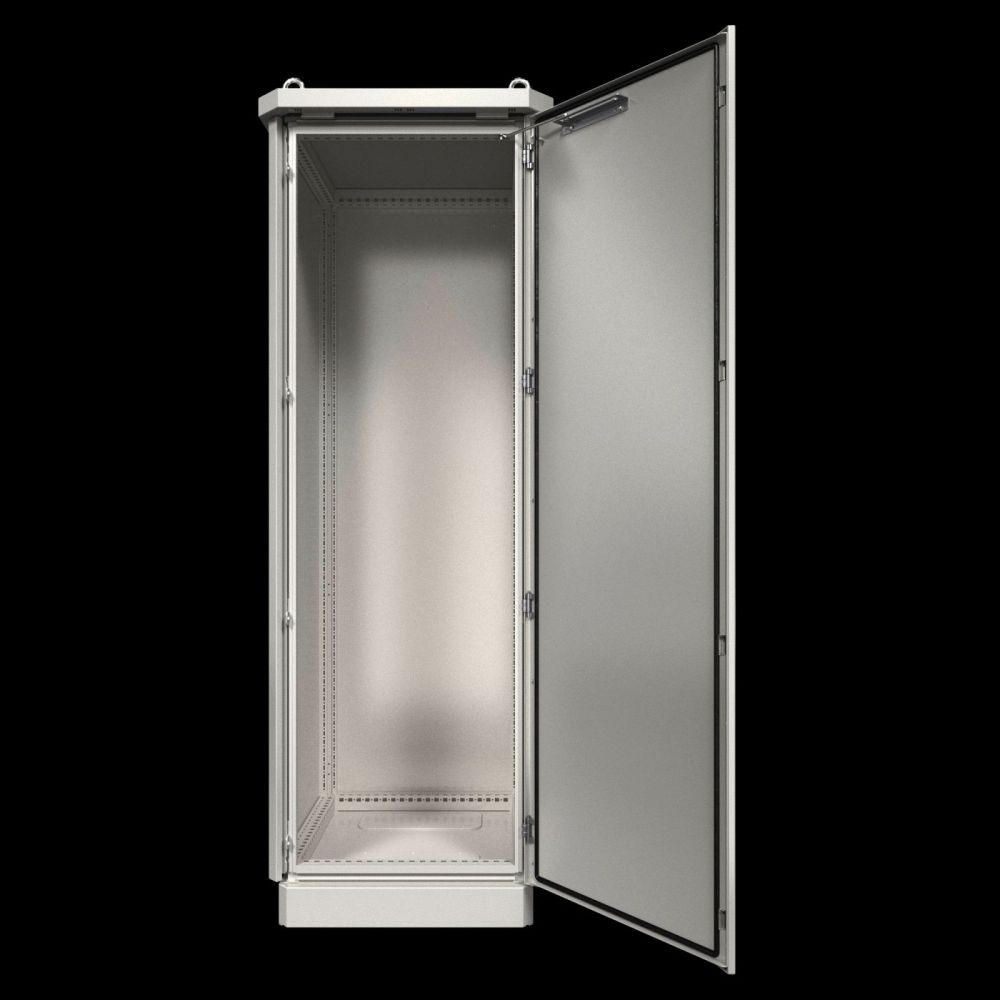

Scope of deliveryDouble-walled outdoor housing, fully pre-assembled, cabinet frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, left and right side walls, rear wall, rain roof, base with screwed flange plates and screwed front and rear panels
Width800 mm
Height1.200 mm
Depth800 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts doubled and grounded (outer wall to inner wall), CS Toptec is the basis for project solutions in the outdoor sector. These can be requested under these order numbers: For single installations: 9774.099, for row mounting: 9774.005
Note on part numberTo close the opening, an air conditioning unit or a blanking plate is required
Base materialAluminium


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9828550, EAN: 4028177962736
