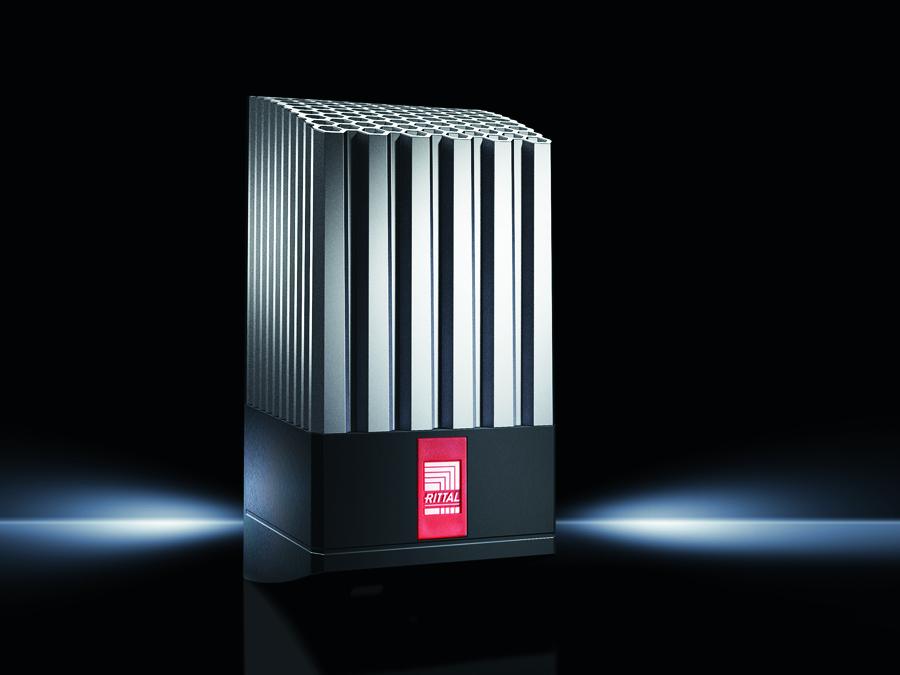

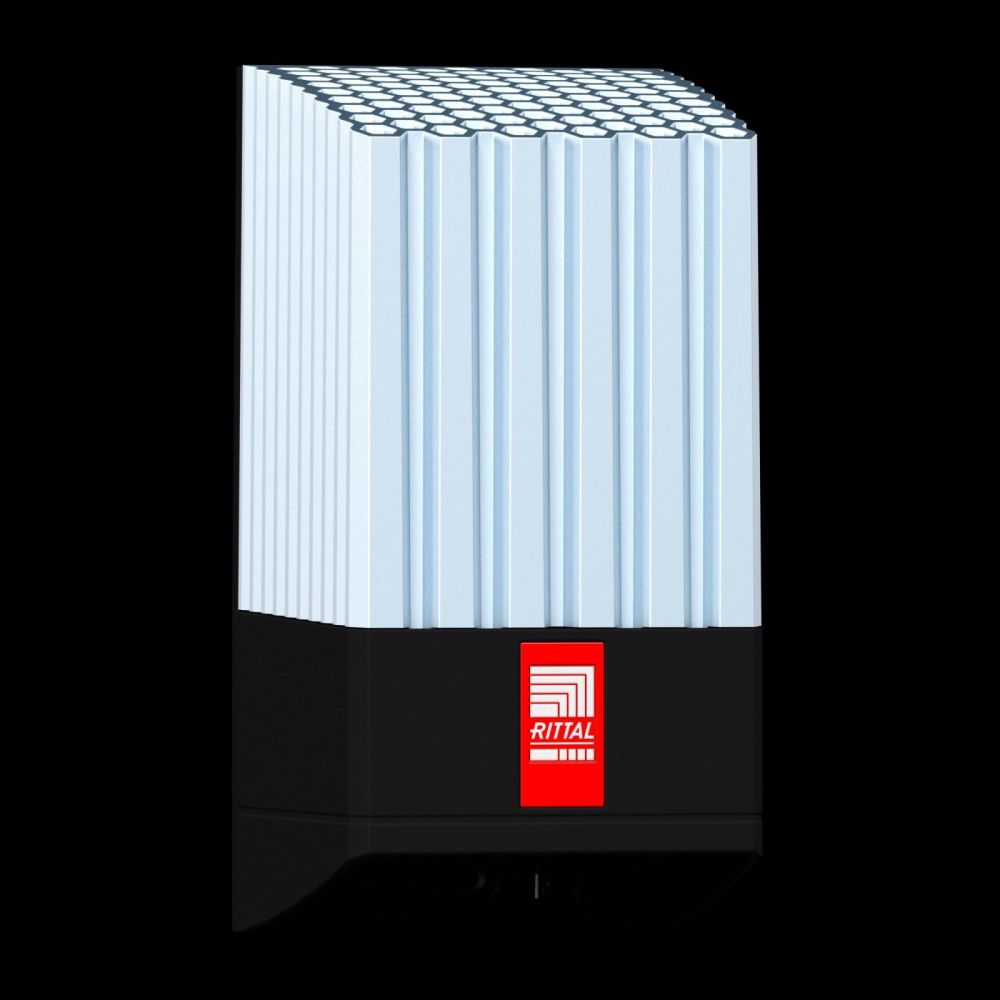

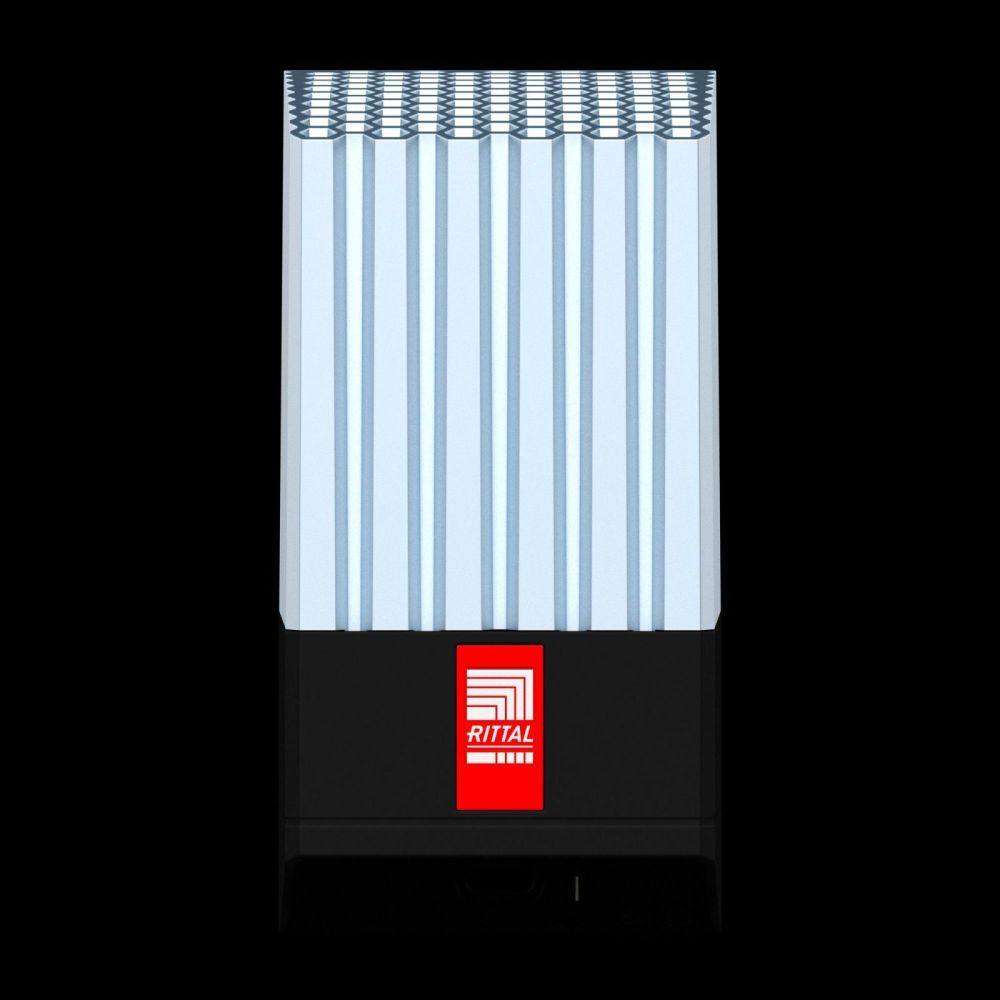

Rittal 3105400 enclosure heater with fan BHT: 103x200x103 mm (freight shipping)
|
203,67 EUR 211,82 EUR |
|
|
( 242,37 EUR incl. VAT ) ≈ £172.92 | ≈ $229.54 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 955208 |
| Mfg Part No: | 3105400 |
| UPC/EAN: | 4028177662889 |
| Weight: | 1.2 kg |
| Type: | SK 3105400 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3105400:
Supply includes: PTC heater
Fan
Quick-connection terminal
Assembly parts
Note: For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat or the digital enclosure internal temperature display and thermostat.
In order to prevent condensation on assemblies, a hygrostat is recommended to regulate heating.
In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.
The installation of heaters is generally advisable, in order to prevent condensation.
Packs of: 1 pc(s).
EAN: 4028177662889
Customs tariff number: 85162999
eCl@ss 5.1: 27180710
eCl@ss 7.0: 27180710
ETIM 6.0: EC000737
Continuous thermal output at 10°C: 800 W - 870 W
Note: Continuous thermal output with fan
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 103 mm
Height: 200 mm
Depth: 103 mm
Pre-fuse: Miniature circuit-breaker/fuse: 6 A
Fans pre-integrated: yes
Weight/pack: 1.22 kg
Fan
Quick-connection terminal
Assembly parts
Note: For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat or the digital enclosure internal temperature display and thermostat.
In order to prevent condensation on assemblies, a hygrostat is recommended to regulate heating.
In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.
The installation of heaters is generally advisable, in order to prevent condensation.
Packs of: 1 pc(s).
EAN: 4028177662889
Customs tariff number: 85162999
eCl@ss 5.1: 27180710
eCl@ss 7.0: 27180710
ETIM 6.0: EC000737
Continuous thermal output at 10°C: 800 W - 870 W
Note: Continuous thermal output with fan
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 103 mm
Height: 200 mm
Depth: 103 mm
Pre-fuse: Miniature circuit-breaker/fuse: 6 A
Fans pre-integrated: yes
Weight/pack: 1.22 kg
