Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x

Your rating:
Average rating
product review for Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x
( 4.4 / 5 ) 58 ratings
Rittal 9784540
This image may differ from the desired article.
Rittal 9784540Rittal 9784540Rittal 9784540Rittal 9784540Rittal 9784540Rittal 9784540Rittal 9784540
-8% 1.357,00 EUR 1.469,67 EUR
( 1.614,83 EUR incl. VAT )
≈ £1,135.81  |  ≈ $1,491.34
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x
Datasheet:file_download Download
Lieske Part No.:1013592
Mfg Part No: 9784540
UPC/EAN: 4028177569218
Weight:71 kg
Type:CS 9784540

Product information for Rittal 9784540:

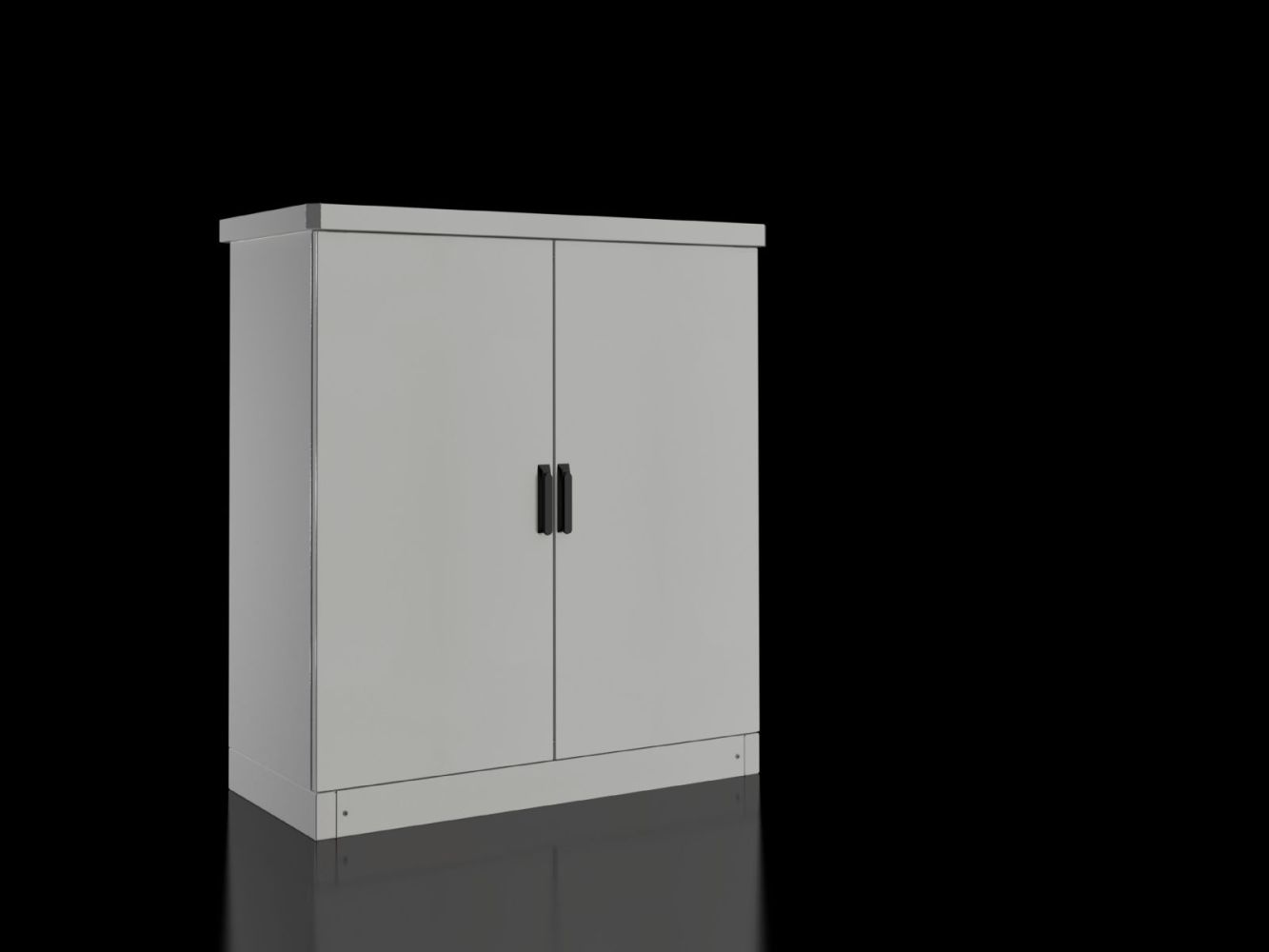

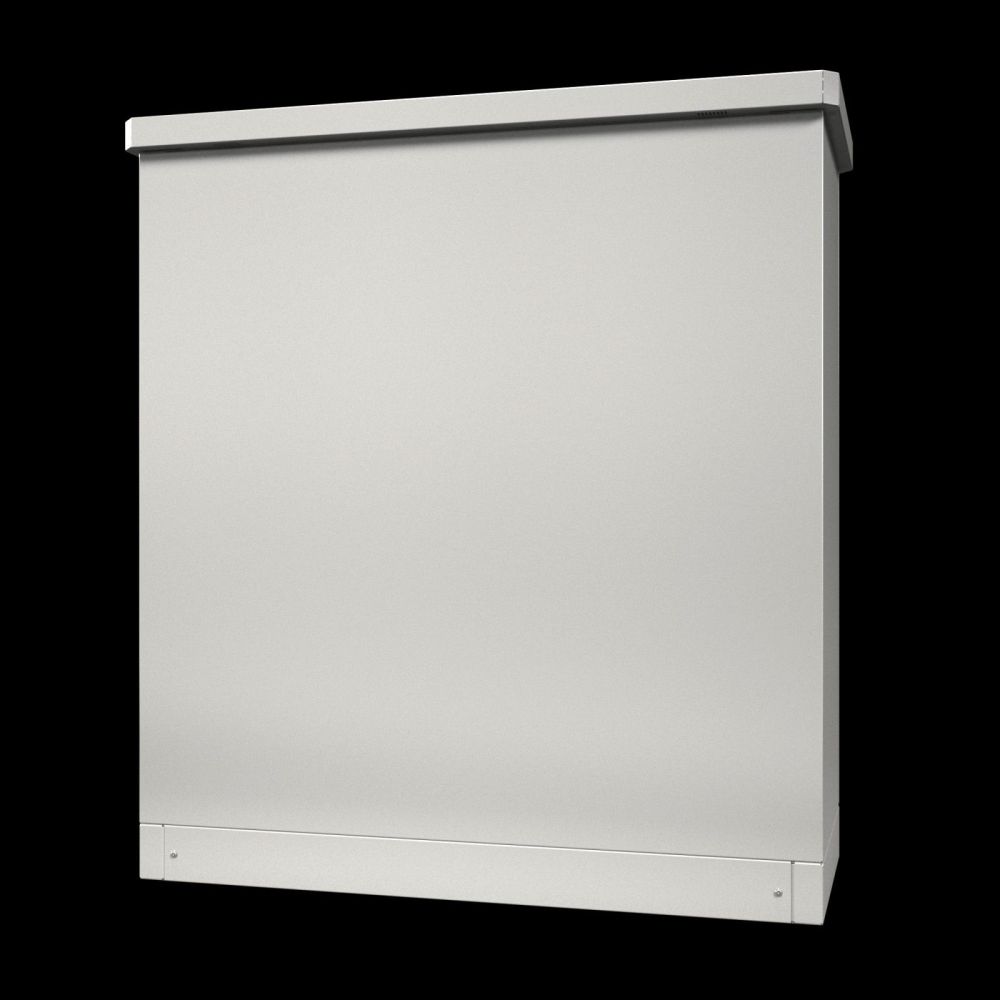

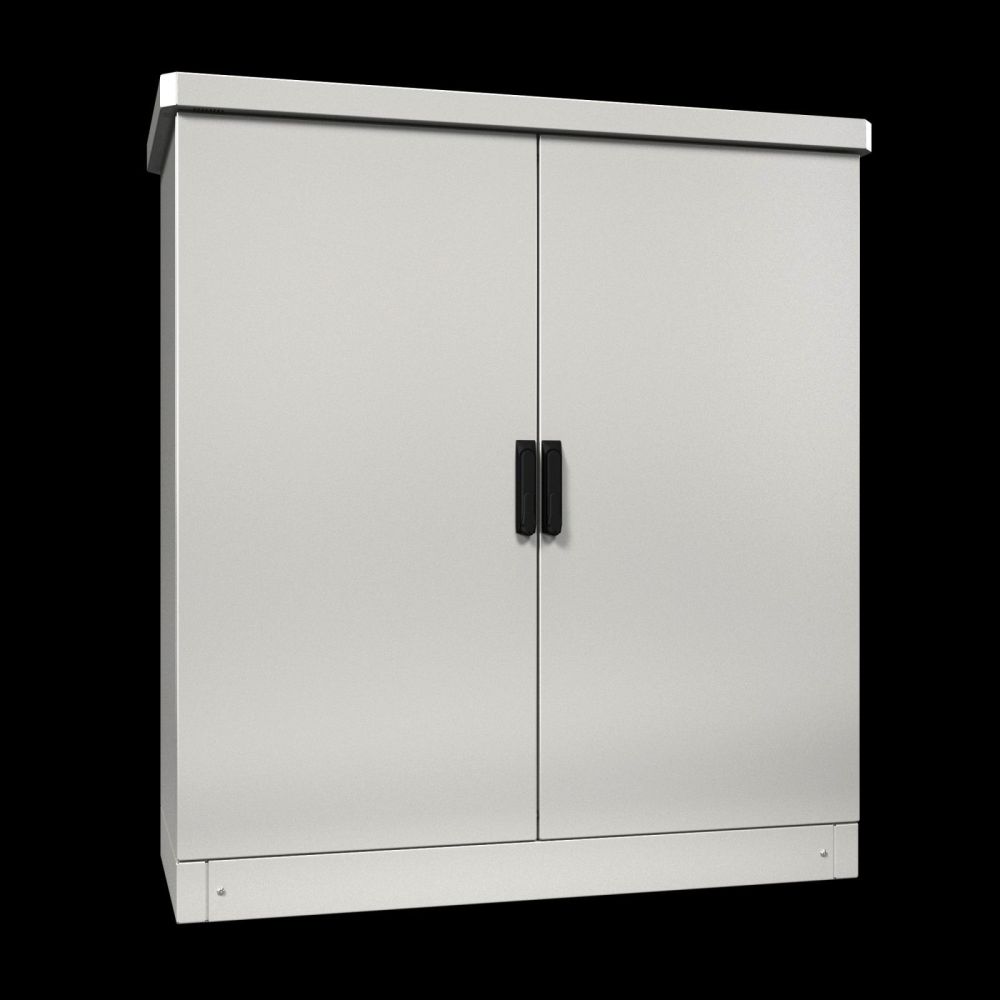

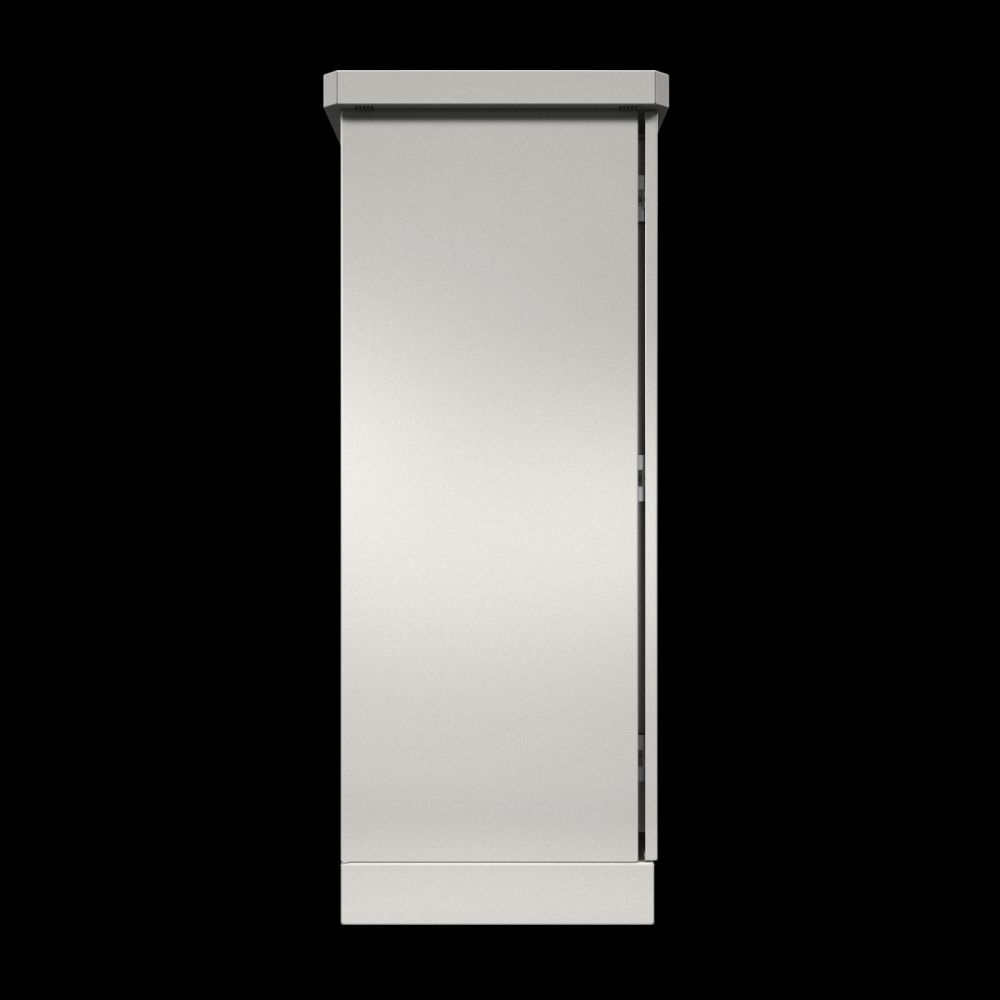

The Rittal Outdoor Basic enclosure CS 9784540 is a single-walled, pre-assembled enclosure made of aluminium AlMg3, specifically designed for outdoor use. It features dimensions W x H x D 1200x1200x500 mm and is equipped with a 100 mm high transport plinth and an all-round overhanging rain roof. The front side is double-door, with doors fitted with a door latch, a swing handle, and a half cylinder. The locking system is based on the BJ20027 system. The surface is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring high resistance to weather influences.

Applications
This enclosure is suitable for use in industrial outdoor installations, such as in power supply, process automation, or switchgear construction. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, allowing safe operation even in rain and humid environments. The IK code IK10 indicates high mechanical stability against mechanical impacts. The type rating according to UL 50E, Type 3R, confirms suitability for outdoor use with protection against rain and sunlight.

Functions and Equipment in Detail

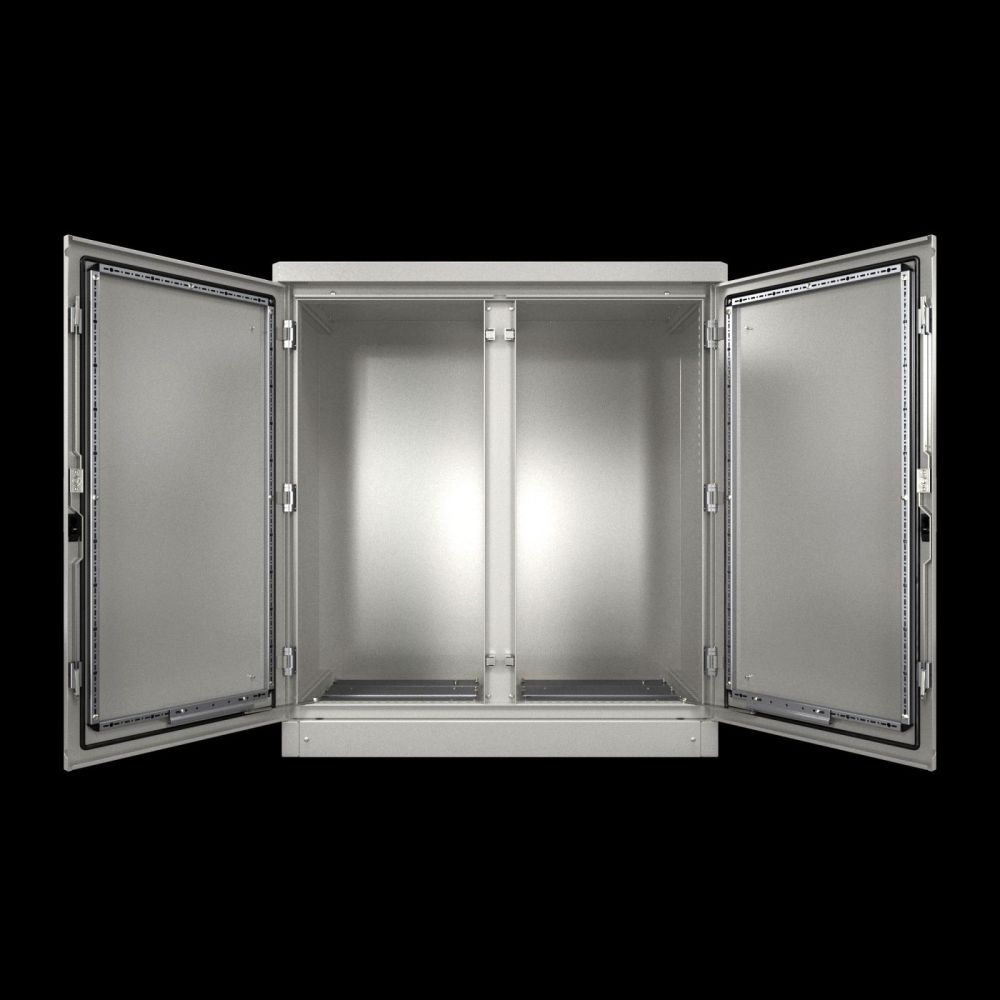

The enclosure is built in three parts and includes a base plate as well as a 25 mm system perforation in the roof, base, front, and depth of the enclosure, enabling flexible mounting of components. The front door features a removable centre brace, allowing the installation of two separate 600 mm wide mounting areas. The clear dimensions are 1,112 mm (width and height) and 449 mm (depth), providing sufficient space for installing enclosure components. The total height of the enclosure is 1,355 mm, with the rain roof having a width of 1,250 mm, a height of 55 mm, and a depth of 550 mm.

Technology Explained Simply
The use of aluminium AlMg3 ensures high corrosion resistance and mechanical strength. The powder-coated surface in RAL 7035 provides long service life and weather resistance. The IP protection class 55 means the enclosure is protected against dust and splashing water, which is essential for outdoor use. The IK code IK10 guarantees protection against mechanical impacts such as shocks or vibrations up to a certain energy level. The integrated door latch and swing handle ensure safe and convenient operation.

Compatibility and Accessories
The enclosure is compatible with various accessories suitable for individual adaptation and expansion. These include, for example, enclosure heaters with fans, half cylinders for handle systems, profile rails DK 24HE H1200 mm, mounting brackets for 48,3 cm ( 19 inch ) profile rails, mounting plates for CS New Basic enclosures, and thermostats for internal temperature control. The mounting plate CS 9765092 with dimensions 600x1200 mm is specifically designed for Outdoor Module and Basic enclosures and can be used for better mounting of components.

Mounting and Installation
The enclosure is fully pre-assembled and can be installed directly at the site of use. The transport plinth with screwed front and rear panels facilitates transportation and installation. The 25 mm system perforation allows flexible mounting of components and enclosure parts. The doors are equipped with a swing handle and a half cylinder, ensuring safe and convenient operation.

Advantages in Operation
The enclosure offers high mechanical and weather-resistant quality, suitable for long-term outdoor use. The integrated door latch and swing handle ensure safe operation. The 25 mm system perforation and clear dimensions enable flexible and efficient mounting of components. Compatibility with various accessories allows individual adaptation to specific requirements.

General
MaterialAluminium AlMg3
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliverySingle-piece outdoor enclosure, fully pre-assembled, base enclosure with base plate, three-piece, 25 mm system spacing in roof, base, front and depth of enclosure, front door(s) with door latch, swing handle and profile half-cylinder, locking mechanism BJ20027, transport base with screwed front and rear panels, rain shield
Width1.200 mm
Height1.200 mm
Depth500 mm
DimensionsOverall height: 1.355 mm, rain hood width: 1.250 mm, rain hood height: 55 mm, rain hood depth: 550 mm, clear width: 1.112 mm, clear height: 1.112 mm, clear depth: 449 mm, base height: 100 mm
Central beam configurationWith removable centre partition, 2 lockable doors
Number of doors2
Type rating according to UL 50EType 3R
Degree of protection IP according to IEC 60 529IP 55
IK codeIK10
NoteEnclosure with width 1200 mm has two 600 mm wide mounting fields
Base materialAluminium


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9784540, EAN: 4028177569218

Questions & answers

What is the delivery time of Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x?

The article Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9784540 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x always at the best possible price. We can give you a discount of 2% on Rittal 9784540 Outdoor enclosure CS New Basic enclosure, 2-door, 1200x if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
