Rittal 9783530 Outdoor enclosure W x H x D 600x1200 mm x 500 mm IP 55 RAL 7035 (freight shipping) content_copy

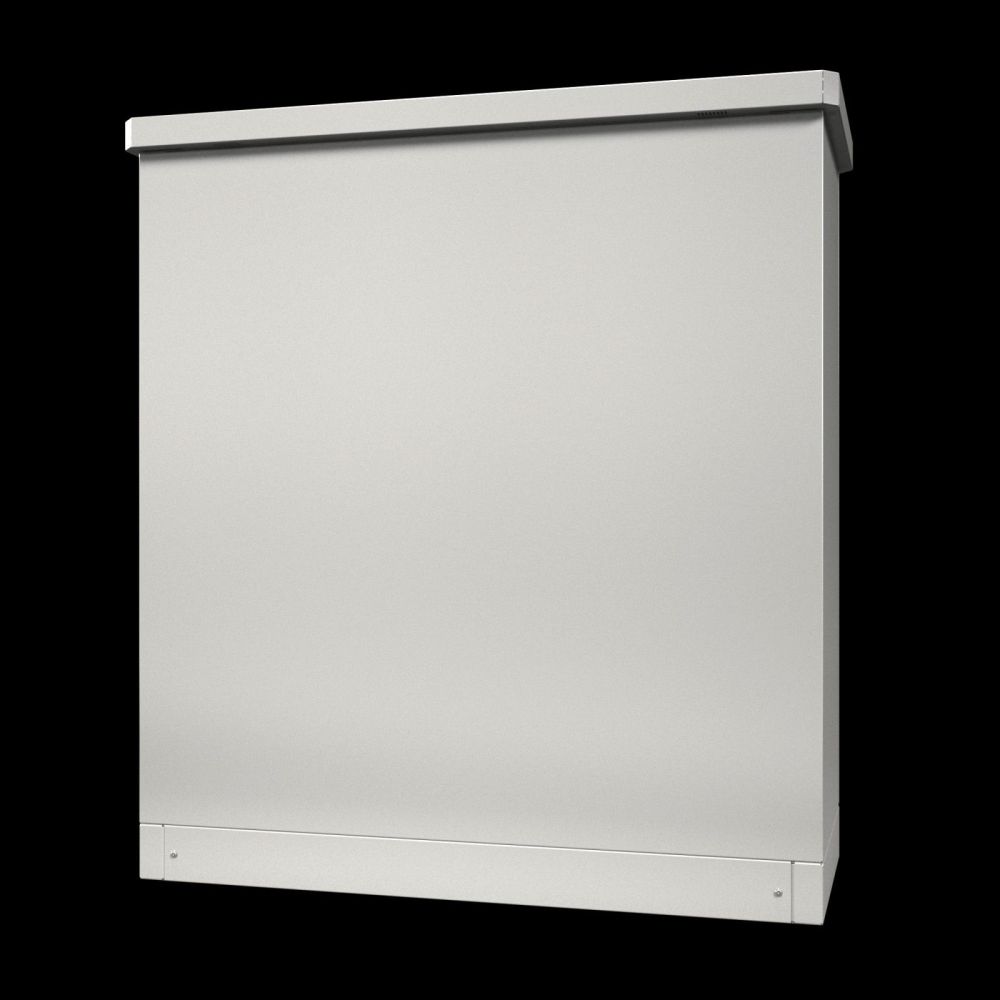

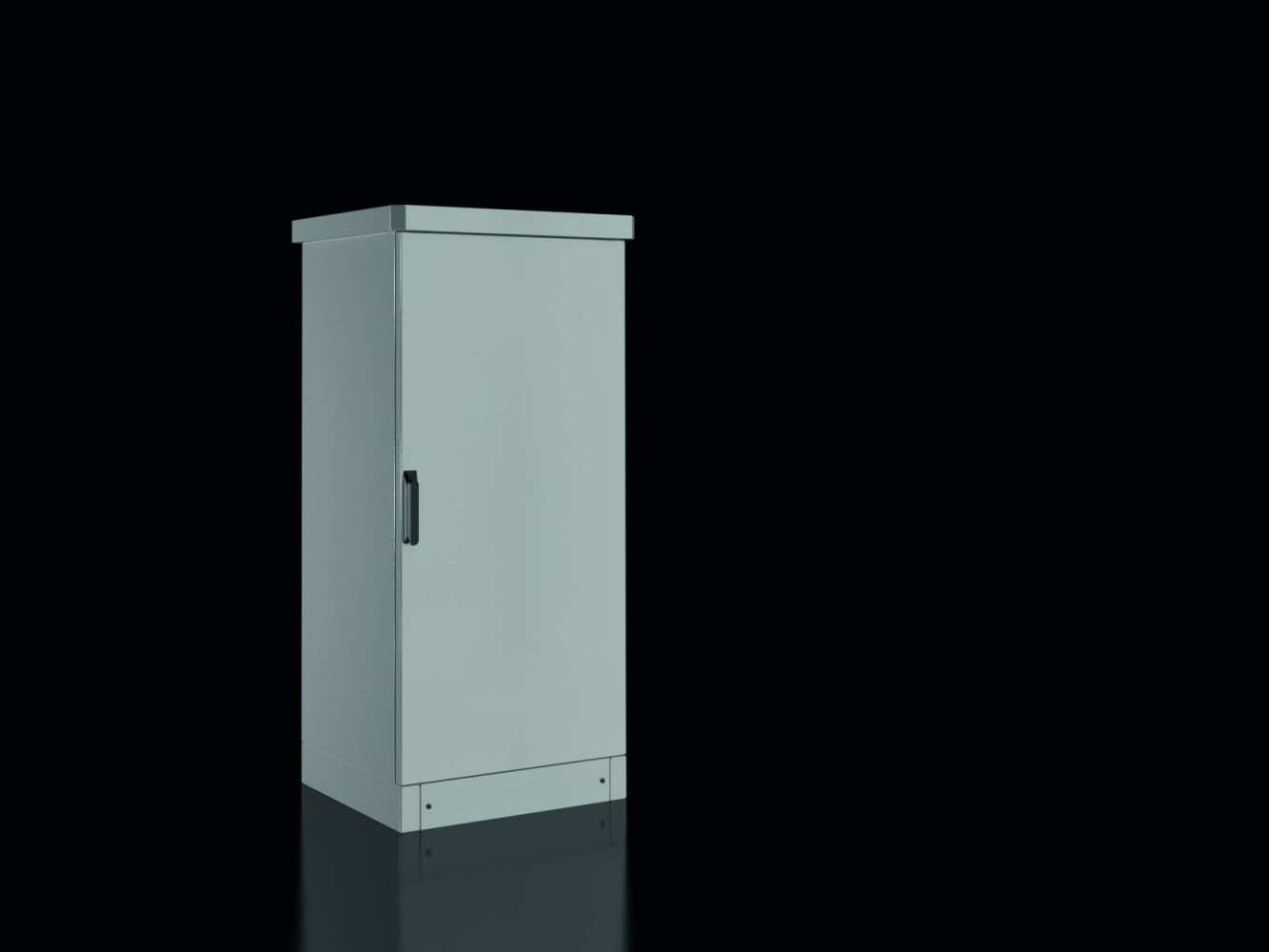

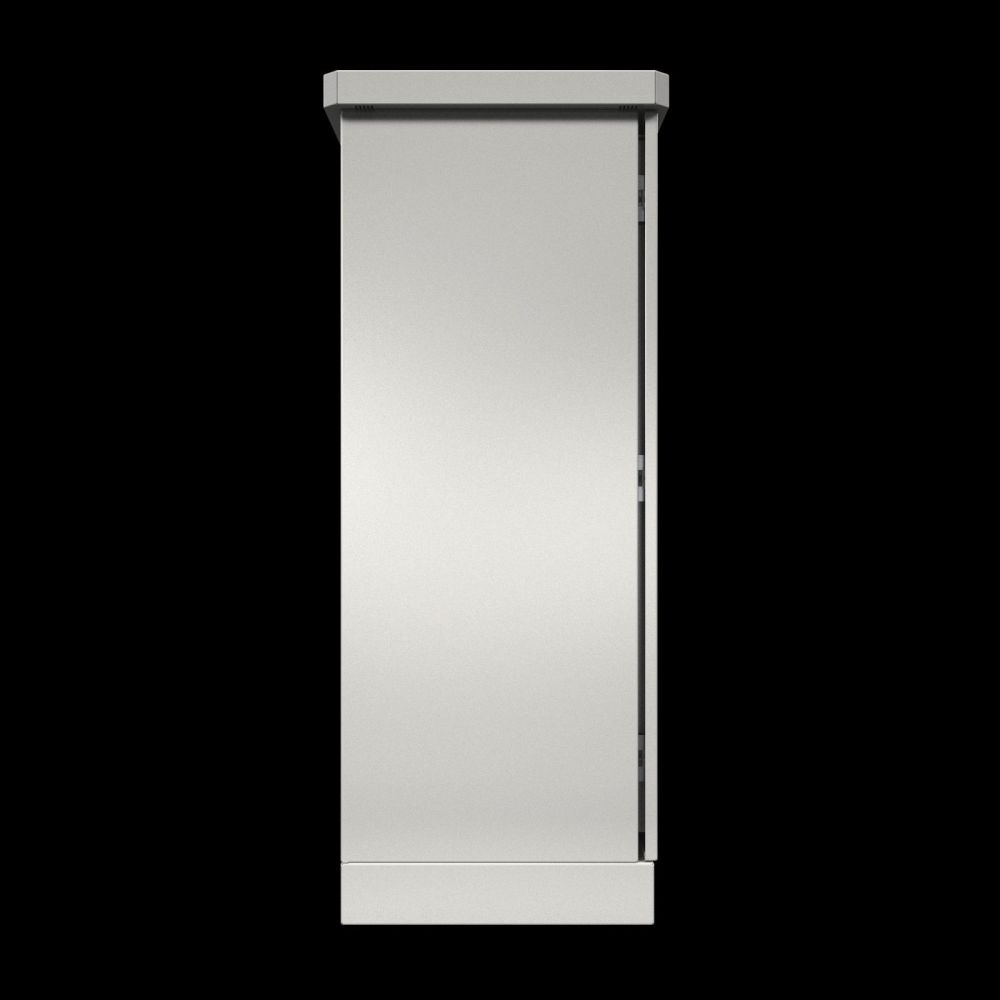

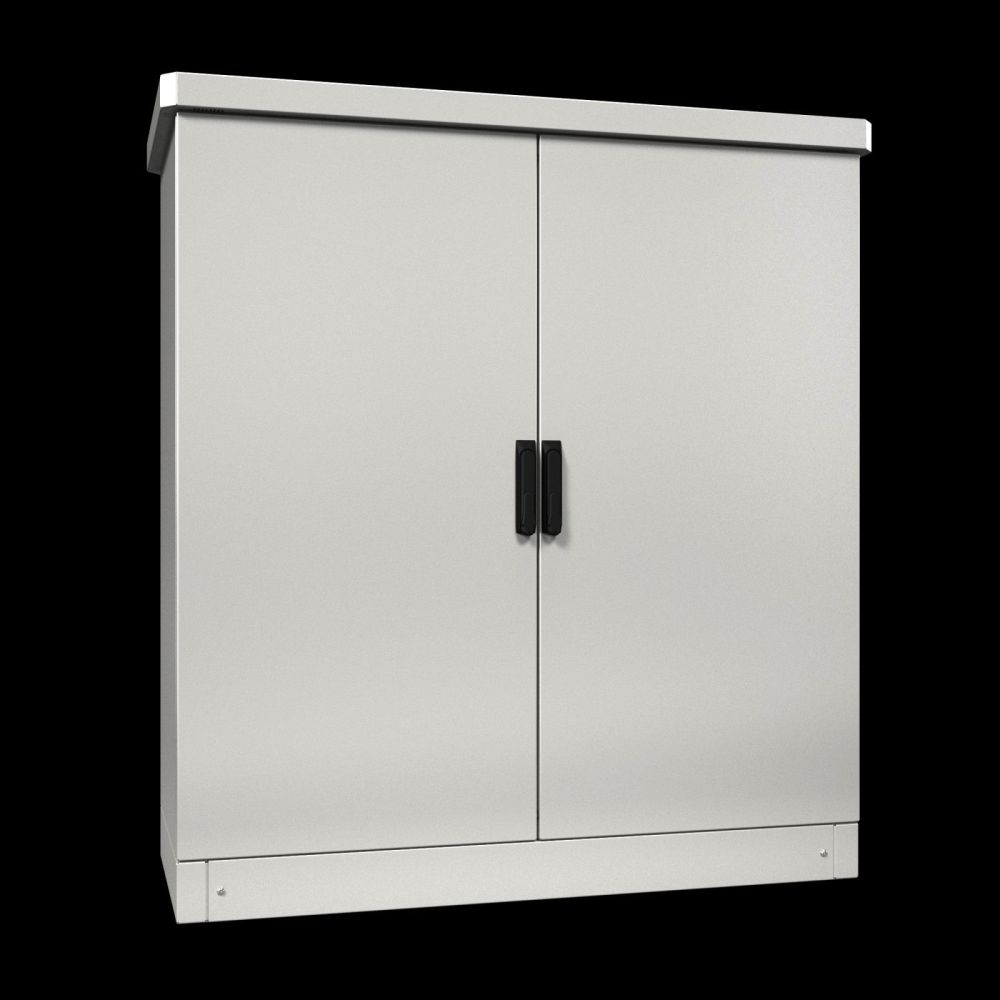

The Rittal Outdoor enclosure CS 9783530 is a single-walled, pre-assembled enclosure made of aluminum AlMg3, specifically designed for outdoor installation applications. It has a total height of 1,355 mm, including a 100 mm high transport base and a rain hood with 55 mm height and all-around overhang. The external dimensions are 600 mm width, 1,200 mm height, and 500 mm depth, while the internal dimensions are 512 mm (width), 1,112 mm (height), and 449 mm (depth). The enclosure is powder-coated in RAL 7035, with a surface made of UV-resistant pure polyester, ensuring high resistance to weather influences. The construction is three-part and includes a base enclosure with floor plate, a rain hood, and a transport base with screwed front and rear panels.

Applications
This enclosure is designed for outdoor use, for example in industrial environments, power supply installations, transportation infrastructure, or communication systems. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for humid and dusty environments. The NEMA classification Type 3R confirms suitability for outdoor installation under weather-resistant conditions. The IK code IK10 (according to sources 4 and 5) indicates high mechanical strength against mechanical impacts, such as shocks or vibrations.

Functions and Equipment in Detail

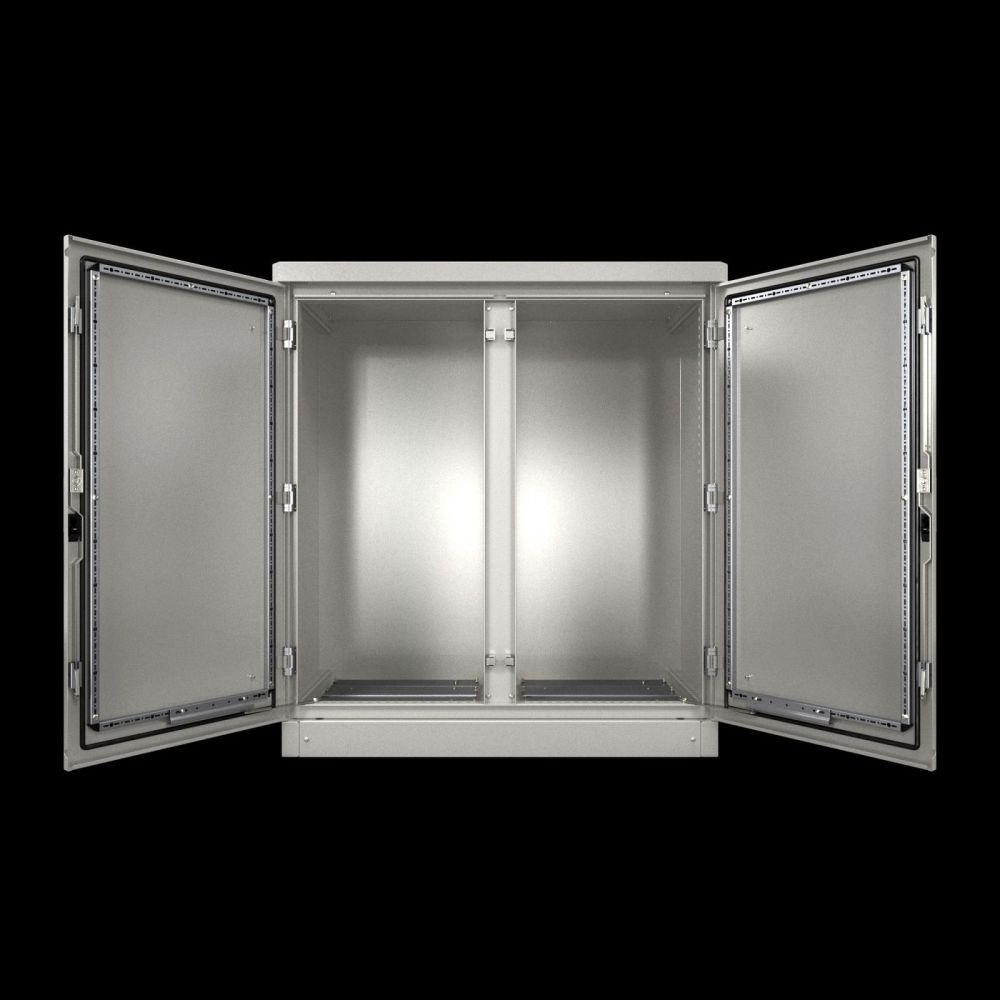

The enclosure features a front door equipped with a swing handle, a profile half-cylinder, and a door latch (closure BJ20027). The door is fitted with a foamed PU seal to ensure a tight seal. The door is secured by a 3-point rod lock and features internal, non-removable 130° hinges as well as a door stop at 110°, enabling secure and stable positioning. The 25 mm system mounting pattern in DIN grid is available on the front, roof, floor, and throughout the entire depth of the enclosure, allowing flexible mounting of system accessories such as profile rails, mounting plates, or partial mounting plates.

Technology Explained Simply
The enclosure is made from a single piece of bent and welded aluminum, providing high stability. The 10-fold profiling of the cabinet body ensures additional stiffness and resistance. The rain hood with 55 mm height and all-around overhang protects the enclosure from precipitation. The lifting eyes on the inner roof are welded and concealed, allowing the enclosure to be transported by crane even after full installation. The powder-coated surface made of UV-resistant pure polyester ensures long service life even under exposure to sunlight and weather conditions.

Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. These include, for example, a thermostat for internal temperature control, a cabinet heater with fan (dimensions 103x200x103 mm), a mounting plate (600x1200 mm) for Outdoor Module or Basic enclosures, mounting brackets for 48,3 cm ( 19 inch ) profile rails (2 pieces), and additional profile half-cylinders for the handle system. These components can be used to extend functionality and adapt to specific mounting and cooling conditions.

Installation and Mounting
The enclosure is fully pre-assembled and can be installed directly. The 25 mm system mounting pattern allows flexible installation of internal components. The transport base panels are screwed, ensuring secure mounting and a clean finish. The internal dimensions allow for installation height for standard 48,3 cm ( 19 inch ) equipment and other components. Mounting is done via the pre-defined mounting holes, ensuring compatibility with Rittal system accessories.

Operational Advantages
The enclosure offers high mechanical stability, weather resistance, and secure locking. The integrated system mounting pattern and compatibility with accessories simplify installation and maintenance. The pre-assembled design reduces on-site installation time. The IP 55 protection rating and IK10 rating ensure reliable operation even under challenging environmental conditions. The UV-resistant coating prevents discoloration and material aging due to sunlight exposure.
