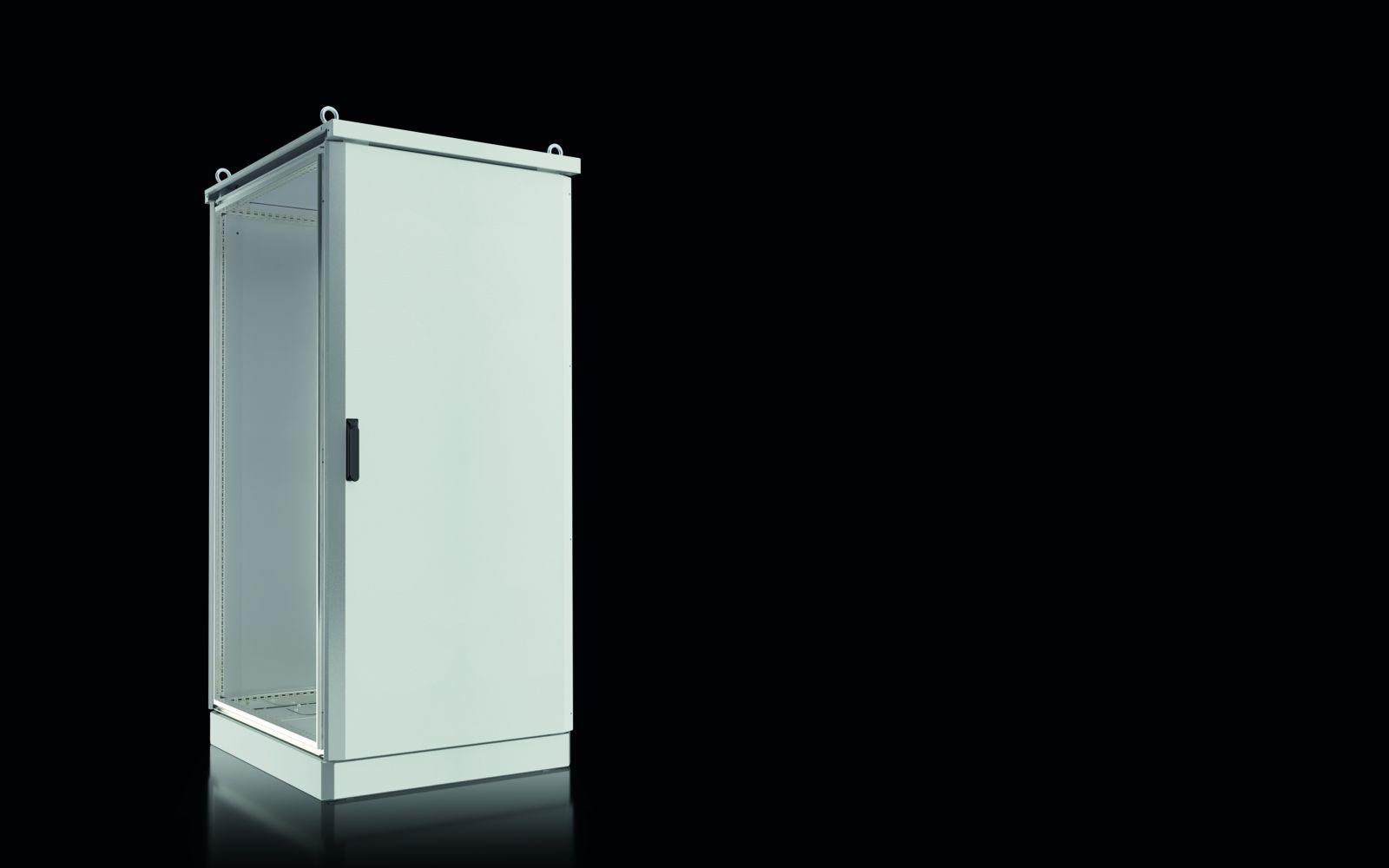

Rittal 9781866 CS Toptec, baying, W x H x D: 800x1600x600 mm

Your rating:
Average rating
product review for Rittal 9781866 CS Toptec, baying, W x H x D: 800x1600x600 mm
( 5 / 5 ) 1 ratings
Rittal 9781866
This image may differ from the desired article.
Rittal 9781866Rittal 9781866Rittal 9781866Rittal 9781866Rittal 9781866
2.219,50 EUR 2.230,66 EUR
( 2.641,21 EUR incl. VAT )
≈ £1,857.72  |  ≈ $2,439.23
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9781866 CS Toptec, baying, W x H x D: 800x1600x600 mm
Datasheet:file_download Download
Lieske Part No.:877375
Mfg Part No: 9781866
UPC/EAN: 4028177986121
Weight:81.5 kg
Type:CS 9781866

Product information for Rittal 9781866:

Rittal CS Toptec, bayable (type CS 9781866) is a double-walled outdoor enclosure for use in industrial environments, particularly in outdoor areas. It is designed for baying and provides a robust, weather-resistant protective housing for electrical and electronic components. The enclosure has dimensions of width 800 mm, height 1,600 mm, and depth 600 mm, with a total height including rain roof of 1,745 mm. The construction is designed for outdoor use, with the double-walled design featuring earthed flat parts (outer wall on inner wall) providing effective insulation and protection against environmental influences.

Applications
This enclosure is suitable for use in industrial plants where high mechanical and climatic resistance is required. Typical applications include outdoor stations, distribution boxes, control enclosures in manufacturing or energy sectors. The protection rating IP 55 according to IEC 60 529 protects against dust and splashing water, while the IK code IK10 provides protection against mechanical impacts such as shocks and vibrations. The NEMA classification includes NEMA 3R (for protection against rain) and NEMA 12 (for protection against dust and splashing water), highlighting suitability for both outdoor and indoor environments.

Functions and Equipment in Detail
The enclosure is delivered with a complete enclosure frame featuring a 25 mm system perforation in roof and base frames as well as in vertical profiles. This perforation allows flexible mounting of internal components such as enclosures, controls, or distributors. The front door is equipped with a door latch, a swing handle, and a half cylinder compatible with lock BJ20027. The door features a 4-point locking mechanism ensuring secure closure. The door hinge is standard on the right, but can be changed to the left. The enclosure is fitted with an aluminium rain roof that is seamlessly bayable and provides effective weather protection. The plinth has a height of 100 mm and is equipped with screwed gland plates as well as screwed trim panels at the front and rear.

Technology Explained Simply
The double-walled construction ensures thermal and acoustic decoupling between the interior and exterior. The flat parts are made of aluminium (AlMg3) and are powder-coated with UV-resistant pure polyester in the colour RAL 7035. The outer wall is doubled over the inner wall and earthed, providing additional protection against electromagnetic interference and earthing requirements. The enclosure frame is made of stainless steel 1.4301 (AISI 304), which is corrosion-resistant and suitable for outdoor use. The surface is designed for outdoor use and offers long-term resistance to UV radiation and weather influences.

Compatibility and Accessories
Compatible accessories include thermostats, hygrostats, enclosure heaters with fans, system chassis, and gland plates made of plastic or metal. These components can be used for temperature control, device mounting, or expanding connection options. The baying kit for CS Toptec bayable enables secure and neat baying of multiple enclosure units.

Mounting and Installation
Mounting is done via the pre-fabricated enclosure frame with system perforation. The gland plates on the plinth allow secure fastening to the base. The door can be mounted on the left or right side as required. The double-walled construction requires no additional insulation measures during installation, as thermal insulation is already integrated. Cabling is done through the screwed gland plates, which allow secure and watertight connections.

Advantages in Operation
The enclosure offers high mechanical stability and weather resistance, extending the service life of installed devices. The integrated 4-point locking mechanism and robust door construction ensure a high security standard. The flexible mounting via the 25 mm system perforation allows individual adaptation to specific requirements. The double-walled design reduces heat transfer and protects internal components from external influences. The UV-resistant coating ensures long-term durability of the surface, even under direct sunlight.

General
Modelfor mounting in row, without cutout
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliverystackable, double-walled outdoor enclosure, cabinet frame with 25 mm system mounting holes in top and bottom frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, rear panel, rain hood, base with screwed flange plates and screwed front and rear covers, door hinge on right, reversible to left
Width800 mm
Height1.600 mm
Depth600 mm
Dimensionstotal height: 1,745 mm, rain roof height: 45 mm, base height: 100 mm
Number of doors1
LockClosure type: 4-point locking, number of closures: 1, closure insert: BJ20027
Flange plateSize: 2, Quantity: 2
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts duplicated and earthed (outer wall to inner wall); for building a single cabinet, side walls for CS Toptec, stackable, are required


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9781866, EAN: 4028177986121
