Rittal 9781000 CS baying kit for CS Toptec baying

Your rating:
Average rating
product review for Rittal 9781000 CS baying kit for CS Toptec baying
( 0 / 5 ) 0 ratings
Rittal 9781000
This image may differ from the desired article.
Rittal 9781000Rittal 9781000Rittal 9781000
-6% 72,45 EUR 77,45 EUR
( 86,22 EUR incl. VAT )
≈ £60.64  |  ≈ $79.62
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9781000 CS baying kit for CS Toptec baying
Datasheet:file_download Download
Lieske Part No.:895323
Mfg Part No: 9781000
UPC/EAN: 4028177994263
Weight:1.259 kg
Type:CS 9781000

Product information for Rittal 9781000:

The Rittal baying kit CS 9781000 is a specially developed accessory for the baying of CS Toptec enclosures designed for baying. It enables secure and stable connection of two enclosures in a row, allowing modular expansion of the enclosure system. The kit is specifically designed for use with CS Toptec outdoor enclosures, which are used in industrial environments, particularly outdoors. The connection is made via designated mounting points on the enclosure flanks, ensuring a flat and flush arrangement of the enclosures.

Applications

The baying kit is used in industrial plants where multiple enclosures must be arranged in a row to save space or ensure a structured, clear installation. It is particularly suitable for outdoor installations, as CS Toptec enclosures are designed for outdoor use and are often employed in production plants, energy supply networks, or transportation infrastructure. Baying enables efficient use of available space and simplifies maintenance and inspection of enclosures, as all devices are arranged in a single line.

Functions and Equipment in Detail

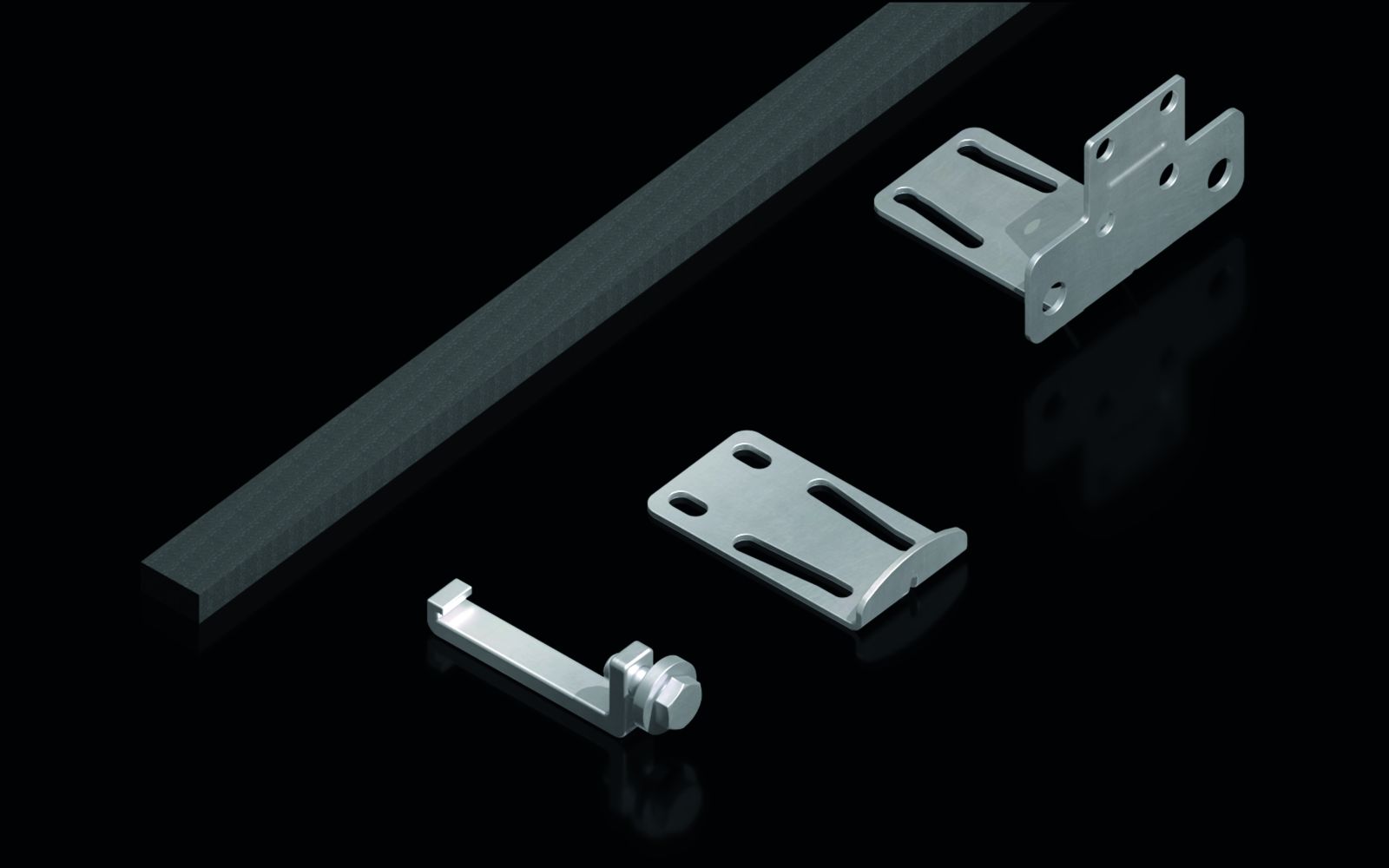

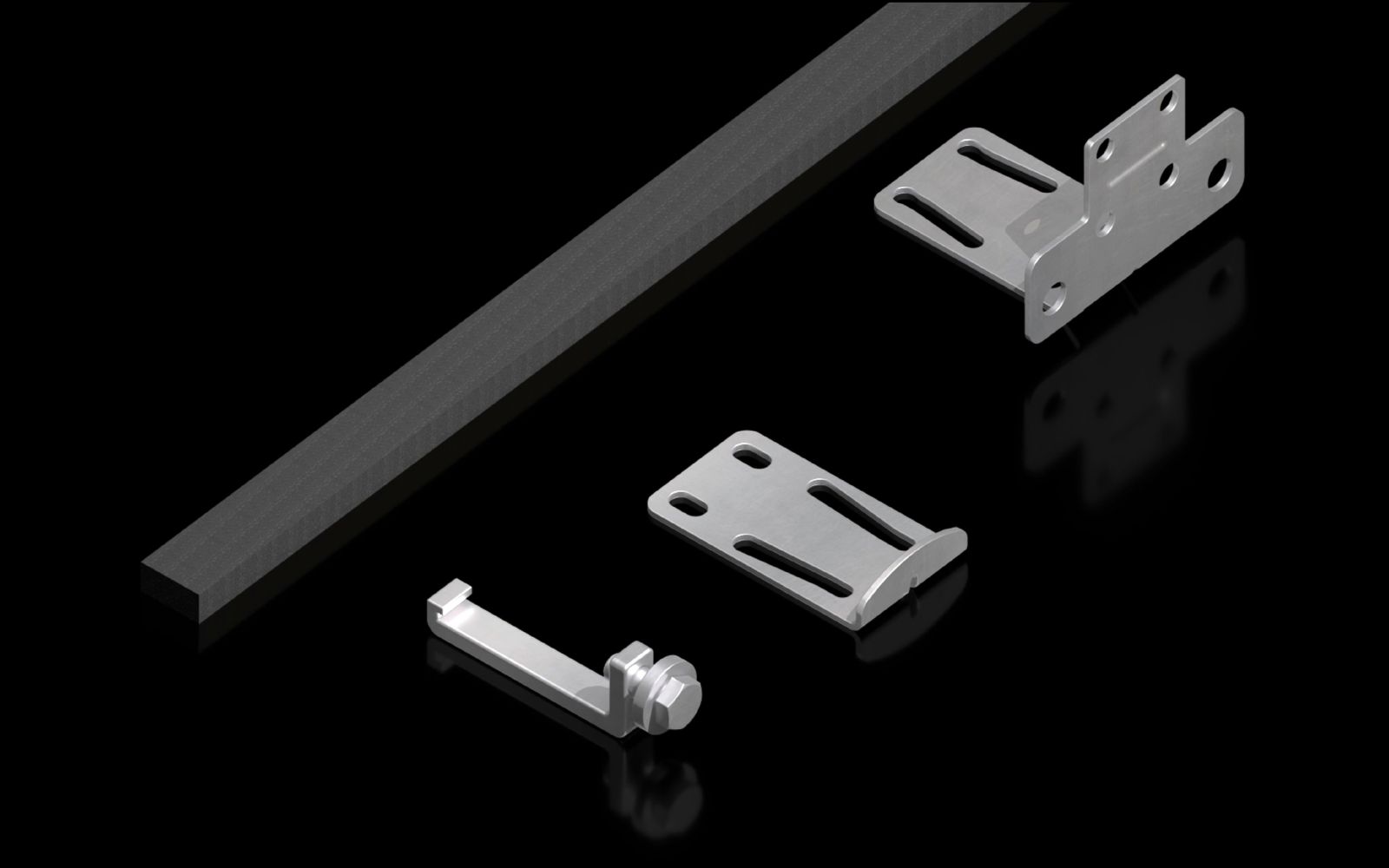

The kit includes all necessary mounting parts required to connect two enclosures. The delivery scope thus comprises all mounting components needed for a secure and durable connection. The fastening materials are designed to ensure mechanical stability of the baying while not compromising the structural integrity of the enclosures. Installation is carried out at the designated connection points of the CS Toptec enclosures, achieving a precise and flush alignment.

Technology Explained Simply

Baying is achieved by mechanically connecting the enclosure flanks using the fastening elements included in the kit. These elements are dimensioned to provide the required tensile strength and stability for industrial use. The connection is designed to withstand loads from vibrations, mechanical stress, and environmental influences in outdoor applications. The construction takes into account the specific characteristics of CS Toptec enclosures, which are designed for outdoor use and are often deployed in harsh environments.

Compatibility and Accessories

The baying kit is exclusively designed for CS Toptec enclosures that are designed for baying. It is not suitable for other enclosure types or non-baying variants. Compatibility is limited to the specific mounting points and construction of CS Toptec enclosures. No additional accessories are specifically recommended or required for this kit. Installation is carried out directly using the fastening materials included in the delivery scope.

Mounting and Installation

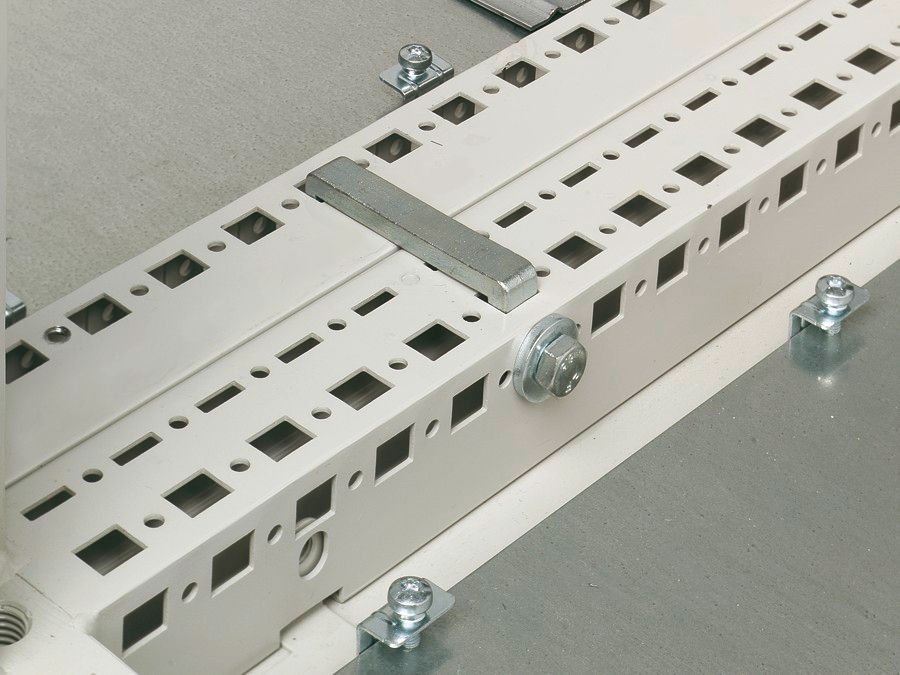

Mounting is performed by securing the enclosure flanks at the designated connection points. The fastening elements included in the kit are attached at the corresponding points on the enclosures, creating a stable and flush connection. Installation is simple and can be carried out by skilled personnel without special prior knowledge.

Operational Advantages

Baying enclosures enables efficient use of available space and simplifies maintenance and inspection of the system. The flush alignment of enclosures improves accessibility to individual components and enhances the clarity of the installation. The mechanical stability of the connection ensures a secure and durable mounting that meets the requirements of industrial use. Using the baying kit reduces the need for additional mounting aids and accelerates the installation process.

General
Scope of deliveryIncluding mounting hardware
Note1 unit is sufficient for mounting 2 cabinets
Suitable forEnclosure type: CS Toptec, rack-mountable


Product data sheet
Datasheet for Rittal 9781000, EAN: 4028177994263

Questions & answers

What is the delivery time of Rittal 9781000 CS baying kit for CS Toptec baying?

The article Rittal 9781000 CS baying kit for CS Toptec baying is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9781000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9781000 CS baying kit for CS Toptec baying always at the best possible price. We can give you a discount of 2% on Rittal 9781000 CS baying kit for CS Toptec baying if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
