Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm

Your rating:
Average rating
product review for Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm
( 0 / 5 ) 0 ratings
Rittal 9781686
This image may differ from the desired article.
Rittal 9781686Rittal 9781686Rittal 9781686Rittal 9781686Rittal 9781686
2.024,00 EUR 2.040,45 EUR
( 2.408,56 EUR incl. VAT )
≈ £1,694.09  |  ≈ $2,224.38
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm
Datasheet:file_download Download
Lieske Part No.:2145884
Mfg Part No: 9781686
UPC/EAN: 4028177986107
Weight:70 kg
Type:CS 9781686

Product information for Rittal 9781686:

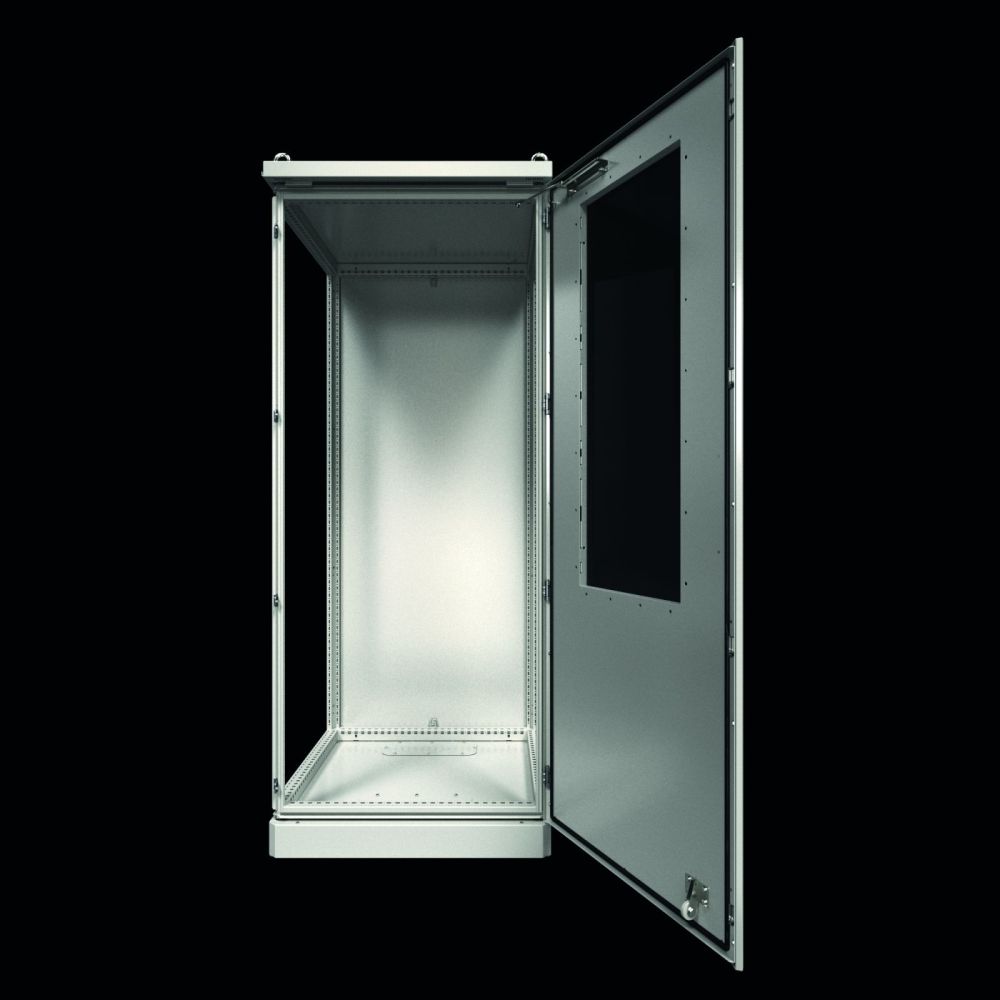

The Rittal CS Toptec, bayable (type CS 9781686) is a double-walled outdoor enclosure for use in outdoor environments, designed for baying with additional enclosures. It features dimensions of width 600 mm, height 1,800 mm, and depth 600 mm, with a total height including rain roof measuring 1,945 mm. The enclosure is designed for use in industrial and technical installations where high mechanical stability and protection against environmental influences are required.

Applications
This enclosure system is suitable for outdoor use, for example in energy supply, transportation infrastructure, or automation technology. The double-walled construction with doubled sheet metal parts provides improved thermal insulation and sound absorption. The integrated 100 mm high plinth construction enables secure mounting on uneven surfaces and protects the lower part of the enclosure from moisture. The rain roof with a height of 45 mm provides effective weather protection.

Functions and Equipment in Detail
The enclosure is delivered fully pre-assembled and includes a cabinet frame with 25 mm system perforation in roof and base frames as well as in vertical profiles with two mounting levels. This enables flexible and quick installation of internal components. The front door is equipped with a door latch, a swing handle, and a half cylinder compatible with lock BJ20027. The door is standard right-hinged but can be converted to left-hinged. The rear panel is also included in the delivery scope.

Technology Explained Simply
The enclosure frame is made of stainless steel 1.4301 (AISI 304), a corrosion-resistant material suitable for outdoor use. The sheet metal parts and plinth trim panels are made of aluminium AlMg3, which is lightweight and resistant to weather influences. The surface is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring long-term durability and weather resistance. The double-walled construction with earthed sheet metal parts (outer wall to inner wall) ensures effective earthing and protection against electromagnetic interference.

Compatibility and Accessories
Additional side panels for CS Toptec, bayable are required to build a single enclosure. Suitable accessories include, for example, thermostats, hygrostats, mounting brackets for 48,3 cm ( 19 inch ) profile rails, baying kits, system chassis, and enclosure heaters with fans. These components allow individual adaptation of the enclosure to specific requirements such as temperature control, device mounting, or expansion of baying.

Mounting and Installation
Mounting is performed via the pre-assembled cabinet frame with system perforation. The gland plates (size 2, quantity 2) enable secure fastening to foundations or beams. The door hinge direction is reversible, allowing flexible placement within the installation system. The 4-point locking mechanism ensures secure closure of the enclosure.

Operational Advantages
The enclosure offers a high degree of protection against dust and splashing water (IP 55 according to IEC 60 529) as well as against mechanical impacts (IK10 according to IEC 62 262). The protection class NEMA 3R and NEMA 12 also makes it suitable for use in humid or dusty environments. The double-walled construction provides good thermal insulation, stabilising the internal temperature and extending the service life of installed devices. The pre-assembled configuration reduces installation time and increases installation safety.

Protection Class and Safety
The protection class(IP 55 protects against dust and splashing water, making the enclosure suitable for outdoor use. The IK10 classification guarantees high protection against mechanical impacts, such as shocks or vibrations. The NEMA classification (NEMA 3R, NEMA 12) complements the protection functions and makes the enclosure suitable for various industrial applications.

Material and Surface
The enclosure frame is made of stainless steel 1.4301 (AISI 304), known for its corrosion resistance and strength. The sheet metal parts and plinth trim panels are made of aluminium AlMg3, a lightweight and durable material. The surface is powder-coated with UV-resistant pure polyester, ensuring high resistance to weather influences and UV radiation. The colour RAL 7035 is a grey-beige grey that integrates well into industrial environments.

General
Modelfor mounting in row, without cutout
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliverystackable, double-walled outdoor enclosure, cabinet frame with 25 mm system mounting holes in top and bottom frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, rear panel, rain hood, base with screwed flange plates and screwed front and rear covers, door hinge on right, reversible to left
Width600 mm
Height1.800 mm
Depth600 mm
DimensionsTotal height: 1,945 mm, Rain roof height: 45 mm, Base height: 100 mm
Number of doors1
LockClosure type: 4-point locking, number of closures: 1, closure insert: BJ20027
Flange plateSize: 2, Quantity: 2
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts duplicated and earthed (outer wall to inner wall); for building a single cabinet, side walls for CS Toptec, stackable, are required


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9781686, EAN: 4028177986107

Questions & answers

What is the delivery time of Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm?

The article Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9781686 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9781686 CS Toptec, baying, W x H x D: 600x1600x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
