Rittal 2572100 Metal gland plate with metric pre-punching, for
|
17,00 EUR |
|
|
( 20,23 EUR incl. VAT ) ≈ £14.23 | ≈ $18.68 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598288 |
| Mfg Part No: | 2572100 |
| UPC/EAN: | 4028177925236 |
| Weight: | 0.605 kg |
| Type: | AX 2572100 |
Product information for Rittal 2572100:
Applications
The gland plate is used in industrial environments where robust and durable mounting of cable glands on enclosures is required. It is particularly suitable for applications in automation technology, power supply, and process industry, where secure and weather-resistant cable routing is necessary. The protection rating IP 66, when installed correctly, makes it suitable for outdoor use, as it is dust-tight and protected against water jets and dust particles. The type rating according to UL 50E includes Type 1 and Type 12K, confirming suitability for dry indoor environments as well as environments with light splashing water and dirt.
Functions and Equipment in Detail

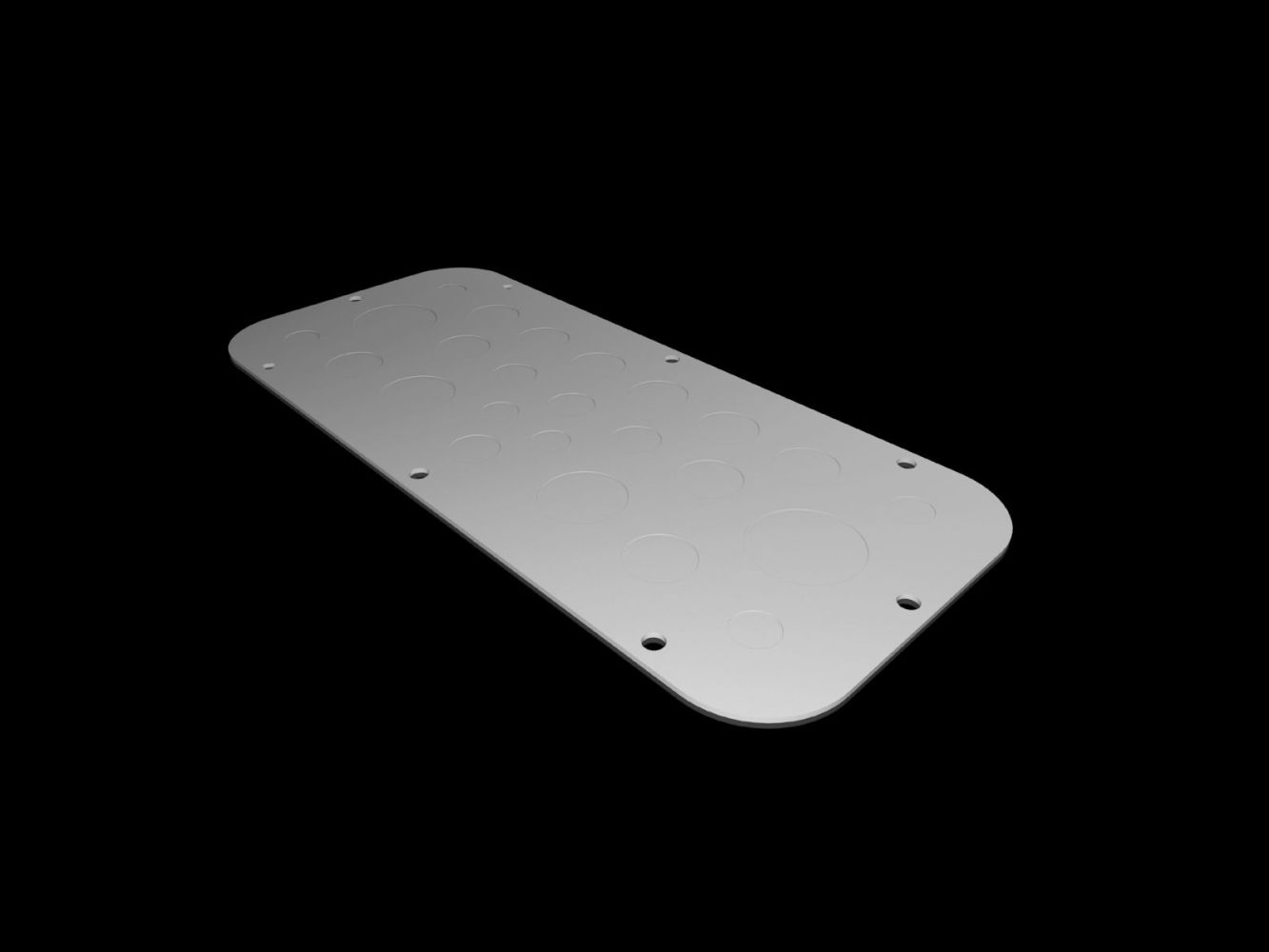

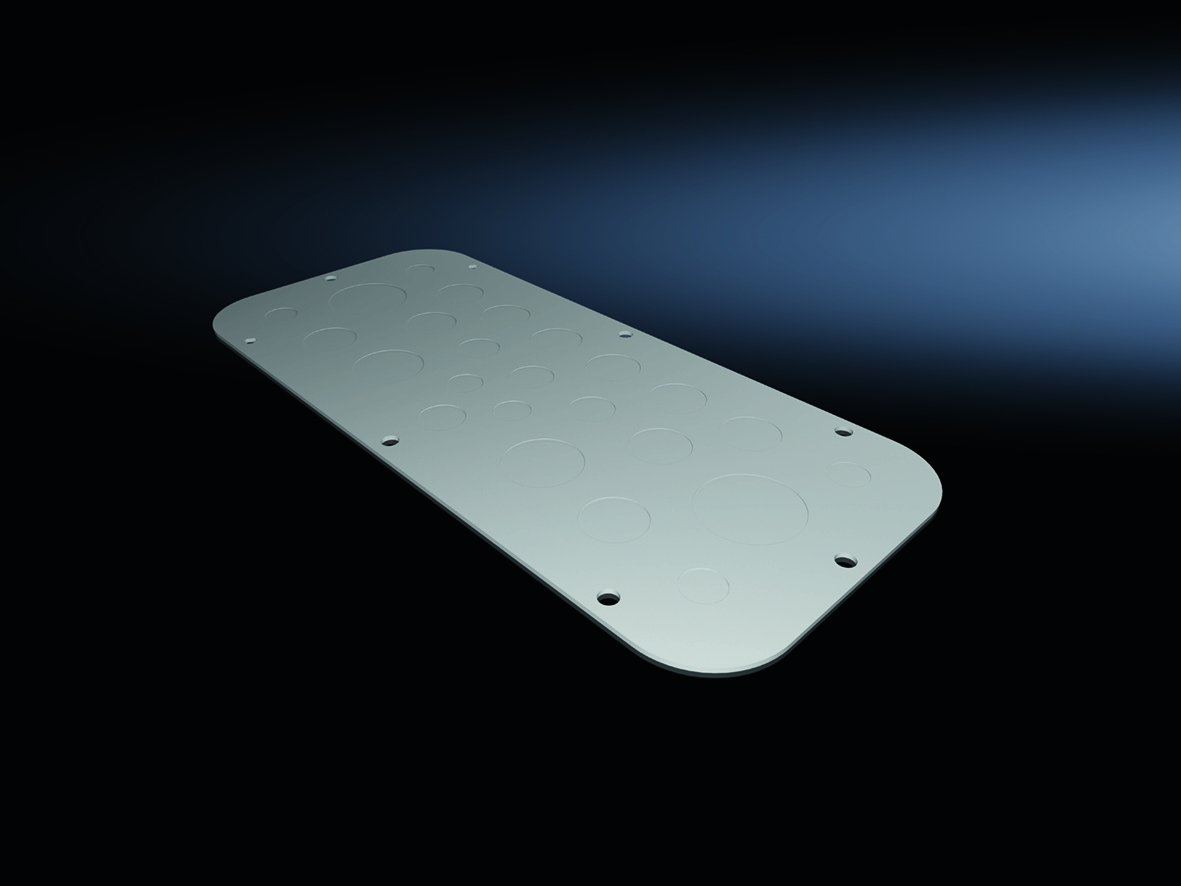

The gland plate features a variety of metric pre-punched holes intended for mounting cable glands. The number of pre-punched holes is 6 x M16, 4 x M20, 10 x M25, 2 x M32, and 2 x M40. These allow flexible and quick installation of various cable diameters. The holes can be easily punched out with a screwdriver, simplifying installation without additional tools or preparation. The pre-punched holes are arranged to allow optimal placement of the glands while simultaneously avoiding excessive weakening of the gland plate structure.
Technology Explained Simply
The use of sheet steel as material ensures high mechanical strength and longevity. The color RAL 7035 is a standardized gray commonly used in industrial electrotechnics to achieve a uniform appearance. The protection rating IP 66 means the gland plate is dust-tight and protected against water jets from any direction, making it suitable for demanding environments. The UL approval Type 1 and Type 12K confirms suitability for indoor use as well as environments with light splashing water and dirt. The PCF value of 3 kg CO2 eq (Cat B) refers to the Cradle-to-Gate approach and is approximately calculated based on product weight and self-declared.
Compatibility and Accessories
The gland plate is specifically developed for enclosures of type AX and fits the corresponding mounting surfaces. The assignment of gland plate size is based on the respective enclosure description. The pre-punched holes are designed for metric cable glands, with the specified sizes (M16 to M40) covering a wide range of cable diameters. The gland plate is not a standalone enclosure but an accessory to be attached to existing enclosures.
Mounting and Installation
Mounting is performed on the front side of the enclosure, where the gland plate is fastened at the designated mounting points. The pre-punched holes can be punched out with a screwdriver to open the holes for cable glands. The glands are then secured with the appropriate screws. Proper installation is crucial to achieve the IP 66 protection rating. It is essential to ensure all glands are tightly and securely mounted to maintain the protective function.
Advantages in Operation
The gland plate offers quick and reliable mounting of cable glands, reducing installation time. The robust sheet steel construction ensures long service life and high mechanical stability. The IP 66 protection rating enables use in demanding environments, including outdoor applications. The standardized color RAL 7035 supports visual uniformity in industrial facilities. The UL approval Type 1 and Type 12K ensures compliance with international safety standards.
| General | |
| Material | steel sheet |
| Colour | RAL 7035 |
| Note | The assignment of flange plate size can be found with the respective enclosures |
| Number of metric pre-forms | 6 x M16, 4 x M20, 10 x M25, 2 x M32, 2 x M40 |
| Width | 339 mm |
| Depth | 149 mm |
| Suitable for | Housing type: AX |
| Flange plate | Size: 2 |
| Degree of protection IP according to EN 60 529 | IP 66 when installed correctly |
| Type rating according to UL 50E | Type 1, Type 12K |
| PCF/VE (Cradle-to-Gate) | 3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 2572100 Metal gland plate with metric pre-punching, for?
The article Rittal 2572100 Metal gland plate with metric pre-punching, for is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2572100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2572100 Metal gland plate with metric pre-punching, for always at the best possible price. We can give you a discount of 2% on Rittal 2572100 Metal gland plate with metric pre-punching, for if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
