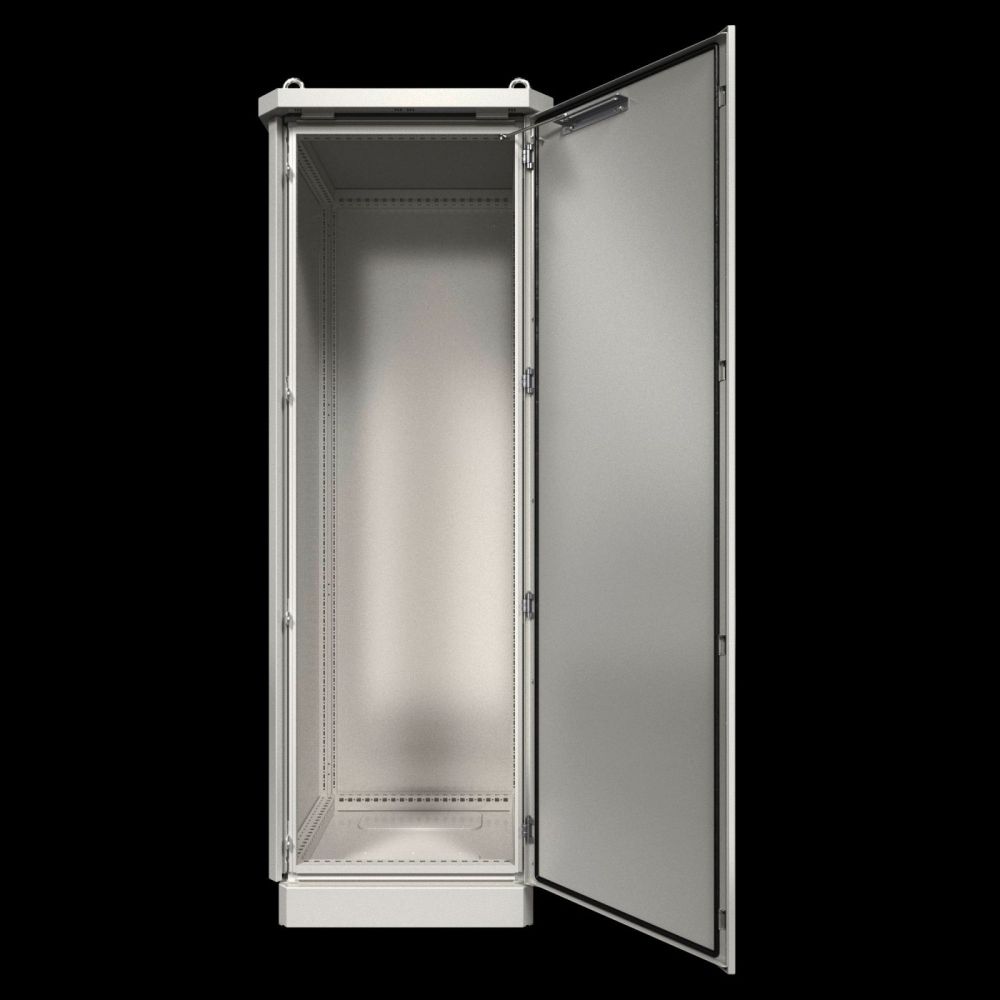

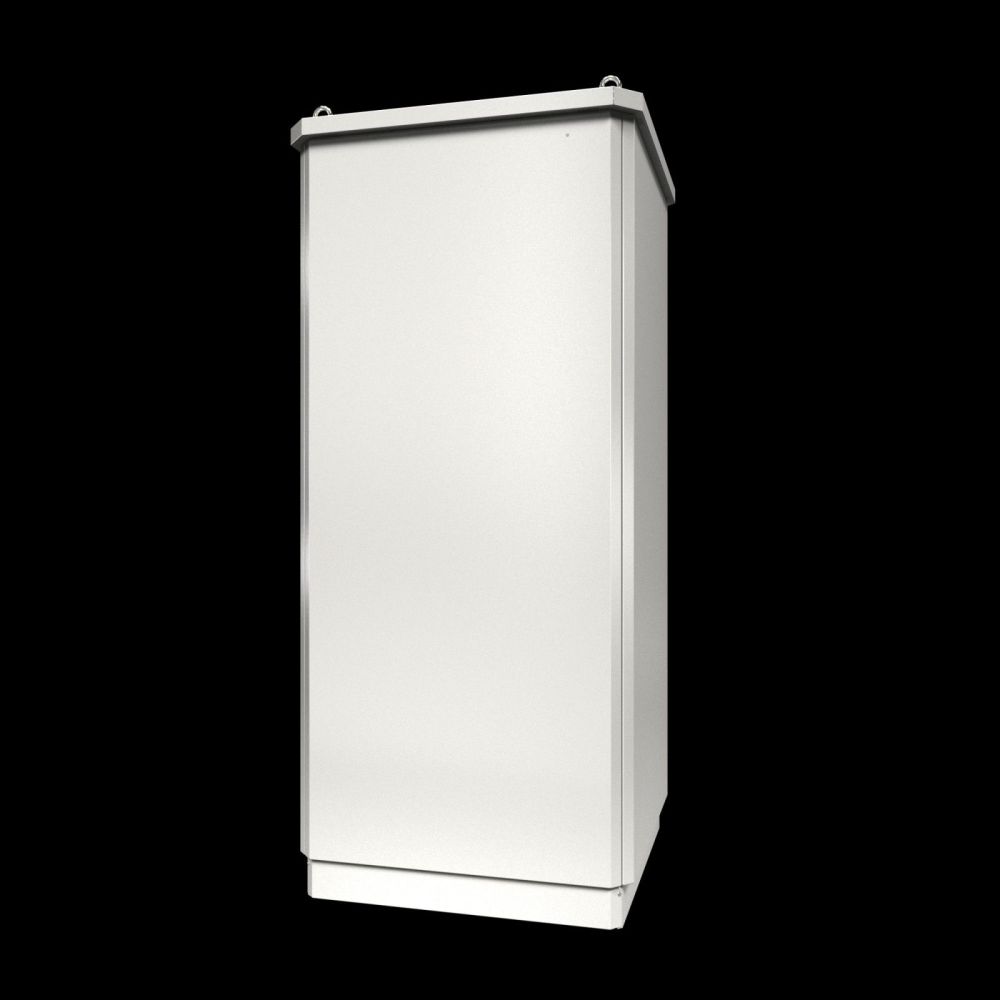

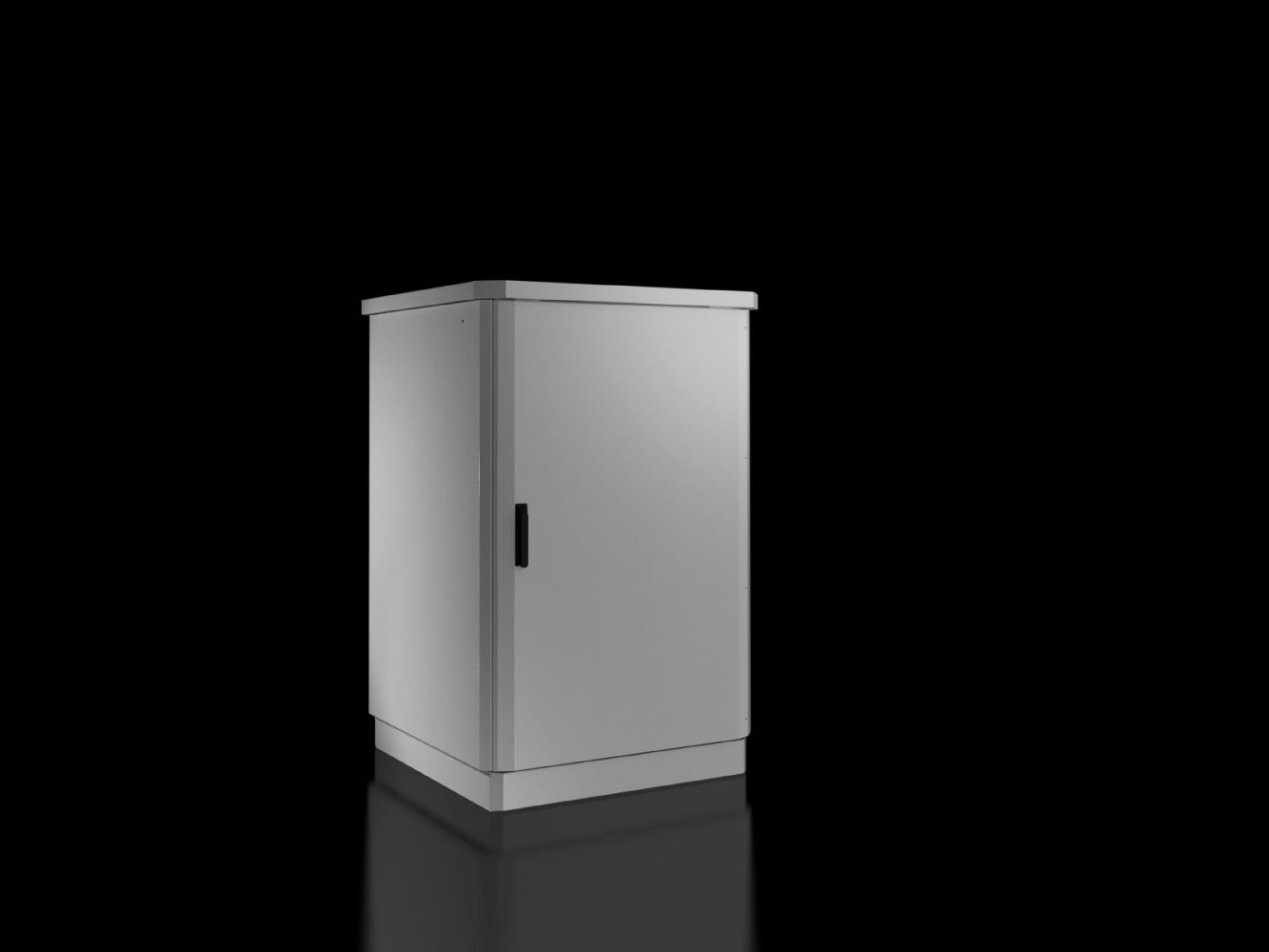

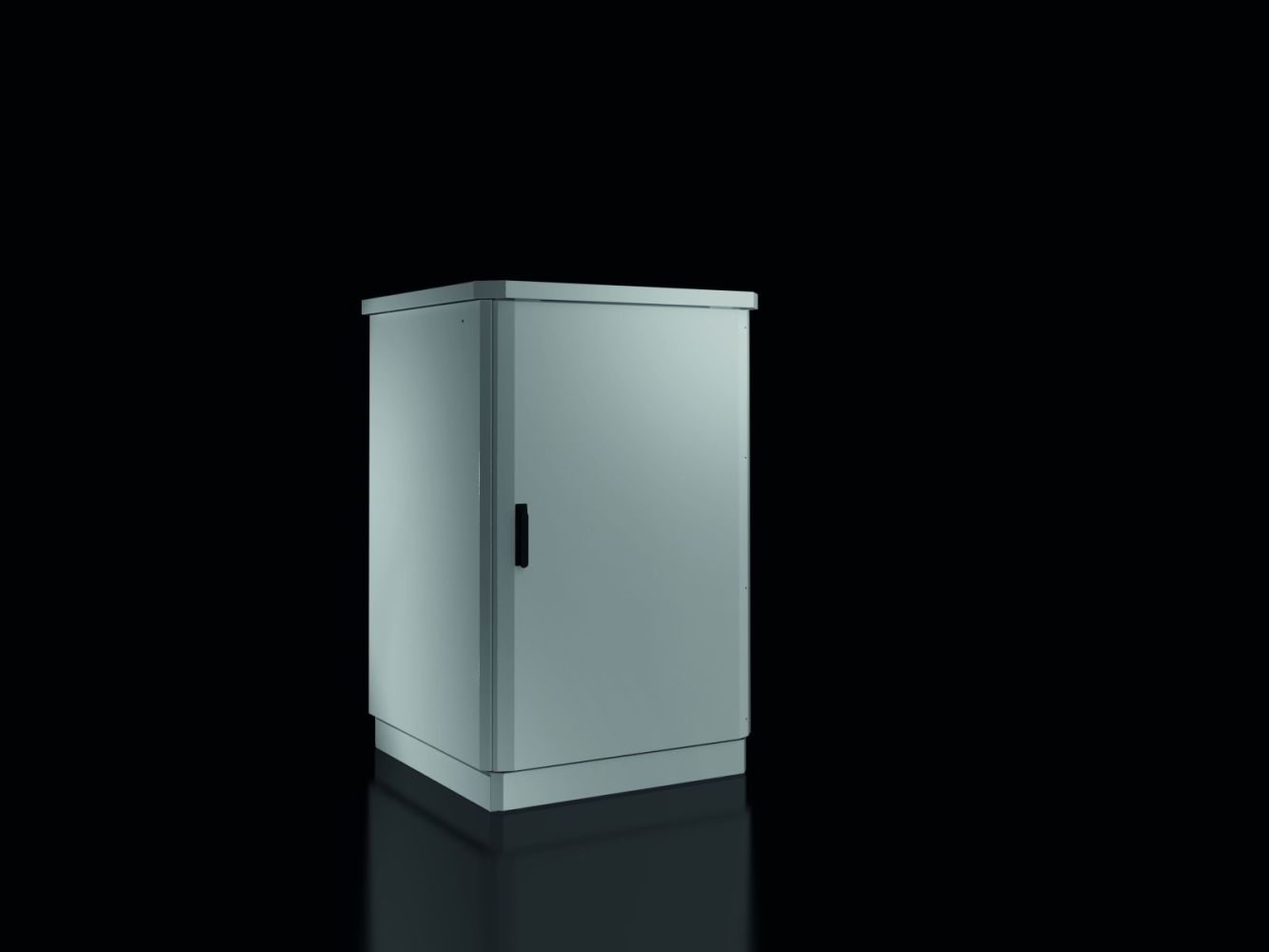

Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8

Your rating:
Average rating
product review for Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8
( 4.8 / 5 ) 4 ratings
Rittal 9828500
This image may differ from the desired article.
Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500Rittal 9828500
2.794,39 EUR
( 3.325,32 EUR incl. VAT )
≈ £2,338.90  |  ≈ $3,071.03
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8
Datasheet:file_download Download
Lieske Part No.:1101324
Mfg Part No: 9828500
UPC/EAN: 4028177962743
Weight:98 kg
Type:CS 9828500

Product information for Rittal 9828500:

The Rittal CS 9828500 is a double-walled outdoor enclosure from the Toptec series, designed for outdoor use. It features dimensions of width 800 mm, height 1,200 mm, and depth 800 mm, and is designed as a closed enclosure. The enclosure is delivered fully pre-assembled and includes a TS 8 frame with 25 mm system perforation in the roof and base frames as well as in the vertical profiles, providing two mounting planes for internal installation. The construction is designed for use in industrial environments with high requirements for protection and durability.

Applications
This enclosure is designed for outdoor use, where it must provide protection against weather influences such as rain, dust, and mechanical impacts. The double-walled construction with doubled sheet metal parts (outer wall on inner wall) ensures improved thermal insulation and sound absorption. The integrated door with door latch, swing handle, and half cylinder allows secure access, using the locking mechanism BJ20027. The side walls, rear wall, and door are fully doubled outward, ensuring high mechanical stability and effective earthing.

Functions and Equipment in Detail
The enclosure features a rain roof that overhangs on all sides, ensuring effective protection against precipitation. The plinth is equipped with screwed gland plates and screwed trim panels at the front and rear, enabling secure mounting and a closed finish. The front door is fitted with a 4-point lock, ensuring secure closure. The swing handle is fitted with an ABUS C83N half cylinder, supporting the locking mechanism BJ20027. The sheet metal parts are made of aluminium (AlMg3), while the enclosure frame is made of stainless steel 1.4301 (AISI 304), providing high corrosion resistance.

Technology Explained Simply
The surface of the enclosure is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring high resistance to weather influences and UV radiation. The protection class IP 55 according to IEC 60 529 protects against dust and splashing water from any direction, which is essential for outdoor use. The protection classes NEMA 3R and NEMA 12 complement the protection functions and cover requirements for protection against precipitation and dust. The IK code IK10 guarantees high protection against mechanical impacts, such as blows or shock loads. The double-walled construction with earthed sheet metal parts ensures effective earthing and improves electromagnetic compatibility.

Compatibility and Accessories
The enclosure is part of the CS Toptec system and can be combined with other components to meet specific requirements. Suitable accessories include, for example, thermostats, hygrostats, enclosure heaters with fans, TS system chassis for inner and outer planes, and concrete plinths. For mounting and installation, plastic or metal gland plates can also be used. The CS Toptec series also offers solutions for single installations (order number 9774.099) and baying (order number 9774.005), serving as a basis for project solutions in outdoor environments.

Mounting and Installation
The enclosure is delivered fully pre-assembled, simplifying on-site installation. The integrated gland plates and trim panels enable secure fastening to the base. The system perforation in the TS 8 frame facilitates the installation of internal components such as control panels, controls, or network components. The double-walled construction requires no additional insulation measures, as thermal insulation is already integrated.

Advantages in Operation
The Rittal CS 9828500 offers high reliability in outdoor environments due to its robust construction and integrated protection functions. The double-walled design ensures uniform internal temperature and reduces thermal stress on installed components. The high mechanical stability and IK10 protection shield the enclosure from damage due to external impacts. The pre-assembled delivery reduces installation time and minimizes error sources during installation. The use of stainless steel and aluminium ensures long service life and low maintenance costs.

General
ModelWithout breakout
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliveryDouble-walled outdoor housing, fully pre-assembled, cabinet frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, left and right side walls, rear wall, rain roof, base with screwed flange plates and screwed front and rear panels
Width800 mm
Height1.200 mm
Depth800 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts doubled and grounded (outer wall to inner wall), CS Toptec is the basis for project solutions in the outdoor sector. These can be requested under these order numbers: For single installations: 9774.099, for row mounting: 9774.005
Base materialAluminium


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9828500, EAN: 4028177962743

Questions & answers

What is the delivery time of Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8?

The article Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9828500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8 always at the best possible price. We can give you a discount of 2% on Rittal 9828500 Toptec BHT 800x1200x800 mm outdoor enclosure, base TS8 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
