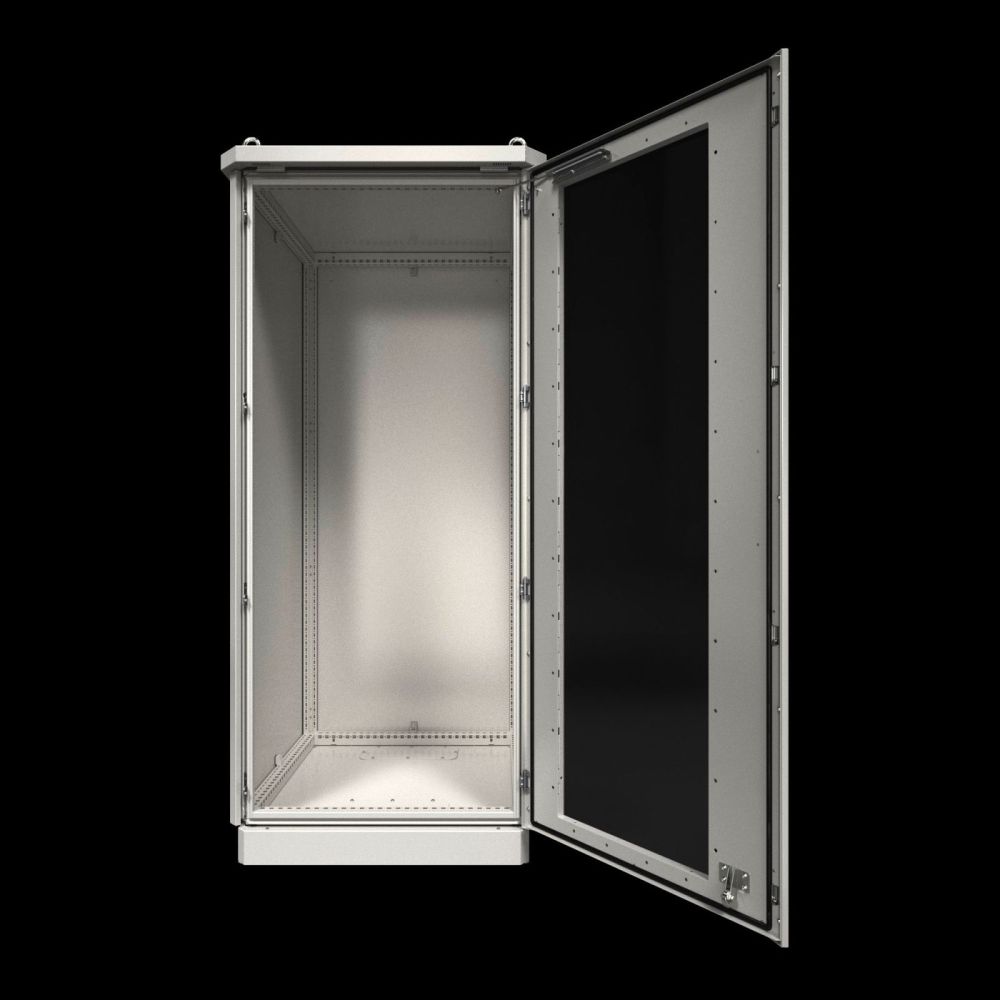

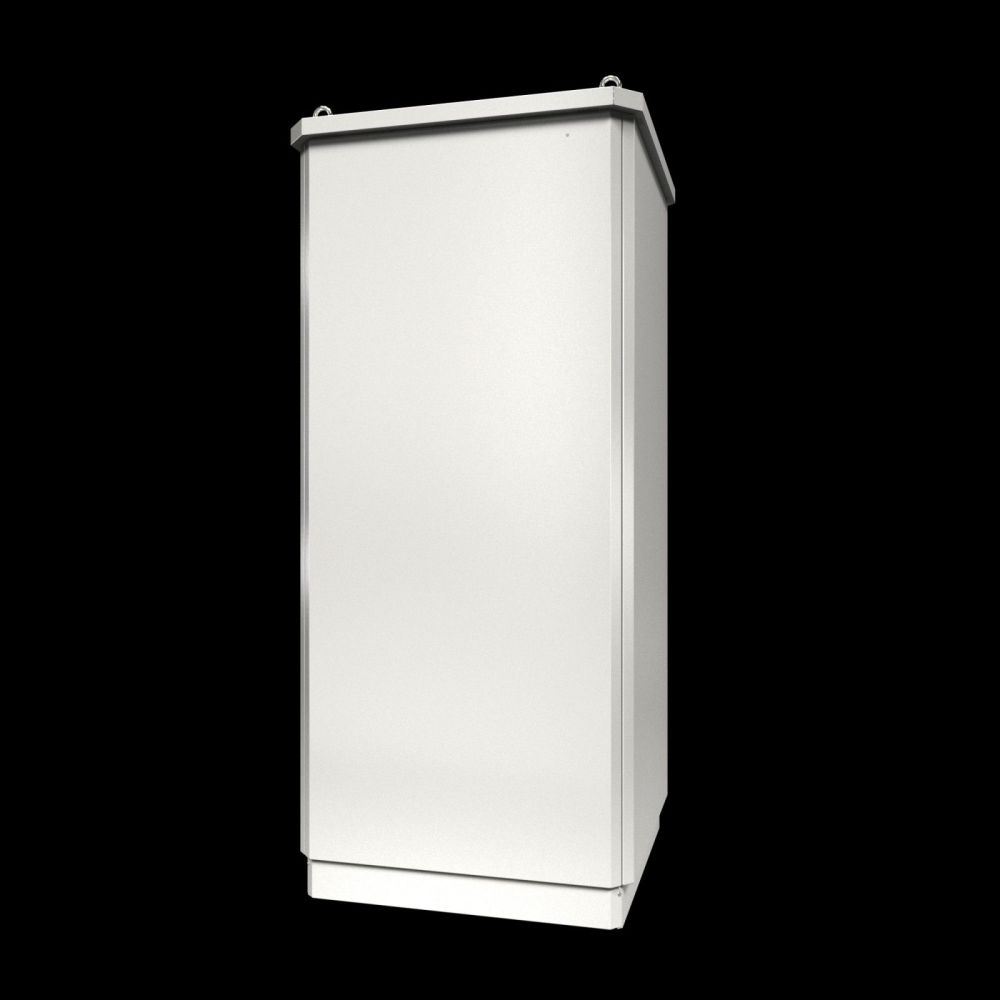

Rittal 9888550 Toptec 800x1800x800 mm outdoor enclosure, base TS8, with

Your rating:
Average rating
product review for Rittal 9888550 Toptec 800x1800x800 mm outdoor enclosure, base TS8, with
( 4.3 / 5 ) 3 ratings
Rittal 9888550
This image may differ from the desired article.
Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550Rittal 9888550
3.172,85 EUR 3.194,82 EUR
( 3.775,69 EUR incl. VAT )
≈ £2,655.68  |  ≈ $3,486.96
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9888550 Toptec 800x1800x800 mm outdoor enclosure, base TS8, with
Datasheet:file_download Download
Lieske Part No.:1101333
Mfg Part No: 9888550
UPC/EAN: 4028177962699
Weight:122 kg
Type:CS 9888550

Product information for Rittal 9888550:

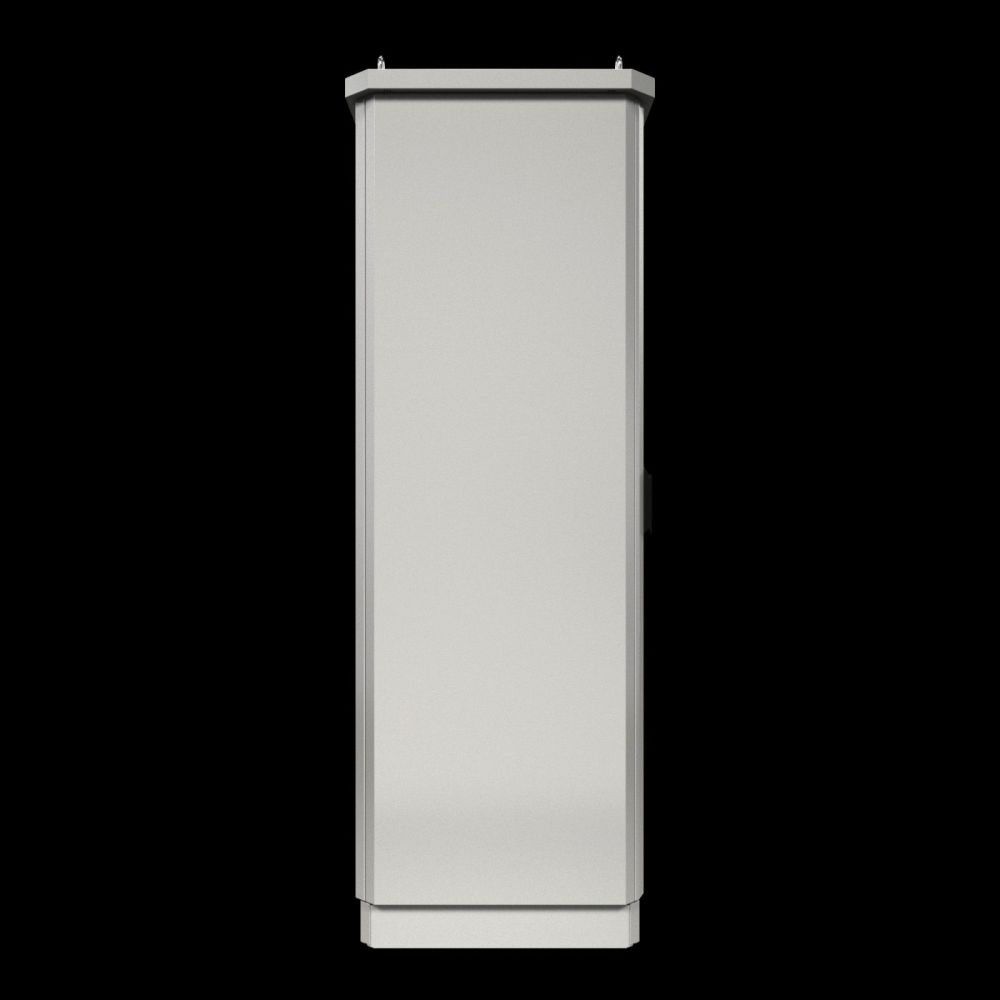

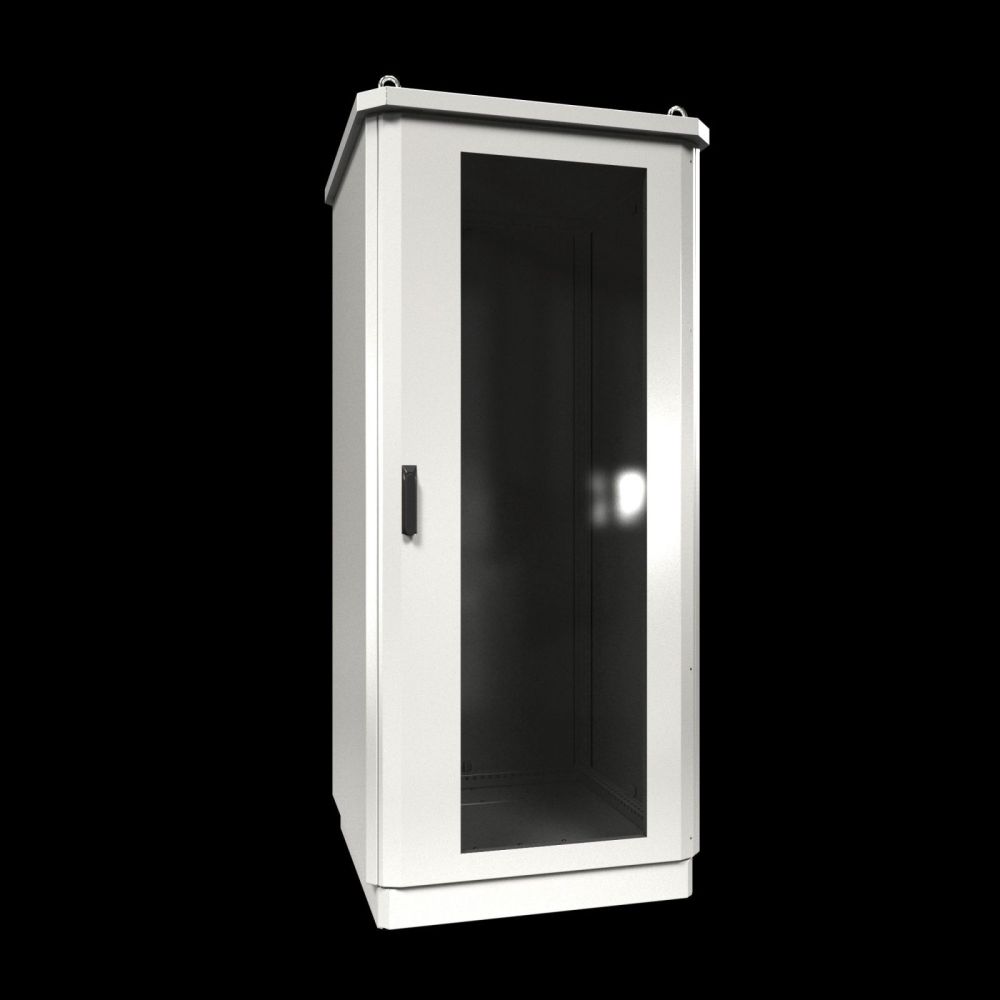

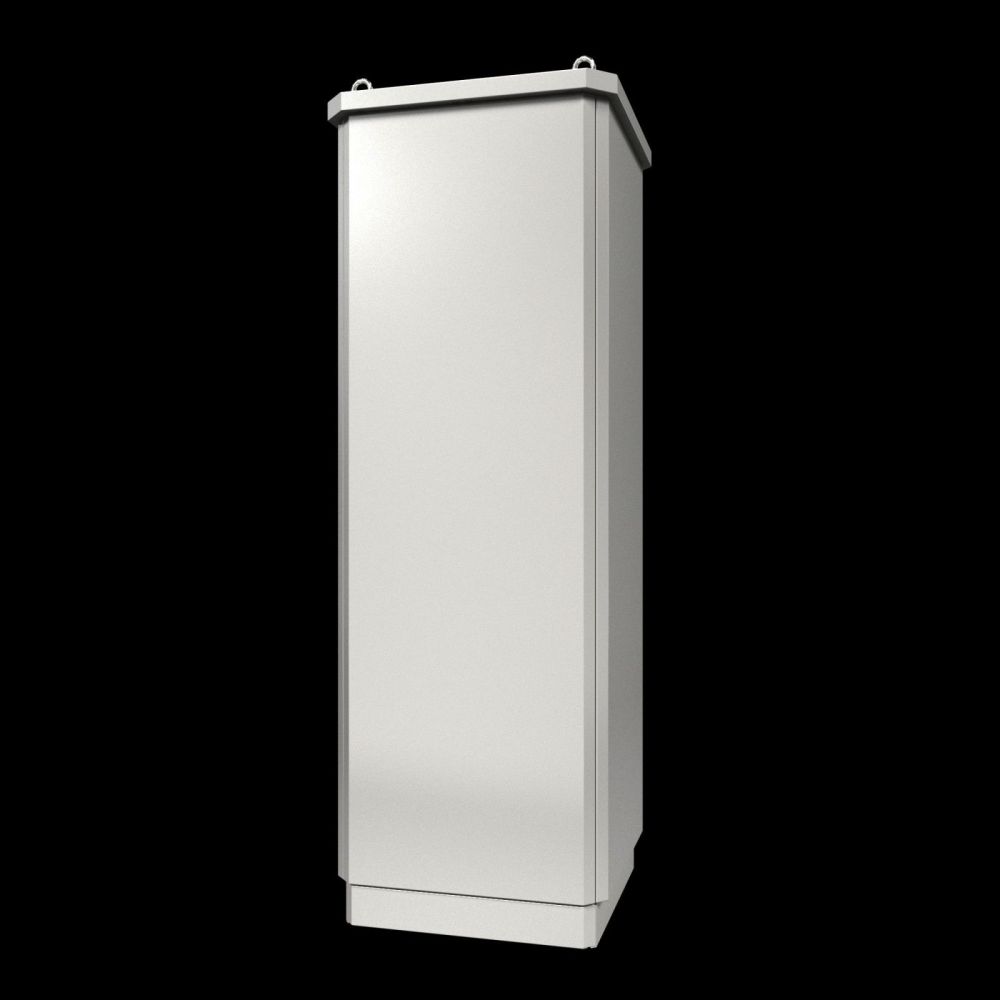

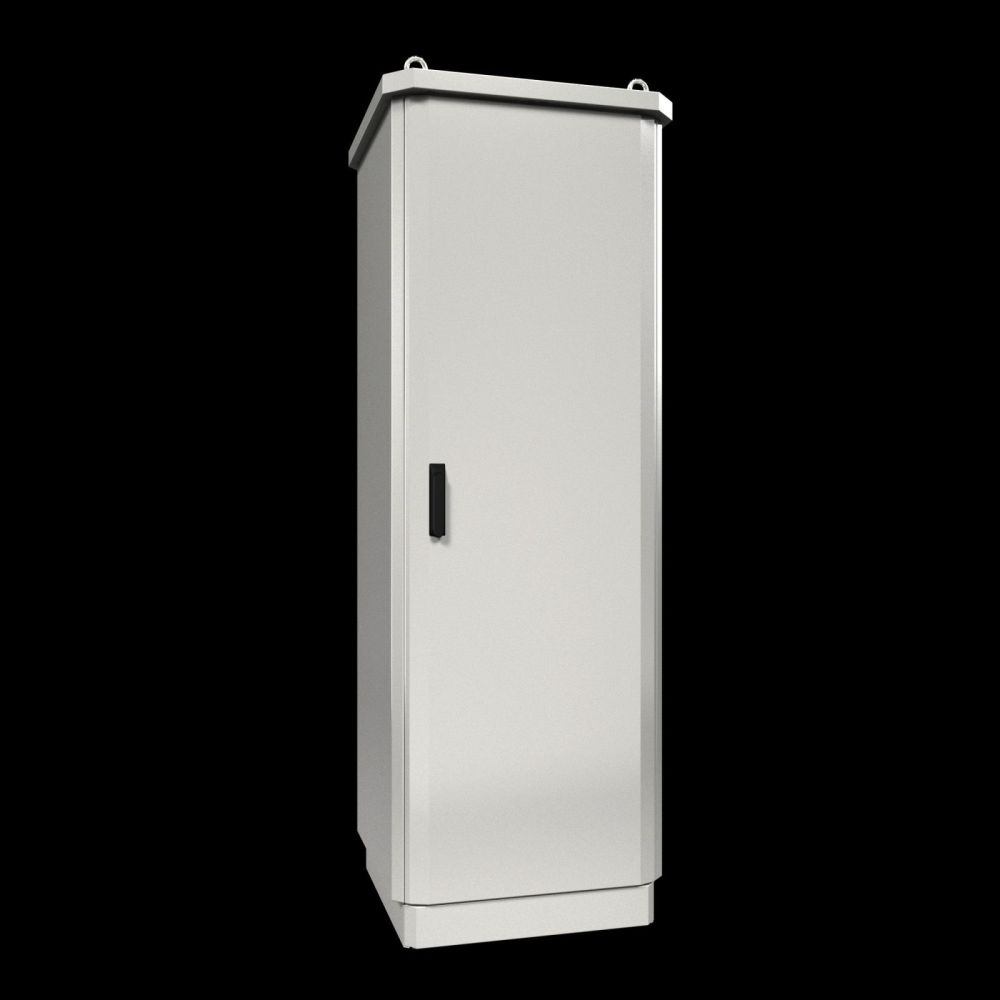

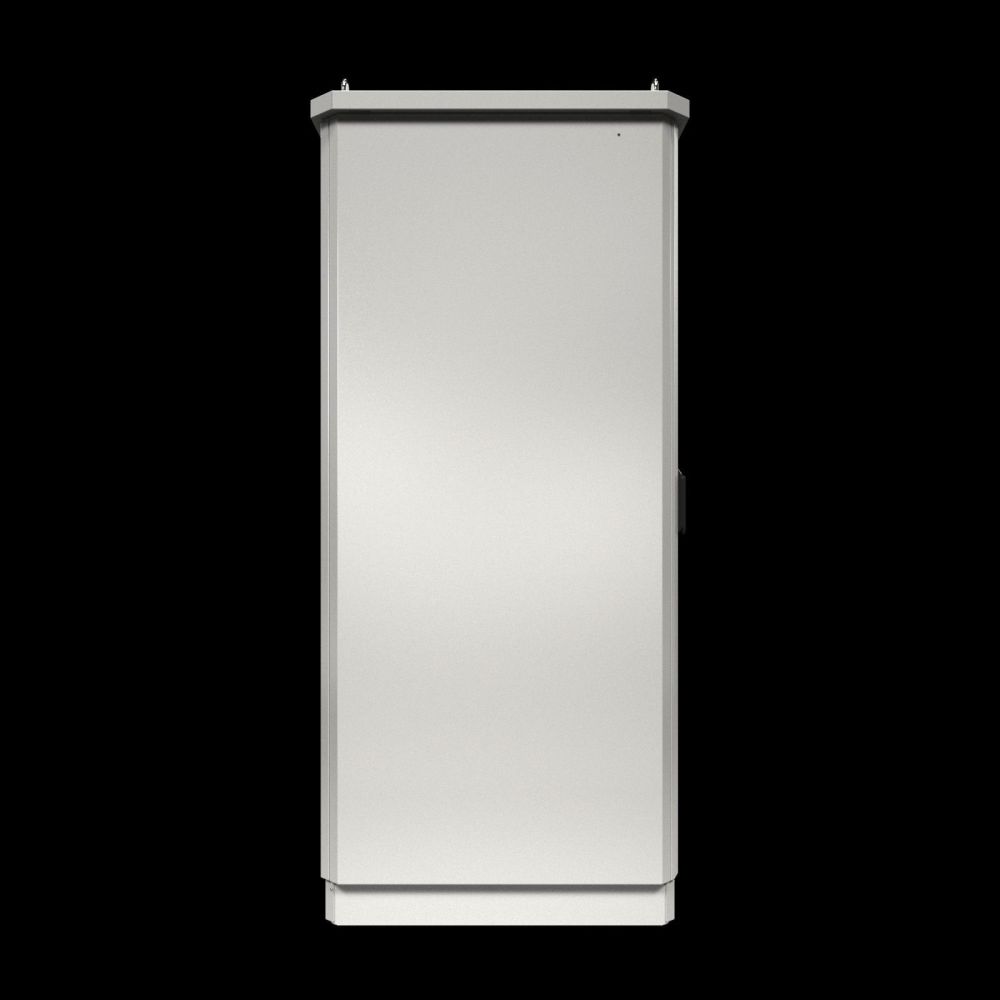

The Rittal CS 9888550 is a double-walled outdoor enclosure from the CS Toptec series, designed for outdoor use. It features dimensions of width 800 mm, height 1,800 mm, and depth 800 mm, and is specifically designed for mounting outdoor climate units with a power rating of 1.5 kW. The enclosure is fully pre-assembled and includes an integrated 100 mm high transport plinth as well as an all-round overhanging rain roof that directs rain and precipitation water away. The construction enables secure and weatherproof installation of enclosures in industrial or technical outdoor applications.

Outdoor enclosure with double wall construction ensures effective thermal and acoustic insulation. All flat parts – including side panels, rear panel, door, and base sheets – are externally doubled and earthed, providing optimal protection against external influences such as moisture, dust, and mechanical stress. The outer wall is directly placed on the inner wall, enabling a stable and durable construction.

Material and surface are tailored to outdoor requirements. The enclosure frame is made of stainless steel 1.4301 (AISI 304), which is resistant to corrosion and weathering. The flat parts and plinth trim panels are made of aluminium AlMg3, which also offers high weather resistance. The surface is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring long-lasting colour retention and high resistance to sunlight.

Protection class IP 55 according to IEC 60 529 protects the enclosure against dust and splashing water from any direction. Additionally, it meets protection class NEMA 3R and NEMA 12, confirming suitability for use in damp, dusty, or slightly contaminated environments. The IK code IK10 guarantees high protection against mechanical impacts, such as blows or shocks, which is important for use in industrial outdoor areas.

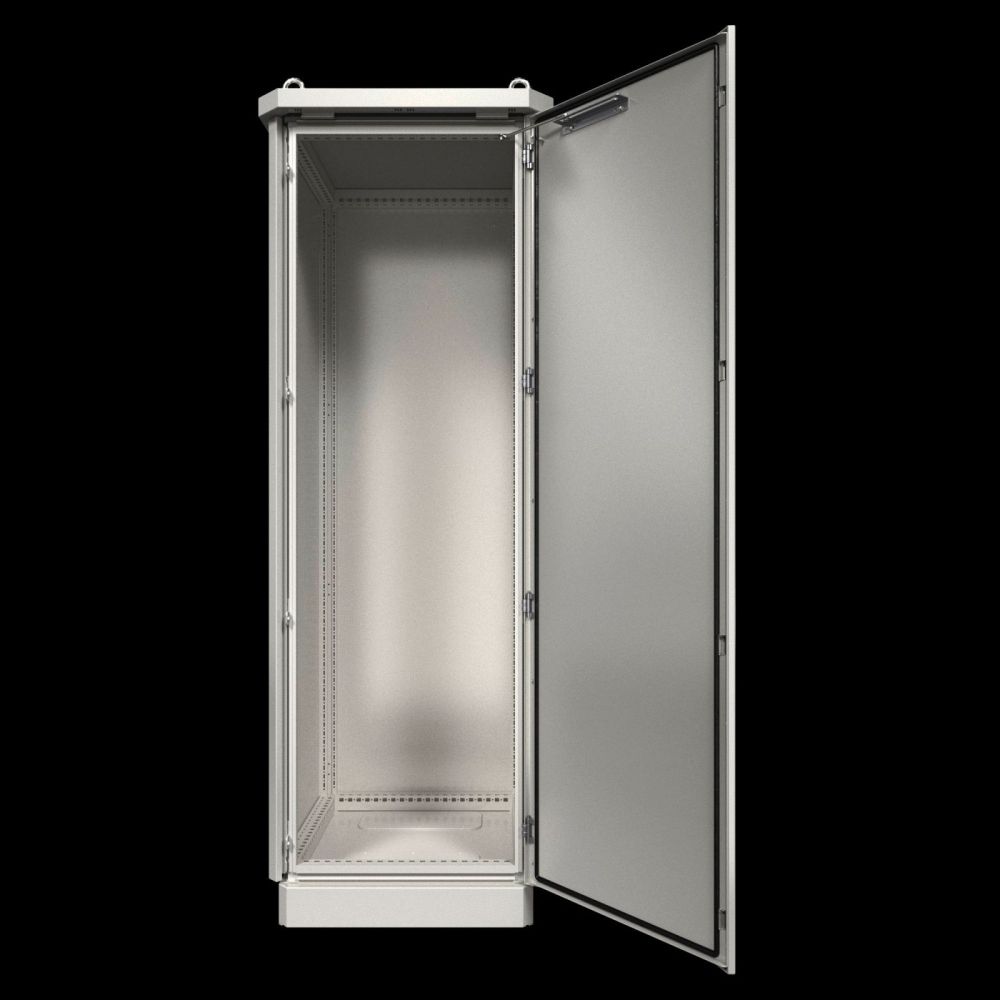

Functions and equipment in detail include a pre-assembled enclosure frame with 25 mm system perforation in roof and base frames as well as in vertical profiles, providing two mounting levels. The front door is equipped with a door latch, a swing handle, and a half cylinder compatible with the locking BJ20027. The door features a 4-point locking system, ensuring secure and stable closure. The plinth construction includes screwed gland plates and screwed trim panels at the front and rear, enabling secure mounting and cabling.

Compatibility and accessories allow integration of additional components such as thermostats, hygrostats, enclosure heaters with fans or filters. For sealing the opening, either a suitable outdoor climate unit (e.g. SK 3485.330 Blue e+ with 1500 W) or a blanking plate is required. Compatible system chassis for inner and outer levels (TS 8) as well as concrete plinths (CS 9765183) are also available to complement the installation.

Mounting and installation is simple and quick due to the pre-assembled structure and integrated transport plinth. The 25 mm system perforation in the frame allows flexible mounting of internal components. The double-walled construction and earthed flat parts ensure safe and maintenance-friendly installation. The enclosure is suitable for single installations and baying, with order numbers 9774.005 (baying) and 9774.099 (single installation) serving as project basis.

Advantages in operation include high weather resistance, easy installation, and long service life due to robust material selection. The integrated system perforation and pre-assembled structure reduce installation time. The double-walled construction provides effective insulation and prevents air short circuits inside. The enclosure is thus ideal for use in industrial outdoor applications, such as in energy supply, process automation, or telecommunications.

The CS Toptec enclosure serves as the basis for project solutions in outdoor environments and provides a reliable platform for installing electrical and electronic components in open air.

General

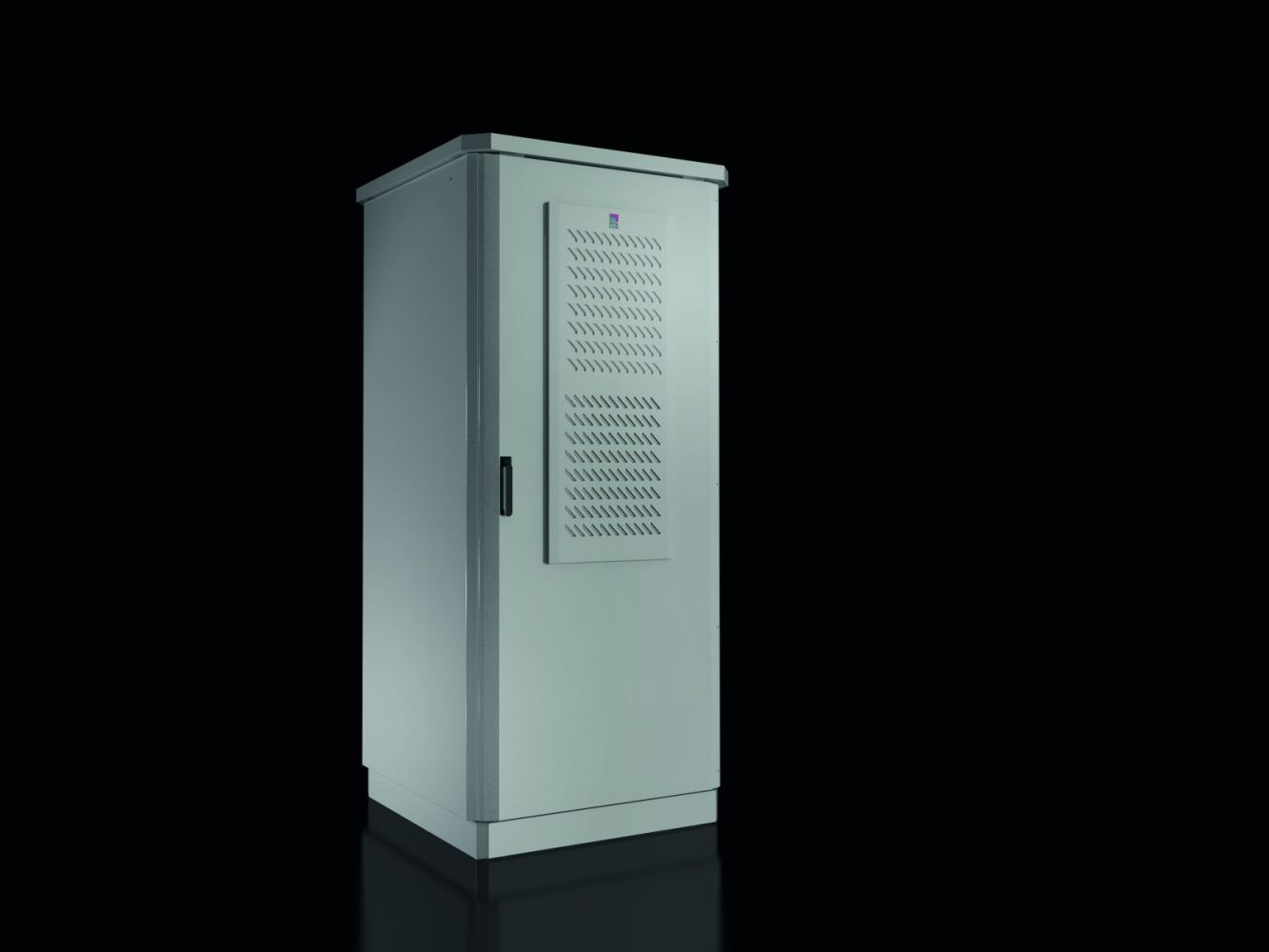

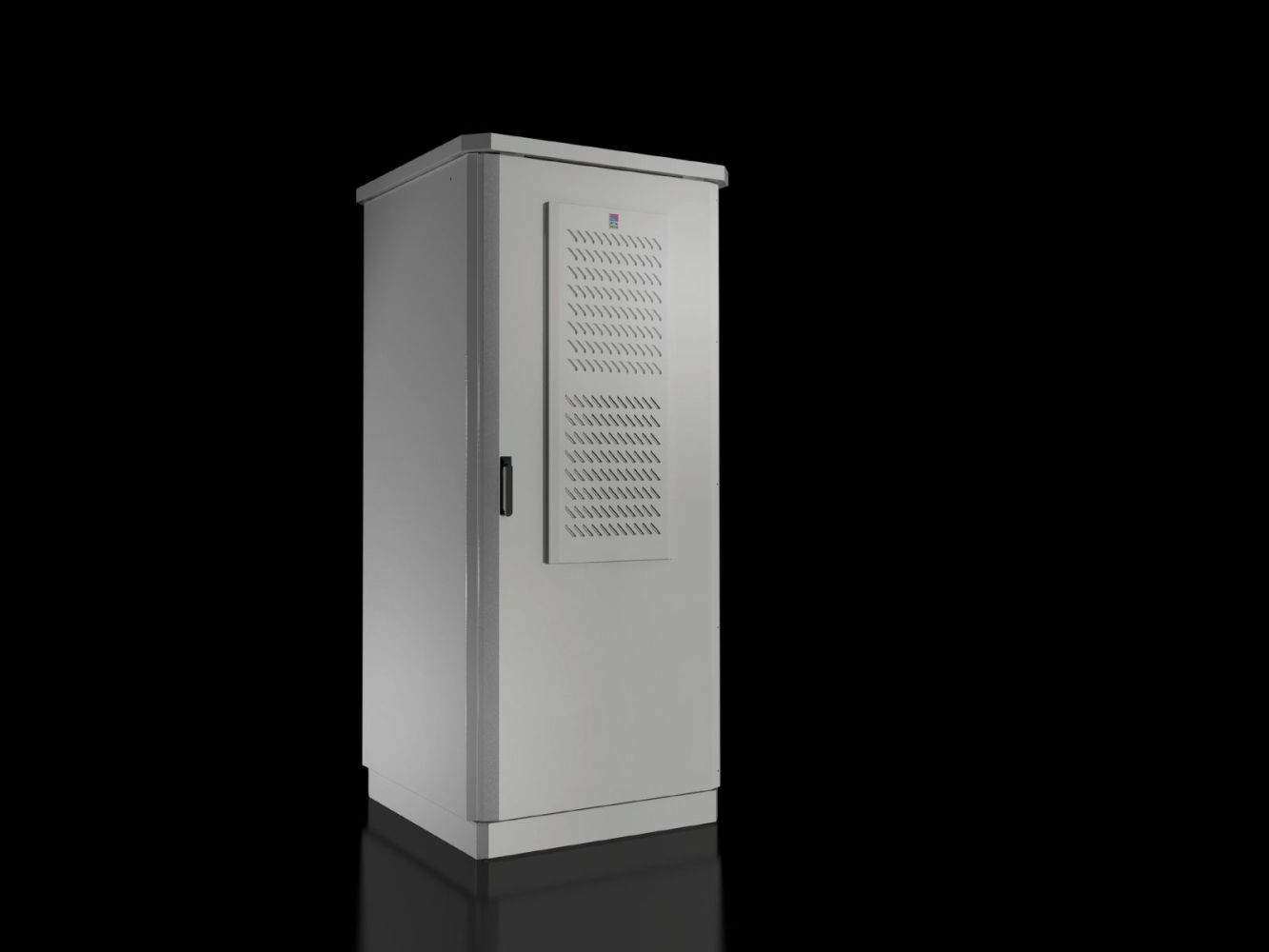

ModelWith cutout for outdoor climate unit 1.5 kW
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliveryDouble-walled outdoor housing, fully pre-assembled, cabinet frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, left and right side walls, rear wall, rain roof, base with screwed flange plates and screwed front and rear panels
Width800 mm
Height1.800 mm
Depth800 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts doubled and grounded (outer wall to inner wall), CS Toptec is the basis for project solutions in the outdoor sector. These can be requested under these order numbers: For single installations: 9774.099, for row mounting: 9774.005
Note on part numberTo close the opening, an air conditioning unit or a blanking plate is required
Base materialAluminium
