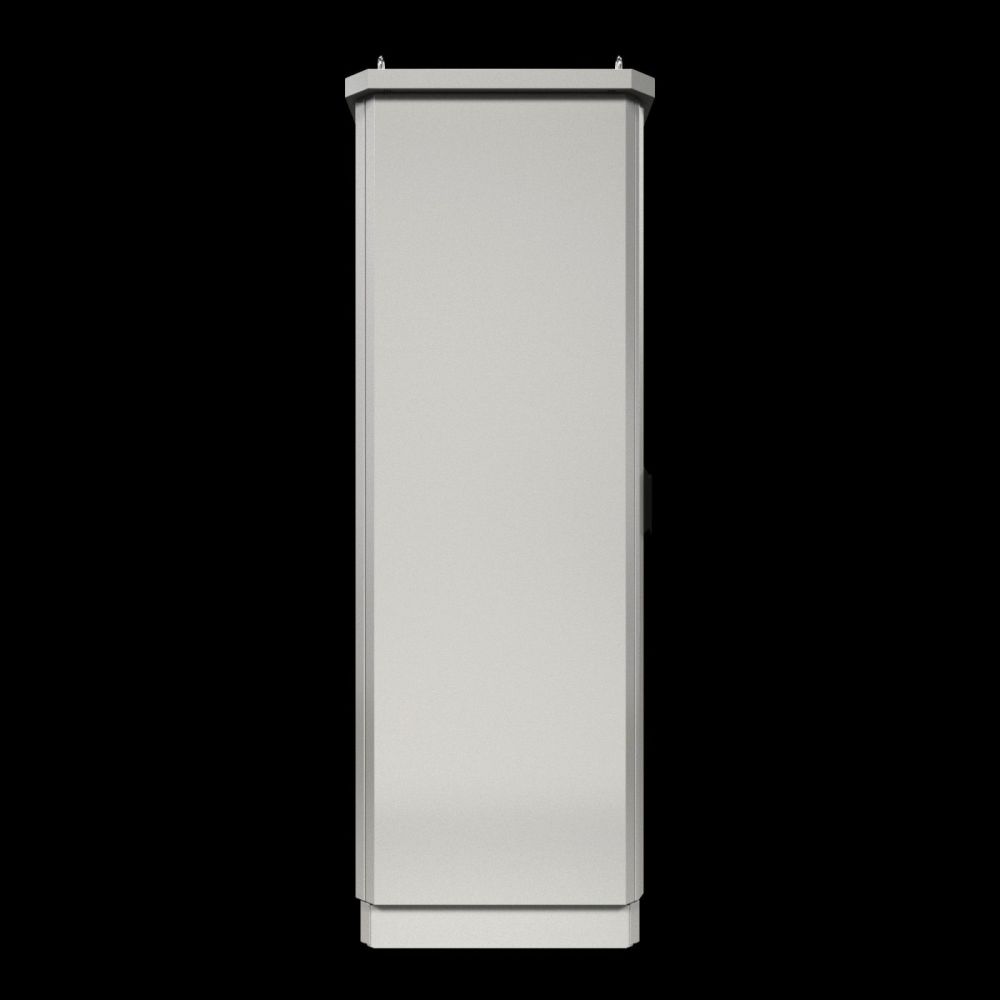

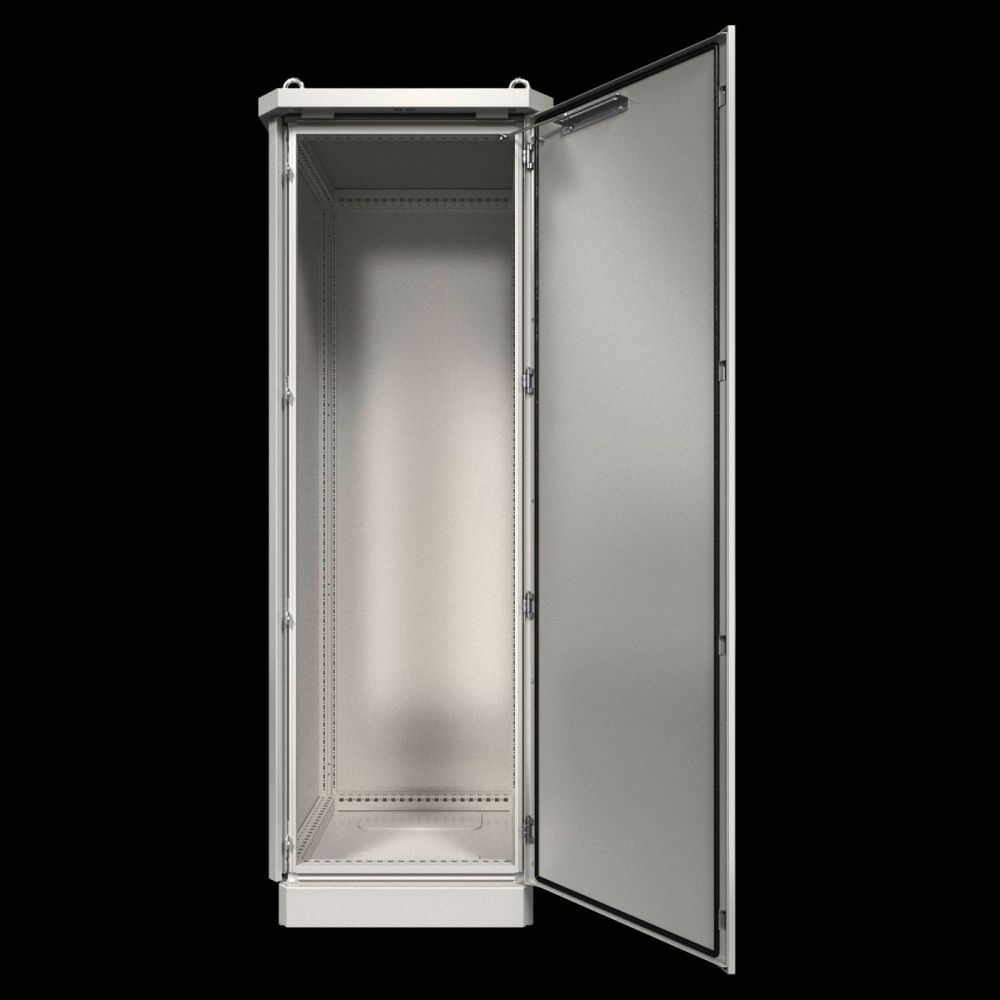

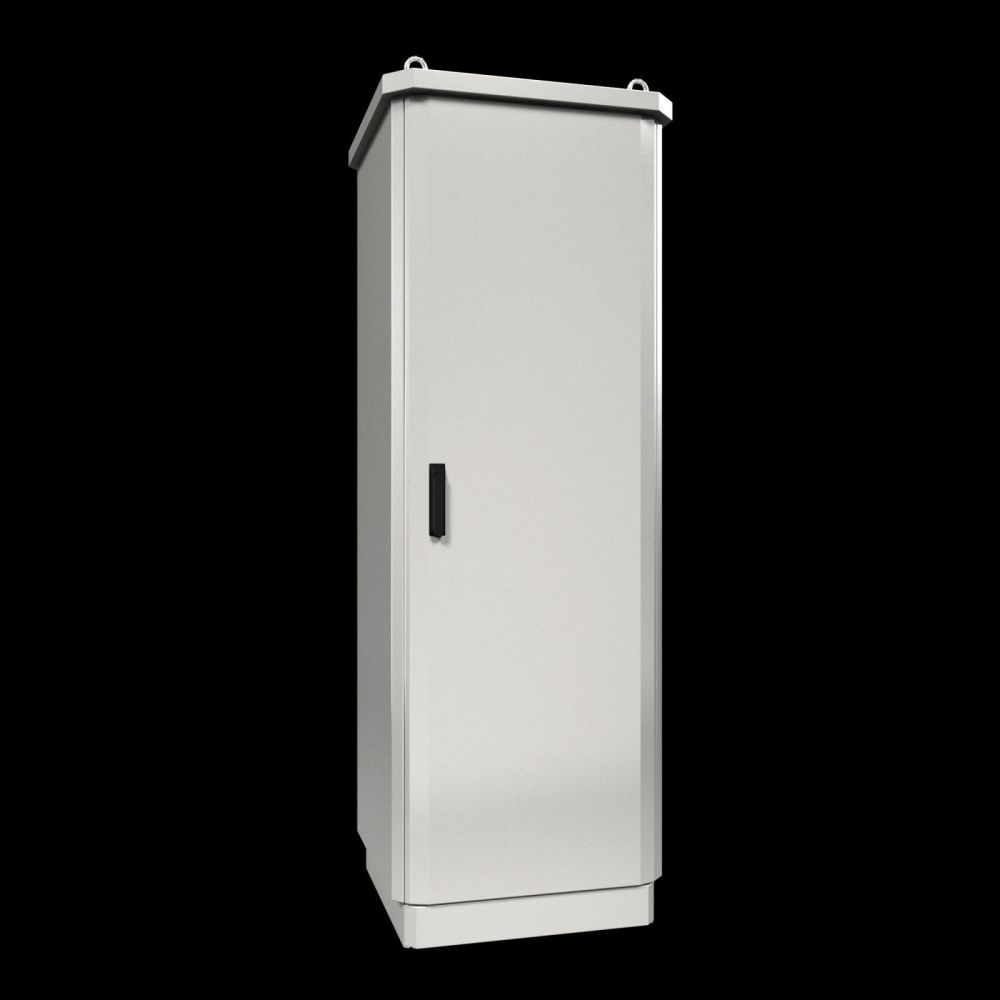

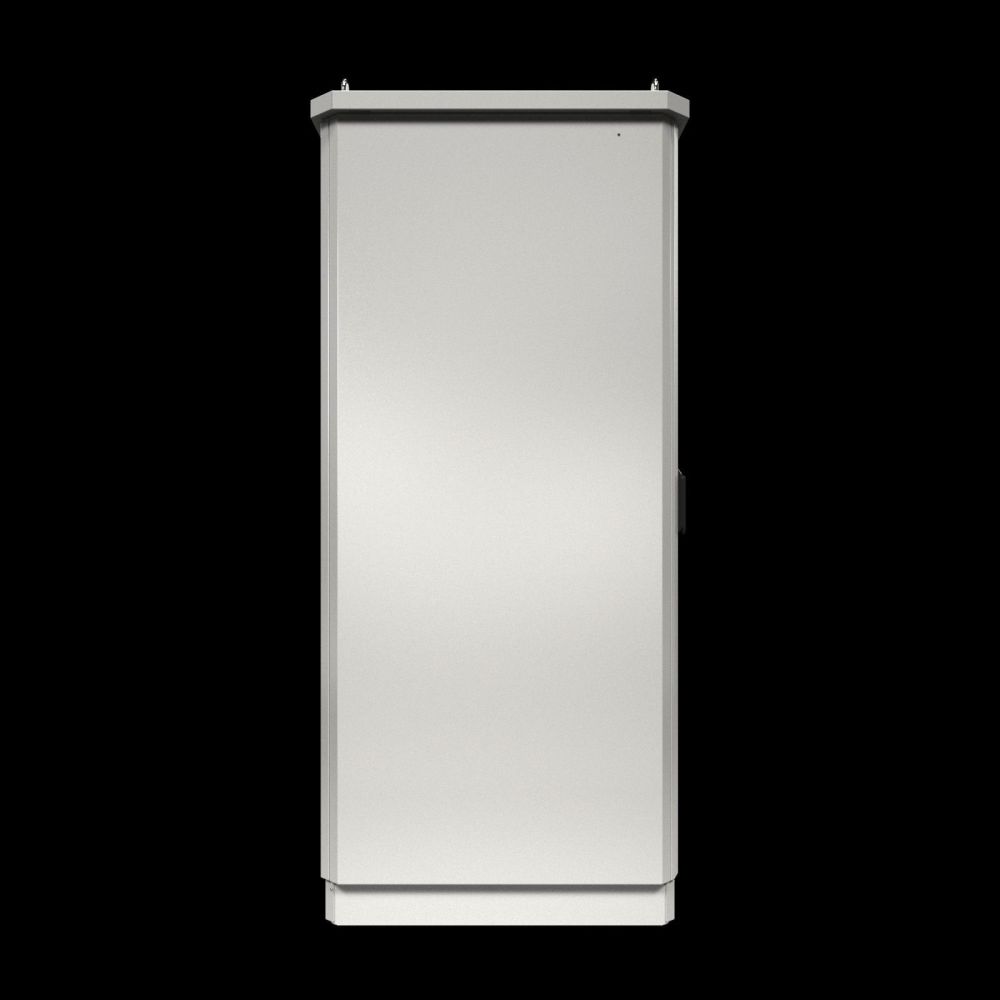

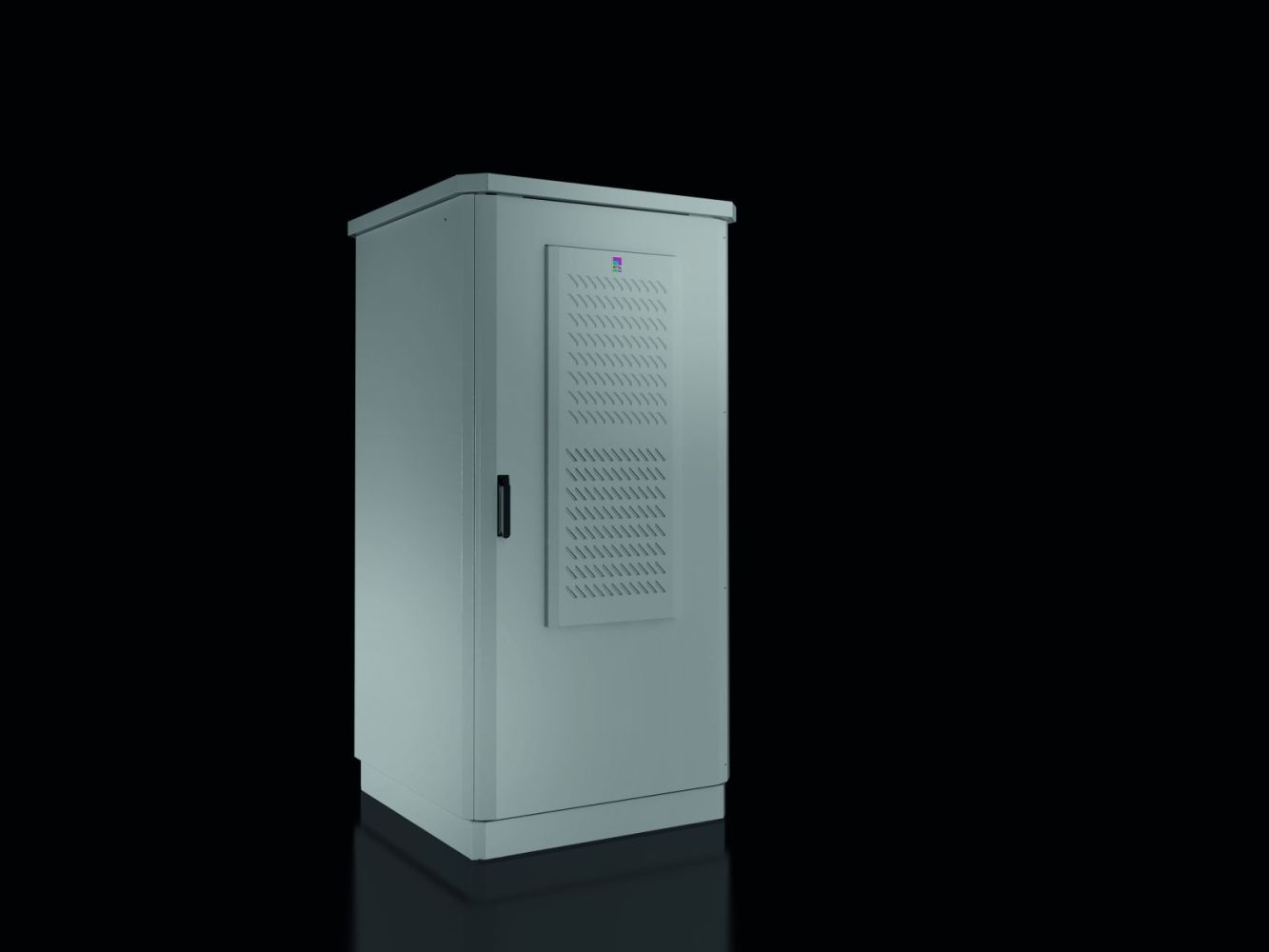

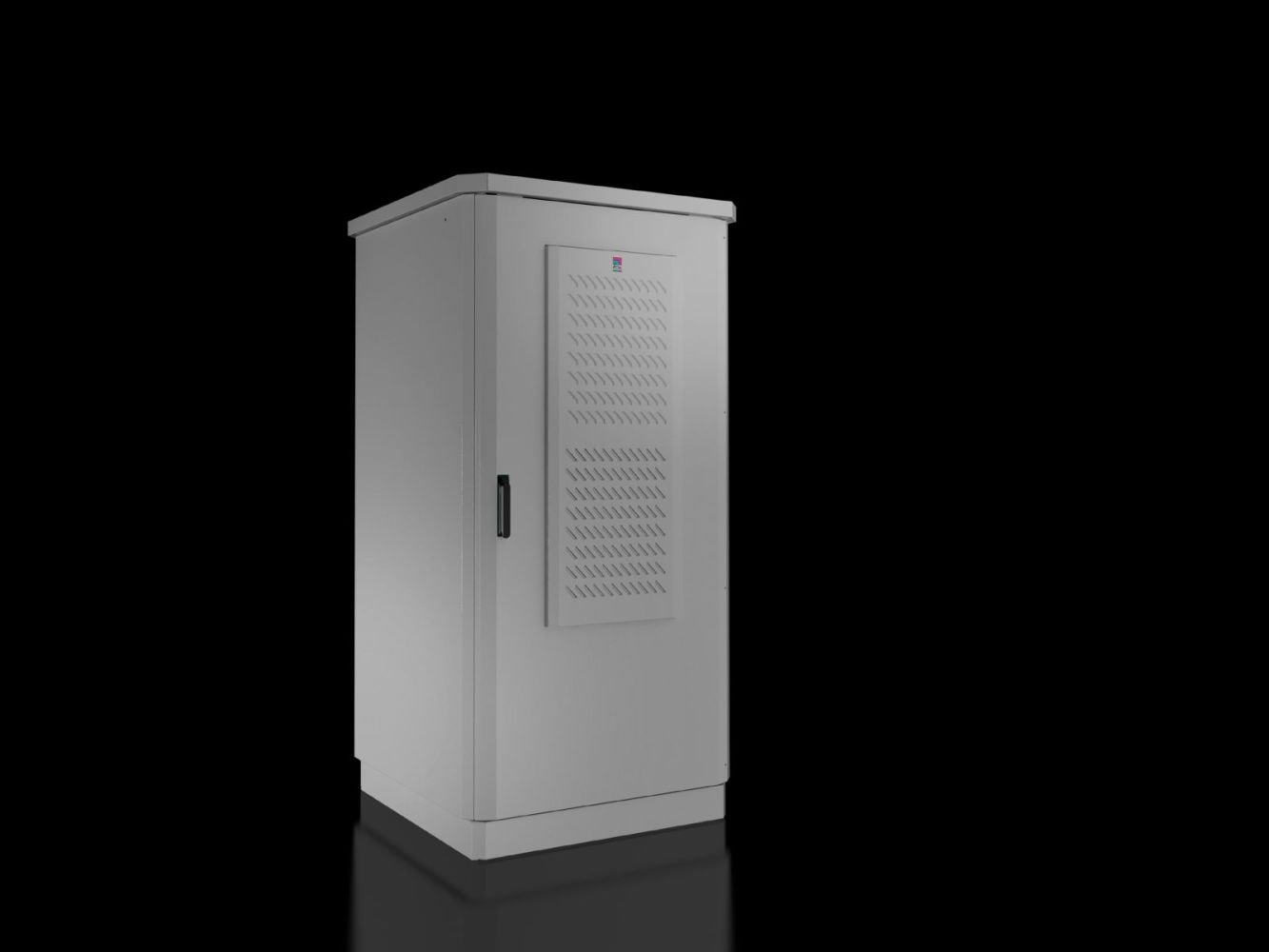

Rittal 9868550 CS Toptec outdoor enclosure IP 55

Your rating:
Average rating
product review for Rittal 9868550 CS Toptec outdoor enclosure IP 55
( 4.5 / 5 ) 4 ratings
Rittal 9868550
This image may differ from the desired article.
Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550Rittal 9868550
3.091,32 EUR
( 3.678,67 EUR incl. VAT )
≈ £2,587.43  |  ≈ $3,397.36
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9868550 CS Toptec outdoor enclosure IP 55
Datasheet:file_download Download
Lieske Part No.:1989765
Mfg Part No: 9868550
UPC/EAN: 4028177962712
Weight:112 kg
Type:CS 9868550

Product information for Rittal 9868550:

The Rittal CS 9868550 is a double-walled outdoor enclosure of the CS Toptec series, designed for outdoor use. It has dimensions of 800 mm width, 1600 mm height, and 800 mm depth, and is specifically designed for mounting outdoor climate units with a power rating of 1.5 kW. The enclosure is fully pre-assembled and features an integrated 100 mm high transport plinth as well as an all-around overhanging rain roof, which protects against rain and snow. The construction is based on the TS 8 frame system, which is fully available for interior installation.

Applications
This enclosure is suitable for industrial and technical applications outdoors, where high mechanical and climatic resistance is required. It is commonly used in automation technology, power supply systems, transportation infrastructure, or communication installations. The double-walled construction provides effective thermal insulation and protects the installed electronic components from external influences.

Functions and Equipment in Detail
The enclosure is equipped with a front tower featuring a door latch, a swing handle, and a half cylinder with lock BJ20027. The door is fitted with a 4-point locking system, ensuring secure and stable closure. The side panels, rear panel, and door are fully double-walled on the outside, creating an additional protective layer against weather influences. All flat parts are earthed, with the outer wall earthed to the inner wall to minimize electromagnetic interference.

Technology Explained Simply
The enclosure frames are made of stainless steel 1.4301 (AISI 304), which is corrosion-resistant and suitable for outdoor use. The flat parts and plinth trim panels are made of aluminium AlMg3, which is lightweight and resistant to weather influences. The surface is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring long-lasting colour retention and protection against UV radiation. The protection class IP 55 according to IEC 60 529 means the enclosure is dust-tight and protected against splashing water. The protection classes NEMA 3R and NEMA 12 indicate suitability for outdoor and industrial environments. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.

Compatibility and Accessories
The enclosure is designed for mounting outdoor climate units with 1.5 kW power. For sealing the opening, either a suitable climate unit or a blanking plate is required. Suitable accessories include thermostats, hygrostats, enclosure heaters with fans, system chassis for inner and outer levels, and concrete plinths. The CS Toptec series can also be arranged in baying, with order numbers 9774.099 (single installation) and 9774.005 (baying) specified for project solutions.

Mounting and Installation

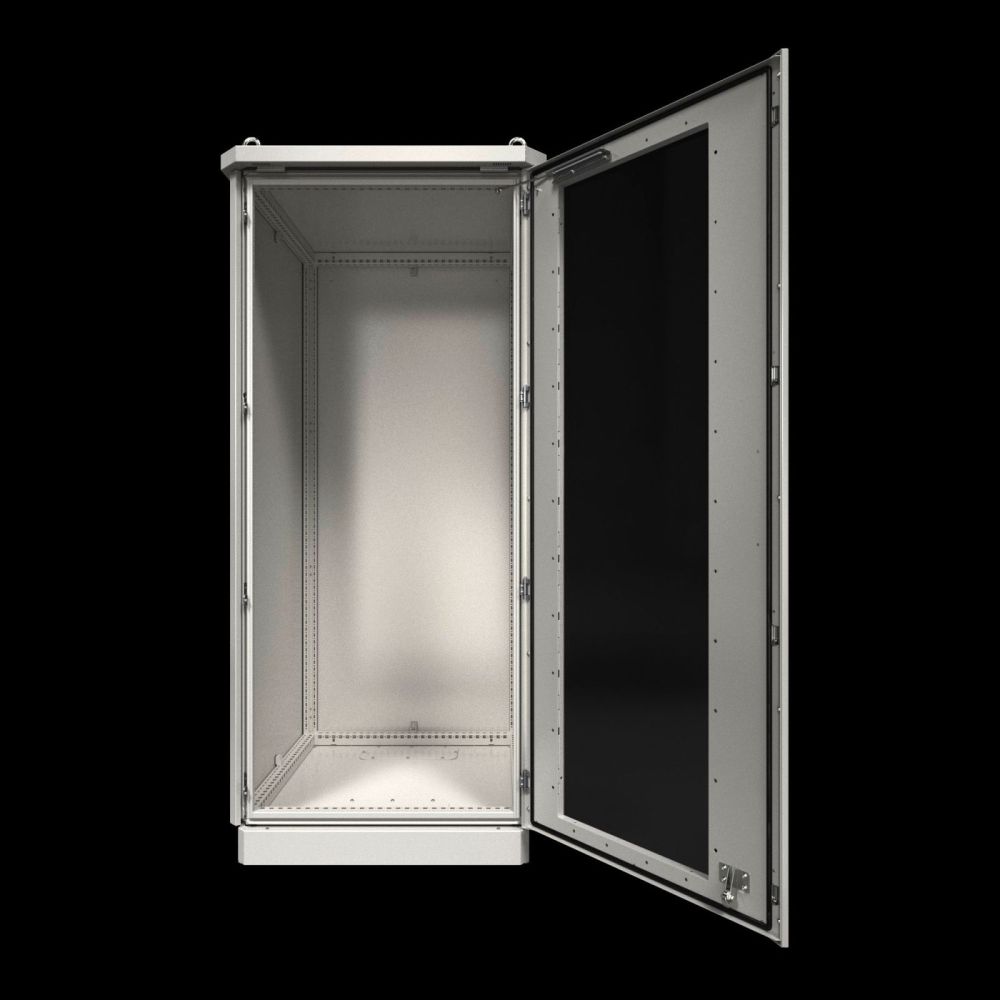

The enclosure is fully pre-assembled and features a 25 mm system hole pattern in the roof and base frames as well as in the vertical profiles with two mounting levels. This enables flexible and quick installation of internal units. The plinth is equipped with screwed gland plates and trim panels at the front and rear, allowing secure mounting to a foundation or wall. The pre-assembled construction significantly reduces on-site installation time.

Operational Advantages
The double-walled construction provides effective thermal insulation and protects installed devices from extreme temperatures. The integrated door latch and 4-point locking system ensure high security. The UV-resistant powder coating in RAL 7035 ensures long surface durability. The protection classes IP 55, NEMA 3R and NEMA 12, along with the IK code IK10, make the enclosure suitable for demanding environments. The pre-assembled design reduces installation time and increases installation efficiency.

The enclosure is designed for outdoor use and offers high protection against weather influences, mechanical stress, and dust. The integrated system hole pattern and pre-assembled construction facilitate installation and maintenance. The use of stainless steel and aluminium ensures high corrosion resistance and longevity. The double-walled construction with earthed flat parts effectively protects the installed electronic components.

General
ModelWith cutout for outdoor climate unit 1.5 kW
MaterialHousing frame: stainless steel 1.4301 (AISI 304), flat parts and base panels: aluminium, AlMg3, rain hood: aluminium
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliveryDouble-walled outdoor housing, fully pre-assembled, cabinet frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels, front door with door latch, swing handle and profile half-cylinder, lock BJ20027, left and right side walls, rear wall, rain roof, base with screwed flange plates and screwed front and rear panels
Width800 mm
Height1.600 mm
Depth800 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
IK codeIK10
NoteAll flat parts doubled and grounded (outer wall to inner wall), CS Toptec is the basis for project solutions in the outdoor sector. These can be requested under these order numbers: For single installations: 9774.099, for row mounting: 9774.005
Note on part numberTo close the opening, an air conditioning unit or a blanking plate is required
Base materialAluminium


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9868550, EAN: 4028177962712
