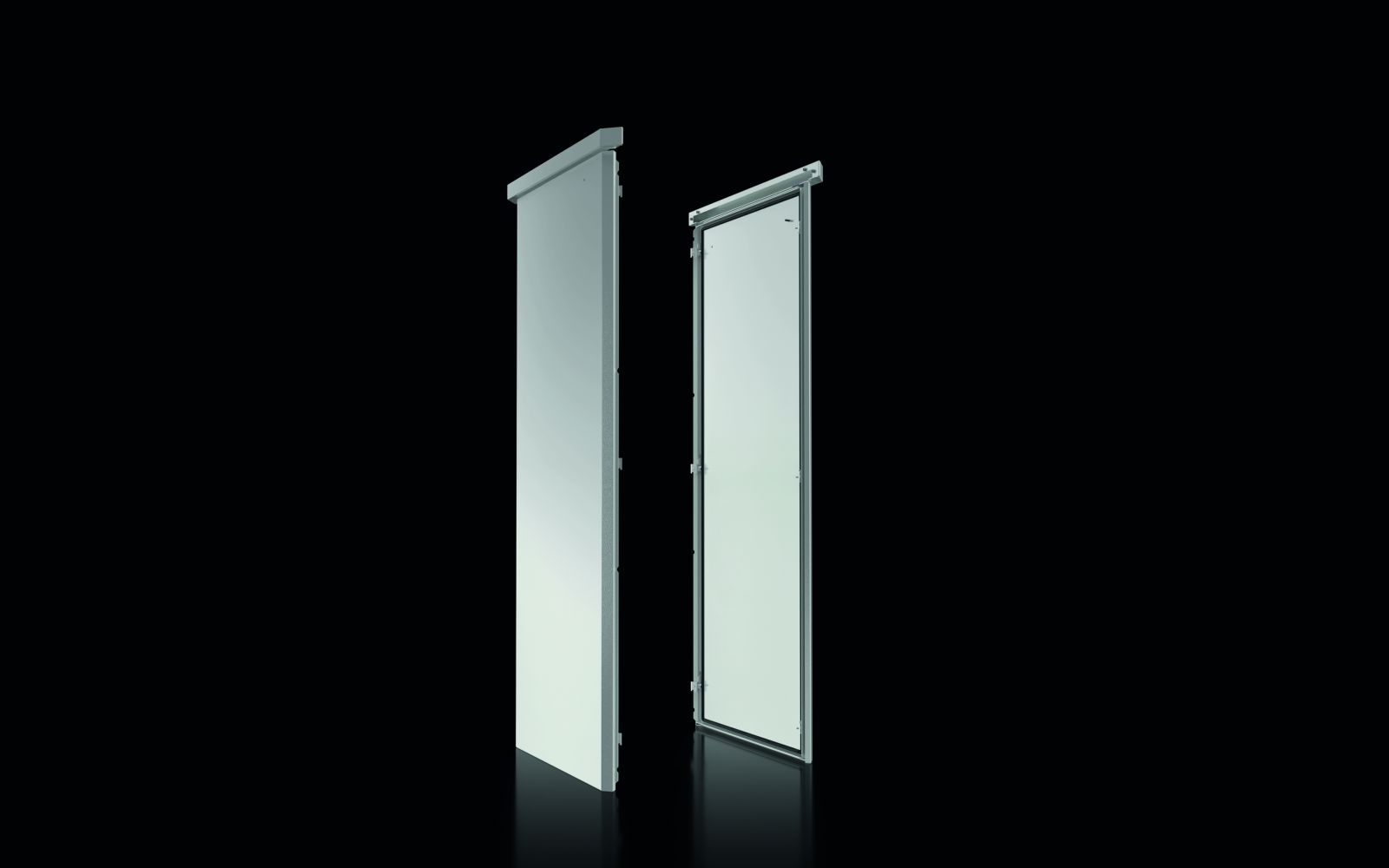

Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm

Your rating:
Average rating
product review for Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm
( 4 / 5 ) 1 ratings
Rittal 9781660
This image may differ from the desired article.
Rittal 9781660Rittal 9781660
-7% 862,50 EUR 930,24 EUR
( 1.026,38 EUR incl. VAT )
≈ £721.91  |  ≈ $947.89
Made to order · Expected to be available from 24.11.2026info_outline
1x Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm
Datasheet:file_download Download
Lieske Part No.:877374
Mfg Part No: 9781660
UPC/EAN: 4028177986084
Weight:43.5 kg
Type:CS 9781660

Product information for Rittal 9781660:

Rittal CS 9781660 is a double-walled side panel for enclosures of the CS Toptec type, bayable, with a height of 1,600 mm and a depth of 600 mm. The product is made of aluminium AlMg3, a material valued for its high strength and corrosion resistance in industrial applications. The surface is powder-coated with UV-resistant pure polyester, ensuring a durable, weather-resistant, and aesthetically pleasing finish in the colour RAL 7035. This coating protects the material from environmental influences and ensures uniform colouring throughout the component’s lifetime.

Applications

The side panel is specifically designed for use in industrial enclosure systems, particularly for the CS Toptec series, which is designed for modular and bayable configurations. It is suitable for installations in production environments where high mechanical stability and protection against dust and splashing water are required. Use in outdoor areas is possible due to the protection rating IP 55 and NEMA 3R, with the latter representing a protection class for enclosed housings outdoors, protected against rain and splashing water. The NEMA 12 approval extends the application range to indoor environments with increased contamination risk, such as in workshops or laboratory environments.

Functions and Equipment in Detail

The double-walled construction of the side panel provides improved sound and thermal insulation compared to single-walled variants. This is particularly advantageous in environments with high temperature fluctuations or when using devices with high noise levels. The side panel is mounted by screwing, ensuring a secure and stable fixation within the enclosure. The delivery includes the side panels themselves, roof side parts, and the required earthing and mounting materials. This enables direct installation without additional purchases.

Technology Explained Simply

The protection rating IP 55 according to IEC 60 529 means that the enclosure is protected against dust (dust-tight) and against splashing water from any direction. This is crucial for the functionality and service life of the electrical components installed inside. The NEMA 3R approval complements this by enabling outdoor use with protection against rain and splashing water. The use of aluminium AlMg3 ensures sufficient mechanical strength, while the powder-coated surface offers high resistance to UV radiation and atmospheric influences.

Compatibility and Accessories

The side panel is specifically designed to be bayable for enclosures of the CS Toptec type, which have a height of 1,600 mm and a depth of 600 mm. It is therefore compatible with other components of the CS Toptec series, such as front doors, roof plates, or base plates, which are also designed for these dimensions. The use of standardised mounting elements allows for easy integration into existing systems.

Mounting and Installation

Mounting is done by screwing the side panel to the designated mounting points on the enclosure frame. The included earthing and mounting materials facilitate installation. The double-walled structure requires no additional insulation measures, as the construction already provides sufficient thermal and acoustic insulation. Installation can be carried out by skilled personnel without special tools, as the mounting elements are standardised.

Advantages in Operation

The side panel offers high mechanical stability and long-term functionality in demanding environments. The double-walled construction reduces heat and sound transmission, increasing operational safety and comfort around the enclosure. The UV-resistant coating prevents colour changes and material ageing due to sunlight, which is particularly beneficial for outdoor installations. The protection rating IP 55 and NEMA 3R ensure protection of internal components from environmental influences, extending maintenance intervals and increasing operational safety.

The packaging unit includes 2 pieces, sufficient for mounting both sides of an enclosure. The net weight is 34 kg, the gross weight 43.5 kg, indicating the robust construction and high material quality. The use of aluminium AlMg3 and the powder-coated surface ensures long service life and low maintenance requirements in industrial use.

General
MaterialAluminium AlMg3
Surface protectionPowder-coated, UV-resistant pure polyester
ColourRAL 7035
Scope of deliverySide walls, roof side parts, including earthing and mounting material
Suitable forHousing type: CS Toptec stackable; Height: = 1,600 mm; Depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 3R, NEMA 12
Base materialAluminium


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9781660, EAN: 4028177986084

Questions & answers

What is the delivery time of Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm?

The article Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9781660 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9781660 CS side panel, double-walled, for HT: 1600x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
