Rittal 9783610 Outdoor enclosure CS New Basic enclosure, 1-door, 800x1
|
951,05 EUR 989,09 EUR |
|
|
( 1.131,75 EUR incl. VAT ) ≈ £803.64 | ≈ $1,063.27 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 762752 |
| Mfg Part No: | 9783610 |
| UPC/EAN: | 4028177569171 |
| Weight: | 36.15 kg |
| Type: | CS 9783610 |
Further Outdoor enclosures from RittalFurther products in category Outdoor enclosures
All products of Rittal
Product information for Rittal 9783610:

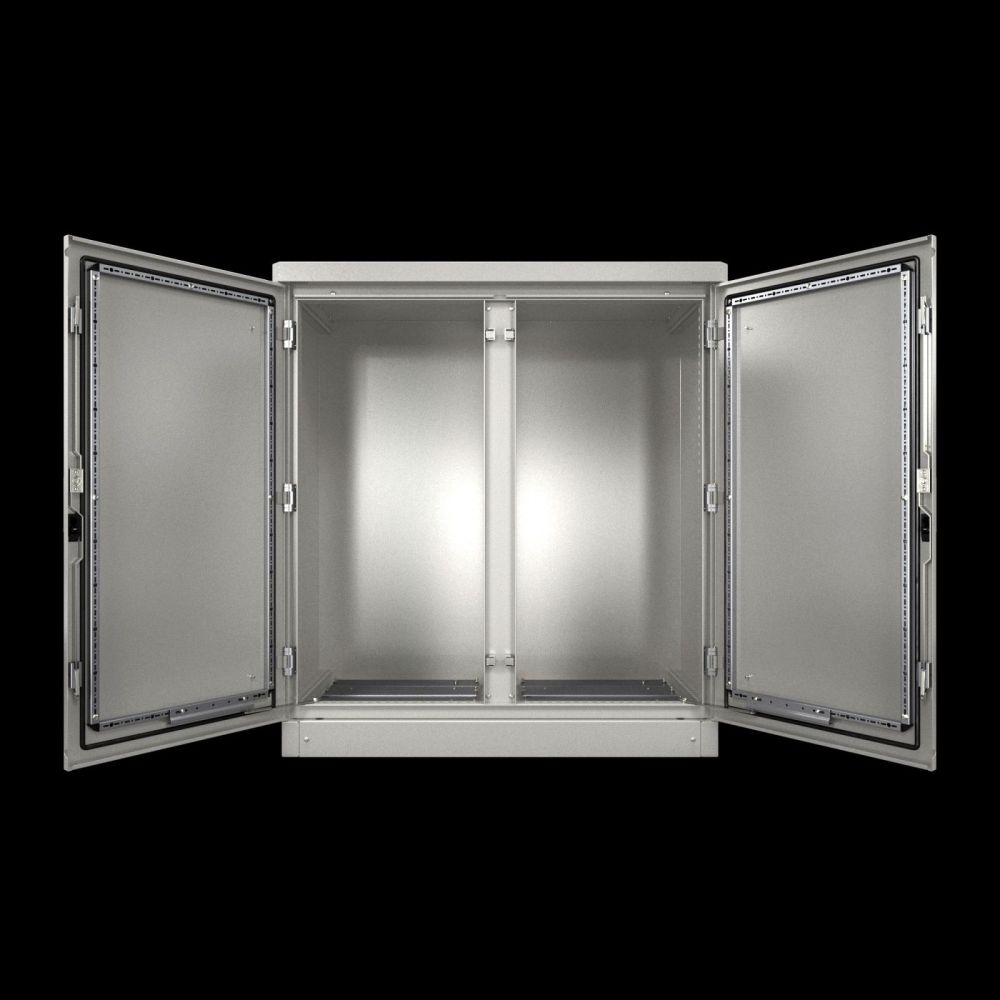

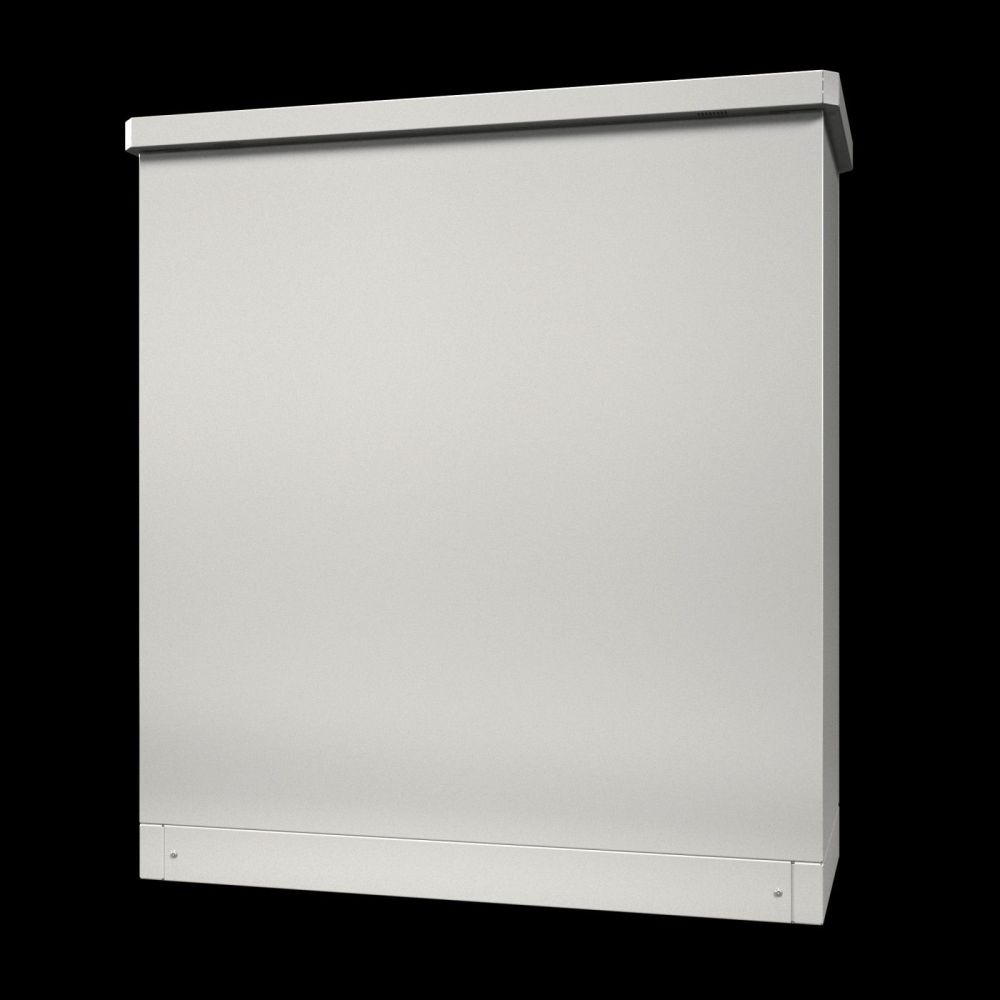

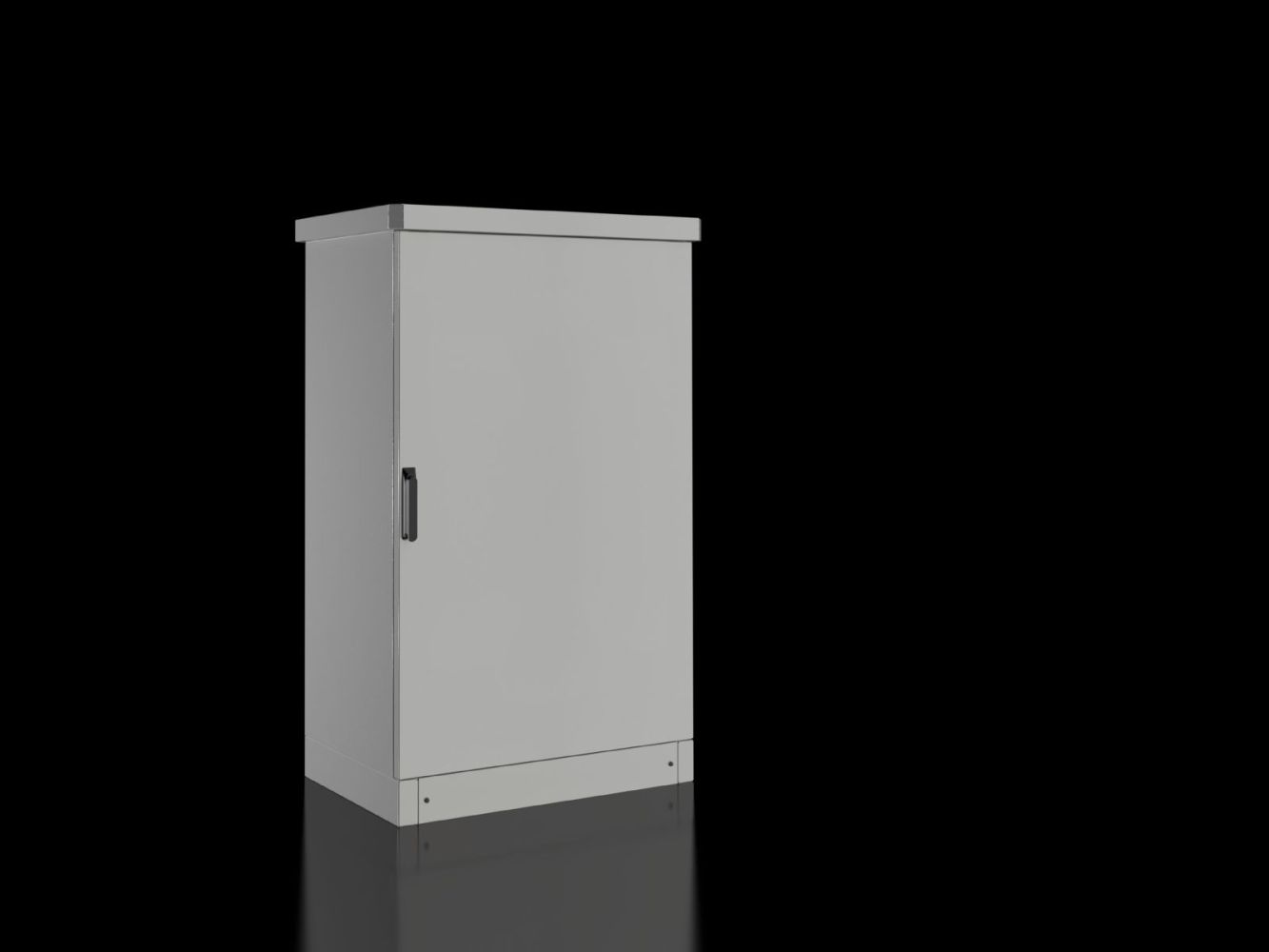

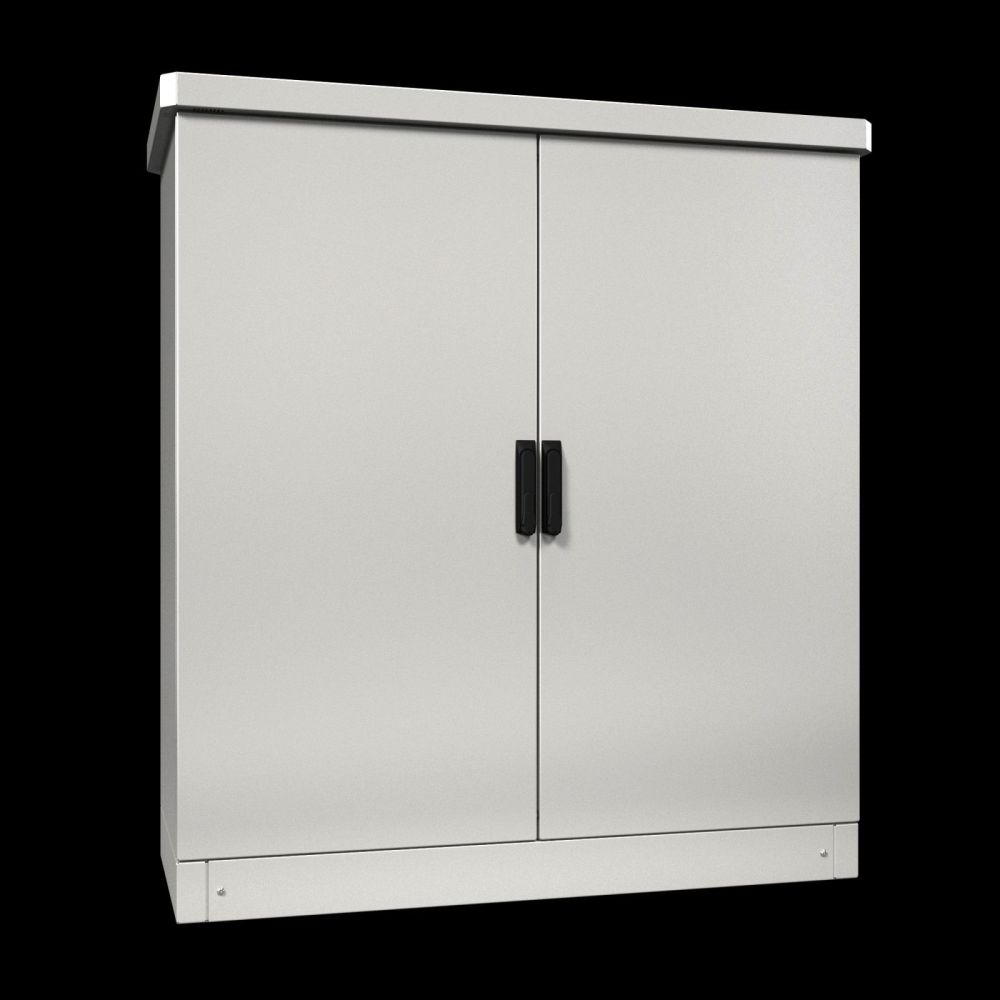

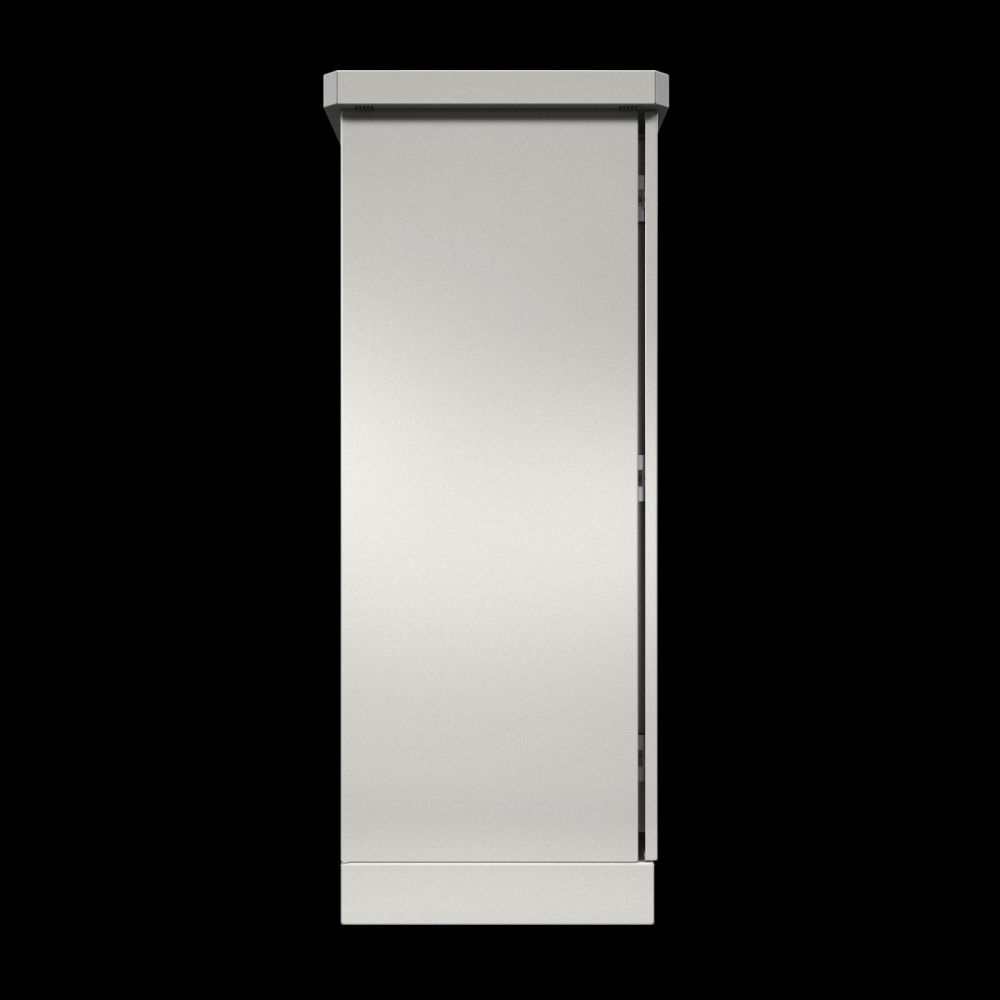

Outdoor enclosure with 100 mm transport plinth and rain canopy with projections on all sides.
Material: Aluminium AlMg3
Surface finish: Powder-coated
UV-resistant pure polyester
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 3R
IK Code: IK07
Supply includes: Single-walled outdoor enclosure, fully preconfigured
Basic enclosure with gland plate, three-part
25 mm system punchings in the roof, base, front and in the enclosure depth
Front door(s) with door stay, swing lever handle and semi-cylinder, lock BJ 20027
Transport plinth with screw-fastened trim panels front and rear
Rain canopy
Packs of: 1 pc(s).
EAN: 4028177569171
Customs tariff number: 94032080
eCl@ss 5.1: 27180302
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 800 mm
Height: 1200 mm
Height (base/plinth): 100 mm
Height (mounted): 1355 mm
Depth: 500 mm
Clearances: Clearance width: 712 mm
Clearance height: 1112 mm
Clearance depth: 449 mm
Rain canopy: Width: 850 mm
Height: 55 mm
Depth: 550 mm
Number of doors: 1
Weight/pack: 49.5 kg
Material: Aluminium AlMg3
Surface finish: Powder-coated
UV-resistant pure polyester
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 3R
IK Code: IK07
Supply includes: Single-walled outdoor enclosure, fully preconfigured
Basic enclosure with gland plate, three-part
25 mm system punchings in the roof, base, front and in the enclosure depth
Front door(s) with door stay, swing lever handle and semi-cylinder, lock BJ 20027
Transport plinth with screw-fastened trim panels front and rear
Rain canopy
Packs of: 1 pc(s).
EAN: 4028177569171
Customs tariff number: 94032080
eCl@ss 5.1: 27180302
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 800 mm
Height: 1200 mm
Height (base/plinth): 100 mm
Height (mounted): 1355 mm
Depth: 500 mm
Clearances: Clearance width: 712 mm
Clearance height: 1112 mm
Clearance depth: 449 mm
Rain canopy: Width: 850 mm
Height: 55 mm
Depth: 550 mm
Number of doors: 1
Weight/pack: 49.5 kg
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
