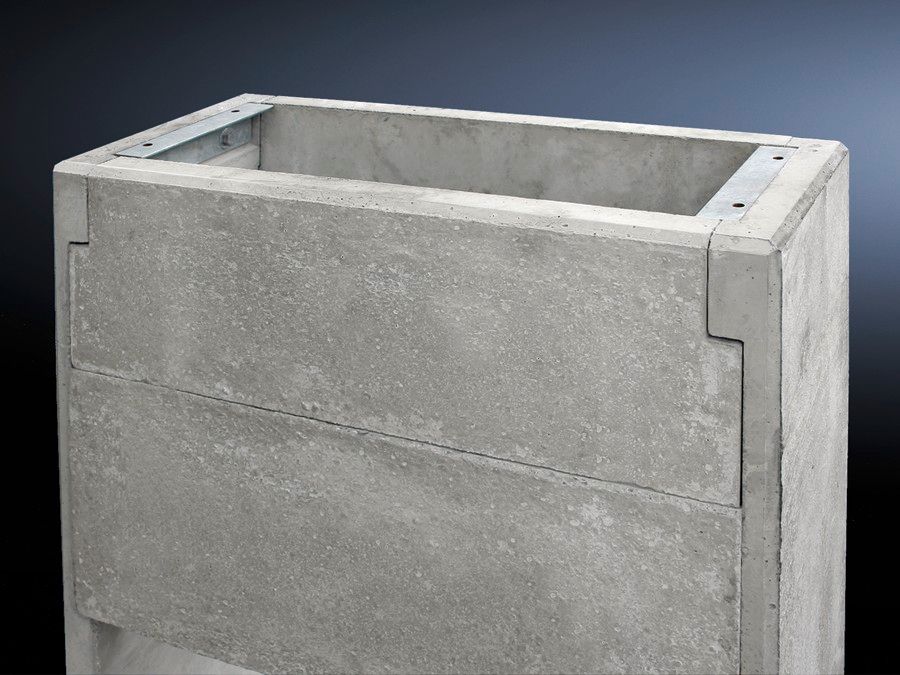

Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure

Your rating:
Average rating
product review for Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure
( 4.5 / 5 ) 2 ratings
Rittal 9765084
This image may differ from the desired article.
674,54 EUR 702,45 EUR
( 802,70 EUR incl. VAT )
≈ £564.59  |  ≈ $741.32
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure
Datasheet:file_download Download
Lieske Part No.:576124
Mfg Part No: 9765084
UPC/EAN: 4028177216785
Weight:242 kg
Type:CS 9765084

Product information for Rittal 9765084:

The Rittal CS 9765084 is a concrete plinth for outdoor enclosures, specifically designed for CS basic enclosures with dimensions width 800 mm and depth 500 mm. It serves as a stable, on-site mountable foundation solution for outdoor use, with installation accelerated by pre-fabricated components. The plinth is made of lightweight concrete and has an uncoated surface, highlighting its suitability for industrial environments. The total height is 965 mm, with a burial depth of 700 mm to ensure secure anchoring in the ground.

Applications
The concrete plinth is intended for outdoor use, particularly for outdoor enclosures of the CS series, used in industrial plants, power supply networks, or communication infrastructures. The construction allows for simple and quick installation at the site, reducing installation time. The front and rear sides of the plinth are fitted with removable panels, secured with internal screws, enabling direct access to the interior of the enclosure during maintenance work.

Functions and Equipment in Detail
The plinth is delivered as a lightweight assembly kit, consisting of a base plate, two side parts, and two split plinth plates. These elements are designed to be assembled on-site and installed into the designated ground opening. The delivery includes the required mounting material and fastening screws for connecting the individual components and securing the enclosure to the plinth. The split plinth plates allow flexible adaptation to the specific mounting situation and simplify installation.

Technology Explained Simply
The plinth is made of lightweight concrete, a material offering sufficient load-bearing capacity while reducing weight. The net weight is 240 kg, facilitating handling and installation without compromising stability. The burial depth of 700 mm ensures adequate anchoring in the ground, securing the enclosure against external influences such as wind or vibrations. The total height of 965 mm is matched to the standard height of CS basic enclosures, ensuring level and secure mounting.

Compatibility and Accessories
The concrete plinth is specifically designed for CS basic enclosures with dimensions 800 mm width and 500 mm depth. It is therefore compatible with corresponding modules of the CS series intended for outdoor use. Use with other enclosure types or dimensions is not intended. Installation is carried out directly at the site, with pre-fabricated components enabling quick and precise installation.

Mounting and Installation
Installation involves assembling the pre-fabricated components at the site. The base plate is placed into the prepared ground opening, followed by mounting the side parts and split plinth plates. The fastening screws and mounting material included in the delivery are used to connect the individual elements. The removable front and rear panels allow easy access to the interior of the enclosure for maintenance and service work.

Operational Advantages
The concrete plinth provides a stable and durable foundation solution for outdoor enclosures. The pre-fabricated components reduce installation time and simplify on-site assembly. The removable panels enable easy access during maintenance without requiring full disassembly of the enclosure. The use of lightweight concrete ensures sufficient load-bearing capacity while reducing weight, simplifying handling and transport logistics. The uncoated surface is suitable for industrial environments where no special coatings are required.

General
MaterialLightweight concrete
Surface protectionUncoated
Scope of delivery1 base plate, 2 side parts, 2 split base plates, including mounting material and fastening screws for housing assembly
Buried depth700 mm
Notelead time on request
Note on part numberlead time on request
Height965 mm
Suitable forHousing type: CS basic housing, width: 800 mm, depth: 500 mm
Suitable for depth500 mm


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9765084, EAN: 4028177216785

Questions & answers

What is the delivery time of Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure?

The article Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9765084 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9765084 CS concrete plinth 800x500 mm for outdoor module enclosure if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
