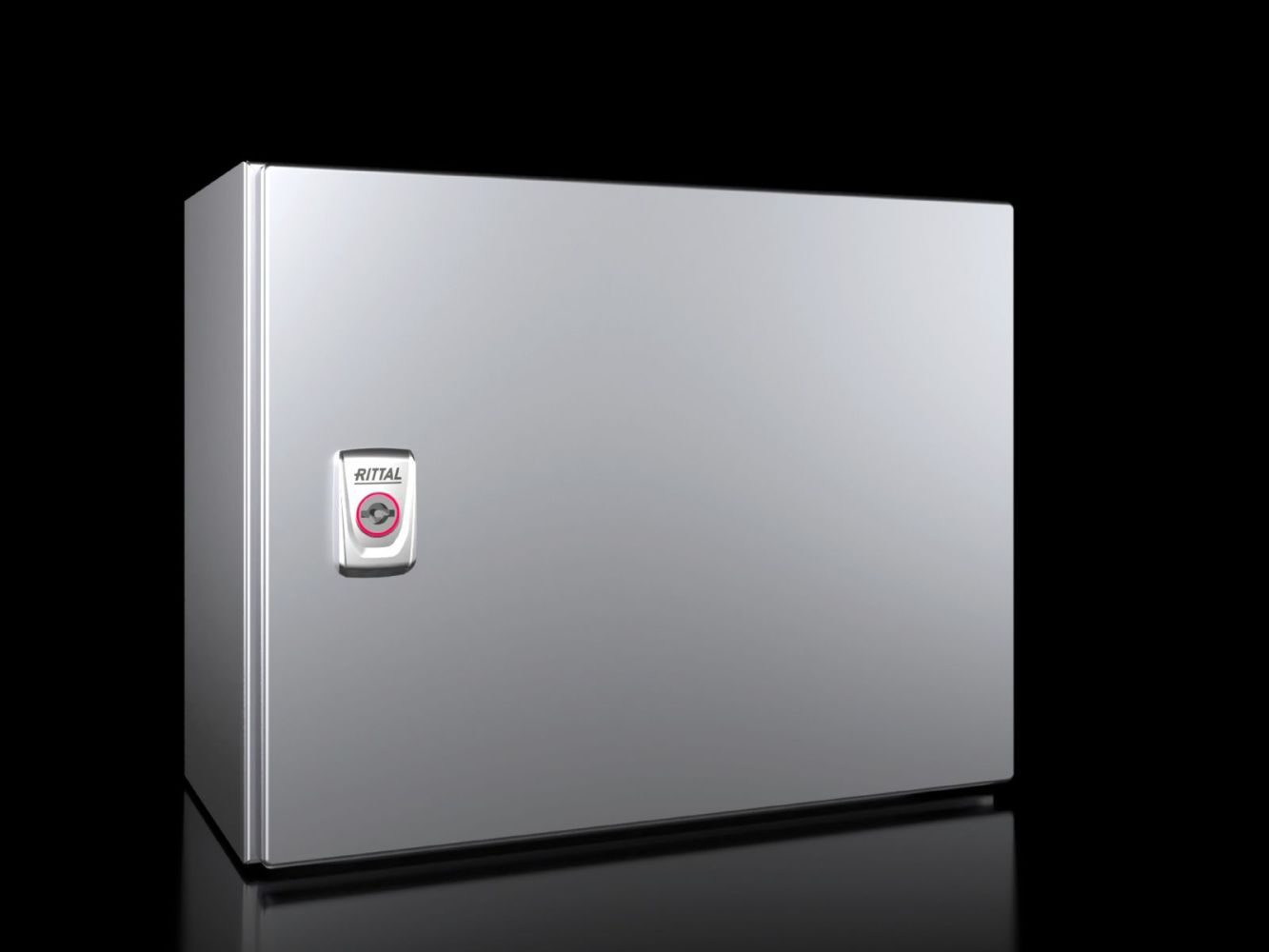

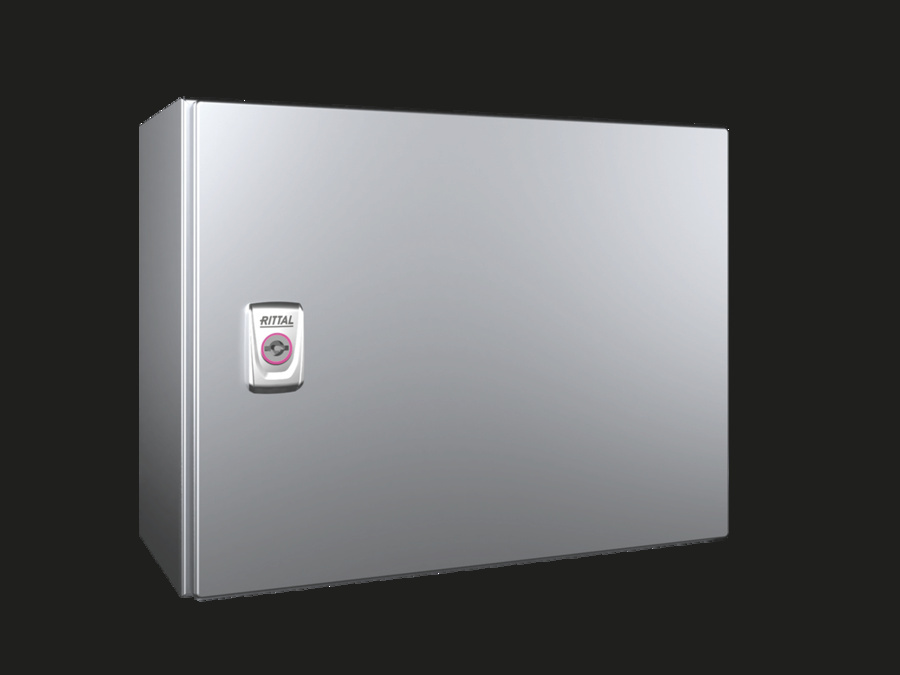

Rittal 1011000 Compact enclosure AX, 1-door, 380x300x210 mm
|
-5% 219,42 EUR 231,96 EUR |
|
|
( 261,11 EUR incl. VAT ) ≈ £183.65 | ≈ $241.14 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1980350 |
| Mfg Part No: | 1011000 |
| UPC/EAN: | 4028177815117 |
| Weight: | 7.532 kg |
| Type: | AX 1011000 |
Product information for Rittal 1011000:
Applications
This enclosure is designed for use in environments where high mechanical loads, moisture, or dirt are present. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under strong splashing water and jet water attacks. The protection rating NEMA 4X and Type 4X according to UL 50E makes it suitable for outdoor use as well as in moist or corrosive environments. The IK10 rating provides high protection against mechanical impacts, such as falling objects or tools. The protection rating NEMA 12 and Type 12 allows use in indoor environments with increased contamination risk, for example in production halls or laboratory environments.
Functions and Equipment in Detail

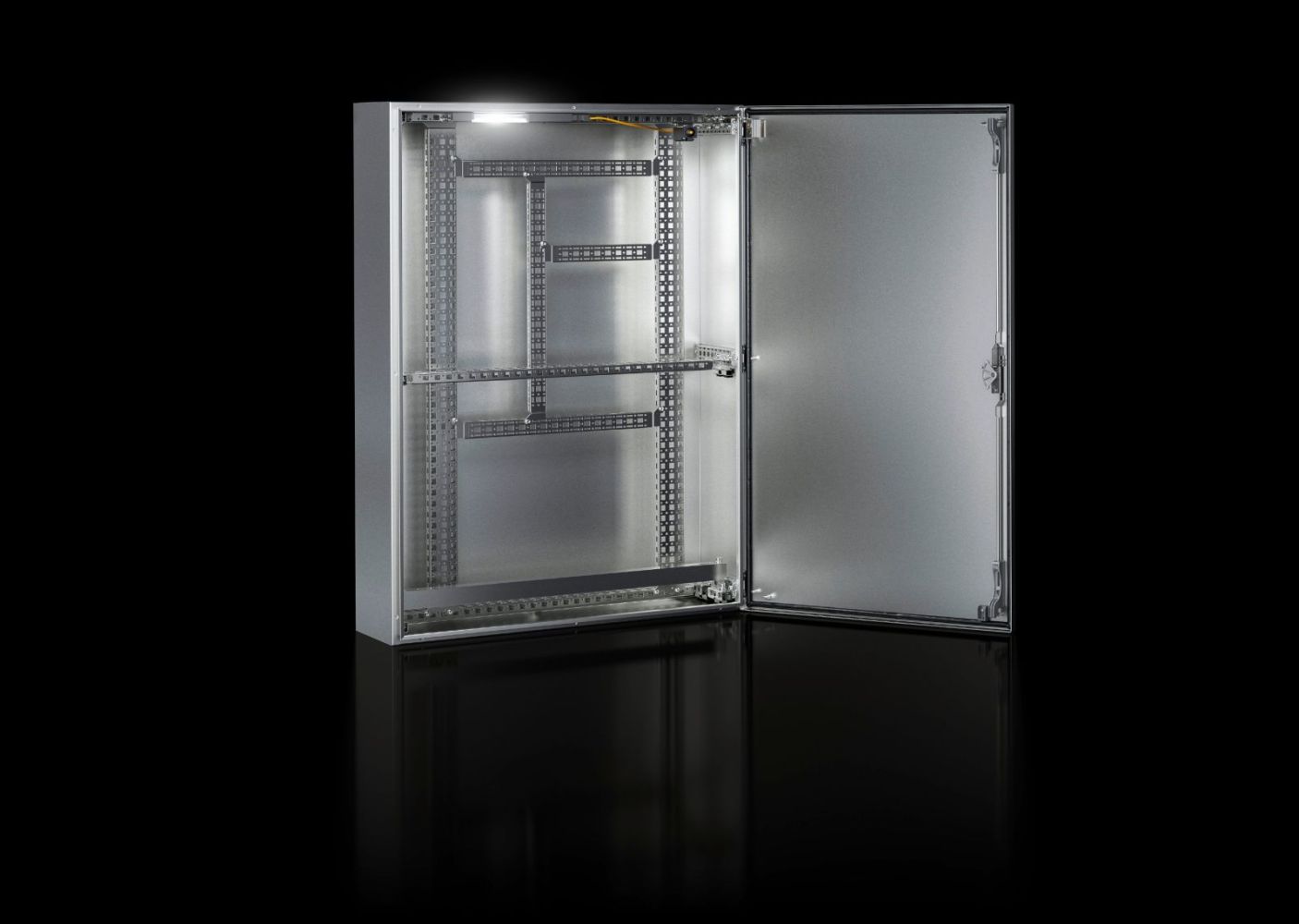

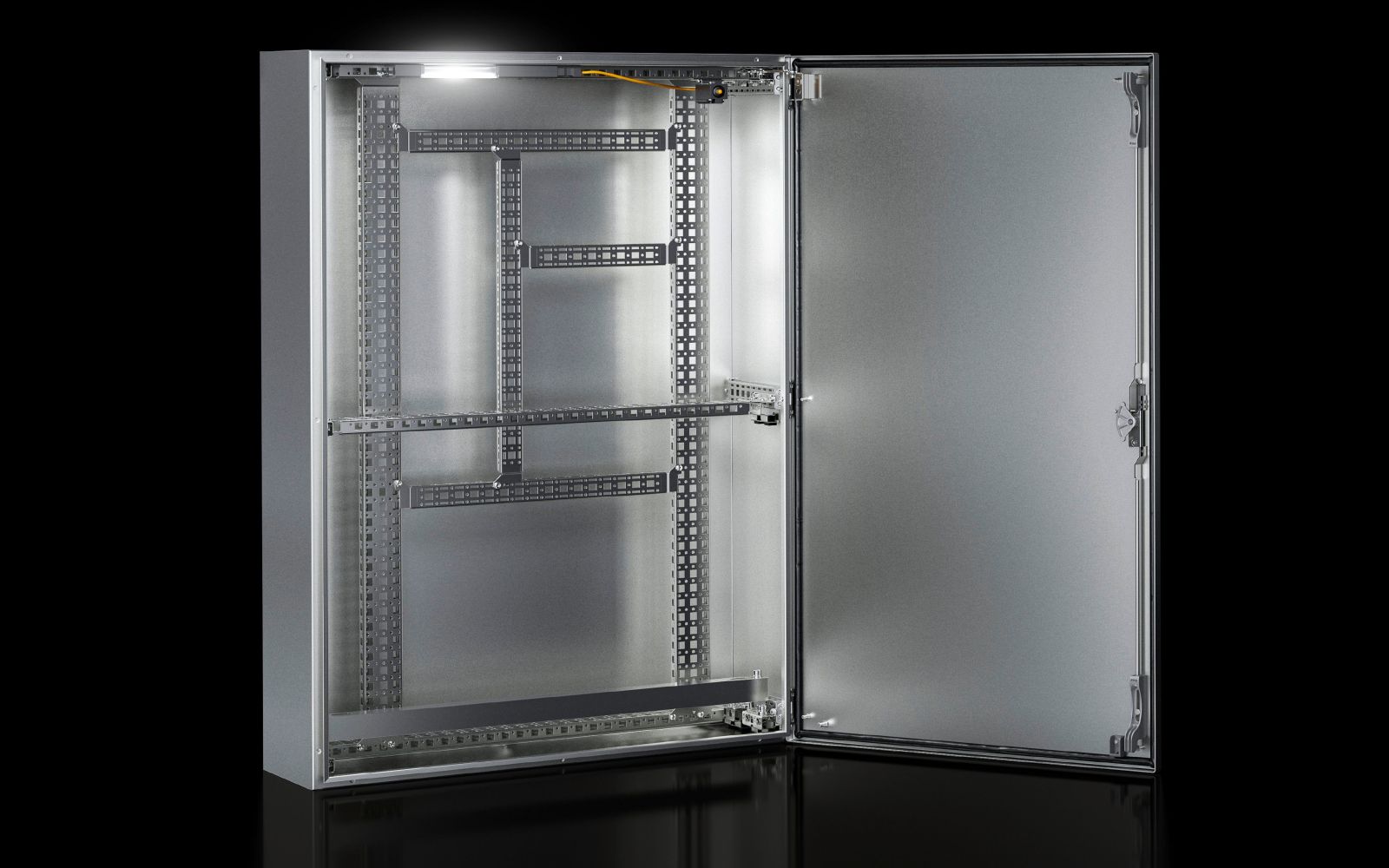

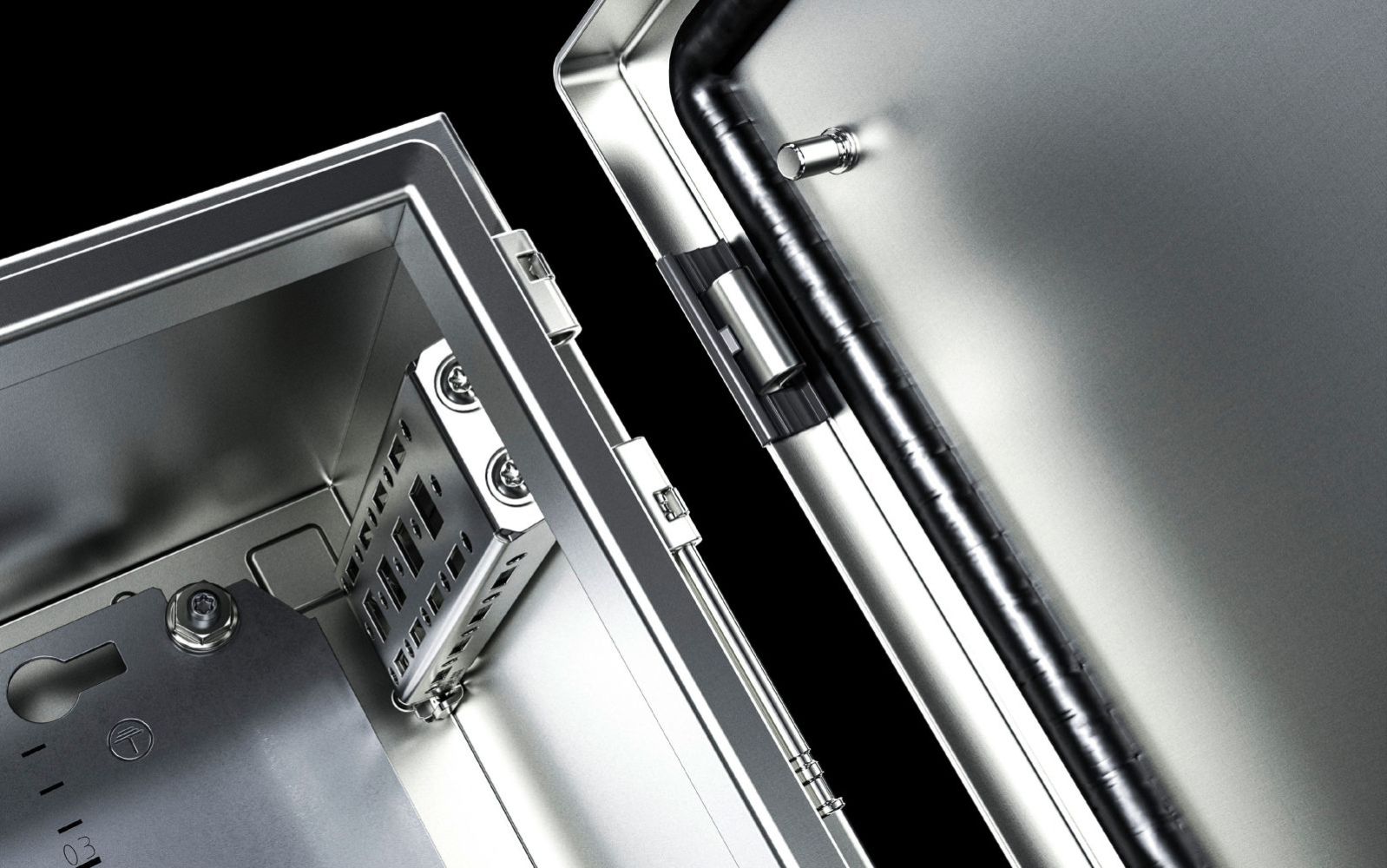

The enclosure features a single door with an opening angle of 130°, providing good access to the interior. The door is equipped with a cam lock, using a 3 mm double-bolt lock insert according to DIN 43668. The lock is made of zinc die-cast and ensures a secure and tight closure. The mounting plate is included in the delivery scope and enables the fixation of components and controls. The door material thickness is 1.5 mm, the enclosure material thickness is 1.25 mm, and the mounting plate thickness is 2 mm, ensuring high strength and durability. The mounting plate dimensions are 330 mm × 275 mm.
Technology Explained Simply

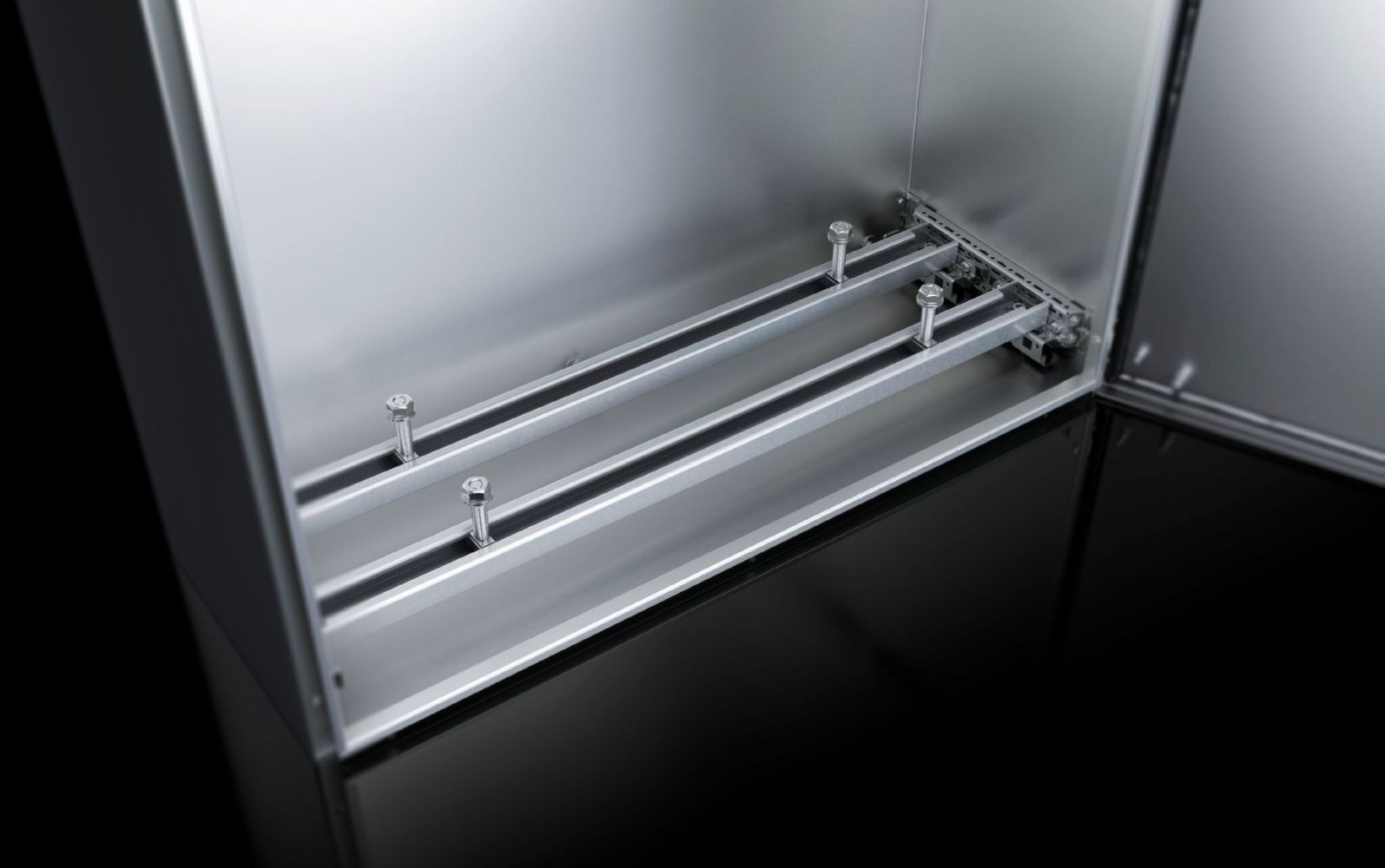

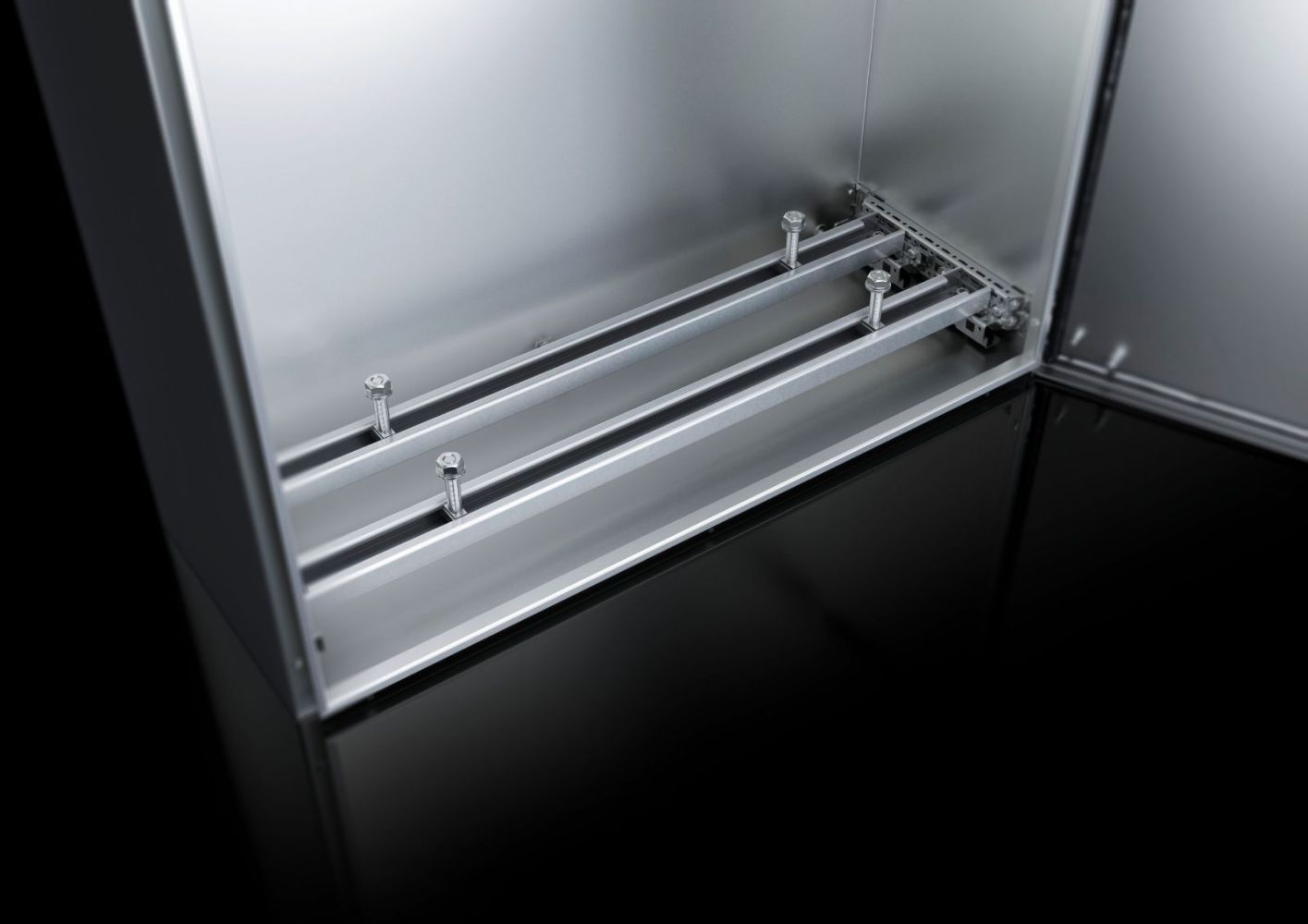

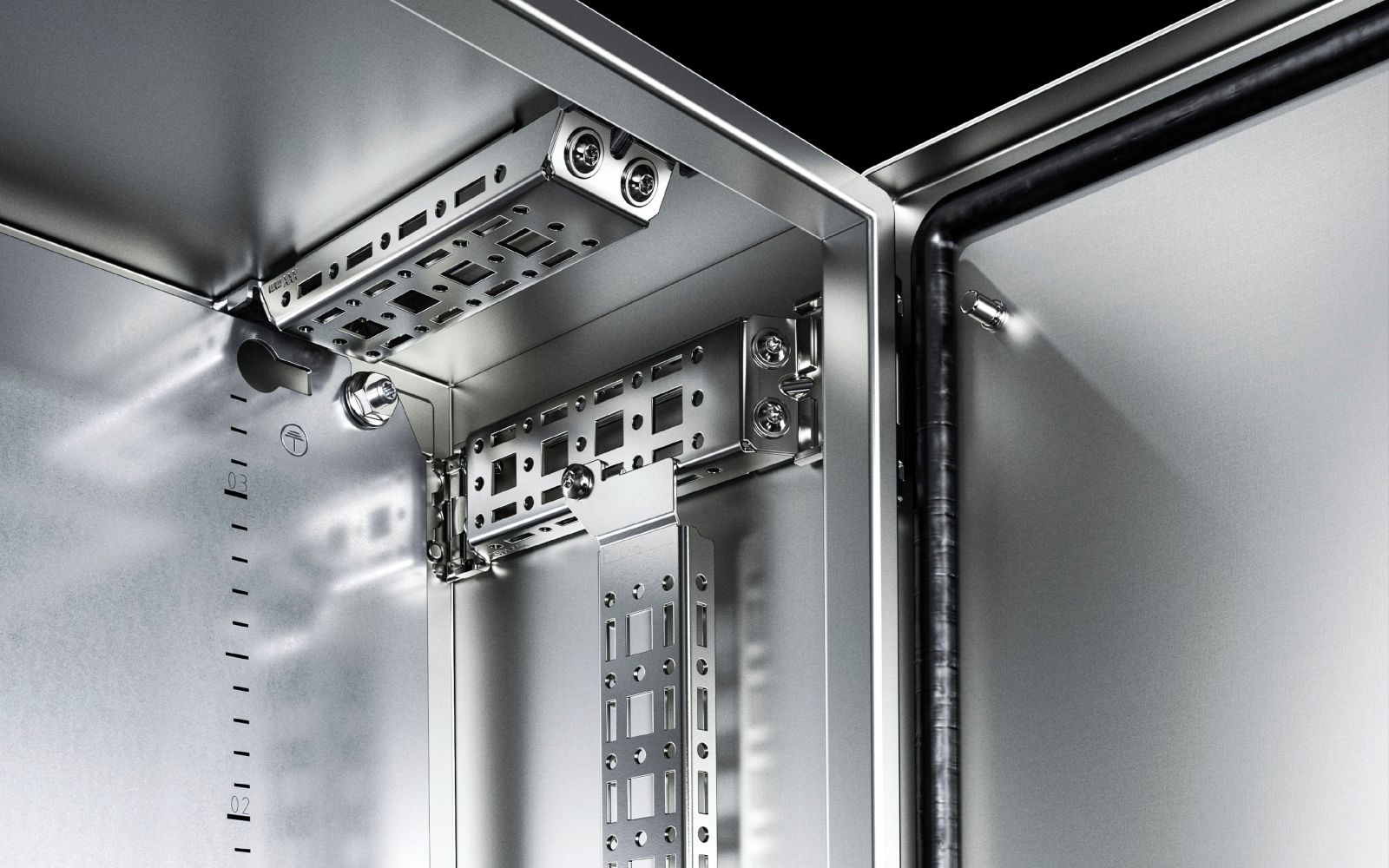

The integrated cam system technology allows for easy and quick internal installation without drilling. The enclosure cams serve as attachment points for accessories such as control panels, heaters, or filter fans. The continuous PU seal ensures a tight seal that maintains its function even under temperature fluctuations and vibrations. The brushed surface is not only aesthetically pleasing but also easy to clean and resistant to contamination. The grounding attachment with bolts on the door and mounting plate enables a secure electrical connection to the protective conductor.
Compatibility and Accessories

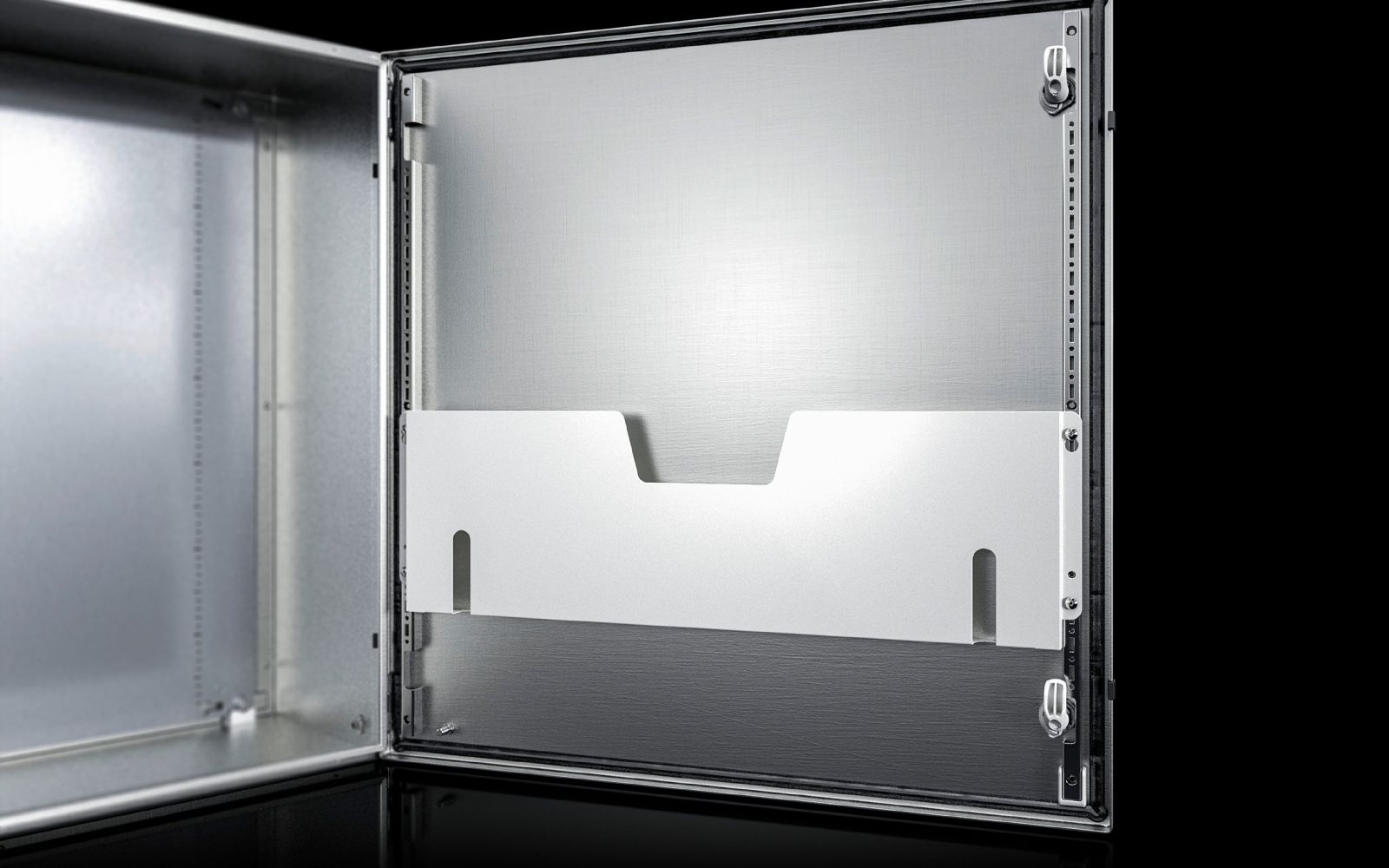

The enclosure is compatible with a wide range of accessories that allow individual adaptation to specific requirements. These include cable glands in various sizes and materials (brass, polyamide), wall mounting brackets made of stainless steel 1.4301, floor mounting rails, cam locks with double-bolt inserts, mini comfort handles, earthing straps, circuit diagram pockets, door latches, viewing windows, control panels, filter fans, heaters, swing frames, and protective roofs. These components can be added according to application requirements to optimize the functionality and safety of the enclosure.
Mounting and Installation

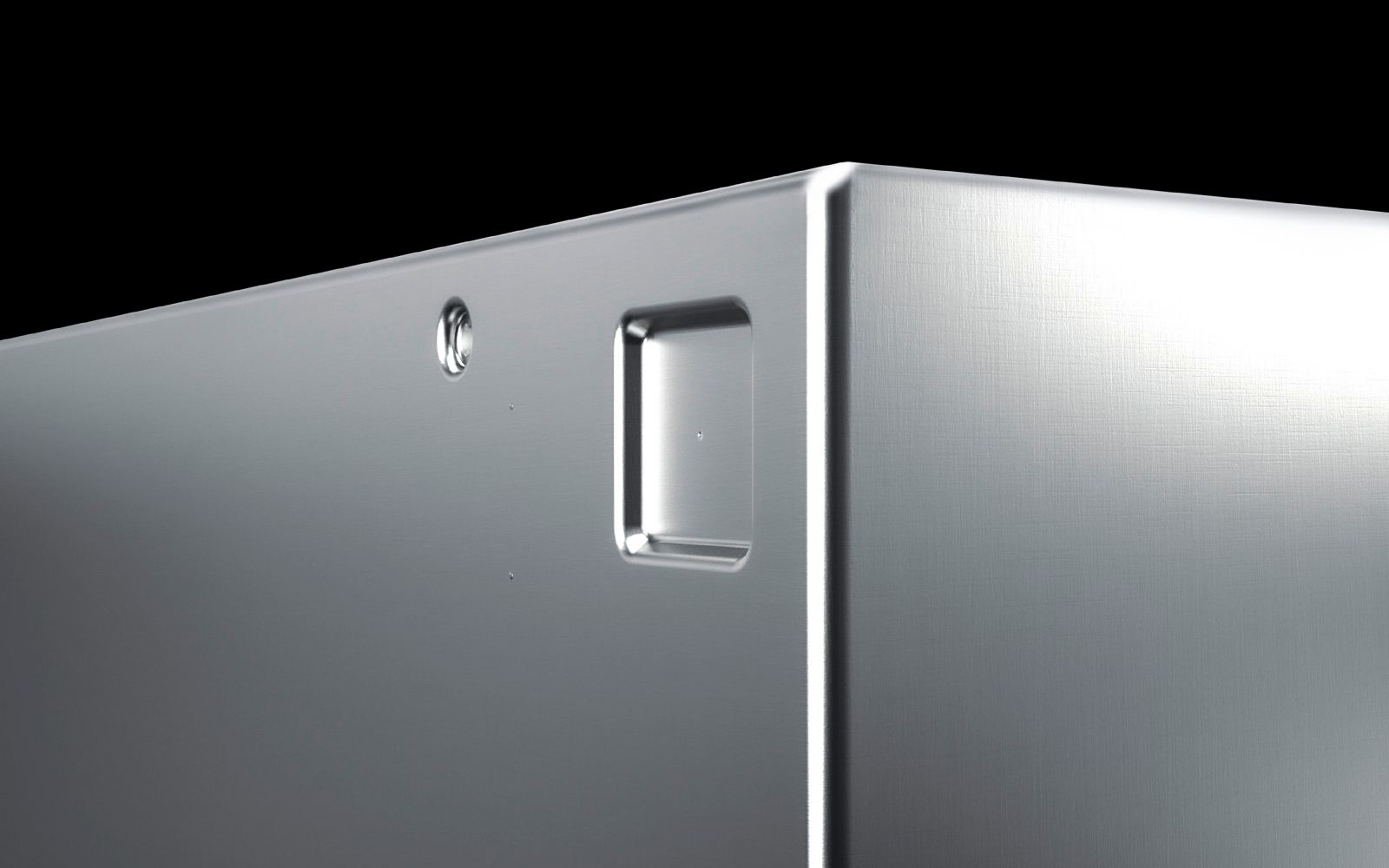

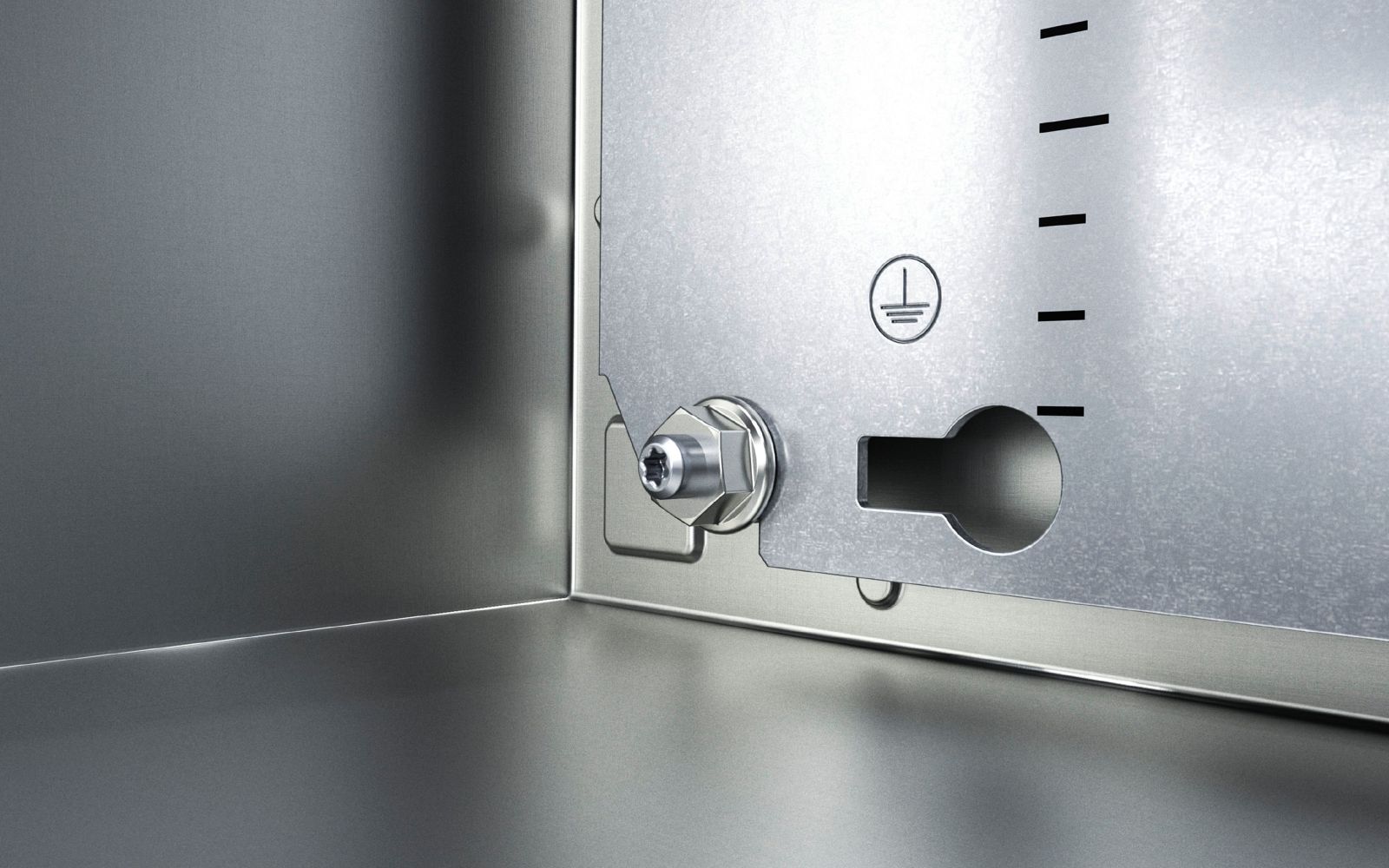

Mounting is done via the pre-fabricated mounting plate, which is fastened with Limbach nuts. The embossing for wall mounting brackets on the rear panel allows secure attachment to walls or support structures. The integrated enclosure cams facilitate the installation of internal components. The door can be mounted on the left side if required, enabling flexible adaptation to the installation site. QR codes on the enclosure, door, and nameplate allow for unique identification and easy access to product information and documentation.
Advantages in Operation
The enclosure offers high mechanical and chemical resistance, making it suitable for demanding operating conditions. The IP 66 and NEMA 4X protection rating ensures reliable protection against dust, water, and corrosion. The integrated cam system technology reduces installation time and allows for flexible expansion. The robust stainless steel construction and tight sealing ensure a long service life and minimize maintenance requirements. The pre-fabricated mounting plate and grounding attachment simplify installation and ensure a secure electrical connection.
| General | |

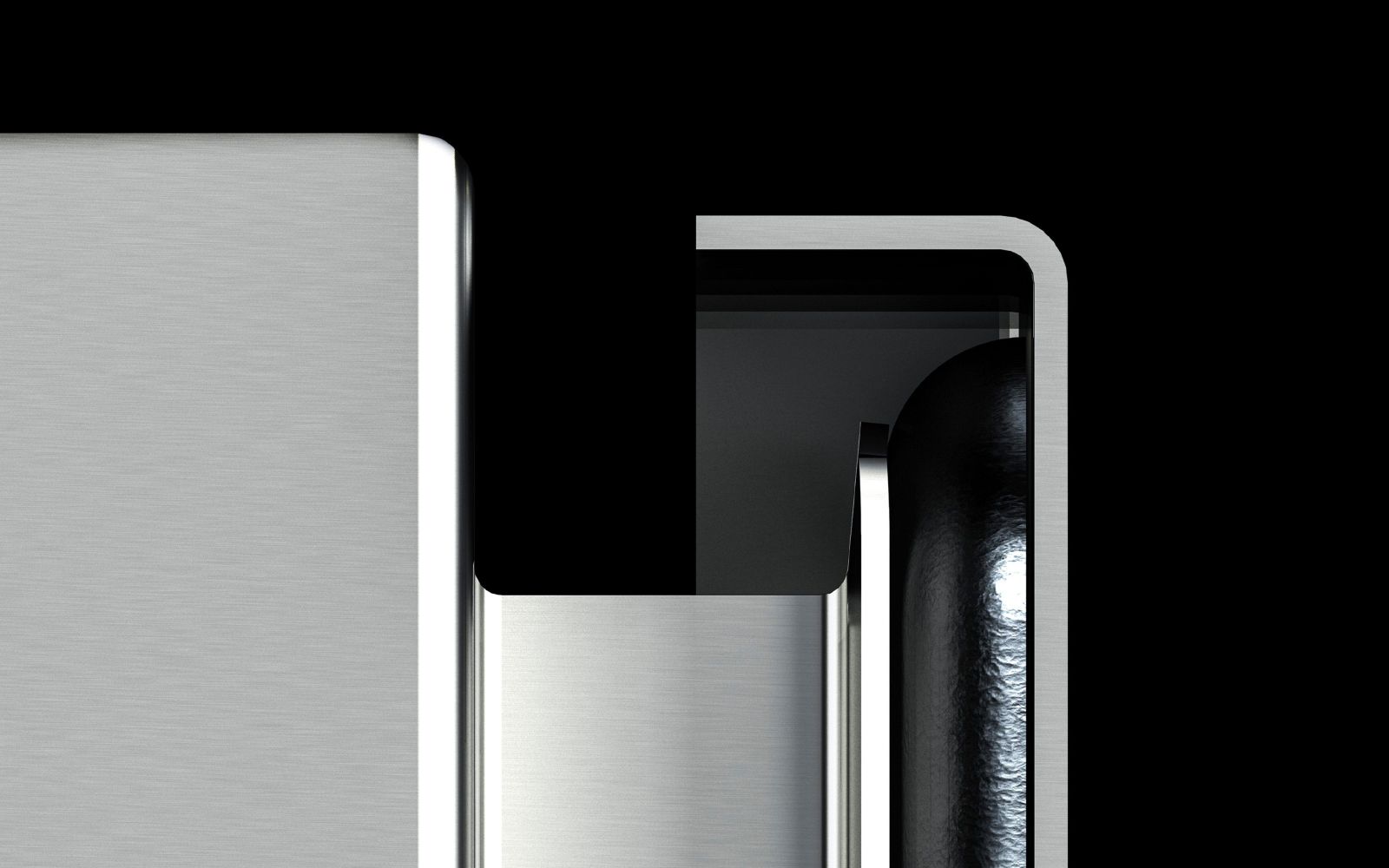

| Material | Housing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304) |
| Surface protection | Casing and door: brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Width | 380 mm |
| Height | 300 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Mounting plate dimensions (W x H) | 330 mm x 275 mm |
| Number of doors | 1 |
| Lock | Closure type: latch, number of closures: 1, closure insert: 3 mm double barb, closure material: zinc die-cast |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 29,35 |
