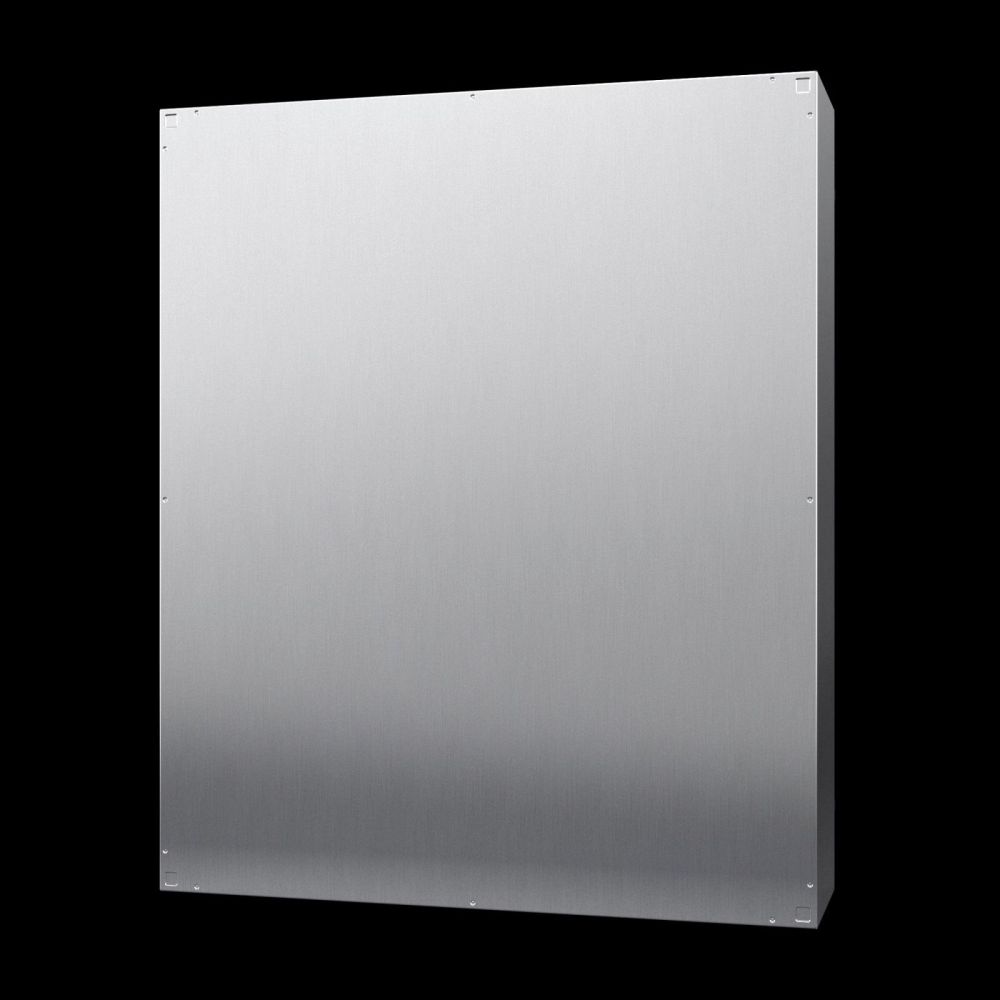

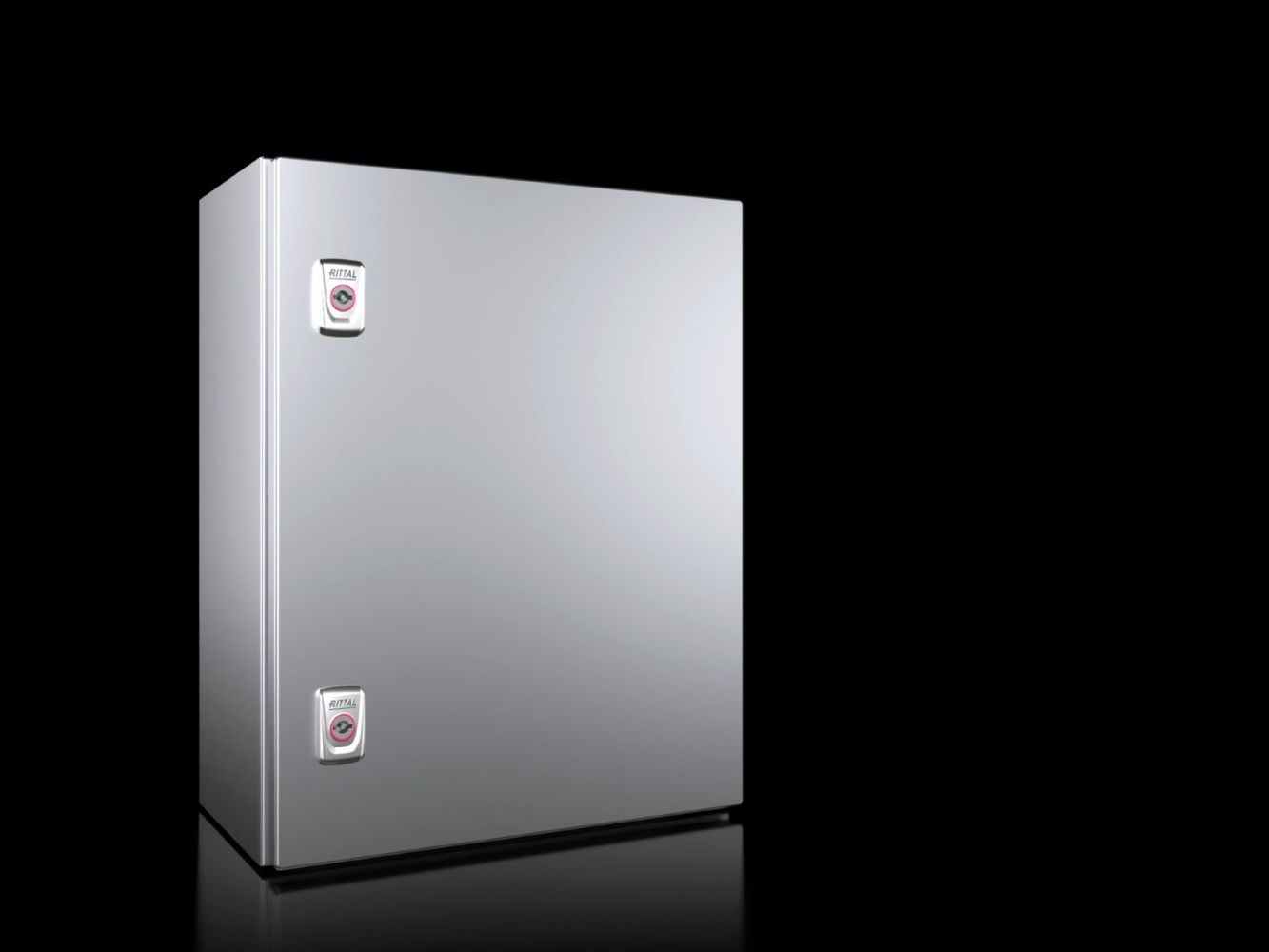

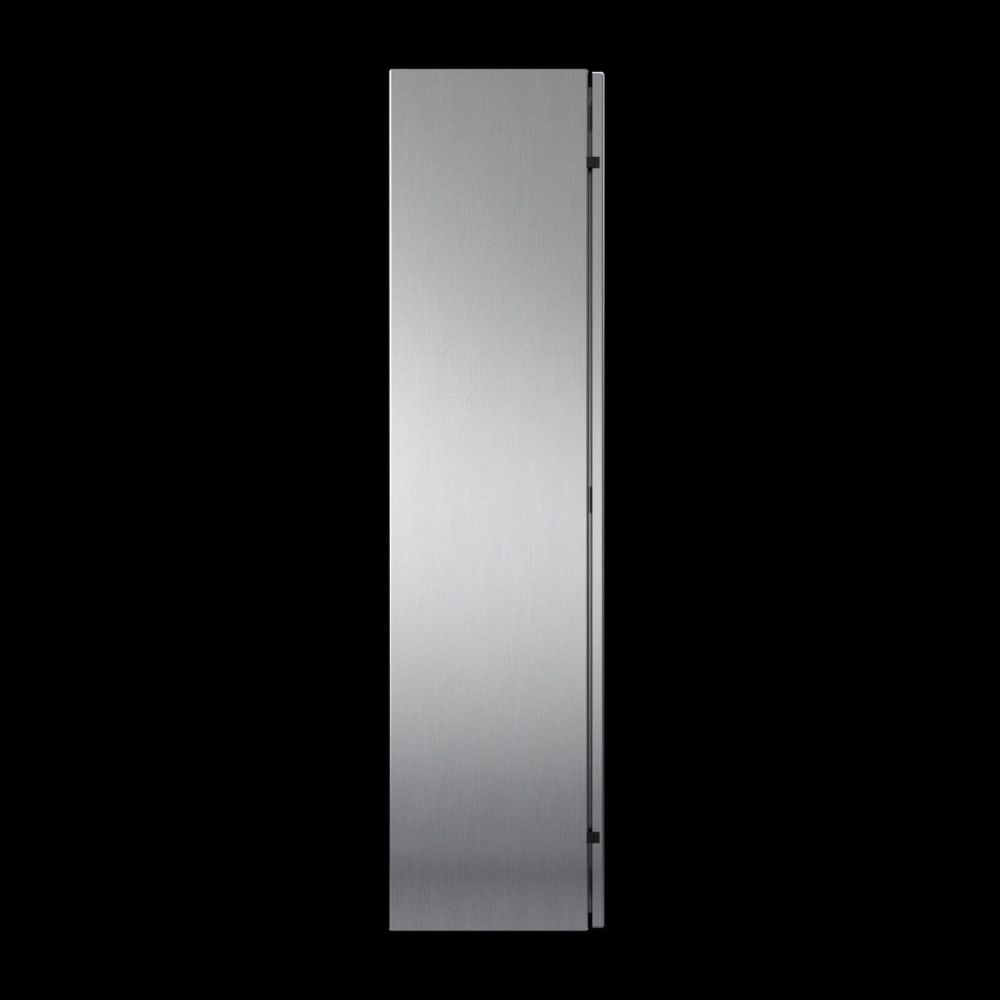

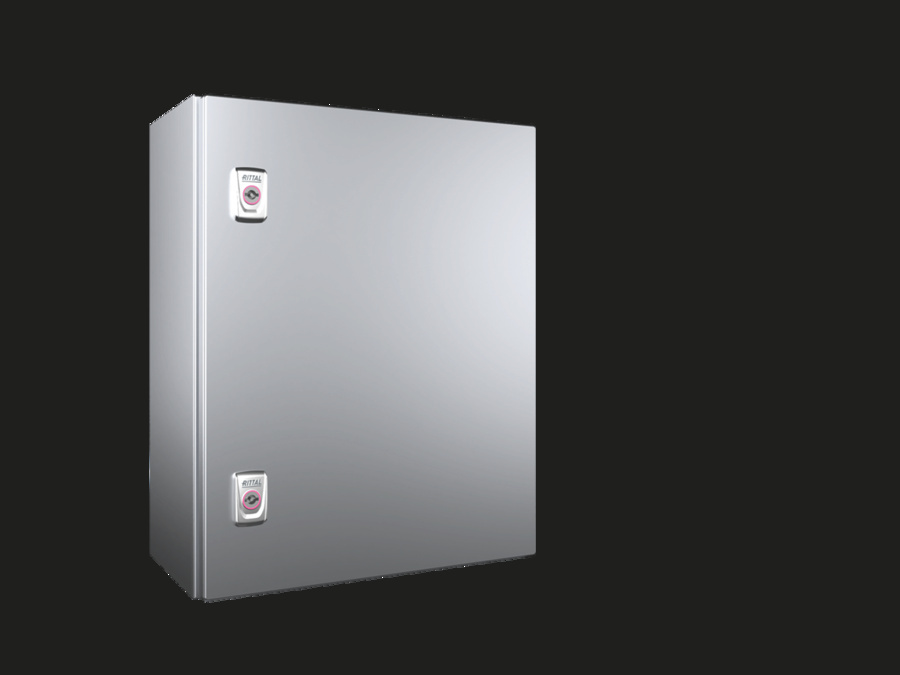

Rittal 1015000 Compact enclosure AX, 1-door, 400x500x210 mm

Your rating:
Average rating
product review for Rittal 1015000 Compact enclosure AX, 1-door, 400x500x210 mm
( 4.8 / 5 ) 5 ratings
Rittal 1015000
This image may differ from the desired article.
Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000Rittal 1015000
297,26 EUR 297,31 EUR
( 353,74 EUR incl. VAT )
≈ £248.81  |  ≈ $326.69
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1015000 Compact enclosure AX, 1-door, 400x500x210 mm
Datasheet:file_download Download
Lieske Part No.:1980352
Mfg Part No: 1015000
UPC/EAN: 4028177815124
Weight:11.95 kg
Type:AX 1015000

Product information for Rittal 1015000:

The Rittal AX 1015000 is a compact enclosure made of stainless steel 1.4301 (AISI 304), designed for use in industrial and technical installations. With dimensions of width 400 mm, height 500 mm, and depth 210 mm, it offers a compact yet robust protection for electrical components. The enclosure is made from a single piece of bent and welded stainless steel, ensuring high mechanical stability and corrosion resistance. The door is also made of stainless steel and features a continuous foamed PU seal, providing a tight seal. The surface of the enclosure and door is brush-finished with a grit 400, resulting in a uniform, easy-to-clean finish. The mounting plate made of galvanized steel sheet is marked with dimensions and is secured using Limbach nuts, enabling secure mounting of components.

Applications
This enclosure is designed for use in environments subject to high mechanical stress, moisture, dust, or chemical influences. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy splashing water. The protection rating NEMA 4X and Type 4X according to UL 50E makes it suitable for outdoor use as well as in moist or corrosive environments. The IK code IK10 indicates high mechanical resistance against impact and shock. The protection rating NEMA 12 and Type 12 allows use in indoor areas with increased contamination risk, such as production halls.

Functions and Equipment in Detail

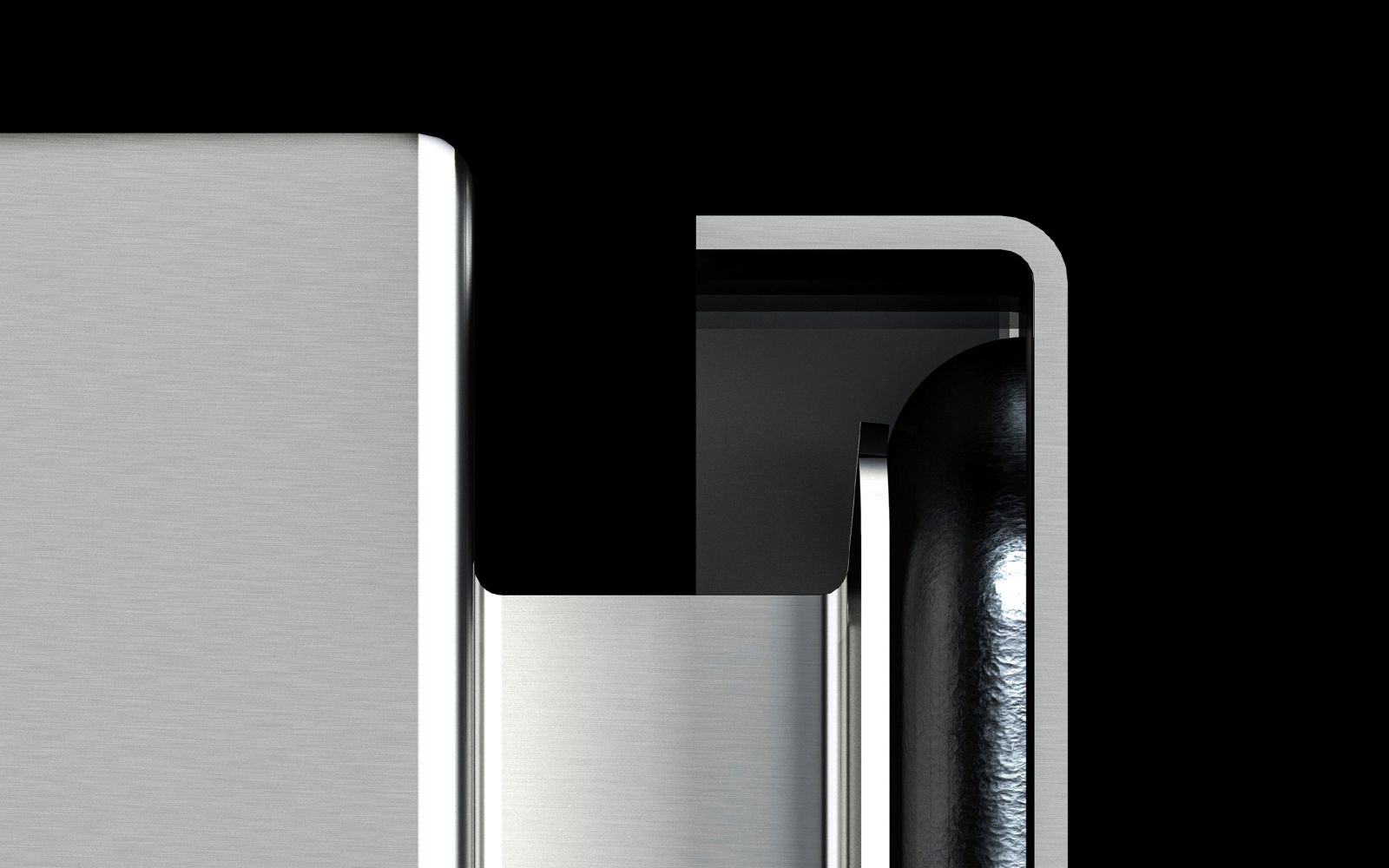

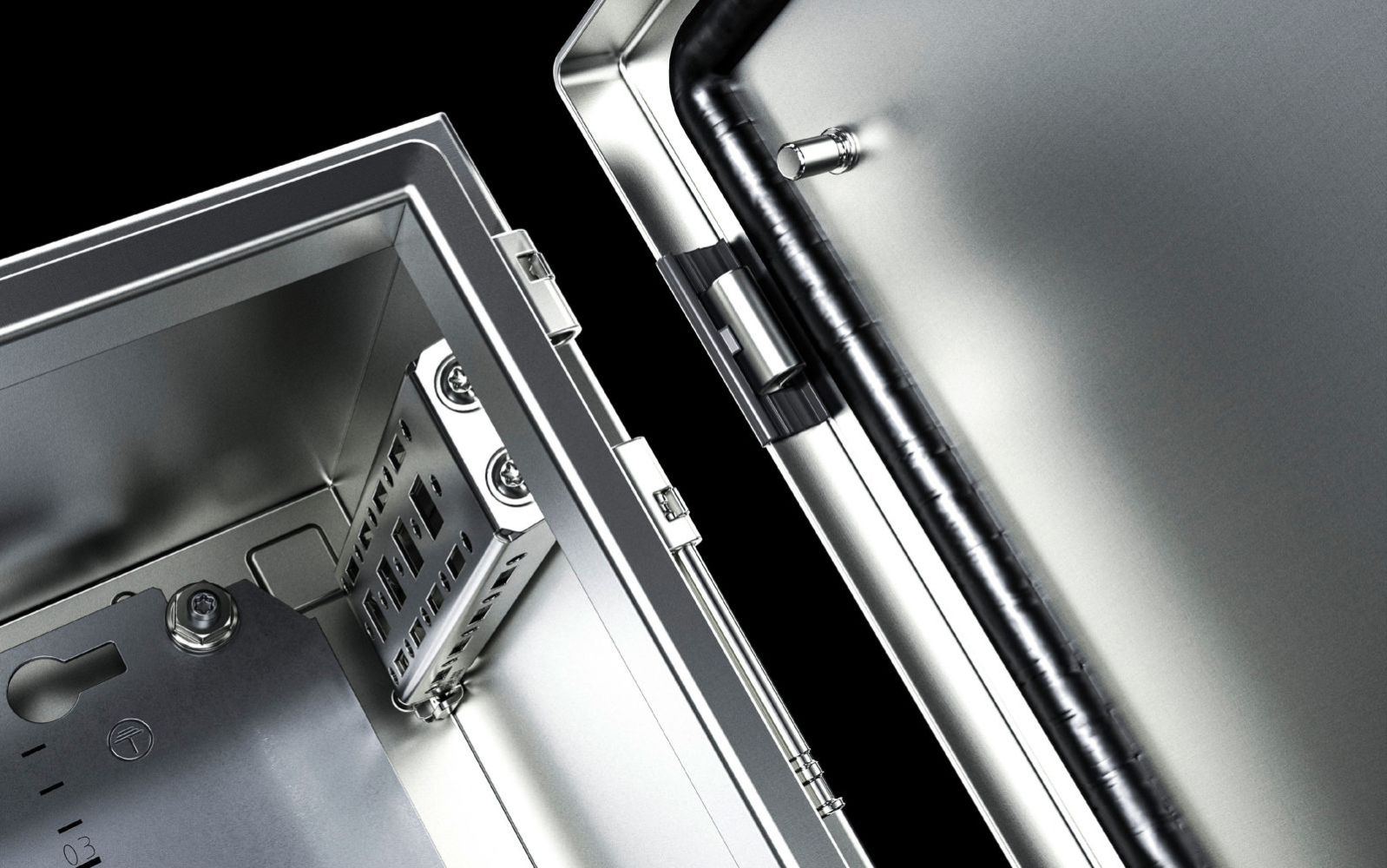

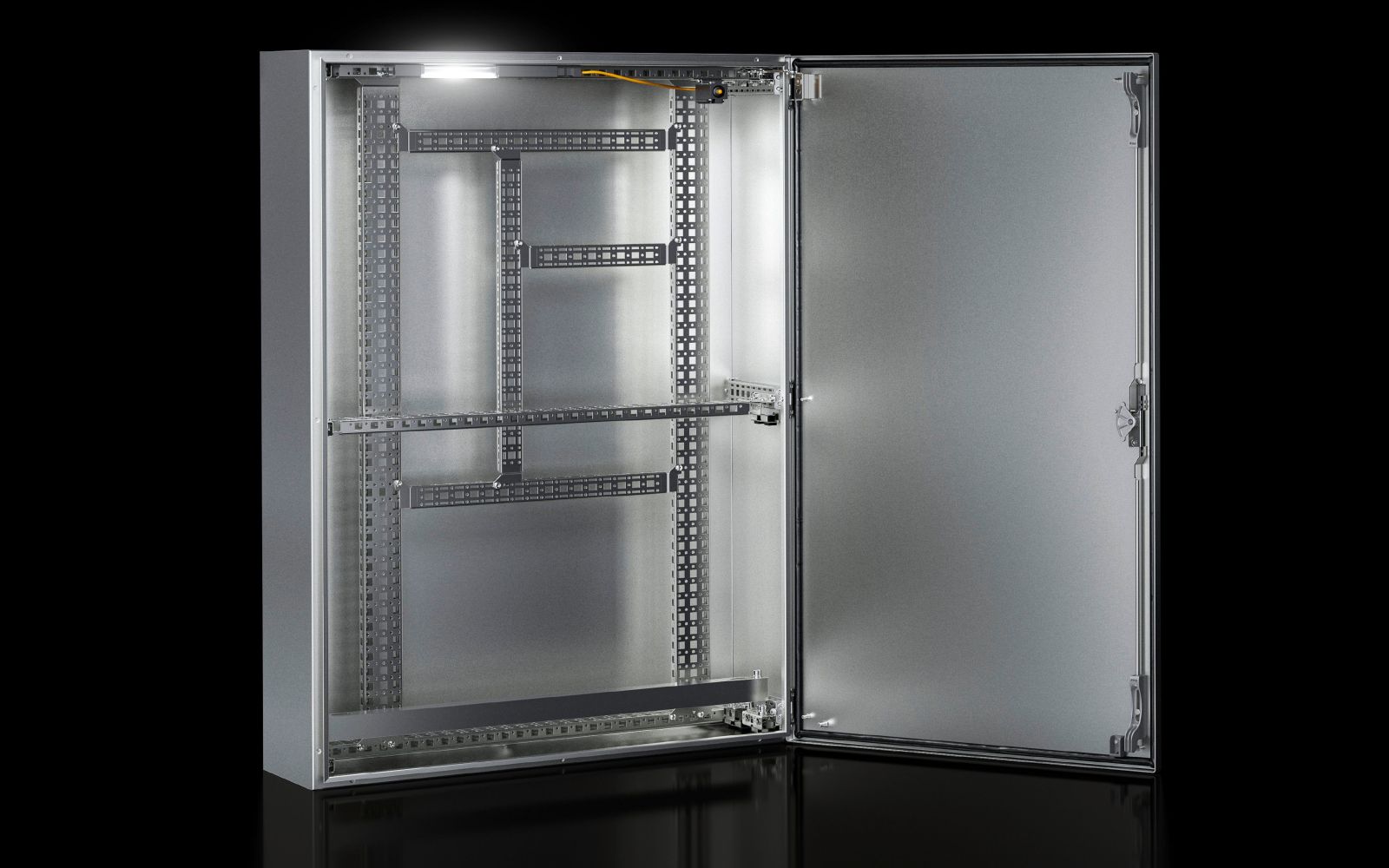

The enclosure features a single door with an opening angle of 130°, providing good access to the interior. The door is equipped with two latching locks that operate with a 3 mm double-barrel lock insert made of zinc die-cast. These locks ensure secure and reliable locking. The mounting plate is provided with keyhole slots for earthing and offers a stable mounting option for electrical components. The integrated enclosure lugs allow for easy internal installation without drilling, accelerating the assembly and expansion of the enclosure.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and longevity, even in moist or aggressive environments. The brush-finished surface is not only aesthetically pleasing but also easy to clean and resistant to contamination. The continuous PU seal ensures a tight seal, preventing ingress of dust, water, and other particles. The IP protection rating 66 means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use or in moist indoor environments. The NEMA protection ratings 4X and Type 4X meet requirements for use in moist, dusty, or corrosive environments, including outdoor applications.

Compatibility and Accessories

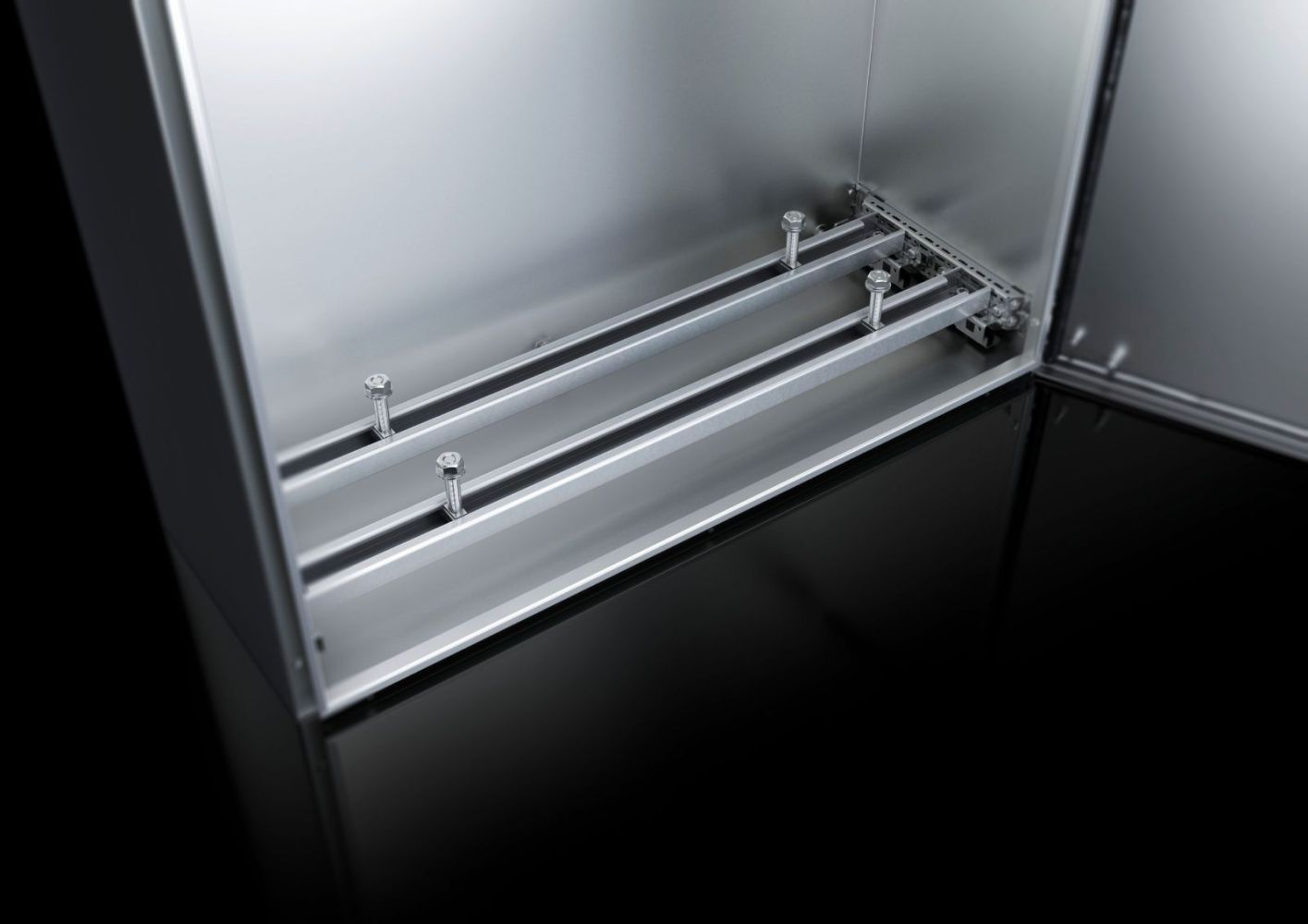

The enclosure is part of the AX system and can be expanded with various accessories. These include wall mounting brackets made of stainless steel 1.4301, a protective roof for outdoor use, a base extension rail, a baying set for AX, KX, AE, and KL, and various lock inserts made of zinc die-cast. Additionally, a mini comfort handle, an AX rail for internal installation, and a condensate drain are available. These components allow flexible adaptation of the enclosure to specific requirements, such as wall mounting, expansion into larger systems, or improved ventilation.

Mounting and Installation

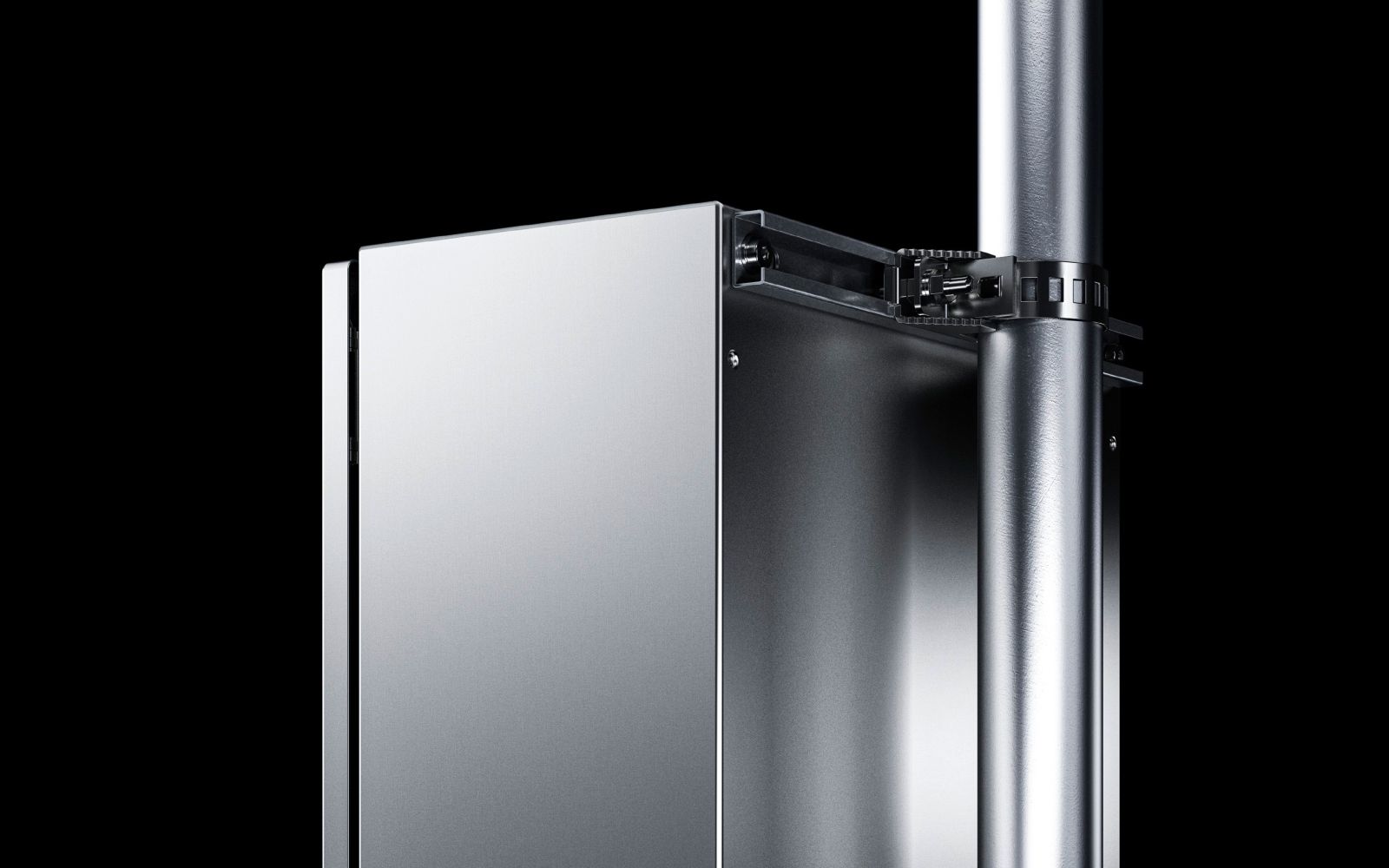

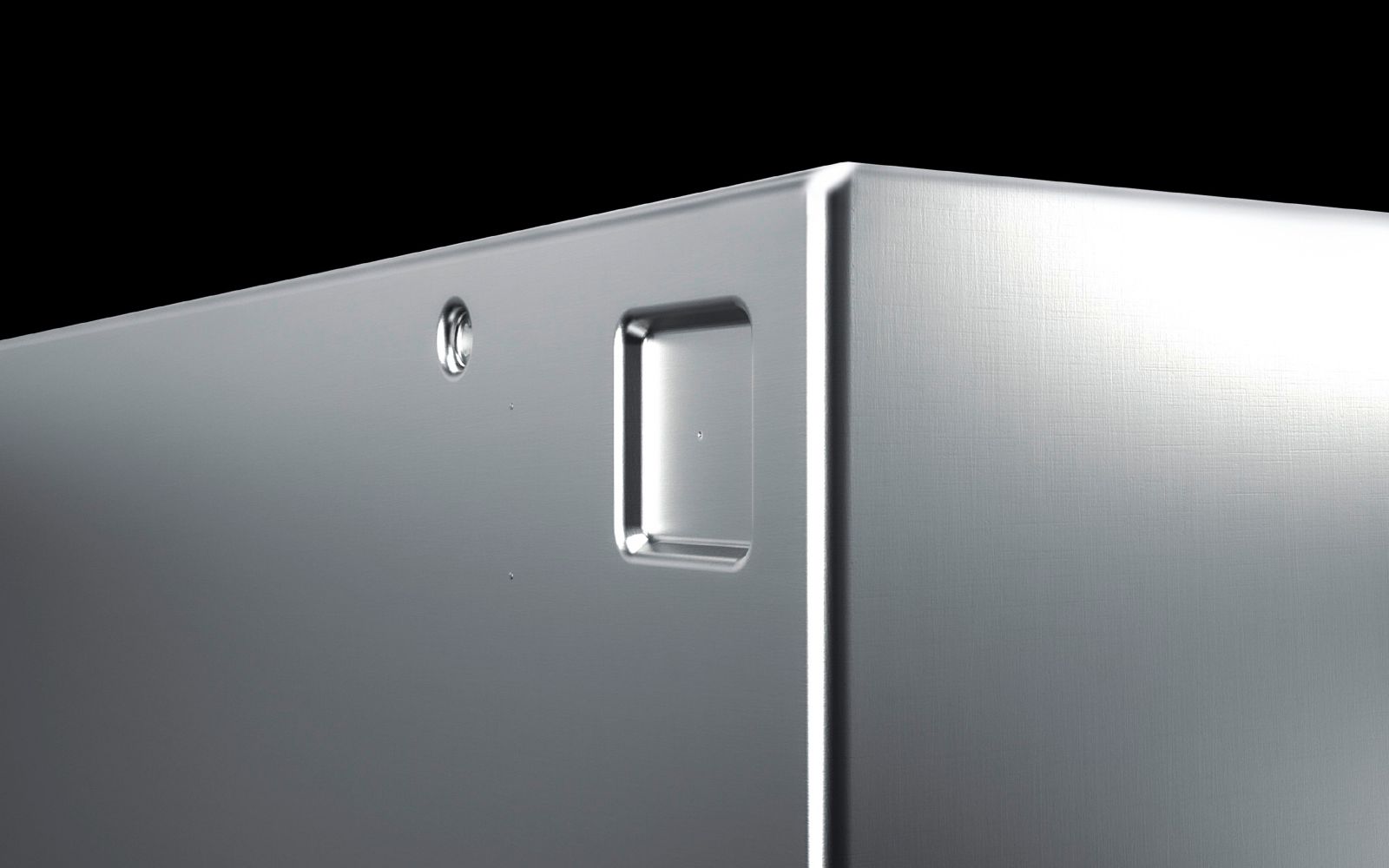

Mounting is done via the integrated embossments for wall mounting brackets on the rear panel. The mounting plate is included in the delivery and is secured with Limbach nuts. The door can be repositioned from right to left if required. The integrated enclosure lugs enable quick and secure installation of internal components without drilling. QR codes on the enclosure, door, and nameplate allow for unique identification and easy access to product information and documentation.

Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The IP 66 protection rating and NEMA 4X classification make it suitable for demanding environments. The integrated lugs and mounting plate simplify installation and expansion. The latching locks with double-barrel lock insert ensure secure locking. The brush-finished surface is easy to clean and resistant to contamination. The QR codes enable easy traceability and documentation of the device.

General
MaterialHousing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304)
Surface protectionCasing and door: brushed finish, grit 400, mounting plate: galvanized

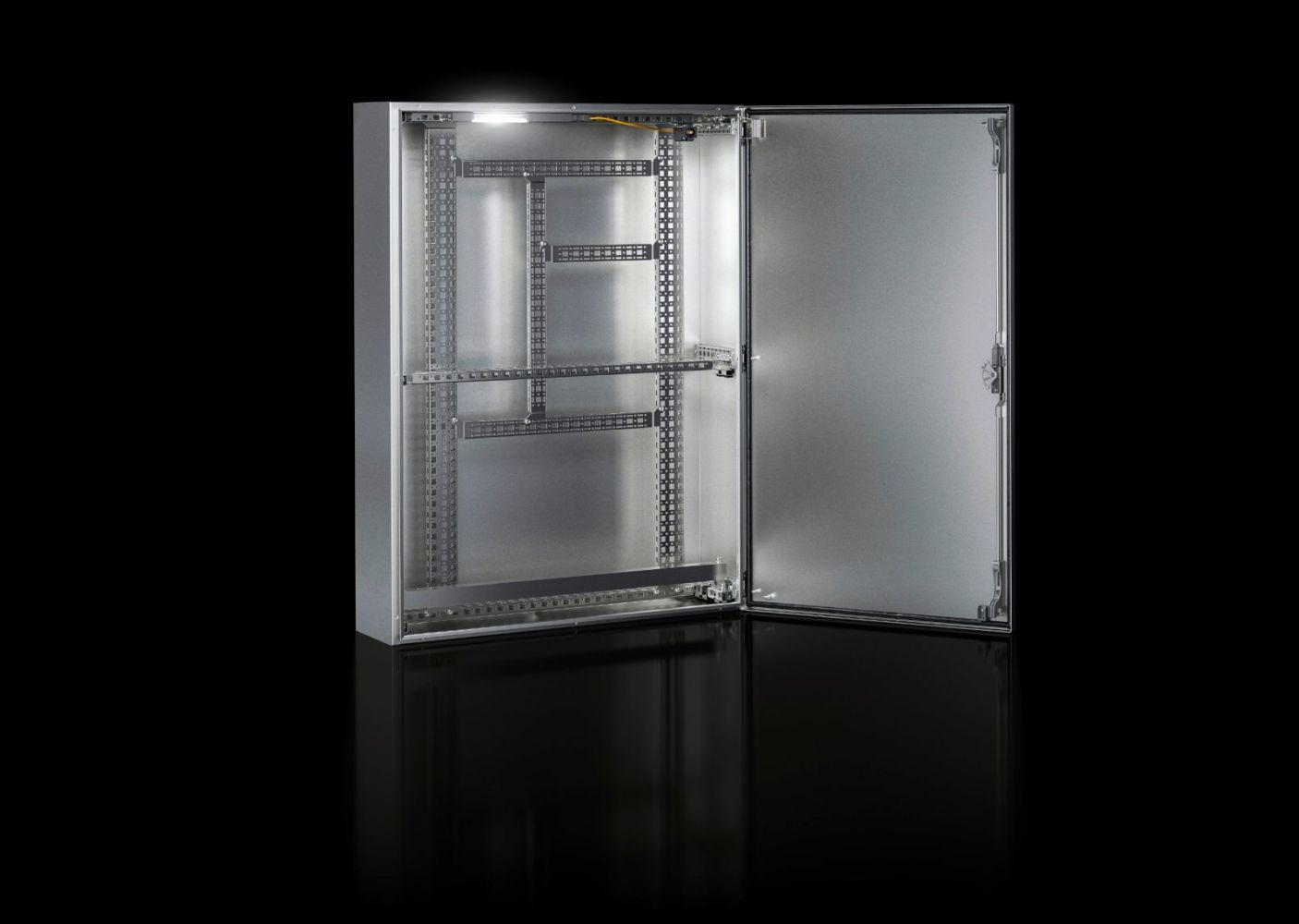

Scope of deliveryCabinet with door(s), opening angle 130°, mounting plate, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
IK codeIK10
Width400 mm
Height500 mm
Depth210 mm
Door material thickness1,5 mm
Plate thickness cabinet1,25 mm
Mounting plate material thickness2 mm
Mounting plate dimensions (W x H)350 mm x 475 mm
Number of doors1

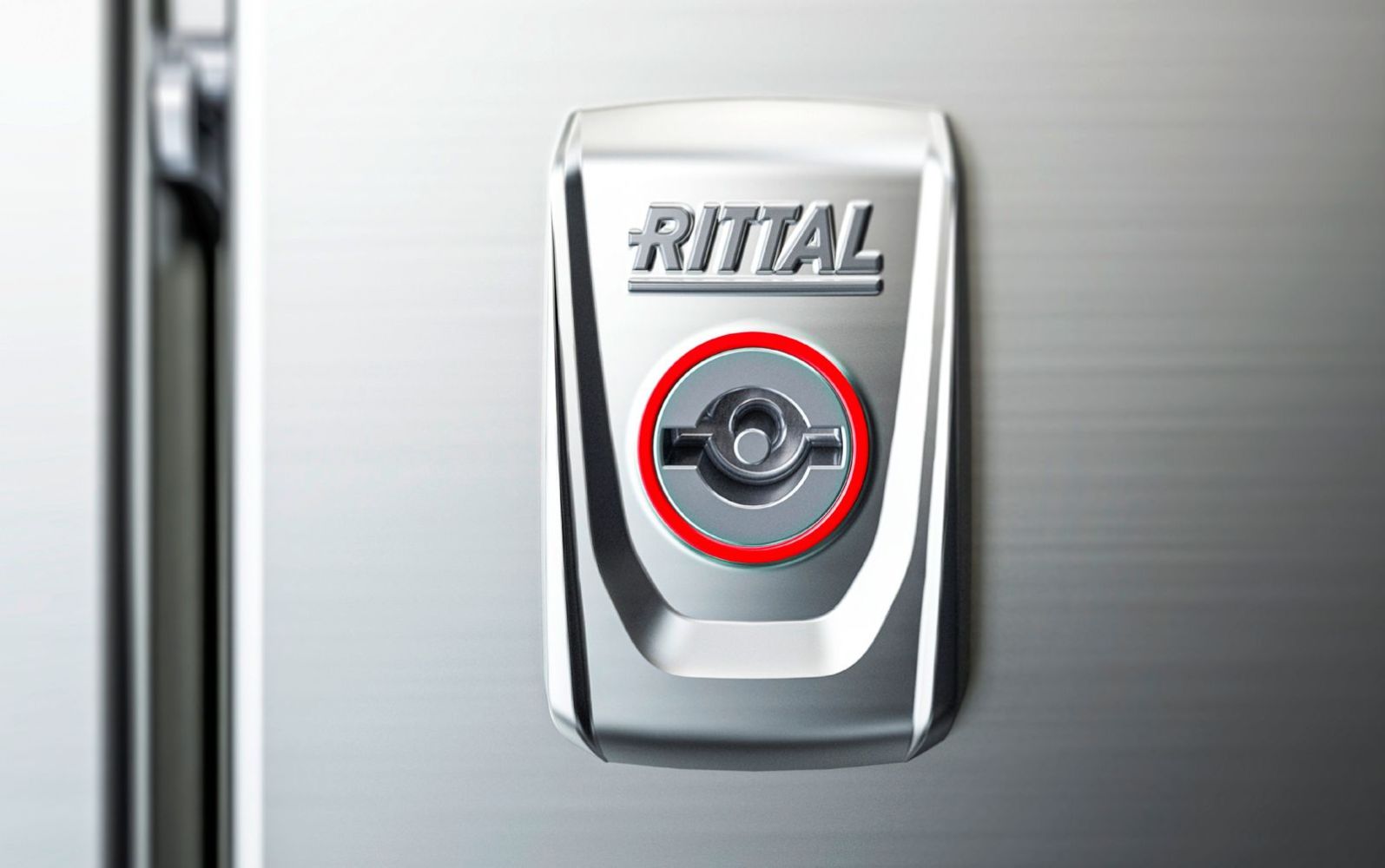

LockLocking mechanism type: push-button, number of locks: 2, lock insert: 3 mm double barb, lock material: zinc die-cast
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)41,97


Product data sheet
Datasheet for Rittal 1015000, EAN: 4028177815124
