Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead

Your rating:
Average rating
product review for Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead
( 4.6 / 5 ) 7 ratings

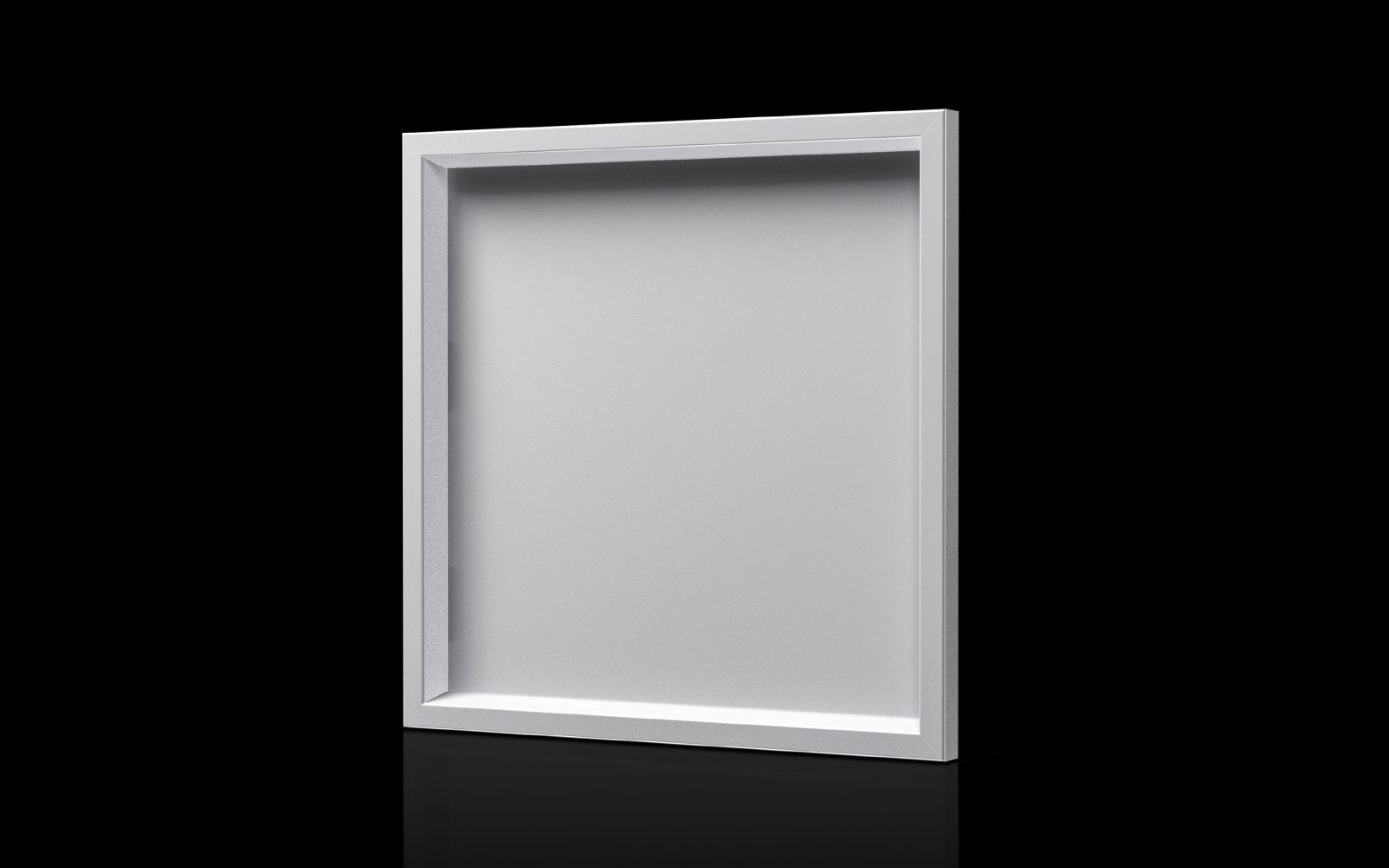

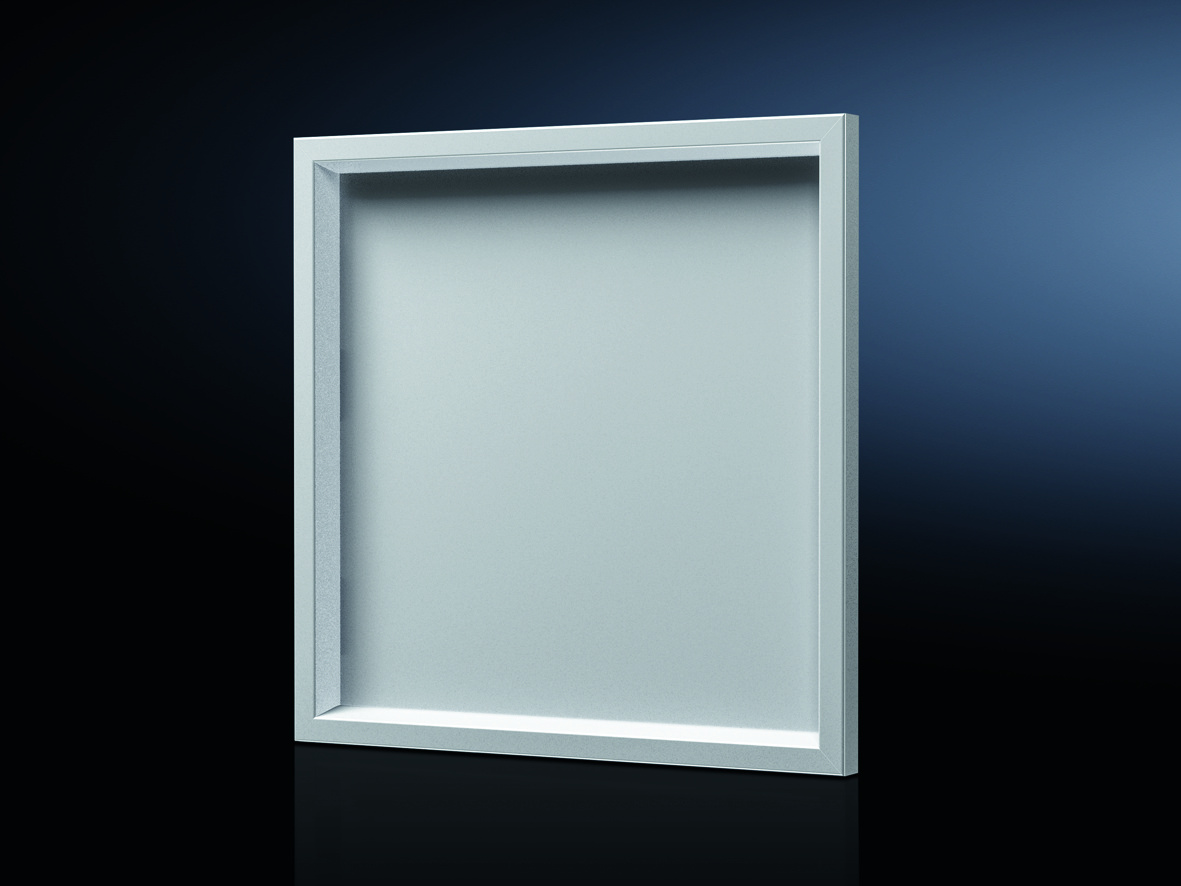

Rittal 2741010
This image may differ from the desired article.
Rittal 2741010Rittal 2741010Rittal 2741010
105,80 EUR
( 125,90 EUR incl. VAT )
≈ £88.55  |  ≈ $116.27
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead
Datasheet:file_download Download
Lieske Part No.:1593457
Mfg Part No: 2741010
UPC/EAN: 4028177938519
Weight:2.18 kg
Type:AX 2741010

Product information for Rittal 2741010:

The Rittal AX 2741010 is an FT control panel, specifically designed for mounting on AX enclosures in place of the door or on free surfaces. It serves as a mounting base for control elements, indicators or control devices in industrial applications. The panel consists of an aluminium frame with an internally mounted 3 mm thick aluminium plate, which is naturally anodized. The construction allows for secure and stable mounting of components on the front of the enclosure, with the mountable surface measuring 307 mm in width and 227 mm in height. Overall dimensions are 377 mm (width) × 297 mm (height) × 36 mm (depth).

Applications
This control panel is intended for use on AX enclosures with a minimum width of 380 mm and a minimum height of 300 mm. It is compatible with enclosure types 1004.000, 1011.000 and 1031.000. Installation is carried out in place of the standard door, enabling the front surface of the enclosure to be used for mounting control elements. It is particularly suitable for applications in automation technology, machine building or process control, where direct operation of devices is required.

Functions and Equipment in Detail
The panel is supplied with an aluminium frame, a panel plate, hinges and retaining brackets. The aluminium plate is 3 mm thick and provides a stable base for mounting switches, indicators, keyboards or other control units. The hinges allow for secure attachment to the enclosure, while the retaining brackets ensure additional stability. The surface is naturally anodized, providing high corrosion resistance and mechanical strength.

Technical Explanation
The IP 54 protection rating according to EN 60 529 protects the panel against dust and splashing water, making it suitable for use in industrial environments. The IP rating means the device is protected against dust particles that could enter the interior and against water jets from any direction striking the surface. The aluminium construction is lightweight yet robust and provides good heat dissipation. The mounting is done from the inside, keeping the front side clean and free of visible mounting elements.

Compatibility and Accessories
The panel is specifically designed for AX enclosures with a minimum width of 380 mm and a minimum height of 300 mm. It is compatible with enclosure types 1004.000, 1011.000 and 1031.000. As suitable accessories, the AX latch lock with double-barrel lock insert, part number 2749100, is offered. This lock ensures secure and lockable mounting of the panel to the enclosure.

Mounting and Installation
Installation is carried out by securing the frame to the front opening of the AX enclosure. The hinges and retaining brackets enable a secure and rotationally stable connection. The panel plate is mounted from the inside to the frame, freeing the front side for mounting control elements. Installation requires no additional tools or materials, except for the required latch lock when installing in place of the door.

Operational Advantages
The control panel provides a clear and organized control surface directly mounted on the enclosure. The IP 54 protection rating ensures reliable operation in dirty or damp environments. The aluminium construction is durable and low-maintenance. The mountable surface of 307 mm × 227 mm offers sufficient space for a variety of control elements. Mounting in place of the door allows direct integration into existing enclosure configurations without additional space requirements.

General
MaterialAluminium, natural anodized
Scope of deliveryAluminium frame, panel board, hinges, mounting brackets
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1004.000, 1011.000, 1031.000
NoteWhen installed instead of door, pre-drilled lock is required
Suitable forHousing type: AX, width: = 380 mm, height: = 300 mm
Width377 mm
Height297 mm
Depth36 mm
Aluminium plate dimensionsWidth: 323 mm, Height: 243 mm
Populatable areaWidth: 307 mm, Height: 227 mm


Product data sheet
Datasheet for Rittal 2741010, EAN: 4028177938519

Questions & answers

What is the delivery time of Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead?

The article Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2741010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead always at the best possible price. We can give you a discount of 2% on Rittal 2741010 command panel, 377x297x36 mm, for mounting on AX instead if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
