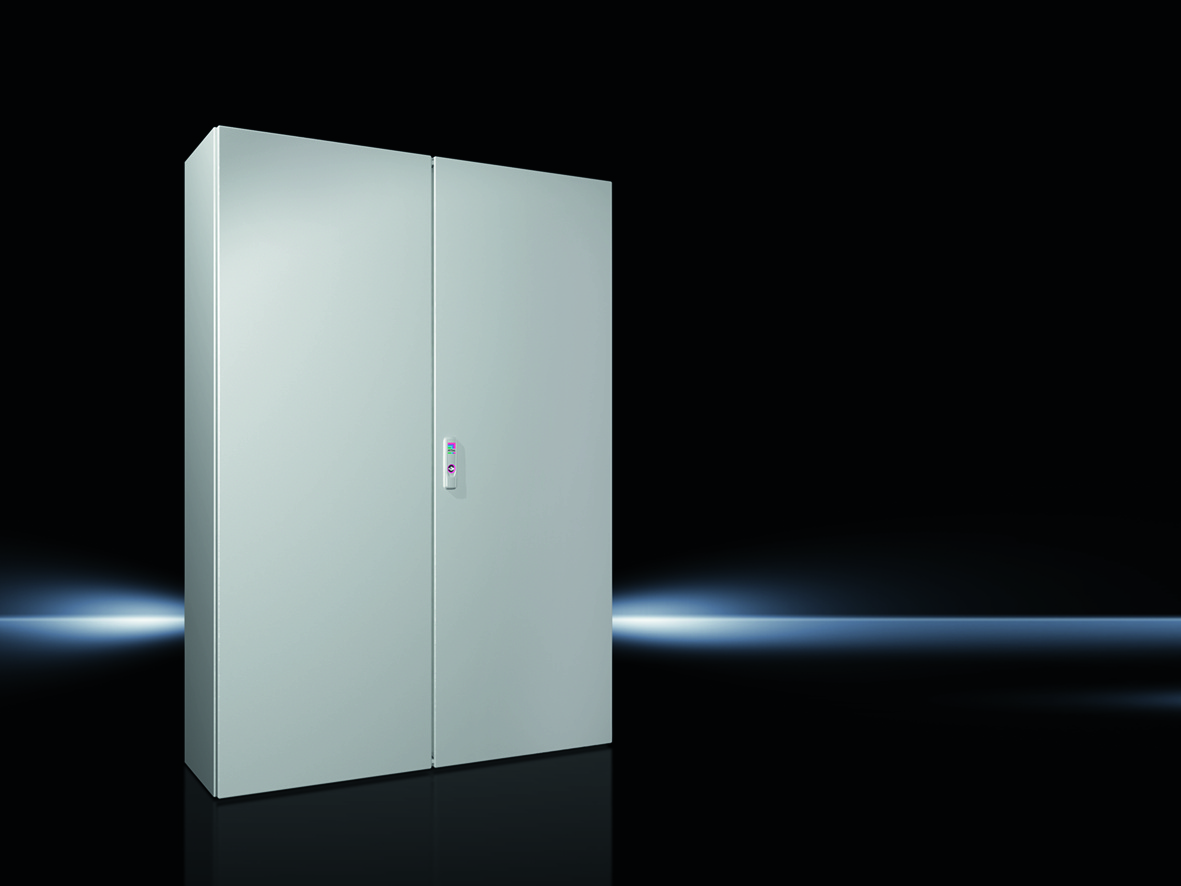

Rittal 1114000 Compact enclosure AX, 2-door, 1000x1400x300 mm,
|
458,92 EUR |
|
|
( 546,11 EUR incl. VAT ) ≈ £384.12 | ≈ $504.35 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598146 |
| Mfg Part No: | 1114000 |
| UPC/EAN: | 4028177813199 |
| Weight: | 88.5 kg |
| Type: | AX 1114000 |
Product information for Rittal 1114000:
Applications
This enclosure is suitable for use in indoor environments and in areas with low to moderate contamination risk. It meets protection class IP 55 according to EN 60 529, meaning it is dust-tight and splash-proof, and is therefore also suitable for outdoor use, provided there is no direct rainfall exposure. Protection classes NEMA 1 and NEMA 12, as well as Type rating according to UL 50E (Type 1, Type 12), make it suitable for use in dry indoor environments and areas with light contamination. The IK code IK10 ensures high mechanical protection against mechanical impacts.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.5 mm, and the doors are made of 2 mm thick sheet steel. The mounting plate has a material thickness of 2.5 mm. The integrated enclosure lugs in a 25 mm system grid allow flexible and secure mounting of internal components without drilling. This patented system enables easy and quick installation of accessories. The base mounting strip provides an additional mounting level and increases load capacity. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with ring weld nuts.
Technology Explained Simply
The integrated enclosure lugs in a 25 mm grid allow mounting of rails and accessories without drilling, thus maintaining the protection rating (UL approval). The continuously foamed PU seal on the doors ensures a tight closure, preventing dust and splashing water. The 3-point locking system ensures secure and stable latching. The door can be opened up to 130°, with an option to upgrade to 180°. The gland plates in the enclosure base are used for secure fastening of cable entries.
Compatibility and Accessories
The enclosure is compatible with a comprehensive range of system accessories. Compatible accessories include lock inserts made of zinc die-cast, TS mounting rails for internal and external mounting levels, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, KL, VX system chassis, plinth trim panels and plinth elements, as well as stainless steel protection hoods. These components allow individual adaptation of the enclosure to specific requirements.
Mounting and Installation
Mounting is done via the integrated enclosure lugs and the base mounting strip. The mounting plate is included in the delivery and is fastened with ring weld nuts. The doors are equipped with reversible hinges, enabling flexible installation. The door hole strip facilitates installation of control elements. The gland plates in the enclosure base allow secure fastening of cable entries.
Operational Advantages
The enclosure offers high mechanical stability and high protection against dust and splashing water. The integrated enclosure lugs allow flexible and secure mounting of internal components without drilling. The 3-point locking system ensures secure latching. The mounting plate with keyhole slots and dimension markings simplifies installation. The use of sheet steel and powder-coated surface ensures high corrosion resistance. The integrated QR codes on the enclosure body, door, and nameplate enable unique identification and easy access to relevant product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 1.400 mm |
| Depth | 300 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 1.375 mm |
| Number of doors | 2 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 6, Quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 275.27 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
