Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm

Your rating:
Average rating
product review for Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm
( 4.4 / 5 ) 13 ratings
Rittal 8617170
This image may differ from the desired article.
Rittal 8617170Rittal 8617170Rittal 8617170Rittal 8617170Rittal 8617170Rittal 8617170Rittal 8617170
115,00 EUR
( 136,85 EUR incl. VAT )
≈ £96.26  |  ≈ $126.38
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm
Datasheet:file_download Download
Lieske Part No.:1441090
Mfg Part No: 8617170
UPC/EAN: 4028177829176
Weight:5.8 kg
Type:VX 8617.170

Product information for Rittal 8617170:

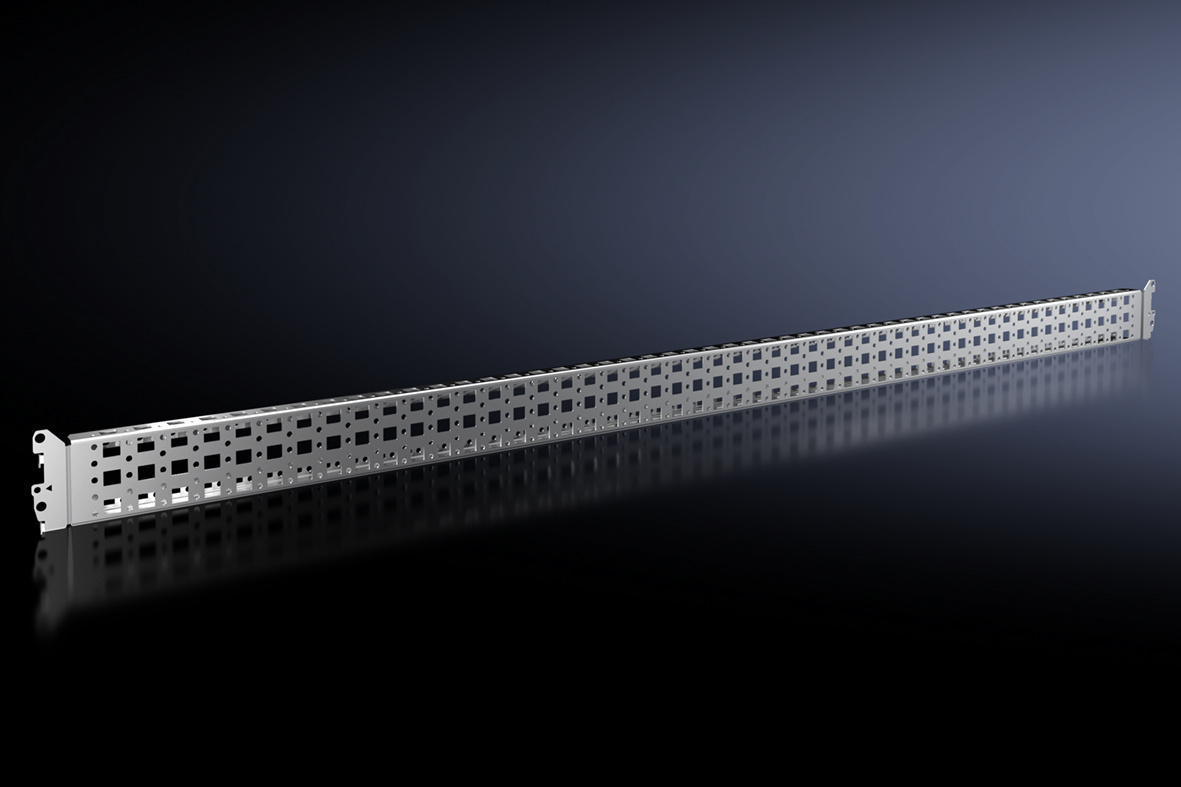

The Rittal VX 8617.170 is a system chassis made of steel sheet with a galvanized surface, specifically designed for variable and individual interior fitting of enclosure frames. It is intended for mounting on the inner mounting plane in compact enclosures and is designed for a cabinet height of 1400 mm. The chassis has dimensions of 23 x 64 mm and enables flexible integration into various enclosure types, particularly in housing types VX, VX IT and AX. Installation is carried out by inserting into the system perforation and then screwing, ensuring secure fastening.

Applications
This system chassis is intended for use in industrial enclosures where modular and adaptable interior fitting is required. It is particularly suitable for applications where additional components such as controls, power electronics or network devices must be installed on a stable mounting surface. Installation options include cabinets of type VX with a height of 1400 mm, as well as AX housings of the same height. For AX models, the use of the AX interior fitting rail and the base fitting rail is required. For AX stainless steel housings, the base fitting rail is required.

Functions and Equipment in Detail
The chassis features system perforation on all four sides, enabling flexible mounting of components. At the top and bottom, special perforations for cage nuts are integrated, supporting the fastening of custom components using metric screws. This facilitates the installation of devices that do not offer a standardized mounting surface. The delivery includes fastening material required for installation. The packaging unit is 4 pieces.

Technology Explained Simply
The system chassis is made of steel sheet and galvanized to prevent corrosion and ensure a longer service life. The galvanized surface provides protection against environmental influences, especially in industrial environments. The dimensions of 23 x 64 mm refer to the mounting surface, which corresponds to the standard perforation of Rittal enclosure frames. Mounting is done by inserting into the predefined perforations and then screwing, achieving a stable and secure fastening.

Compatibility and Accessories
The chassis is compatible with enclosure types VX, VX IT and AX with a height of 1400 mm. For AX models, the use of the AX interior fitting rail and the base fitting rail is required. For AX stainless steel housings, the base fitting rail is required. Suitable accessories include cable ties with a length of 150 mm, which can be used to secure cables and wiring inside the enclosure.

Mounting and Installation
Mounting is done by inserting the chassis into the system perforation of the inner mounting plane and then screwing. The integrated perforations on all four sides, as well as the cage nut perforations at the top and bottom, enable flexible and stable fastening of additional components. The use of the included fastening material ensures secure installation. Installation requires no additional tools other than a screwdriver or suitable wrench.

Advantages in Operation
The system chassis offers a flexible and modular solution for interior fitting of enclosures. The integrated system perforation and cage nut perforations enable quick and secure mounting of components. The galvanized surface ensures high corrosion resistance, extending the service life of the chassis in industrial environments. Compatibility with various enclosure types increases application flexibility and reduces the need for special adaptations.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting options VXIn cabinet height 1400 mm, on the inner mounting plane
Mounting options AXIn housing height 1400 mm, in conjunction with the rail for indoor installation AX and floor installation rail for AX
Mounting options AX stainless steelIn housing height 1400 mm, in combination with floor mounting rail
Suitable forEnclosure type: VX, VX IT, AX, Suitable for width or height or depth: 1,400 mm
PCF/VE (Cradle-to-Gate)31,04


Product data sheet
Datasheet for Rittal 8617170, EAN: 4028177829176

Questions & answers

What is the delivery time of Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm?

The article Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617170 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617170 VX system chassis 23 x 64 mm W x H x D: 1400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
