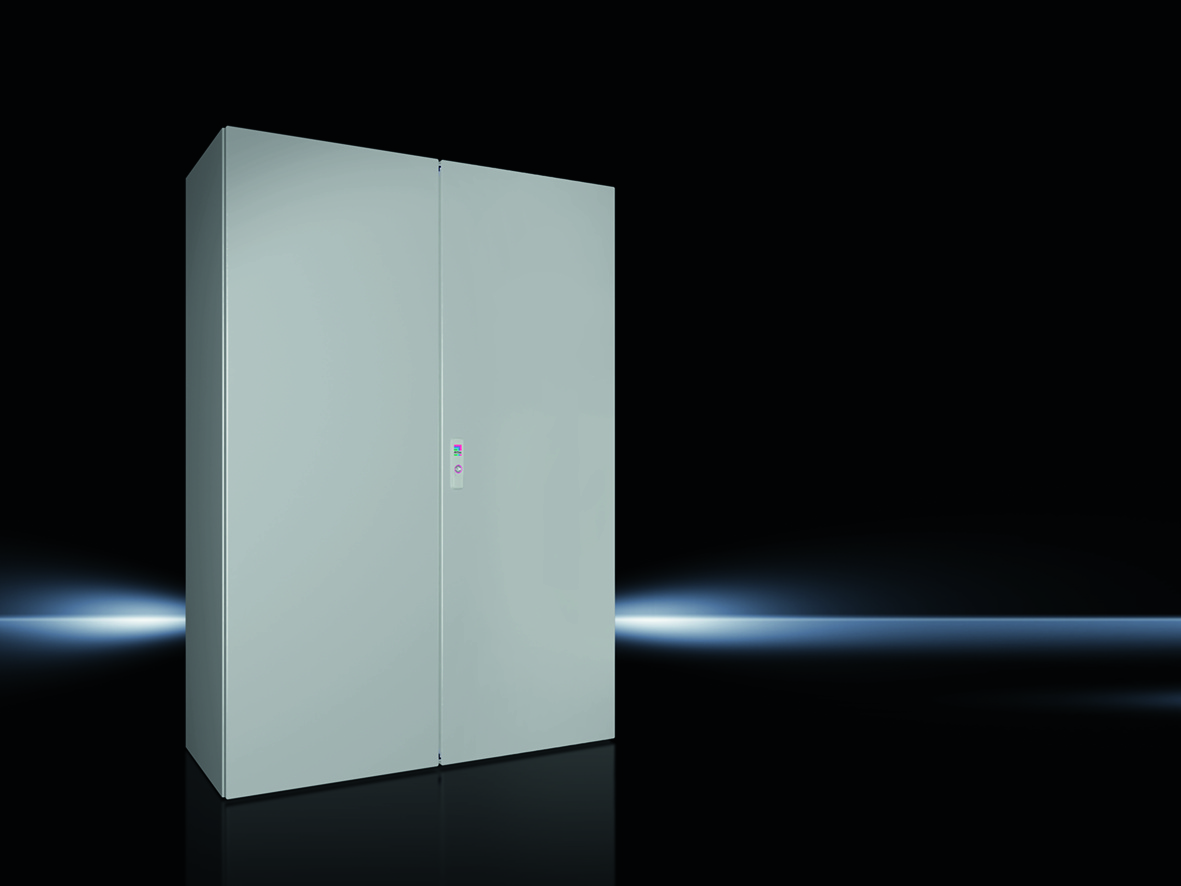

Rittal 1115000 Compact enclosure AX, 2-door, 1000x1400x400 mm
|
-5% 563,62 EUR 596,09 EUR |
|
|
( 670,71 EUR incl. VAT ) ≈ £471.75 | ≈ $619.42 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598145 |
| Mfg Part No: | 1115000 |
| UPC/EAN: | 4028177813083 |
| Weight: | 94.5 kg |
| Type: | AX 1115000 |
Product information for Rittal 1115000:
Applications
The enclosure is designed for use in industrial electrical engineering, automation technology, and building automation. It is suitable for housing switching devices, controls, fuses, power semiconductors, and other electrical components. The integrated enclosure lugs in a 25 mm system grid enable flexible and modular interior fitting. These lugs are located on the roof, floor, and side panels, allowing secure mounting of rails and accessories without drilling, thus preserving the protection rating. The floor mounting rail provides an additional mounting level and increases load capacity inside the enclosure.
Functions and Equipment in Detail
The enclosure features a 3-point locking system equipped with a 3 mm double-barrel lock insert. This locking concept ensures secure and stable door latching. The doors are fitted with vertical door hole strips, enabling easy mounting of control panels, viewing windows, or other front elements. The door hinges are reversible, allowing the doors to be mounted to open left or right as required. The mounting plate inside the enclosure is galvanized and features keyhole slots for secure earthing. The mounting plate dimensions are 945 mm (width) × 1375 mm (height). The enclosure floor includes two gland plates of size 6, which can be used for securing cable entries or other components.
Technology Explained Simply
The enclosure construction consists of a single-piece, folded, and welded housing made of sheet steel. The material thickness is 1.5 mm for the housing and 2 mm for the doors. The mounting plate has a material thickness of 2.5 mm. The surface of the housing and doors is dip-primed and externally powder-coated with a textured finish, ensuring high corrosion resistance and resistance to mineral oils and lubricants. The color is RAL 7035, a gray-beige tone commonly used in industrial environments. The doors open up to 130° according to VDI, with an option for retrofitting to 180°. A QR code is printed on the body, door, and type plate to enable unique identification and easy access to product information and documentation.
Compatibility and Accessories
The enclosure is compatible with the Rittal RiPanel configurator, which enables easy planning and configuration of interior fittings. Suitable accessories include lock inserts made of zinc die-cast, wall mounting brackets, dust protection strips, baying sets for AX, KX, AE, and KL, mounting rails for internal and external mounting levels, VX system chassis, plinth trim panels and elements, and the AS Multitool AX/VX. These components extend the functionality of the enclosure and allow individual adaptation to specific requirements.
Mounting and Installation
Mounting is performed via the integrated gland plates in the enclosure floor, suitable for securing to a wall or base. The internal mounting plate is fastened with ring weld nuts and provides a stable base for installing components. Interior fitting is done using the integrated enclosure lugs and rails, which can be mounted without drilling. This simplifies installation and maintenance and ensures the protection rating remains unaffected.
Operational Advantages
The enclosure offers high flexibility in interior fitting through the 25 mm system grid and modular construction. The integrated lugs and rails enable quick and secure mounting of system components. The robust construction from sheet steel and high mechanical resistance (IK10) ensure long service life. The secure locking via the 3-point locking system and IP 55 protection rating protect installed components from dust and water. Integrated earthing options and the keyhole slots on the mounting plate facilitate electrical safety and maintenance.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 55 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Width | 1.000 mm |
| Height | 1.400 mm |
| Depth | 400 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 945 mm x 1.375 mm |
| Number of doors | 2 |
| Lock | Closure type: 3-point locking system, number of closures: 1, closure insert: 3 mm double barb |
| Flange plate | Size: 6, Quantity: 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 300.41 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
