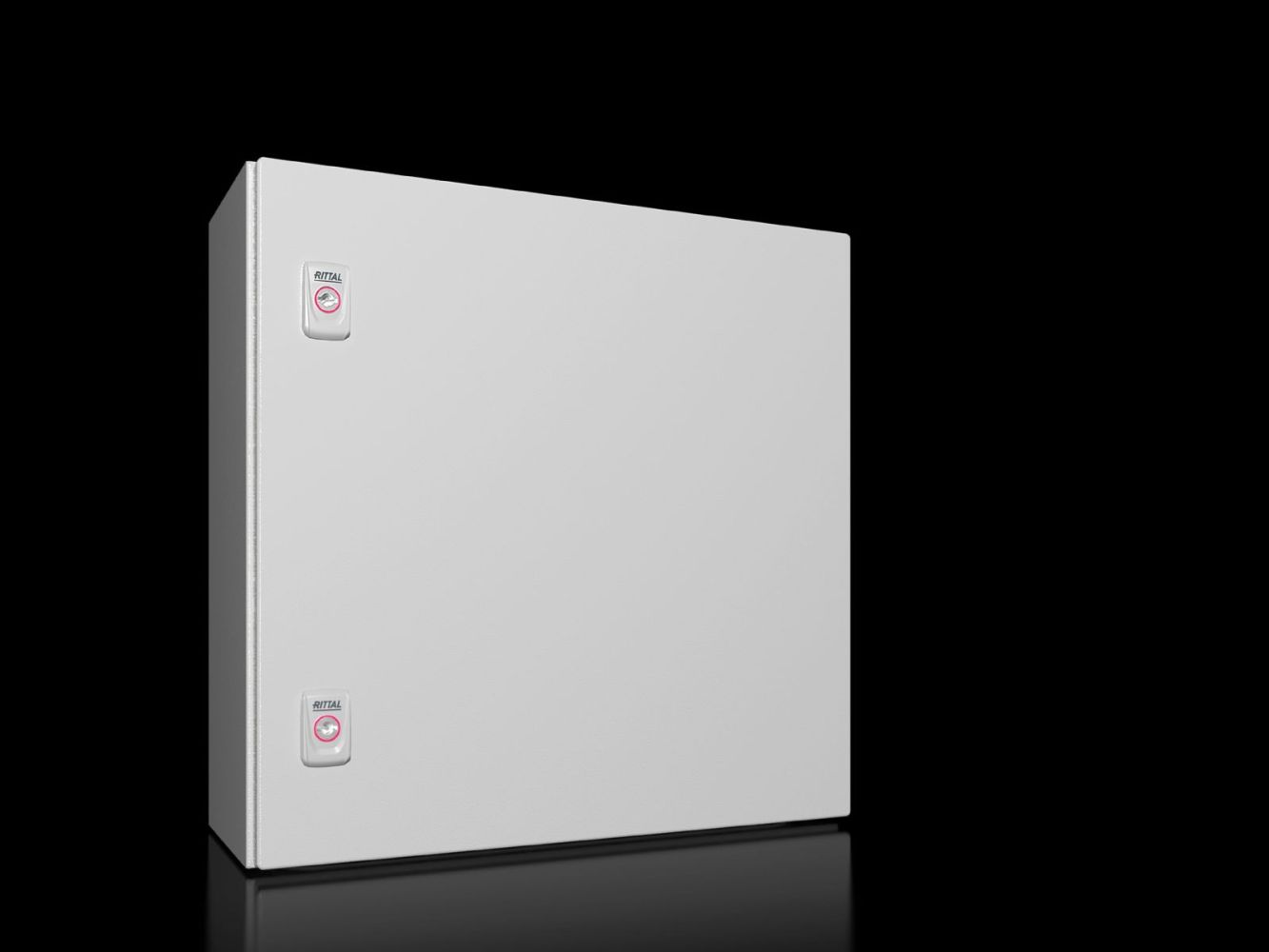

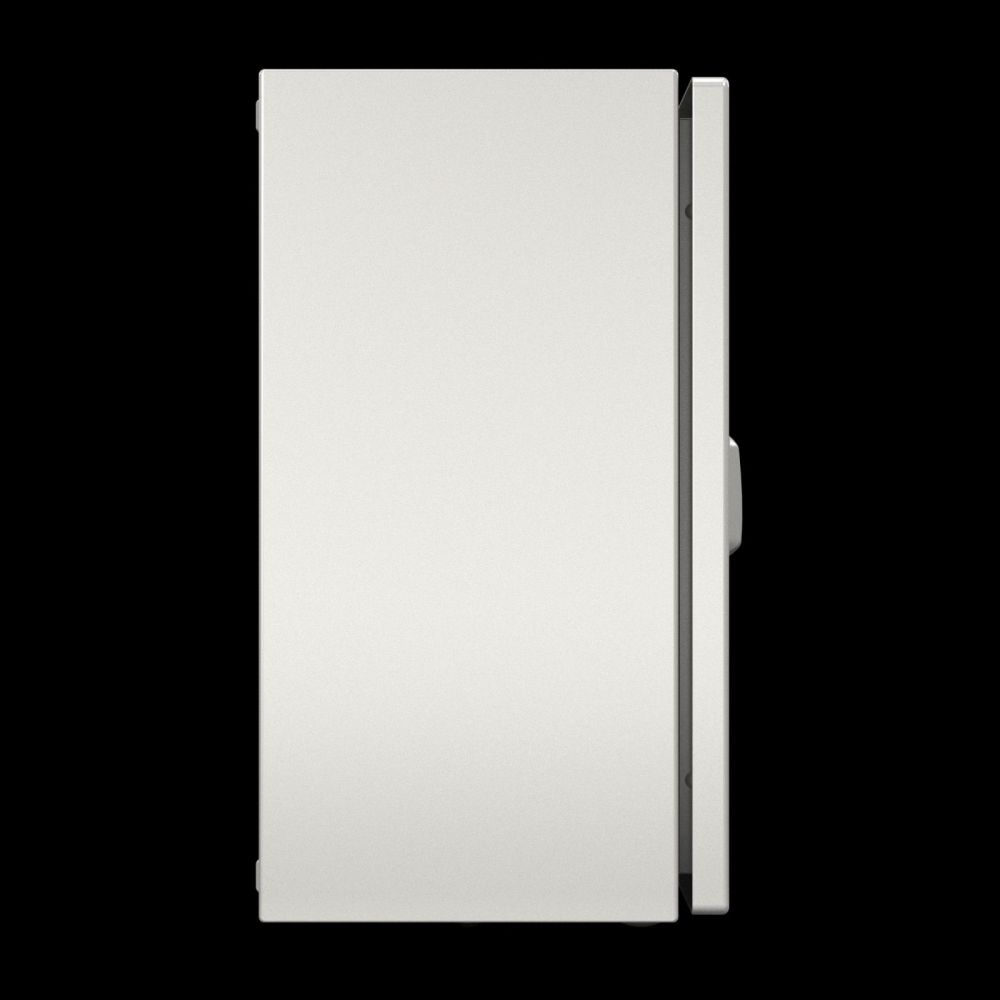

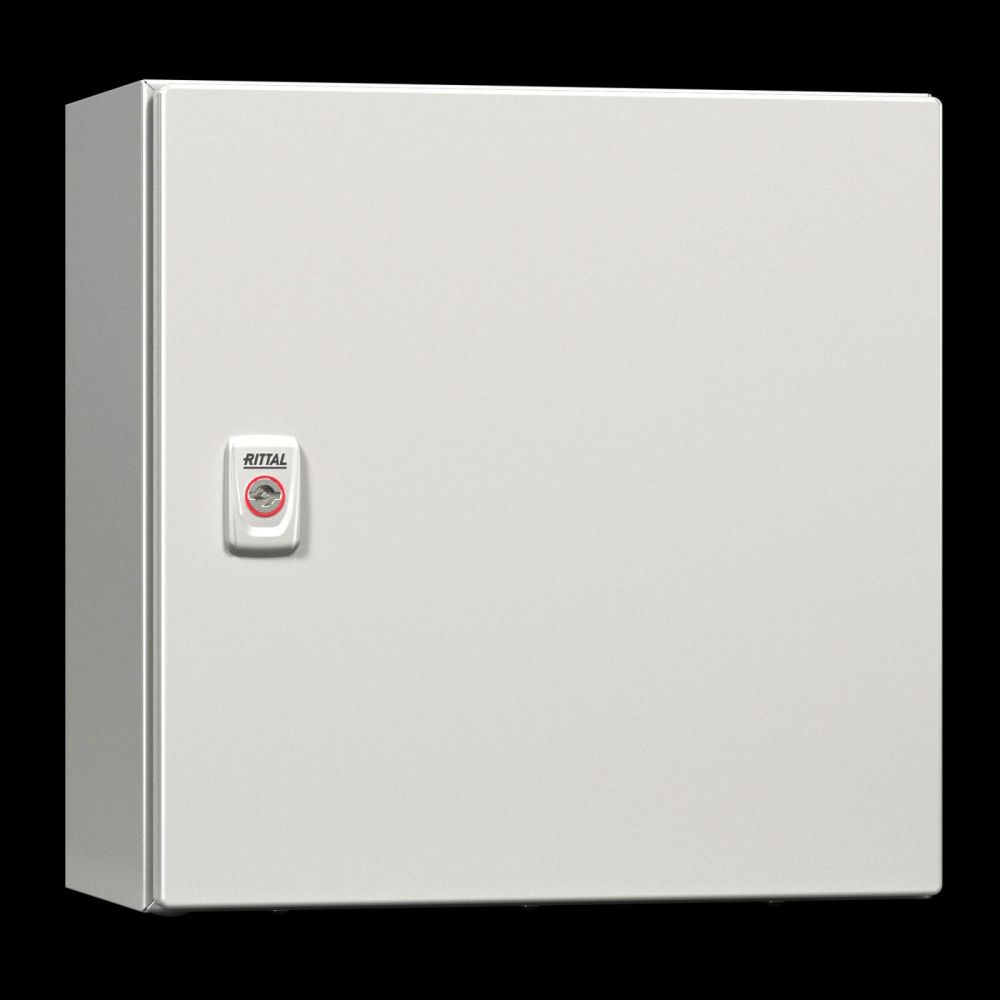

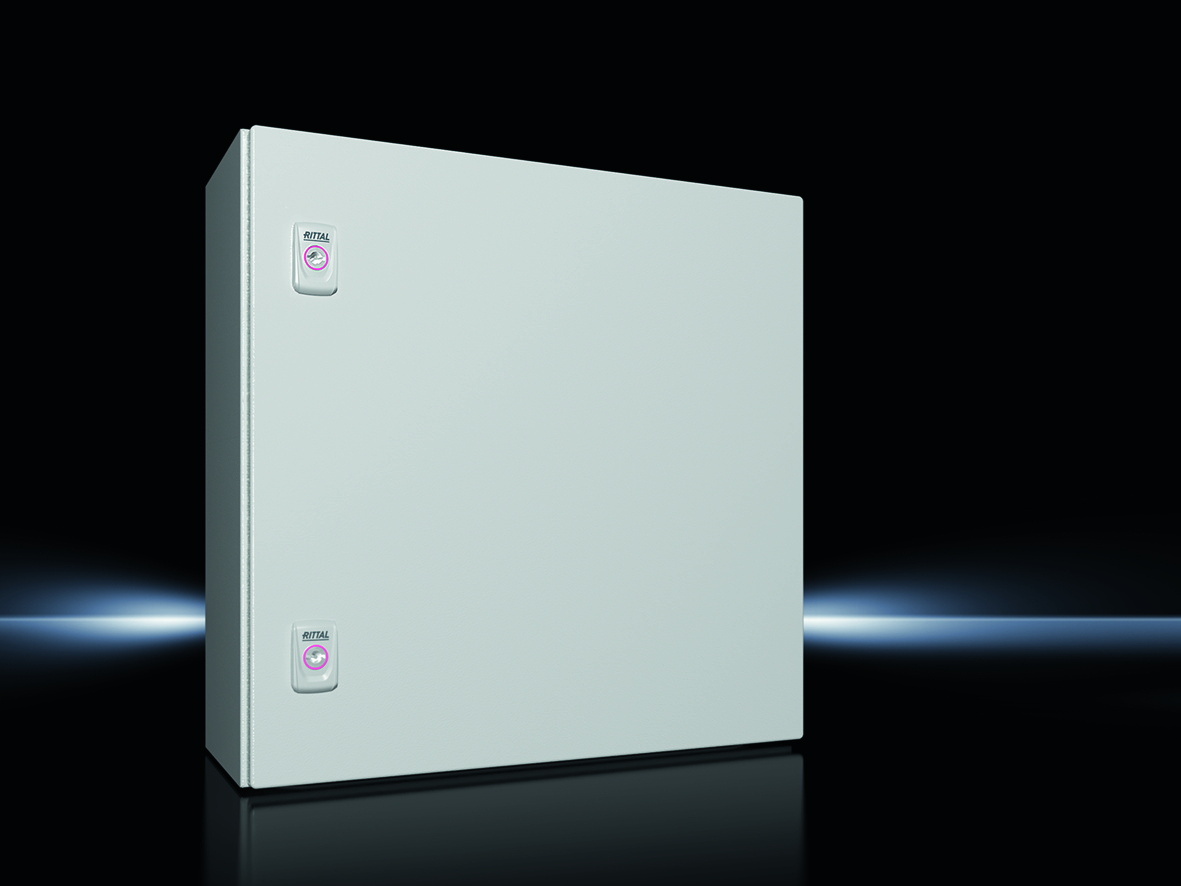

Rittal 1050000 Compact enclosure AX W x H x D 500x500x210 mm IP66
|
100,28 EUR 100,82 EUR |
|
|
( 119,33 EUR incl. VAT ) ≈ £83.93 | ≈ $110.21 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598210 |
| Mfg Part No: | 1050000 |
| UPC/EAN: | 4028177813397 |
| Weight: | 15.42 kg |
| Type: | AX 1050000 |
Product information for Rittal 1050000:
Applications
This enclosure is designed for use in industrial environments where high mechanical loads, dust, splashing water or short-term immersion may occur. It is suitable for applications in manufacturing technology, automation technology, power supply or machine building. The protection rating IP 66 according to EN 60 529 ensures dust-tight and watertight shielding, even under heavy splashing water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for indoor and outdoor use under various environmental conditions. The IK code IK10 indicates high mechanical resistance against impact and shock.
Functions and Equipment in Detail
The enclosure features integrated housing lugs in the roof, base and side panels, which correspond to the 25 mm system grid. This allows for easy and secure installation of internal mounting rails and other system accessories without drilling. The base mounting rail provides an additional mounting level and increases load capacity. The door is equipped with two deadbolt locks, ensuring a secure closure. The door hinges are reversible, allowing the door to be mounted to open on the right or left. The opening angle is 130° according to VDI, with an option to upgrade to 180°. The mounting plate features grounding keyhole slots and dimension markings and is secured with ring weld nuts.
Technology Explained Simply
The integrated housing lugs in the 25 mm grid enable modular and flexible internal equipment. System components such as rails, cable entries or mounting plates can be installed without drilling, preserving the protection rating (e.g. IP 66). The PU seal ensures a tight seal for the door, which remains stable even under temperature fluctuations and mechanical stress. The powder-coated surface provides high corrosion protection and is suitable for use in harsh environments. The galvanized mounting plate ensures secure fixation of components and enables grounding via the keyhole slots.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. Compatible accessories include lock inserts made of zinc die-cast, lock box covers, mounting brackets for internal and external mounting levels, wall mounting angles, dust protection strips, baying sets for AX, KX, AE, KL, and stainless steel protection roofs. The mounting brackets allow flexible fixation of components on the inner side of the enclosure. The wall mounting angles enable secure wall mounting. The dust protection strip protects the door opening from dust and contamination. The baying sets allow multiple enclosures to be combined into a row.
Installation and Mounting

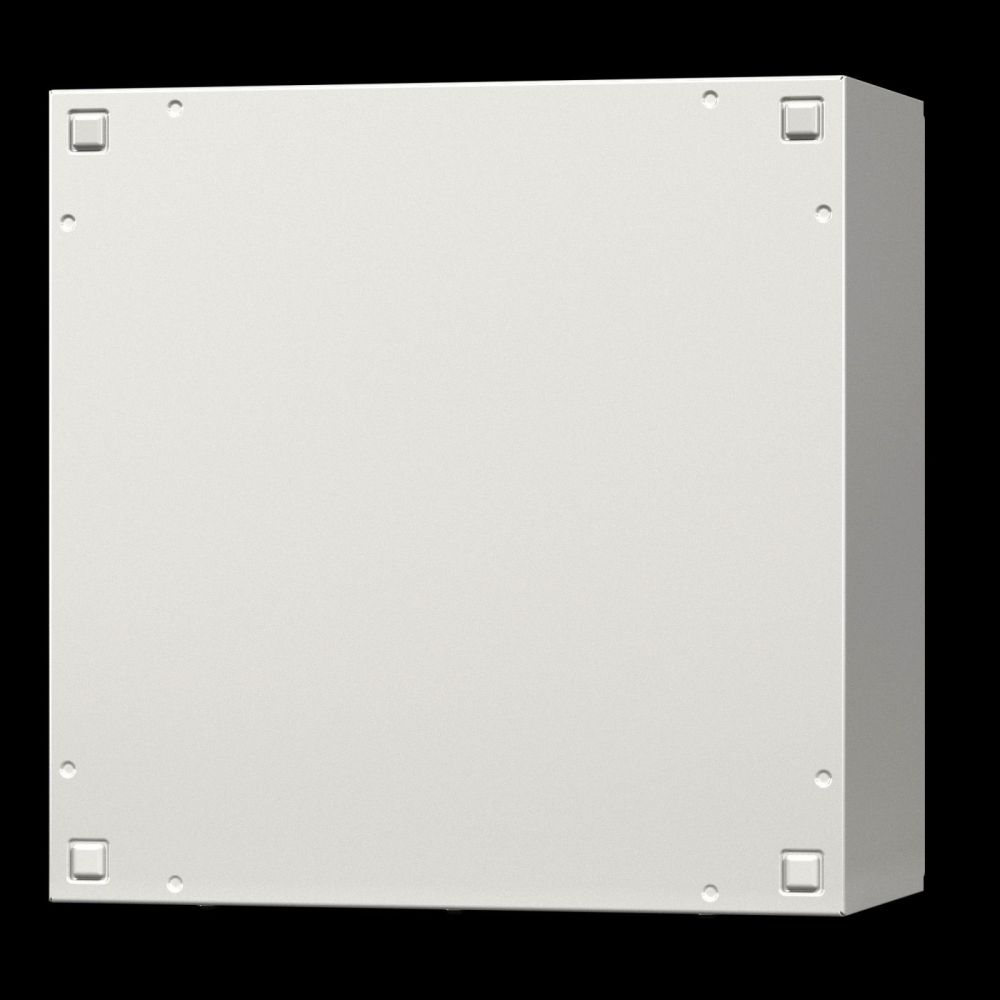

Mounting is done via the designated openings in the enclosure base, designed for securing wall brackets. The mounting plate is included in the delivery and is fastened with ring weld nuts. The door can be mounted to open on the right or left, depending on requirements. Internal equipment is installed using the integrated housing lugs and rails, with no drilling required. Planning and configuration can be done using the Rittal configurator RiPanel to determine the optimal equipment.
Operational Advantages
The enclosure offers high mechanical and chemical resistance due to material selection and surface treatment. The integrated housing lugs and drill-free installation of internal mounting rails increase flexibility and reduce installation time. The protection rating IP 66 and NEMA approvals enable use in harsh environments. The reversible door hinges and the option for 180° opening facilitate access to components. The mounting plate with grounding keyhole slots ensures secure and reliable grounding of installed components. QR codes on the enclosure body, door and nameplate enable unique identification and easy access to product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |

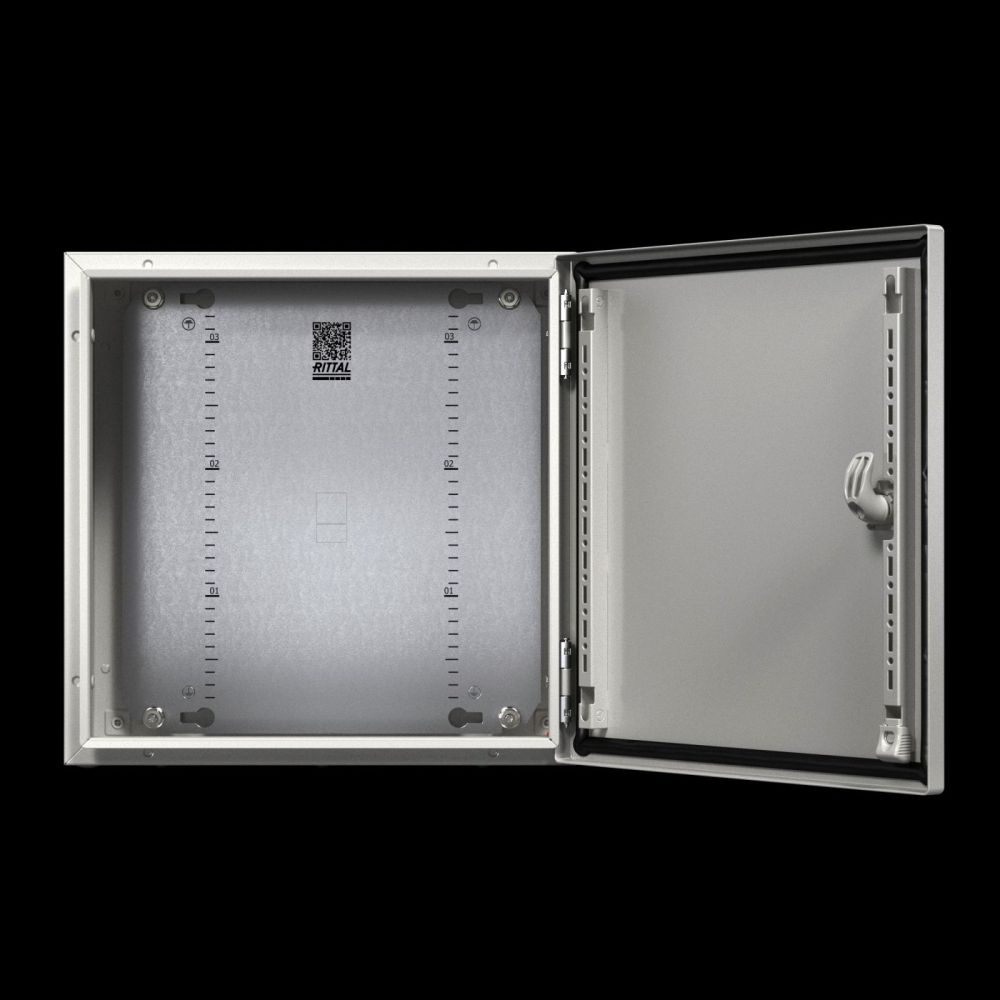

| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 500 mm |
| Height | 500 mm |
| Depth | 210 mm |
| Door material thickness | 1,5 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 450 mm x 475 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 3, quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 67.73 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
Questions & answers
What is the delivery time of Rittal 1050000 Compact enclosure AX W x H x D 500x500x210 mm IP66?
The article Rittal 1050000 Compact enclosure AX W x H x D 500x500x210 mm IP66 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1050000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1050000 Compact enclosure AX W x H x D 500x500x210 mm IP66 always at the best possible price. We can give you a discount of 2% on Rittal 1050000 Compact enclosure AX W x H x D 500x500x210 mm IP66 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
