Rittal 1110000 Compact enclosure AX W x H x D 1000x1000x300 mm IP 55

Your rating:
Average rating
product review for Rittal 1110000 Compact enclosure AX W x H x D 1000x1000x300 mm IP 55
( 4.7 / 5 ) 3 ratings

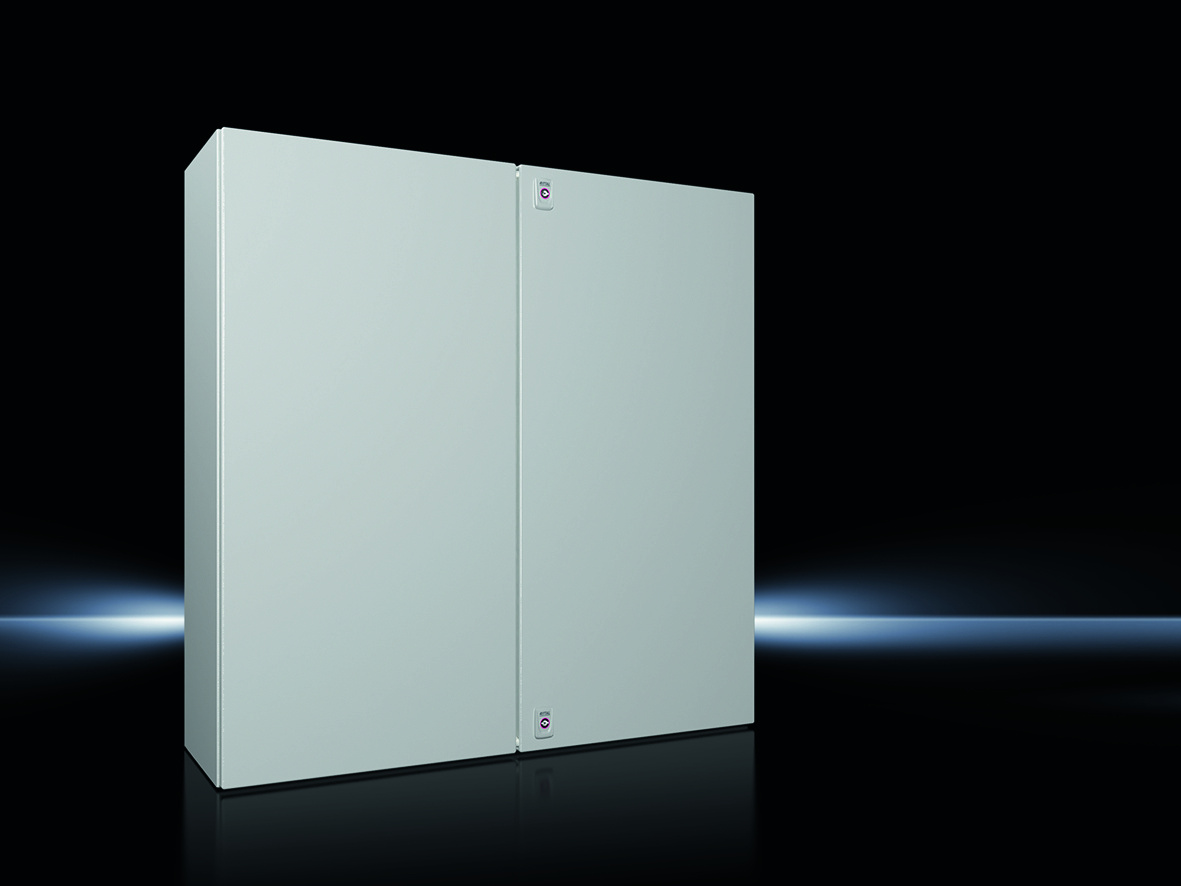

Rittal 1110000
This image may differ from the desired article.
Rittal 1110000Rittal 1110000Rittal 1110000Rittal 1110000Rittal 1110000Rittal 1110000
313,04 EUR
( 372,52 EUR incl. VAT )
≈ £262.01  |  ≈ $344.03
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1110000 Compact enclosure AX W x H x D 1000x1000x300 mm IP 55
Datasheet:file_download Download
Lieske Part No.:1598147
Mfg Part No: 1110000
UPC/EAN: 4028177813212
Weight:65 kg
Type:AX 1110000

Product information for Rittal 1110000:

The Rittal AX 1110000 is a compact enclosure made of sheet steel with dimensions width 1000 mm, height 1000 mm and depth 300 mm. It features two doors equipped with a continuously foamed PU sealing profile to ensure a high degree of protection. The doors are fitted with deadbolt locks featuring a 3 mm double-bolt insert and can be hinged on both sides. The surface of the enclosure and doors is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035. The mounting plate is galvanized and has dimensions 945 mm (W) × 975 mm (H). The delivery includes the enclosure with both doors, two gland plates in the enclosure base, the mounting plate, a door hole strip, and two deadbolt locks with double-bolt insert.

Applications

The enclosure is designed for use in industrial environments where high mechanical strength and protection against dust and splashing water are required. It is suitable for installing control and switching devices in production plants, machine construction, power supply, and other technical installations. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and environments with limited splashing water. The IK code IK10 indicates high mechanical strength against impact and shock.

Functions and Equipment in Detail

The enclosure features integrated housing lugs in a 25 mm system grid on the roof, base, and side panels, mirroring the 25 mm system of the VX25 large enclosure. This enables flexible and quick installation of internal components such as rails and accessories without drilling. The base extension rail provides an additional mounting level and increases load capacity. The doors open up to 130° according to VDI, with an option to retrofit to 180°. Door hole strips on both sides of the doors allow for the attachment of control panels or viewing windows. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with ring weld nuts.

Technology Explained Simply

The use of sheet steel with a material thickness of 1.5 mm for the enclosure and 2 mm for the doors ensures high stability. The mounting plate has a material thickness of 2.5 mm and provides a stable base for device installation. The PU sealing ensures a tight seal and prevents dust and moisture ingress. The deadbolt locks with double-bolt insert provide secure locking and comply with DIN 43668. The integrated housing lugs allow modular expansion without additional drilling, reducing installation time and maintaining the protection rating.

Compatibility and Accessories

The enclosure is compatible with the Rittal RiPanel configurator, enabling easy planning and configuration. Suitable accessories include lock inserts made of zinc die-cast, lock box covers, mounting brackets, wall mounting angles, dust protection strips, baying sets, knob handles, handles with safety cylinder, plinth trim panels, and plinth elements. These components can be used to extend functionality and adapt to specific requirements.

Mounting and Installation

Mounting is done via the integrated housing lugs and the base extension rail. The mounting plate is secured with ring weld nuts. The doors are fitted with hinges ensuring secure attachment. The door hole strips allow for the attachment of additional components. The gland plates in the enclosure base serve for cable entry and are sized 6. Installation is done without drilling, preserving the protection rating and reducing installation time.

Operational Advantages

The enclosure offers high mechanical strength and protection rating, suitable for demanding industrial environments. The modular construction with integrated housing lugs allows flexible and quick adaptation to changing requirements. The use of sheet steel and powder-coated surface ensures high corrosion resistance. The mounting plate with keyhole slots for earthing and dimension markings simplifies device installation. The integrated QR code identification on the enclosure body, door, and type plate enables unique identification and easy access to product information and documentation.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar
NEMA degree of protectionNEMA 1, NEMA 12
Degree of protection IP according to EN 60 529IP 55
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Width1.000 mm
Height1.000 mm
Depth300 mm
Door material thickness2 mm
Plate thickness cabinet1,5 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)945 mm x 975 mm
Number of doors2
Number of locks2
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
Flange plateSize: 6, Quantity: 2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)213.84 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
Reversible door hingeJa


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1110000, EAN: 4028177813212
