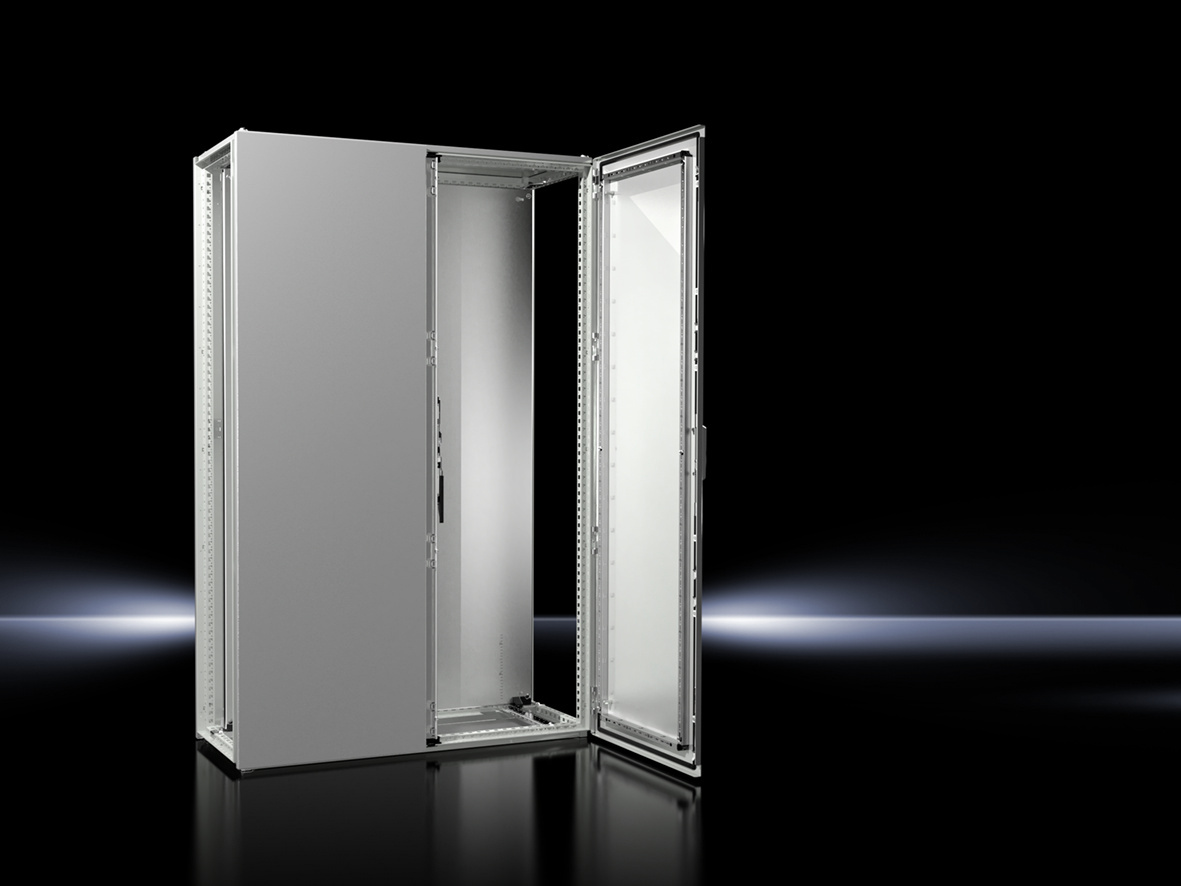

Rittal 8080000 VX bayed enclosure system, 2-door, W x H x D: 1000x1800x400 mm,

Your rating:
Average rating
product review for Rittal 8080000 VX bayed enclosure system, 2-door, W x H x D: 1000x1800x400 mm,
( 4.6 / 5 ) 57 ratings
Rittal 8080000
This image may differ from the desired article.
Rittal 8080000Rittal 8080000Rittal 8080000Rittal 8080000Rittal 8080000Rittal 8080000Rittal 8080000
760,92 EUR
( 905,49 EUR incl. VAT )
≈ £636.89  |  ≈ $836.25
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8080000 VX bayed enclosure system, 2-door, W x H x D: 1000x1800x400 mm,
Datasheet:file_download Download
Lieske Part No.:1440733
Mfg Part No: 8080000
UPC/EAN: 4028177813618
Weight:138.1 kg
Type:VX 8080.000

Product information for Rittal 8080000:

The Rittal VX 8080.000 is an anreih enclosure system made of sheet steel, designed for use in industrial and technical installations. It features a double-door front and is equipped with a mounting plate that enables flexible and efficient installation of components. The dimensions are 1,000 mm width, 1,800 mm height, and 400 mm depth, making it suitable for a wide range of enclosure applications. The system is designed for indoor use as well as environments with increased requirements for protection against dust and splashing water.

Applications
This enclosure system is designed for use in industrial environments where high mechanical stability and protective functions are required. It is suitable for use in production plants, automation technology, power supply systems, and other areas where enclosures are mounted in baying. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor areas with limited weather exposure. Additionally, the device meets the protection ratings NEMA 1 and NEMA 12 as well as Type ratings Type 1 and Type 12 according to UL 50E, confirming its suitability for dry and damp indoor environments. The IK code IK10 guarantees high mechanical protection against impact and shock.

Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, featuring a dip-primed surface. The doors are made of 2.0 mm thick sheet steel and are fitted with a PU foam seal to ensure a tight closure. The doors are standard right-hinged but can be toollessly converted to left-hinged. The locking mechanism consists of a 3 mm double-barrel insert according to DIN 43668, enabling four-point locking. The secondary door is additionally secured with a swing lever for double locking. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.

Technology Explained Simply
The mounting plate made of 3.0 mm thick sheet steel is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features an integrated mounting grid for easy positioning of components. The base plates are divided into three parts, removable and replaceable, allowing flexible adaptation to different floor conditions. The roof plate and rear panel are also made of 1.5 mm sheet steel and fitted with PU foam seals. They are removable and secured with screws, enabling easy maintenance and cleaning. The rear panel includes a positioning aid. The enclosure frame is equipped with integrated blind rivet nuts M6, allowing protection-rated fastening of fittings. All profiles are rounded at the edges, and horizontal profiles feature an additional groove above the seal.

Compatibility and Accessories
The enclosure system is baying-capable on all sides and offers a load capacity of up to 15,000 N. It is equipped with two mounting rails (18 x 39 mm) enabling flexible mounting of components. Various accessories are available, including levelling feet M12, C-profile rails, dust protection strips, transport eyes, circuit diagram pockets, cable entry ferrules in various diameters, multi-locking mechanisms, mounting brackets for internal and external mounting levels, VX base plates in various depths, comfort handles for half cylinders or lock inserts, and side panels. These elements allow individual adaptation of the enclosure to specific requirements.

Installation and Mounting
Installation is carried out using the integrated mounting grid and reusable mounting rails. The mounting plate is depth-adjustable, allowing adaptation to different floor conditions. The base plates are removable and can be replaced as needed. The doors are toollessly convertible, simplifying installation and maintenance. The rear panel and roof plate are removable, ensuring easy access to the interior. Electrical conductivity between frame, rear panel, roof, and base plates ensures automatic equipotential bonding according to DIN 62 208.

Operational Advantages
The enclosure system offers high mechanical stability, reliable protection against dust and splashing water, and flexible mounting and adaptation options. Integrated mounting aids and the mounting grid simplify installation and maintenance. Removable components such as doors, rear panel, and roof plate enable easy maintenance and cleaning. The baying capability on all sides and high load capacity make the system suitable for complex enclosure installations. The surface treatment with dip-primed and powder-coated paint ensures high corrosion resistance. The colour RAL 7035 is a neutral grey tone that integrates well in industrial environments.

General
MaterialCabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionCabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised
ColourRAL 7035
Scope of deliverycabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar
Width1.000 mm
Height1.800 mm
Depth400 mm
Mounting plate dimensions (W x H)899 mm x 1.696 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Number of doors2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)380.08 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8080000, EAN: 4028177813618
